Edelbrock Heat Exchanger Single Pass Single Row 22 000 Btu/Hr 16In W X 16In H X 1 5In D Silver
Edelbrock Heat Exchanger Single Pass Single Row 22 000 Btu/Hr 16In W X 16In H X 1 5In D Silver
A$1,871.93
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
SUPERCHARGER COMPONE

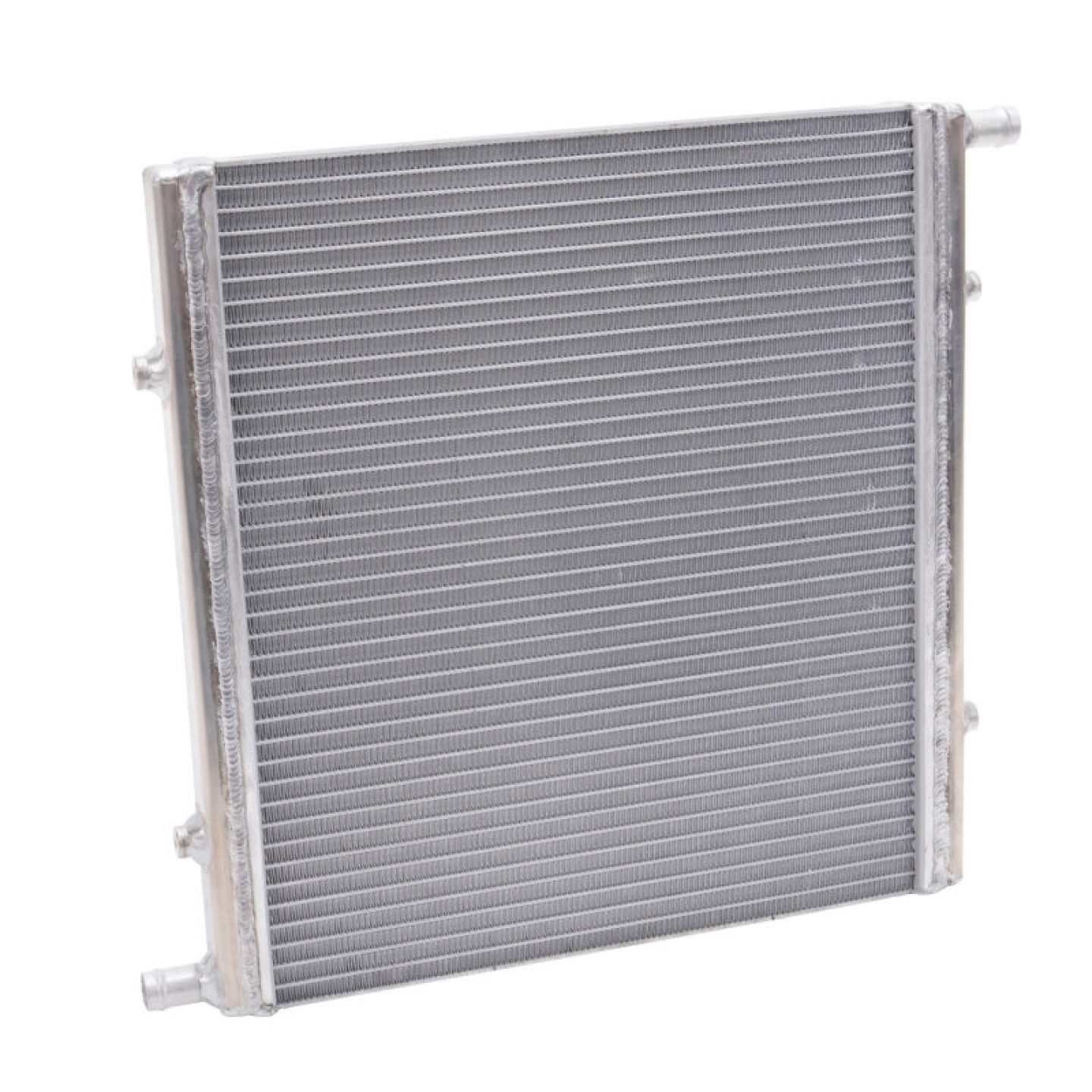

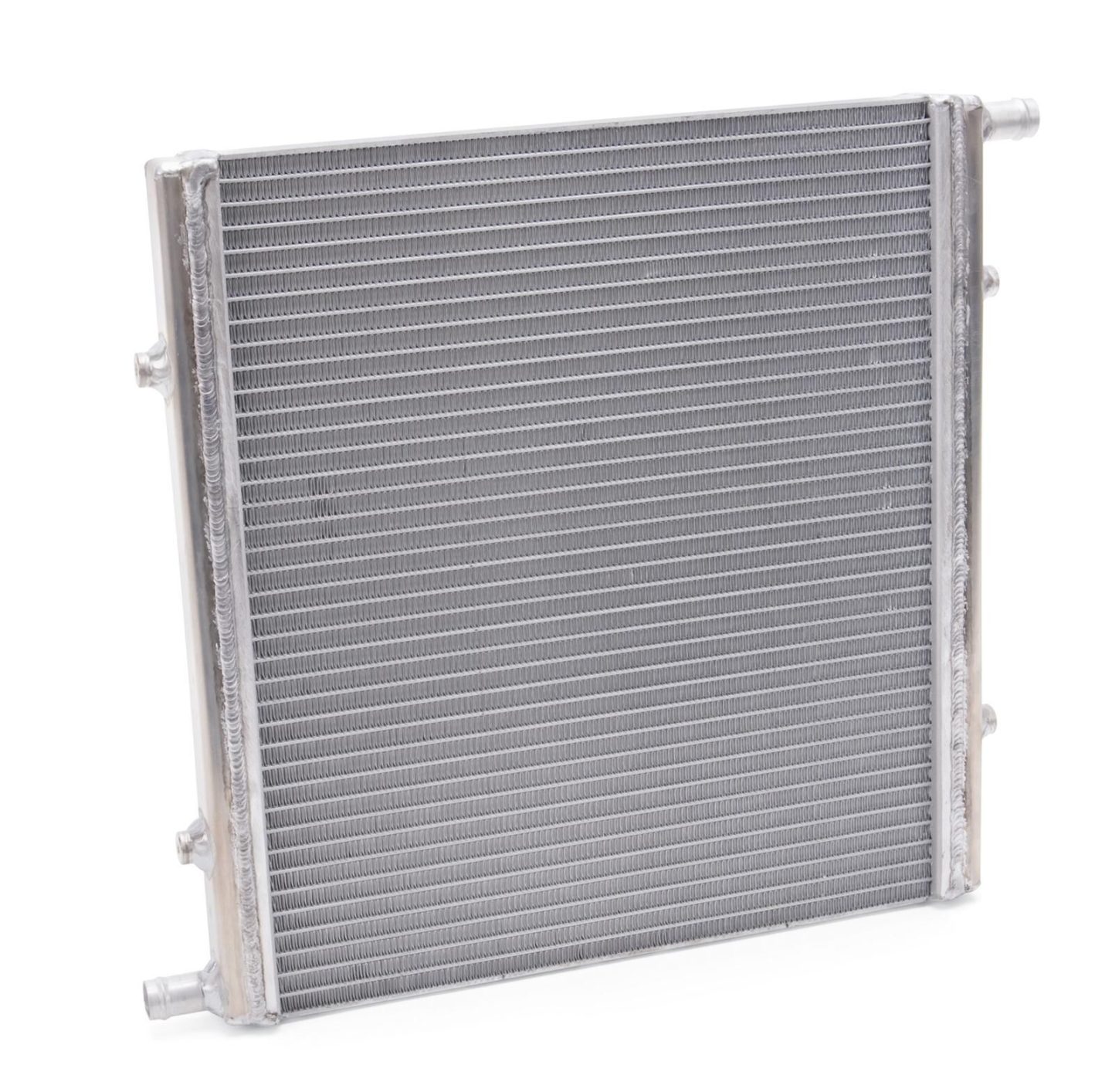

Edelbrock heat exchanger part #15407 is a single pass/single row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15407 is a Single Pass/Single Row Universal Heat Exchanger with the following dimensions (16in. W x 16in. H x 1.5in. D) with 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
Additional Information
HEAT EXCHANGER SC UNIVERSAL 16in. X 16in. SINGLE ROW
Part Type
Supercharger Heat Exchanger
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 00:21:23
Features
- 3/4 Inch Barbed Inlet And Outlet
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| BTU Rating: | 22000 btu/hr |
| Construction: | Single Pass |
| Description: | Supercharger Heat Exchanger |
| Finish: | Natural |
| Grade Type: | Performance |
| Inlet Port Outside Diameter: | 0.75 |
| Inlet Port Quantity: | 1 |
| Length: | 15.71 |
| Material: | Aluminum |
| Mounting Hardware Included: | No |
| Mounting Hole Diameter: | M6 x 1.0 |
| Mounting Hole Quantity: | 6 |
| Outlet Port Outside Diameter: | 0.75 |
| Outlet Port Quantity: | 1 |
| Part Number: | ede15407 |
| Quantity: | Sold Individually |
| Row Quantity: | Single |
| Thickness: | 1.03 |
| Width: | 16.41 |
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Edelbrock |
| StreetFX SKU | ede15407 |
| SFX Item ID | 4236414 |
| Accounting SKU | ede-15407 |
| Manufacturer SKU | 15407 |
| Manufacturer UPC | 85347154074 |
| Alternative References | 15407, EDB15407, EDL-15407 |
Heat Exchanger, E-Force, Single Pass, Aluminum, Natural, Each
These Edelbrock E-Force heat exchangers will help transfer huge amounts of heat from your supercharger. They are available in single pass, single row or dual pass, dual row configurations, so you can choose the one that's best for your forced induction application. The exchangers use a 3/4 in. barbed inlet and outlet and 6Mx1.0 threaded bungs.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 15407 |
| Part Type | Heat Exchangers |
| Product Line | Edelbrock E-Force Heat Exchangers |
| UPC | 085347154074 |
| Heat Exchanger Type | Single pass |
| Heat Exchanger Material | Aluminum |
| Heat Exchanger Color | Black |
| Width (in.) | 15.710 in. |
| Height (in.) | 16.410 in. |
| Depth (in.) | 1.030 in. |
| Heat Exchanger Inlet Size | 0.750 in. |
| Inlet Attachment | Hose barb |
| Heat Exchanger Outlet Size | 0.750 in. |
| Outlet Attachment | Hose barb |
| Fan Included | No |
| Mounting Brackets Included | No |
| Quantity | Sold individually. |
| Notes | Single pass, single row design that provides 22,000 btu/hr. of heat transfer. It also features six 6mm x1.0 threaded bungs for ease of installation. |
| Manufacturer Attributes | |
|---|---|
| Width | 16.41 |
| Quantity | Sold Individually |
| Inlet Port Quantity | 1 |
| Outlet Port Quantity | 1 |
| Mounting Hole Diameter | M6 x 1.0 |
| BTU Rating | 22000 btu/hr |
| Outlet Port Outside Diameter | 0.75 |
| Length | 15.71 |
| Finish | Natural |
| Mounting Hardware Included | No |
| Inlet Port Outside Diameter | 0.75 |
| Construction | Single Pass |
| Grade Type | Performance |
| Row Quantity | Single |
| Mounting Hole Quantity | 6 |
| Material | Aluminum |
| Thickness | 1.03 |
| Product Class | Supercharger Heat Exchanger |
| Construction/Type | Edelbrock part #15407 is a Edelbrock heat exchangers for universal or enforcer supercharger applications, single row in. 16 x in. 16. with 3/4 |
| Vehicle Brief | Universal Heat Exchanger |
| Market Description | Edelbrock heat exchanger part #15407 is a single pass/single row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15407 is a Single Pass/Single Row Universal Heat Exchanger with the following dimensions (16in. W x 16in. H x 1.5in. D) with 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications. |
