SUPERCHARGER COMPONE

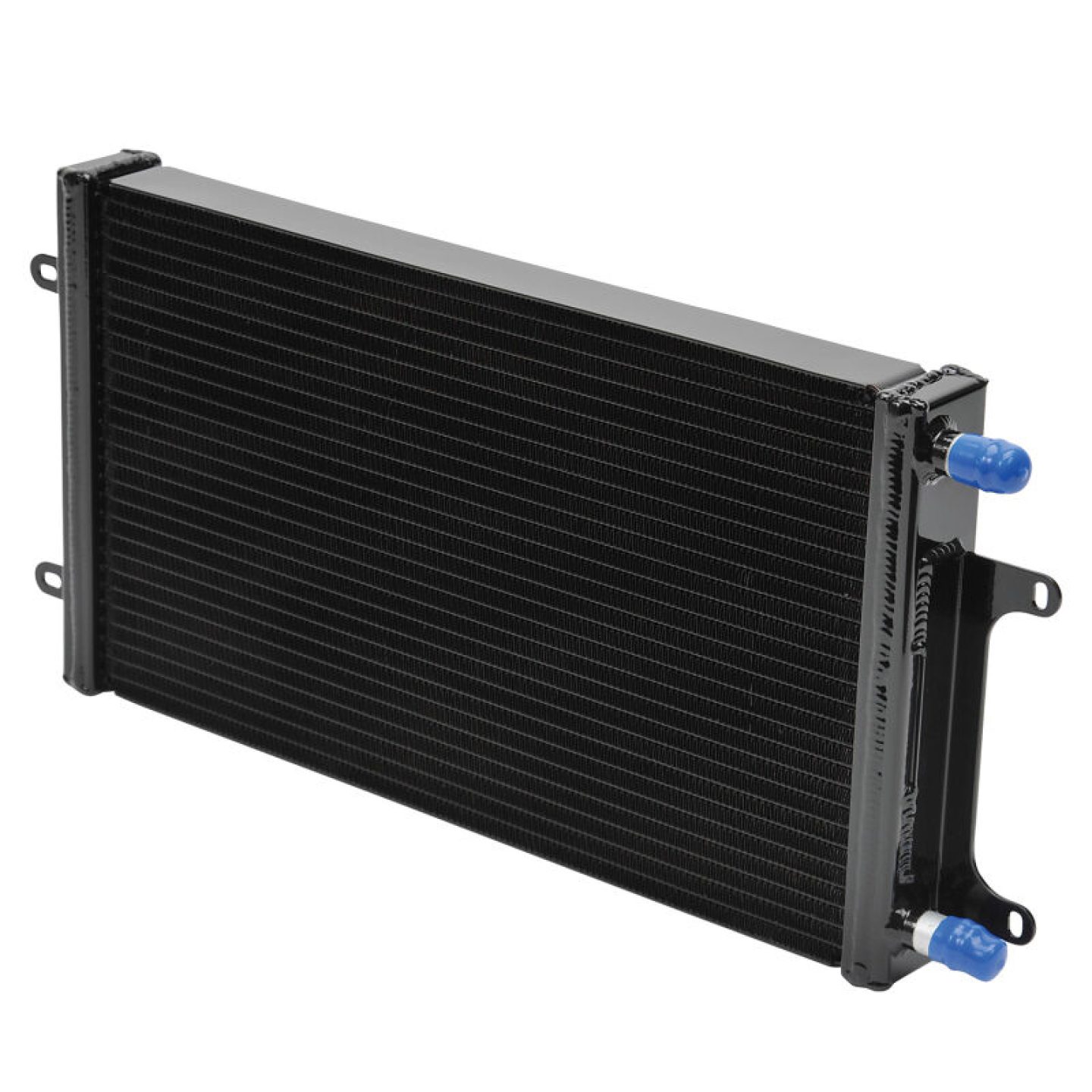

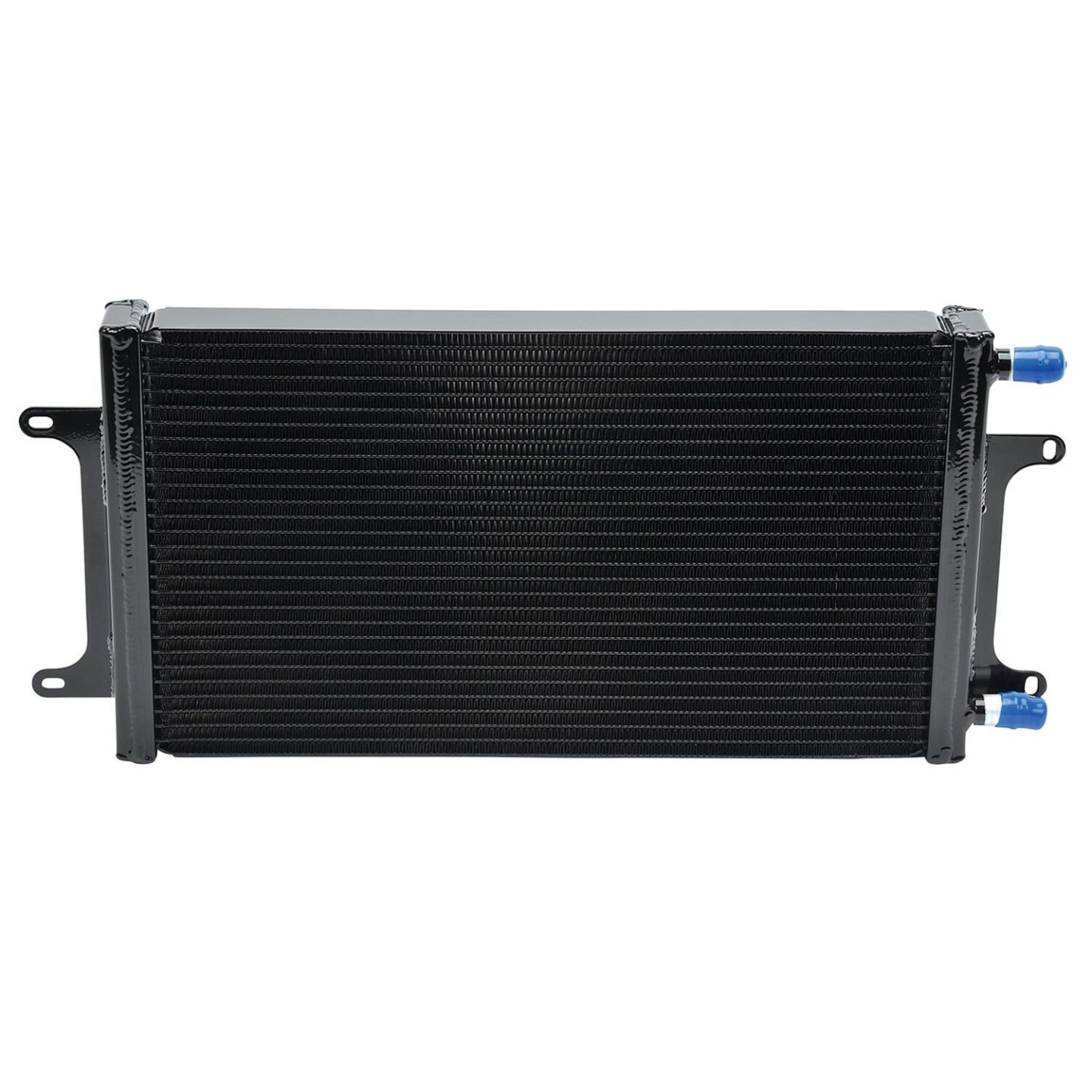

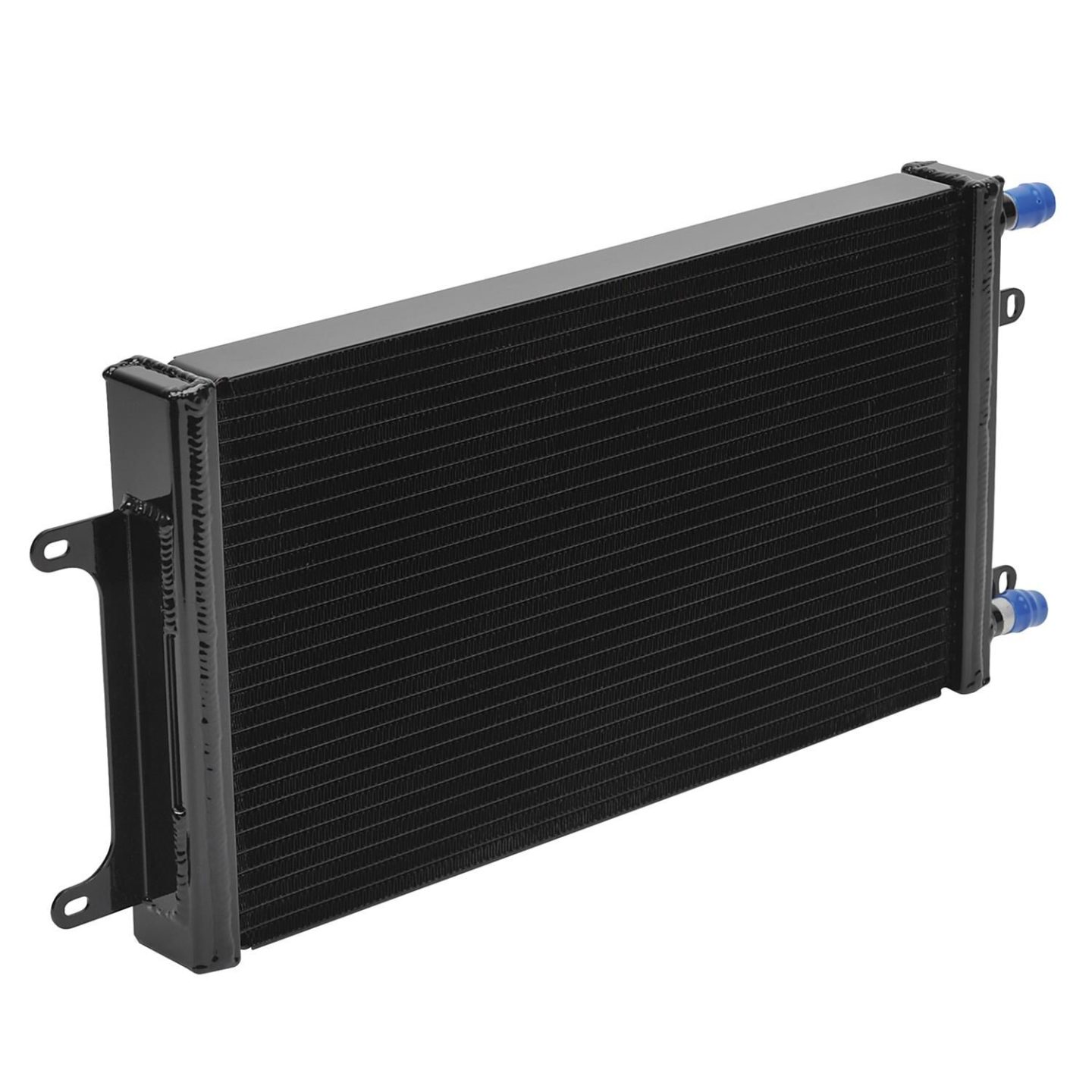

Edelbrock heat exchanger part #15568 is a dual pass/single row design and delivers 27,360 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting and includes brackets. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (20in. W x 10.75in. H x 2.12in. D). Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

Additional Information

HEAT EXCHANGER SC UNIVERSAL 20in.x10.75in.x2.12in. DUAL PASS SINGLE ROW RAW FINISH

• M6x1.0 Threaded Bung For Mounting

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Heat Exchanger, E-Force, Dual Pass, Aluminum, Black, Each

These Edelbrock E-Force heat exchangers will help transfer huge amounts of heat from your supercharger. They are available in single pass, single row or dual pass, dual row configurations, so you can choose the one that's best for your forced induction application. The exchangers use a 3/4 in. barbed inlet and outlet and 6Mx1.0 threaded bungs.
