SUPERCHARGER

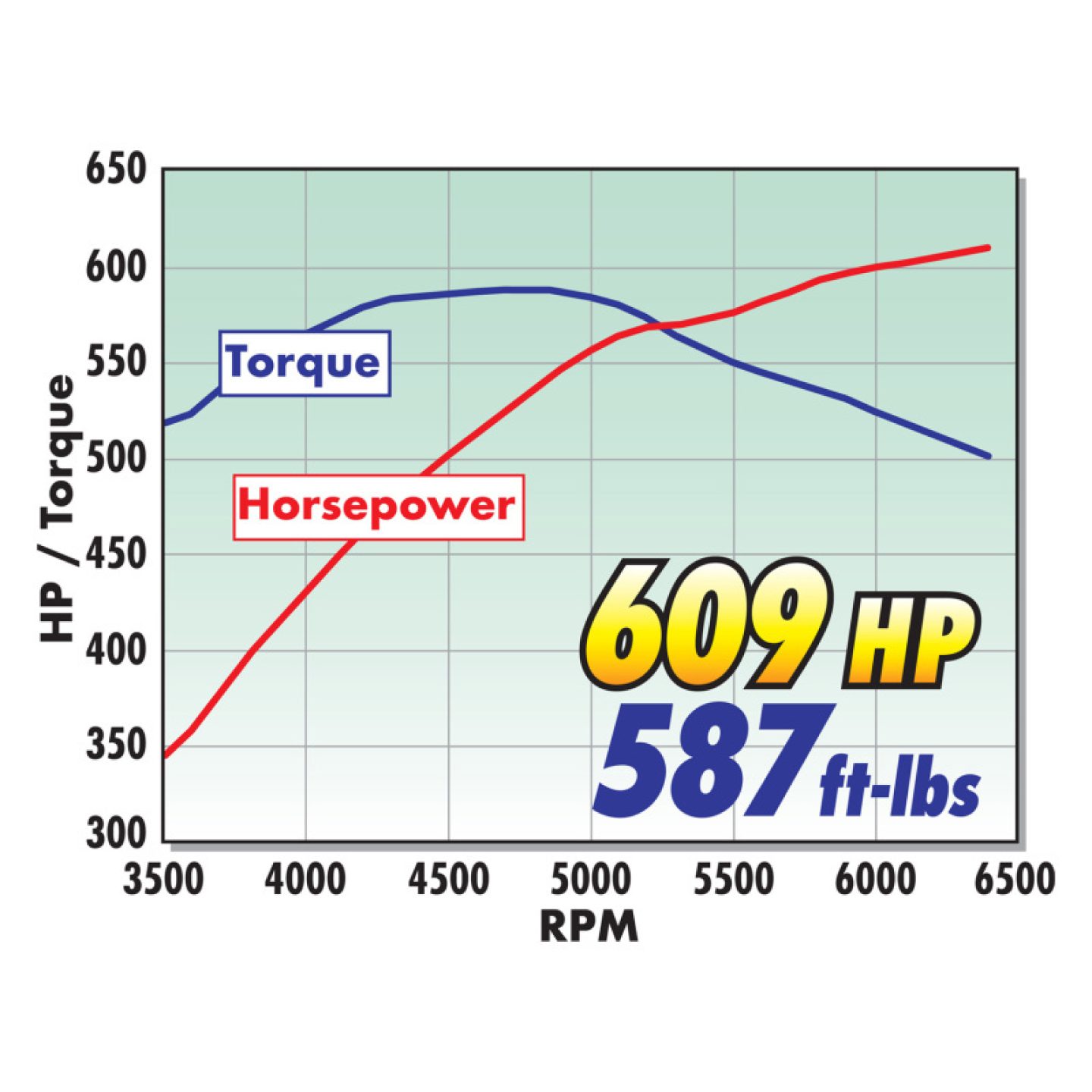

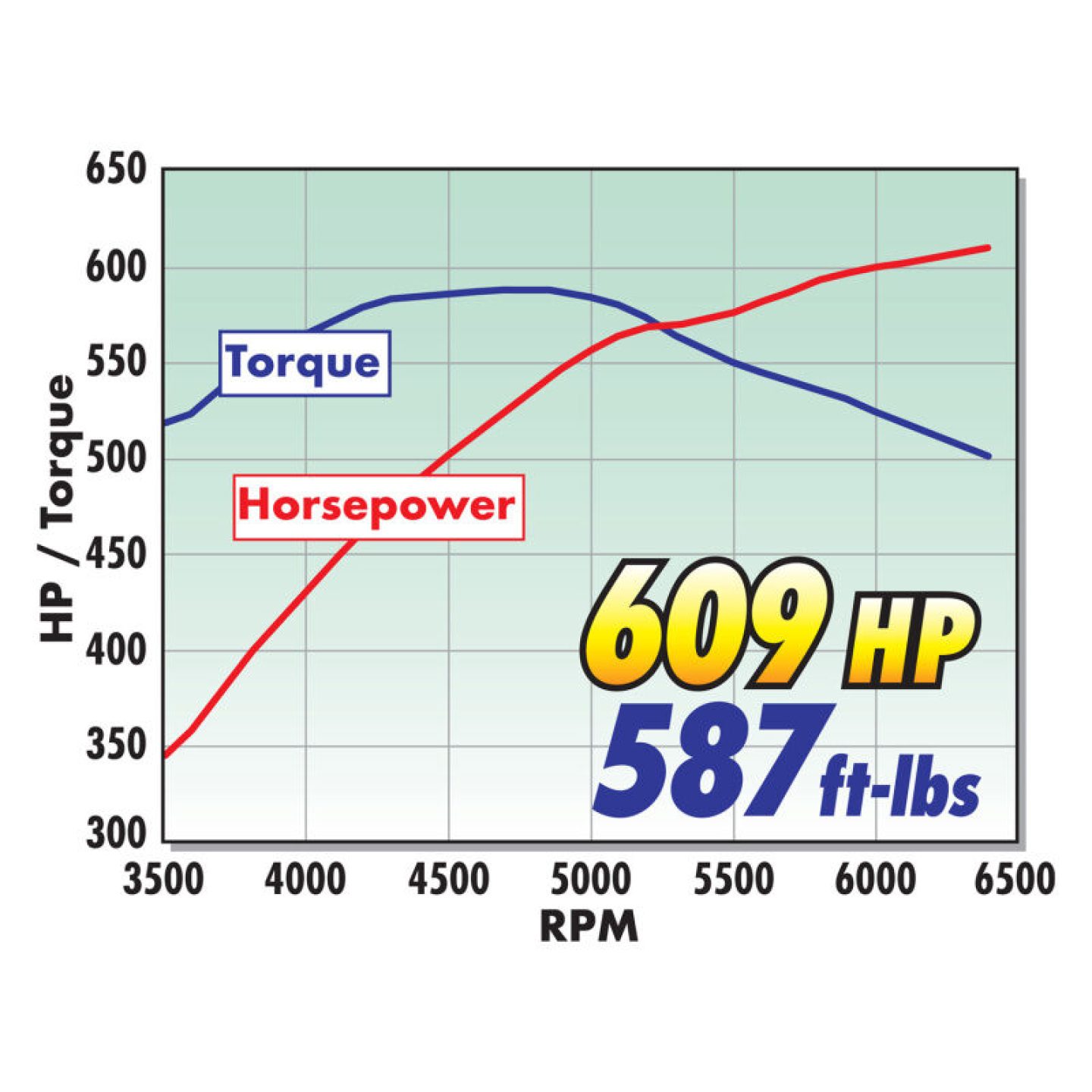

The Edelbrock supercharger #15595 is a 50-state emissions-legal power adder designed for use with the 2016-24 Chevrolet Camaro SS 6.2L LT1. This Stage 1 system features a manifold that houses Eaton's biggest R2650 TVS rotor assembly with 170-degree high-twist lobes, bigger bearings and beefier timing gears for unparalleled efficiency and reliability. This is a true bolt-on supercharger kit that requires no additional modifications to the stock 6.2L engine and fits under the Camaro hood with no cutting or modification. With a dyno-tested output of 609 horsepower and 587 ft-lbs of torque, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. For those who want more power, the R2650 supercharger can support more than 1,000 horsepower at the flywheel with the right combination of parts. The Edelbrock supercharger for the Camaro has a self-contained lubrication system with a 100,000-mile service interval, a high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating. Each #15595 kit comes complete with hand-held tuner, a set of preformed hoses, hardware and a full-color manual that provides step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by Edelbrock's industry-leading 3-year/36,000-mile warranty.

Additional Information

SC R2650 DP3C 2016-18 CHEVY CAMARO 6.2L LT1 DIRECT INJECTION V8 ENGINES AUTO/MANUAL TRANSMISSION

Application Summary

Chevrolet:Small-Block Gen V LT1:376 (6.2L)

Part Type

Supercharger Kit

Product Overview

If you re the owner of a 2016-18 Chevy Camaro SS in search of bolt-on horsepower; our new Edelbrock Supercharger System #15595 is a 50-state emissions-legal power adder designed for use with the 6.2L LT1 engine. This Stage 1 system features an Edelbrock manifold that houses Eaton s biggest R2650 TVS rotor assembly with 170-degree high-twist lobes; bigger bearings and beefier timing gears for unparalleled efficiency and reliability. This is a true bolt-on supercharger kit that requires no additional modifications to the stock 6.2L engine and fits under the Camaro hood with no cutting or modification. With a dyno-tested output of 609 horsepower and 587 ft-lbs of torque; the increase in power comes with little to no loss in fuel economy thanks to our supercharger s integrated bypass valve that mitigates parasitic power loss during normal driving. For those who want more power; the R2650 supercharger can support more than 1;000 horsepower at the flywheel with the right combination of parts. The Edelbrock supercharger for the Camaro has a self-contained lubrication system with a 100;000-mile service interval; a high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating. Each #15595 kit comes complete with hand-held tuner; a set of preformed hoses; hardware and a full-color manual that provides step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by our industry-leading 3-year/36;000-mile warranty.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Little To No Decrease In Fuel Economy

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Material Safety Data Sheet

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Supercharger, E-Force Stage 1 Street System, Eaton TVS2650, Serpentine, Black and Red Powdercoated, DP3C Intercooler, Camaro 6.2L, with Tune, Kit

Edelbrock E-Force Camaro SS Stage 1 street legal supercharger kits transform your Camaro into a force to be reckoned with! The kits utilize Eaton's Gen VI TVS supercharger rotors, featuring a four lobe design with a full 160 deg. of twist for maximum flow, minimum temperature rise, quiet operation, and the reliability for which Eaton is known. The Edelbrock E-Force Camaro SS street legal supercharger kits are a complete system that maximizes efficiency and performance by minimizing air restriction into, and out of, the supercharger. The supercharger housing itself is integrated into the intake manifold for a seamless design with minimal components, eliminating the possibility of vacuum leaks between gasket surfaces. The system also utilizes a front drive, front inlet configuration giving it the shortest, least restrictive inlet path on the market. The upper plenum area is enclosed by a top cover that has been designed to provide an appealing and distinctive under-hood appearance. This configuration allows for a compact package that can fit under the stock hood and cowl of the Camaro, without sacrificing runner length, or intercooler area. Edelbrock E-Force Camaro SS street legal supercharger kits provide neck snapping performance that is safe to operate on a completely stock engine. The kits are 50-state emission legal, and come with a 3-year 36,000 mile warranty (restrictions apply) so that there are no worries when installing it on a brand new car. Claim the streets with the added influence of these E-Force supercharger kits from Edelbrock.
