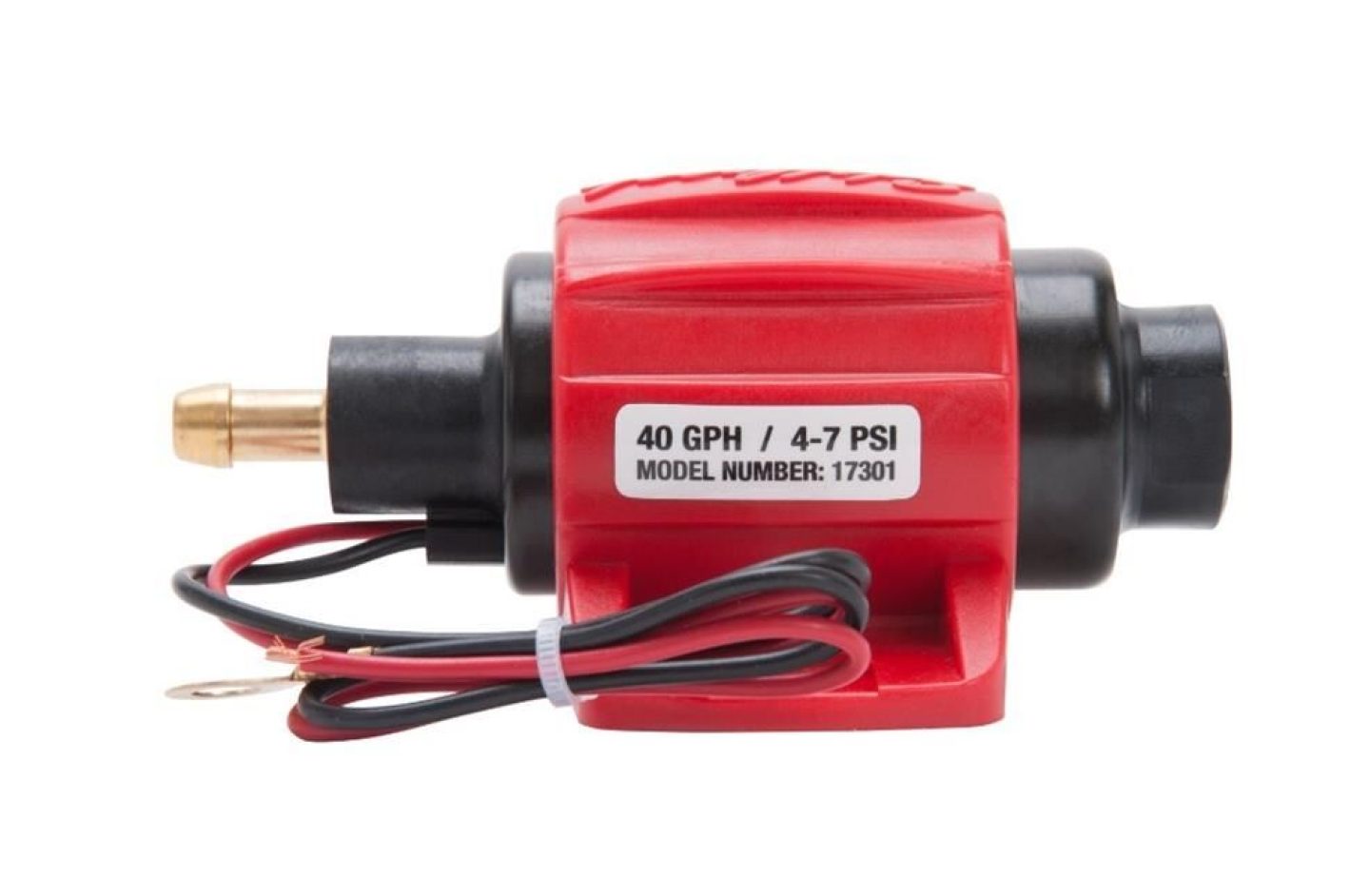

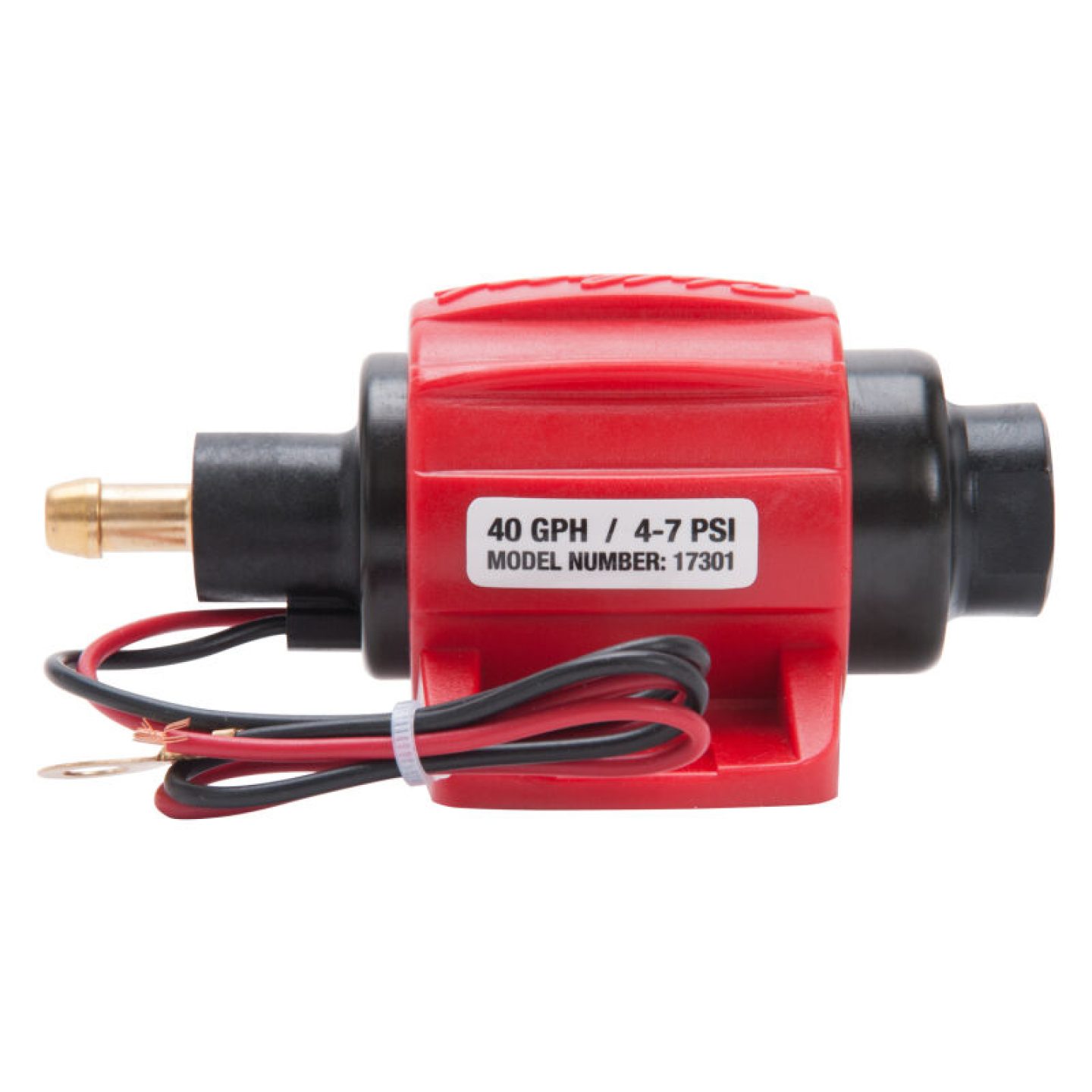

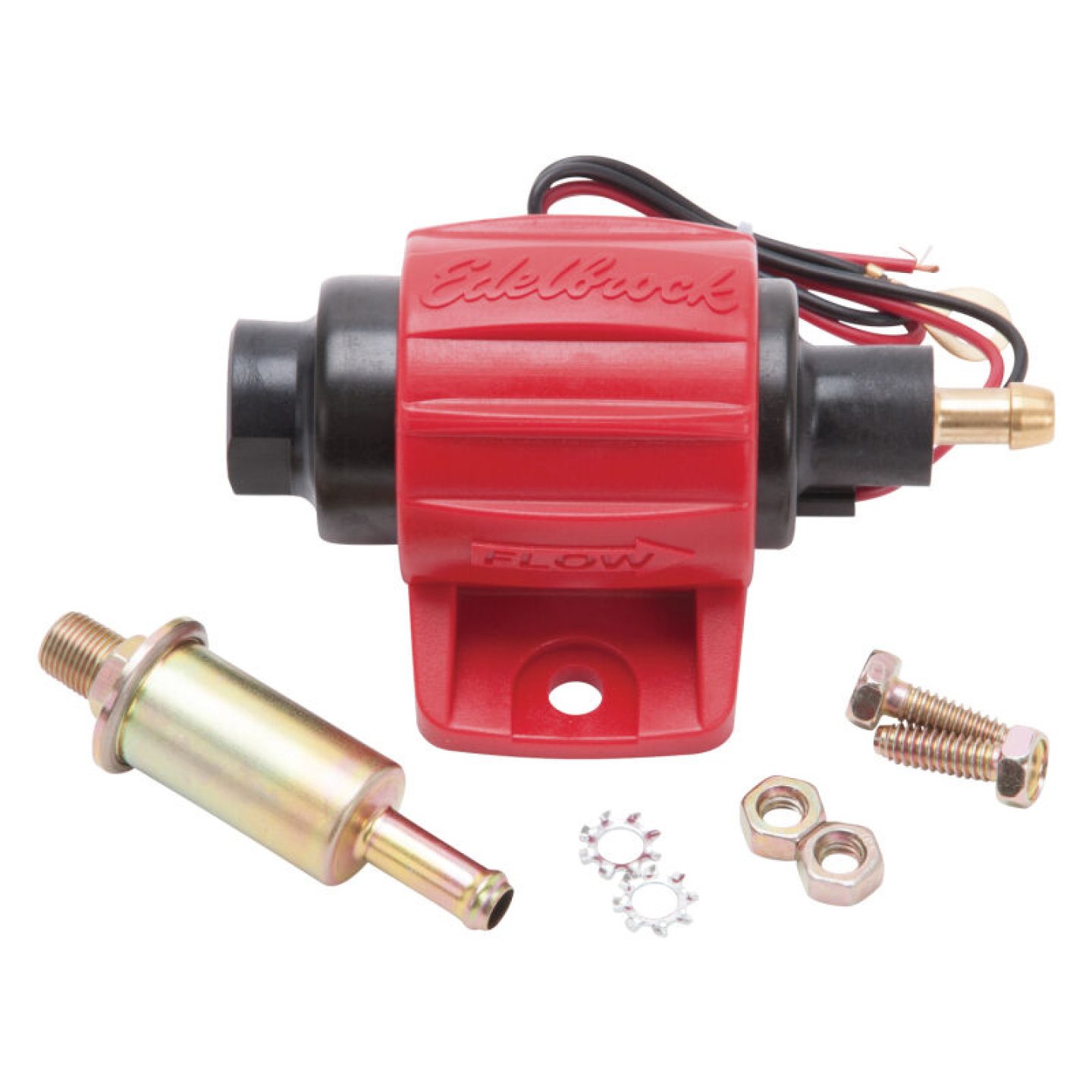

Fuel Pump, Electric, External, Inline, 38 gph, 4-7 psi, Each

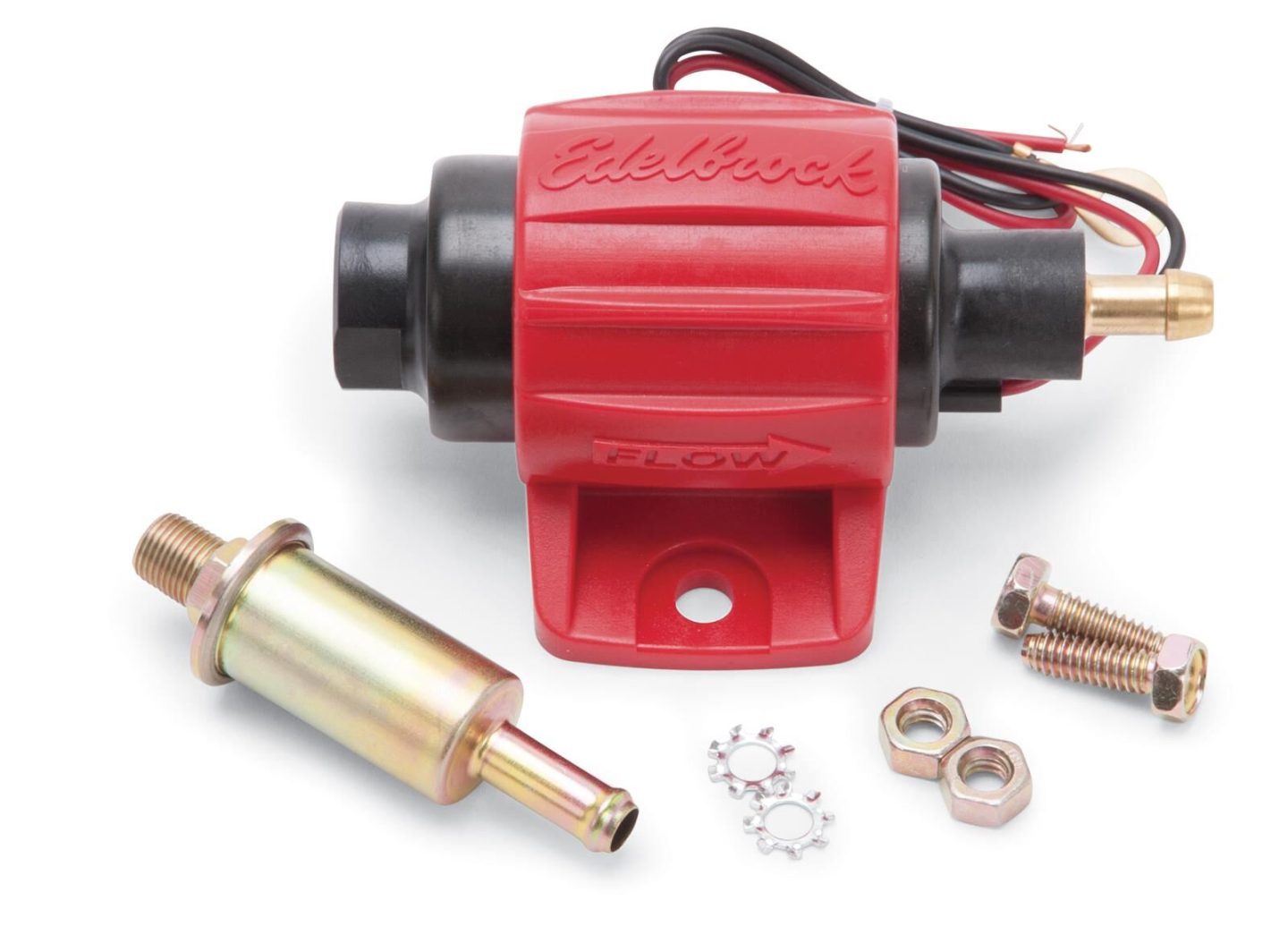

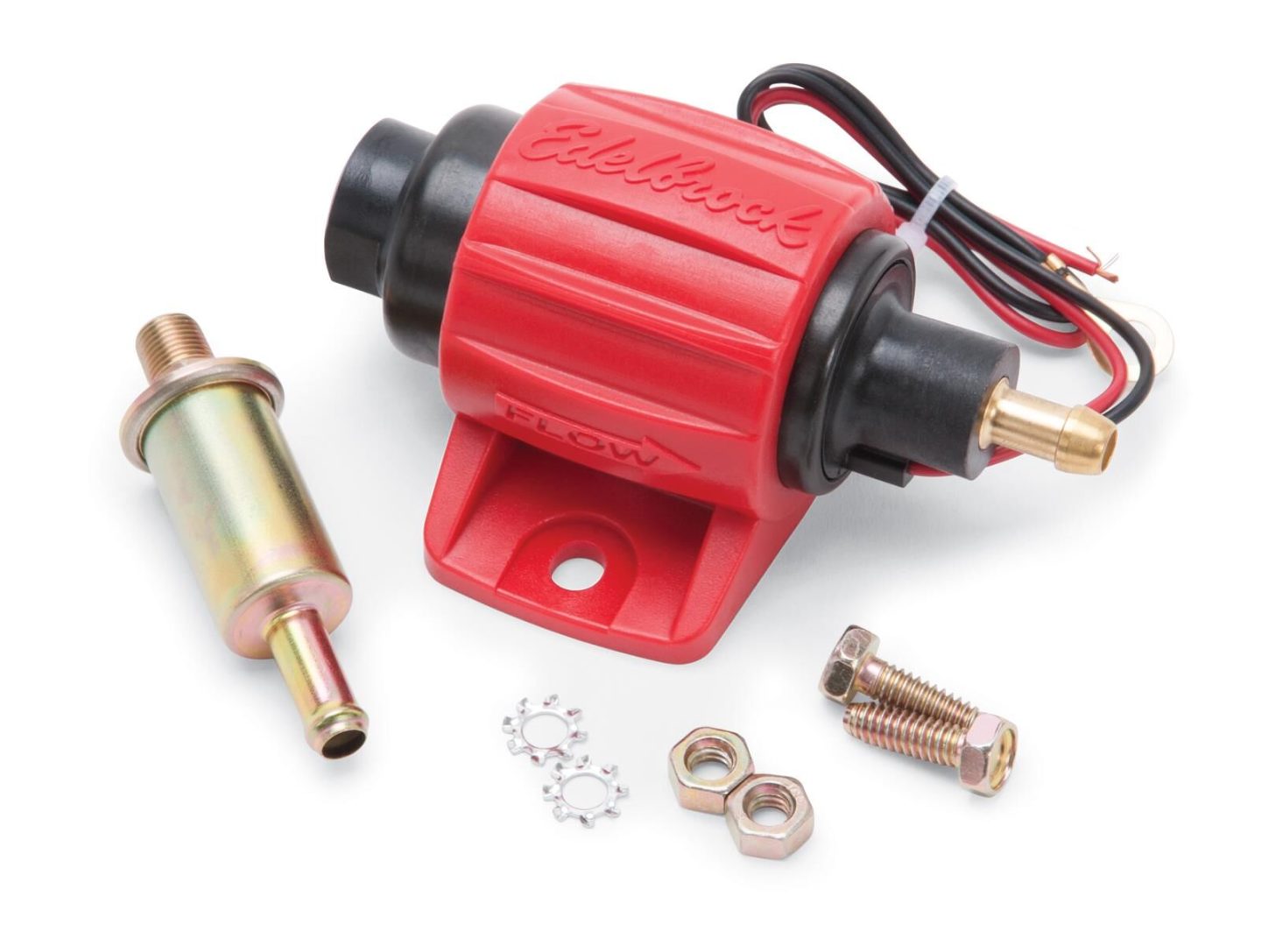

Edelbrock universal micro electric fuel pumps are designed to deliver maximum performance in a compact package. They feature a durable, simple design that reduces the chance of vapor lock and flooding. The fuel pumps are easy to install and operate quietly, so you won't know they're there! They include a fuel filter, mounting hardware, and instructions for a hassle-free installation. Order the model with options best suited for your application. Edelbrock universal micro electric fuel pump details: * For use with standard 12 V negative ground systems with 1 amp draw at maximum delivery * Easy to set up 2-wire design * Gravity fed inline, self-priming, and regulating design * Can also be used as a lift or transfer pump * Designed for use with automotive and industrial application
| Product Attributes |
|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 17301 |
| Part Type | Fuel Pumps |
| Product Line | Edelbrock Universal Micro Electric Fuel Pumps |
| UPC | 085347173013 |
| Fuel Pump Type | Electric external |
| Flow Rate | 38 gph/144 lph |
| Fuel Pressure (psi) | 4-7 psi |
| Fuel Pump Voltage | 12 V |
| Fuel Pressure Regulator Included | No |
| Sending Unit Included | No |

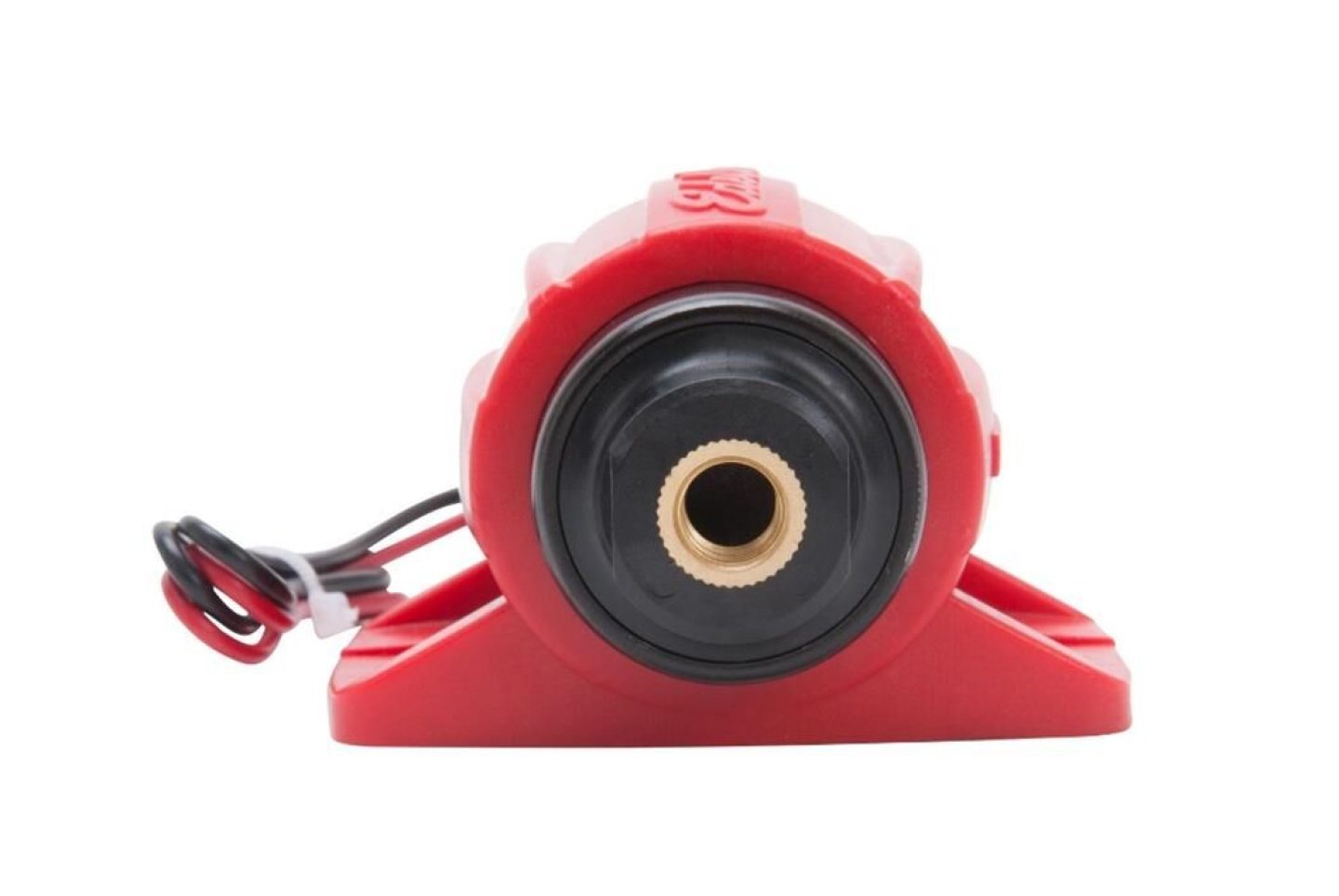

| Fuel Pump Inlet Size | 5/16 in. NPT |
| Inlet Quantity | 1 |
| Inlet Attachment | Female threads |

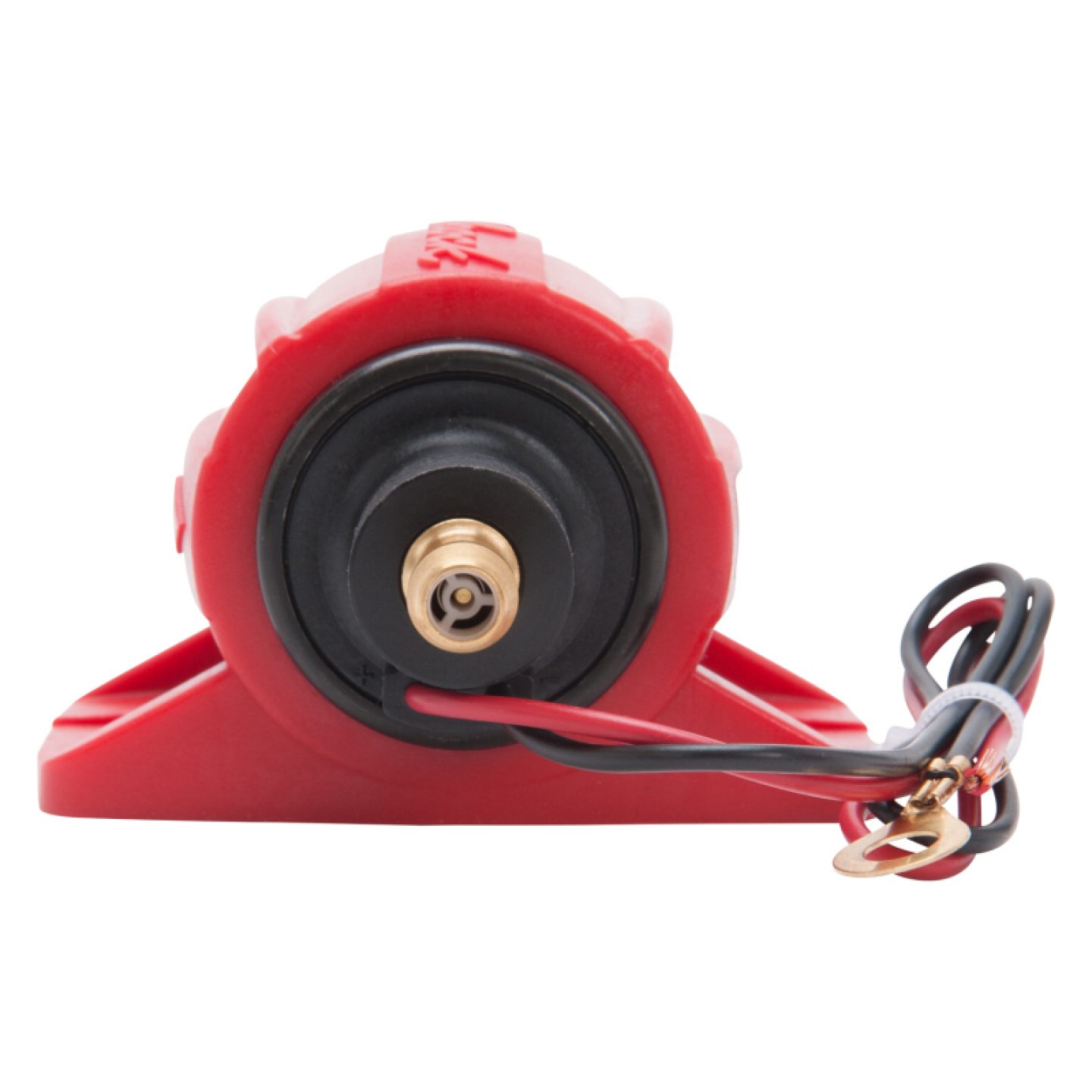

| Fuel Pump Outlet Size | 5/16 in. |
| Outlet Quantity | 1 |
| Outlet Attachment | Hose barb |
| Gasket Included | No |
| Wiring Harness Included | No |
| Mounting Bracket Included | No |

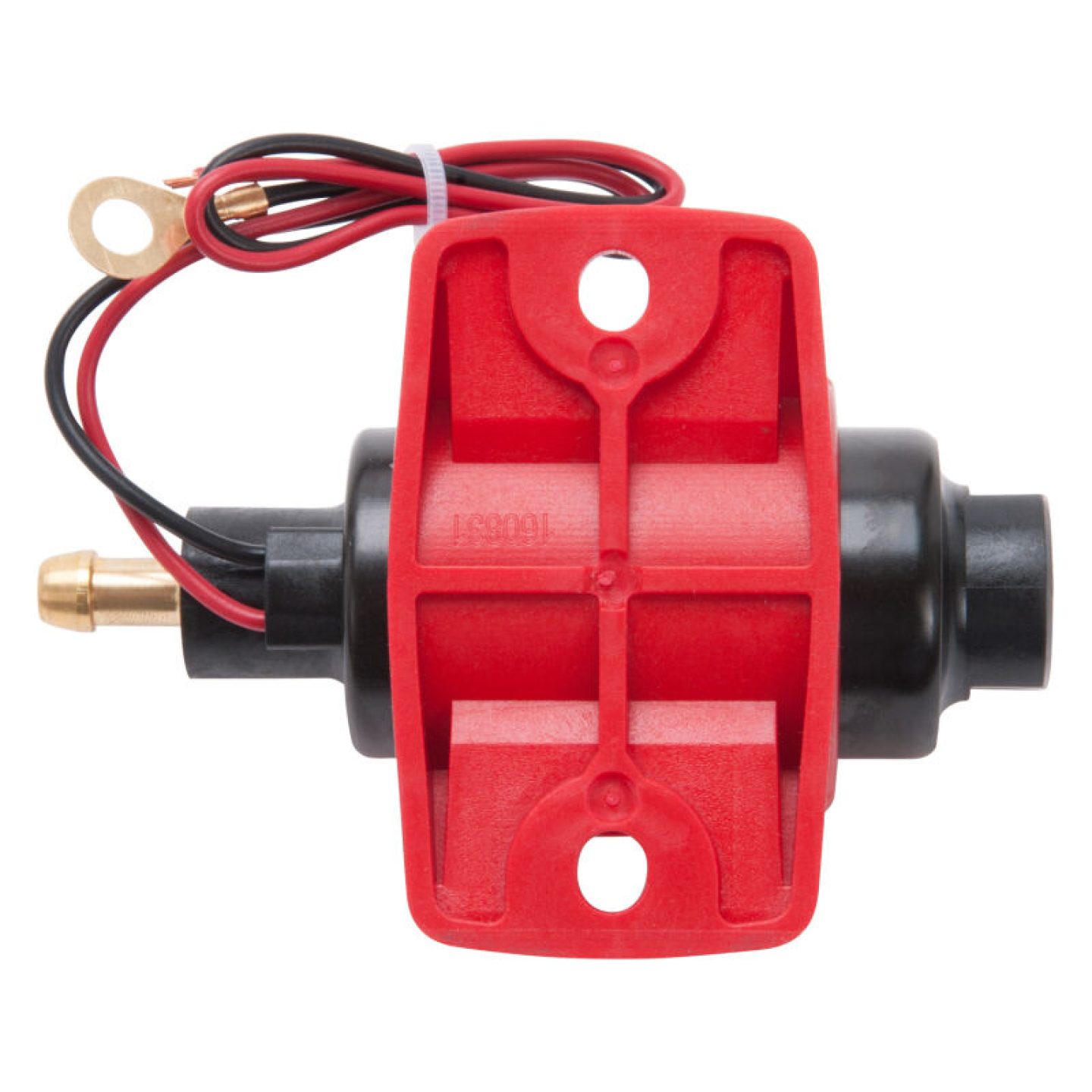

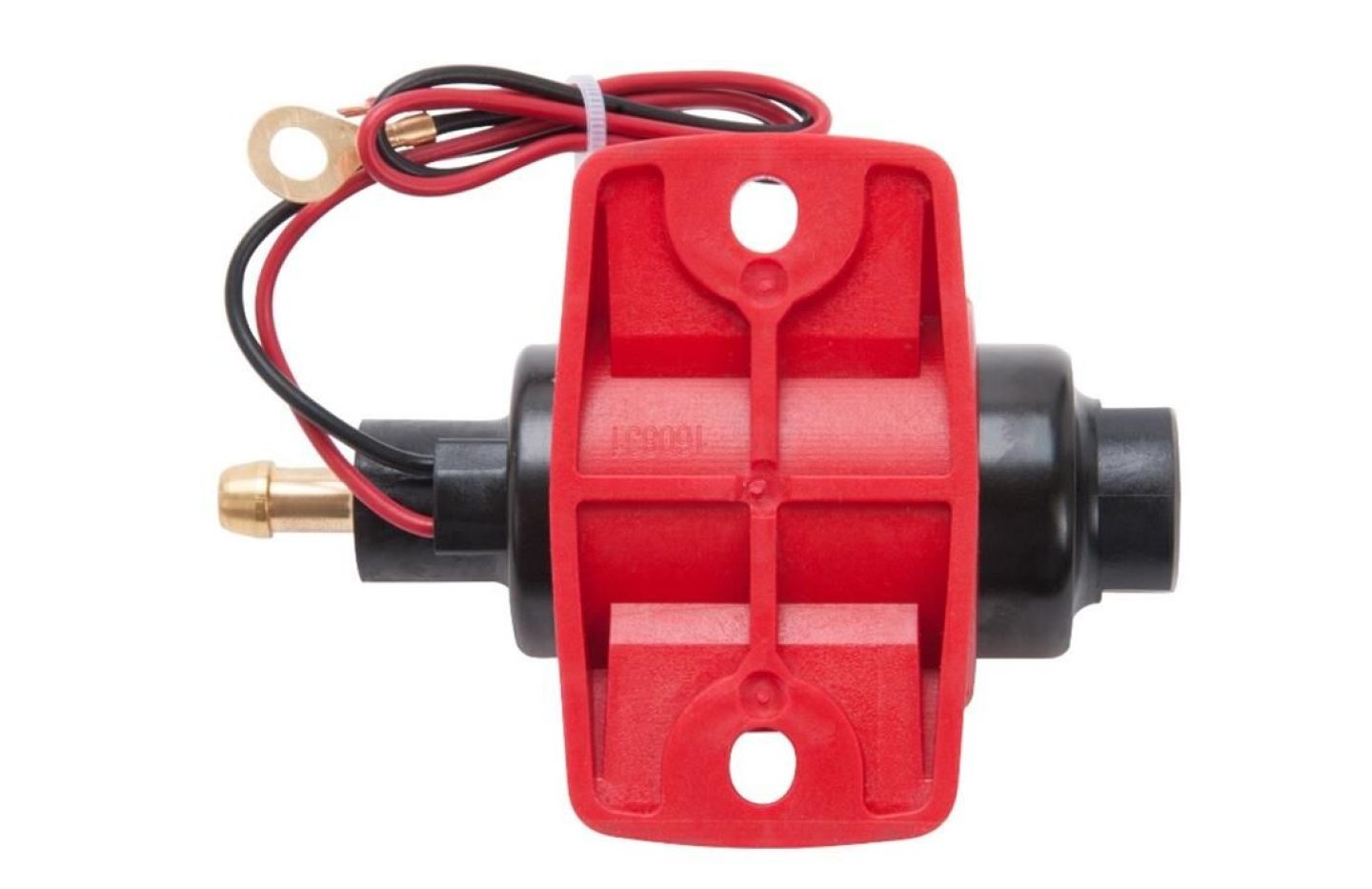

| Mounting Hardware Included | Yes |
| Pulley Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Includes 40-micron fuel filter with 5/16 in. hose barb inlet. |
