POWER PKG

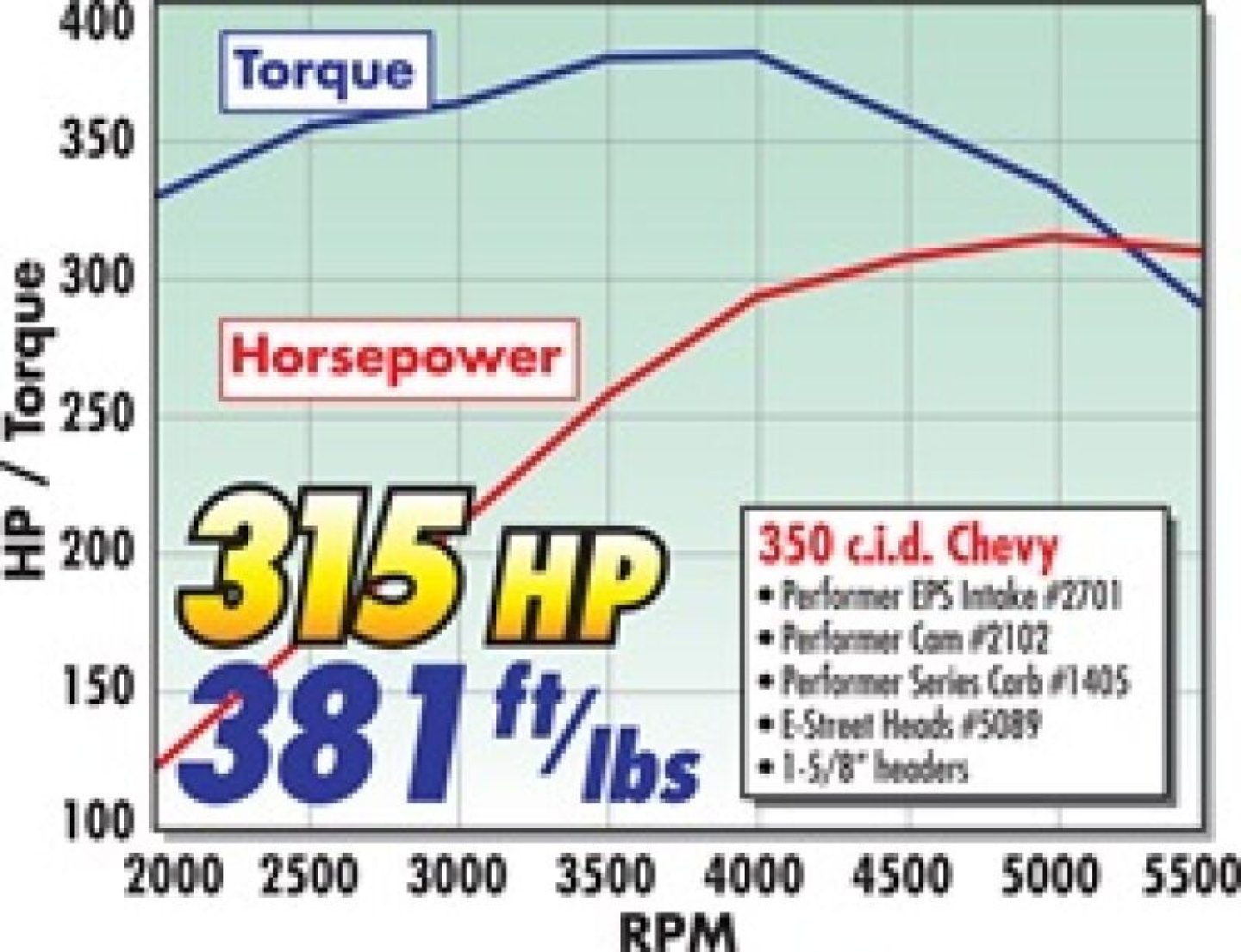

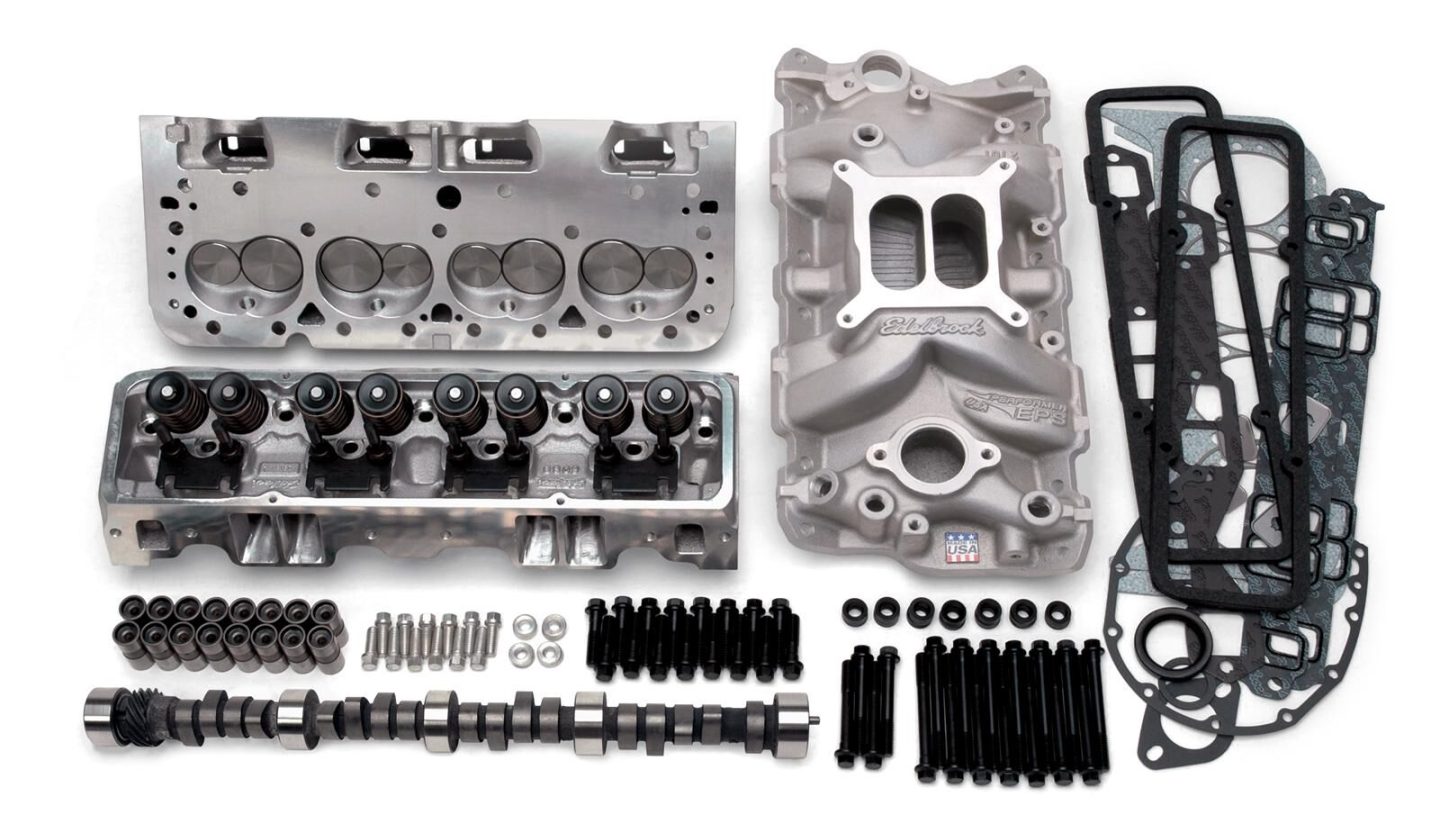

Edelbrock part #2022 E-Street Top End Kit is designed for 1957-86 Small-Block Chevy V-8 engines. This Top End Kit produced 315 HP & 381 TQ on a 350 c.i.d Chevy with 9.0:1 compression. The kit delivers affordable street performance and great drivability from idle to 5,500 rpm. This kit includes a Performer EPS intake manifold, E-Street cylinder heads, Performer hydraulic flat tappet camshaft, pushrods, timing chain, complete bolt kit and an Edelbrock gasket set. To get great performance out of any engine, all of the components must work together. For over 30 years, the Edelbrock Total Power Package system has solved the parts matching puzzle for many street performance enthusiasts. With the introduction our Power Package Top End Kits, now you can get the best Edelbrock performance in-one-box, under one part number with "no guesswork" involved.
E-Street Top End Kit for S/B Chevy
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Engine Top End Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Top End Engine Kit, Power Package, Intake, Heads, Cam, Timing Chain, Head Bolts, SB Chevy, 315 HP-381 TQ, Kit

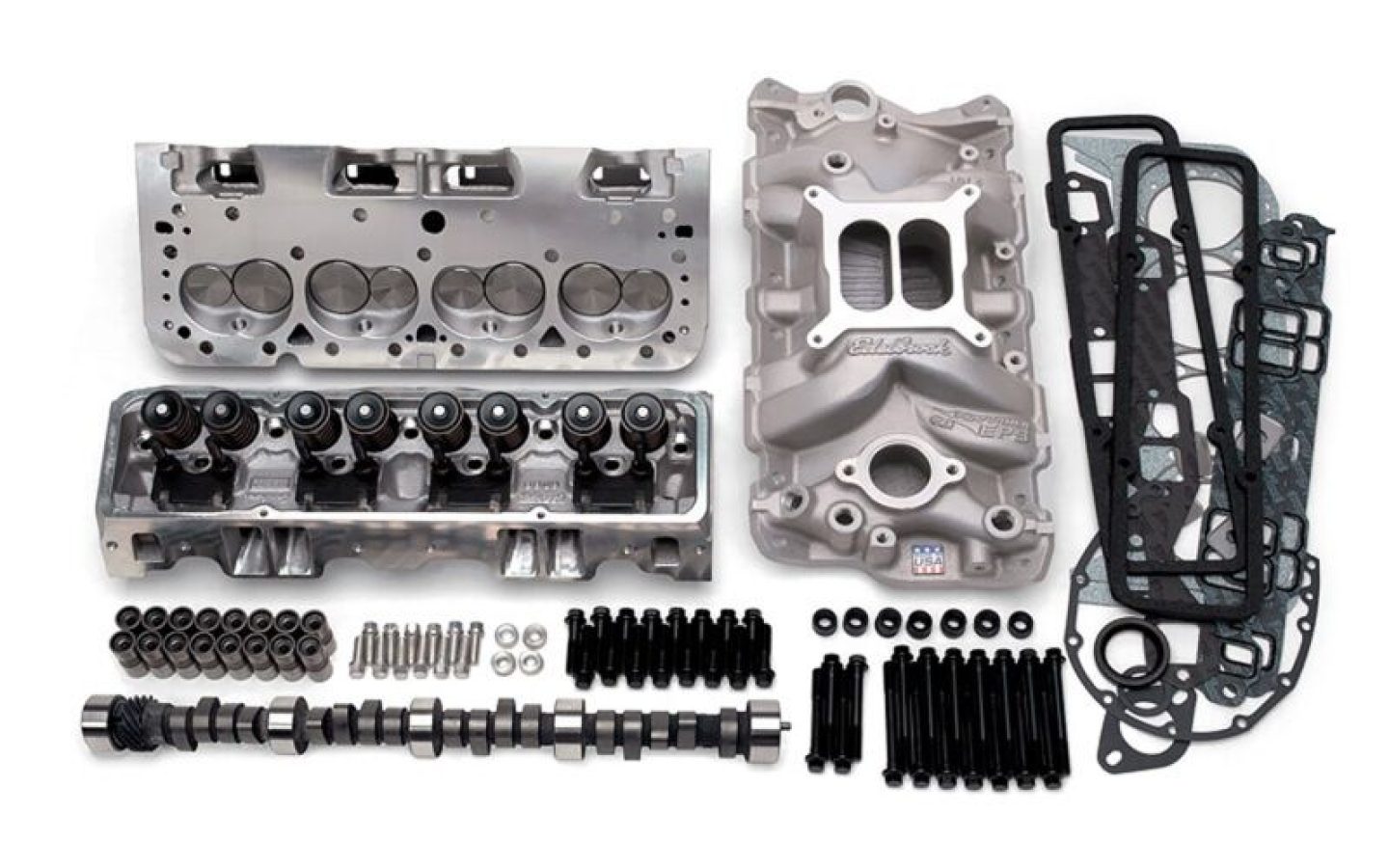

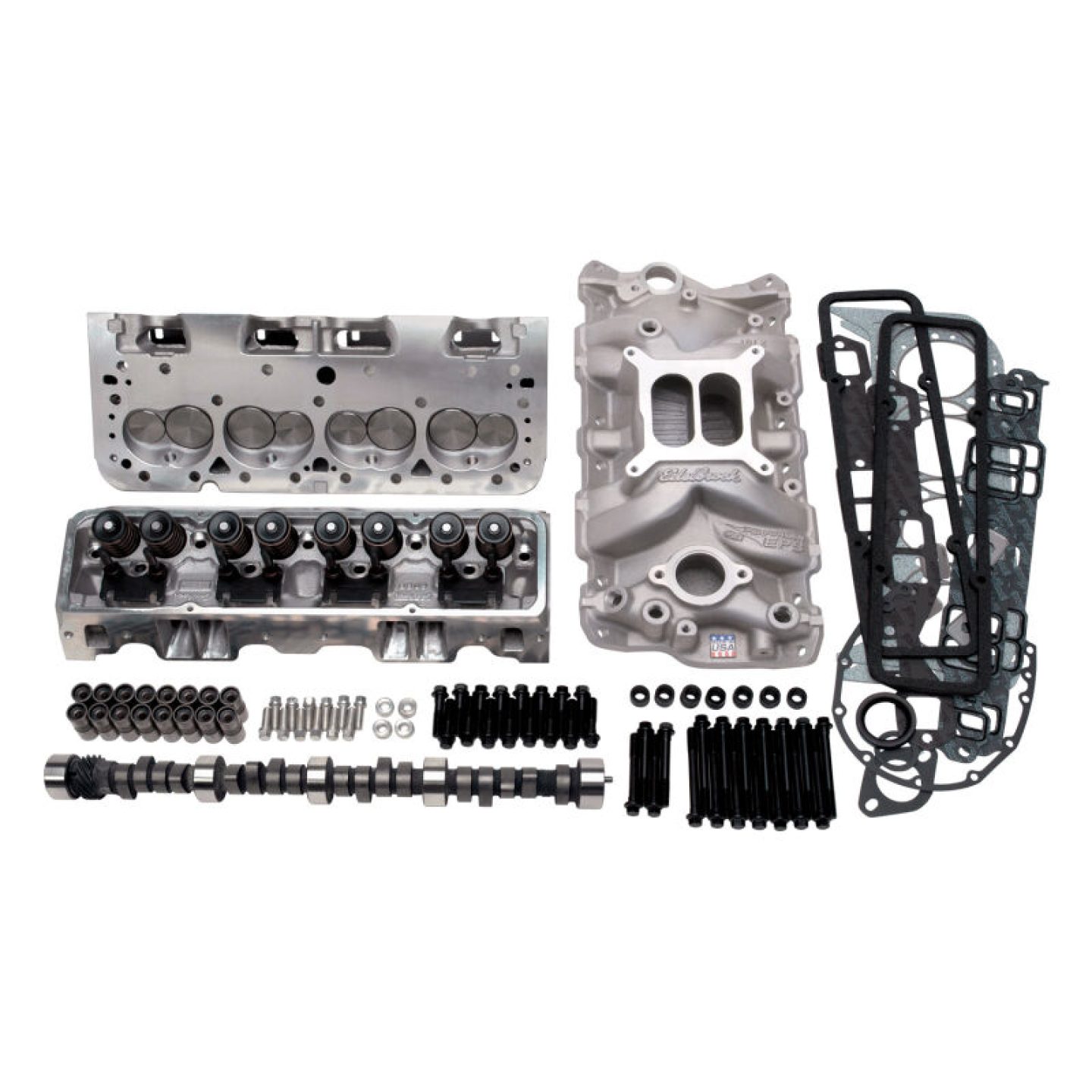

The Edelbrock 2022 Total Power Package for small block Chevy takes the guesswork out of making 315 hp and 381 ft.-lbs. of torque. This Edelbrock top-end engine kit features a 204 intake/214 exhaust duration at .050 inch and includes a hydraulic flat tappet camshaft, an Edelbrock Performer EPS intake, and Edelbrock aluminum cylinder heads with 64cc combustion chamber volume. This Edelbrock kit also includes head bolts and a timing chain to help you complete your Gen. 1 SBC engine build.
Product Attributes | |
---|---|
Brand | Edelbrock |
Manufacturer's Part Number | 2022 |
Part Type | Top End Kits |
Product Line | Edelbrock Total Power Package 315 HP Small Block Chevy Top-End Engine Kits |
UPC | 085347020225 |
Cylinder Heads Included | Yes |
Camshaft Included | Yes |
Camshaft Type | Hydraulic Flat Tappet |
Duration at 050 inch Lift | 204 int./214 exh. |
Advertised Duration | 278 int./288 exh. |
Valve Lift with Factory Rocker Arm Ratio | 0.420 int./0.442 exh. |
Intake Manifold Included | Yes |
Fuel Delivery Style | Carbureted |
Carburetor Included | No |
Throttle Body Included | No |
Fuel Rails Included | No |
Fuel Injectors Included | No |
Intake Material | Aluminum |
Intake Color | Natural |
Intake Style | Dual plane |
Intake Manifold Name | Edelbrock Performer EPS |
Carburetor Flange | Square bore |
Timing Chain and Gears Included | Yes |
Lifters Included | Yes |
Gaskets Included | Yes |
Cylinder Head Style | Assembled |
Cylinder Head Material | Cast aluminum |
Cylinder Head Color | Natural |
Combustion Chamber Volume (cc) | 64 |
CNC-Machined Combustion Chamber | No |
Intake Runner Volume (cc) | 185cc |
Exhaust Runner Volume (cc) | 60cc |
CNC-Machined Intake Runner | No |
CNC-Machined Exhaust Runner | No |
Intake Port Location | Standard |
Intake Port Shape | Rectangular |
Exhaust Port Shape | Round |
Exhaust Port Location | Standard |
Spark Plug Style | Straight |
Intake Valves Included | Yes |
Intake Valve Diameter (in.) | 2.020 in. |
Exhaust Valves Included | Yes |
Exhaust Valve Diameter (in.) | 1.600 in. |
Intake Valve Angle | 23 |
Valve Springs Included | Yes |
Outside Diameter of Outer Spring (in.) | 1.460 in. |
Damper Spring Included | Yes |
Number of Springs Per Valve | Single |
Retainers Included | Yes |
Retainer Material | Steel |
Locks Included | Yes |
Lock Style | 7 degree |
Valve Stem Seals Included | Yes |
Valve Stem Seal Style | Positive stop |
Valve Stem Seal Material | Viton® |
Rocker Arms Included | No |
Rocker Arm Studs Included | Yes |
Rocker Arm Nuts Included | No |
Rocker Arm Nut Thread Size | 3/8 in.-24 |
Guideplates Included | Yes |
Guideplate Pushrod Size | 5/16 in. |
Pushrods Included | Yes |
Valve Covers Included | No |
Valve Cover Mounting Style | Perimeter bolt |
Accessory Bolt Holes Drilled | Yes |
Valve Guides Included | Yes |
Valve Guide Material | Manganese bronze |
Valve Seats Machined | Yes |
Valve Seat Machine Style | 3-angle |
Valve Seat Material | Powdered metal |
Steam Holes Drilled | No |
Oiling Style | Through pushrod |
Machined for O-Ring | No |
Heat Crossover | No |
Quantity | Sold as a kit. |
Notes | Includes intake, heads, cam, lifters, timing chain and gears, push rods, gasket and bolt sets. |
Manufacturer Attributes | |
---|---|
Horsepower | Possible 315 |
Grade Type | Performance |
Finish | Satin |
Family | E-Street |
RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Gasket Material | MP-IIN Micropore |
Cylinder Head Port Shape | Rectangular |
Series | E-Street |
Minimum Torque | Possible 381 |
Product Class | Engine Top End Kit |
Construction/Type | Edelbrock part #2022 E-Street Top End Kit is designed for 1957-86 Small-Block Chevy V-8 engines. This Top End Kit produced 315 HP & 381 TQ on a 350 c.i.d Chevy with 9.0:1 compression. |
Vehicle Designations | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
Vehicle Brief | E-Street Top End Kit 1957-86 S/B Chevy |
Market Description | Edelbrock part #2022 E-Street Top End Kit is designed for 1957-86 Small-Block Chevy V-8 engines. This Top End Kit produced 315 HP & 381 TQ on a 350 c.i.d Chevy with 9.0:1 compression. The kit delivers affordable street performance and great drivability from idle to 5,500 rpm. This kit includes a Performer EPS intake manifold, E-Street cylinder heads, Performer hydraulic flat tappet camshaft, pushrods, timing chain, complete bolt kit and an Edelbrock gasket set. To get great performance out of any engine, all of the components must work together. For over 30 years, the Edelbrock Total Power Package system has solved the parts matching puzzle for many street performance enthusiasts. With the introduction our Power Package Top End Kits, now you can get the best Edelbrock performance in-one-box, under one part number with "no guesswork" involved. |
No specific fitment data available for this part. For clarification, please contact us.
