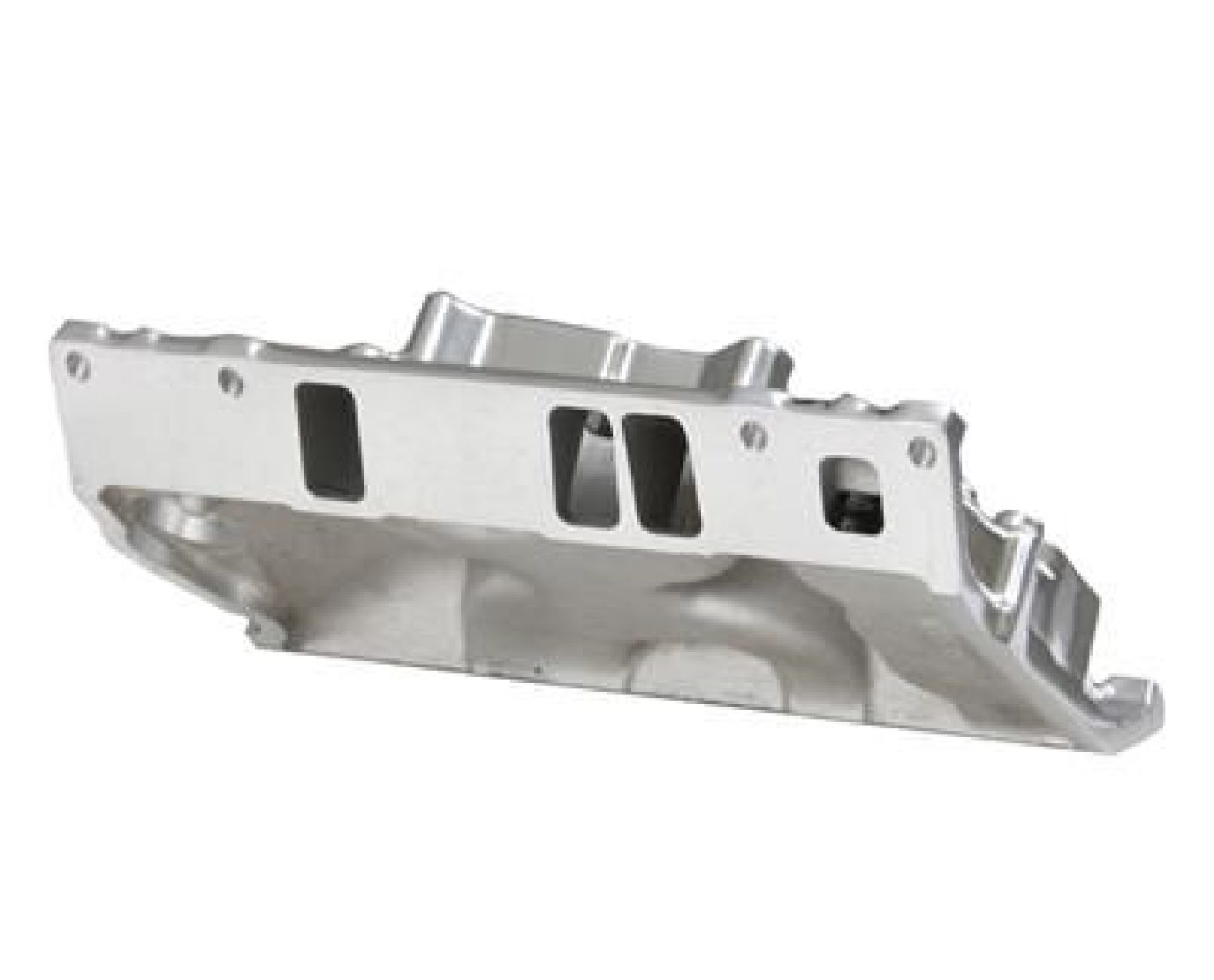

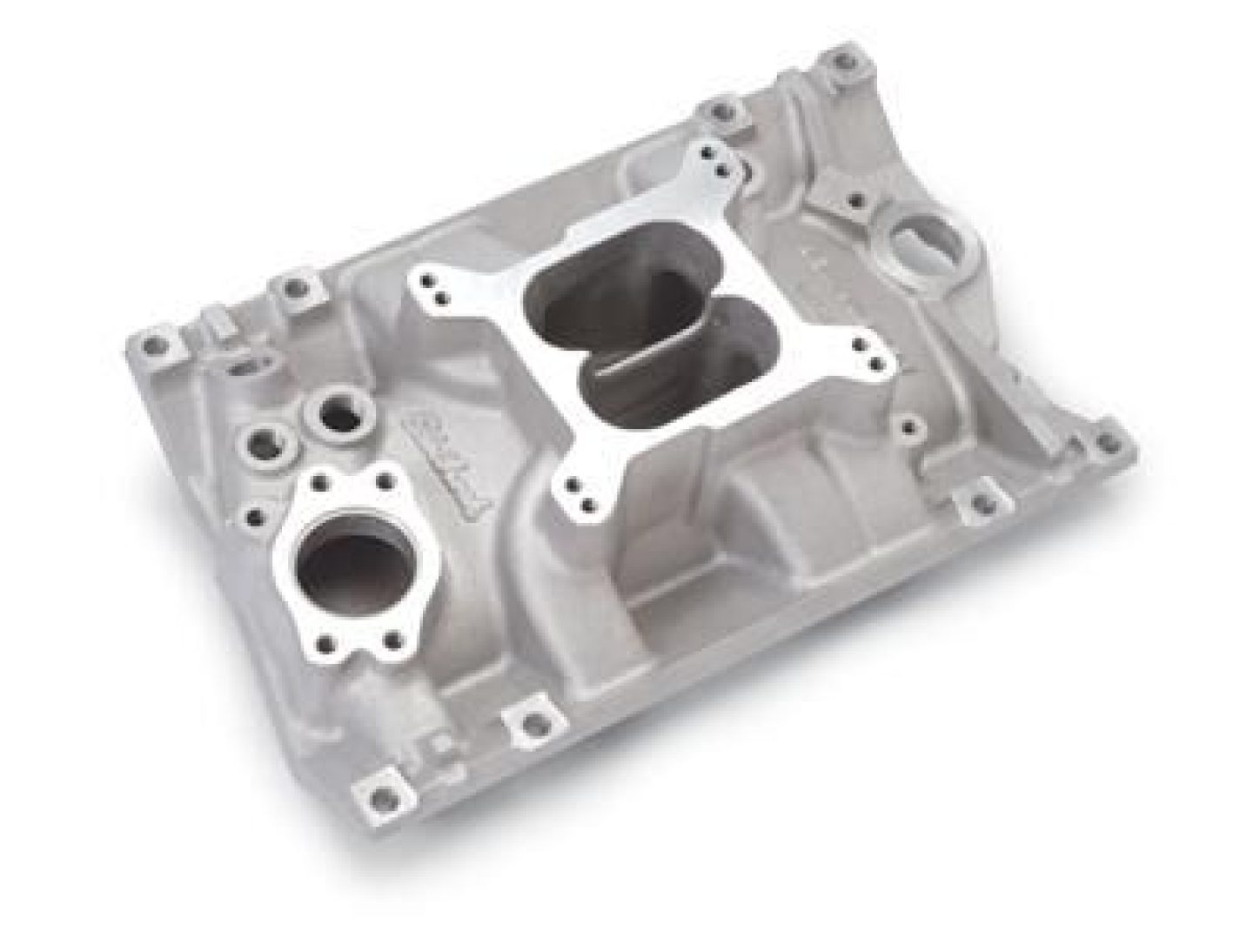

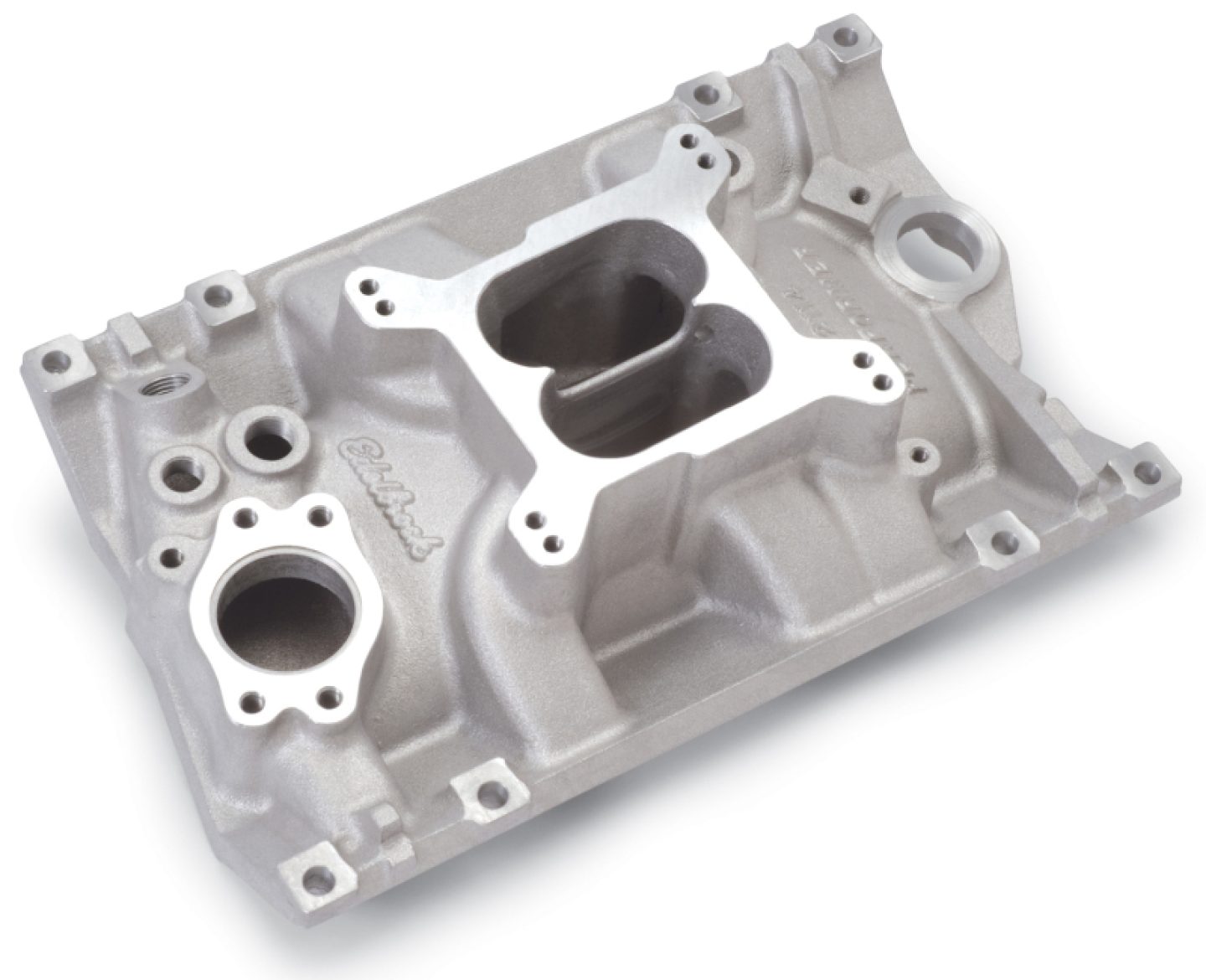

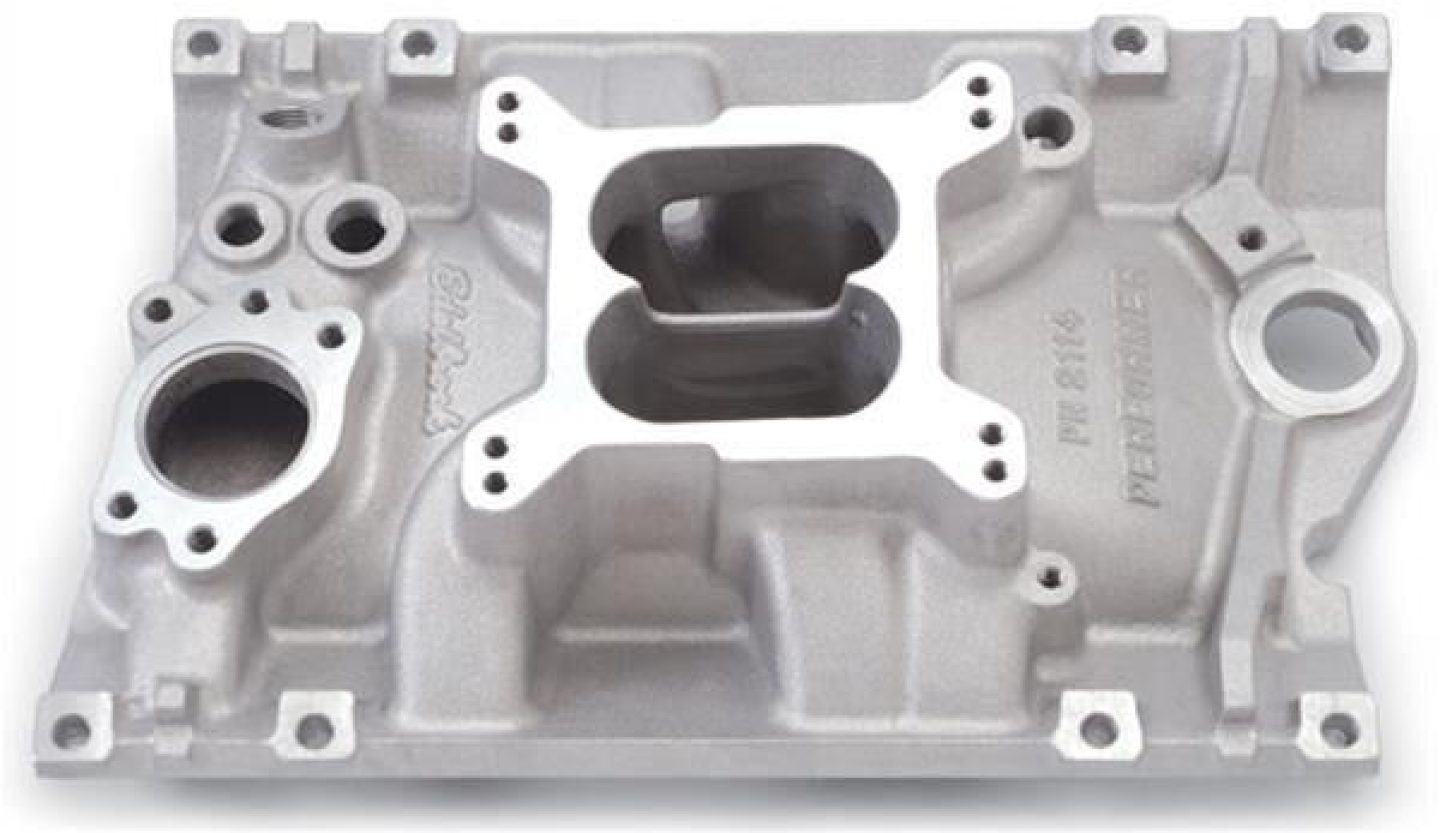

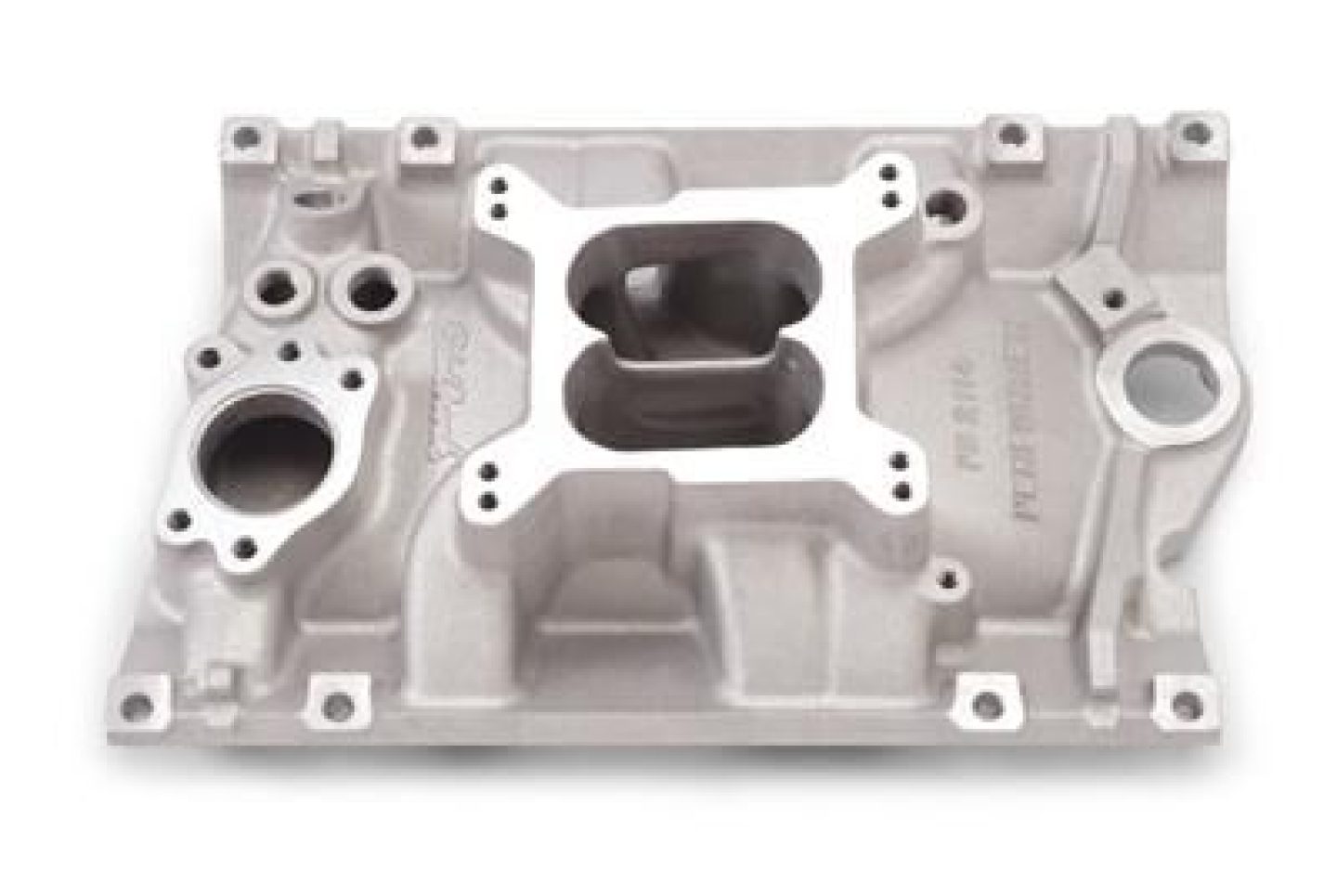

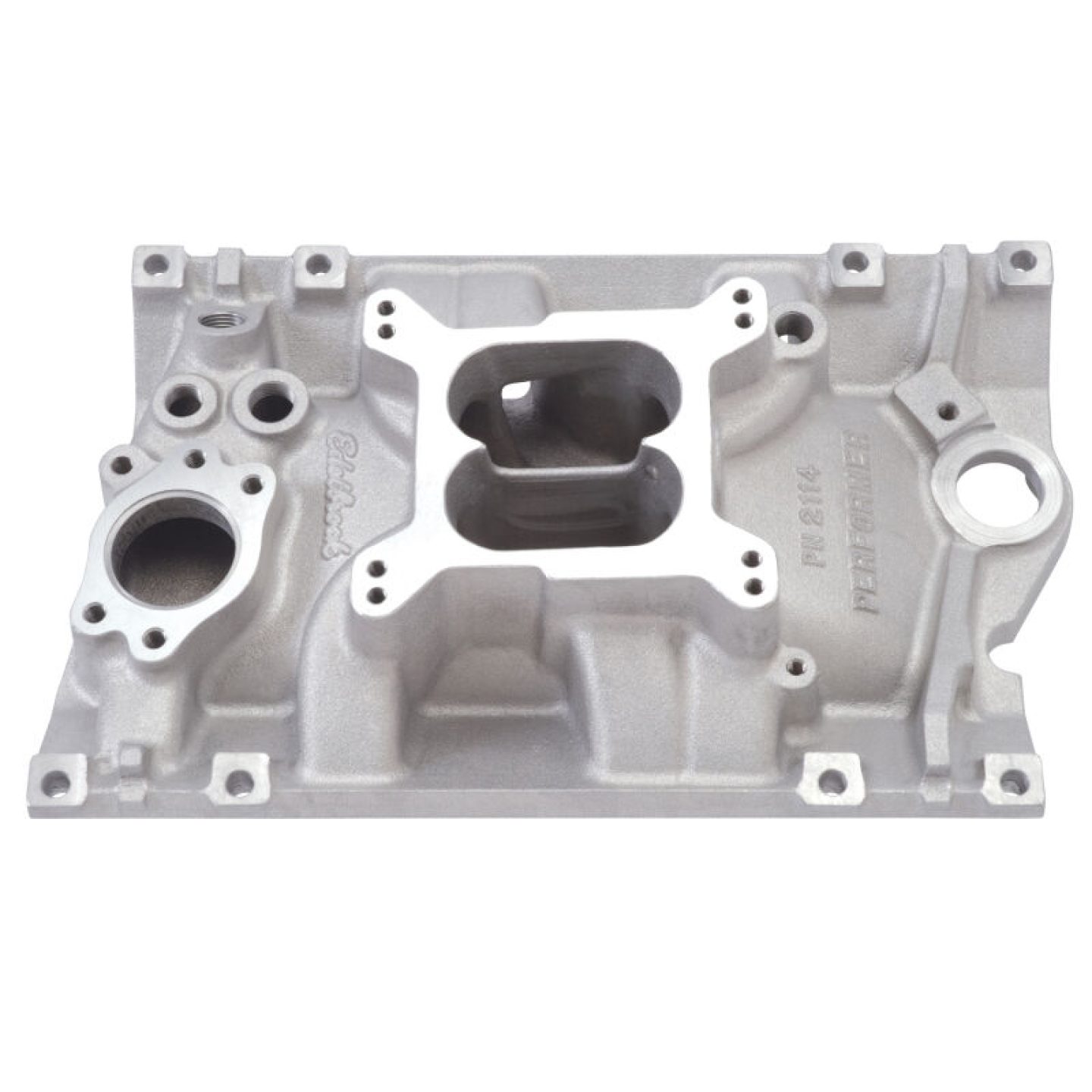

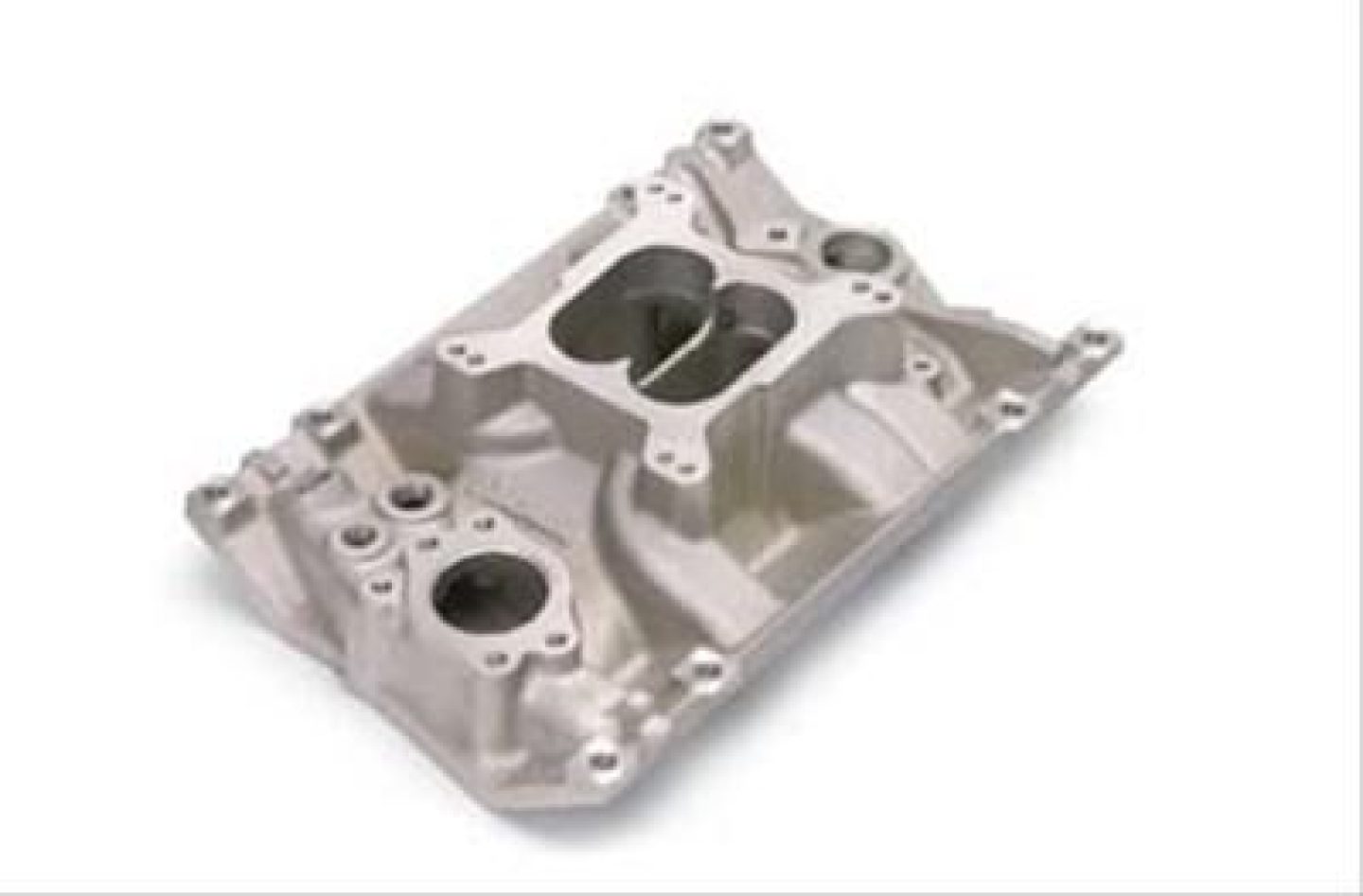

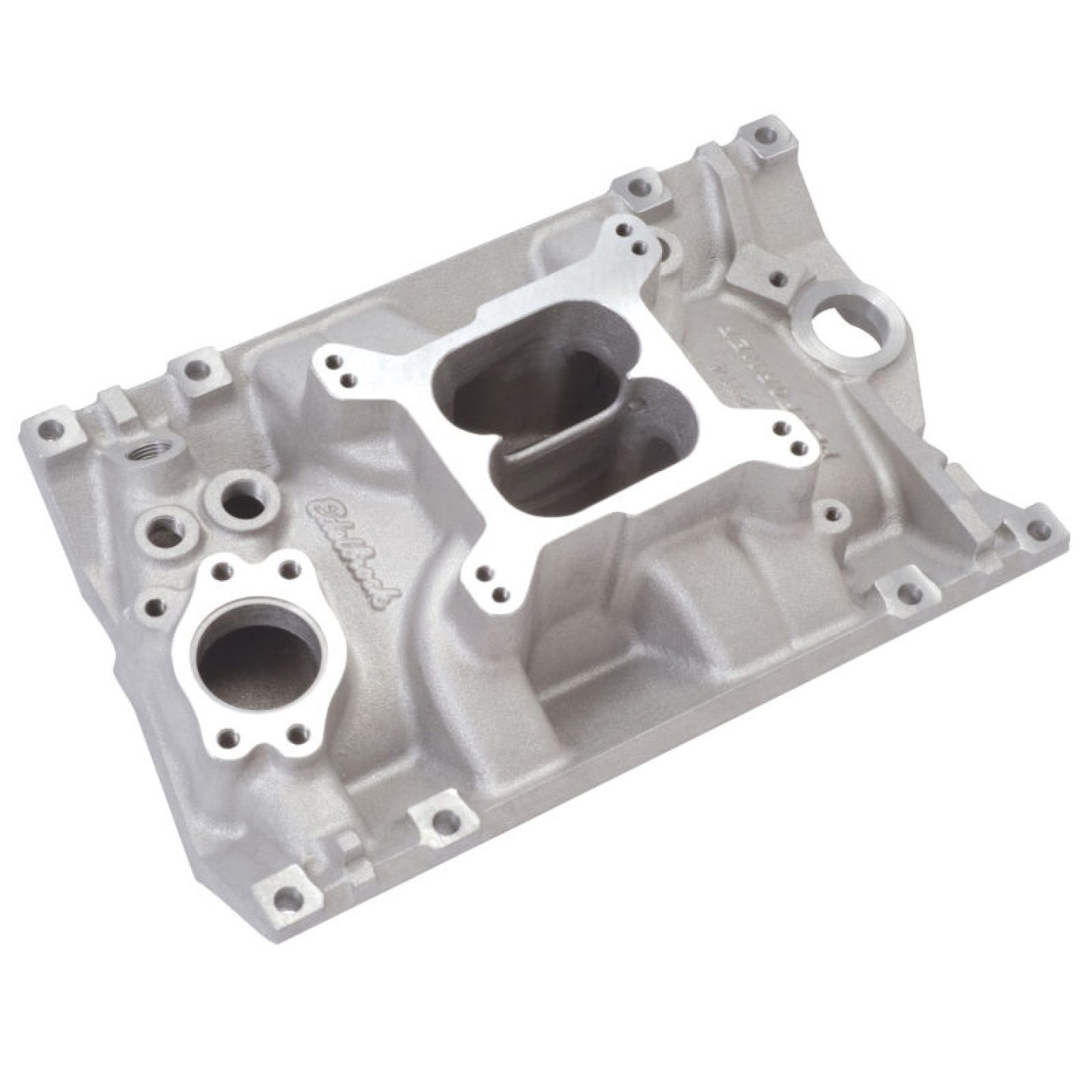

Intake Manifold - Performer Vortec V6 - Square Bore - Dual Plane - Aluminum - Natural - GM V6 - Each

MANIFOLD

Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.

Additional Information

Performer Vortec Intake Manifold for 90 Deg GM V6, 200-229-262 c.i.d. (3.8L and 4.3L) Engines will allow a Square-Bore 4150-Style Carburetor (#1403 or #1404 500cfm Recommended) to be used with the Vortec V6 Cylinder Heads. Non-EGR

Application Summary

Chevrolet:Small-Block Gen I Vortec 90 Deg V6:200 (3.3L)/229 (3.8L)/262 (4.3L)

Part Type

Engine Intake Manifold

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Accepts Late Model Water Neck-Alternators-HEI-A/C

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Intake Manifold, Performer, Dual Plane, Aluminum, Natural, 4-Barrel, Square Bore, Chevy, 4.3L V6, Vortec, Each

Edelbrock Performer intake manifolds are low-rise, dual-plane designs with patented runner tuning and a 180 degree firing order that you won't find with the competition. This combination boosts torque over a wide rpm range, from idle to 5,500 rpm. These manifolds also deliver improved throttle response over stock intakes and are available in both EGR and non-EGR style.
