Distributor - Max-Fire - Ready-To-Run - Magnetic Pickup - Mechanical / Vacuum Advance - HEI Style Terminal - Red - Chevy V8 - Each

ELECTRONICS

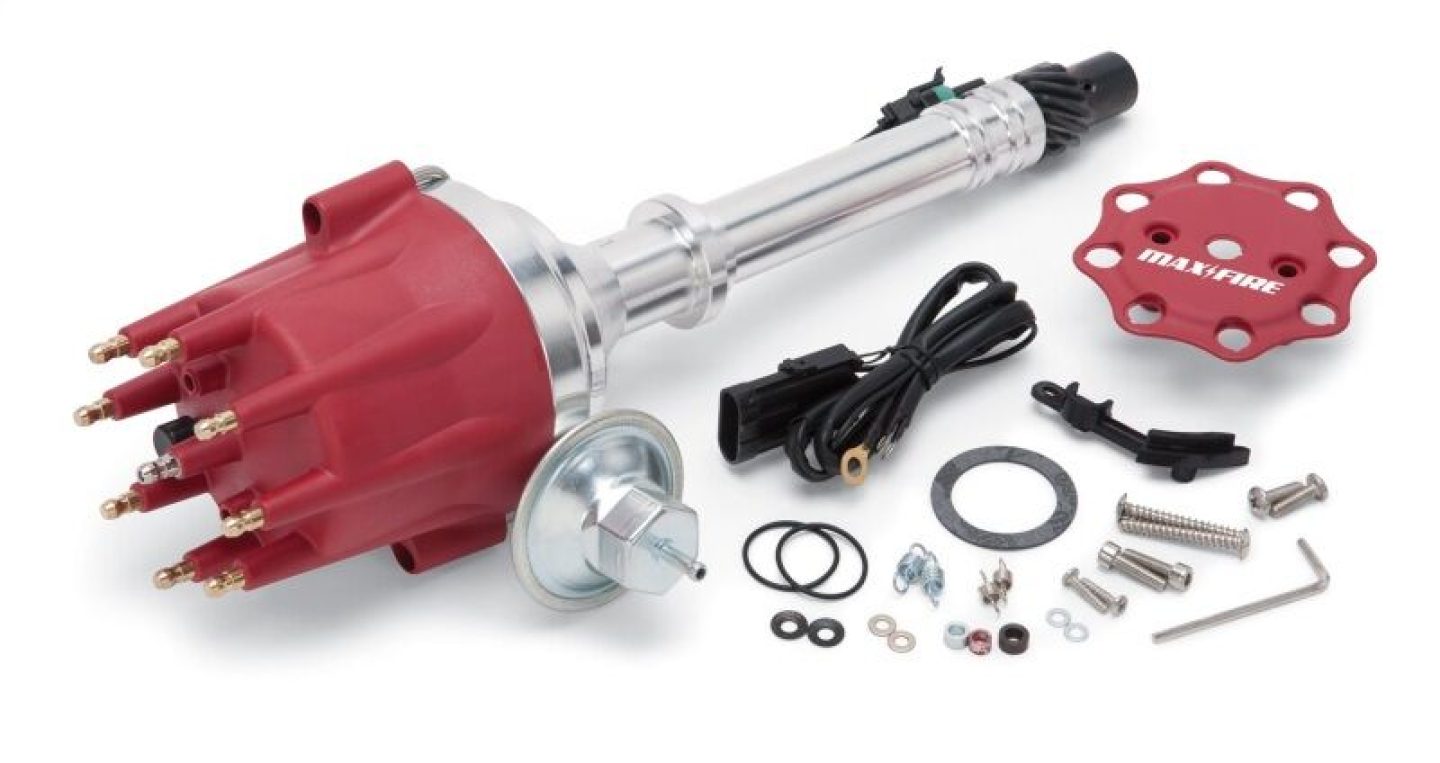

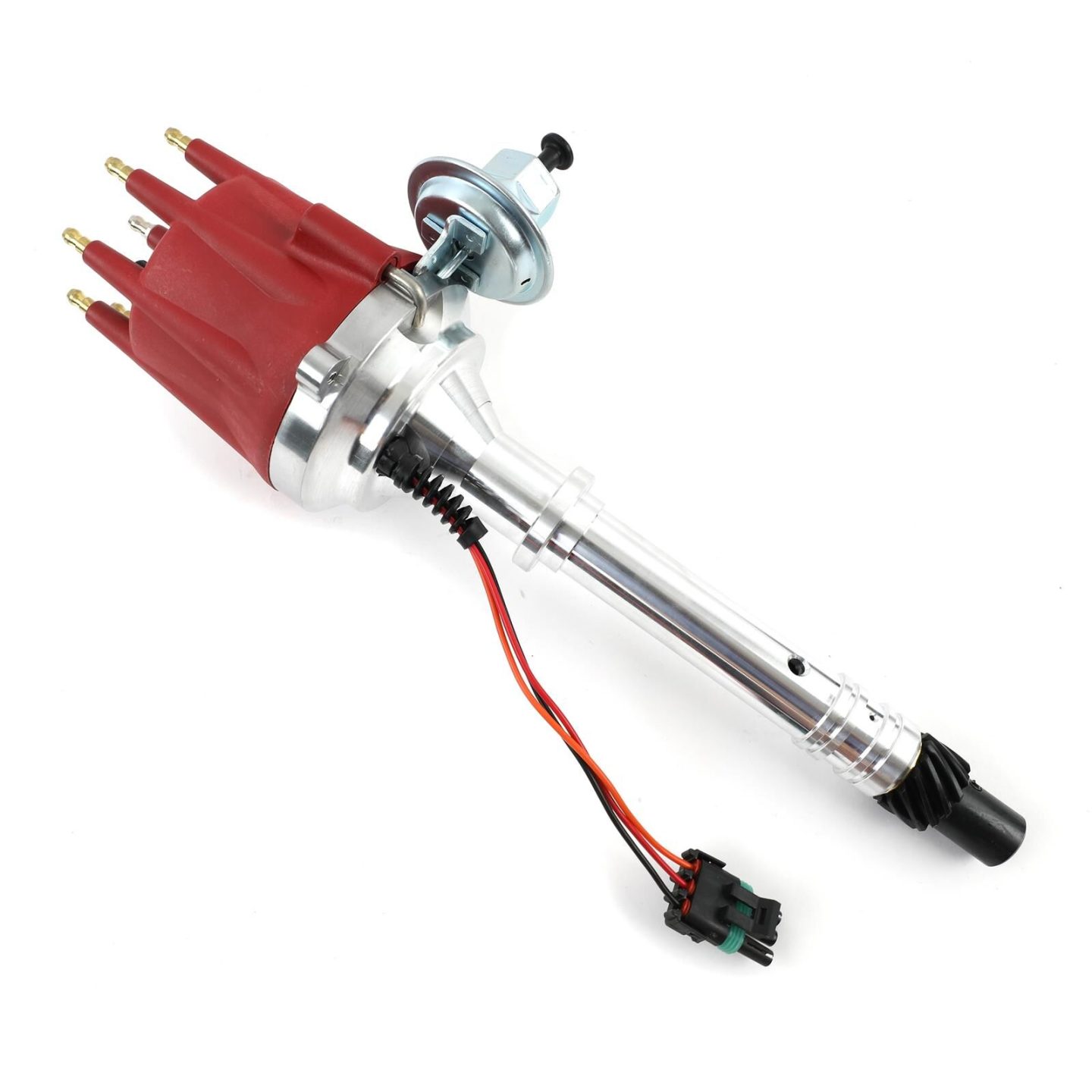

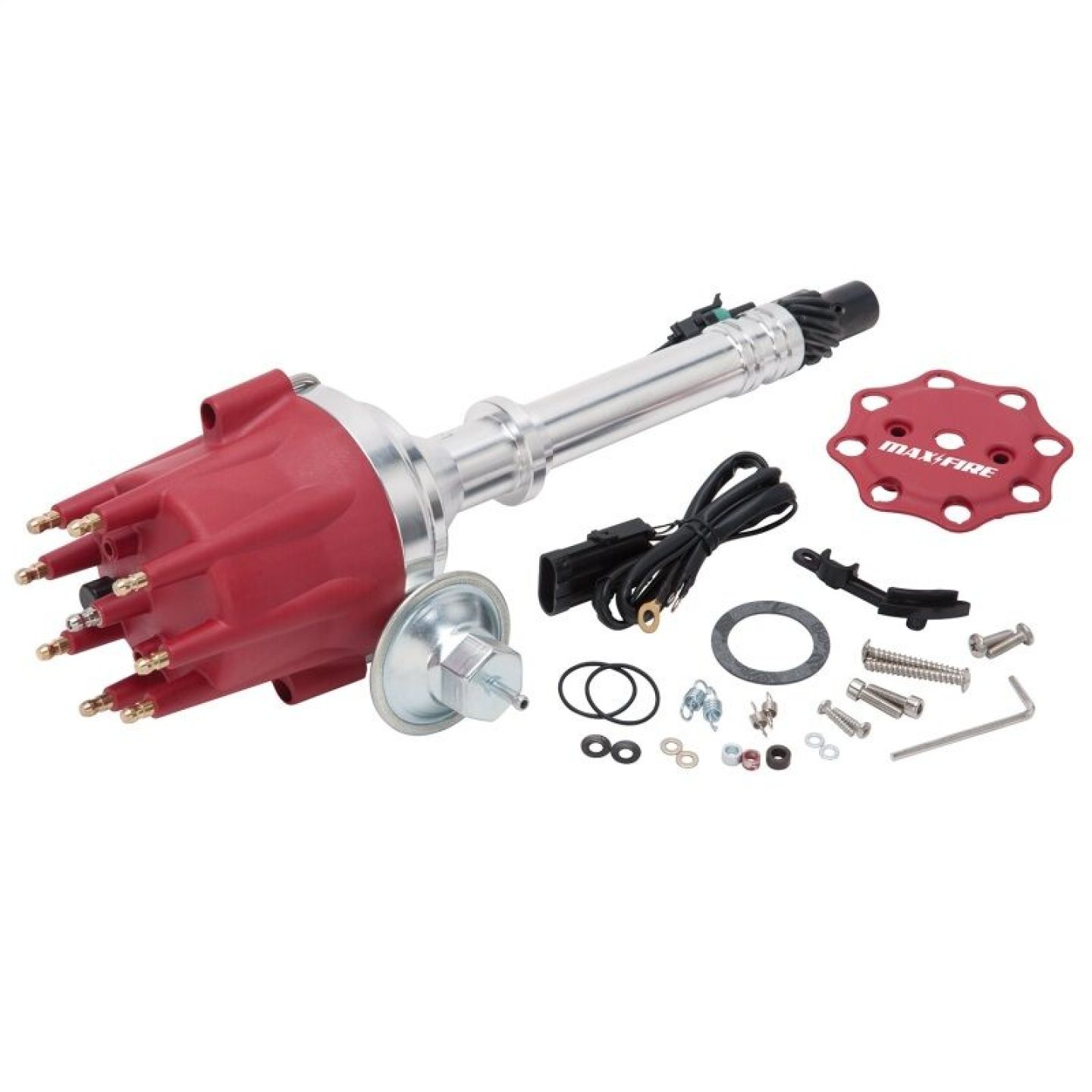

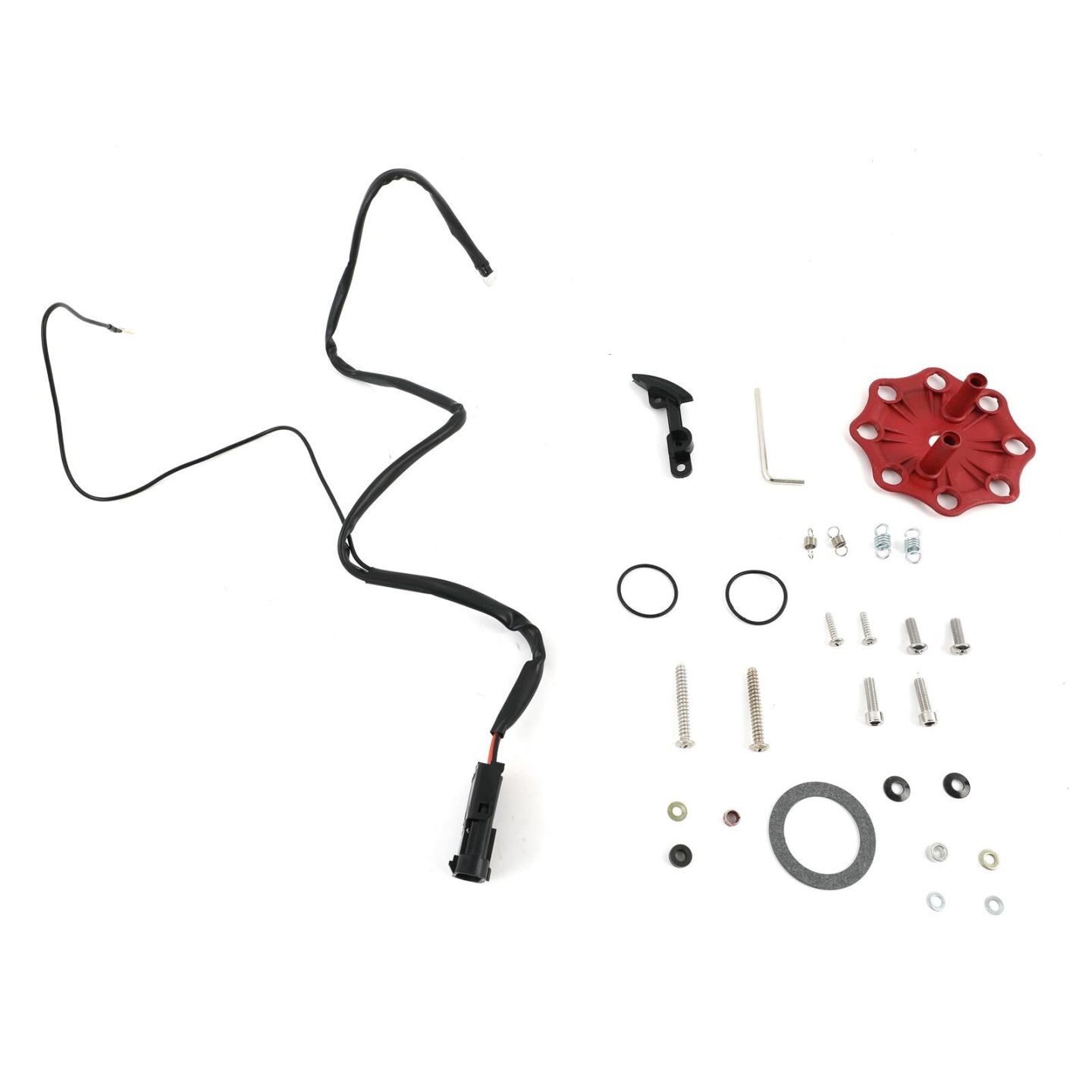

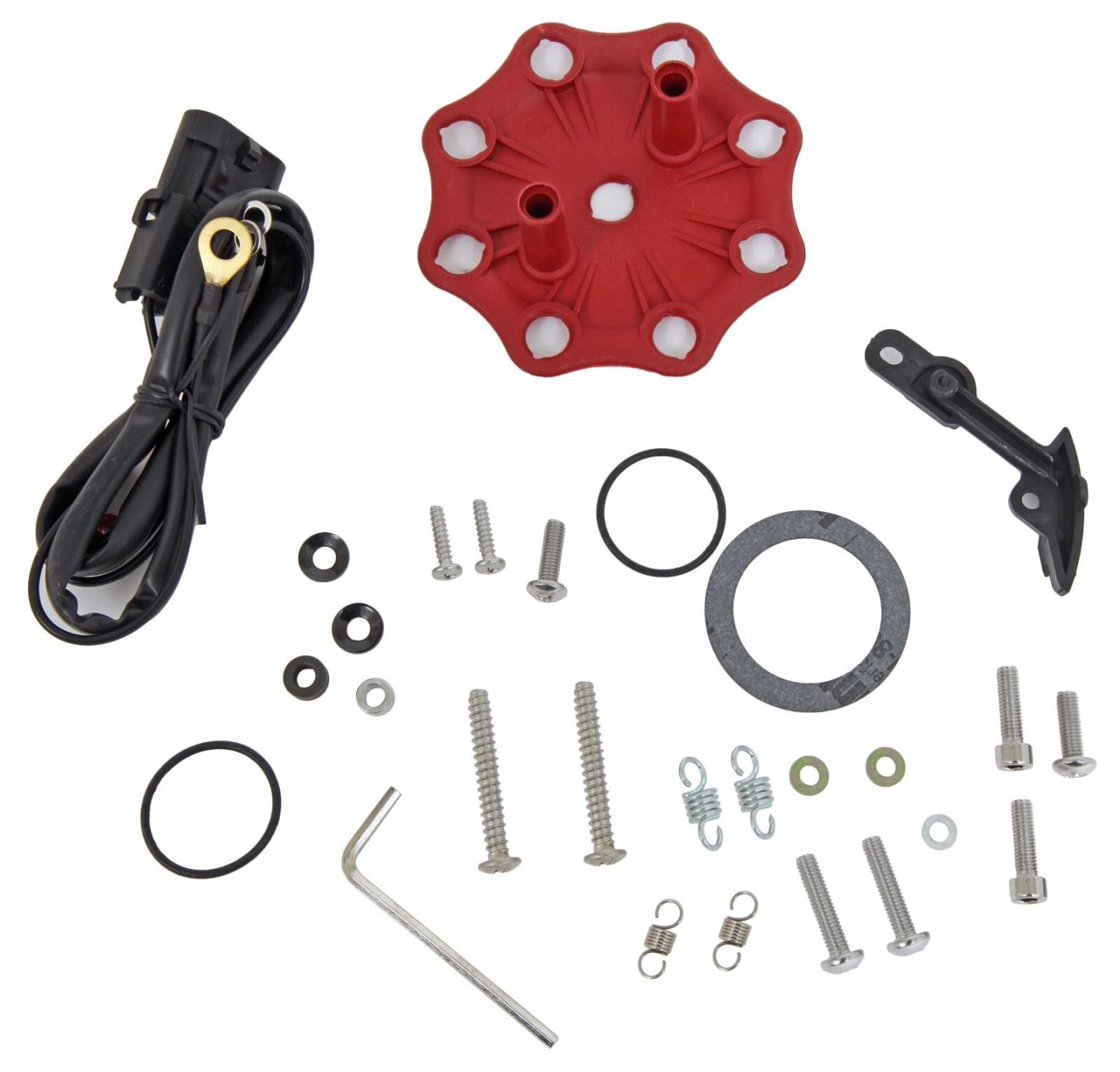

Edelbrock part #22750 Max-Fire distributor for Chevy V-8 engines (except Tall deck blocks and 348/409) is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit.FEATURES AND BENEFITS:- CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machinedengine block- Cap and rotor are molded in high quality 30% glass filled polyester for durability andcarbon tracking resistance- Features brass contacts and a stainless steel rotor spring for maximum conductivity- Hardened iron drive gear ensures long service life- Fully adjustable mechanical and vacuum advance for increased mileage potential

Additional Information

Max-Fire Distributor for Chevy 262-502 V8 with Fixed Collar

Application Summary

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L);Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Part Type

Distributor

Product Overview

Edelbrock part #22750 Max-Fire distributor for Chevy V-8 engines (except Tall deck blocks and 348/409) is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Adj. Mechanical And Vacuum Adv. For Increased Mileage Potential

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Distributor, Ready To Run, Magnetic Pickup, Vacuum Advance, Fixed Collar, Chevy V8, Kit

Edelbrock Max-Fire distributors are ready to run right out of the box—and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. Max-Fire kits feature precision machining for a perfect fit, along with a simple 3-wire hook-up for an easy installation (with no need to run an external ignition control box). The centerless ground shaft utilizes an upper sealed roller bearing with an extra-long lower bronze Oil-Lite bushing for smooth operation. The high-output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. (Edelbrock also recommends a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's.) Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. Order the model recommended for your year/make and engine application.
