Intake Manifold - Performer EPS - Square Bore - Dual Plane - Aluminum - Natural - Vortec - Small Block Chevy - Each

MANIFOLD

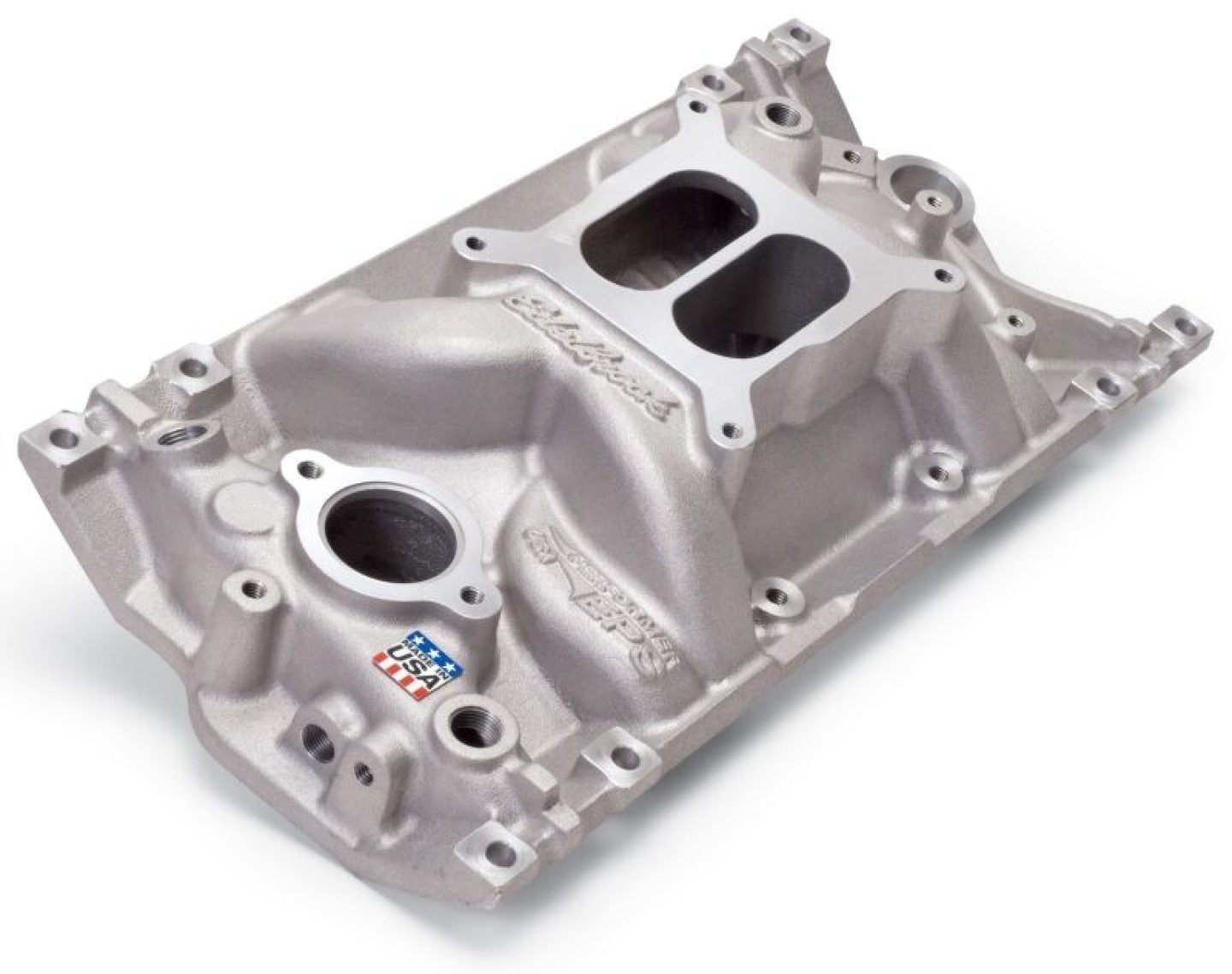

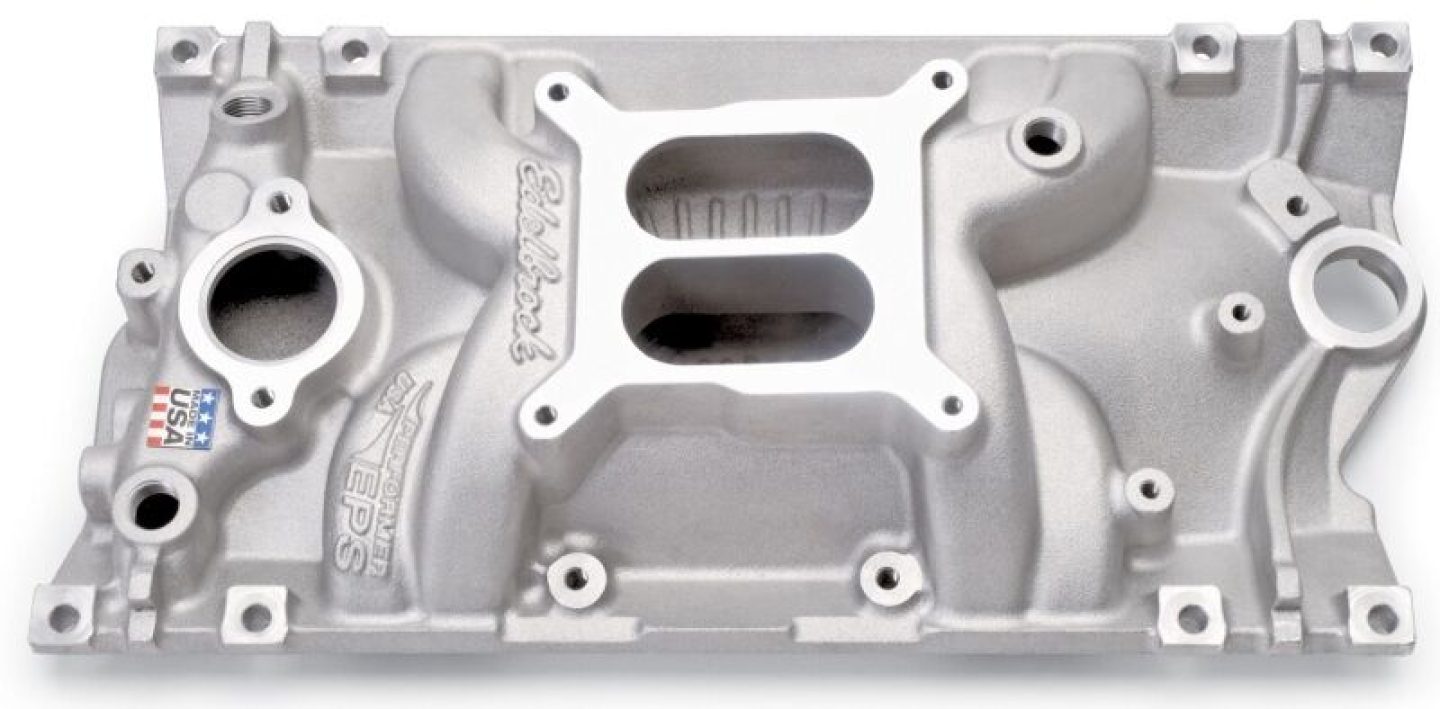

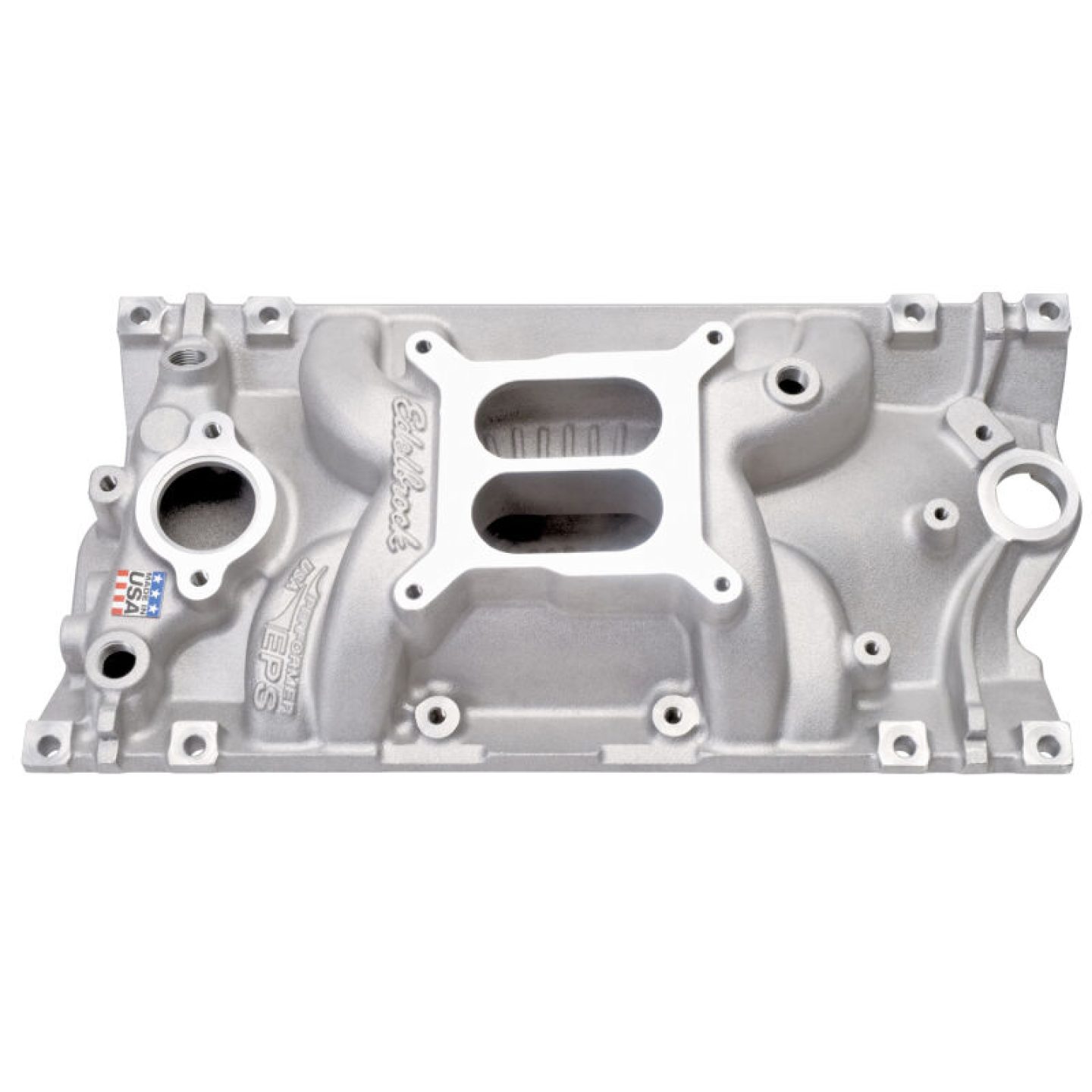

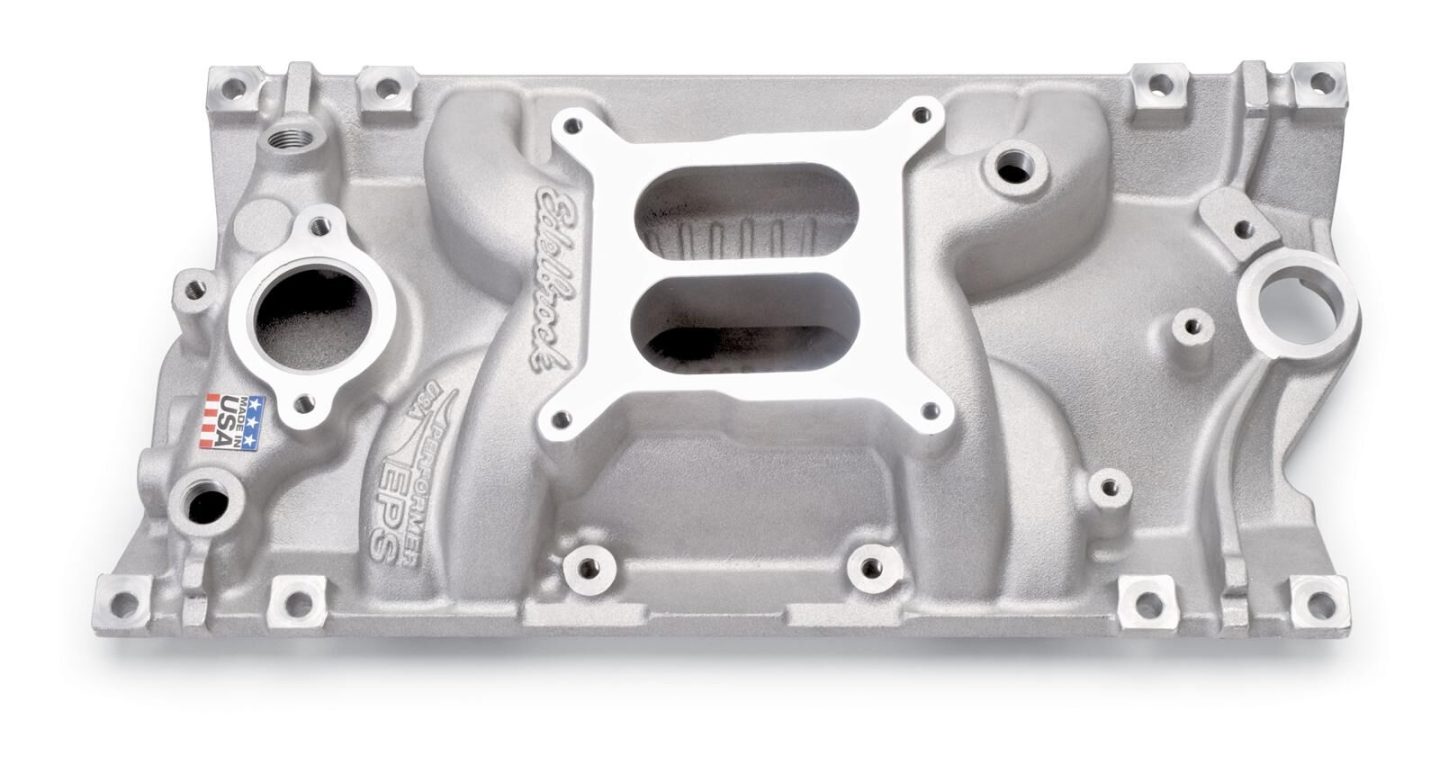

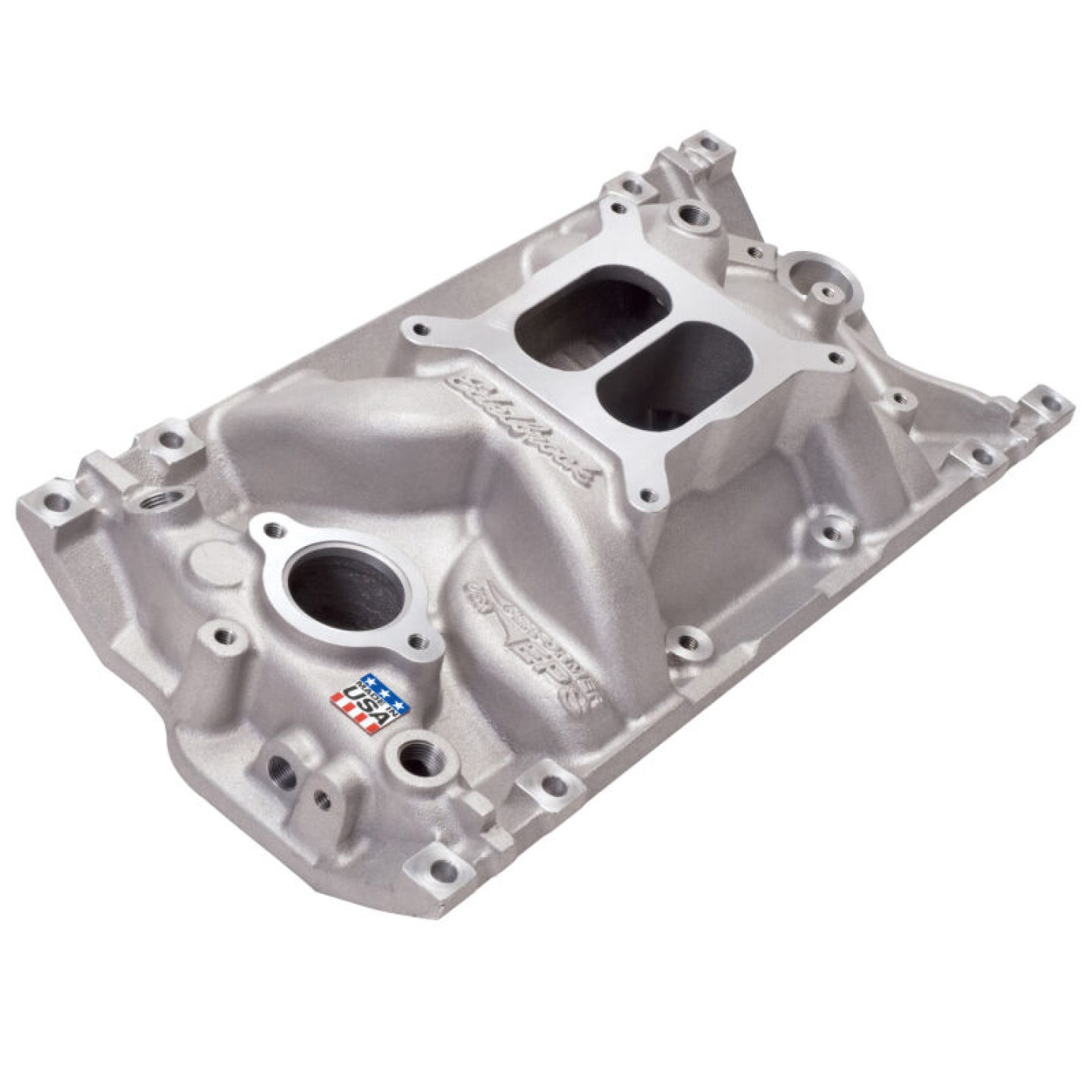

Edelbrock part #2716 Performer EPS Vortec intake manifold is now available for small-block Chevys with Vortec or Edelbrock E-Tec cylinder heads, the Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. The runner design is "tuned" for peak torque around 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Will not fit under stock Corvette hood.

Additional Information

MANIFOLD; 1996-02 SB CHEVY 5.0L-5.7L; EPS; VORTEC

Application Summary

Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Part Type

Engine Intake Manifold

• Dual-Plane Low-Rise Intake w/180 Deg. Firing Order

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Intake Manifold, Performer EPS Vortec, Dual Plane, Aluminum, Satin, Chevy, Vortec, E-Tec, Each

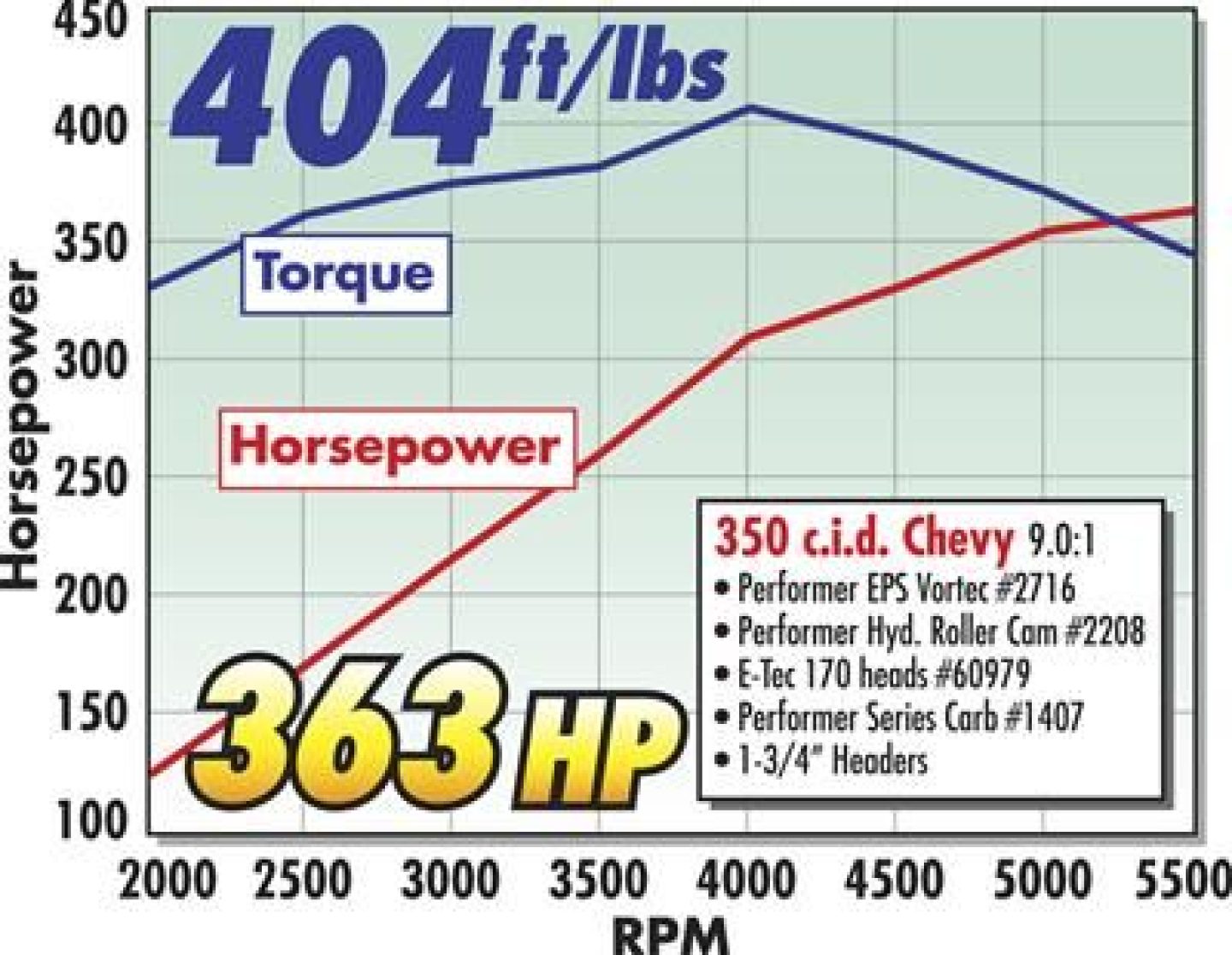

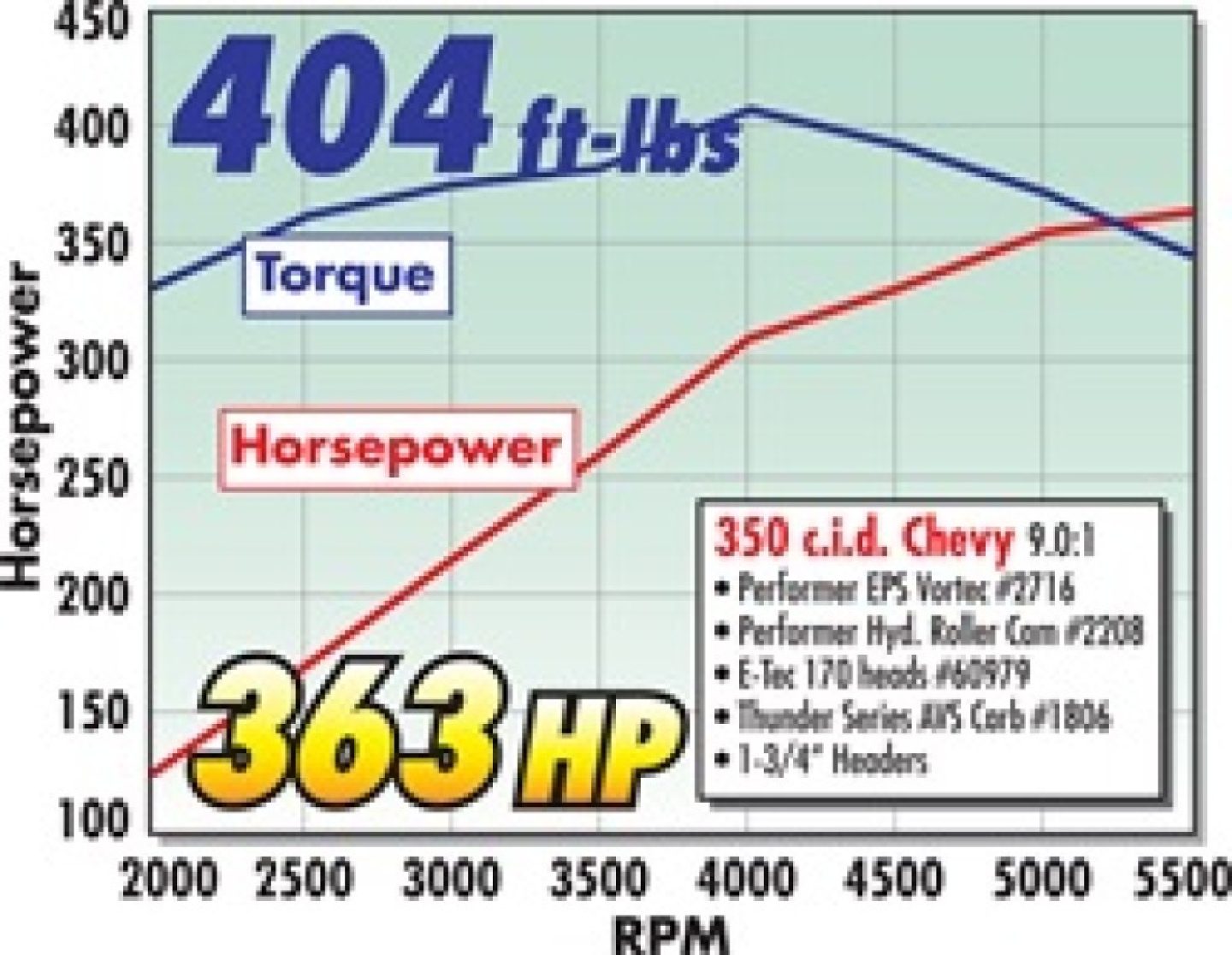

Dual-plane Edelbrock Performer EPS intake manifolds deliver dyno-proven horsepower gains from idle to 5,500 rpm, when used with Edelbrock's Performer Series square bore or Thunder Series AVS carburetors. Dyno tests showed an extra 5 hp and 9 lbs.-ft. over their own Performer manifolds. The secret is in the runner design, which is tuned to produce substantial torque increases in the 3,000 to 4,500 rpm range--with peak torque at 3,500 rpm. That's power where you need it the most!
