FUEL INJECTION COMPO

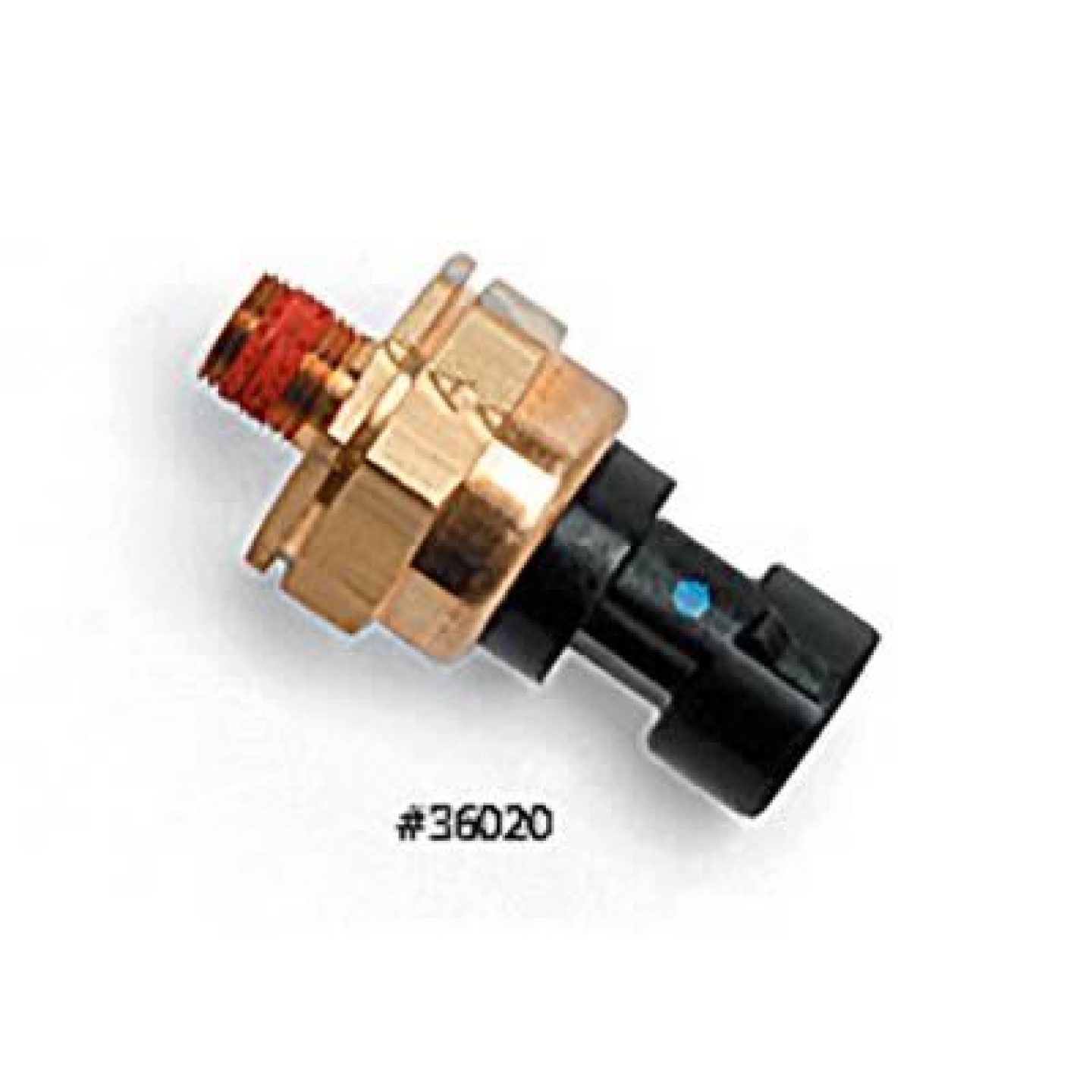

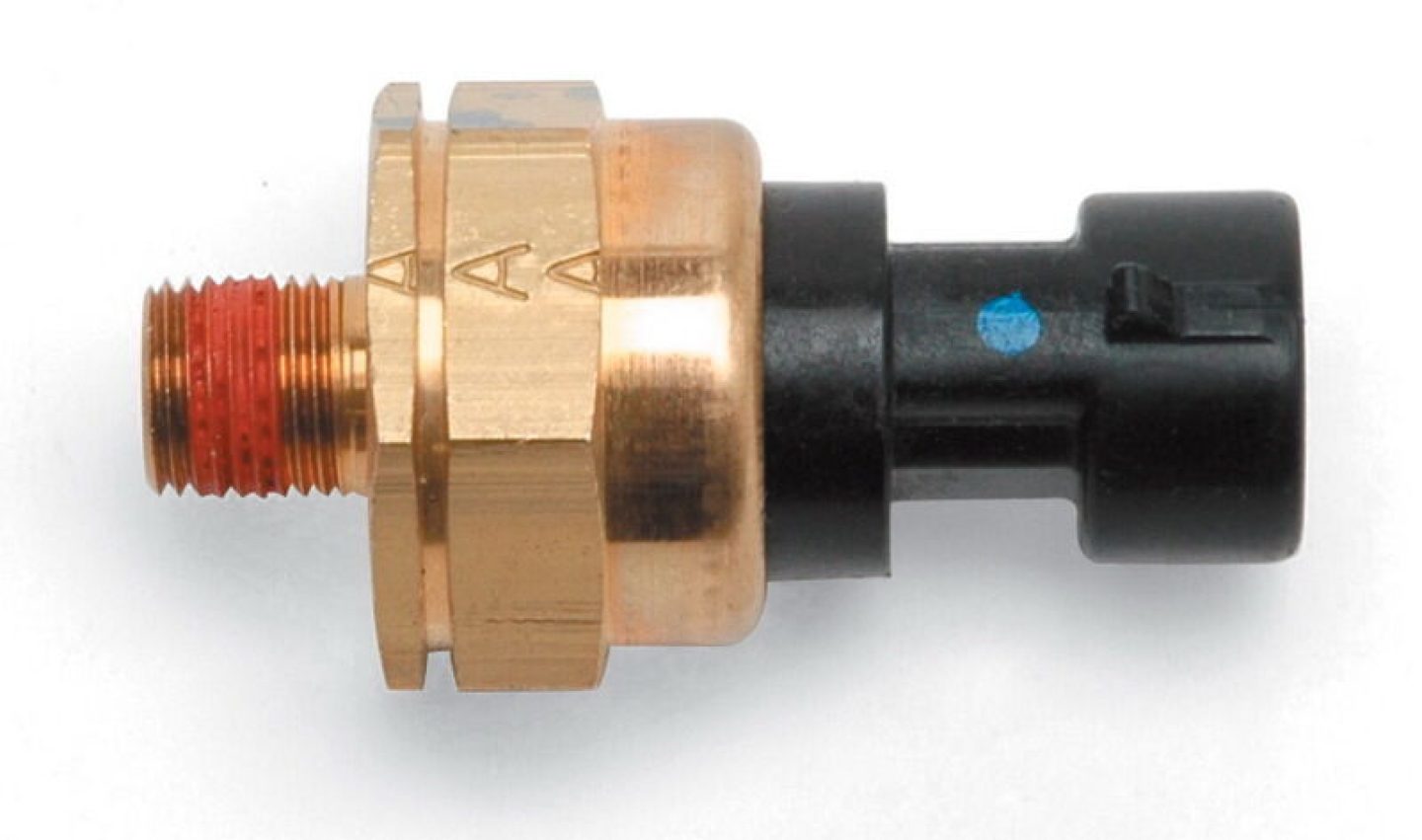

The Edelbrock #36020 Pro-Tuner EFI Pressure Sensors are intended to be used with Edelbrock's Pro-Tuner EFI system, but may be used with other systems using the supplied connector and wiring. They are configurable to most aftermarket ECUs. If you are using another aftermarket ECU, check the sensor's specifications with the manufacturer of your ECU. The brass body of these sensors features a 1/8" pipe thread (1/8-27 NPT) and pre-applied thread sealant.

Additional Information

Edelbrock Manifold Absolute Pressure Sensor are intended to be used with Edelbrock's Pro-Tuner EFI system, but may be used with other systems using the supplied connector and wiring. They are configurable to most aftermarket ECUs.

Part Type

Manifold Absolute Pressure Sensor

• Controls Fuel And Air Mixture

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

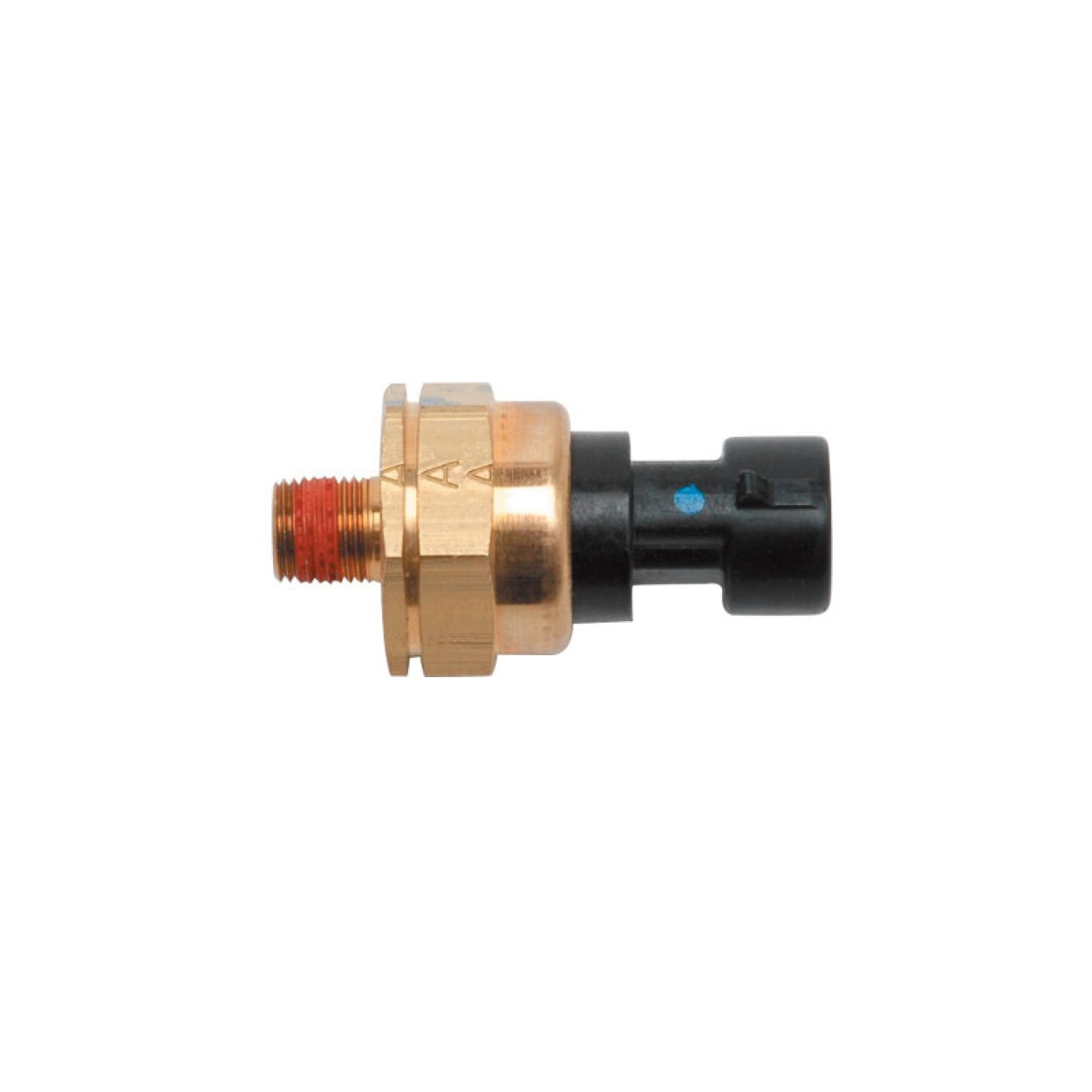

MAP Sensor, for Use On Pro-Tuner EFI Systems with 1/8 in.-27 NPT, 2 bar, Each

Keep your Pro-Flo multi-point EFI systems performing their best with Edelbrock MAP sensors. These Manifold Absolute Pressure sensors are made with high-quality components for durability and dependability, and will have a role in making sure that your engine is fed the right mixture of fuel and air. Hold on to performance by making sure that your ride's computer is getting the right signals with Edelbrock MAP sensors.
