Fuel Pump - EFI Sump Pump - Electric - In-Line - 67 gph at 90 psi - 6 AN Female O-Ring Outlet / Return - Gas - Universal - Kit

PUMPS

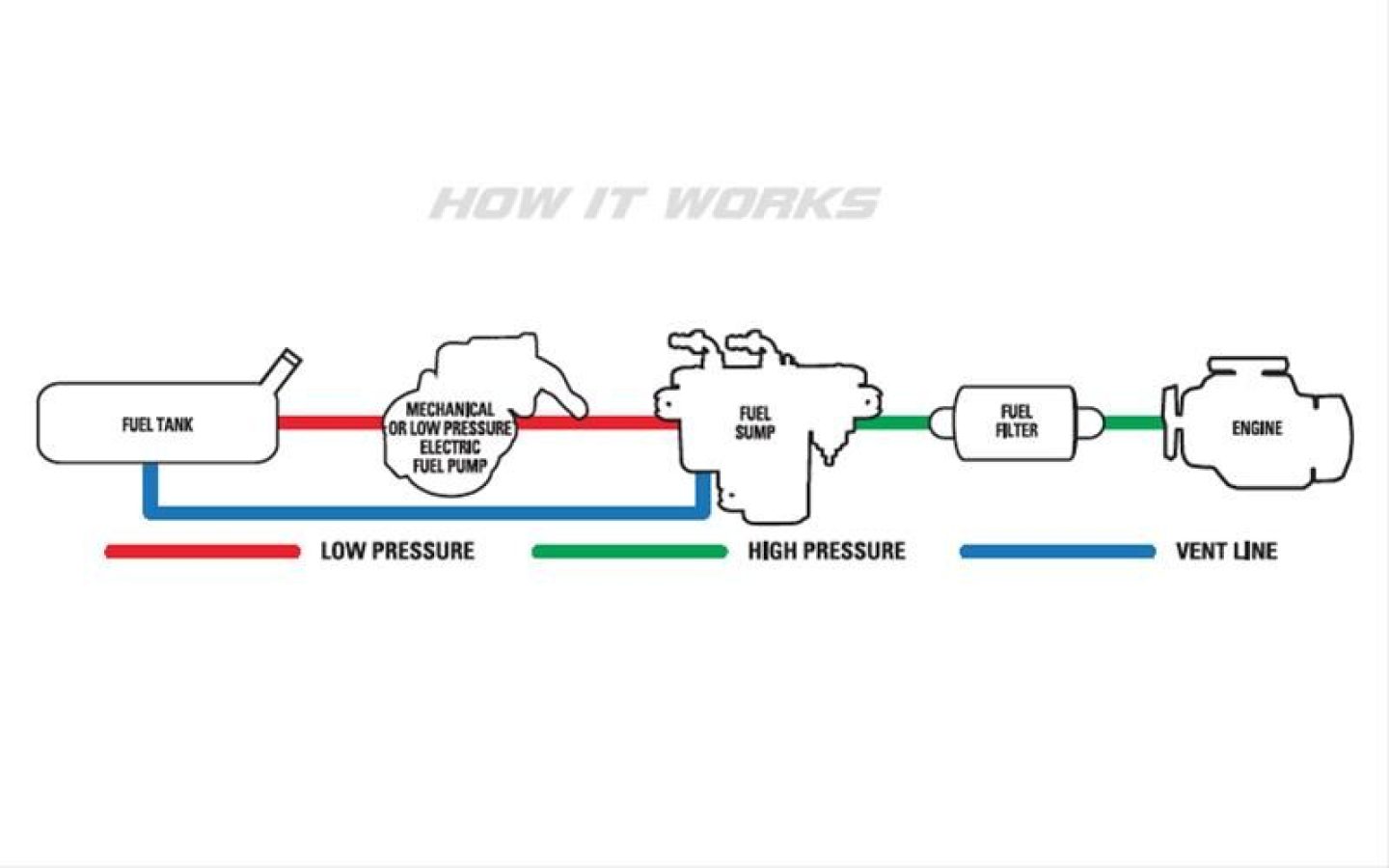

These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump. They are ideal for use with aftermarket EFI systems and with many popular engine swap applications that require constant 35-90 psi fuel pressure. These Fuel Sump Kits feature a compact design that is adjustable from 35 to 90 psi and include a vacuum reference port. They are available in a 67 gph flow rate and can support up to 600 HP. They're great solutions when used with a Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI system. Complete kit #36031 includes a durable, lightweight plastic fuel sump tank with high pressure fuel pump, wiring harness, hose and fittings. Fuel Sump Tank Assembly #36032 are for builders and consumers that want to utilize their own hose and fittings. Will require the installation of a vent line from the sump overflow vent port to the fuel tank. Edelbrock Universal EFI Sump Fuel Kits are the most affordable way to make your fuel system EFI ready.

Additional Information

Universal EFI Fuel Sump tank Kit w/pump, tank, mounting

Part Type

Fuel Tank Sump

Product Overview

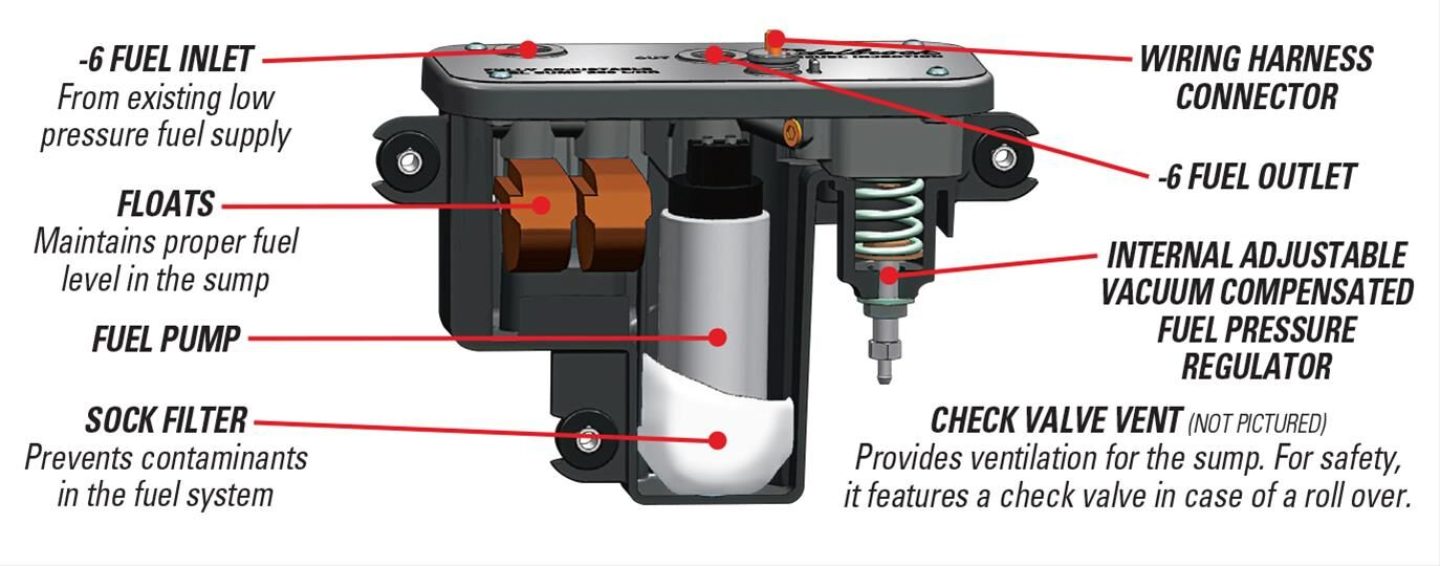

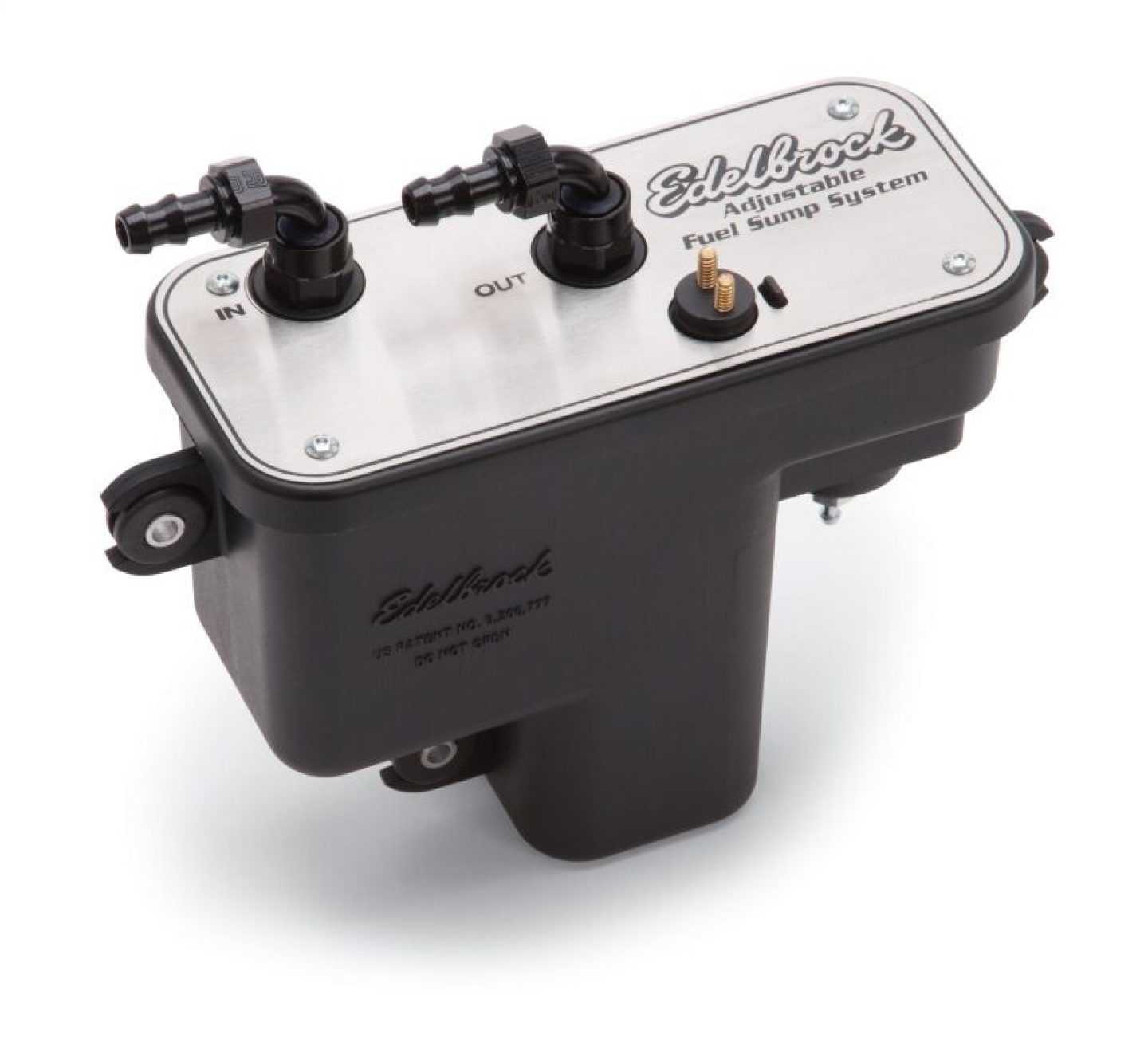

The Universal Fuel Sump #36032 is designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. This Universal Fuel Sump is a self-contained high-pressure fuel pump/sump unit that can be easily installed under the hood. The unique design of this Fuel Sump allows it to deliver constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. The Edelbrock Universal Fuel Sump is compatible with the existing factory fuel tank and pump and is ideal for use with aftermarket EFI systems as well as many popular engine swap applications that require constant 35-90 PSI fuel pressure. This Universal Fuel Sump features a compact design that is adjustable from 35 to 90 PSI and includes a vacuum reference port. A flow rate of 67 GPH can support up to 600 HP and is a perfect choice to use with Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI systems. Part #36032 is the Universal Fuel Sump with electrical harness and mounting hardware designed for consumers who want to utilize their own hose and fittings. A complete Universal Fuel Sump Kit #36031 is available with harness, hardware, hose, filter and fittings included. Both will require the installation of a vent line from the sump overflow vent port to the fuel tank. The Edelbrock Universal EFI Fuel Sump is the easiest and most affordable way to make your fuel system EFI ready. NOTE: THIS SUMP IS NOT INTENDED FOR OFF ROAD USE, ROCK CRAWLING OR APPLICATIONS WHERE VEHICLE WILL BE SUSTAINED AT INCLINE OR DECLINE ANGLES GREATER THAN 45 DEGREES FOR EXTENDED DURATIONS.

• Requires Vent Line From Sump Overflow Vent to Fuel Tank

Vehicle Compatibility and Return Conditions.

This item was designed and engineered in the USA for US domestic vehicles. OBD tools, ECUs, dongles, programmers, and tuners may have limited compatibility with vehicles outside the USA due to regional differences in emission standards and system configurations. Some features and functionality may vary depending on the vehicle and location.

Some electronic tuning devices and programmers require activation, registration, or pairing with a specific vehicle’s VIN (Vehicle Identification Number). Once activated or paired, these devices may become permanently associated with that vehicle, restricting or preventing their use on another vehicle, resticting our ability to offer returns or exchanges.

Please review the product details and images to ensure it meets your needs. For clarification or assistance, feel free to contact a StreetFX agent. Note: Returns are not accepted for special order or tuning products unless the unit is deemed faulty.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Fuel Pump, Electric, External, Universal EFI Sump, 67 gph, 35-90 psi, Supports up to 600 hp, Each

Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump.

These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system.

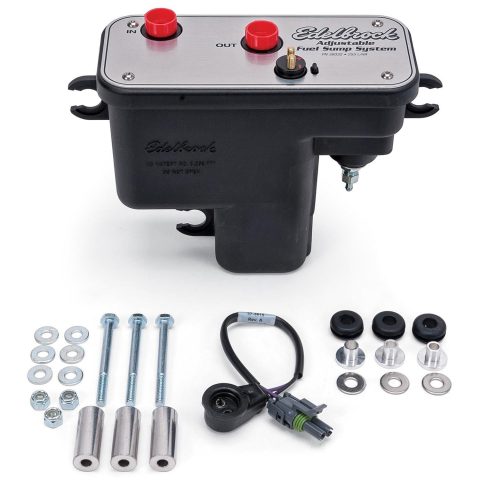

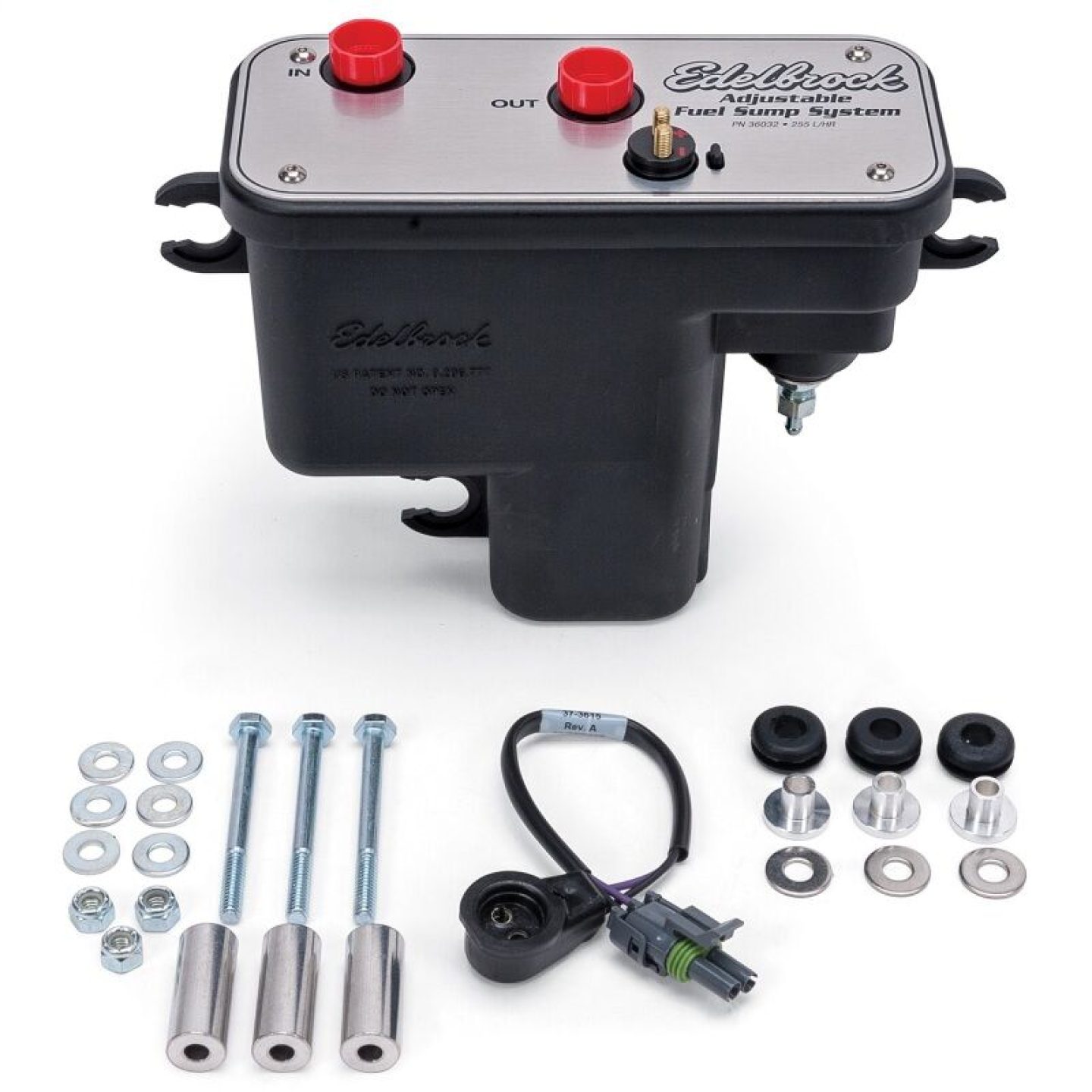

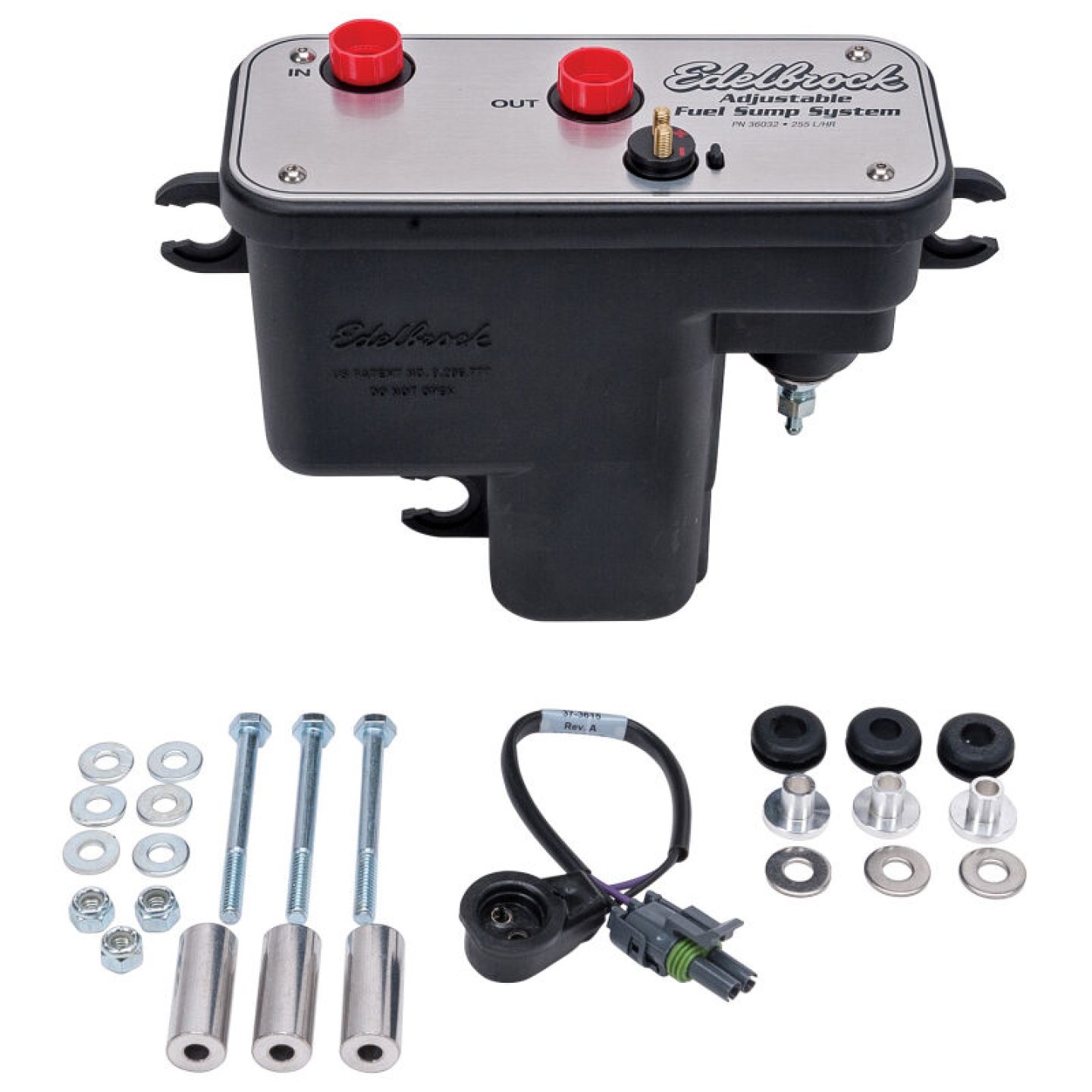

Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation.
