Description

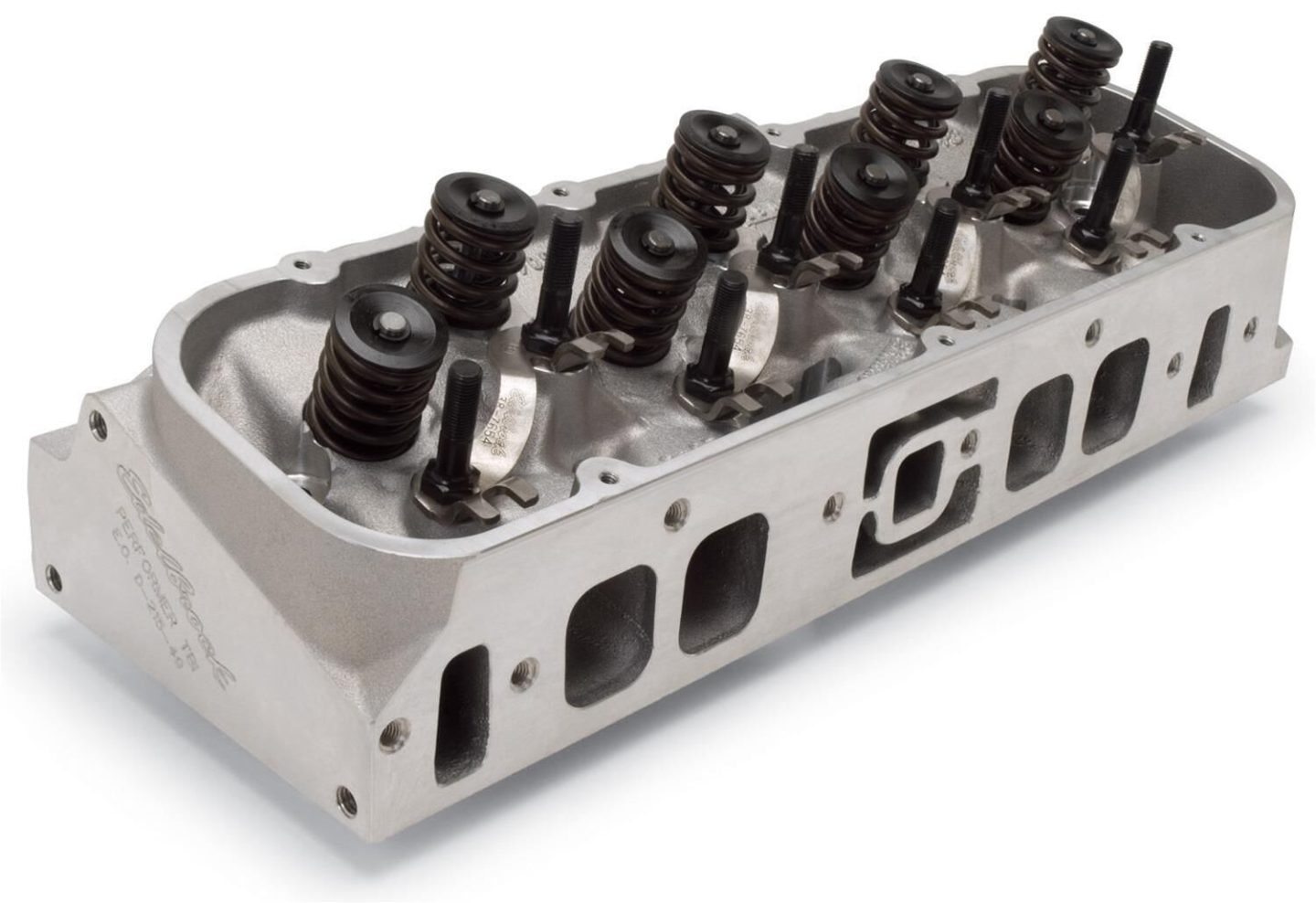

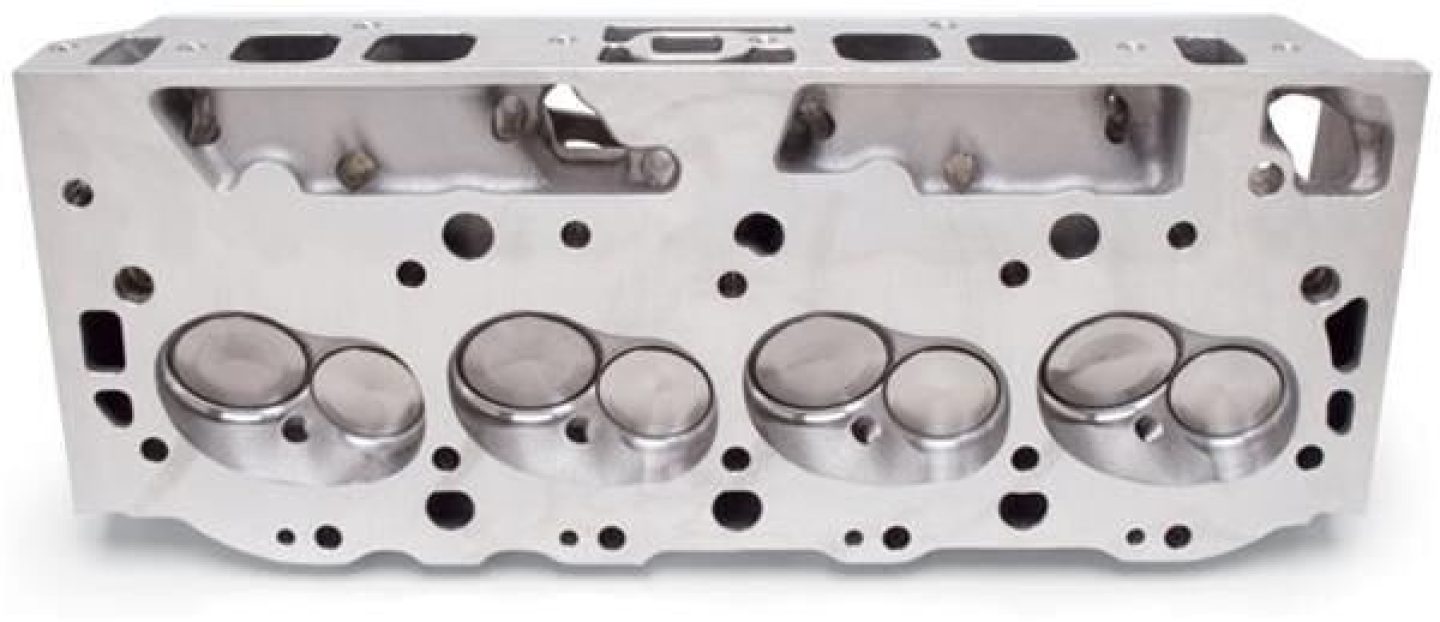

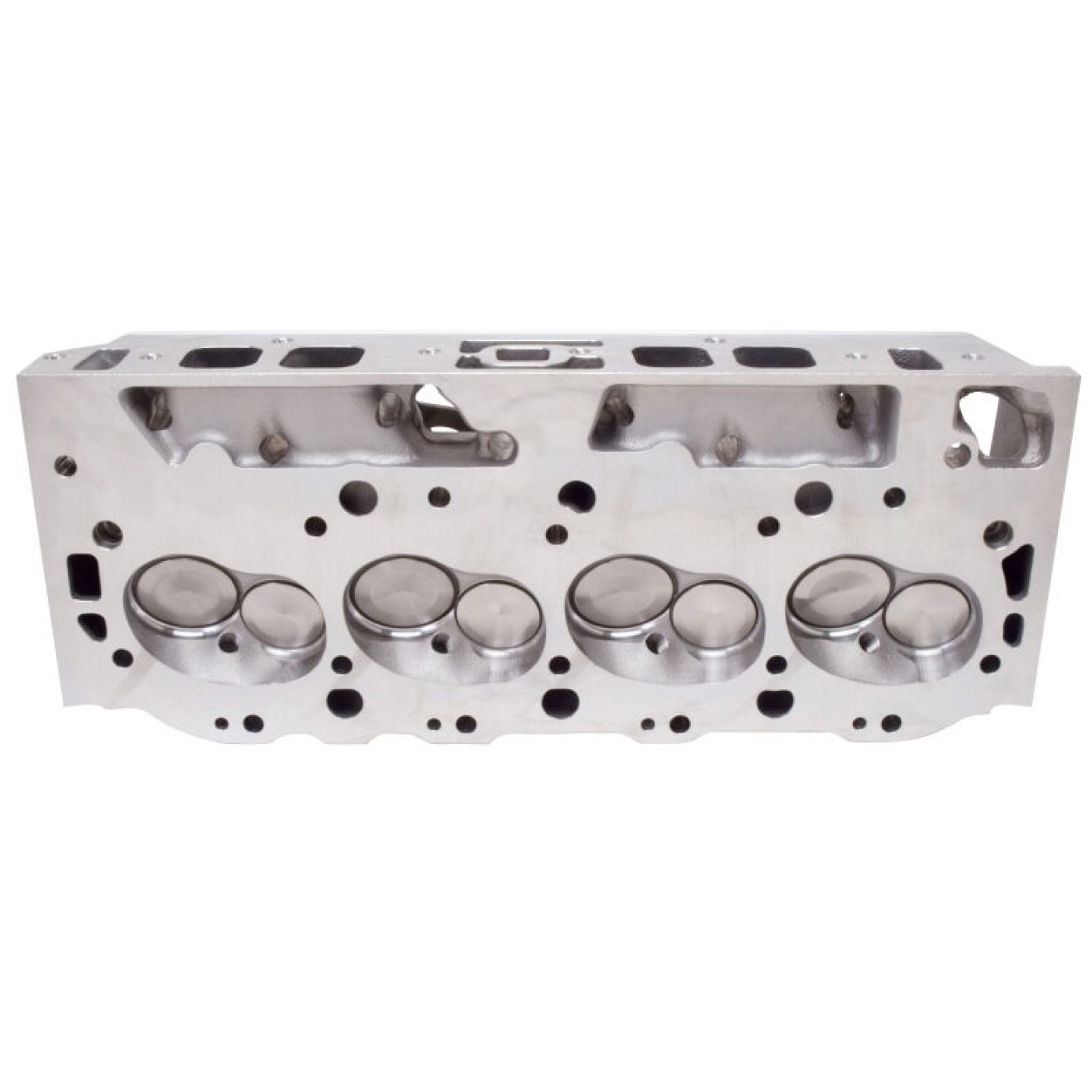

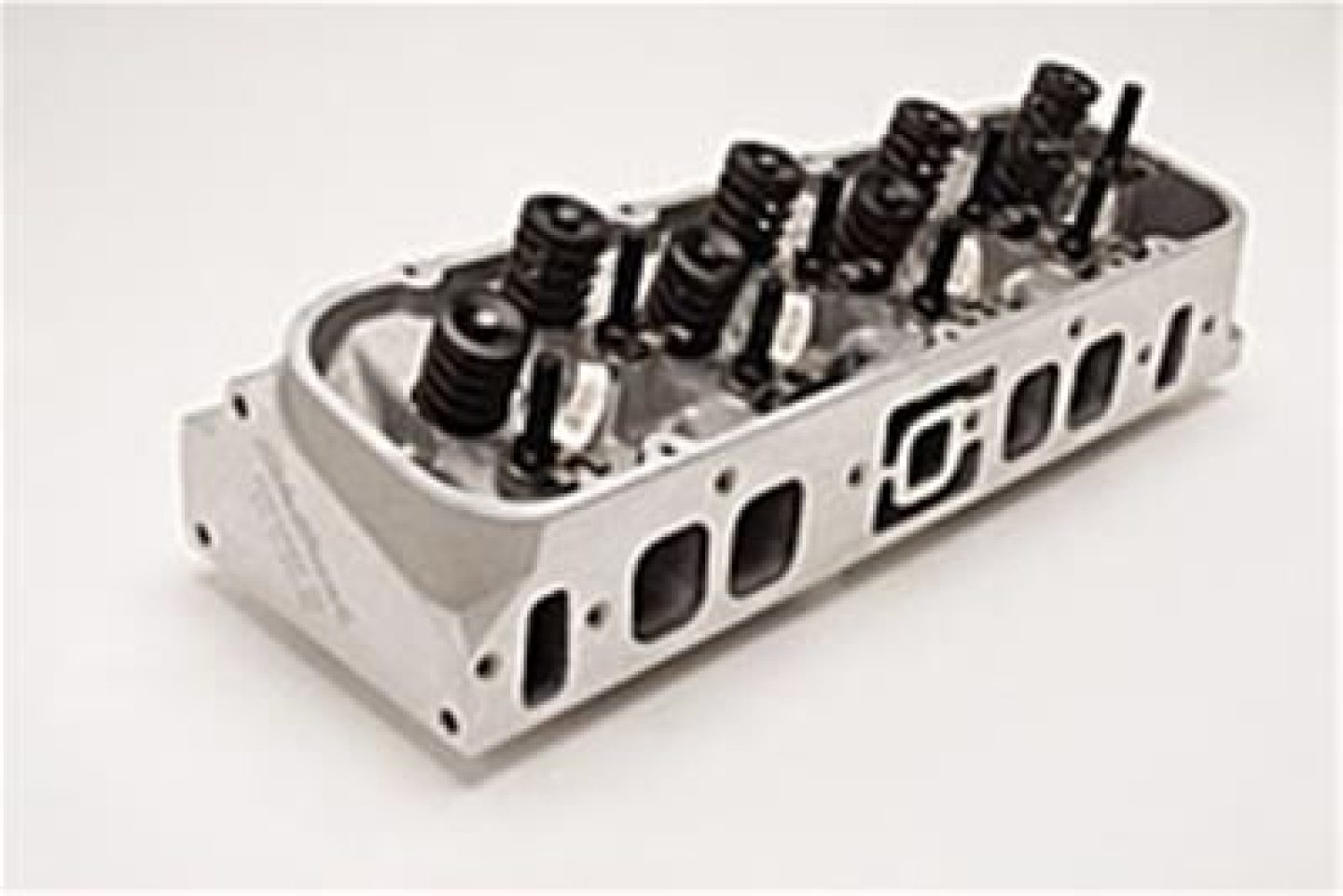

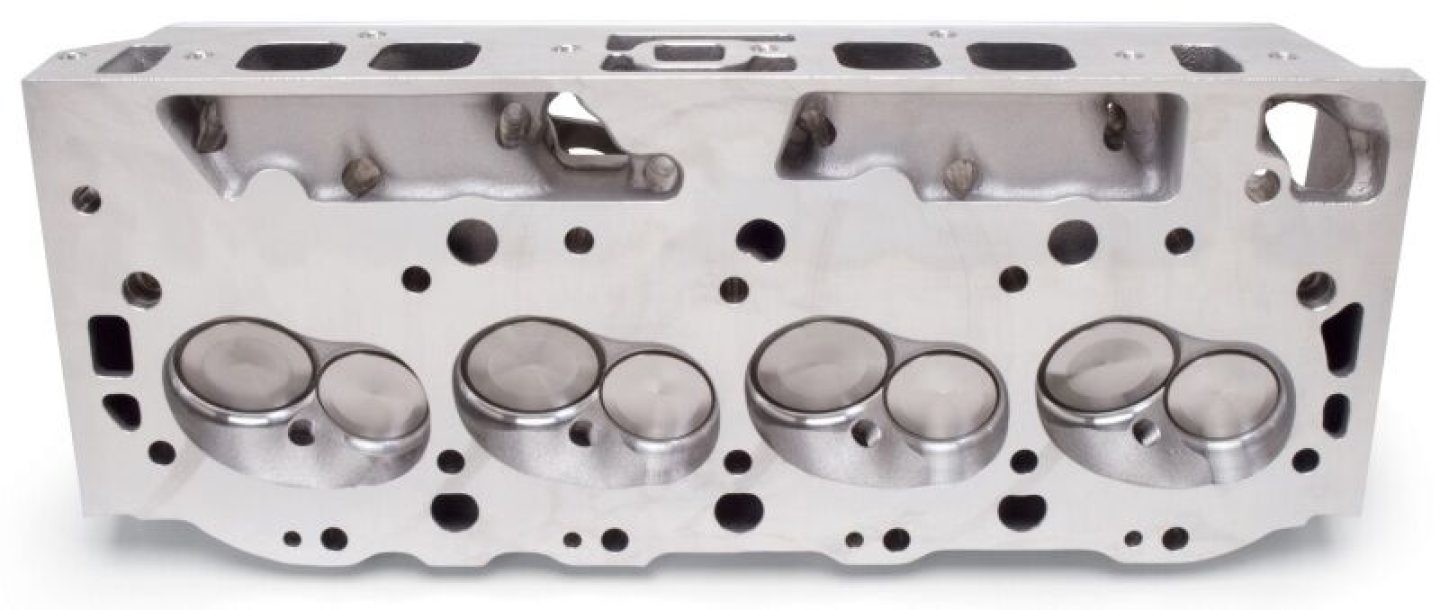

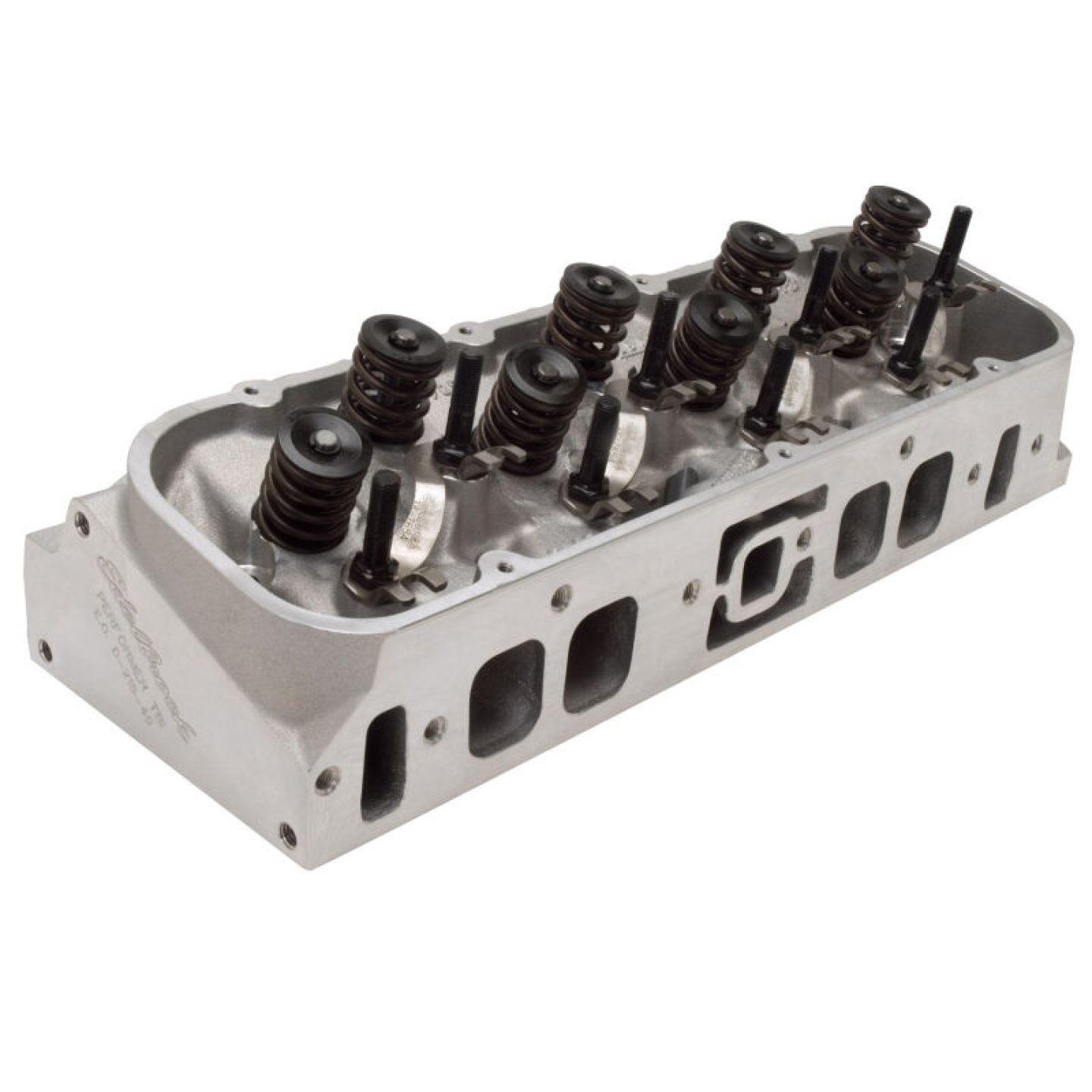

Cylinder Head - Performer High-Compression - Assembled - 2.190 / 1.880 in Valves - 290 cc Intake - 100 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Big Block Chevy - Each

CYLINDER HEADS

The Edelbrock #60499 Performer Bare High Compression cylinder head is designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

Additional Information

BBC TBI HEAD (COMP)

Application Summary

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

Part Type

Engine Cylinder Head

Product Overview

Features and Benefits

Match with Edelbrock Multi-Point EFI to Maximize

Product Details

9040:	D-215-94
CNC Ported:	No
Camshaft Type:	Flat Tappet
Combustion Chamber Volume:	100
Construction Type:	Complete
Cylinder Head Type:	Standard
Deck Thickness:	0.5625
Description:	Performer Series Cylinder Head
EGR Port:	Yes
Emission:	50 State Legal
Engine Make/Size:	Chevy Big Block (396-502)
Exhaust Port Location:	Standard
Exhaust Runner Volume:	110
Exhaust Valve Diameter:	1.88
Family:	Performer
Finish:	Satin
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plate Material:	Hardened Steel
Guide Plates Included:	Yes
Horsepower:	400-500
Intake Runner Volume:	290
Intake Valve Diameter:	2.19
Material:	Aluminum
Part Number:	ede60499
Preparation:	Bolt On (Not Required)
Push Rod Diameter:	(Suggested) 0.4375
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	Yes
Rocker Arm Stud Diameter:	0.4375
Seat Angle:	Exhaust 45 deg/Intake 45
Seat Material:	Ductile Iron
Series:	Performer
Type:	Complete
Usage:	Street/Hi-Performance
Valve Angle:	26
Valve Included:	Yes
Valve Spring Diameter:	1.50
Valve Spring Maximum Lift:	0.700
Valve Springs Included:	Yes
Valve Stem Diameter:	0.3438

Additional Application Notes
• Std. Exh. Port Single Oval Intake Port High Compression 454-0; Complete; 400-500hp; Oval Intake Port; Std. Exh. Port; 2.19 intake/1.88 in. Exh. Valves; Single;CARB E.O. D-215-49 High Compression 454-0 Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps~ 50 State Legal Complete CARB E.O. D-215-49 400-500hp 2.19 intake/1.88 in. Exh. Valves
• Recommend Edelbrock Gasket PN[7302] Head; PN[7203] Intake; PN[7205] Exhaust~ 50 State Legal High Compression 454-0; Complete; 400-500hp; Oval Intake Port; Std. Exh. Port; 2.19 intake/1.88 in. Exh. Valves; Single;CARB E.O. D-215-49 Chamber Size 100cc; Complete; Single;CARB E.O. D-215-49 50 State Legal~Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
• High Compression 454-0; Complete; 400-500hp; Oval Intake Port; Std. Exh. Port; 2.19 intake/1.88 in. Exh. Valves; Single;CARB E.O. D-215-49 Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps~ 50 State Legal
• High Compression 454-0; Complete; 400-500hp; Oval Intake Port; Std. Exh. Port; 2.19 intake/1.88 in. Exh. Valves; Single;CARB E.O. D-215-49 Chamber Size 100cc; Complete; Single;CARB E.O. D-215-49 50 State Legal~Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps 50 State Legal
• High Compression 454-0; Complete; 400-500hp; Oval Intake Port; Std. Exh. Port; 2.19 intake/1.88 in. Exh. Valves; Single;CARB E.O. D-215-49 Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps~ 50 State Legal 50 State Legal~Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Data: v2 - Desc: v4.1 - Upd: 2025-10-08 20:10:11

Features

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Reference Data (Provide these details to our support team)
Brand Name/s	Edelbrock
StreetFX SKU	ede60499
SFX Item ID	4236739
Accounting SKU	ede-60499
Manufacturer SKU	60499
Manufacturer UPC	85347604999
Alternative References	EDB60499, EDL-60499

Specifications

Cylinder Head, Performer, Aluminum, Assembled, 100cc Chamber, 290cc Intake Runner, Chevy, Big Block, Each

All Edelbrock aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. They offer improved power throughout the rpm range for greater throttle response and top-end horsepower. The intake and exhaust runners are CNC-machine profiled for superior flow and performance.

Product Attributes
Brand	Edelbrock
Manufacturer's Part Number	60499
Part Type	Cylinder Heads
Product Line	Edelbrock Performer Cylinder Heads
UPC	085347604999
Combustion Chamber Volume (cc)	100
Intake Runner Volume (cc)	290cc
Exhaust Runner Volume (cc)	110cc
Cylinder Head Style	Assembled
Cylinder Head Material	Cast aluminum
Camshaft Style	Hydraulic flat tappet
Intake Port Shape	Oval
Intake Valve Diameter (in.)	2.190 in.
CNC-Machined Combustion Chamber	No
CNC-Machined Intake Runner	No
CNC-Machined Exhaust Runner	No
Combustion Chamber Style	Semi-open
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Intake Valves Included	Yes
Exhaust Valves Included	Yes
Exhaust Valve Diameter (in.)	1.880 in.
Valve Springs Included	Yes
Maximum Valve Lift (in.)	0.700 in.
Outside Diameter of Outer Spring (in.)	1.540 in.
Damper Spring Included	No
Number of Springs Per Valve	Dual
Retainers Included	Yes
Retainer Material	Steel
Locks Included	Yes
Lock Style	7 degree
Valve Stem Seals Included	Yes
Valve Stem Seal Style	Positive stop
Rocker Arm Studs Included	Yes
Rocker Arm Nut Thread Size	7/16 in.-20
Rocker Arms Included	No
Rocker Arm Nuts Included	No
Guideplates Included	Yes
Guideplate Pushrod Size	3/8 in.
Valve Cover Mounting Style	Perimeter bolt
Accessory Bolt Holes Drilled	Yes
Intake Valve Angle	26
Valve Guides Included	Yes
Valve Guide Material	Manganese bronze
Valve Seats Machined	Yes
Valve Seat Machine Style	3-angle
Valve Seat Material	Ductile iron
Cylinder Head Color	Natural
Steam Holes Drilled	No
Oiling Style	Through pushrod
Machined for O-Ring	No
Heat Crossover	Yes
Remanufactured	No
Quantity	Sold individually.
Notes	If using a domed piston check clearance before final assembly, spark plug location has been moved .150 closer to bore center, with a semi-open chamber design. Performer applications include heat crossover passage for emissions related engines
CARB EO Number(s)	D-215-94
Emissions	California EO Approved

compatibility

Edelbrock Single BBC Hi-Comp 454-0 Head Comp
Year Range	Make	Model	Submodels	Region
1963	Chevrolet	Bel Air	Base	US
1965-1975	Chevrolet	Bel Air	Base	US
1963	Chevrolet	Biscayne	Base	US
1965-1972	Chevrolet	Biscayne	Base	US
1973	Chevrolet	Blazer	Base	US
1975-1980	Chevrolet	C10	Cheyenne, Custom Deluxe, Scottsdale, Silverado, Big Ten	US
1968-1969	Chevrolet	C10 Pickup	Base	US
1973-1974	Chevrolet	C10 Pickup	Base	US
1968-1969	Chevrolet	C10 Suburban	Base	US
1973-1980	Chevrolet	C10 Suburban	Base, Custom Deluxe, Scottsdale, Silverado	US
1990-1993	Chevrolet	C1500	454 SS, Cheyenne, Scottsdale, Silverado, WT	US
1975-1986	Chevrolet	C20	Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe	US
1968-1969	Chevrolet	C20 Pickup	Base	US
1973-1974	Chevrolet	C20 Pickup	Base	US
1968-1969	Chevrolet	C20 Suburban	Base	US
1973-1986	Chevrolet	C20 Suburban	Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe	US
1991-1995	Chevrolet	C2500	Cheyenne, Silverado, Scottsdale, Base, WT	US
1992-1995	Chevrolet	C2500 Suburban	Base, Silverado, LS, LT	US
1975-1986	Chevrolet	C30	Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe	US
1968-1969	Chevrolet	C30 Pickup	Base	US
1973-1974	Chevrolet	C30 Pickup	Base	US
1988-1995	Chevrolet	C3500	Cheyenne, Scottsdale, Silverado, Base	US
1967-1969	Chevrolet	Camaro	Base, RS, SS	US
1966-1976	Chevrolet	Caprice	Base, Classic, Estate, Classic Sport, Estate Wagon, Classic Landau, Classic Estate	US
1966-1973	Chevrolet	Chevelle	Base, SS, Concours, Deluxe, 300, 300 Deluxe, Malibu, Nomad, Concours Estate, Greenbrier	US
1968	Chevrolet	Chevy II	Nova	US
1966-1974	Chevrolet	Corvette	Base	US
1966-1975	Chevrolet	El Camino	Base, Custom, SS	US
1973-1974	Chevrolet	G10 Van	Base	US
1976	Chevrolet	G20	Beauville, Chevy Van	US
1973-1974	Chevrolet	G20 Van	Base, Sportvan	US
1975-1976	Chevrolet	G30	Beauville, Chevy Van, Hi-Cube	US
1988-1996	Chevrolet	G30	Beauville, Chevy Van, Hi-Cube, Sportvan	US
1973-1974	Chevrolet	G30 Van	Base	US
1963	Chevrolet	Impala	Base	US
1965-1976	Chevrolet	Impala	Base, SS, Custom, Sport, S, Custom Landau	US
1976	Chevrolet	K10	Cheyenne, Custom Deluxe, Scottsdale, Silverado	US
1979-1980	Chevrolet	K10	Cheyenne, Custom Deluxe, Scottsdale, Silverado	US
1968-1969	Chevrolet	K10 Pickup	Base	US
1974	Chevrolet	K10 Pickup	Base	US
1968-1969	Chevrolet	K10 Suburban	Base	US
1976-1978	Chevrolet	K20	Cheyenne, Custom Deluxe, Scottsdale, Silverado	US
1980	Chevrolet	K20	Cheyenne, Custom Deluxe, Scottsdale, Silverado	US
1968-1969	Chevrolet	K20 Pickup	Base	US
1973-1974	Chevrolet	K20 Pickup	Base	US
1973	Chevrolet	K20 Suburban	Base	US
1985	Chevrolet	K20 Suburban	Custom, Scottsdale, Silverado	US
1991-1995	Chevrolet	K2500	Cheyenne, Silverado, Scottsdale, Base, WT	US
1992-1995	Chevrolet	K2500 Suburban	Base, Silverado, LS, LT	US
1977	Chevrolet	K30	Cheyenne, Custom Deluxe, Scottsdale, Silverado	US
Note: Displaying first 50 entries.

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

Application Data
Make	CHEVROLET
Beginning Year	1966
Ending Year	1969
Engine Type	V8
Engine Family	Chevy big block Mark IV
Engine Size	7.0L/427
Rocker Arm Mounting Style (application)	Stud

Make	CHEVROLET
Beginning Year	1966
Ending Year	1970
Engine Type	V8
Engine Family	Chevy big block Mark IV
Engine Size	6.5L/396
Rocker Arm Mounting Style (application)	Stud

Make	CHEVROLET
Beginning Year	1970
Ending Year	1972
Engine Type	V8
Engine Family	Chevy big block Mark IV
Engine Size	6.6L/402
Rocker Arm Mounting Style (application)	Stud

Make	CHEVROLET
Beginning Year	1970
Ending Year	1990
Engine Type	V8
Engine Family	Chevy big block Mark IV
Engine Size	7.4L/454
Rocker Arm Mounting Style (application)	Stud

Make	CHEVROLET
Beginning Year	1991
Ending Year	1995
Engine Type	V8
Engine Family	Chevy big block Gen V
Engine Size	7.4L/454
Rocker Arm Mounting Style (application)	Stud

Make	CHEVROLET
Beginning Year	1996
Ending Year	2000
Engine Type	V8
Engine Family	Chevy big block Gen VI
Engine Size	7.4L/454
Rocker Arm Mounting Style (application)	Stud

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
