CYL HEADS-RACE

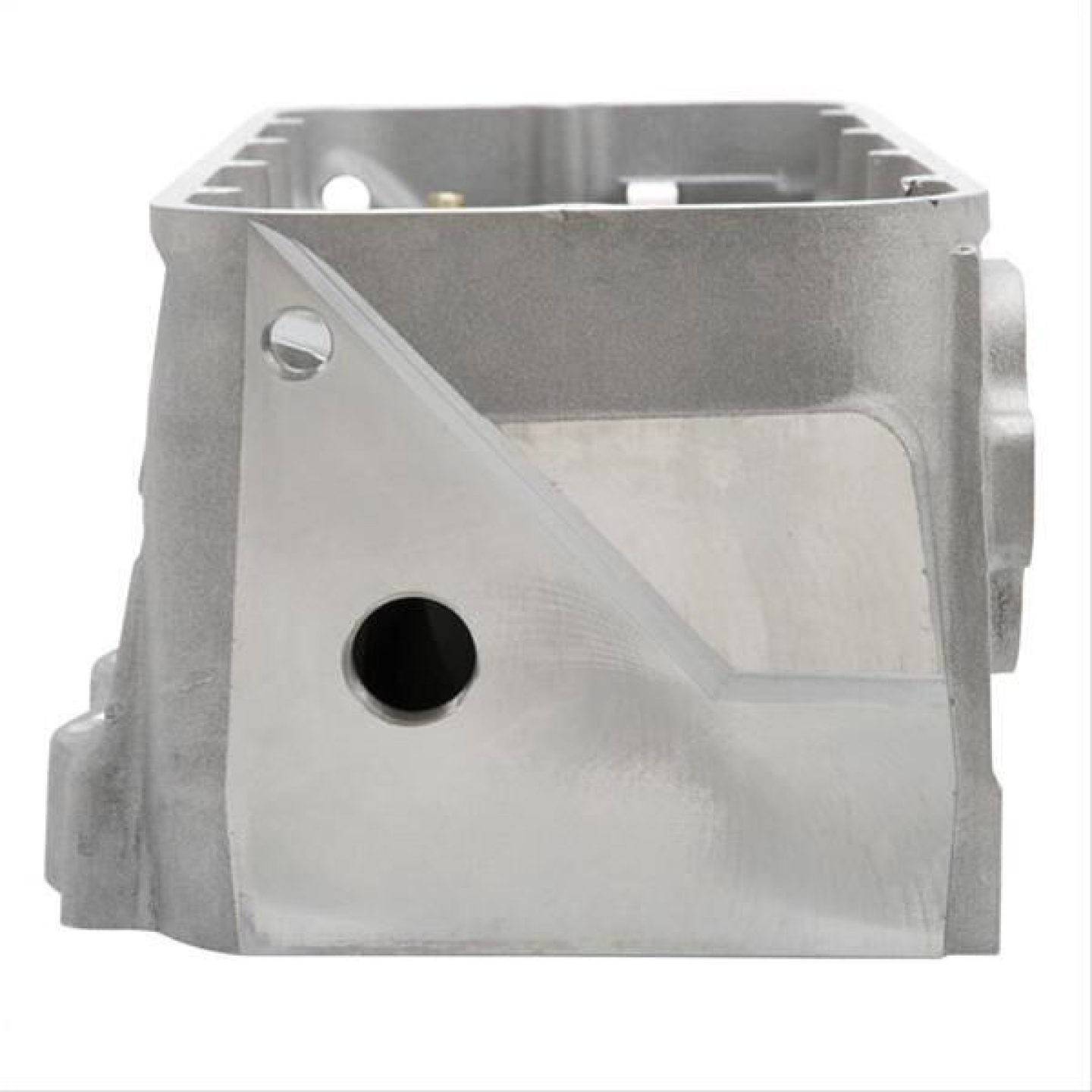

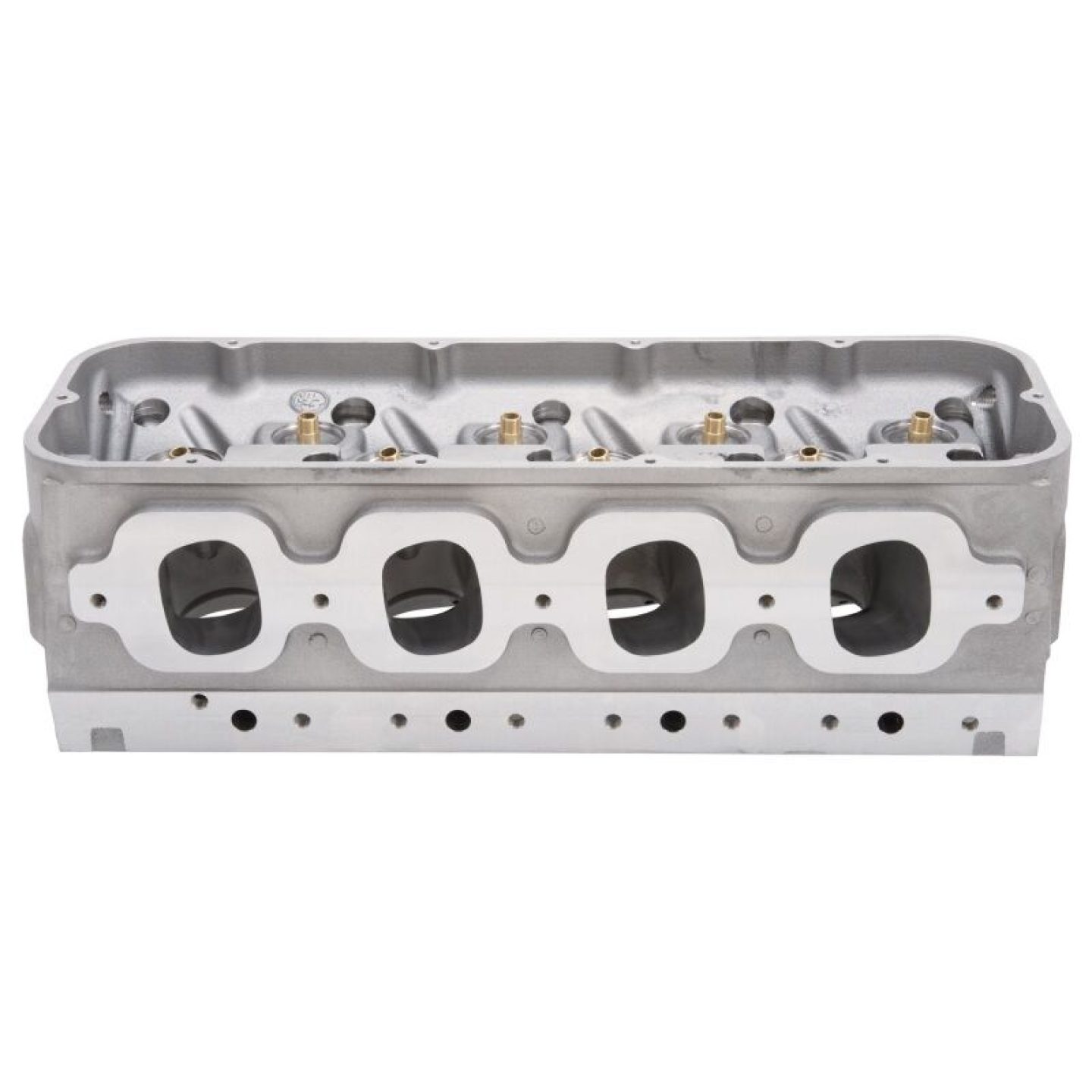

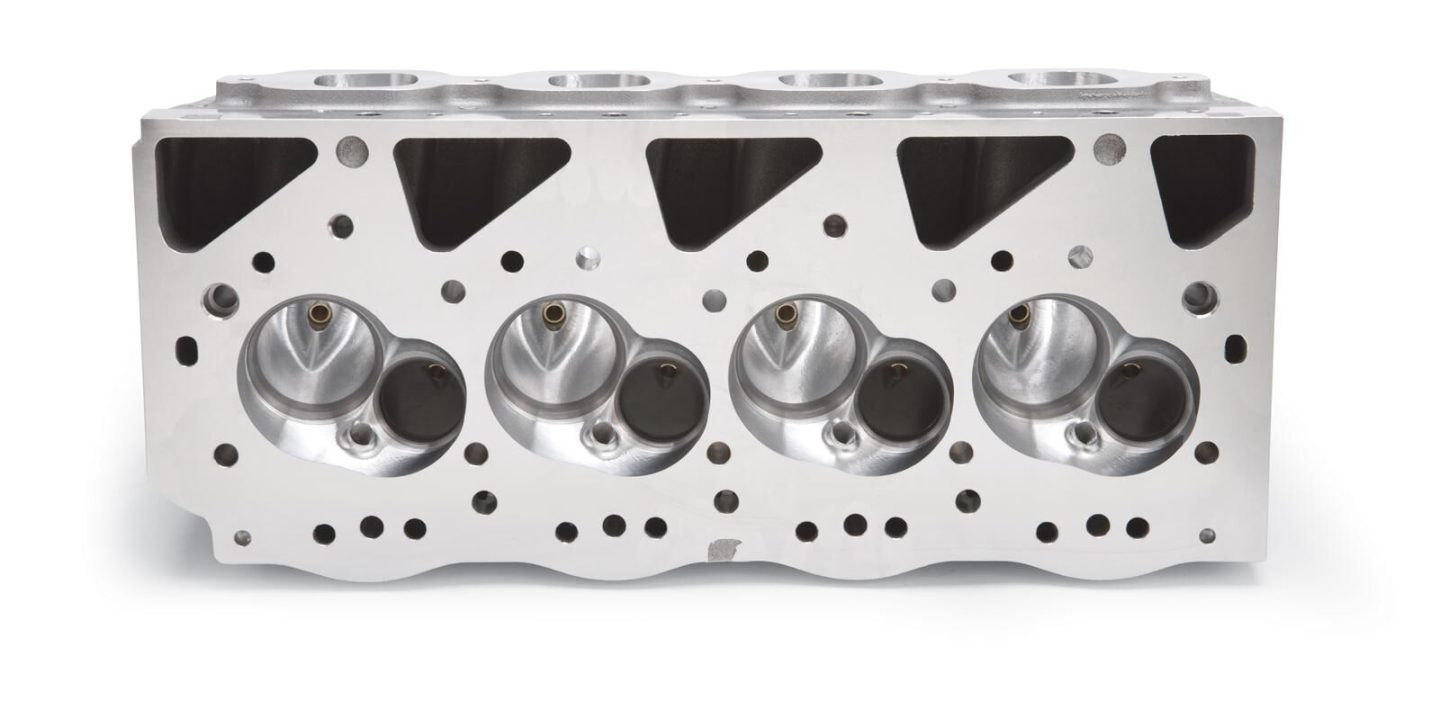

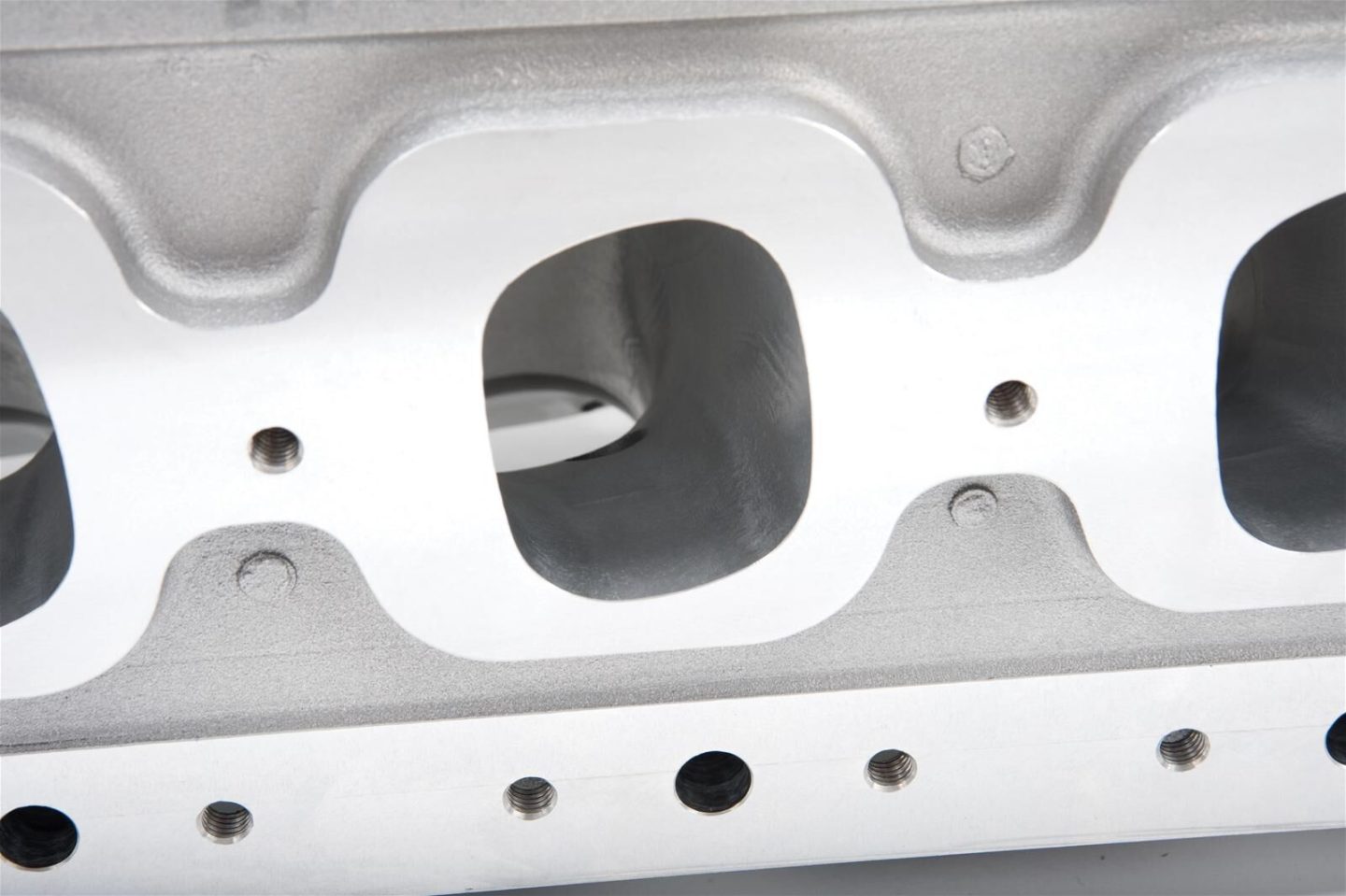

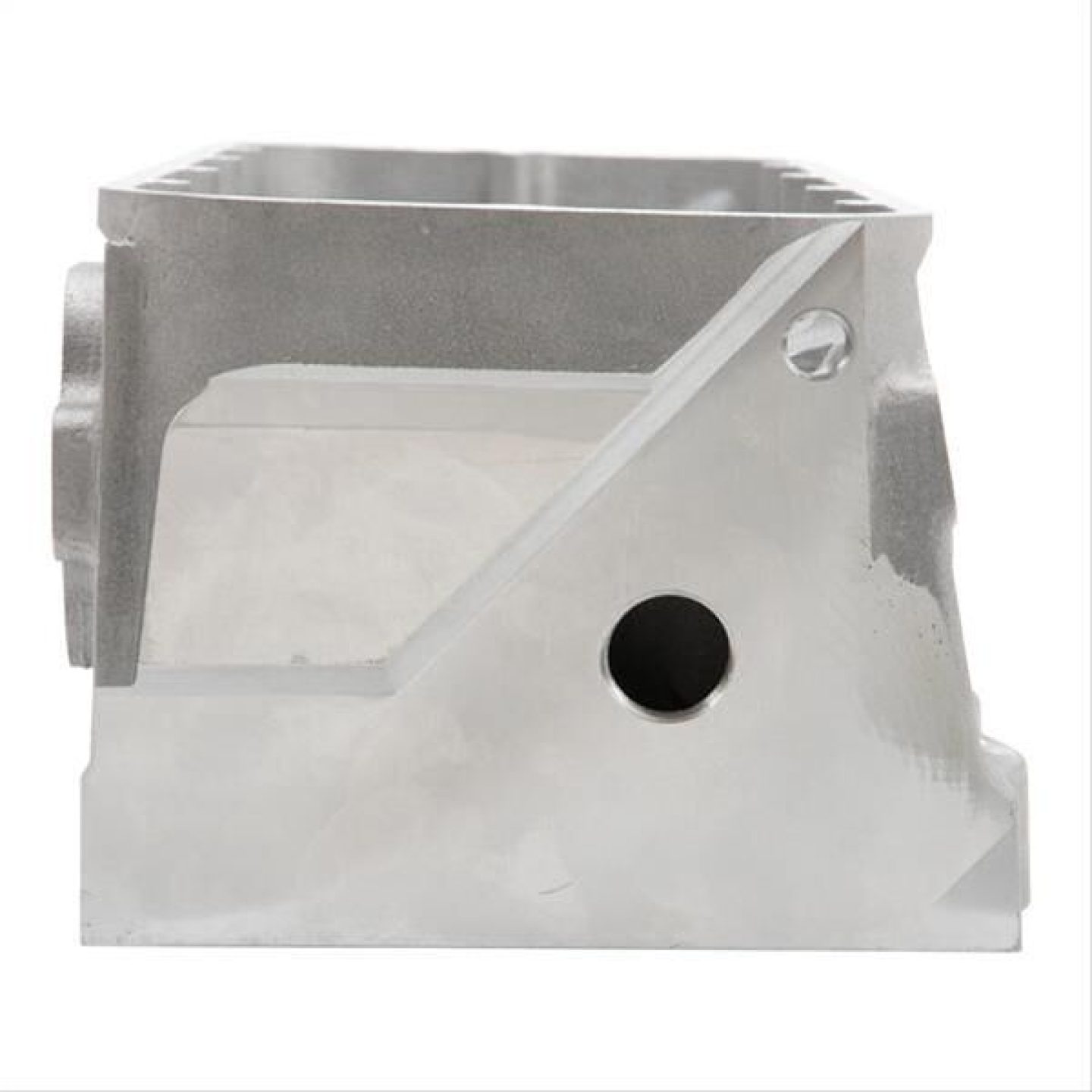

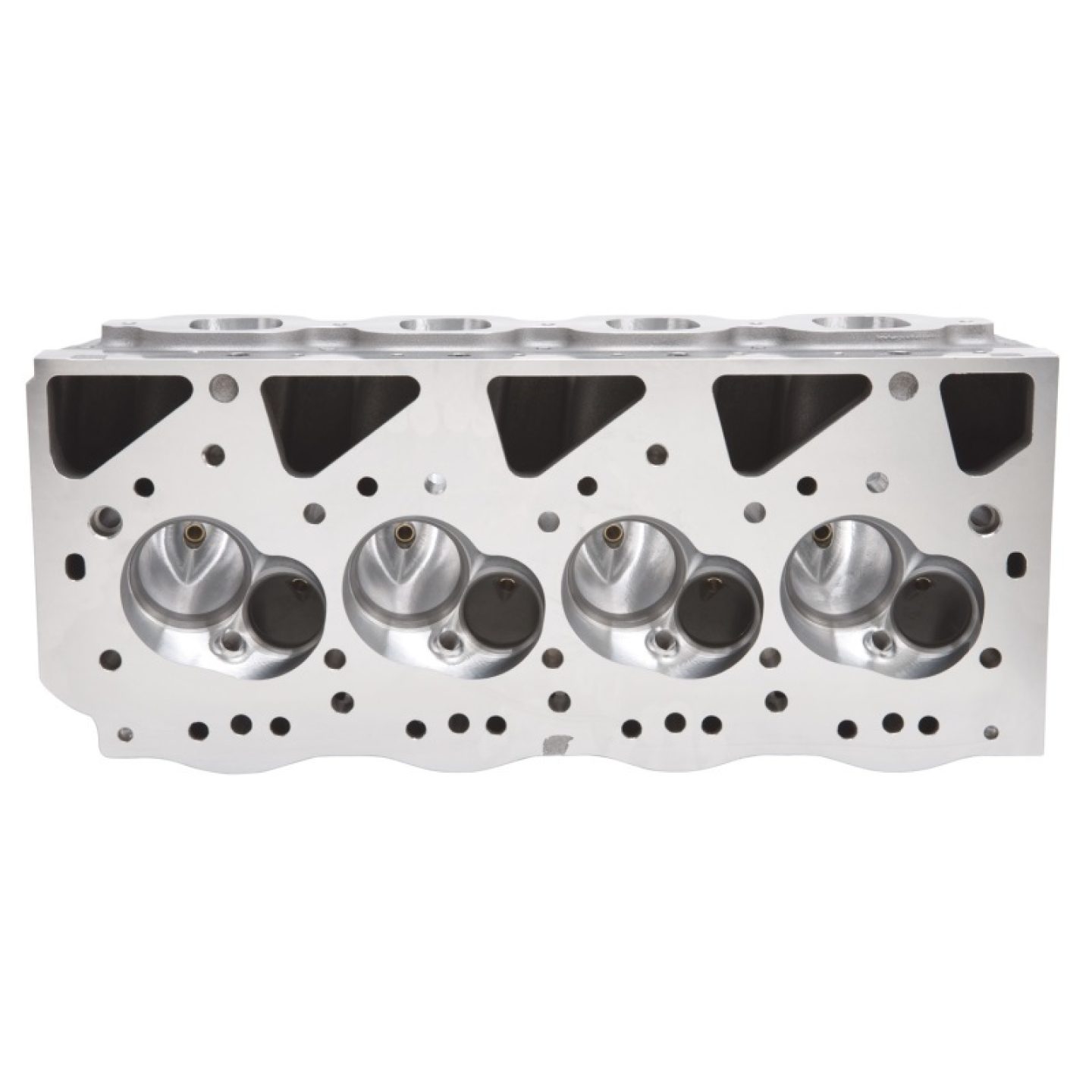

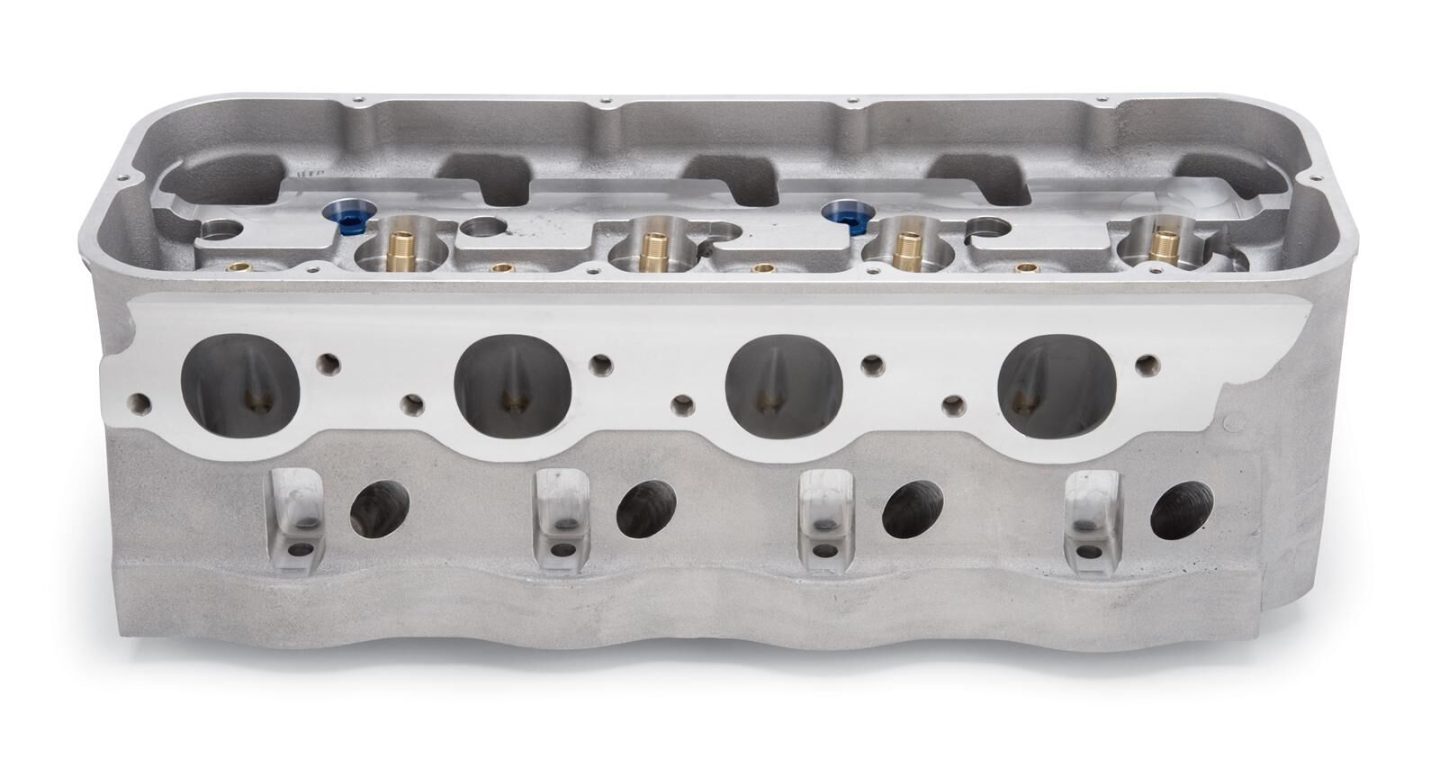

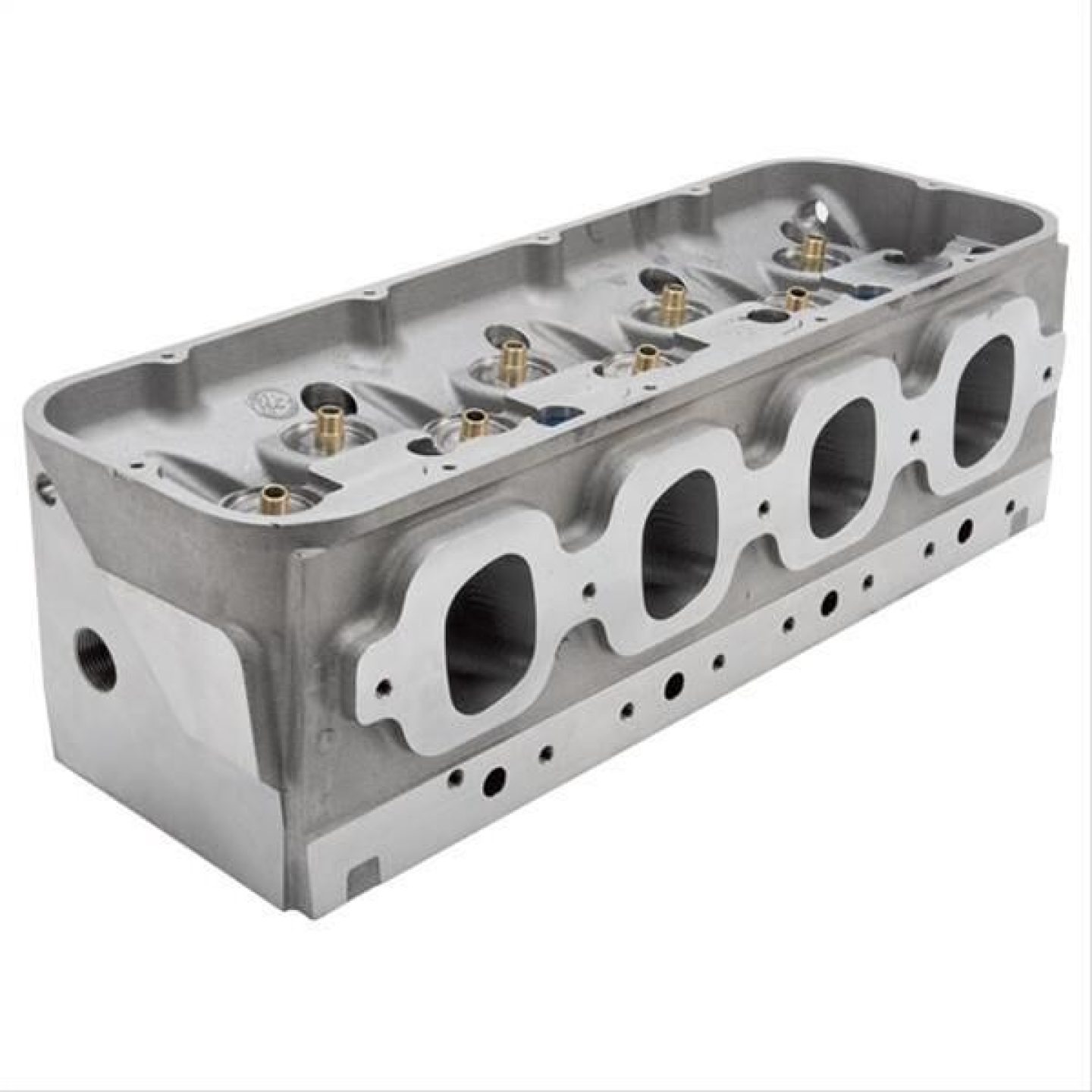

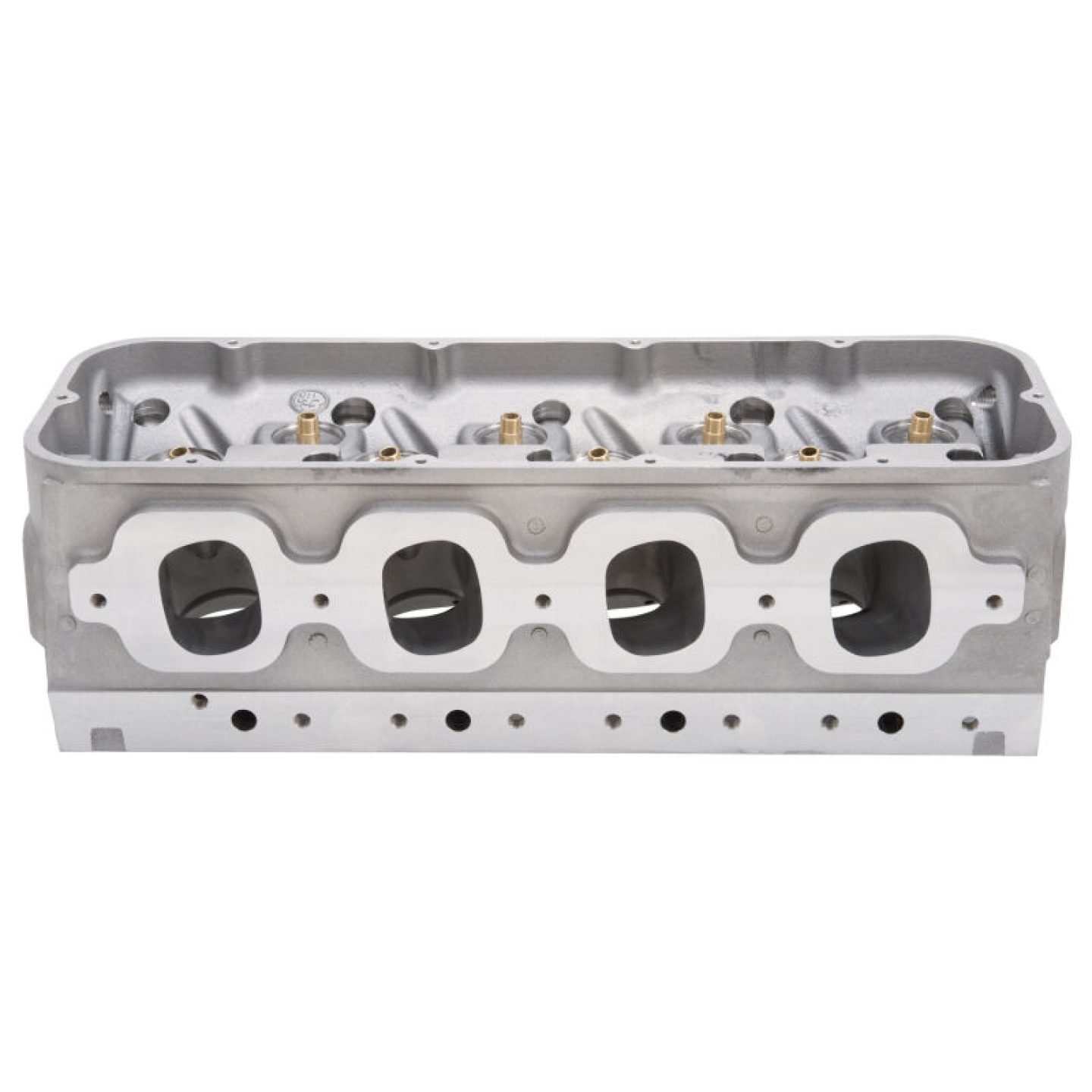

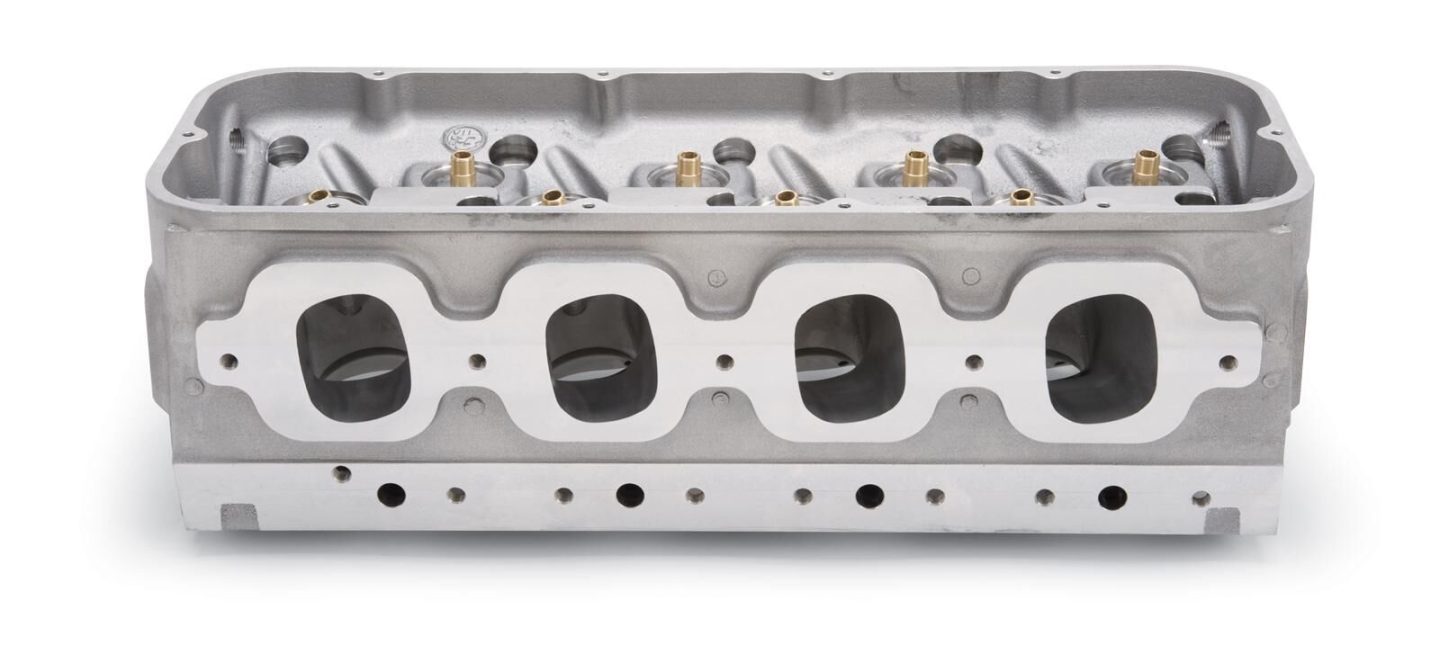

The Edelbrock 614669 Big Block Chevy Big Victor III 11deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Additional Information
CYL HEAD BBC BV3 PRO PORT HIP d 11 DEG INTAKE VALVE
Application Summary
Chevrolet:Big-Block Race
Part Type
Engine Cylinder Head
Product Overview
The Edelbrock 614669 Big Block Chevy Big Victor III 11deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Features and Benefits
- Accommodate Almost Any Port Shape
Product Details
| CNC Ported: | No |
| Construction Type: | Pro-Port Raw |
| Cylinder Head Type: | Big Duke |
| Deck Thickness: | 0.5625 |
| Description: | Big Victor 3 Pro-Port™ Raw Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Exhaust Port Entry: | 1.84 in x 1.50 |
| Exhaust Valve Diameter: | (Suggested) 1.90 |
| Exhaust Valve Pierce Points (X,Y)(C): | -1.270 in,-0.350 |
| Family: | Big Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Intake Port Entry: | 2.52 in x 2.15 |
| Intake Valve Diameter: | (Suggested) 2.52 |
| Intake Valve Pierce Points (X,Y)(C): | 0.690 in, 0.545 |
| Material: | Aluminum |
| Part Number: | ede614669 |
| Quantity: | Sold Individually |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Pro-Port |
| Specialty: | Hot Isostatic Pressing (HIP) Processing |
| Type: | Bare |
| Usage: | Racing |
| Valve Angle: | 11 |
| Valve Guides Included: | Yes |
| Valve Included: | No |
| Valve Seats Included: | Yes |
| Valve Springs Included: | No |
