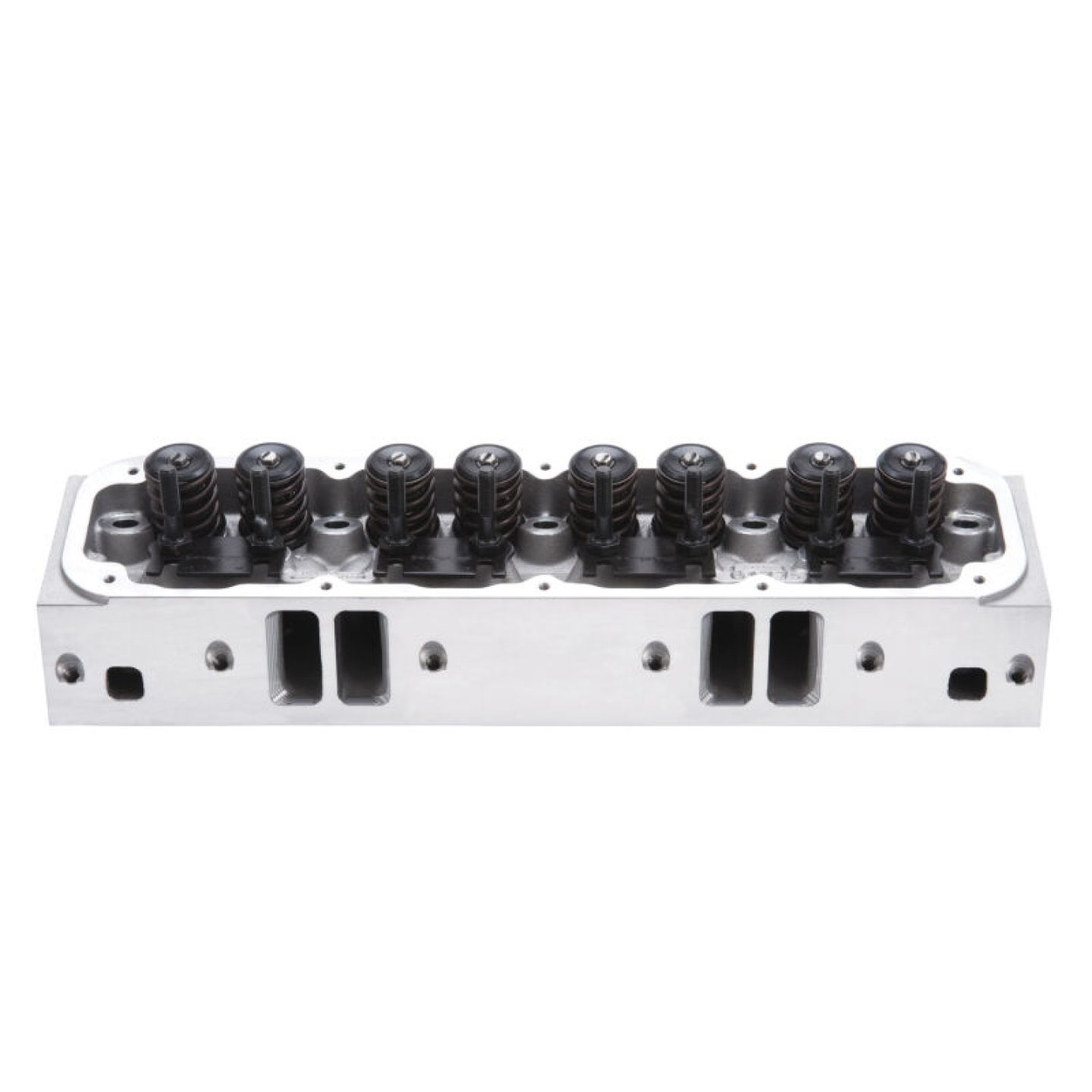

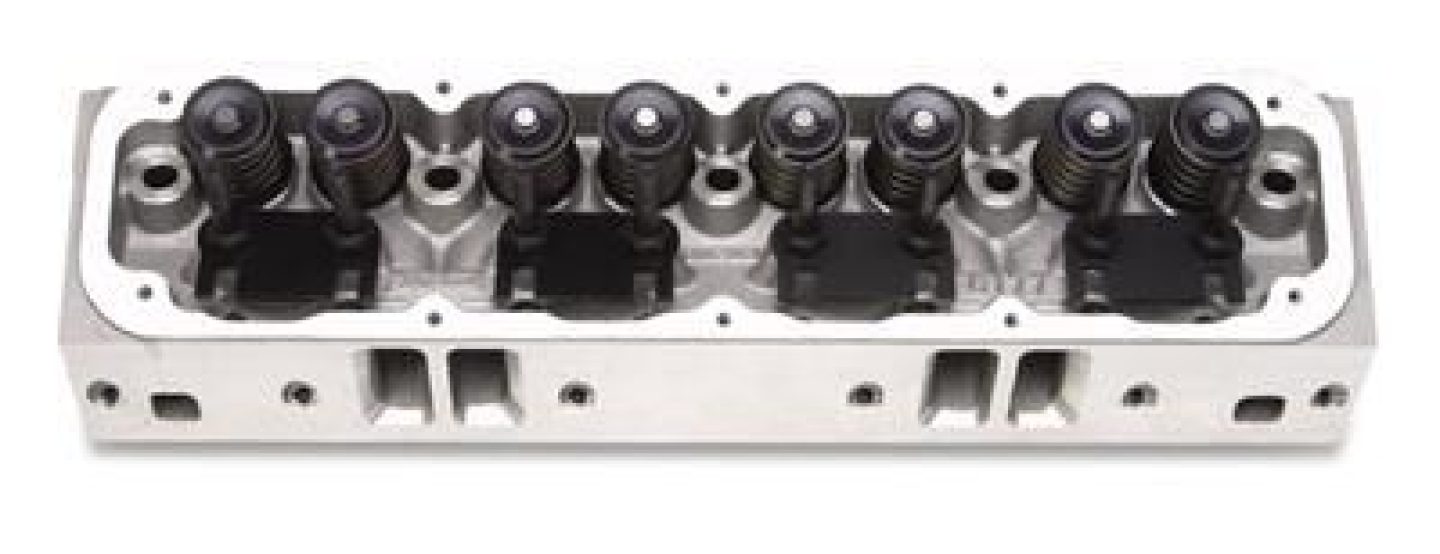

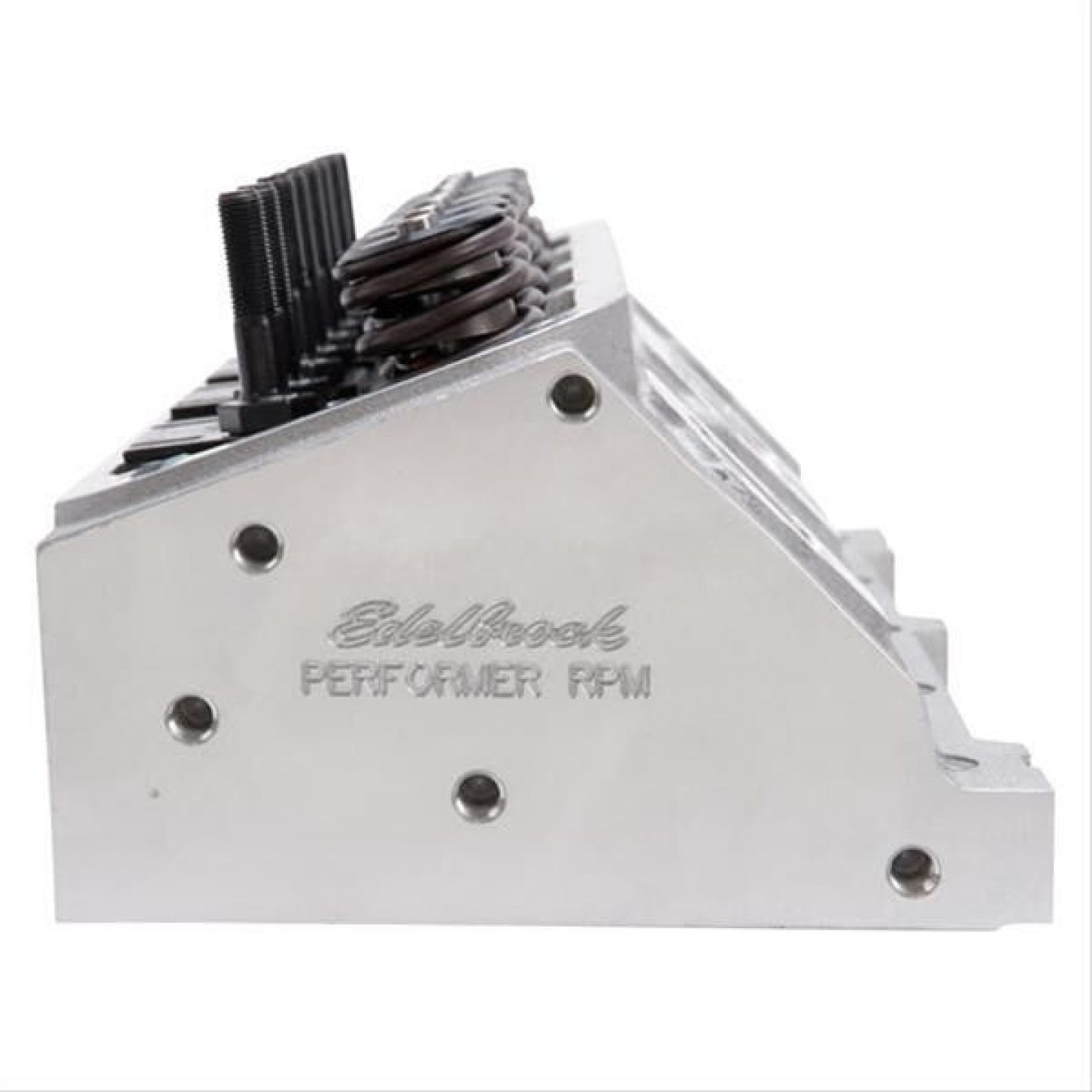

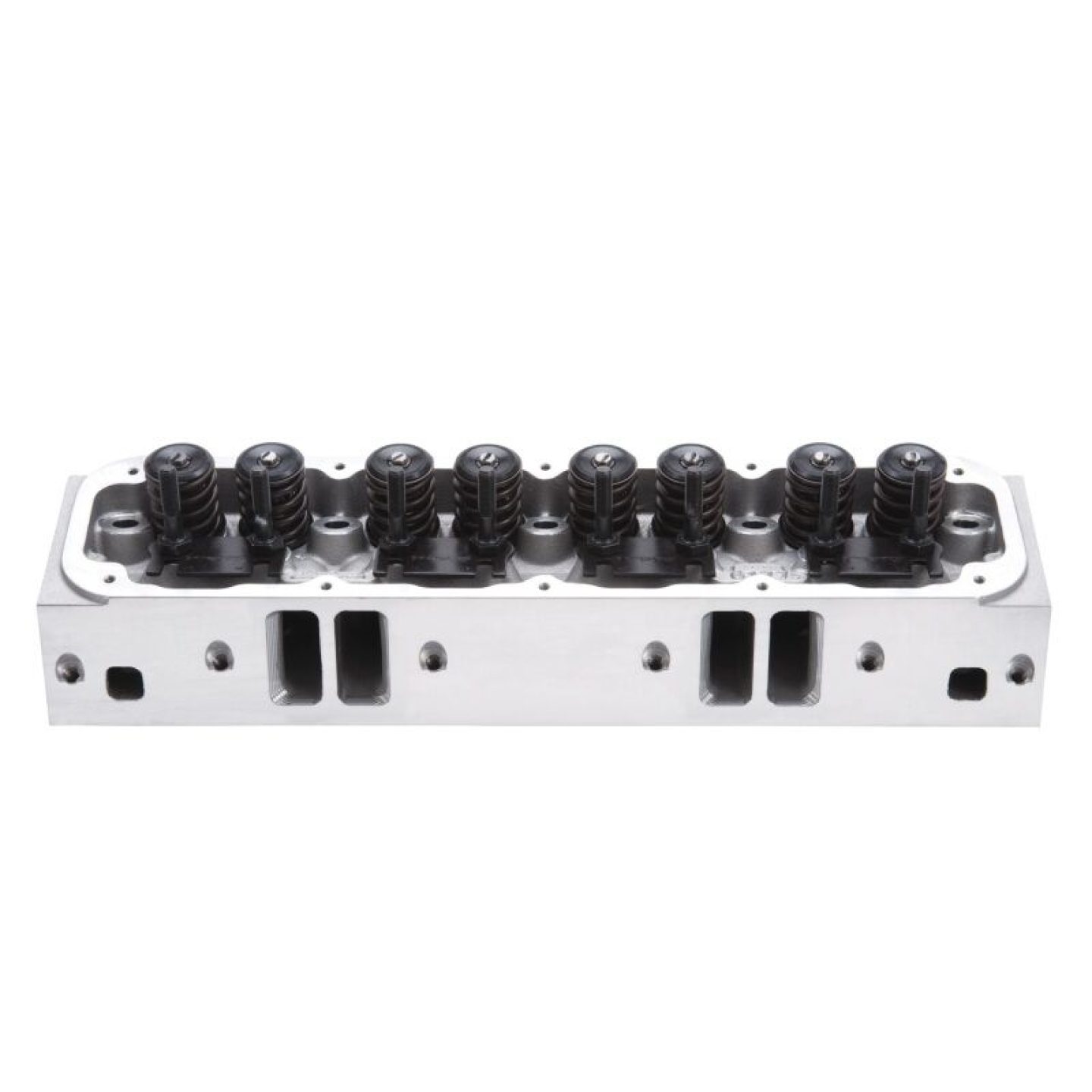

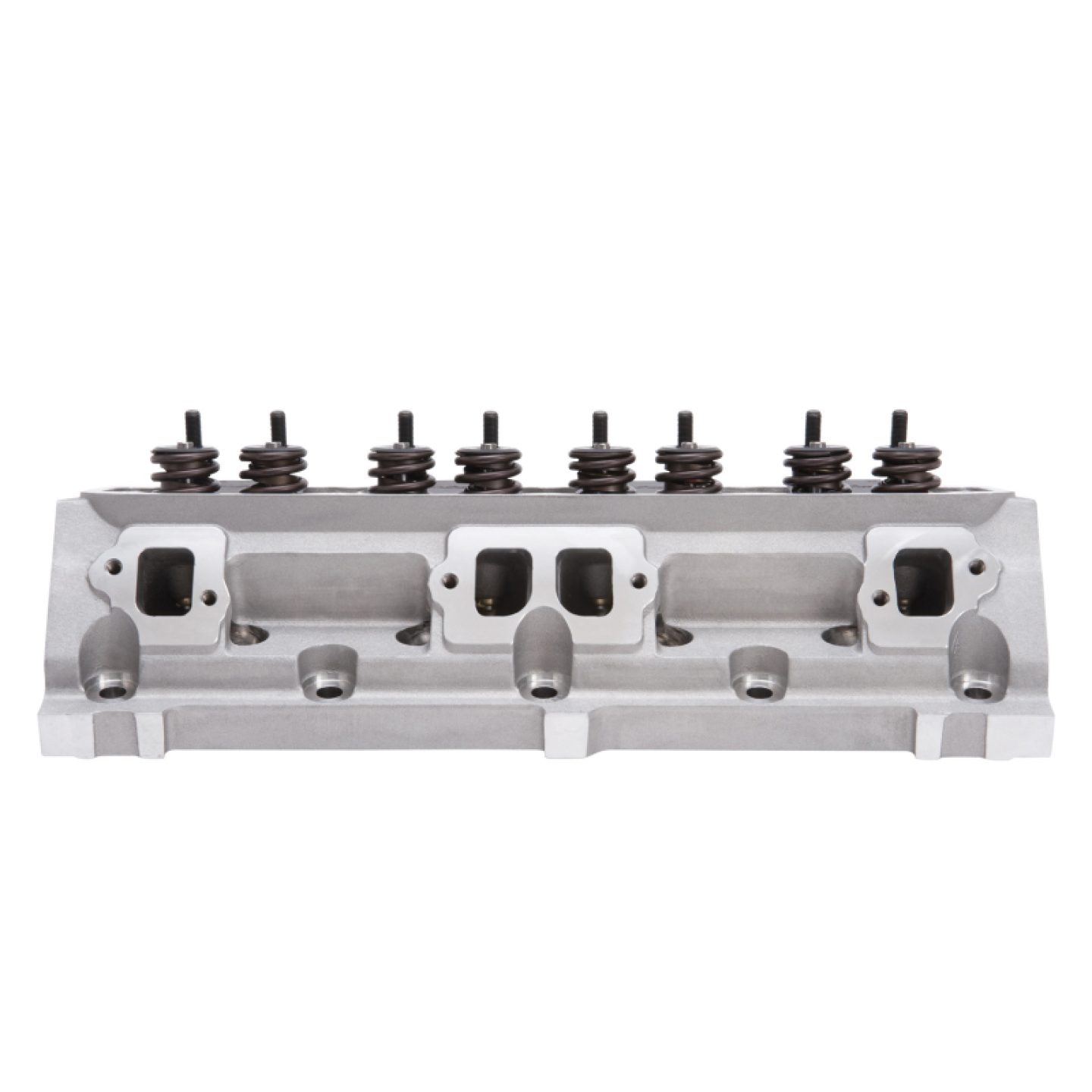

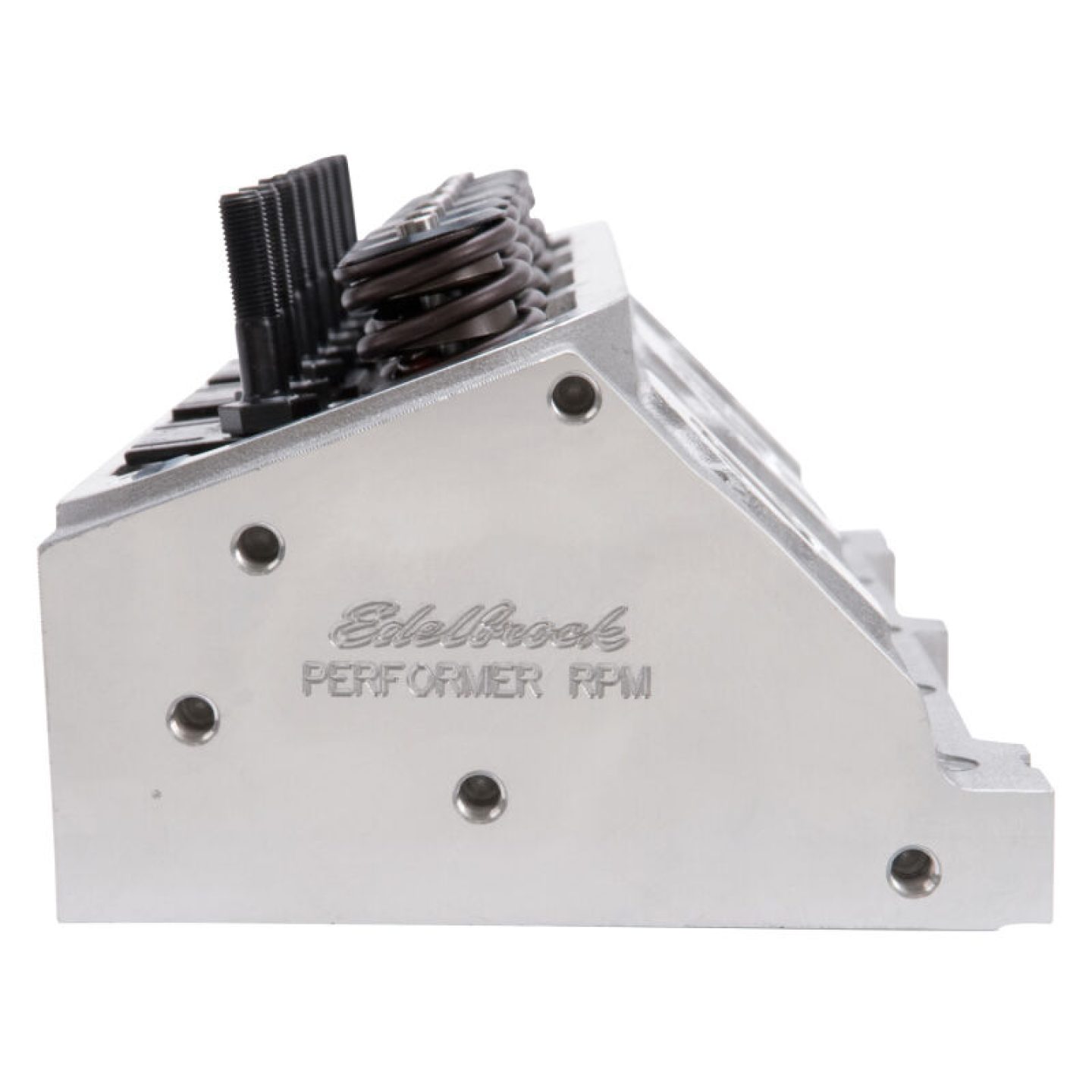

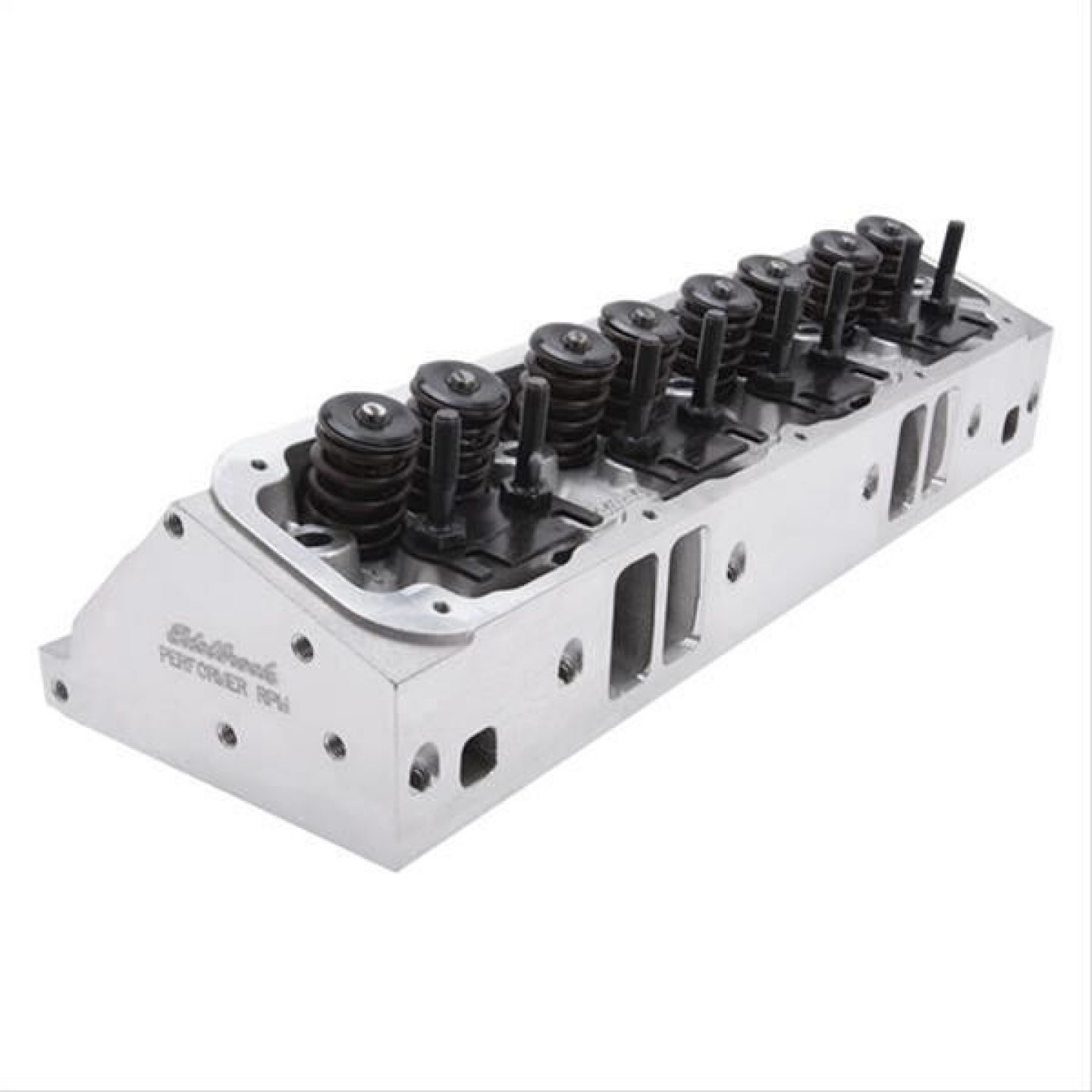

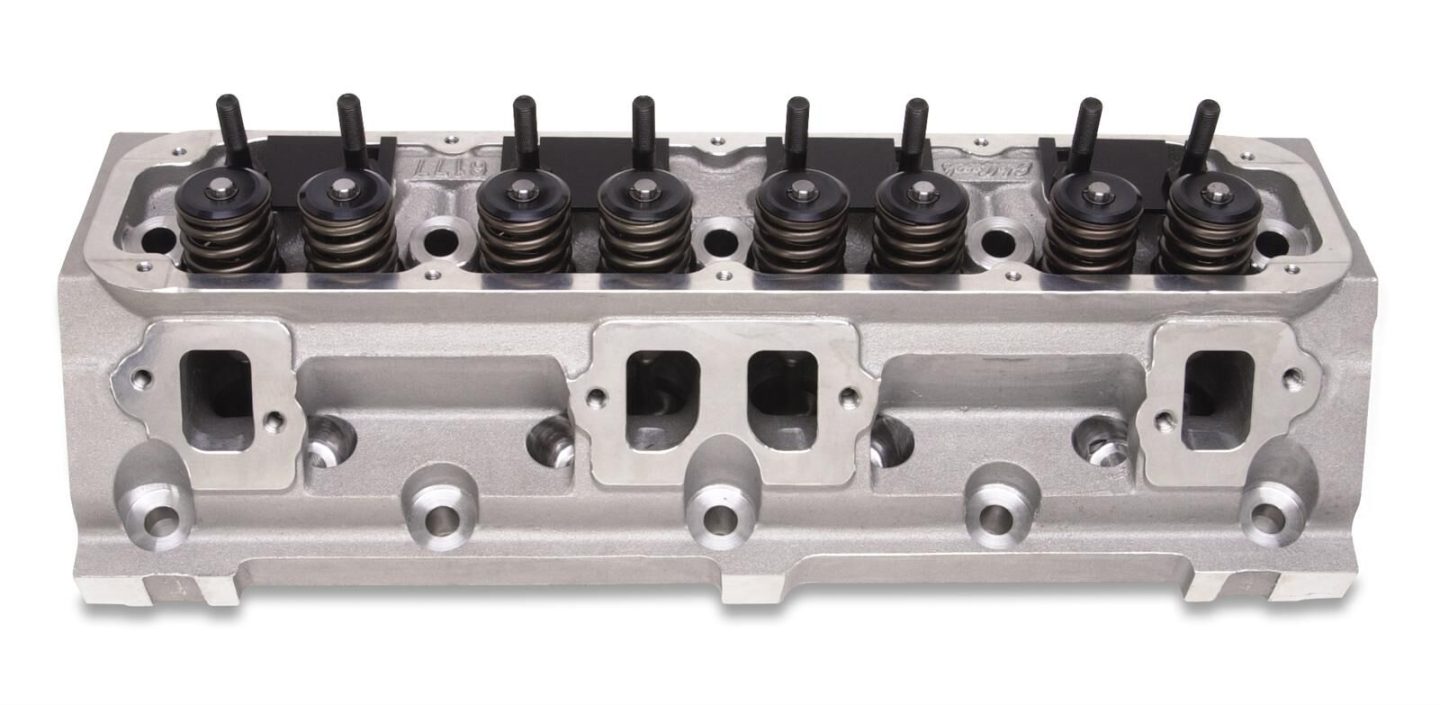

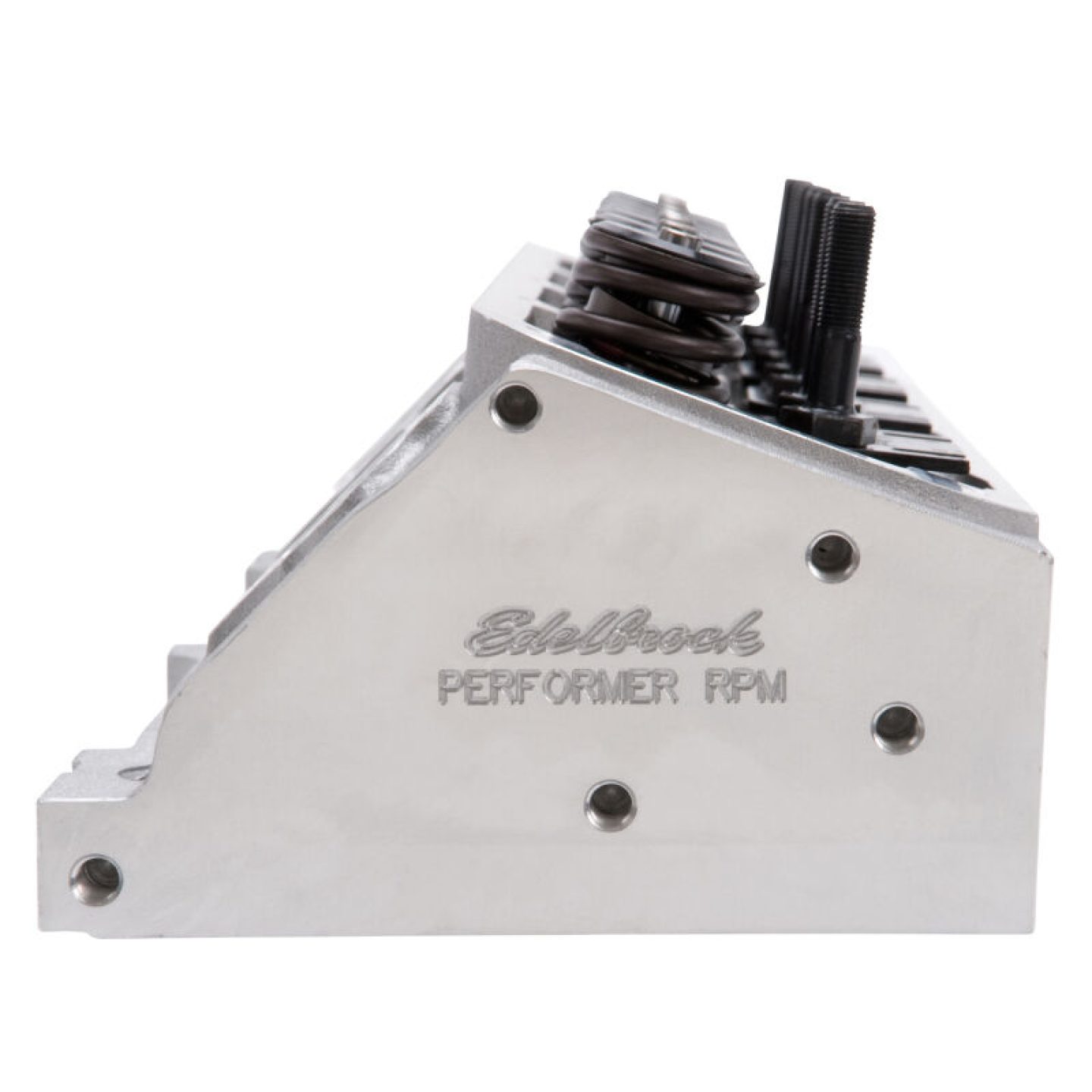

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 176 cc Intake - 58 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each
CYLINDER HEADS
The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Additional Information
CYL HEAD SB CHRYSLER PERF RPM 5.2/5.9L MAGNUM FOR HYD ROLLER CAMS COMPLETE
Application Summary
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Part Type
Engine Cylinder Head
Product Overview
Features and Benefits
- Must Use Adjustable Aftermarket Rocker Arms
Product Details
| CNC Ported: | No |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 58 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Performer Series RPM Cylinder Head |
| EGR Port: | No |
| Engine Make/Size: | Mopar 318/360 Magnum |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 75 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | Performer RPM |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Horsepower: | 350-500 |
| Intake Runner Volume: | 176 |
| Intake Valve Diameter: | 2.02 |
| Material: | Aluminum |
| Part Number: | ede61775 |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 18 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.580 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| Additional Application Notes |
|---|
| • Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~ Deck Thickness 5/8 in.; Rocker Stud Dia. 3/8 in.; Pushrod Dia. 5/16 in.~ Engine Swaps~ Not Legal For Use On Pollution Controlled Vehicles Deck Thickness 5/8 in.; Rocker Stud Dia. 3/8 in.; Pushrod Dia. 5/16 in.~Designed For The Engine Swap Market~Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~Not Legal For Use On Pollution Controlled Vehicles Complete; 176cc/75cc Port Vol.; 350-500HP; Standard Exh. Port; 58cc Chamber Vol.; 2.09 in. Intake/1.60 in. Exhaust Valves; Single;Off Road Use Only |
| • Standard Exh. Port Single Rocker Stud Dia. 3/8 in. Pushrod Dia. 5/16 in.~ Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles Off Road Use Only Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~ Deck Thickness 5/8 in.; Rocker Stud Dia. 3/8 in.; Pushrod Dia. 5/16 in.~ Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~ Deck Thickness 5/8 in. Complete; 176cc/75cc Port Vol.; 350-500HP; Standard Exh. Port; 58cc Chamber Vol.; 2.09 in. Intake/1.60 in. Exhaust Valves; Single;Off Road Use Only Complete 58cc Chamber Vol. 350-500HP 2.09 in. Intake/1.60 in. Exhaust Valves 176cc/75cc Port Vol. |
| • Standard Exh. Port Single Rocker Stud Dia. 3/8 in. Pushrod Dia. 5/16 in.~ Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles Off Road Use Only Equipped w/Springs For Use in Hydraulic Ro |
| • Standard Exh. Port Single Rocker Stud Dia. 3/8 in. Pushrod Dia. 5/16 in.~ Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles Off Road Use Only Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~ Deck Thickness 5/8 in. Complete 58cc Chamber Vol. 350-500HP 2.09 in. Intake/1.60 in. Exhaust Valves 176cc/75cc Port Vol. |
| • Equipped w/Springs For Use in Hydraulic Roller Camshaft |
| • Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps~ Deck Thickness 5/8 in.; Rocker Stud Dia. 3/8 in.; Pushrod Dia. 5/16 in.~ Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles Complete; 176cc/75cc Port Vol.; 350-500HP; Standard Exh. Port; 58cc Chamber Vol.; 2.09 in. Intake/1.60 in. Exhaust Valves; Single;Off Road Use Only |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
