Intake Manifold - Performer RPM Olds 350 - Spread / Square Bore - Dual Plane - Aluminum - Natural - Oldsmobile V8 - Each

MANIFOLD

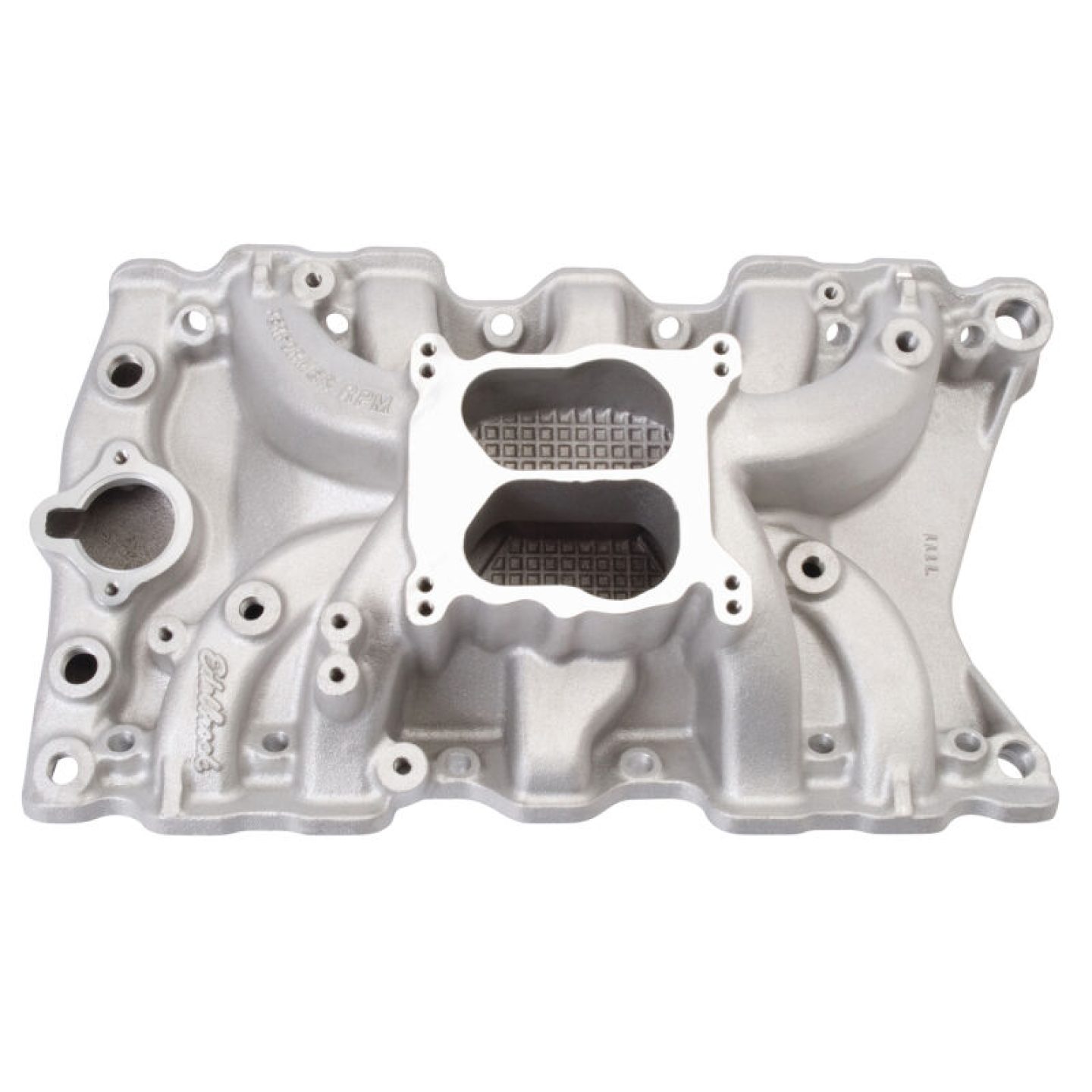

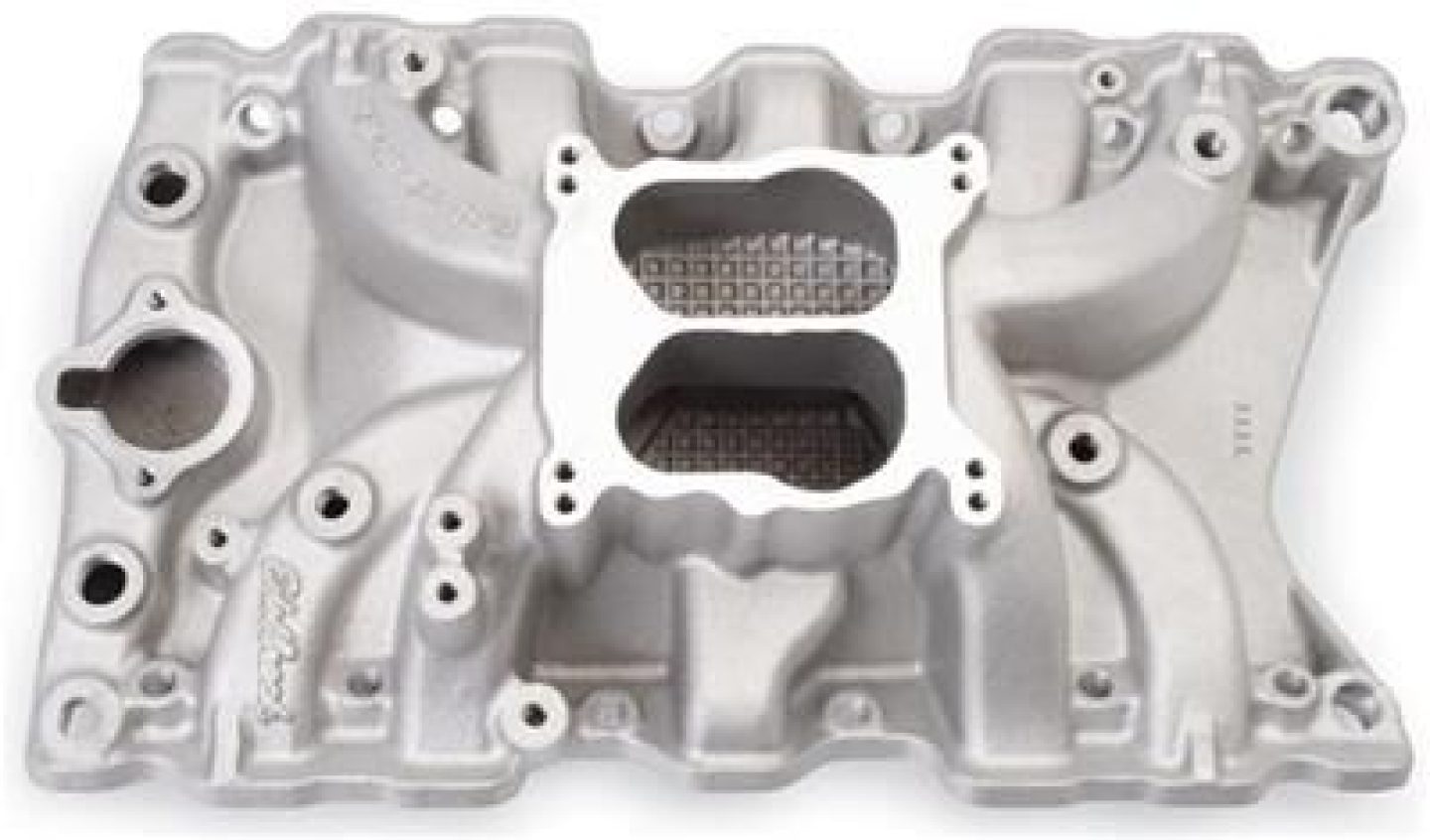

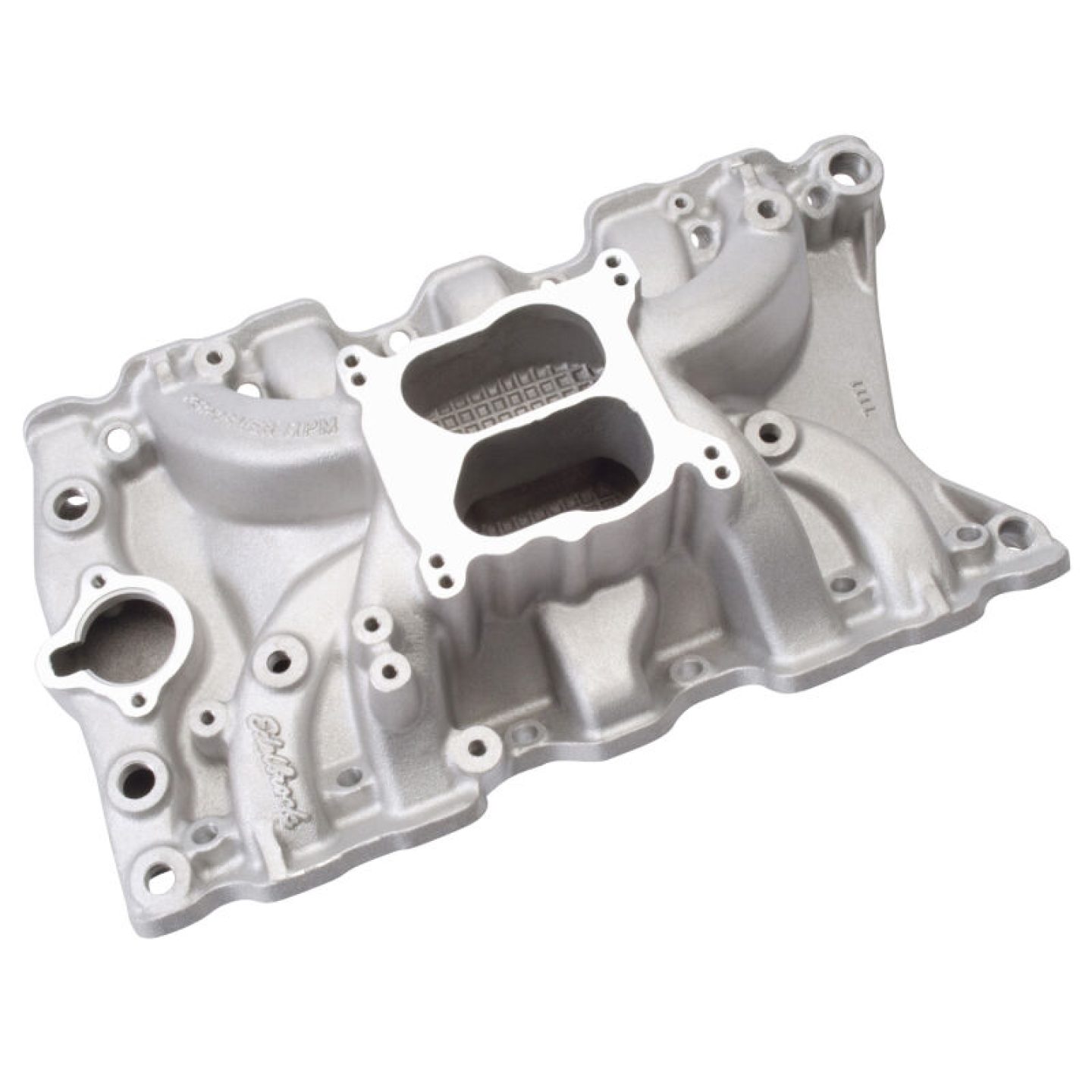

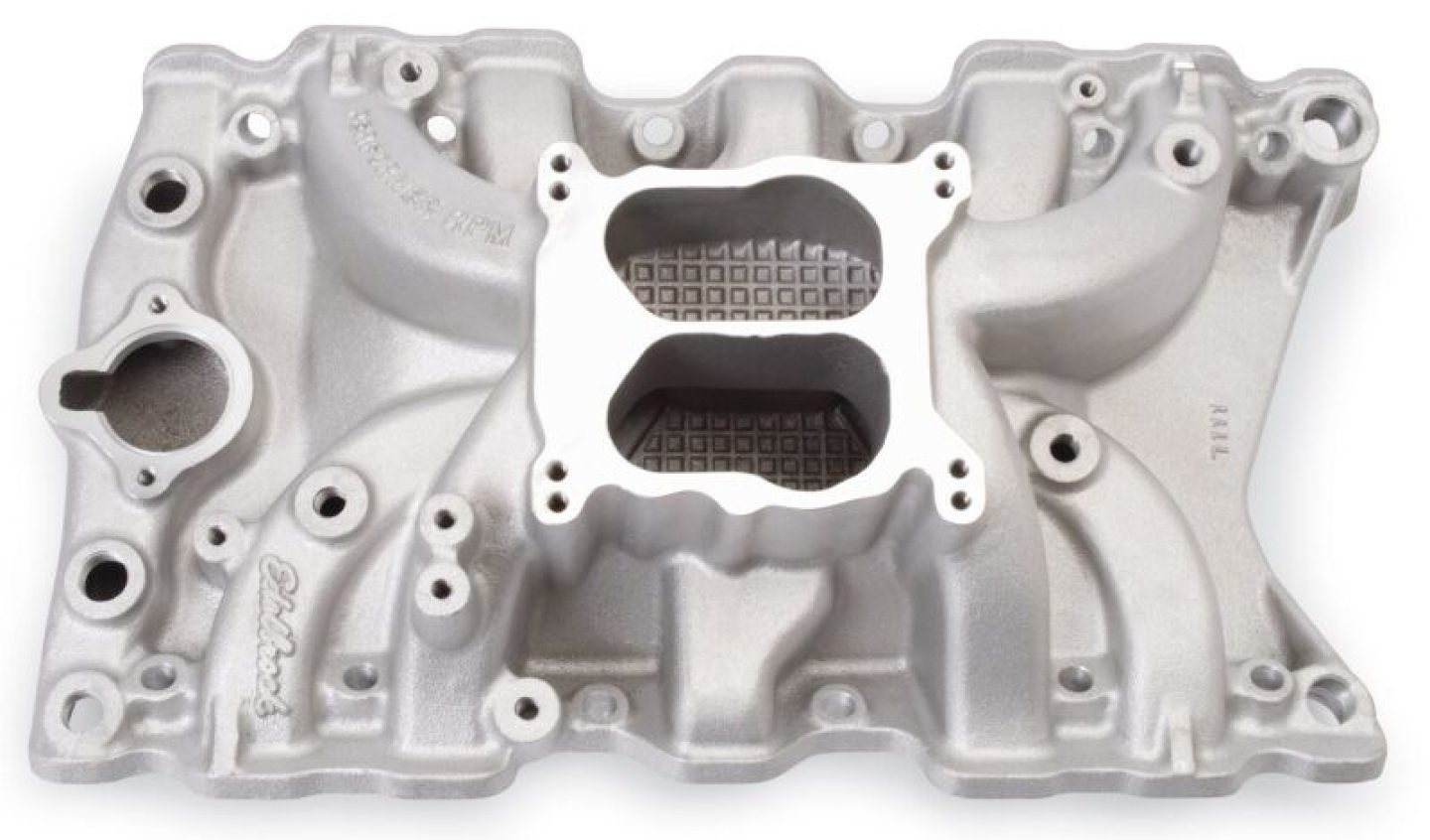

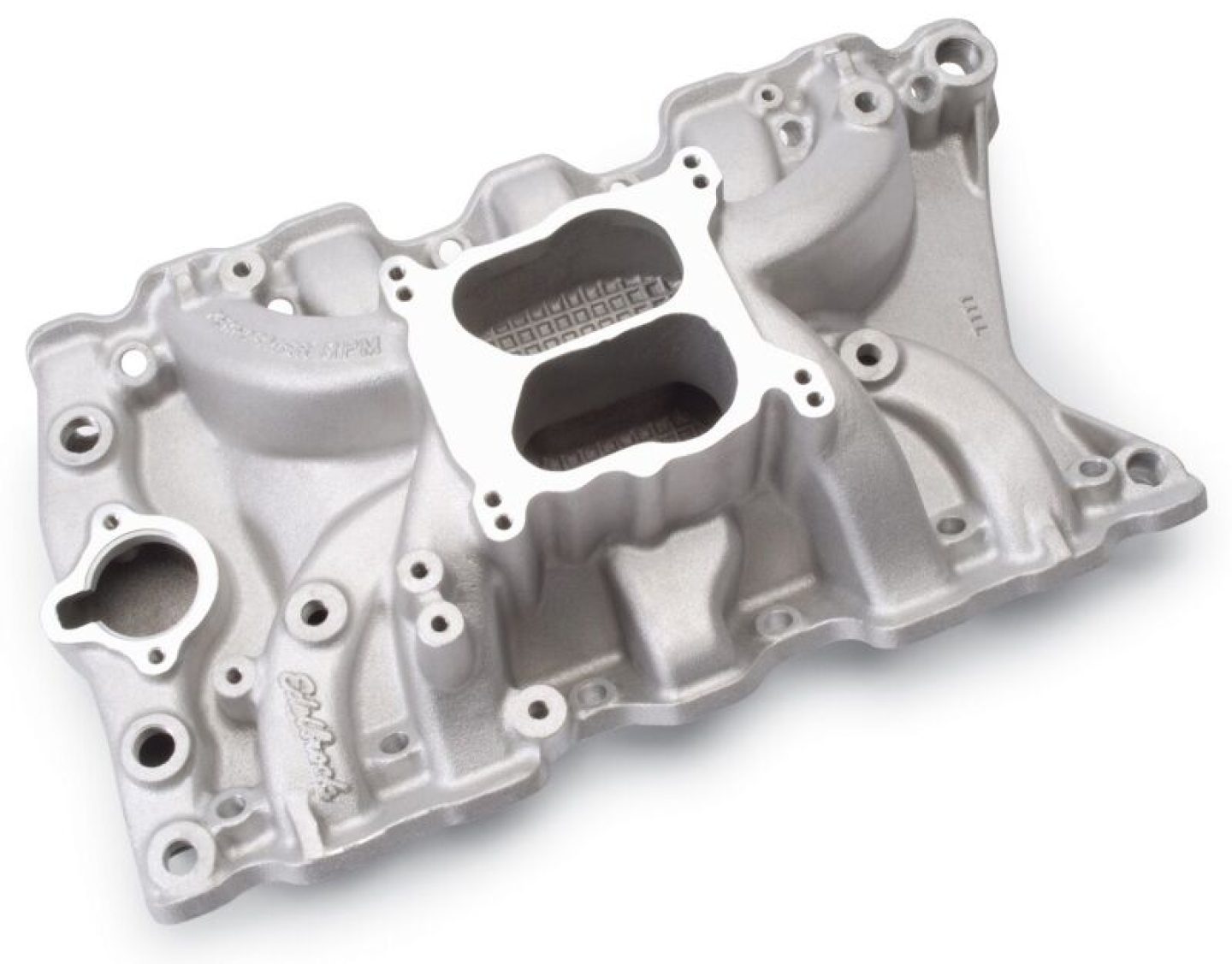

Edelbrock part #7111 Performer RPM Oldsmobile 350 intake manifold is designed for 330-350-403 c.i.d. Oldsmobile's and 1980-1/2 to 1985 307 c.i.d. engines with 5A heads (casting #3317). This Oldsmobile manifold is a high-rise, dual-plane design with 180-degree firing order engineered for maximum top-end horsepower while maintaining throttle response. Port flange has extra material above the runner for use with cast iron 455 heads and Edelbrock Performer RPM heads #60519. Has clearance for HEI distributor. Carb pad accepts square-bore carbs without adapters.

Additional Information

MANIFOLD; 1964-85 OLDS 307-403; PERFORMER

Application Summary

Oldsmobile:Small-Block:330 (5.4L)/350 (5.7L)/403 (6.6L)

Part Type

Engine Intake Manifold

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Edelbrock Total Power Package Maximizes Gains

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Intake Manifold, Performer RPM, Dual Plane, Aluminum, Natural, Square/Spread Bore, Oldsmobile, 307/330/350/403

Edelbrock Performer RPM intake manifolds have a high-rise, dual-plane design. They produce incredible top-end horsepower, while retaining good throttle response. Performer RPMs have larger plenums and runners to match the free-flowing exhaust, high-lift cams, and other modifications of a high-output engine. They're intended for high performance street or competition engines that run from 1,500 to 6,500 rpm.
