MANIFOLD

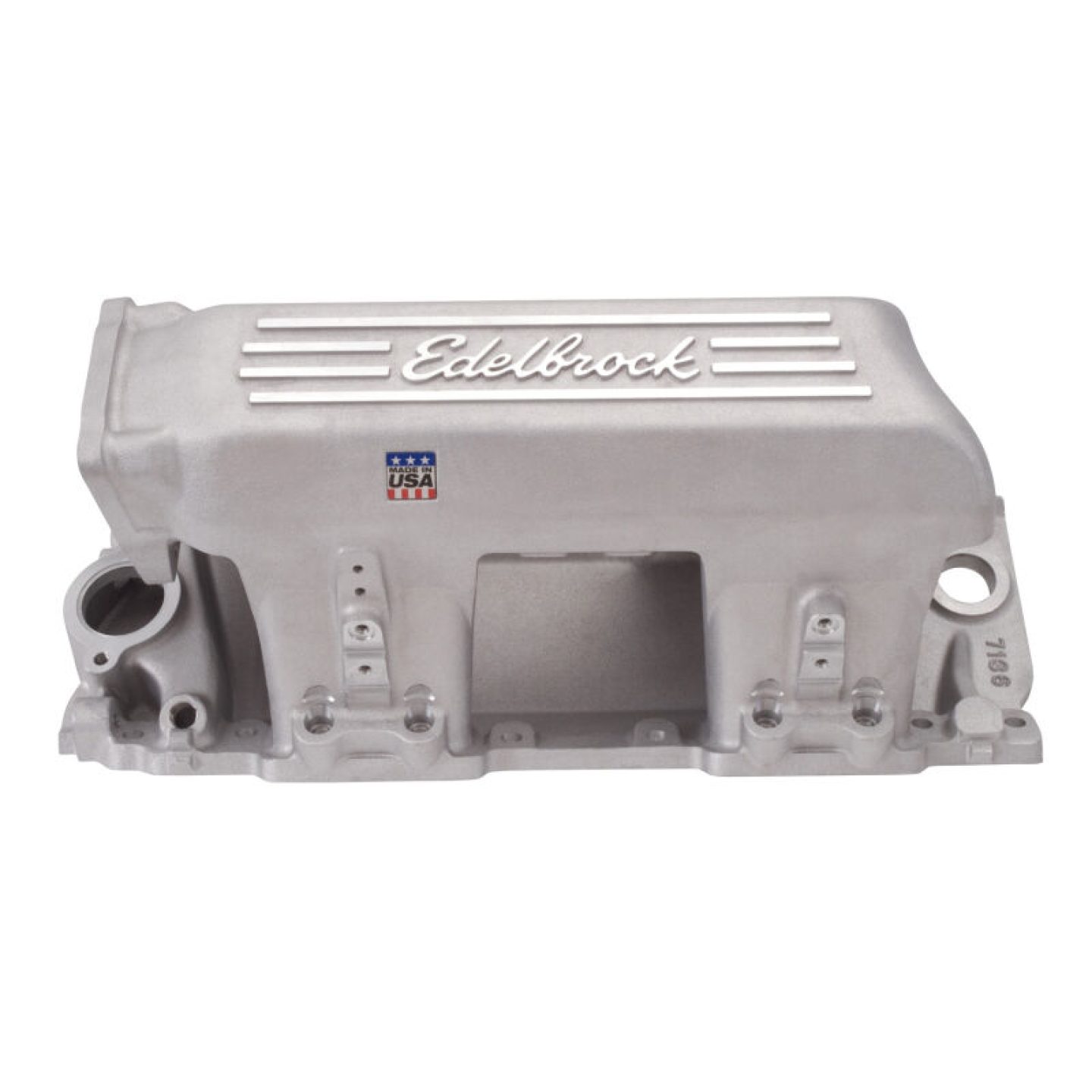

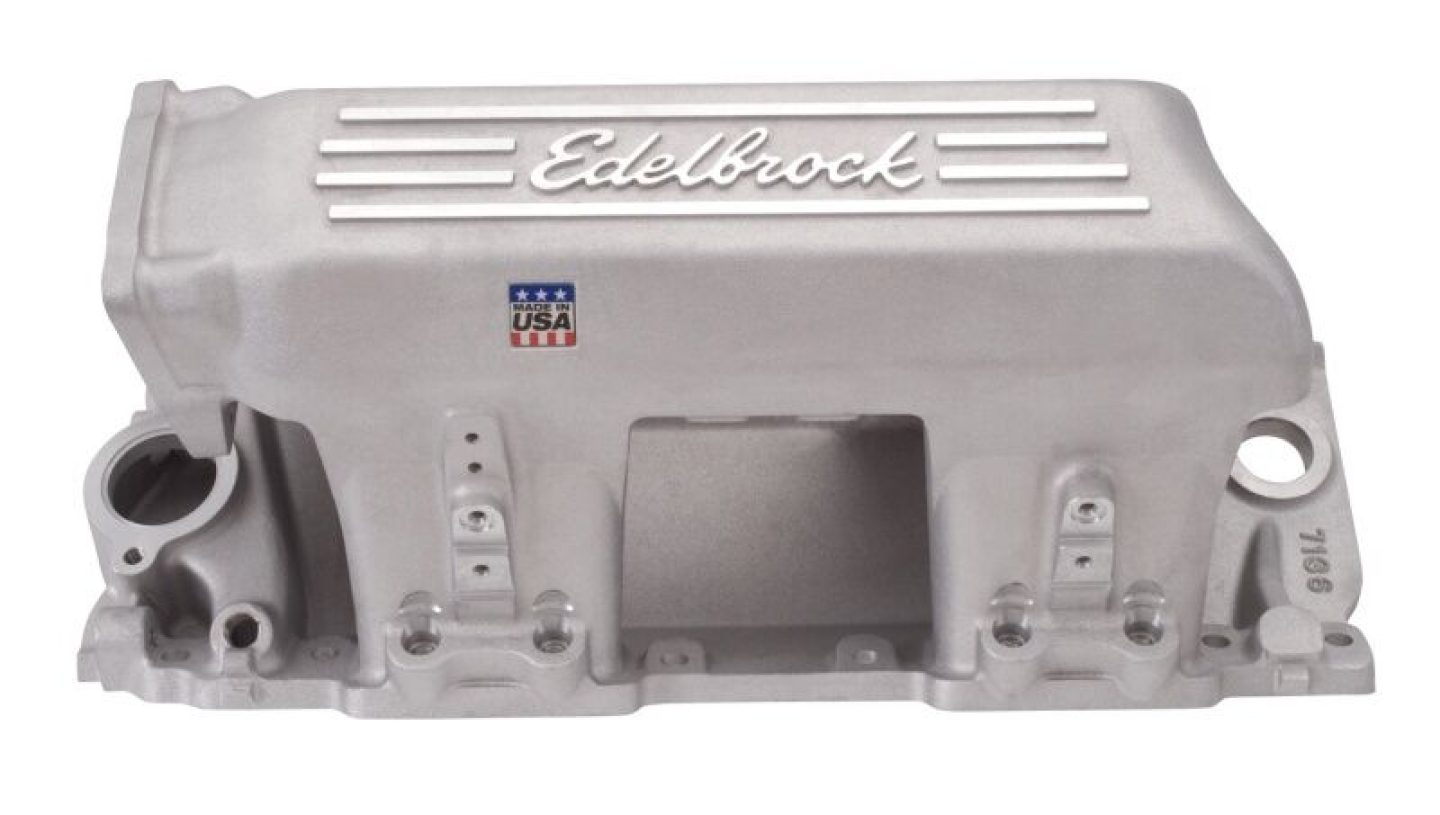

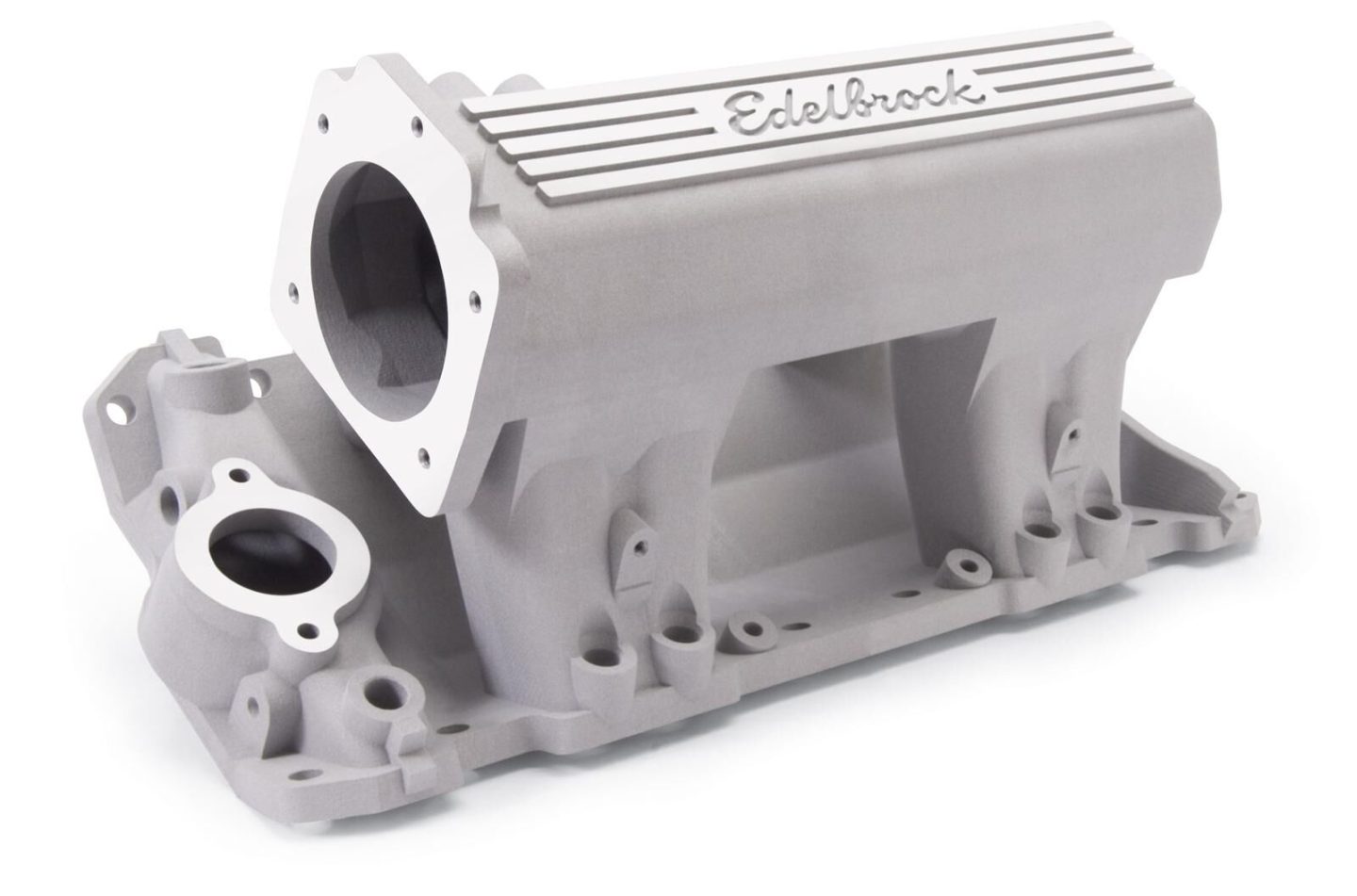

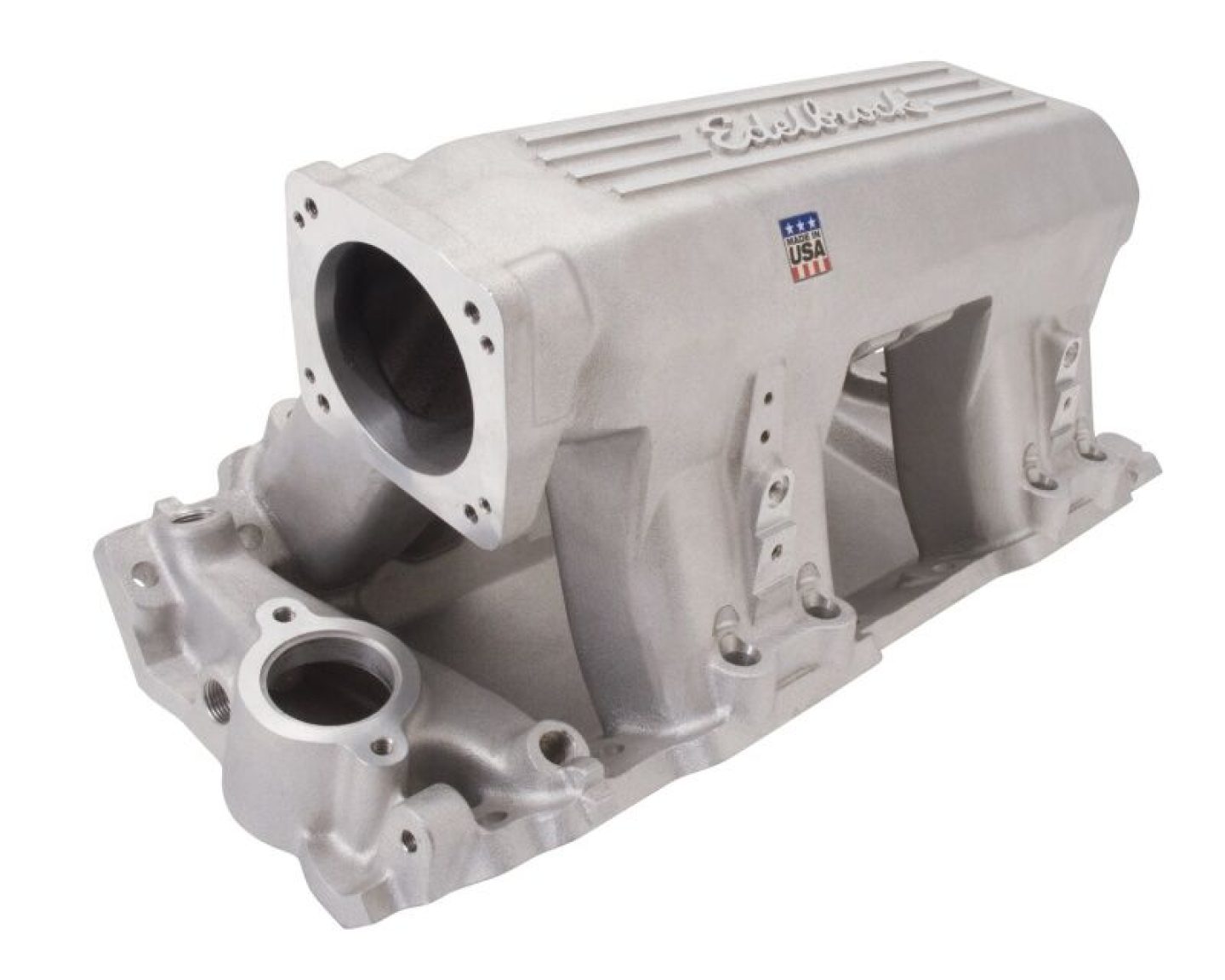

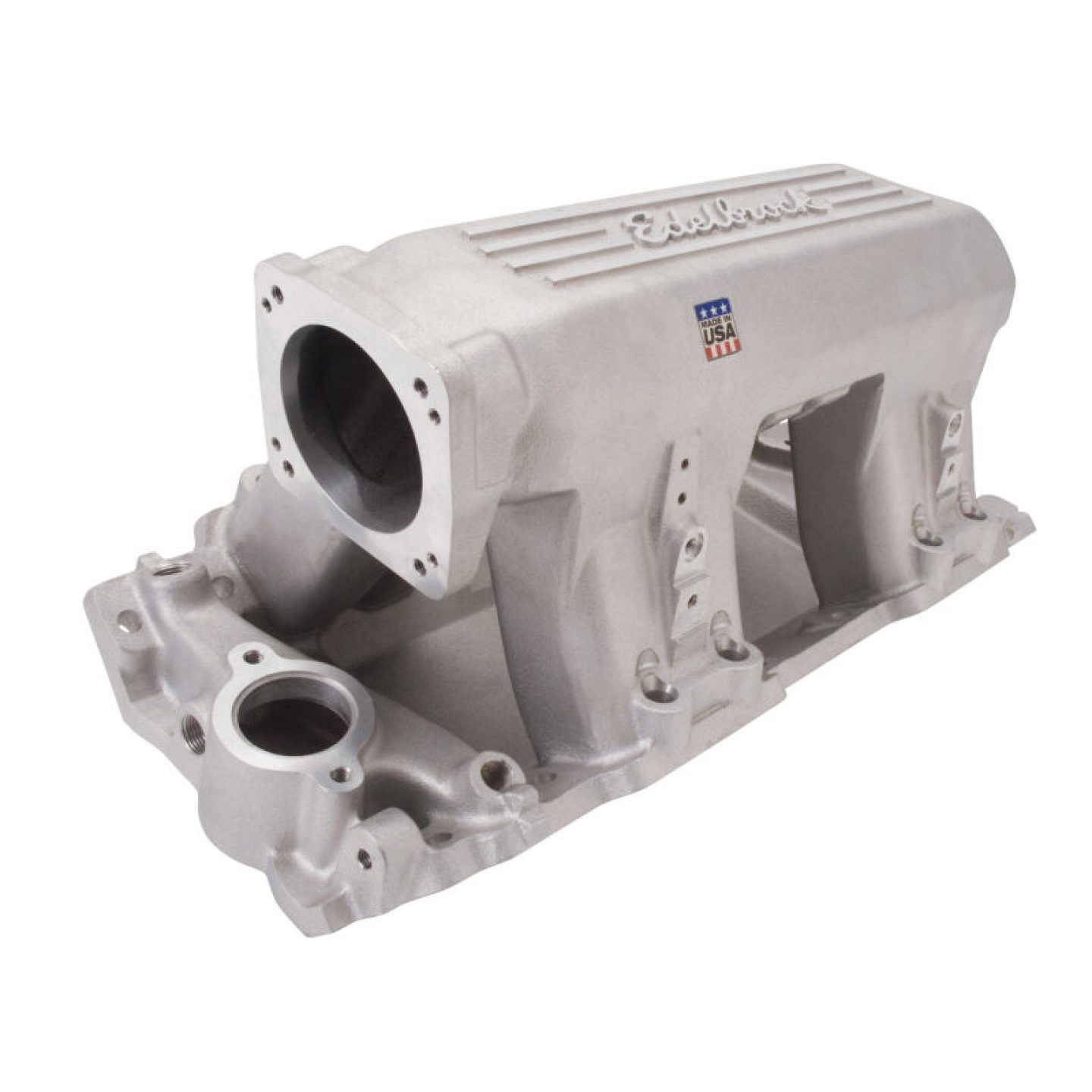

Edelbrock part #7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
MANIFOLD; 1965-00 BB CHEVY; EFI; PRO-FLO XT
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Engine Intake Manifold
| Basic Operating RPM Range: | 1500-6500 |
| CNC Ported: | No |
| Center Maximum Height: | 10.000 |
| Cylinder Head Type: | Rectangular Port |
| Description: | Pro-Flo XT EFI Intake Manifold |
| EGR Port: | No - For Rectangular Port |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Finish: | Satin |
| Flange Type: | Throttle Body XT |
| Front Maximum Height: | 9.800 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | None; For Fuel Injection |
| Part Number: | ede7136 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 10.000 |
| Series: | Pro-Flo XT |
| Single Or Dual Plane Type: | Single |
| Usage: | Racing |
| Vehicle Model: | Chevrolet |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, brake boosters and some master cylinders and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part, but may have differing mounts or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
(keyword: manifold)This item was designed and engineered in the USA for US domestic vehicles. OBD tools, ECUs, dongles, programmers, and tuners may have limited compatibility with vehicles outside the USA due to regional differences in emission standards and system configurations. Some features and functionality may vary depending on the vehicle and location. Please review the product details and images to ensure it meets your needs. For clarification or assistance, feel free to contact a StreetFX agent. Note: Returns are not accepted for special order products.
(keyword: efi)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Edelbrock |
| StreetFX SKU | ede7136 |
| SFX Item ID | 4236847 |
| Accounting SKU | ede-7136 |
| Manufacturer SKU | 7136 |
| Manufacturer UPC | 85347071364 |
| Alternative References | EDB7136, EDL-7136 |
Intake Manifold, Pro-Flo XT EFI, Multi-Port, Rectangle Port, Chevy, Big Block, Each
Edelbrock Pro-Flo XT EFI intake manifolds combine a user-friendly design with the latest technology. They're manufactured from aluminum and are available in a natural, polished, or black powdercoat finish for ultimate protection. Pro-Flo XT EFI intakes feature eight equal-length tapered runners and a large plenum. The fuel-injected manifolds are designed to deliver maximum horsepower and a broad torque curve throughout the 1,500 to 7,000 rpm range. Choose the model designed for your vehicle and cylinder head style application.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 7136 |
| Part Type | Intake Manifolds, Fuel Injected |
| Product Line | Edelbrock Pro-Flo XT EFI Intake Manifolds |
| UPC | 085347071364 |
| Cylinder Head Configuration | Rectangular Port |
| Fuel Injection Style | Multi-port |
| Basic Operating RPM Range | 1,500-6,500 |
| Intake Section Included | Complete |
| Throttle Body Bore Size | 90mm |
| Engine Block Deck Height | Standard deck |
| Injectors Included | No |
| Multi-Port Fuel Rails Included | No |
| EGR | No |
| Aftermarket Fuel Rail Required | Yes |
| Throttle Body Included | No |
| Supplemental Bosses Cast-In | Yes |
| Supplemental Bosses Machined | Yes |
| Supplemental Boss Quantity | Eight |
| Runners Included | Yes |
| Runners Removable | No |
| Plenum Material | Aluminum |
| Plenum Finish | Natural |
| Base Material | Aluminum |
| Base Color | Natural |
| Remanufactured | No |
| Quantity | Sold individually. |
No specific fitment data available for this part. For clarification, please contact us.
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Beginning Year | 1965 |
| Ending Year | 1970 |
| Engine Type | V8 |
| Engine Family | Chevy big block Mark IV |
| Engine Size | 6.5L/396 |
| Make | CHEVROLET |
| Beginning Year | 1966 |
| Ending Year | 1969 |
| Engine Type | V8 |
| Engine Family | Chevy big block Mark IV |
| Engine Size | 7.0L/427 |
| Make | CHEVROLET |
| Beginning Year | 1970 |
| Ending Year | 1972 |
| Engine Type | V8 |
| Engine Family | Chevy big block Mark IV |
| Engine Size | 6.6L/402 |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
