Description

MANIFOLD

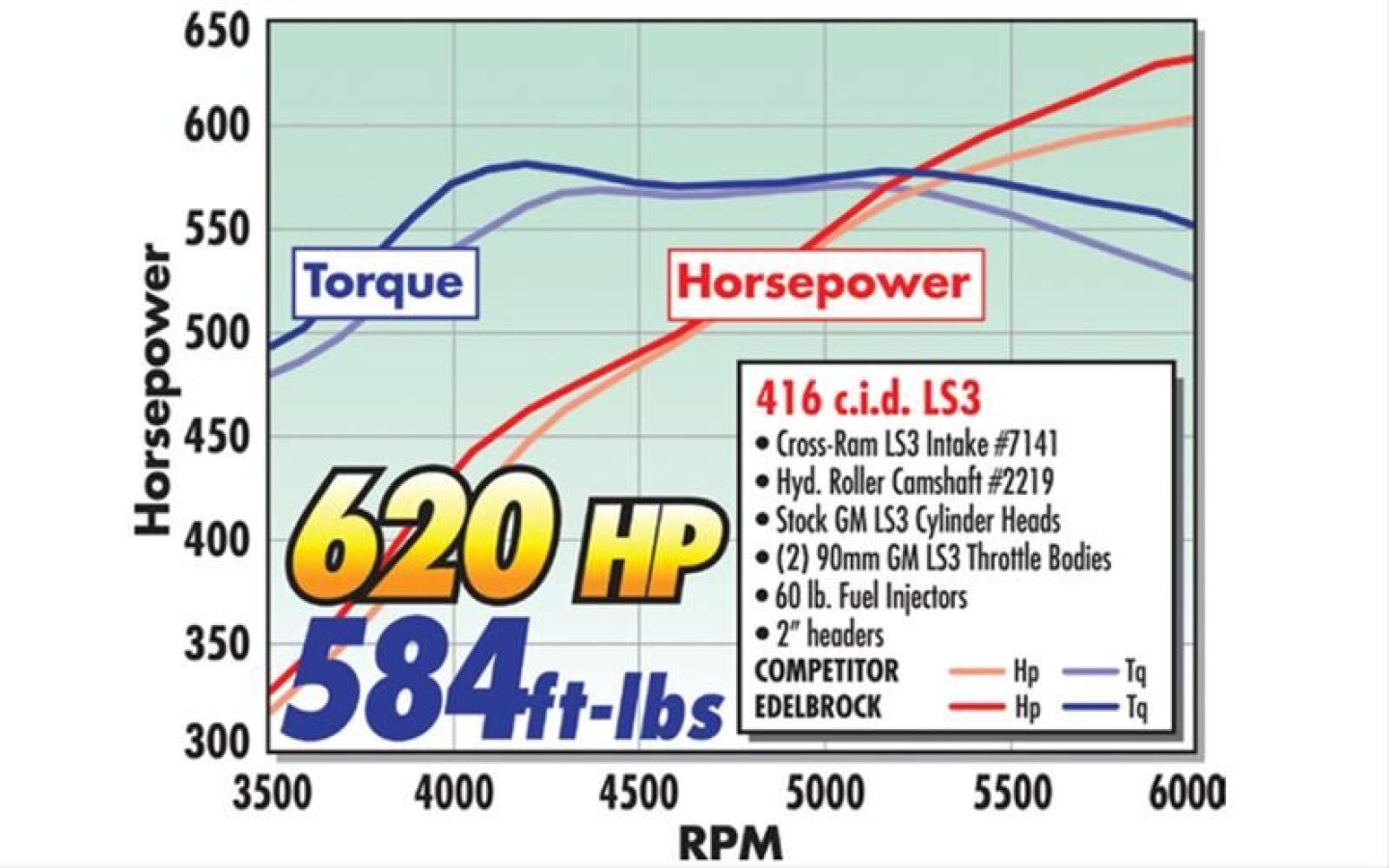

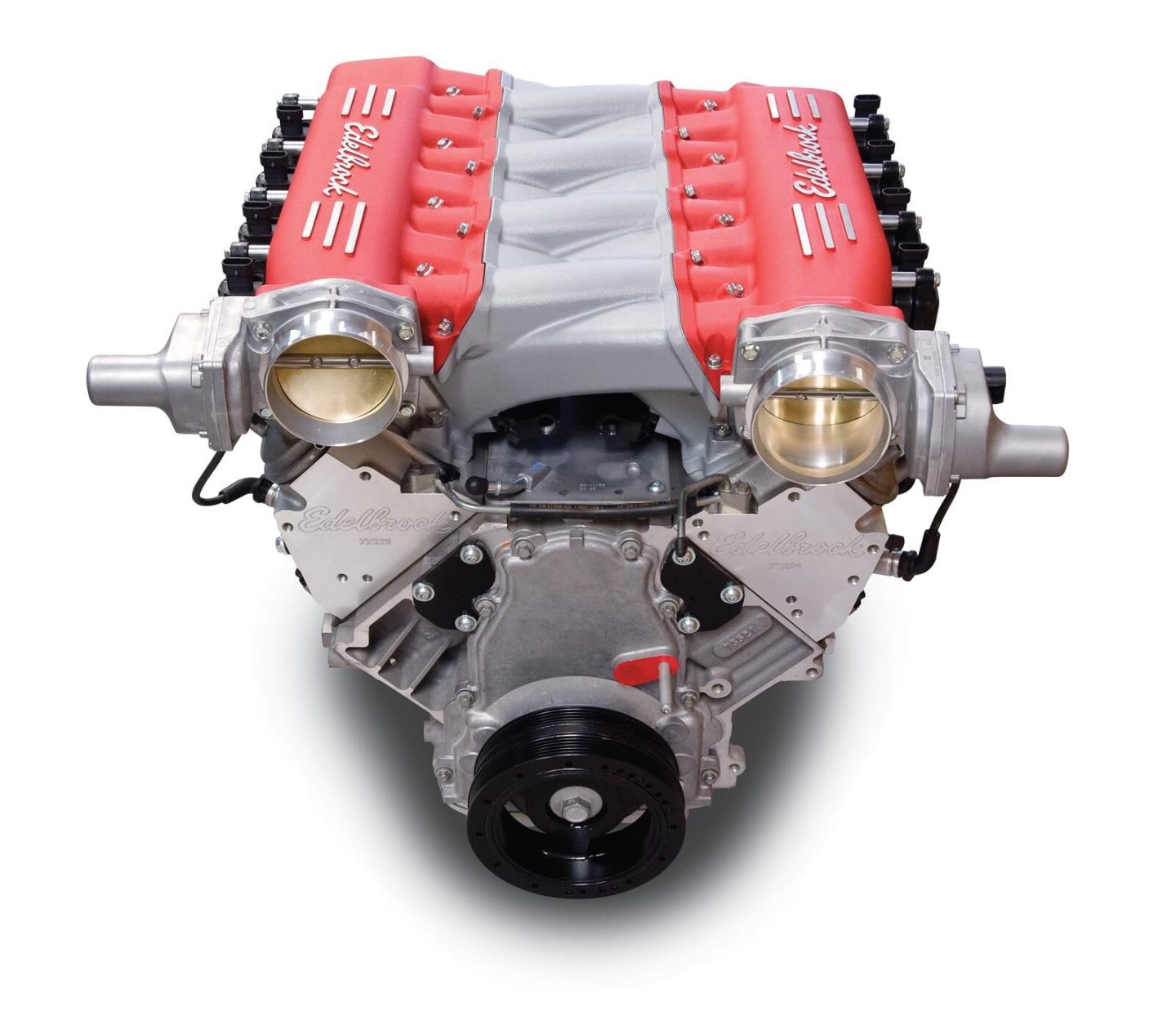

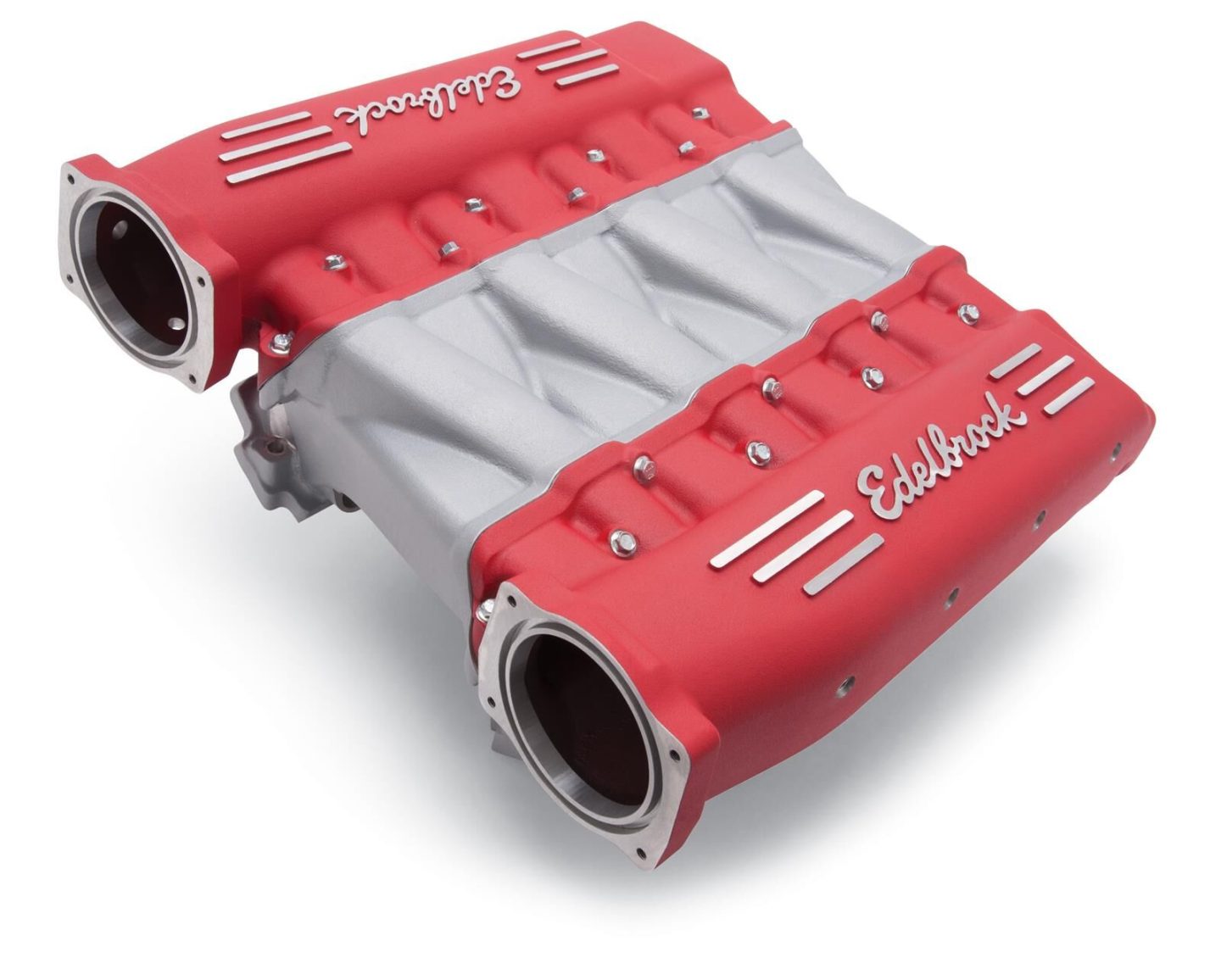

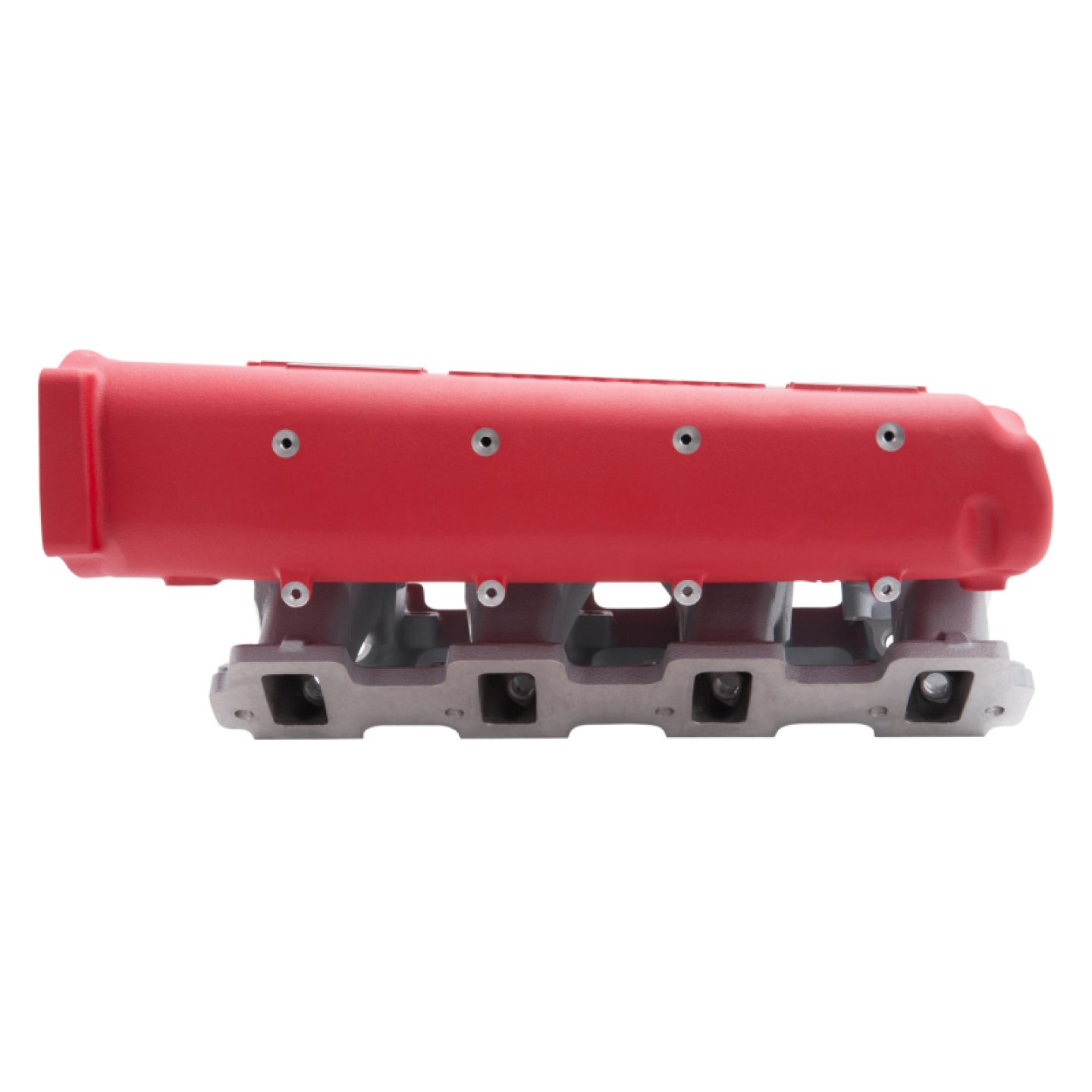

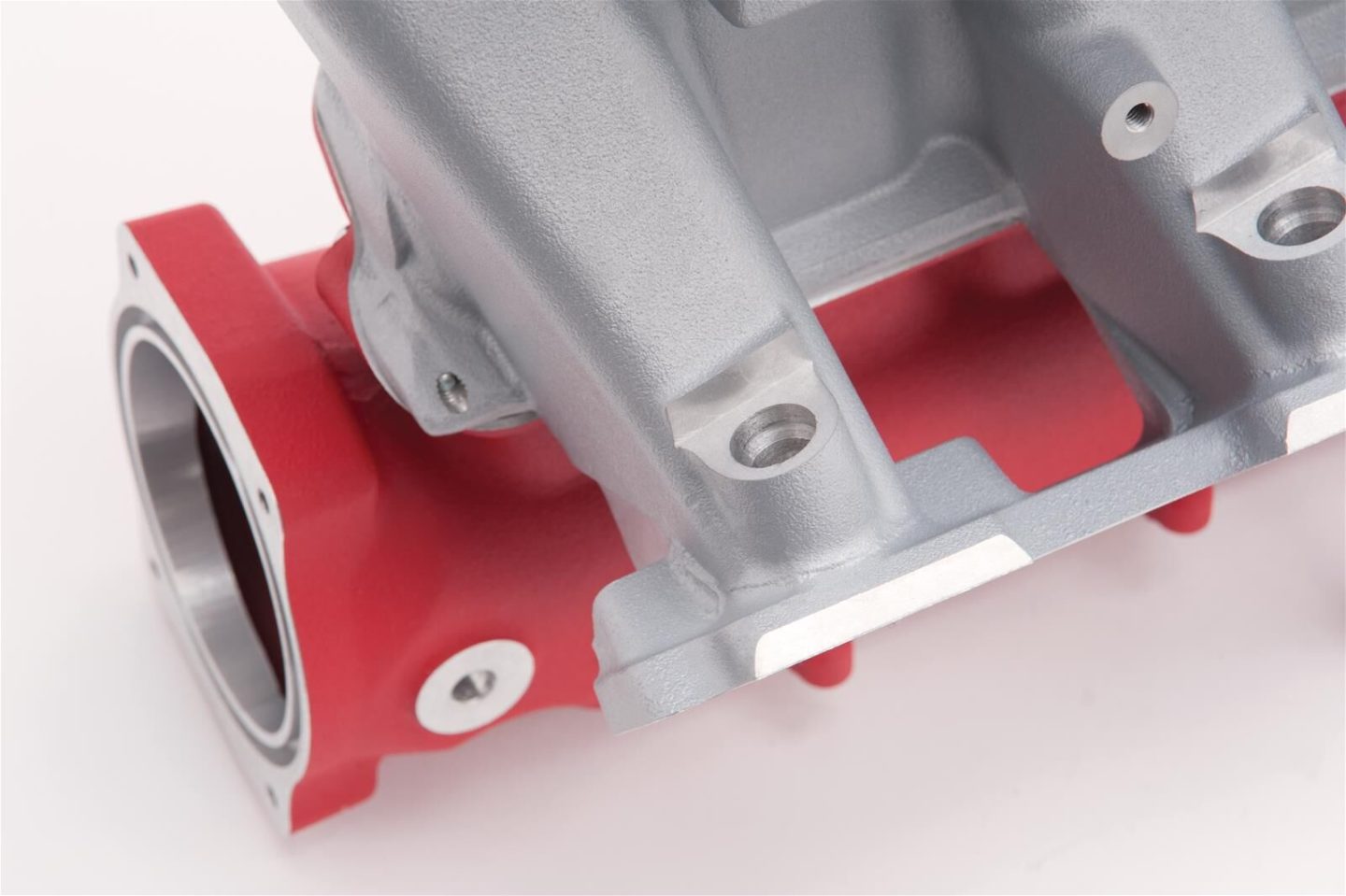

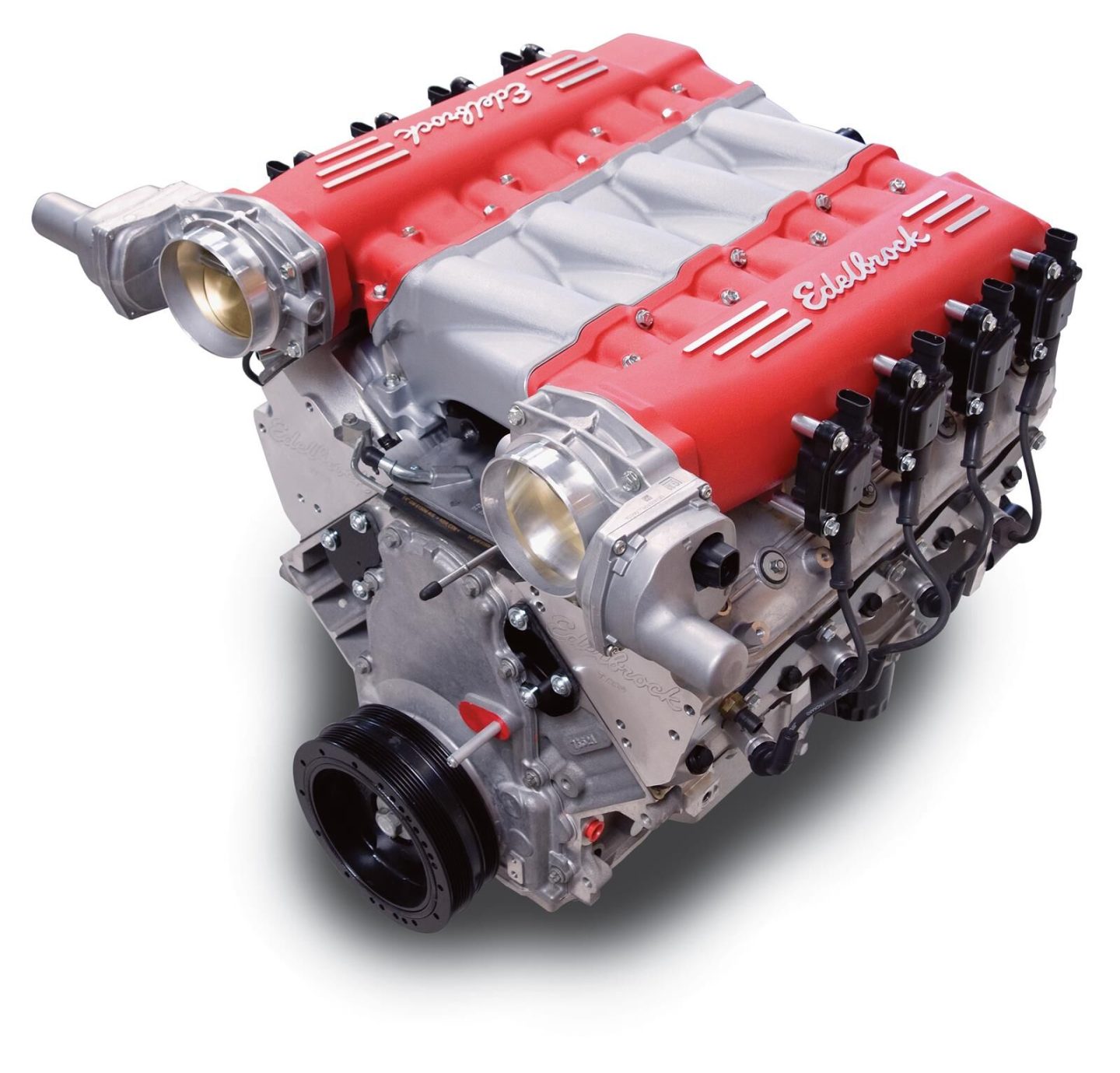

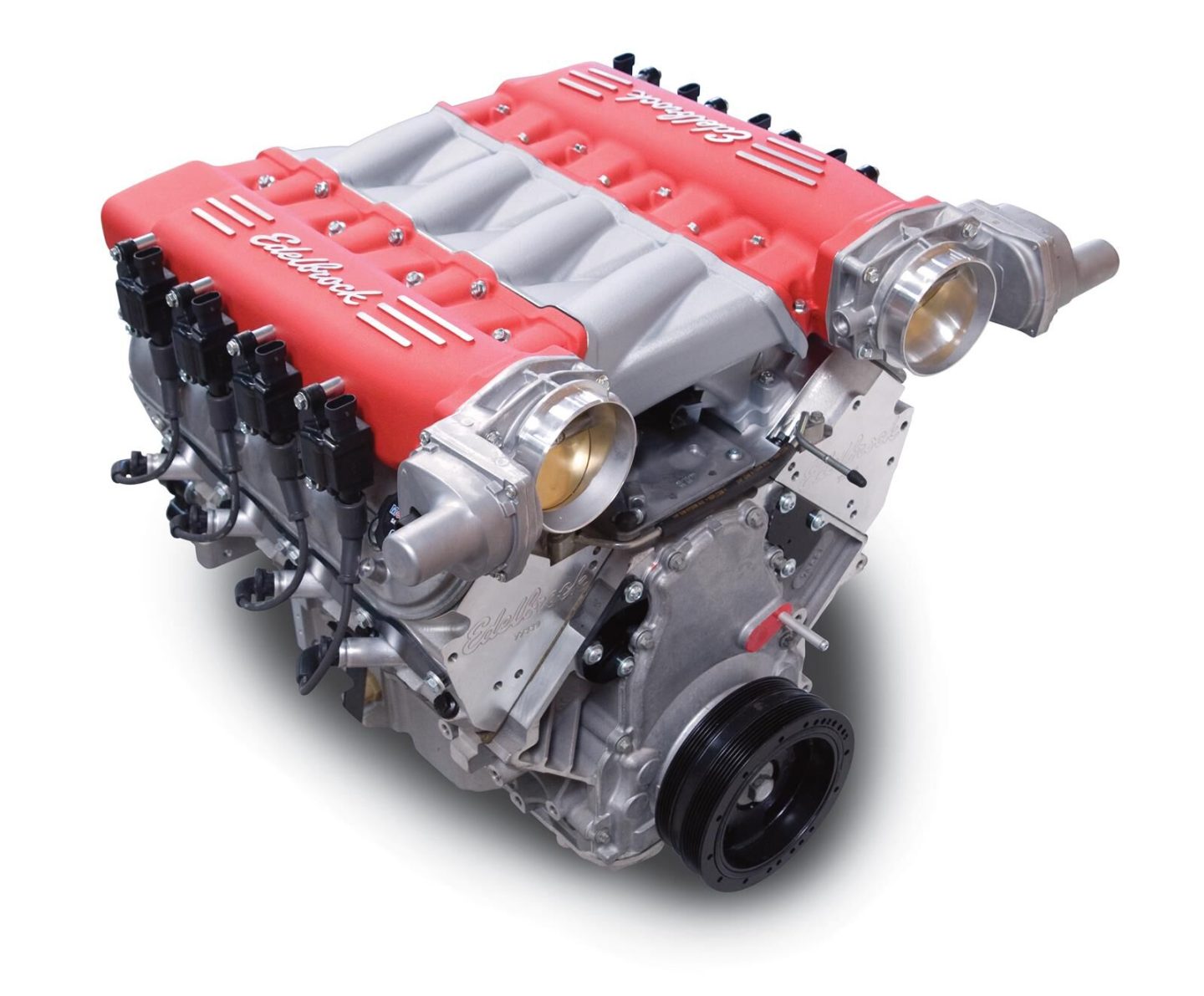

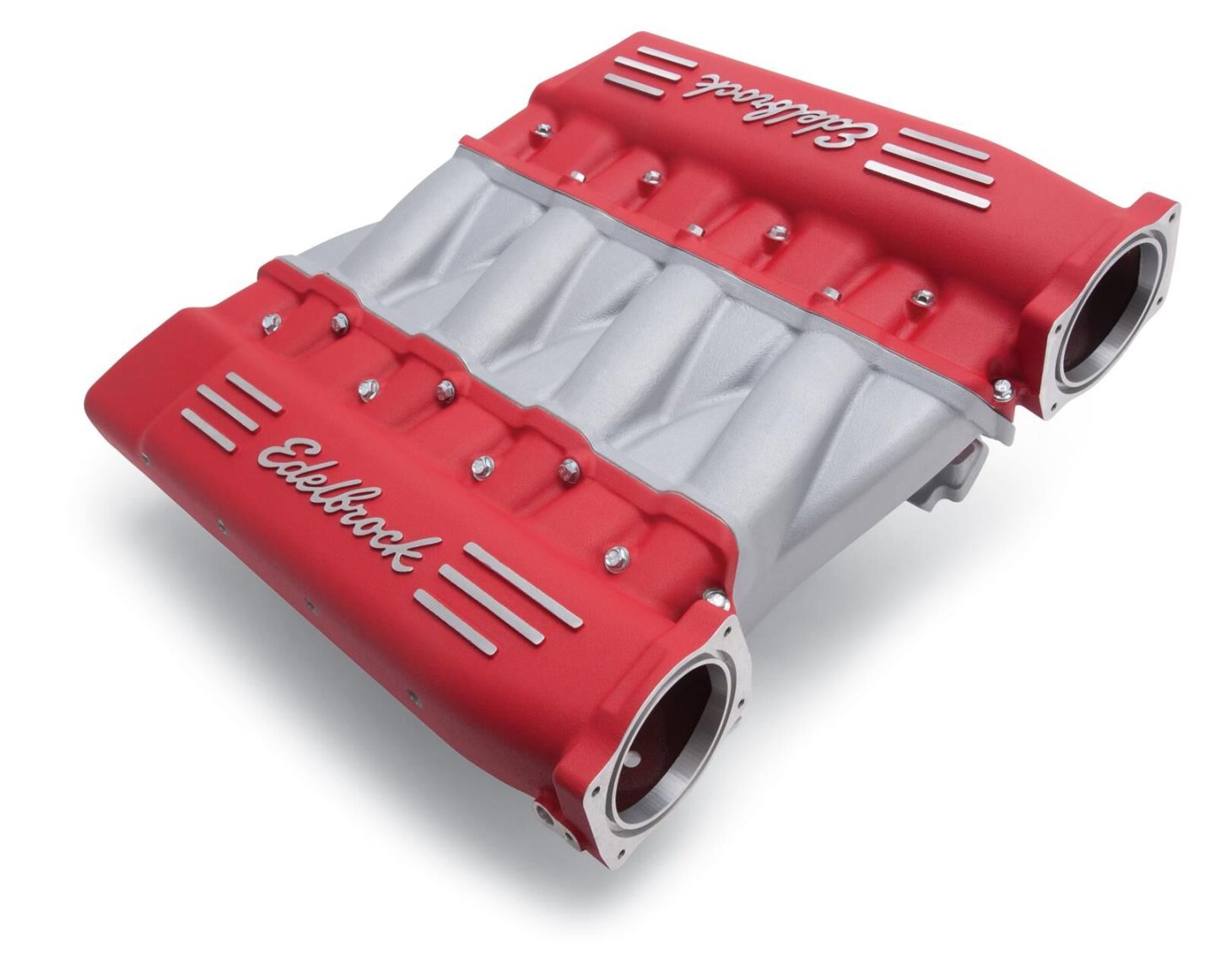

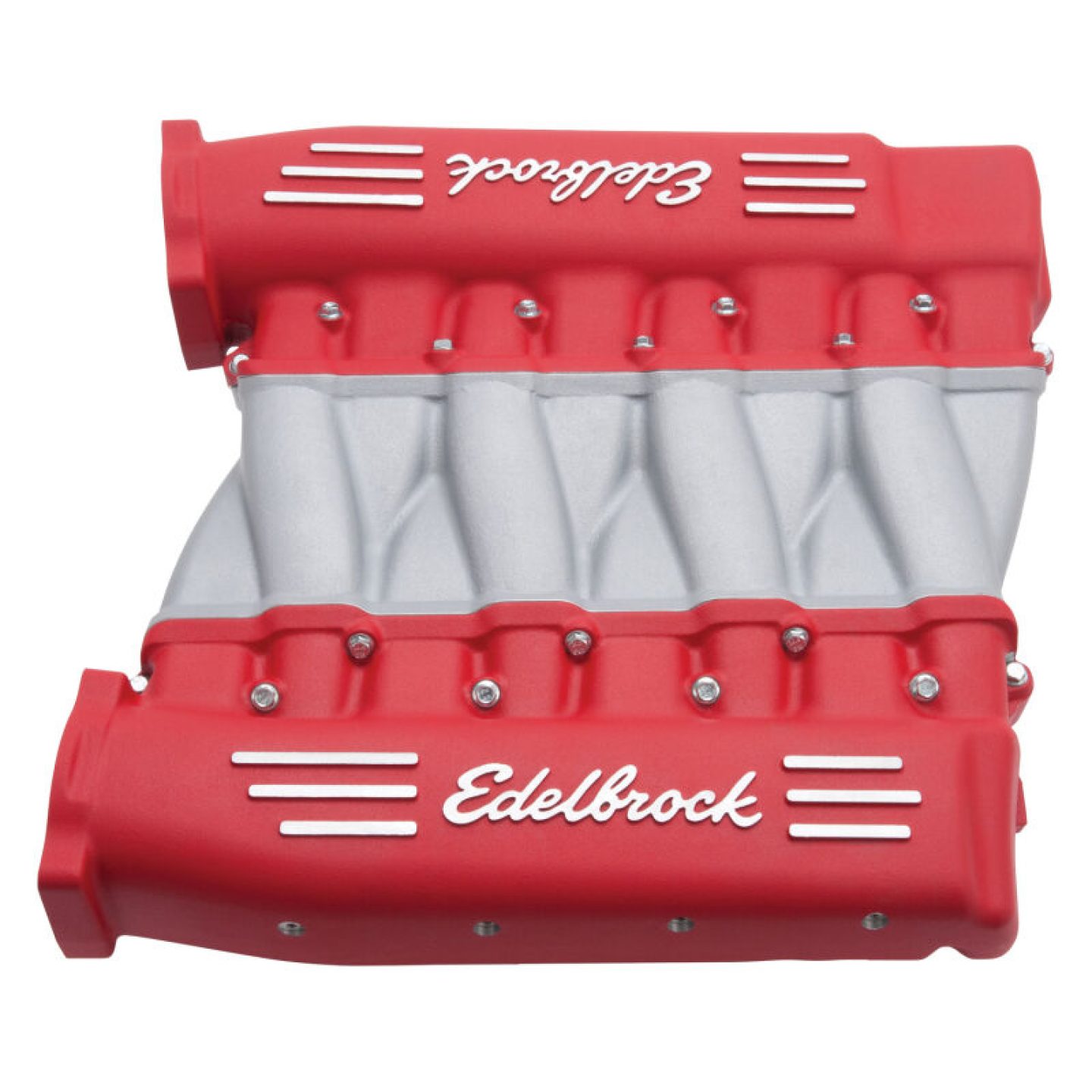

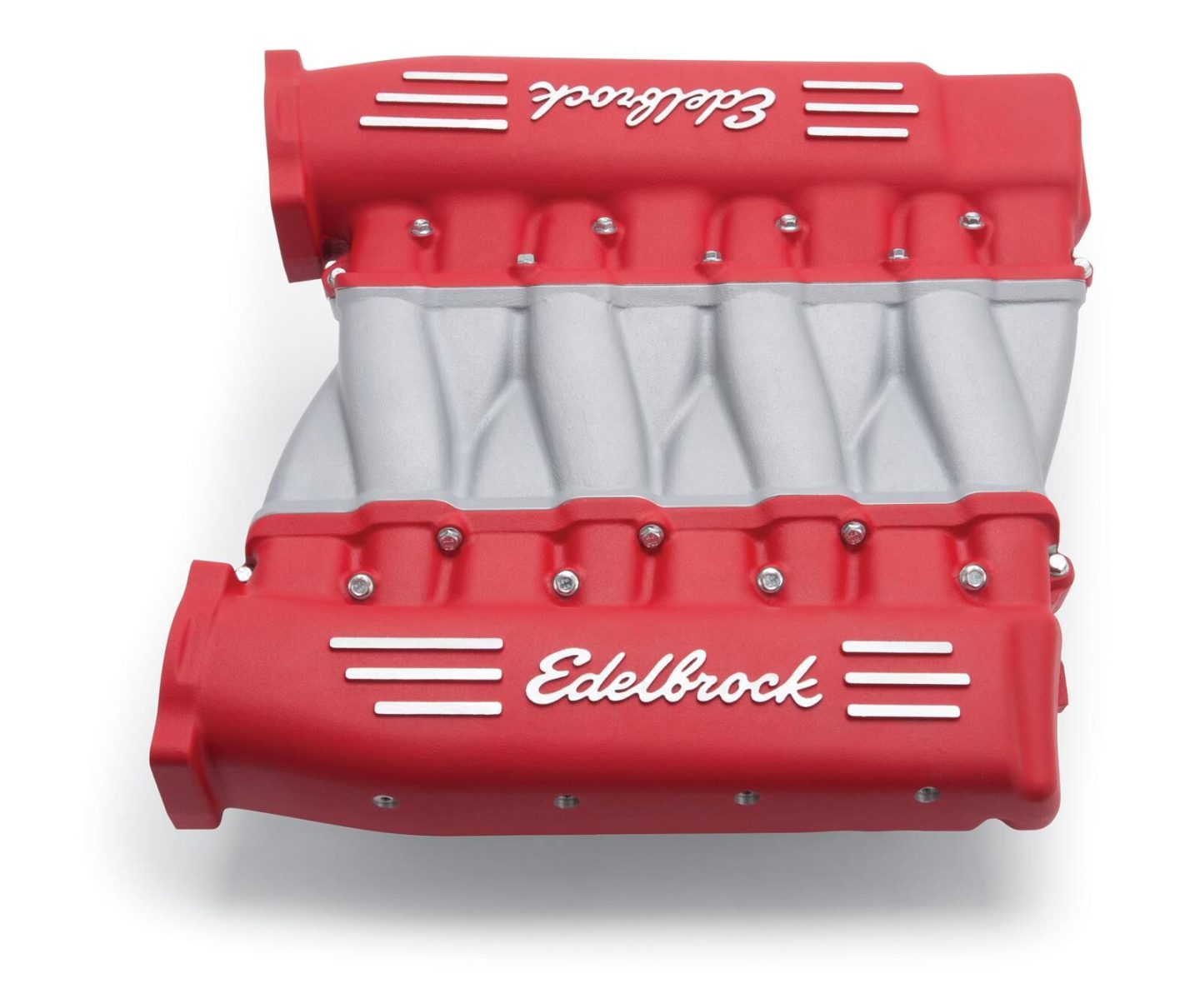

Edelbrock part #71413 LS3 Cross-Ram intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 horsepower and 28 ft-lbs. of torque over a popular aftermarket manifold.

Additional Information

MANFIOLD; 2008-17 GM LS3; CROSS-RAM

Application Summary

Chevrolet:Small-Block Gen IV L76:364 (6.0L)

Part Type

Engine Intake Manifold

Product Overview

Features and Benefits

Great Looks And Outstanding Performance

Product Details

Basic Operating RPM Range:	1500-7000
CNC Ported:	No
Center Maximum Height:	9.350
Cylinder Head Type:	Chevy Small Block
Description:	Cross Ram LS3 Intake Manifold
EGR Port:	No
Engine Make/Size:	Chevy LS3
Finish:	Red Powder Coated
Flange Type:	Cross-Ram
Front Maximum Height:	9.350
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	None; For Fuel Injection
Part Number:	ede7141
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1500-7000
Rear Maximum Height:	8.010
Series:	Cross-Ram LS3
Single Or Dual Plane Type:	Single
Usage:	Street/Hi-Performance
Vehicle Model:	Chevrolet

Additional Application Notes
• RPM 1500-7000; Rectangular Port Heads; Dual Plenums w/13 in. Runners w/Flanges; +27 hp./+28 ft/lbs. Torque; Red RPM 1500-7000 Red Rectangular Port Heads Dual Plenums w/13 in. Runners w/Flanges +27 hp./+28 ft/lbs. Torque
• RPM 1500-7000; Rectangular Port Heads; Dual Plenums w/13 in. Runners w/Flanges; +27 hp./+28 ft/lbs. Torque; Red

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Data: v2 - Desc: v4.1 - Upd: 2025-10-08 20:08:33

Features

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, brake boosters and some master cylinders and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part, but may have differing mounts or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

(keyword: manifold)

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Reference Data (Provide these details to our support team)
Brand Name/s	Edelbrock
StreetFX SKU	ede7141
SFX Item ID	4235928
Accounting SKU	ede-7141
Manufacturer SKU	7141
Manufacturer UPC	85347071418
Alternative References	EDB7141, EDL-7141

Specifications

Intake Manifold, Cross-Ram, Aluminum, Fuel Injected, Rectangular Port Heads, Red, GM LS3, Each

Edelbrock Cross-Ram LS3 intake manifolds are ideal for anyone looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The unique cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. The manifolds are available in multiple finishes for that custom look.

Product Attributes
Brand	Edelbrock
Manufacturer's Part Number	7141
Part Type	Intake Manifolds, Fuel Injected
Product Line	Edelbrock Cross-Ram LS3 Intake Manifolds
UPC	085347071418
Cylinder Head Configuration	Rectangular Port LS3/L76/L92/L99
Fuel Injection Style	Multi-port
Basic Operating RPM Range	1,500-7,000
Intake Section Included	Complete
Throttle Body Bore Size	90mm
Engine Block Deck Height	Standard deck
Injectors Included	No
Multi-Port Fuel Rails Included	No
EGR	No
Aftermarket Fuel Rail Required	No
Throttle Body Included	No
Supplemental Bosses Cast-In	No
Supplemental Bosses Machined	No
Runners Included	Yes
Runners Removable	Yes
Plenum Material	Aluminum
Plenum Finish	Red powdercoated
Base Material	Aluminum
Base Color	Natural
Remanufactured	No
Quantity	Sold individually.
Notes	Edelbrock fuel rail kit 3654 is recommended as well as GM PN19256623 LS3/LS76 style individual port o-ring seals are used on the intake. GM LS 90mm throttle bodies are recommended.

compatibility

Edelbrock Manifold Chevy Ls LS3 Cross Ram w/ Red Plenums
Year Range	Make	Model	Submodels	Region
2007-2008	Cadillac	Escalade	Base, Platinum	US
2007-2008	Cadillac	Escalade ESV	Base, Platinum	US
2007-2008	Cadillac	Escalade EXT	Base	US
2007-2009	Chevrolet	Avalanche	LT, LTZ	US
2010-2015	Chevrolet	Camaro	SS	US
2008-2013	Chevrolet	Corvette	Base, Grand Sport	US
2014-2017	Chevrolet	SS	Base	US
2007-2009	Chevrolet	Silverado 1500	LT, LTZ	US
2007-2009	Chevrolet	Suburban 1500	LT, LTZ	US
2008	Chevrolet	Tahoe	LTZ	US
2007-2009	GMC	Sierra 1500	SLE, SLT, Denali	US
2007-2008	GMC	Yukon	Denali	US
2007-2009	GMC	Yukon XL 1500	SLE, SLT, Denali	US
2008	Hummer	H2	Base	US
2008-2009	Pontiac	G8	GT, GXP	US

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

Application Data
Make	CHEVROLET
Beginning Year	2005
Ending Year	2019
Engine Type	V8
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Engine Size	6.0L/364

Make	CHEVROLET
Beginning Year	2008
Ending Year	2017
Engine Type	V8
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Engine Size	6.2L/376

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
