TIMING CHAINS

Edelbrock part #7338 RPM-Link adjustable true-roller timing chain Set now, you can dial-in your camshaft with ease with our RPM-Link Roller Timing Chain Set. RPM-Link timing chain bolt onto your engine just like any other timing chain set, so there's no machining required and no need for special offset bushings for installation. Made from induction hardened billet steel, it allows for a quick cam timing adjustment to plus or minus six degrees. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Additional Information

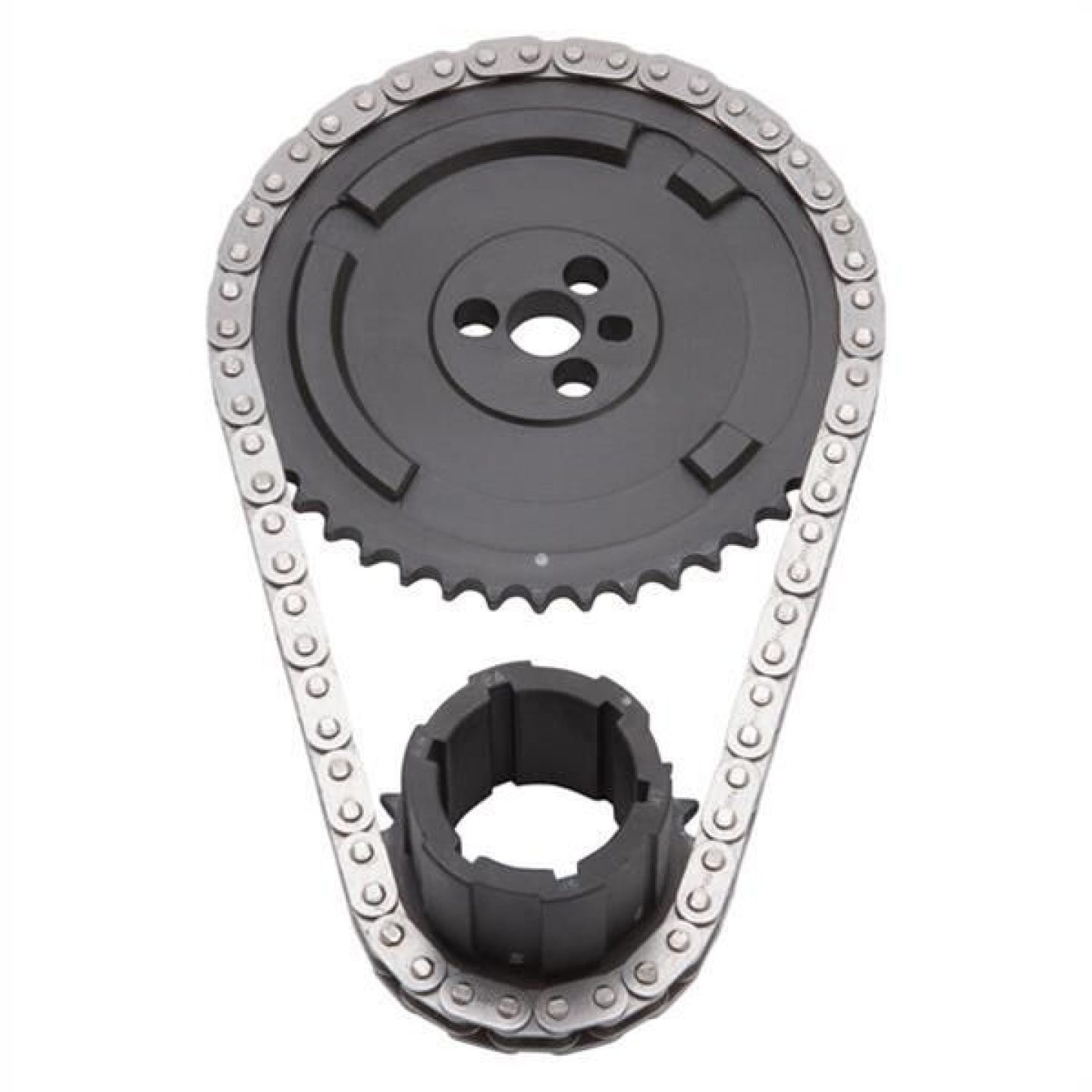

RPM-Link Adjustable True-Roller Timing Chain Set

Application Summary

Chevrolet:Small-Block Gen IV LS3:376 (6.2L)

Part Type

Engine Timing Set

Product Overview

Edelbrock part #7338 RPM-Link adjustable true-roller timing chain Set now, you can dial-in your camshaft with ease with our RPM-Link Roller Timing Chain Set. RPM-Link timing chain bolt onto your engine just like any other timing chain set, so there's no machining required and no need for special offset bushings for installation. Made from induction hardened billet steel, it allows for a quick cam timing adjustment to plus or minus six degrees- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• No Need For Special Offset Bushings

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Timing Chain and Gear Set, Hex-A-Just, Single Roller, 3-Bolt, Billet Steel, Chevy, LS3, 4x, Set

With Edelbrock Hex-A-Just timing sets, infinitely adjustable cam timing is as simple as turning an Allen wrench. Consisting of SAE 1144 billet steel cam and crank sprockets and a true roller timing chain, Edelbrock Hex-A-Just timing sets use a special hex-head bushing installed on your cam's dowel pin. This bushing lines up with degree marks on the cam sprocket. You can adjust timing in fractions of a degree by loosening the cam bolts and turning the bushing with an Allen wrench. Edelbrock Hex-A-Just timing sets install under your stock timing cover and can be used in align-bored blocks. Order the model recommended for your application.
