CYL HEAD COMPONENTS

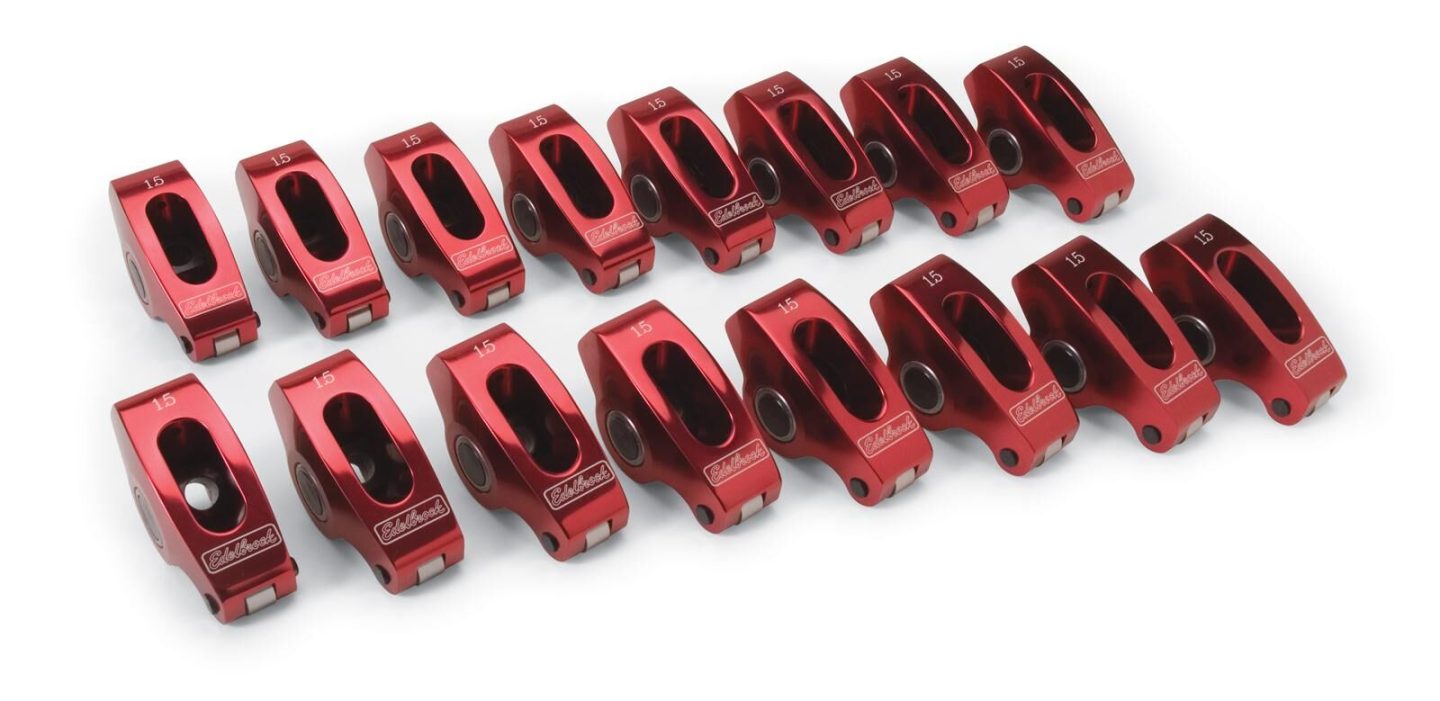

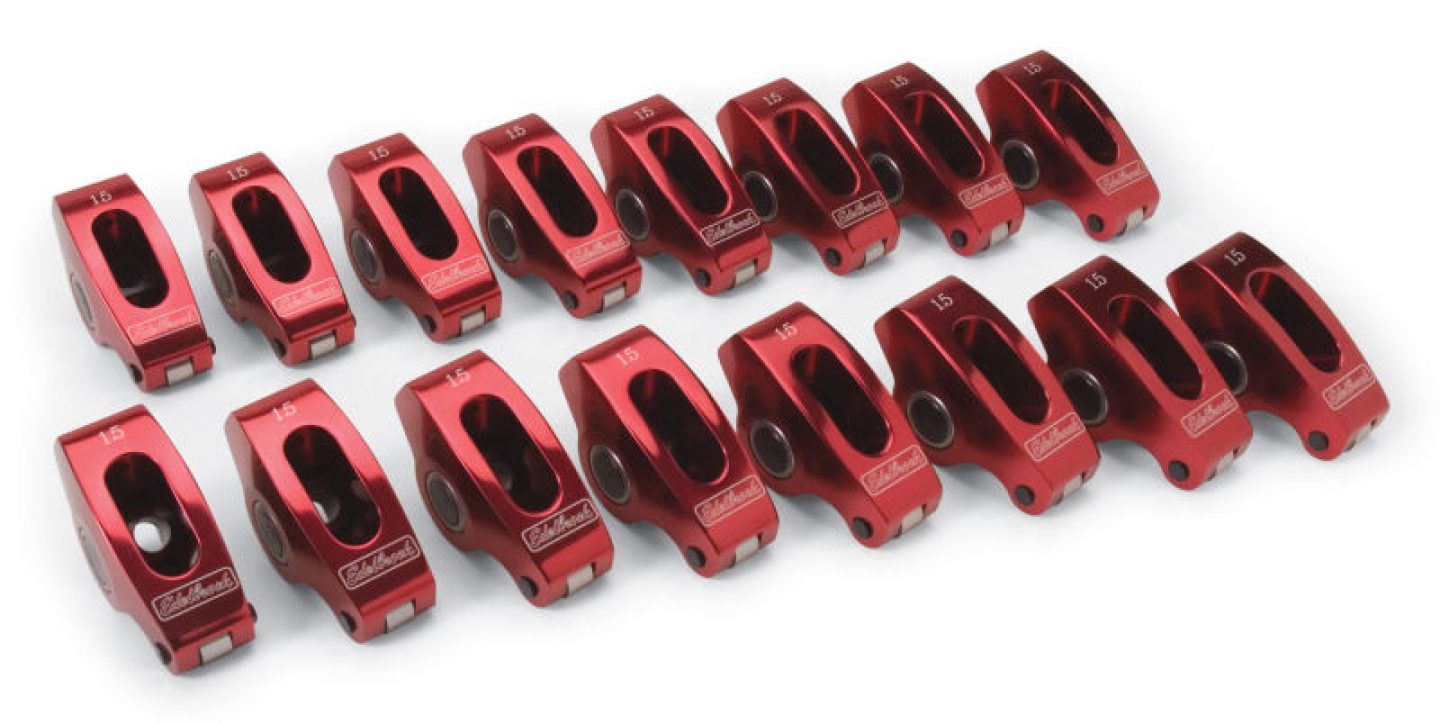

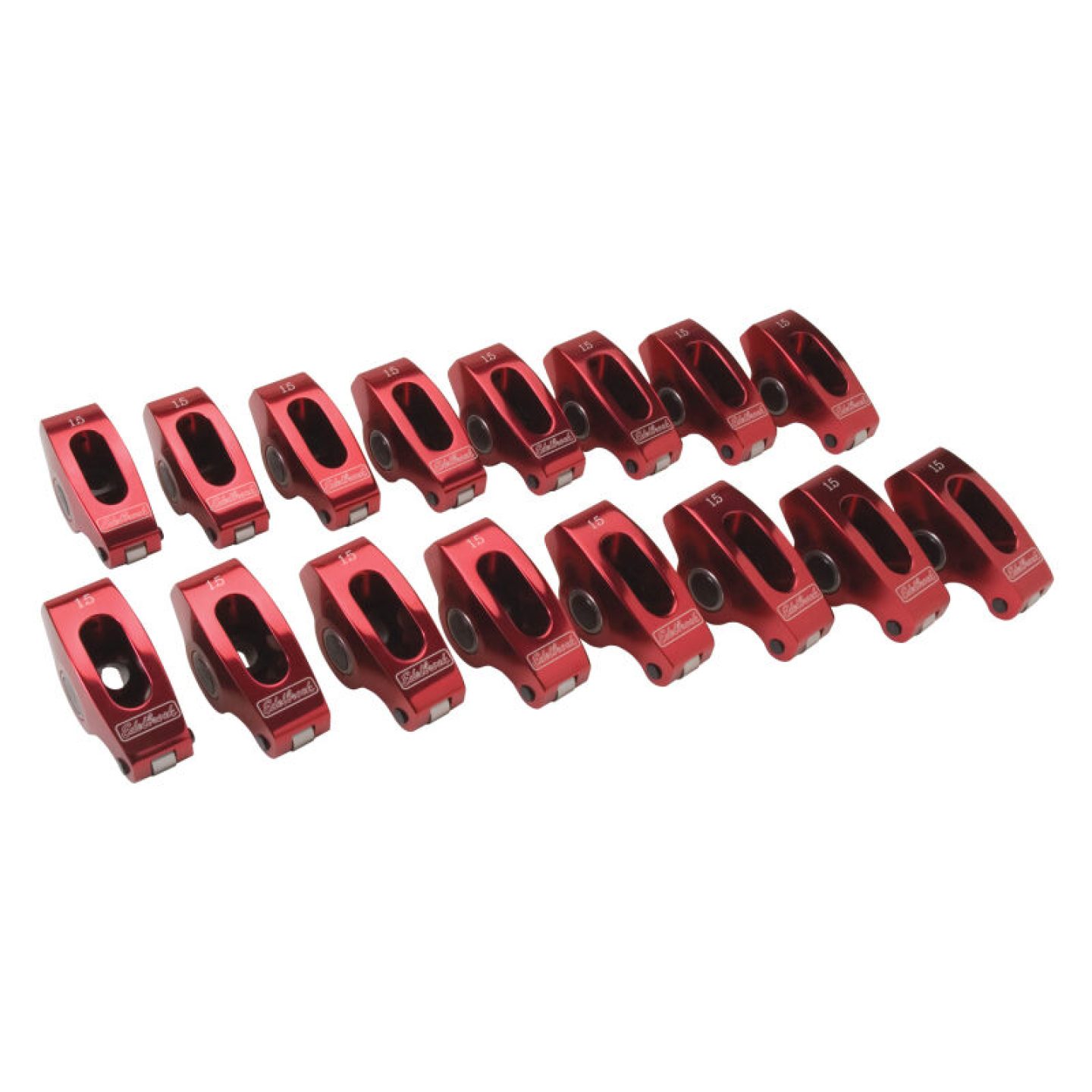

Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included.
Red Roller Rockers for Small-Block Chevy 3/8 stud 1.5:1 Ratio (Qty 16)
Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)
Engine Rocker Arm
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Rocker Arm; Red Roller Rocker Arms; Small Block Chevy; 3/8 in.;Ratio 1.5 to 1; Qty 16
Edelbrock roller rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC-machined and then micro-polished and anodized for durability. The trunnion race, roller pin, and roller tip are centerless-ground for superior quality. A high-quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. Their full-body design will accommodate up to 1.650 in. diameter springs. These Edelbrock aluminum roller rockers include thick-walled adjusting nuts and 4140 steel polylocks.
Product Attributes | |
---|---|
Brand | Edelbrock |
Manufacturer's Part Number | 77770 |
Part Type | Rocker Arms |
Product Line | Edelbrock Aluminum Roller Rockers |
UPC | 085347777709 |
Rocker Arm Mounting Style | Stud |
Self-Aligning | No |
Rocker Arm Ratio | 1.5 |
Stud Size | 3/8 in. |
Maximum Spring Diameter (in.) | 1.650 in. |
Rocker Arm Style | Full roller |
Shims Included | No |
Rocker Arm Material | Aluminum |
Rocker Arm Body Style | Standard |
Rocker Arm Fasteners Included | Yes |
Rocker Arm Nut Style | Polylock |
Rocker Arm Finish | Red anodized |
Quantity | Sold as a set of 16. |
Manufacturer Attributes | |
---|---|
Mounting Type | Stud |
Self Aligning | No |
Rocker Arm Finish | Red anodized |
Stud Thread Diameter | 0.375 |
Maximum Spring Outside Diameter | 1.65 |
Material | Aluminum |
Rocker Arm Ratio | 1.5:1 |
Grade Type | Performance |
RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Shims Included | No |
Rocker Arm Material | Aluminum |
Rocker Arm Nut Type | Poly Lock |
Quantity | Set of 16 |
Rocker Arm Type | Full Roller |
Product Class | Engine Rocker Arm |
Construction/Type | Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. |
Vehicle Designations | Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) |
Vehicle Brief | Edelbrock red roller rockers #77770 SBC |
Market Description | Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included. |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Make | CHEVROLET |
Beginning Year | 1955 |
Ending Year | 1957 |
Engine Type | V8 |
Engine Family | Chevy small block Gen I |
Engine Size | 4.3L/265 |
Make | CHEVROLET |
Beginning Year | 1957 |
Ending Year | 1967 |
Engine Type | V8 |
Engine Family | Chevy small block Gen I |
Engine Size | 4.6L/283 |
Make | CHEVROLET |
Beginning Year | 1962 |
Ending Year | 1969 |
Engine Type | V8 |
Engine Family | Chevy small block Gen I |
Engine Size | 5.4L/327 |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
