KIT PARTS

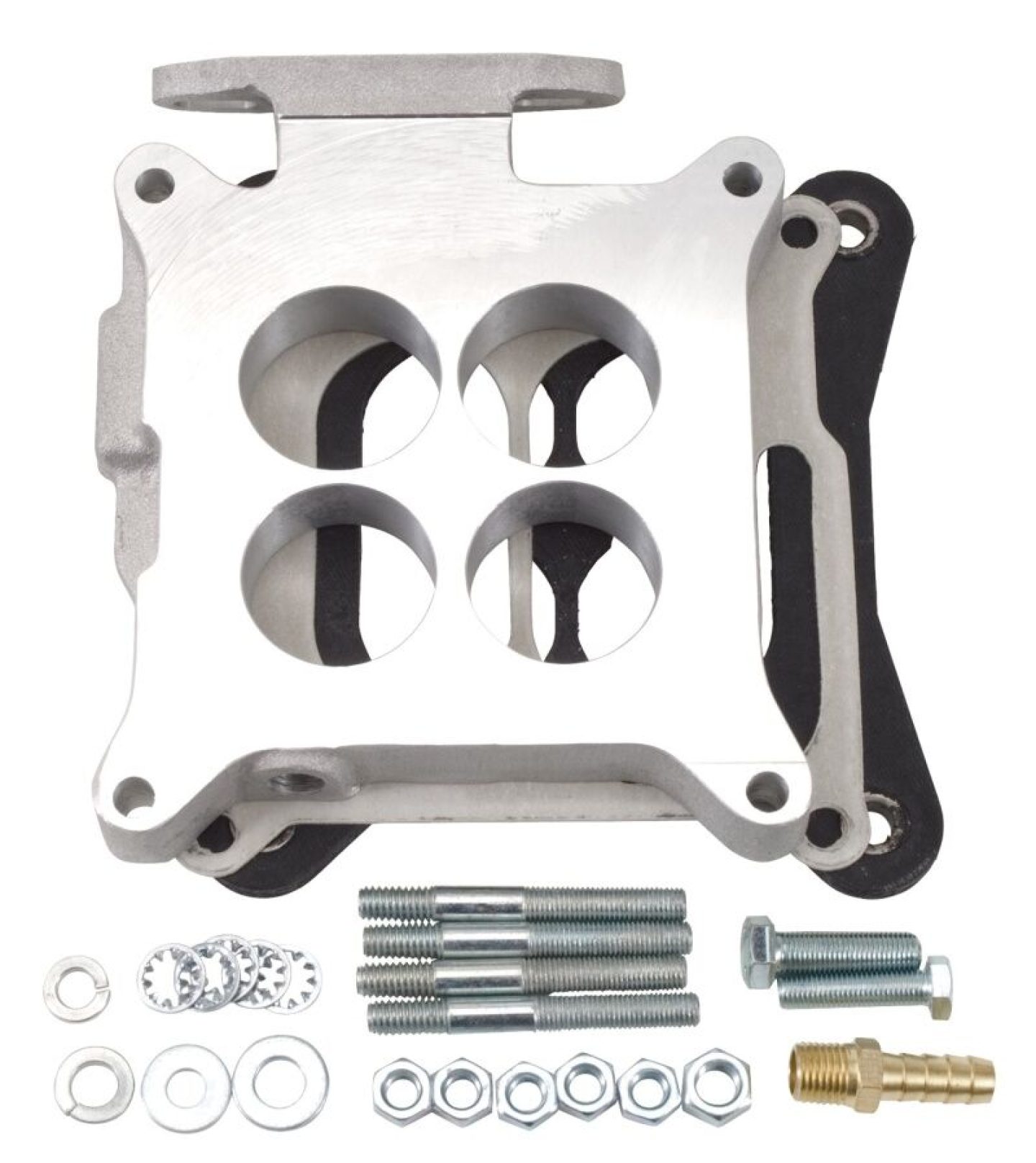

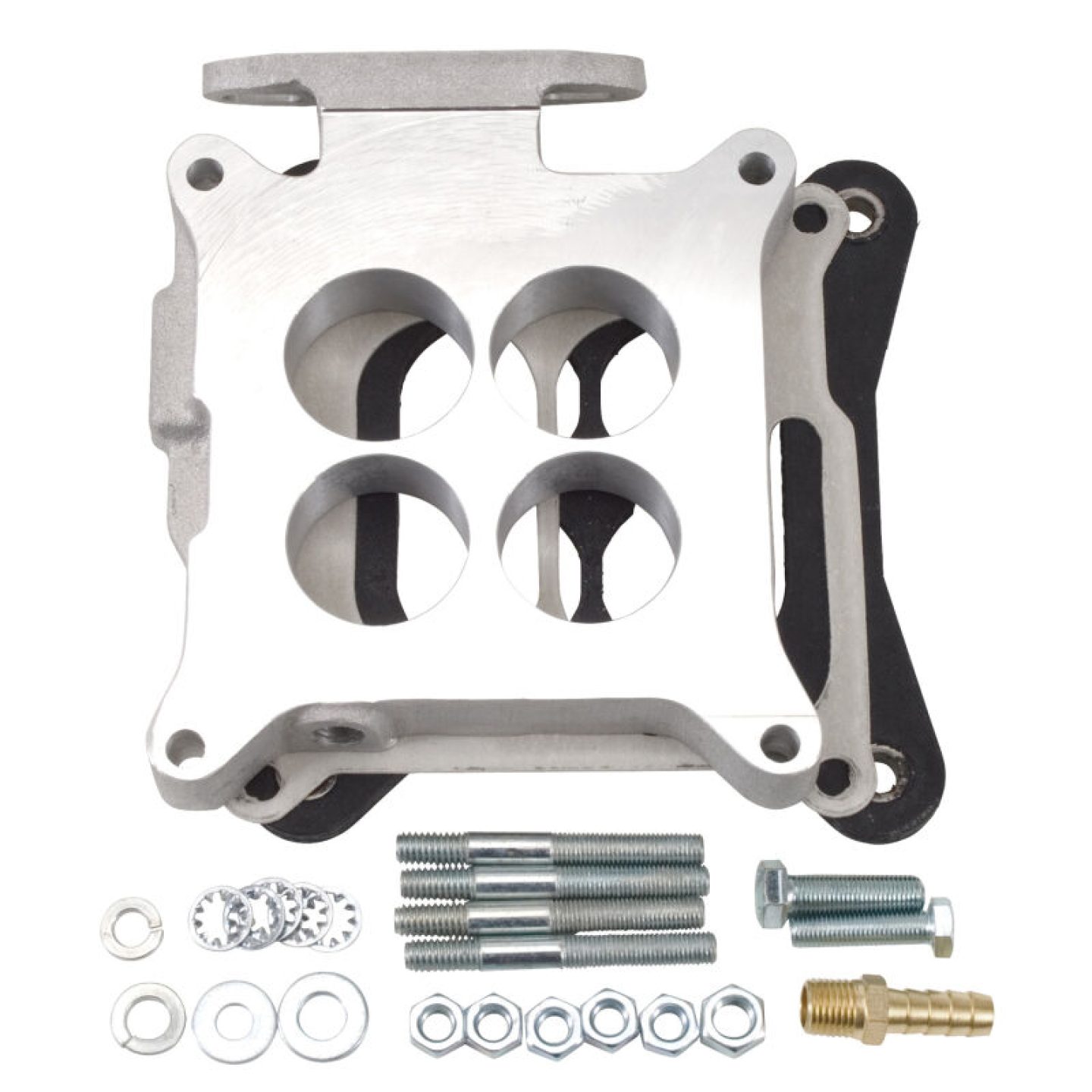

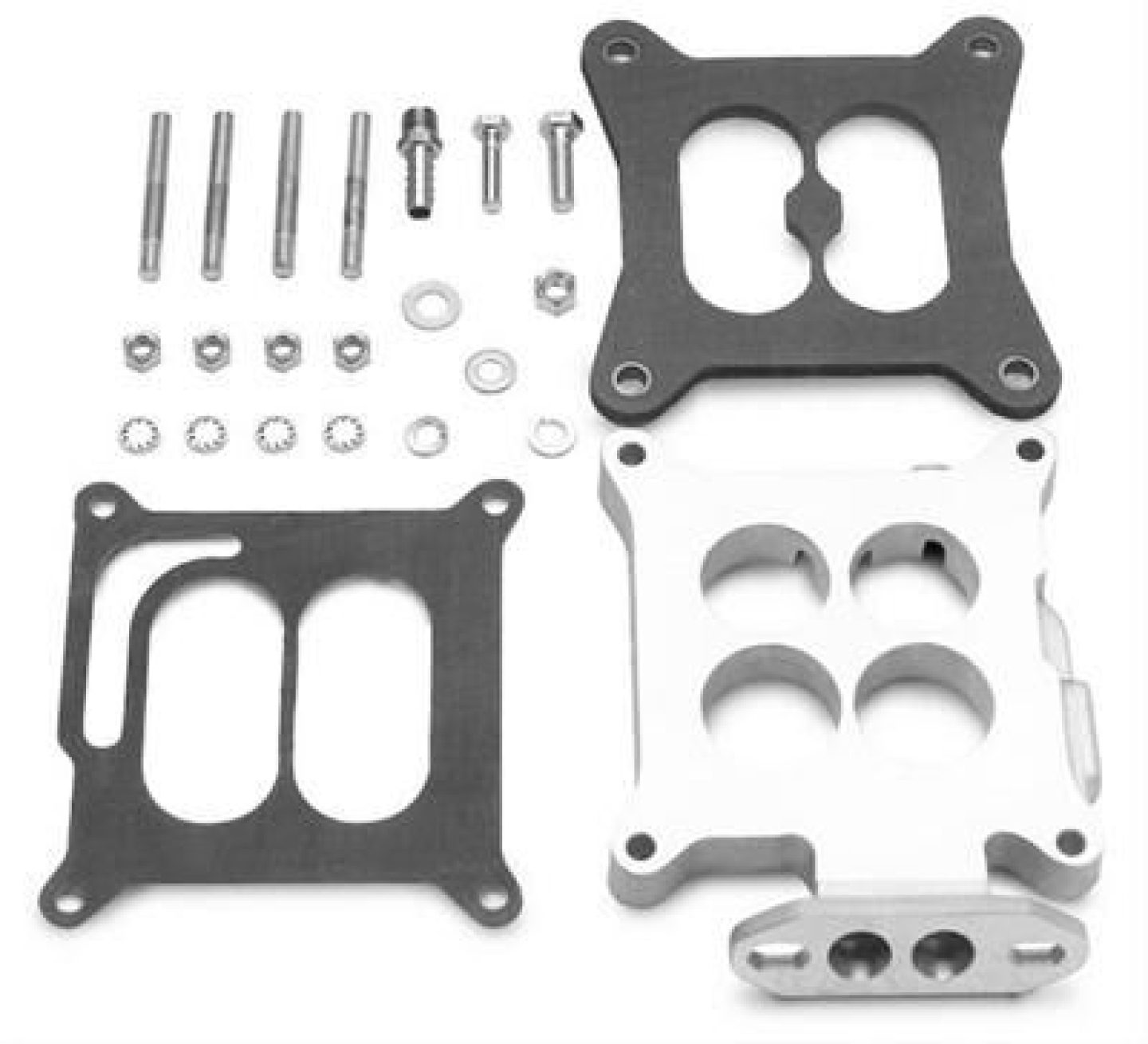

Edelbrock part #8053 is a 1" tall Ford 4V EGR adapter plate kit. This adapter plate will not work with 426/460 engines.Kit Contents:- 1 - Cast Aluminum EGR Plate- 1 - High Temperature Gasket (Plate-to-Manifold)- 4 - Carb Studs; 5/16" x 2-3/4"- 4 - Star Washers; 5/16" Internal- 1 - Hex Cap Screw; 5/16-24 x 1-1/4"- 1 - Hex Cap Screw; 3/8-24 x 1-1/4"- 5 - Hex Nut; 5/16-24- 1 - Hex Nut; 3/8-24- 1 - Split Lock Washer; 5/16"- 1 - Split Lock Washer; 3/8"- 1 - Flat Washer; 5/16"- 1 - Flat Washer; 3/8"- 1 - Hose Fitting; 3/8" Hose to 1/4" Pipe- 1 - Divided Heat Insulator Carb Base Gasket

Additional Information

FORD 4BBL EGR PLATE

Application Summary

Ford:Small-Block:302 (5.0L)-351W (5.8L)

Part Type

Exhaust Gas Recirculation (EGR) Valve Spacer Plate

• Includes All Necessary Hardware and Gaskets

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Carburetor Spacer, Aluminum, 1 in. Thick, Divided-Wall, Square Bore, Each

Thanks to the folks at Edelbrock, installing your new intake and carburetor has been made easier. With their EGR adapters, your existing EGR valve is repositioned to allow clearance for your carburetor. They're made of cast aluminum and come complete with gaskets and bolts.
