KIT PARTS

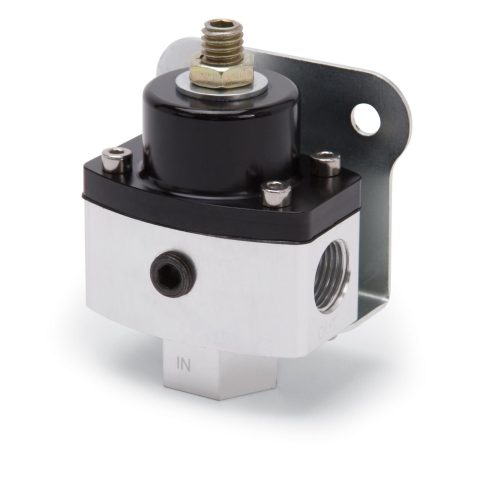

The Edelbrock Fuel Pressure Regulator #8190 is for carburetor applications that require consistent pressure from 4-1/2 to 9 psi. It features two 3/8" NPT outlets, one 3/8" NPT inlet, 1/8" NPT gauge port and is adjustable from 5 to 12 psi. This regulator is manufactured from billet aluminum and features a Nylon-reinforced Nitrile diaphragm for excellent heat and leak resistance.
Additional Information
HI-PERF FUEL REGULATOR 4 1/2-9 PSI
Part Type
Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Ver: 3.01 - Upd: 2025-03-21 19:48:19
Product Downloads
| # | Document Type | Download |
| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
