Description
Exhaust Valve - 1.600 in Head - 11/32 in Valve Stem - Stainless - Edelbrock Heads - AMC V8 / Small Block Chevy / Small Block Ford - Each
Edelbrock 1- Ford 60259 60359 Exh Valve 1 600 X 4 929

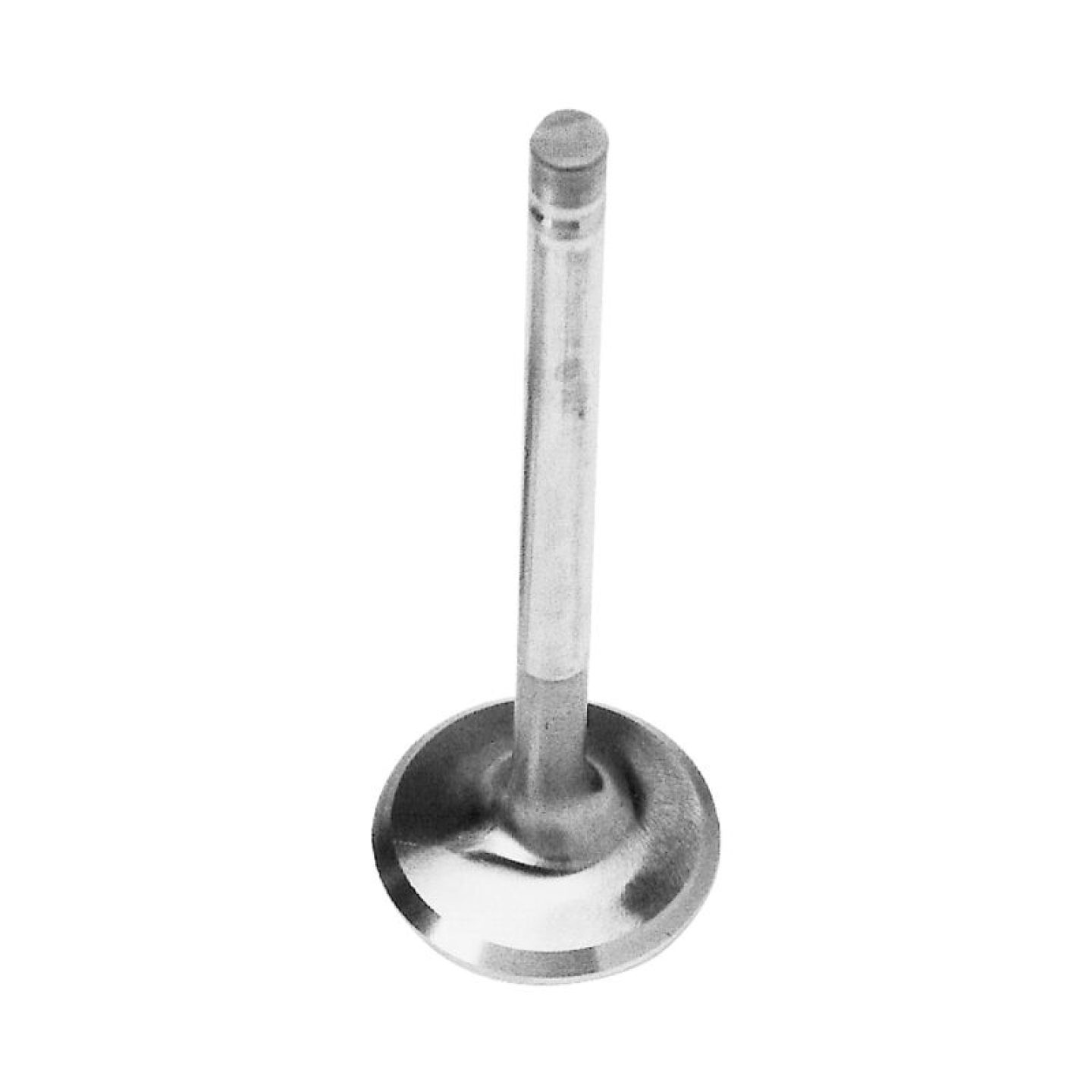

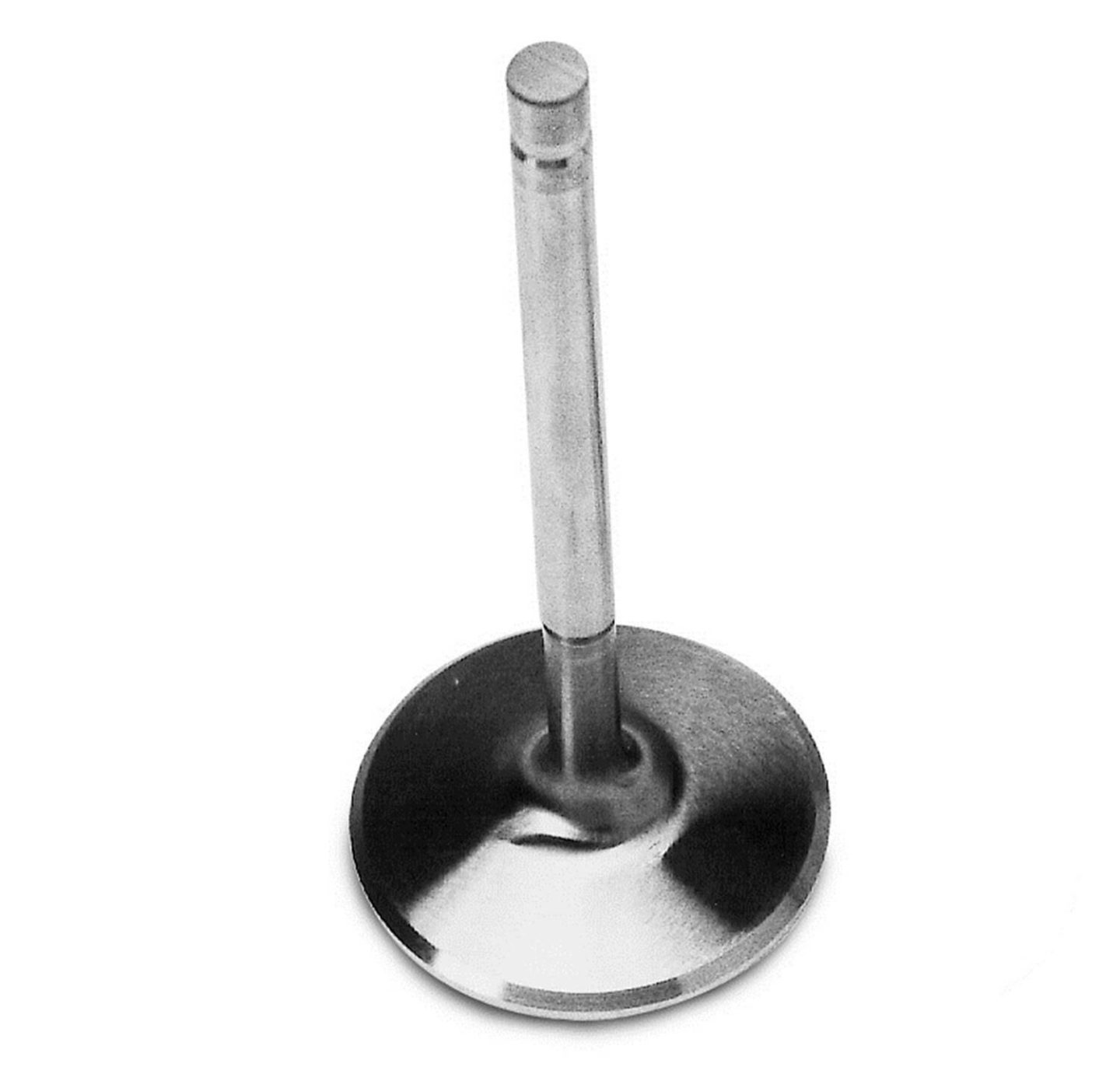

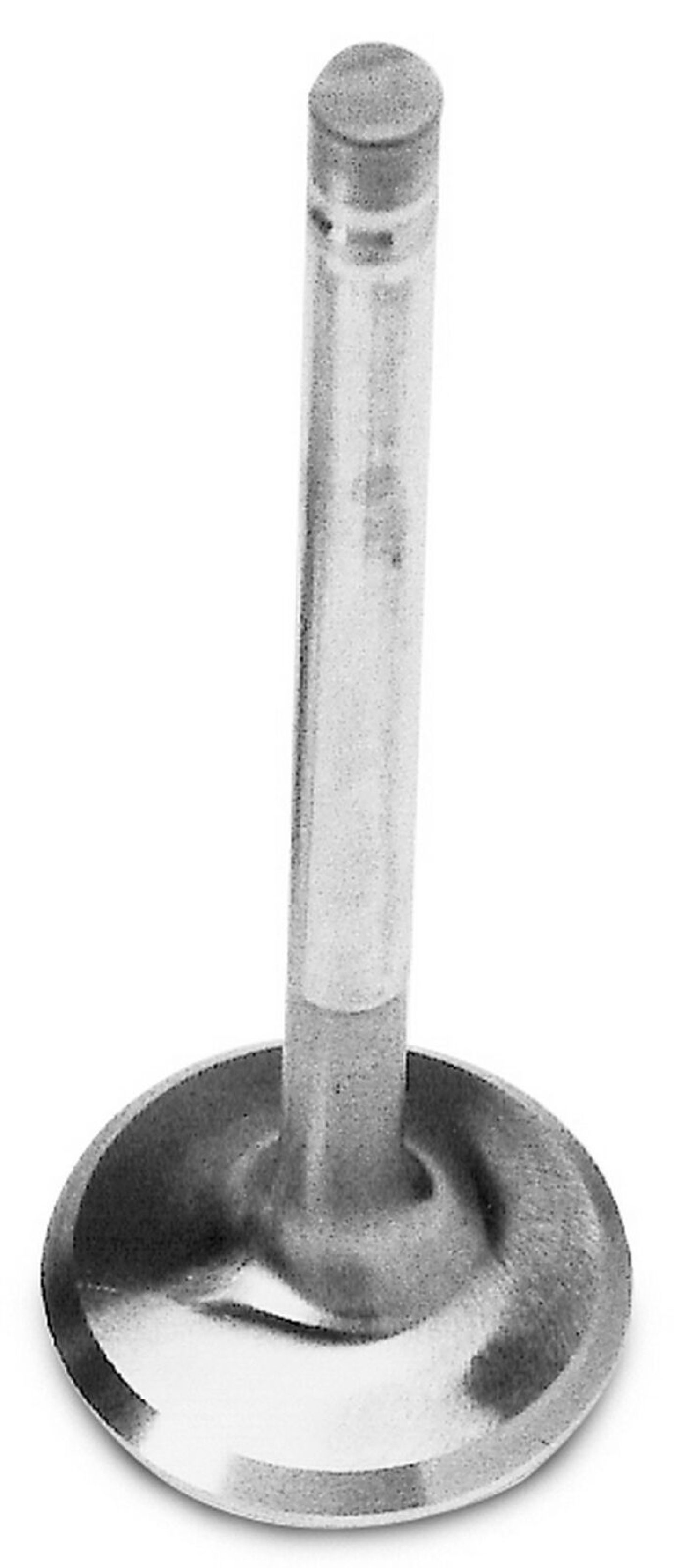

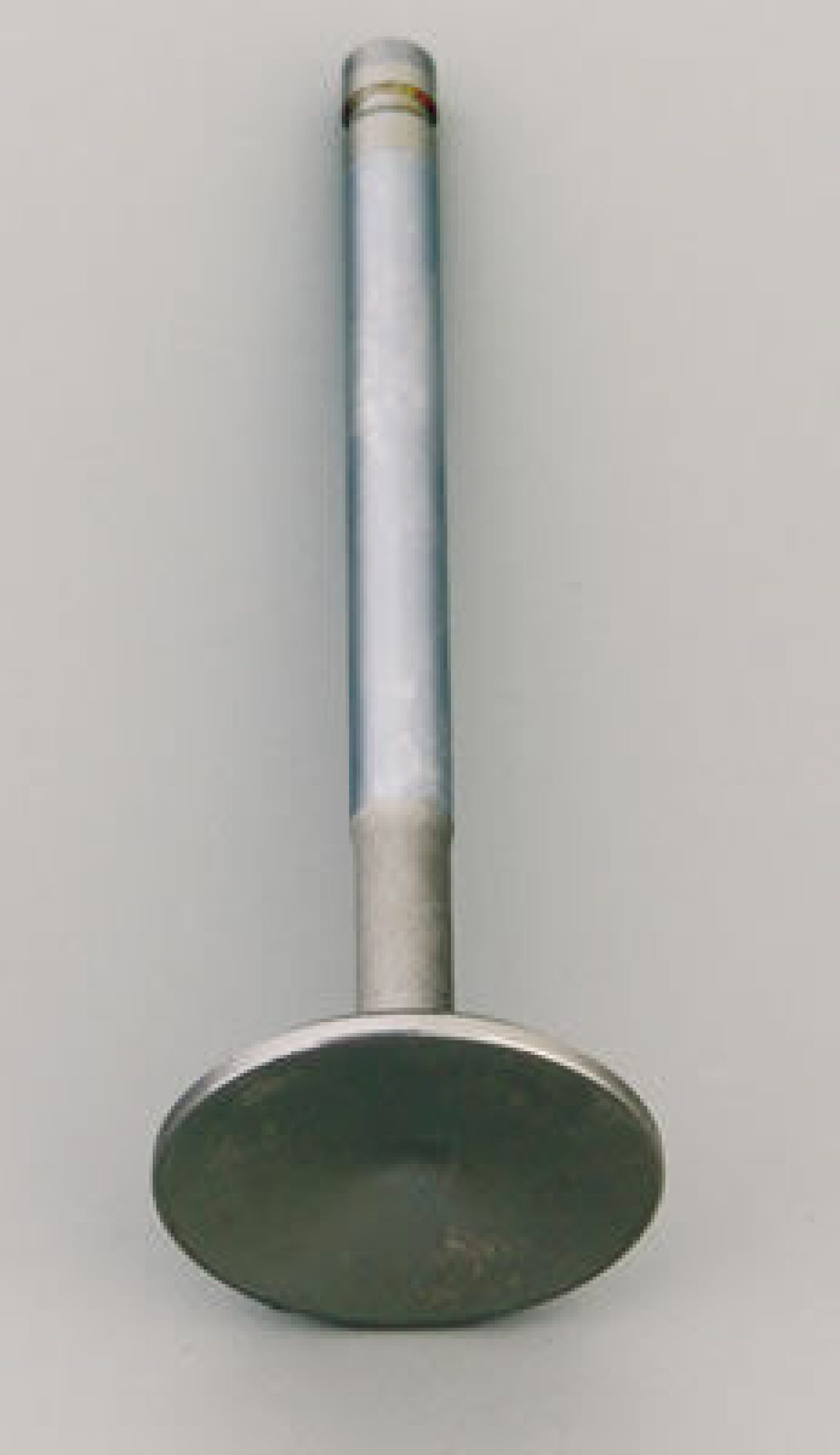

The Edelbrock #9761 Exhaust Valve are 1-piece, swirl-polished, hardened tip stainless steel valves with undercut stems for increased flow. Hard-chromed valve stems are 11/32" except where noted.
Additional Information
EXHAUST VALVE 1.60 (1 INDIVIDUAL)
Application Summary
AMC:-:343 (5.6L)-401 (6.6L);Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L);Ford:Small-Block:289 (4.7L)-351W (5.8L)
Part Type
Engine Exhaust Valve
Product Overview
Edelbrock #9766 Exhaust Valve is a 1.60" 1-piece, swirl-polished, hardened tip stainless steel valve with undercut stems for increased flow. Fits 60229, 60259, 60329, 60359, 60989, AMC, SB Chevy Cylinder Heads OAL: 4.930" Set of 1 Valve
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 00:20:30
Features
- Increased Flow
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Coated Finish: | Yes |
| Description: | Replacement Exhaust Valve |
| Grade Type: | Performance |
| Length: | 4.930 |
| Lock Groove Quantity: | 1 |
| Locks Included: | No |
| Material: | Stainless Steel |
| Oversized: | No |
| Part Number: | ede9761 |
| Quantity: | Sold Individually |
| Recommended Use: | Use With Part #60229, #60259, #60329, #60359, #60989, AMC, S/B Chevy |
| Seat Angle: | 45 |
| Stem Diameter: | 0.3410 |
| Valve Head Diameter: | 1.60 |
| Valve Material: | Stainless Steel |
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Edelbrock |
| StreetFX SKU | ede9761 |
| SFX Item ID | 4235995 |
| Accounting SKU | ede-9761 |
| Manufacturer SKU | 9761 |
| Manufacturer UPC | 85347097616 |
| Alternative References | 9761, EDB9761, EDL-9761 |
Valve, Exhaust, Stainless Steel, 1.600 in. Diameter, 0.341 in. Stem, 4.930 in. Length, Chevy, Small Block, for E-Tec Head, Each
Don't cut corners when it's time for valves. Get genuine Edelbrock stainless steel valves. They're made from a tough, stainless steel alloy and are carefully designed to increase gas flow for more power. What's more, they have hardened stem tips for durability and are swirl-polished.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 9761 |
| Part Type | Valves |
| Product Line | Edelbrock Stainless Steel Valves |
| UPC | 085347097616 |
| Valve Position | Exhaust |
| Exhaust Valve Head Diameter (in.) | 1.600 in. |
| Exhaust Valve Head Diameter (mm) | 40.640mm |
| Exhaust Valve Stem Diameter (in.) | 0.341 in. |
| Exhaust Valve Stem Diameter (mm) | 8.66mm |
| Exhaust Overall Valve Length (in.) | 4.930 in. |
| Exhaust Overall Valve Length (mm) | 125.222mm |
| Undercut Stem | Yes |
| Swirl-Polished | Yes |
| Valve Material | Stainless steel |
| Lock Groove Quantity | 1-groove |
| Lock Groove Style | Conventional |
| Valve Head Style | Flat |
| Quantity | Sold individually. |
| Manufacturer Attributes | |
|---|---|
| Length | 4.930 |
| Seat Angle | 45 |
| Coated Finish | Yes |
| Lock Groove Quantity | 1 |
| Stem Diameter | 0.3410 |
| Oversized | No |
| Material | Stainless Steel |
| Locks Included | No |
| Valve Material | Stainless Steel |
| Grade Type | Performance |
| Quantity | Sold Individually |
| Valve Head Diameter | 1.60 |
| Recommended Use | Use With Part #60229, #60259, #60329, #60359, #60989, AMC, S/B Chevy |
| Product Class | Engine Exhaust Valve |
| Construction/Type | Edelbrock #9766 Exhaust Valve is a 1.60" 1-piece, swirl-polished, hardened tip stainless steel valve with undercut stems for increased flow. Fits 60229, 60259, 60329, 60359, 60989, AMC, SB Chevy Cylinder Heads OAL: 4.930" Set of 1 Valve |
| Vehicle Designations | AMC:-:343 (5.6L)-401 (6.6L) Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Vehicle Brief | Edelbrock Exhaust Valve |
| Market Description | The Edelbrock #9761 Exhaust Valve are 1-piece, swirl-polished, hardened tip stainless steel valves with undercut stems for increased flow. Hard-chromed valve stems are 11/32" except where noted. |
