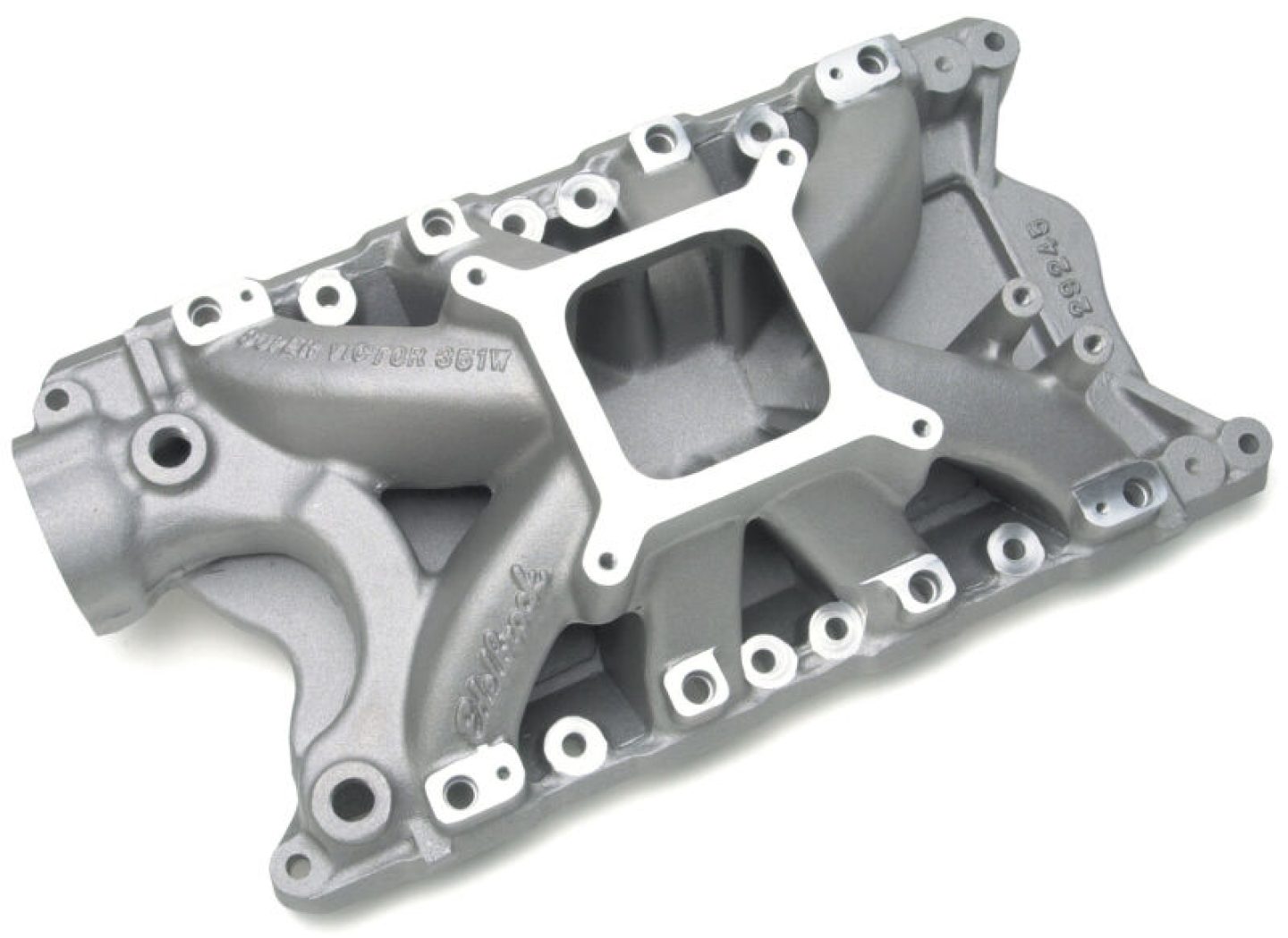

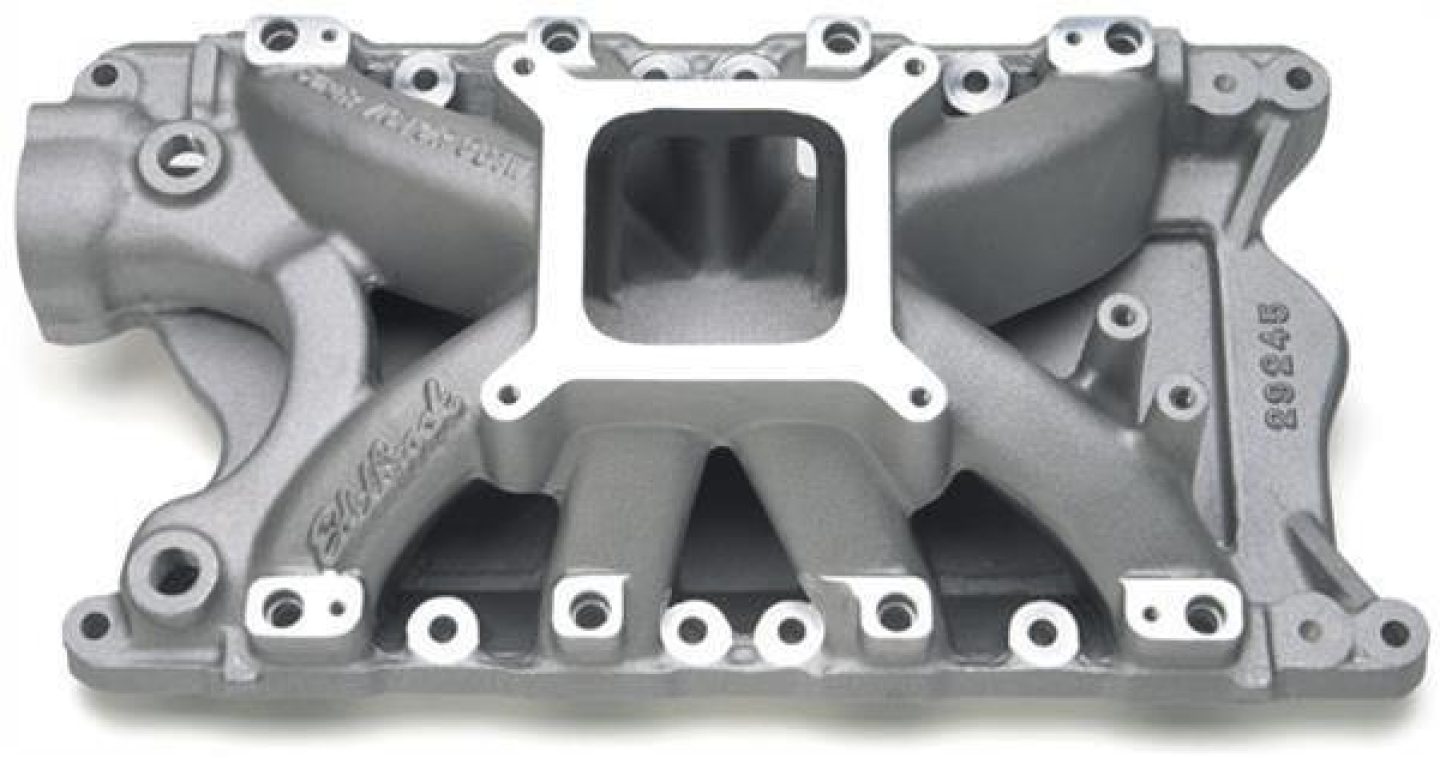

Intake Manifold - Super Victor 351W - Competition EFI Flange - Single Plane - Aluminum - Natural - Small Block Ford - Each

MANIFOLD-RACE

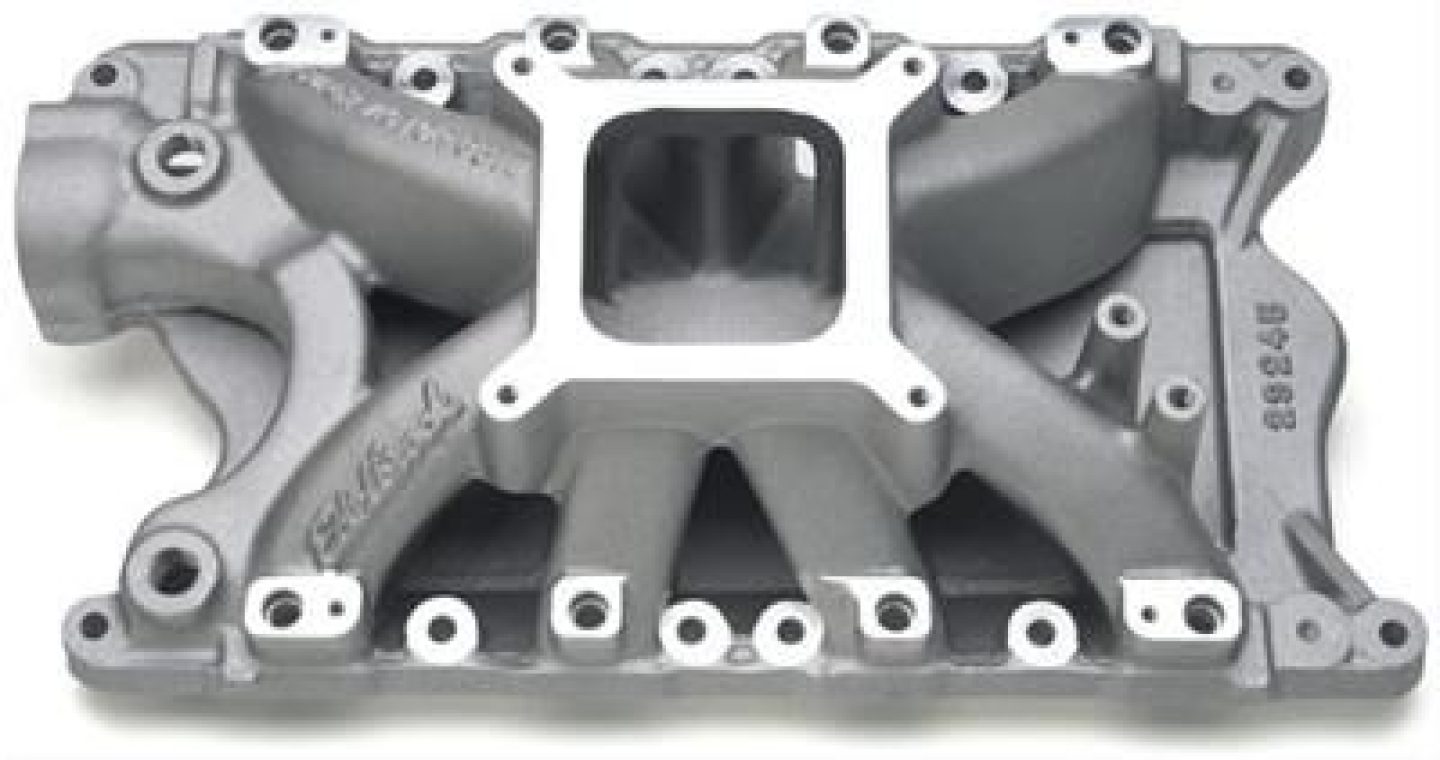

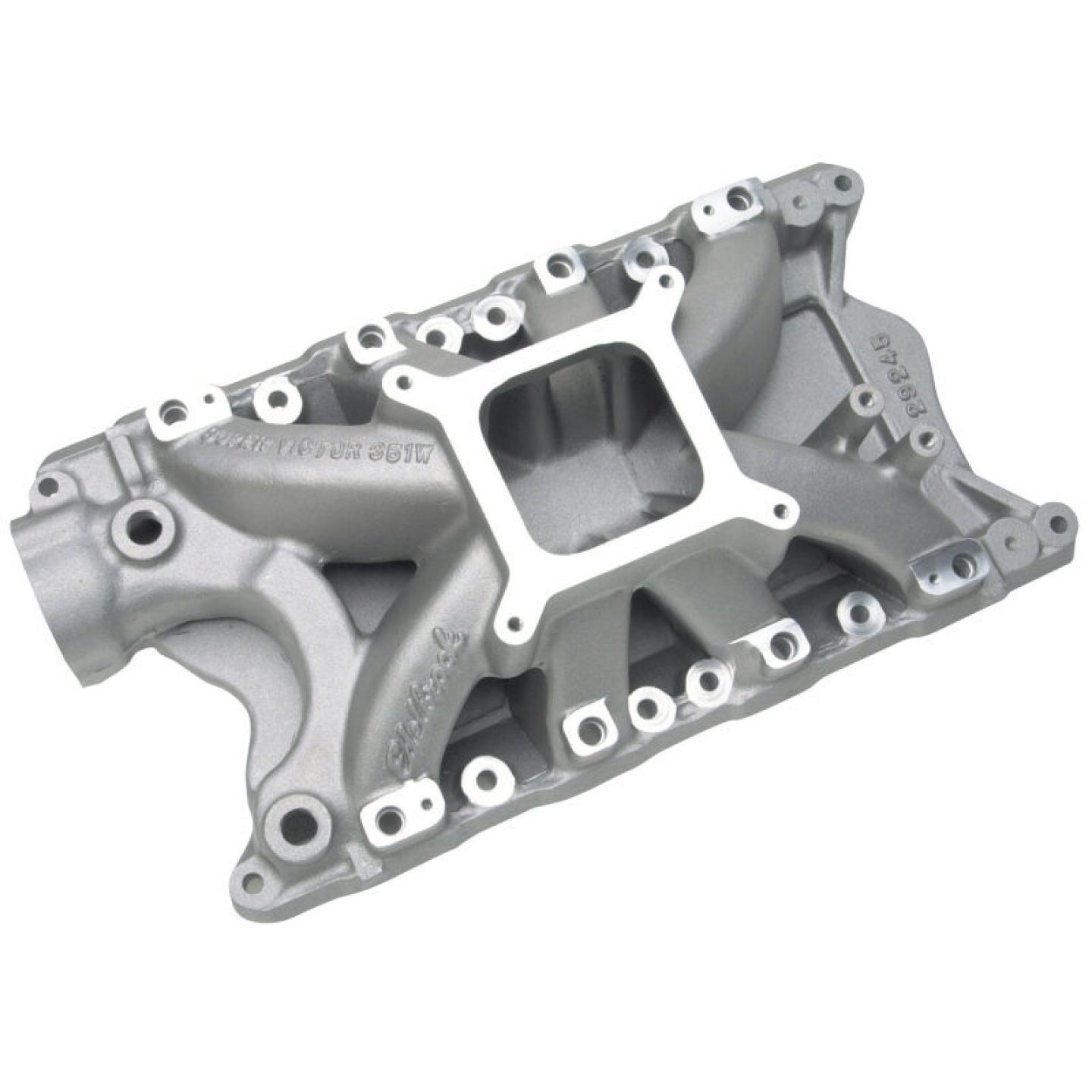

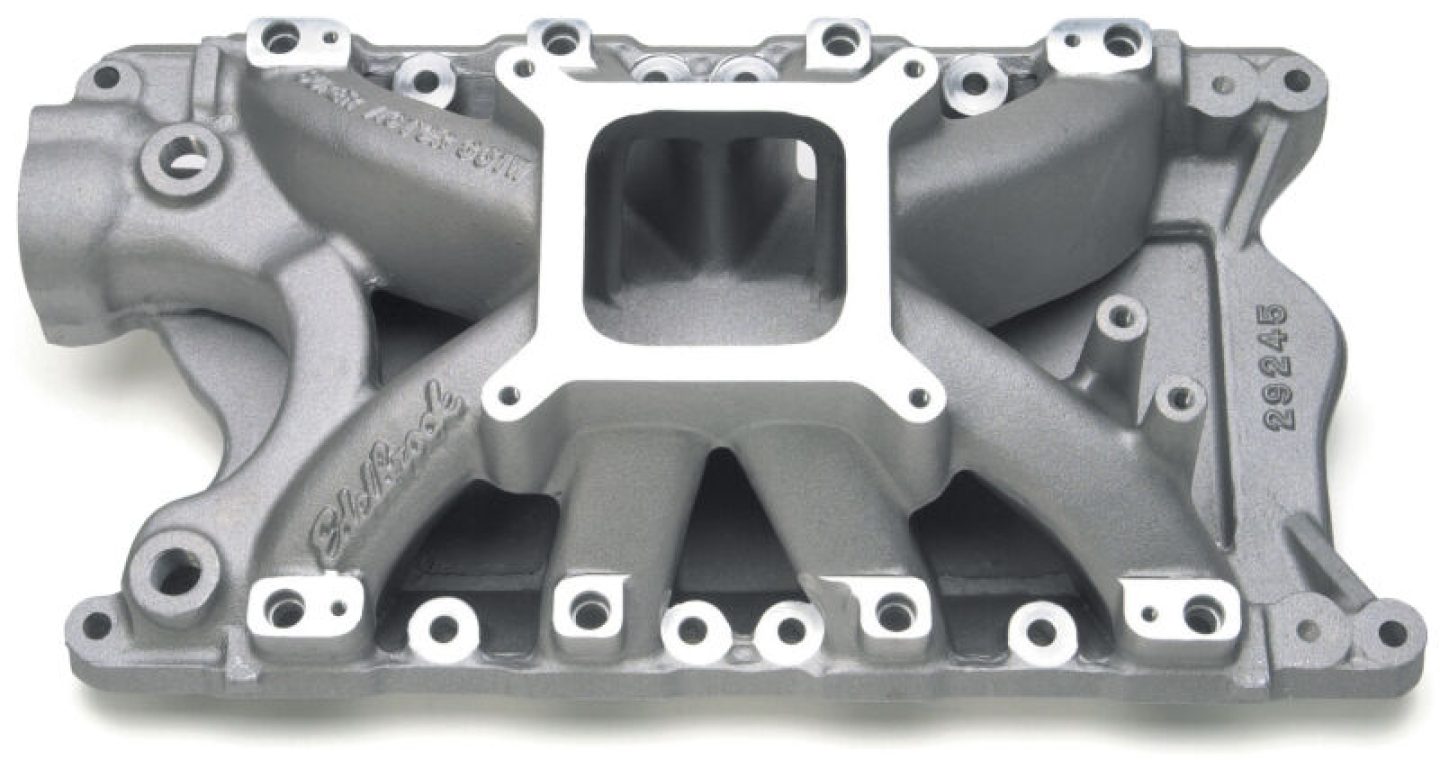

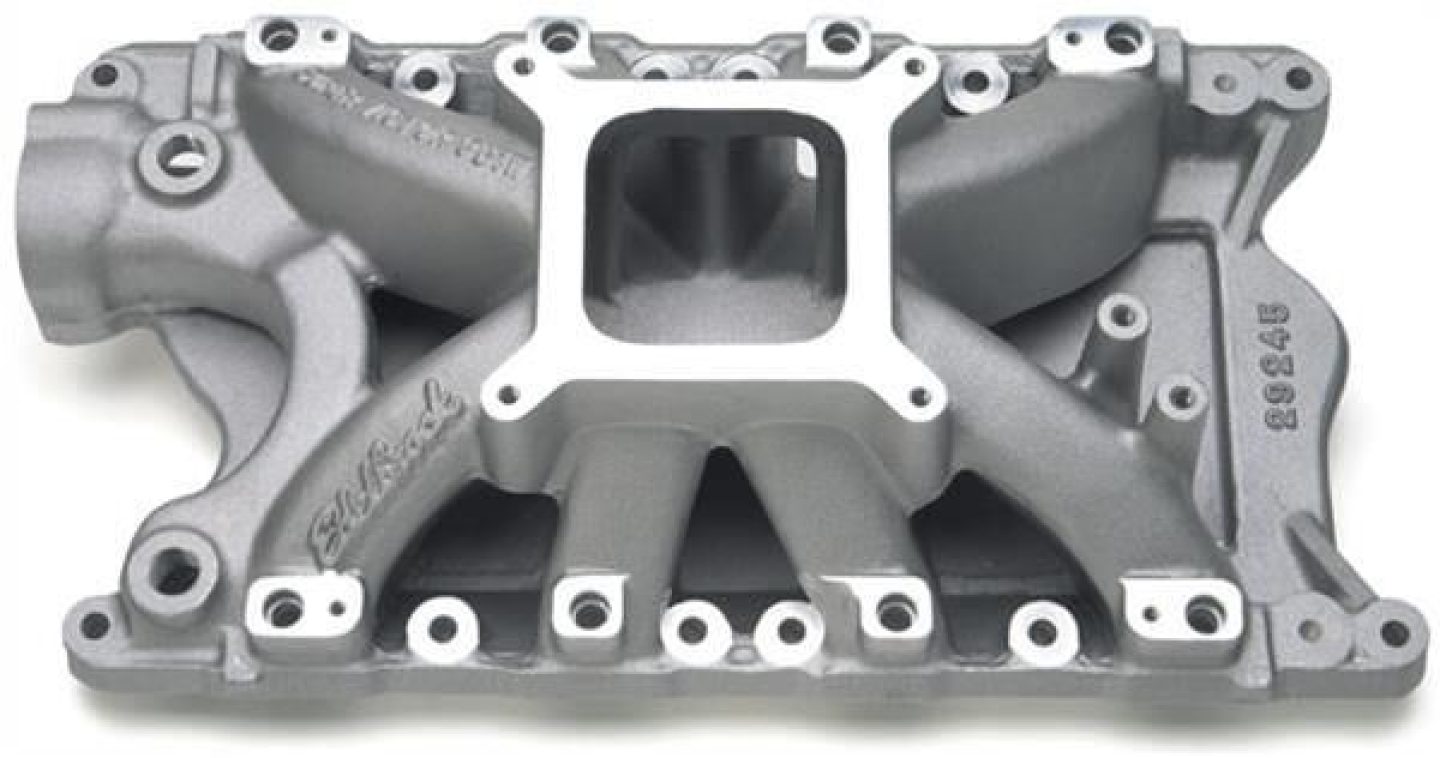

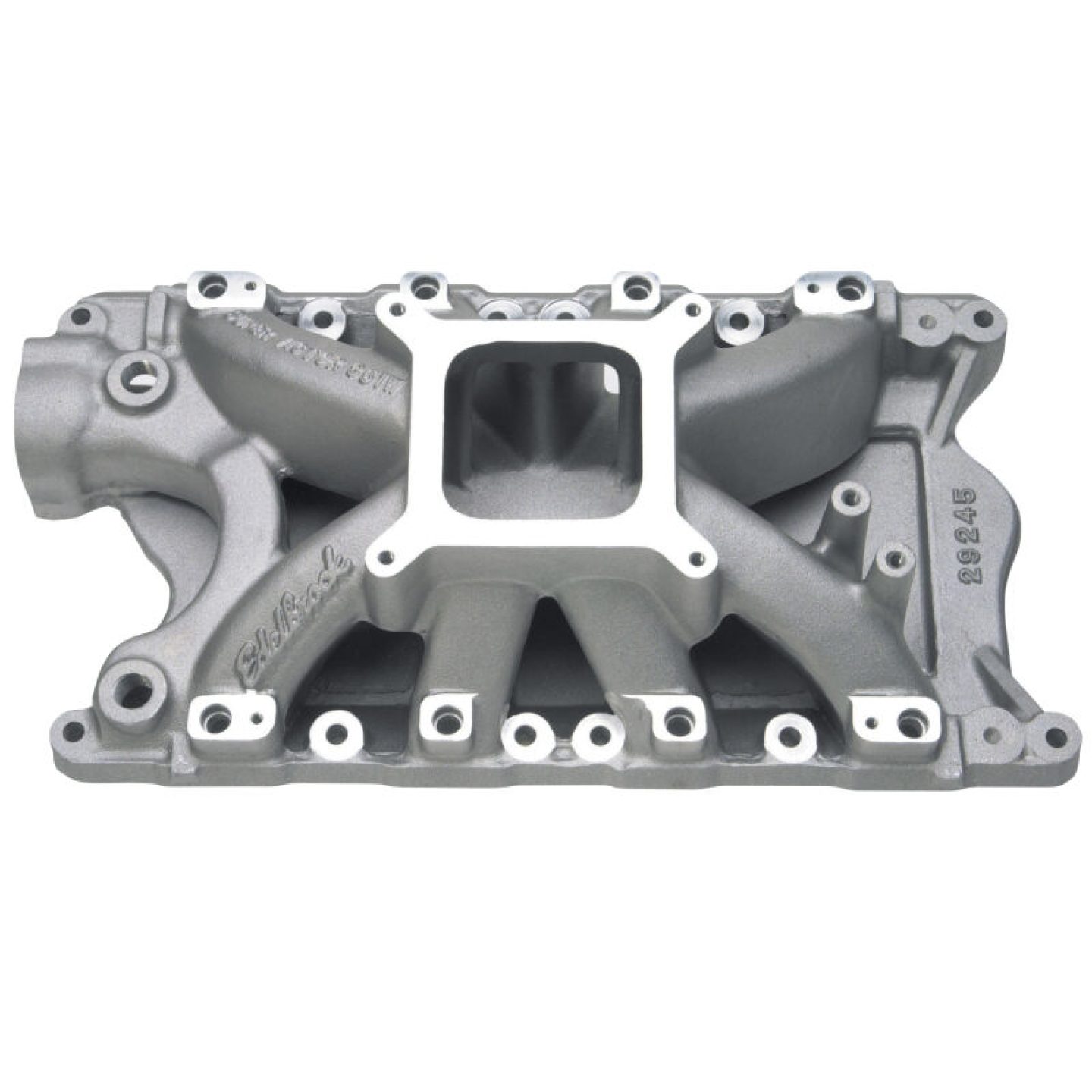

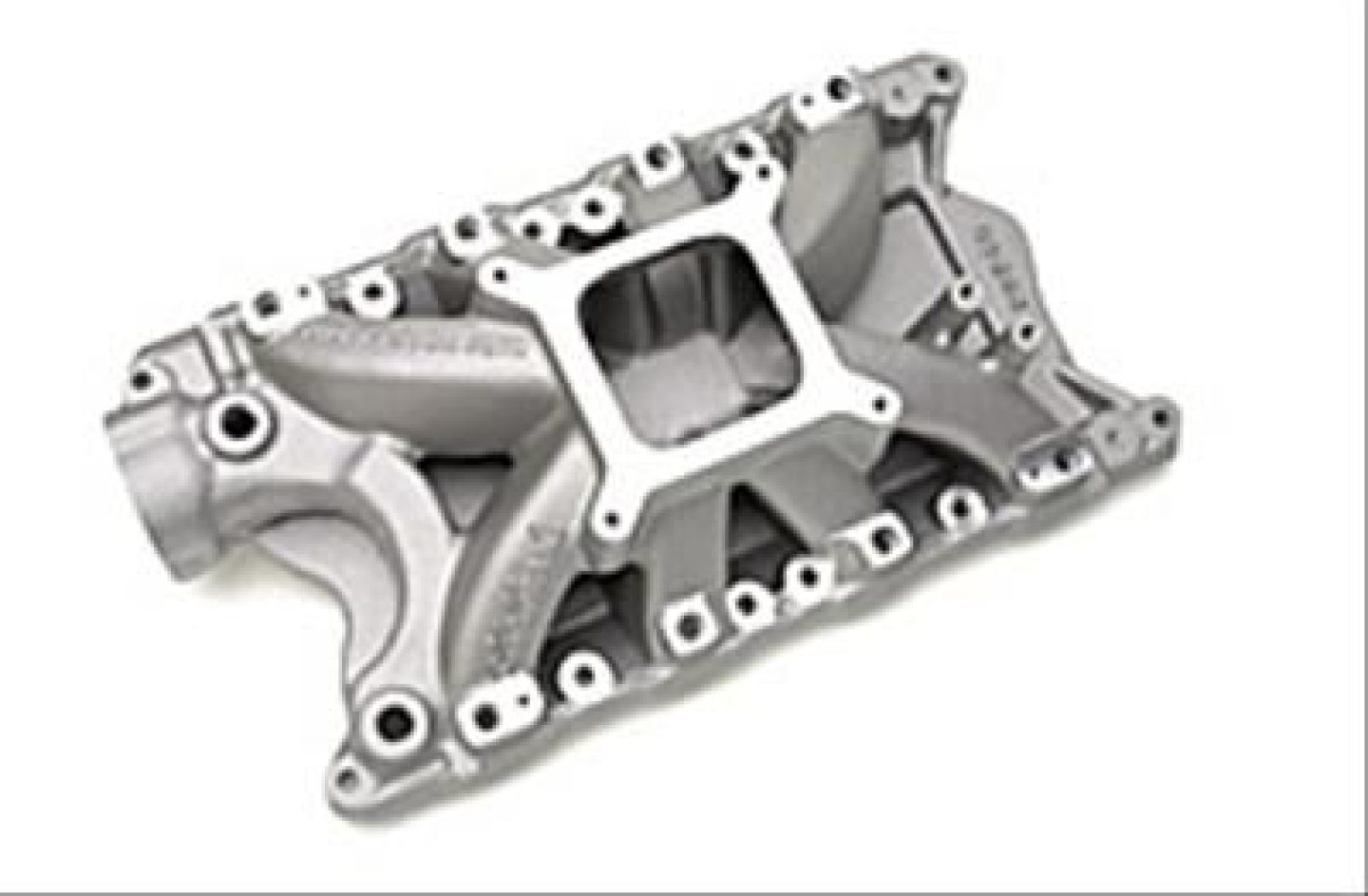

Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.

Additional Information

MANIFOLD; 1969-97 FORD 351W; VICTOR JR; EFI

Application Summary

Ford:Small-Block Windsor:351 (5.8L)

Part Type

Engine Intake Manifold

• Features Precision Machined Injector Bosses

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Vehicle Compatibility and Return Conditions.

This item was designed and engineered in the USA for US domestic vehicles. OBD tools, ECUs, dongles, programmers, and tuners may have limited compatibility with vehicles outside the USA due to regional differences in emission standards and system configurations. Some features and functionality may vary depending on the vehicle and location.

Some electronic tuning devices and programmers require activation, registration, or pairing with a specific vehicle’s VIN (Vehicle Identification Number). Once activated or paired, these devices may become permanently associated with that vehicle, restricting or preventing their use on another vehicle, resticting our ability to offer returns or exchanges.

Please review the product details and images to ensure it meets your needs. For clarification or assistance, feel free to contact a StreetFX agent. Note: Returns are not accepted for special order or tuning products unless the unit is deemed faulty.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Intake Manifold, Super Victor EFI, Aluminum, Multi-Port, Fits 9.5 in. Deck Height Only, Ford, 351W, Each

These Edelbrock Super Victor EFI intake manifolds make it simple to convert competition engines to electronic fuel injection. They have injector bosses precisely positioned and machined for excellent fuel spray patterns and maximum power. These manifolds require a universal 4-barrel throttle body, fuel rail set, fuel injectors, fuel pump, and regulator, which are each sold separately.
