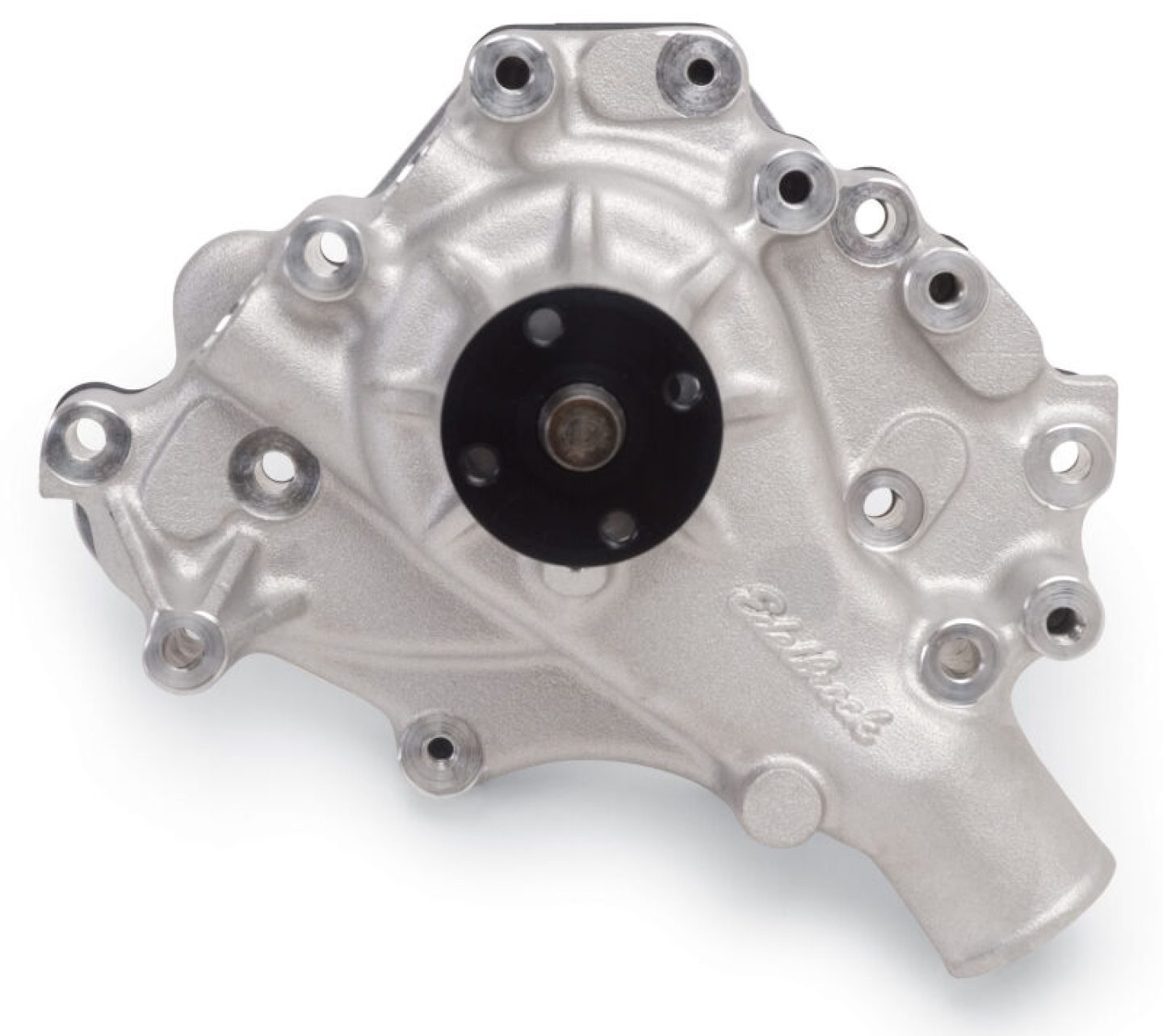

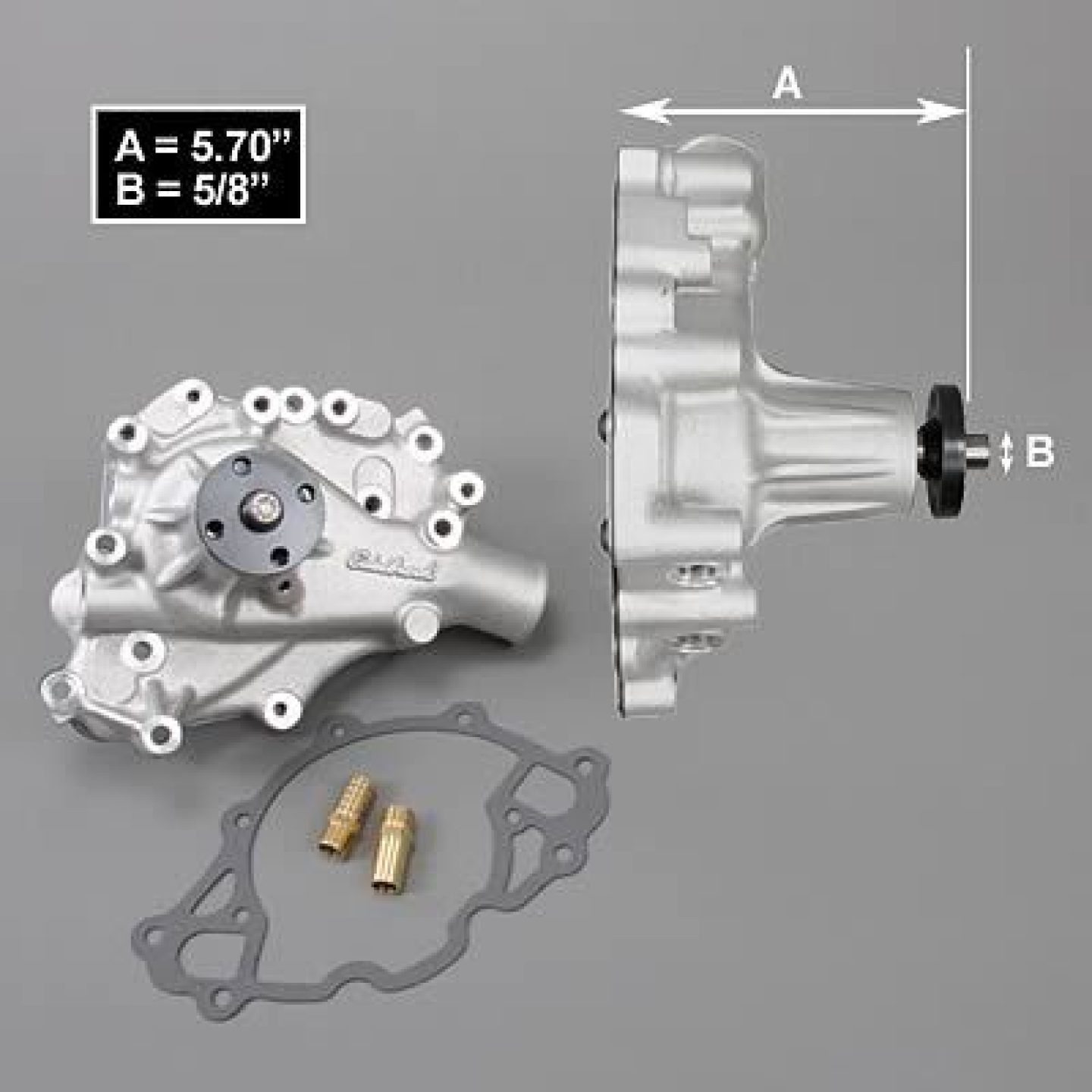

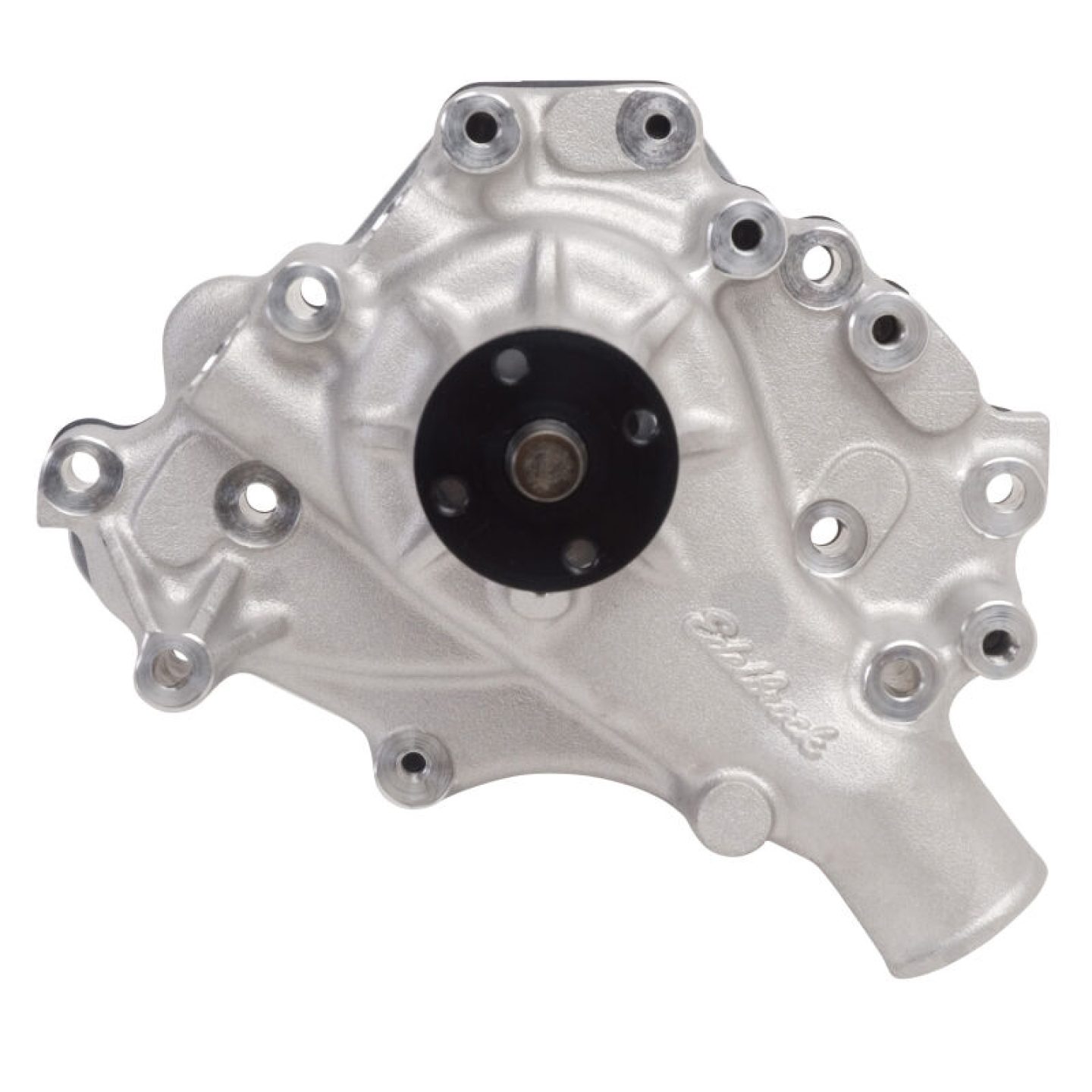

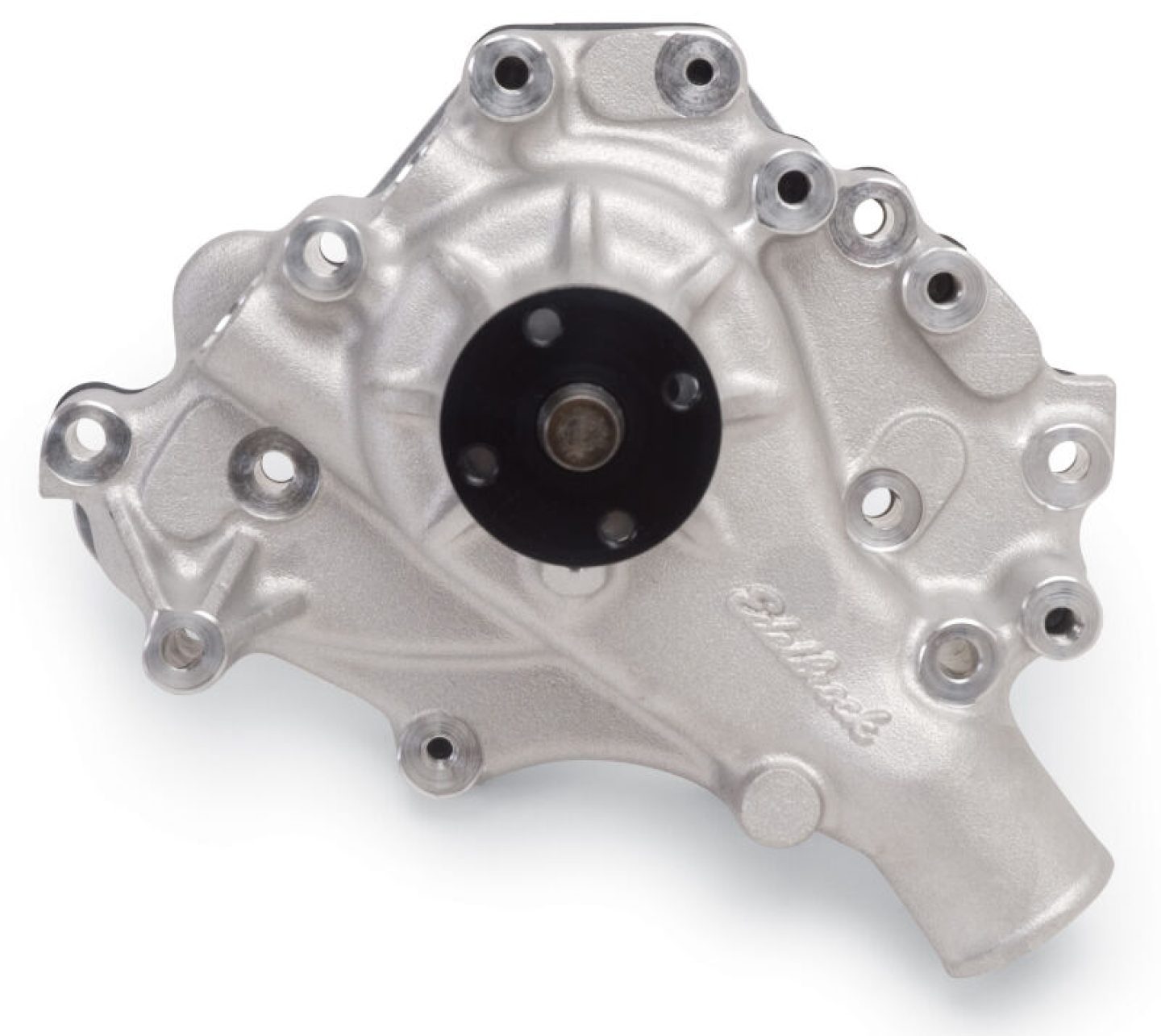

Water Pump - Mechanical - Victor Series - 5/8 in Pilot - Aluminum - Natural - Small Block Ford - Each

WATER PUMPS

Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w v8 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

Additional Information

WATER PUMP 1970-78 302/1970-87 351W V8 ENGINES

Application Summary

Ford:Small-Block:302 (5.0L)/351W (5.8L)

Part Type

Engine Water Pump

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Equal coolant distribution to both sides of the block within 1% for better cooling efficiency
• Heavy-duty seal used for leak-proof operation and long life
• Heavy-duty, 0.75" internal ball/roller bearing used to withstand higher torsional loads at high rpm
• Only Flows In One Direction For Optimum Efficiency

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Water Pump, Victor Series, Mechanical, High-Volume, Aluminum, Natural, Clockwise, Ford, 302, 351W, Each

Get maximum cooling for the street or track. Edelbrock Victor Series high-volume water pumps are designed for maximum flow and equal coolant distribution in street cars, race cars, tow vehicles, and motor homes. The aluminum pumps have CNC-machined housings with special one-way internal passages that flow more coolant at higher velocities, even at low engine speeds. The CNC-machined impellers are larger than other impellers and have curved vanes that produce greater flow with less cavitation. Other features include heavy-duty roller bearing assemblies built to withstand higher torsional loads, billet steel hubs, leakproof seals, and gaskets. Most Victor Series pumps are available in your choice of satin, black, and polished finishes, or EnduraShine.
