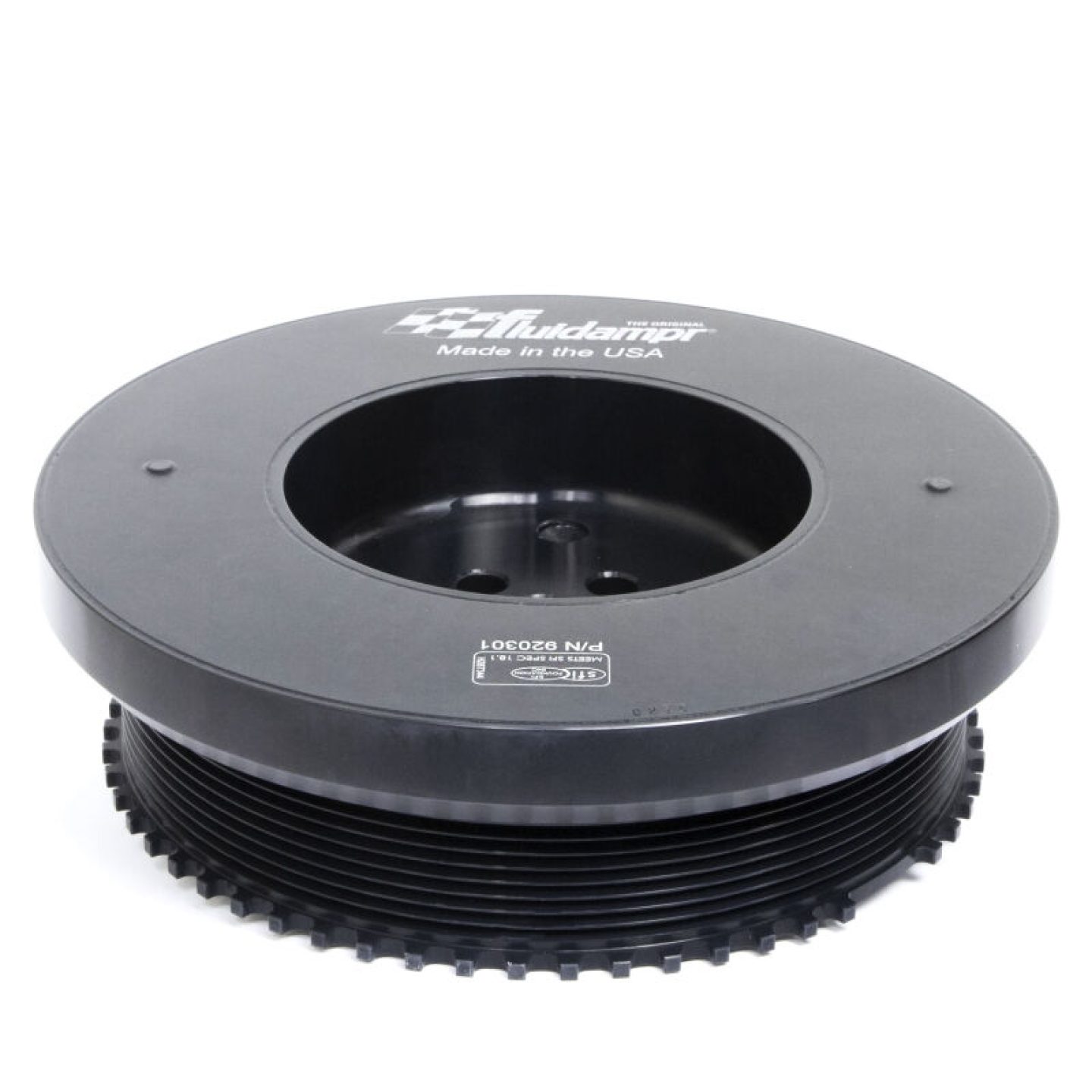

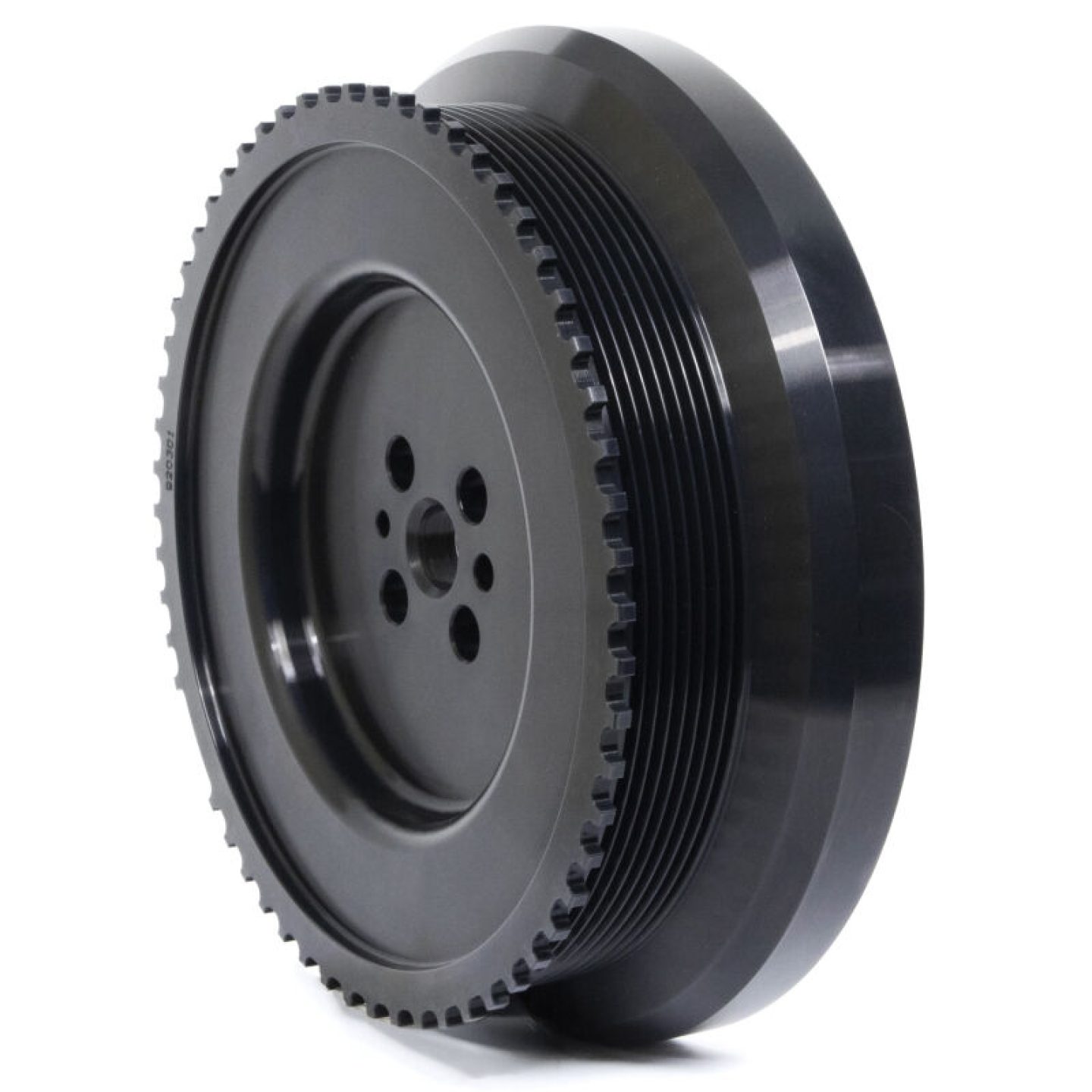

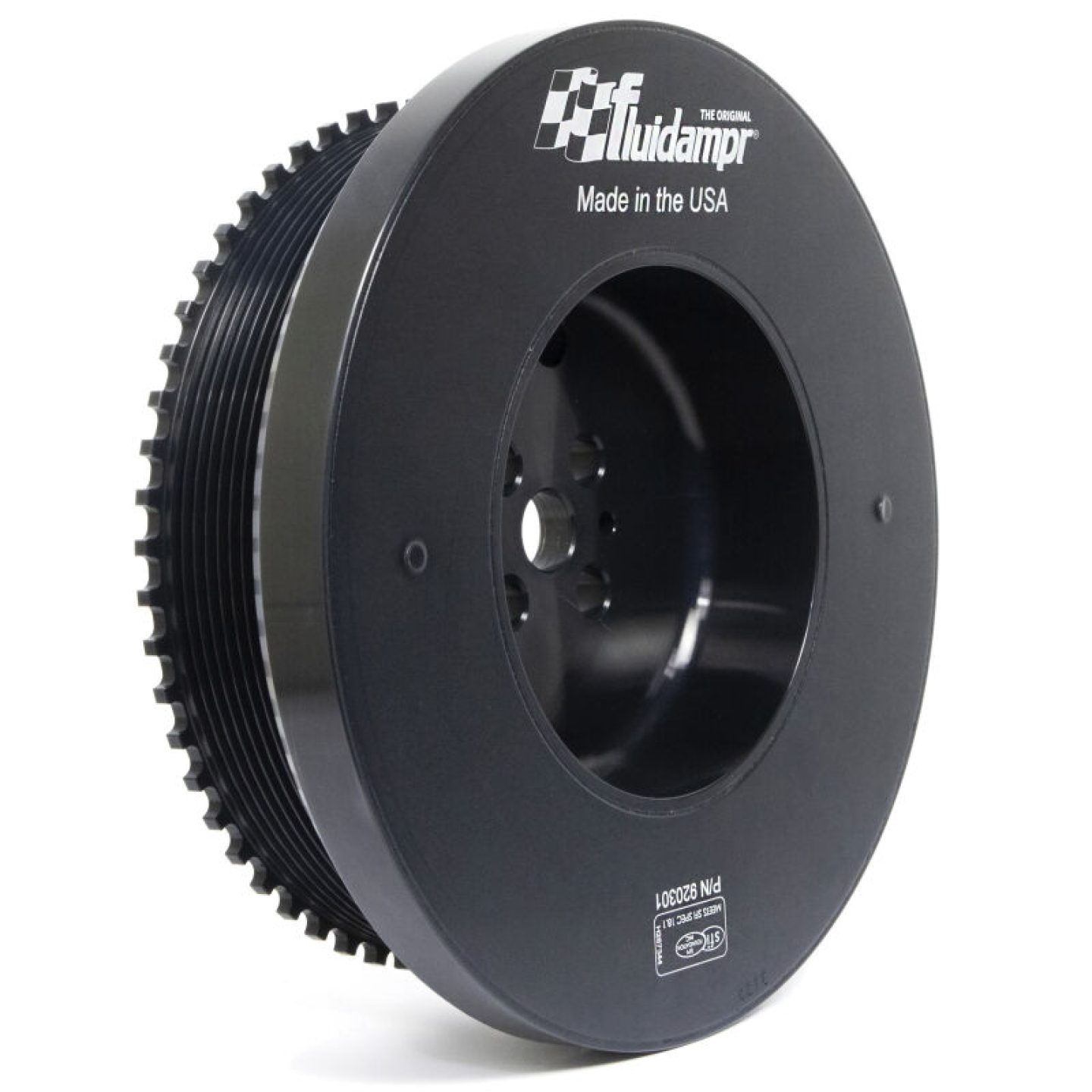

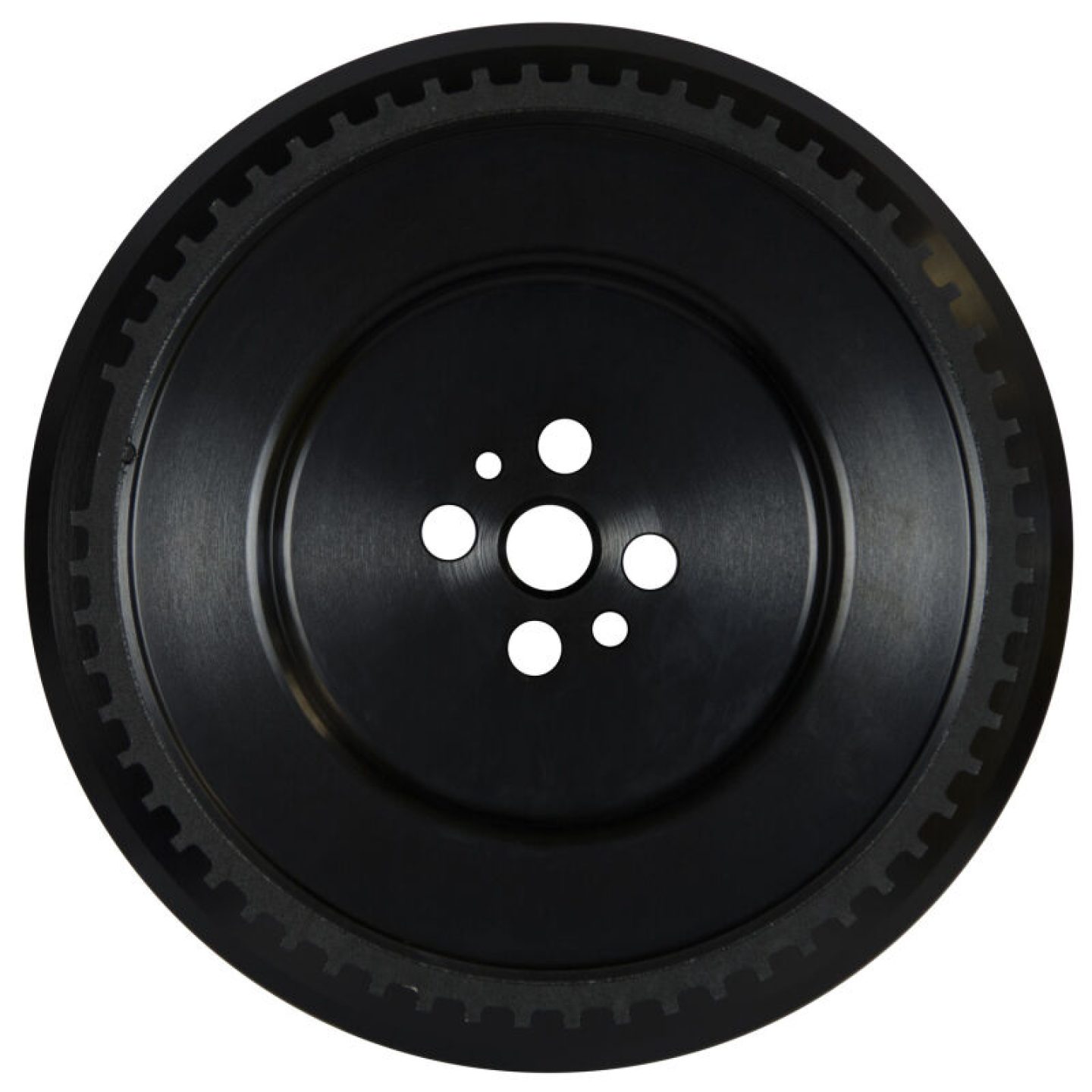

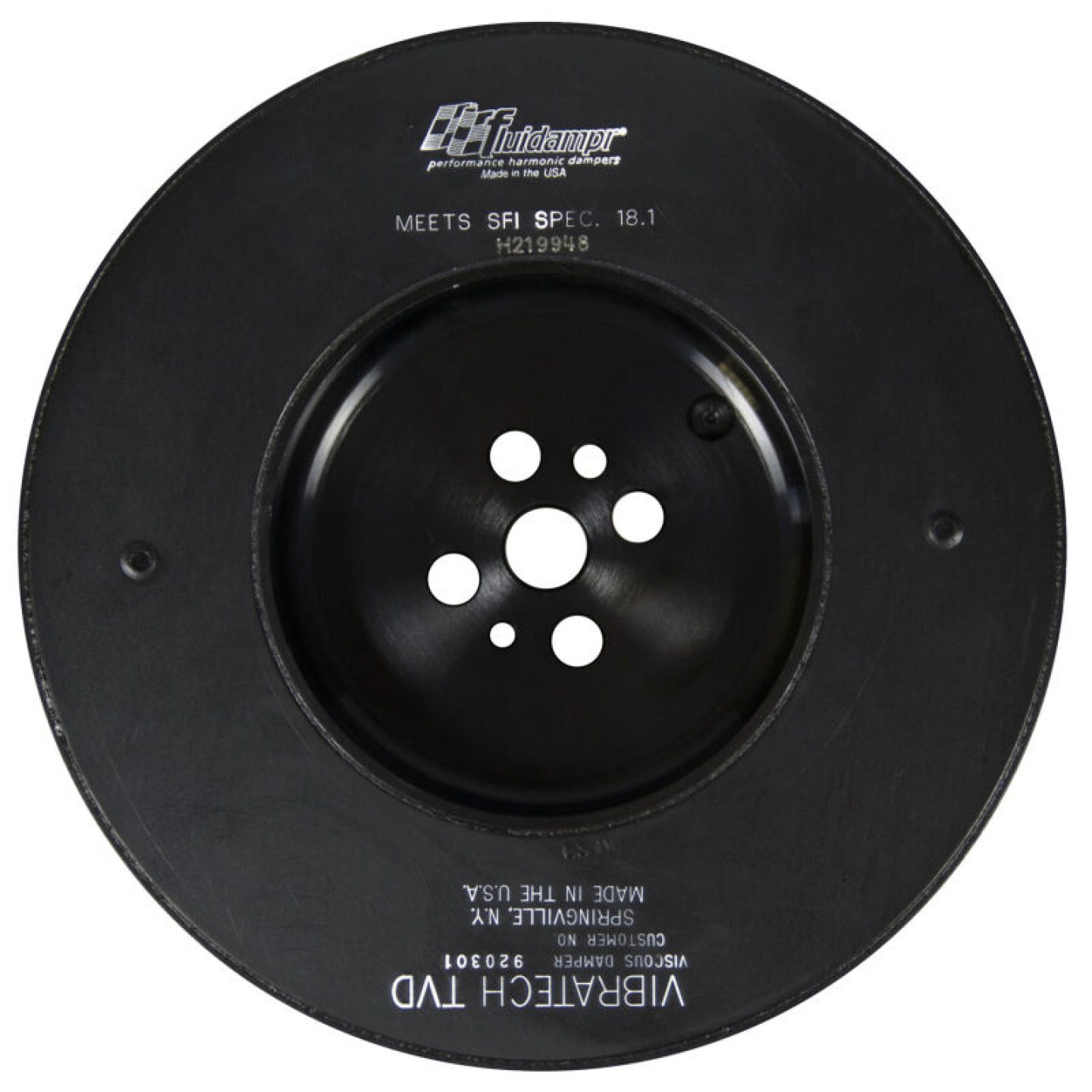

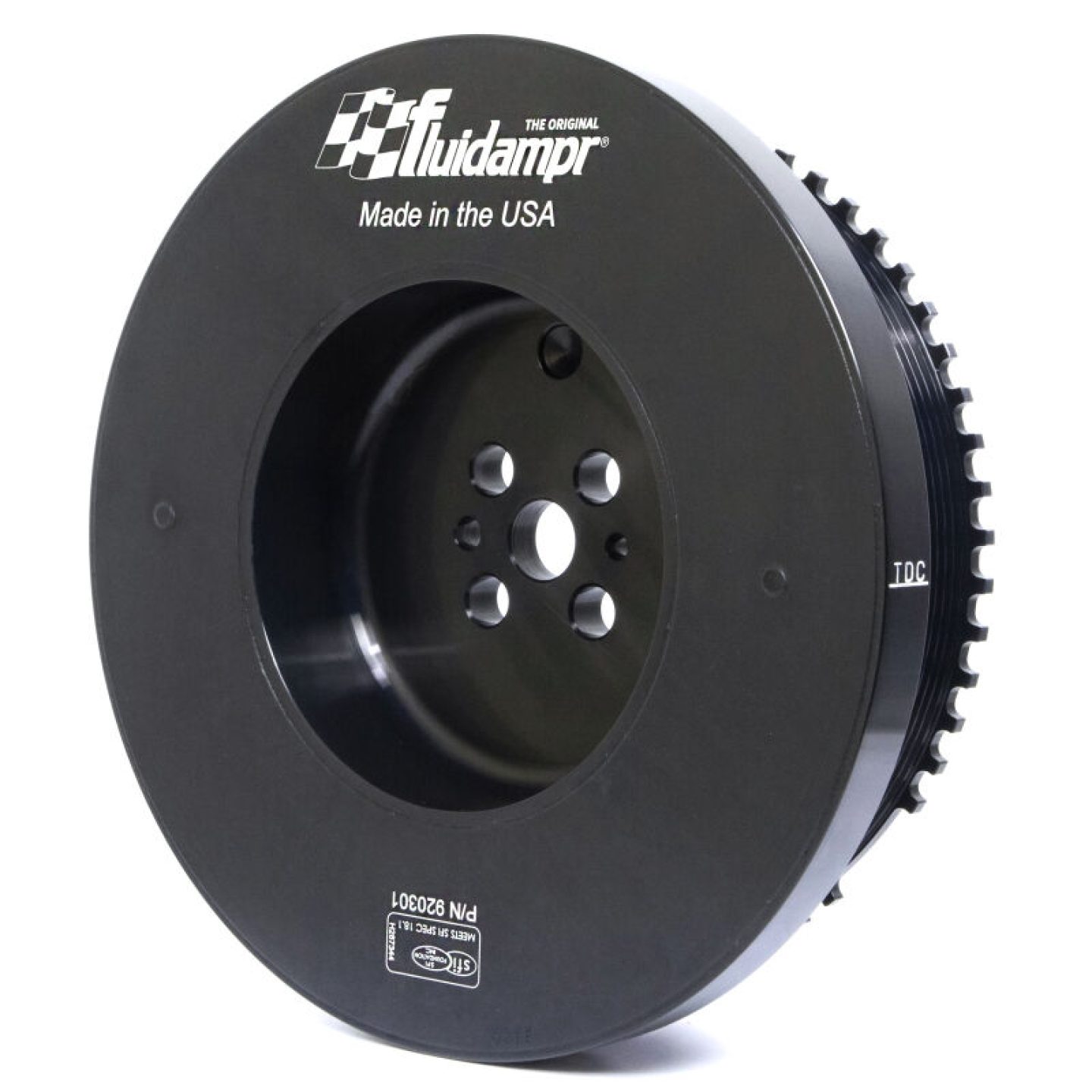

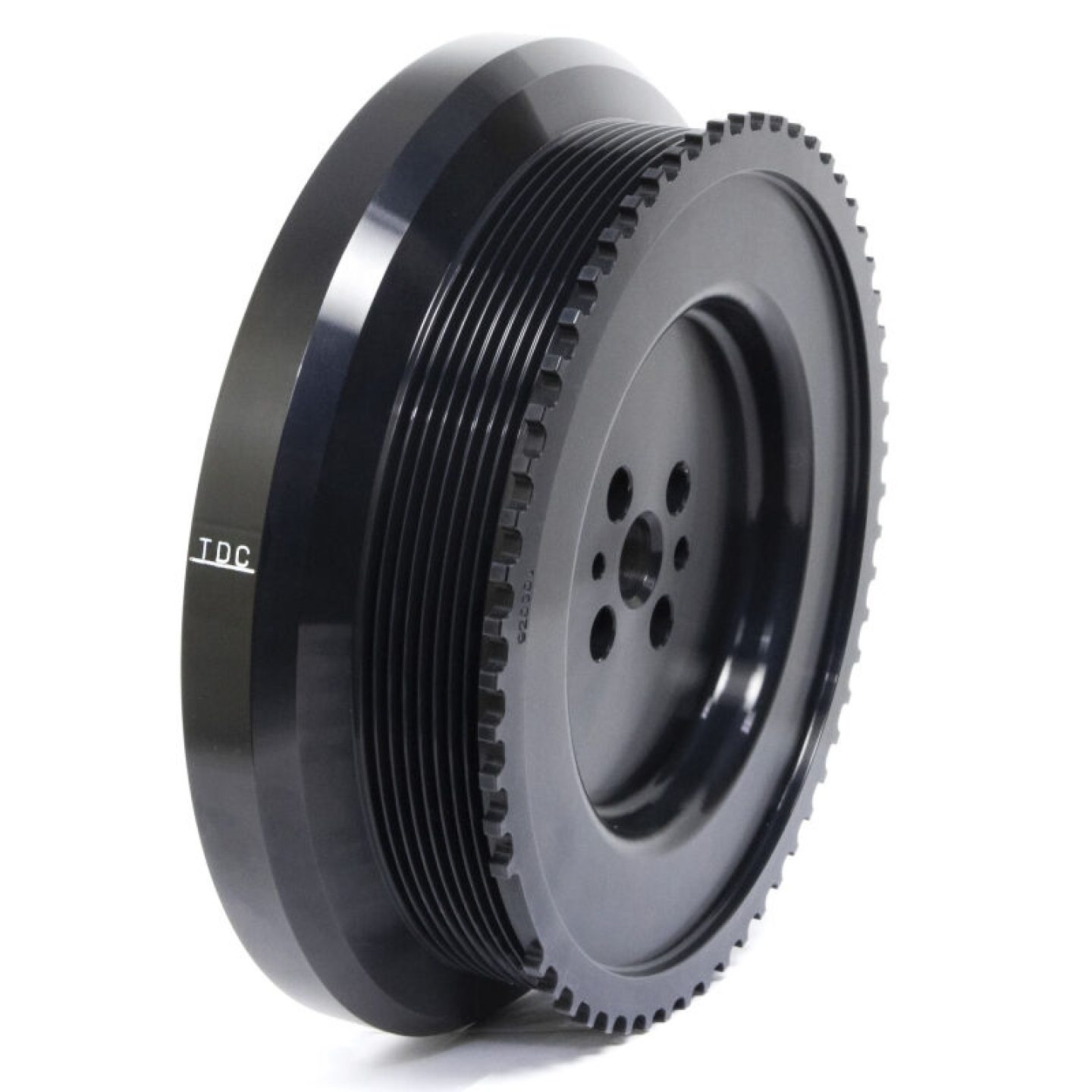

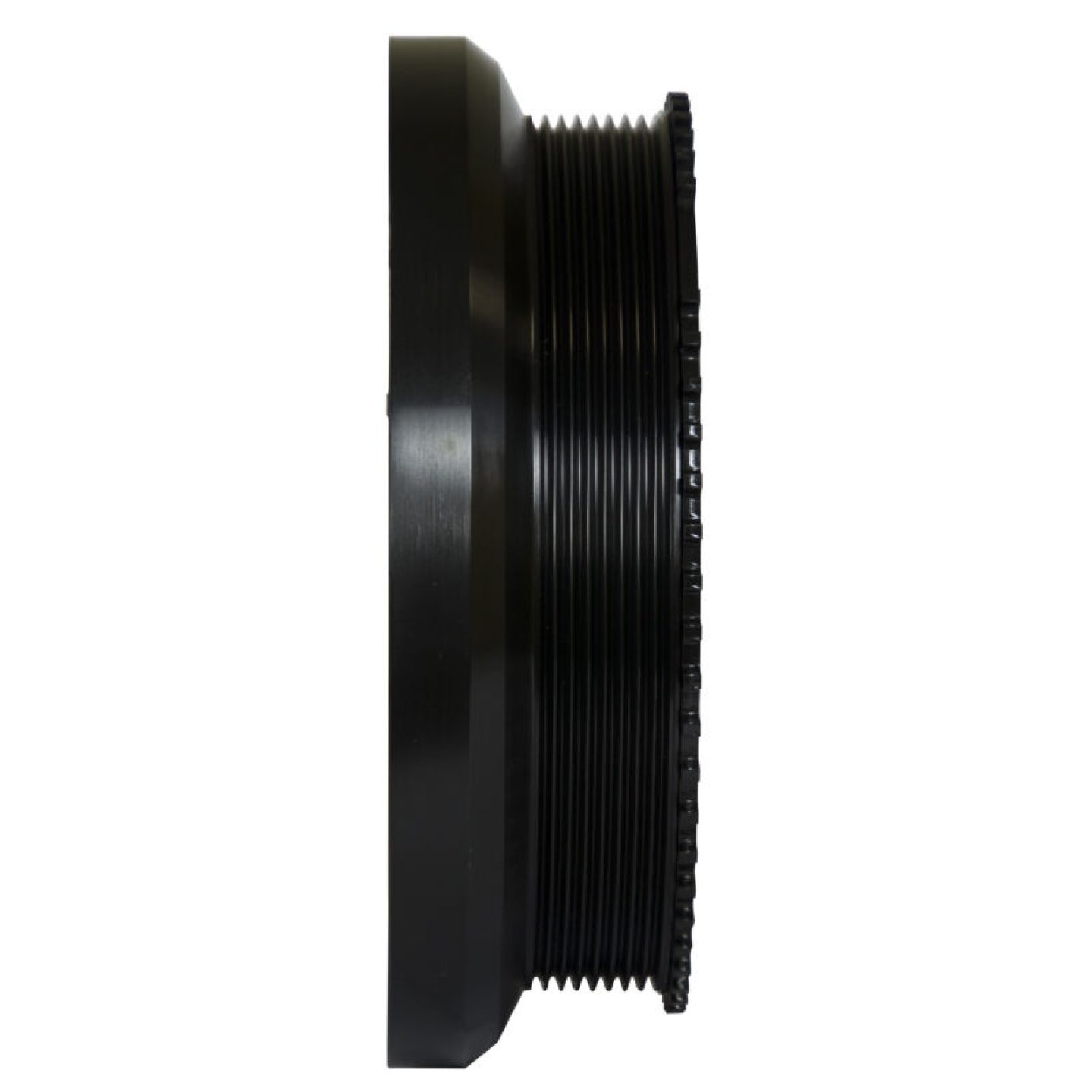

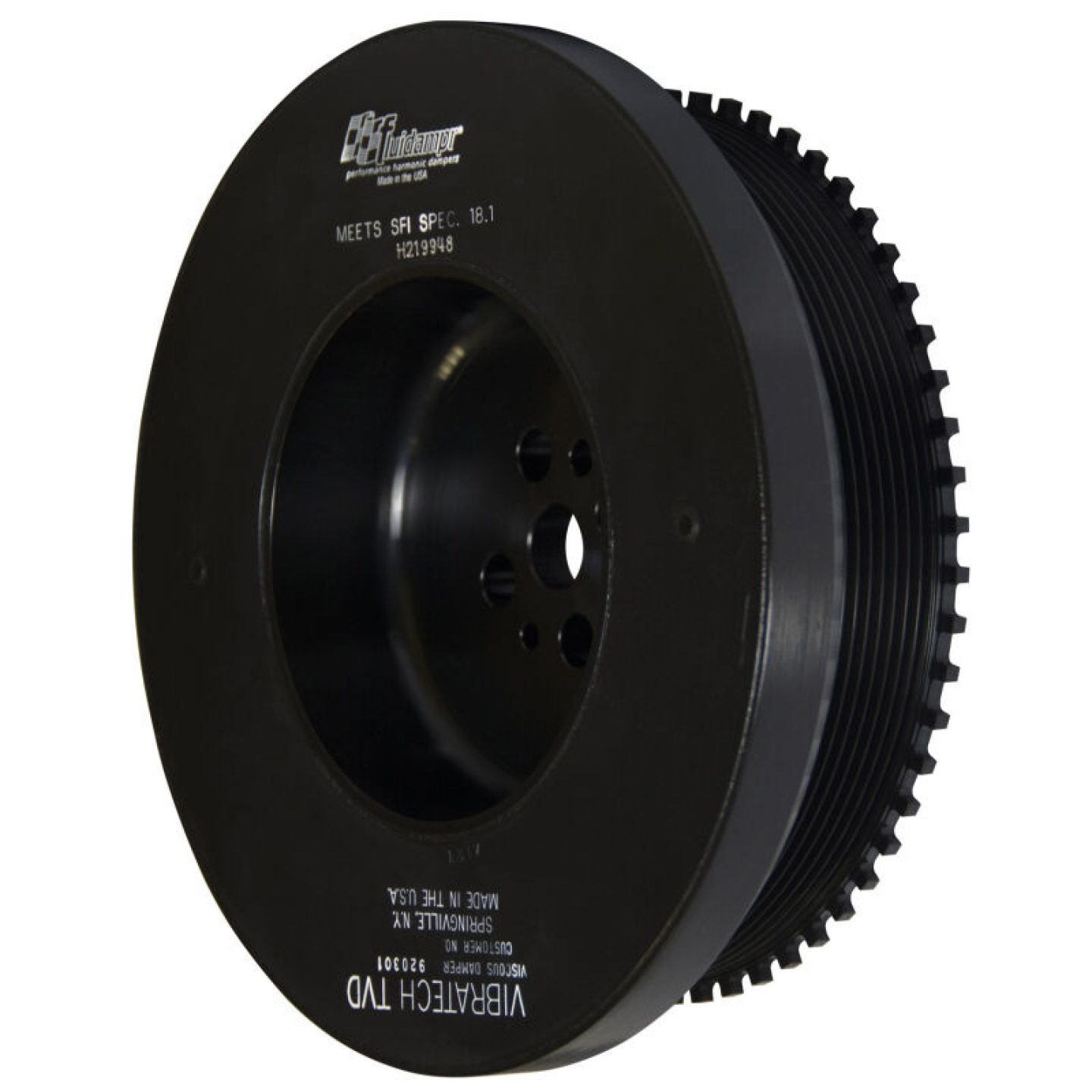

Harmonic Balancer - 9.250 in OD - Steel - Black Zinc - Internal Balance - Dodge Cummins - Each

Harmonic Balancer

Serious power requires a serious damper. Protect your truck?s engine with the technology preferred by heavy duty diesel OEMs. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA.

Additional Information

Harmonic Balancer - Fluidampr - Dodge - 2003-2009 - 5.9L Cummins - Steel - Black Zinc Chromate - 9-1/4" dia - 23.3 lbs - SFI 18.1 - Made in USA - Each

Part Type

Engine Harmonic Balancer

Product Overview

Fluidampr Engine Dampers are designed to control destructive vibrations which are transfered thru the crankshaft.

Each time the air/fuel mixture inside a cylinder is ignited, the combustion that occurs creates a torque spike that is applied to the crankshaft through the piston and rod. This torque spike is so severe that it not only turns the crankshaft, it actually twists the crankshaft ahead of its normal rotation and then the crankshaft rebounds. This twisting action is known as torsional vibration. When these torque spikes and forces get into phase with the natural frequency, critical torsional harmonic vibrations occur and can be seriously destructive to the bearings and the crankshaft. Dampers are designed to control those destructive vibrations.

Critical harmonic vibrations occur numerous times in a engine's operating range. Stock rubber and elastomer-type dampers are frequency sensitive “tuned absorbers”, and work at only one critical frequency. In the case of a stock rubber damper, it is tuned for a factory engine's critical harmonic vibrations. If you change the mass of pistons, rods, or the crankshaft, you change the natural frequency of the crankshaft assembly; therefore, the stock damper is no longer tuned to the new frequency of vibration, and you may be headed for early failure of expensive engine components. Dampers also create heat while they work, and rubber is a poor dissipator of heat. This heat and the exposure to the elements deteriorates rubber, causing it to crack and change durometer, which then leads to inertia ring slippage, damper failure, uncontrolled torsional vibration, and costly engine parts breakage.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Broad RPM range protection.
• Made in USA.
• No maintenance required.
• Reduce risk of crankshaft failure.
• Reduce wear on critical engine parts.
• SFI 18.1 spec. Race proven for over 35 years.
• Superior durability.
• Unleash lost torque & horsepower.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Harmonic Balancer, Internal Balance, Steel, Black, Dodge, Cummins Diesel, Each

Using only three parts (a laser-welded sealed housing, an internal inertia ring, and highly viscous silicone fluid between the two), SFI-approved Fluidampr harmonic dampers can control all crankshaft vibration--not just a limited frequency range. As a result, you get reduced wear on the main bearings and timing gear, more stable valvetrain operation, and less chance of crank failure.
