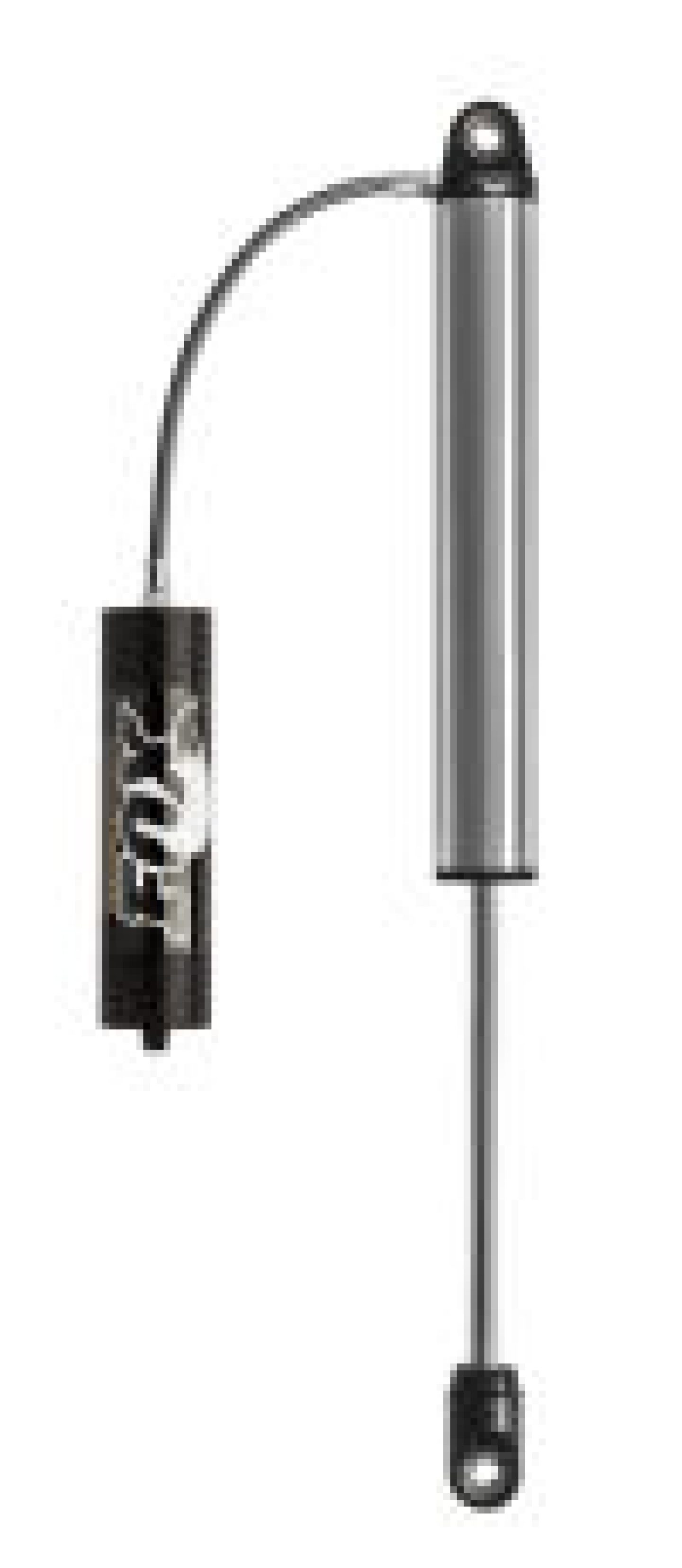

2.0 Smooth Body
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Additional Information
Rebuildable and serviceable.
Application Summary
2.0 x 14.0 SMOOTH BODY REMOTE-5/8in. SHAFT
Part Type
Suspension Shock Absorber
Product Overview
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX's ride zone - combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment - allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8" shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Features and Benefits
- Redundant Sealing System/Long Lasting Performance
- Packed Race Winning Technology
- Hard Chromed 4130 Alloy Steel Shaft
- Fox Racing Oil Developed For Ultimated Performance
- Black Anodized CNC Machined Aluminum Components
- Durable Zinc Plated Seamless Alloy Body
- Chrome Plated Heat Treated Alloy Steel Shaft
- ORB O-Ring Port Fittings Deliver A Superior Seal
- 100% Serviceable And Tunable For Longer Lifespan
- Teflon-Lined Heat-Treated Spherical Bearings
Product Details
| Body Diameter (in): | 2 |
| Body Material: | Steel |
| Bottom Mount: | Eyelet |
| Collapsed Length: | 21.100 in. |
| Color: | Steel |
| Compressed Length (in): | 21.10 |
| Description: | FACTORY RACE 2.0 X 14.0 SMOOTH BODY REMOTE SHOCK |
| Extended Length (in): | 35.10 |
| Extended Length: | 35.100 in. |
| FOX CATALOG: | OFFROAD |
| Hose Size: | -5AN x 12.000 in. |
| Hose: | -5 x 12 |
| Label Name: | 14" 0.625" (R/R) 2.0 Series, Black, "30/90" |
| Mounting: | 1/2 x 1.25 |
| Part Number: | fox980-02-035 |
| Reservoir Dimensions: | 2.0 x 11.00 |
| Reservoir Type: | Remote |
| Series: | Factory Race |
| Shaft Diameter: | 0.625 in. |
| Shaft Size (in): | 5/8 |
| Shock Stroke: | 14.000 in. |
| Size: | 2 in. |
| Title: | FACTORY RACE 2.0 X 14.0 SMOOTH BODY REMOTE SHOCK |
| Top Mount: | Eyelet |
| Travel (in): | 14.00 |
| Type: | Smooth Body |
| Valving: | 30/90 |
