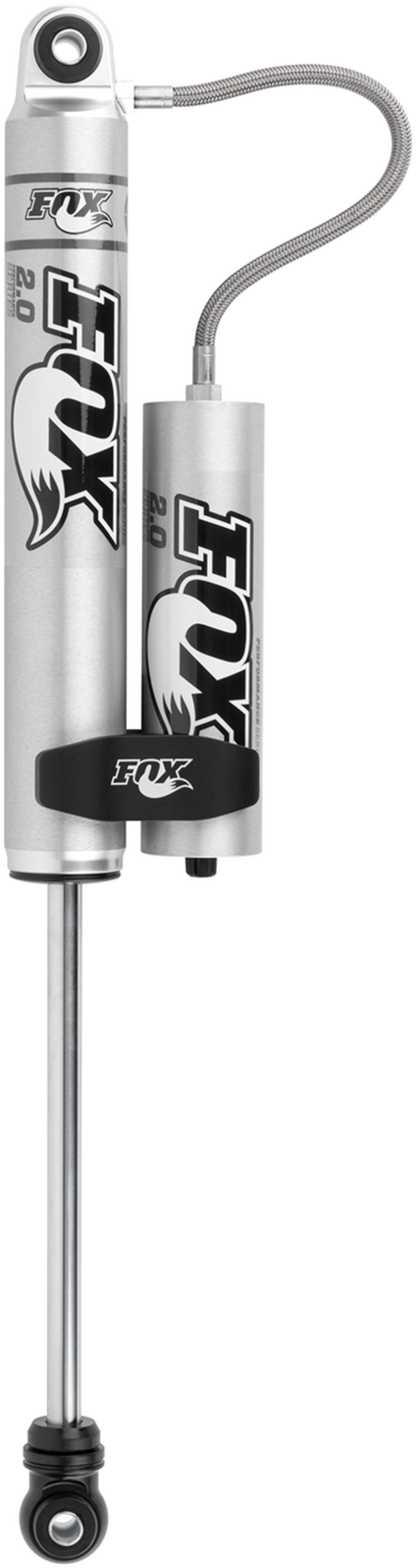

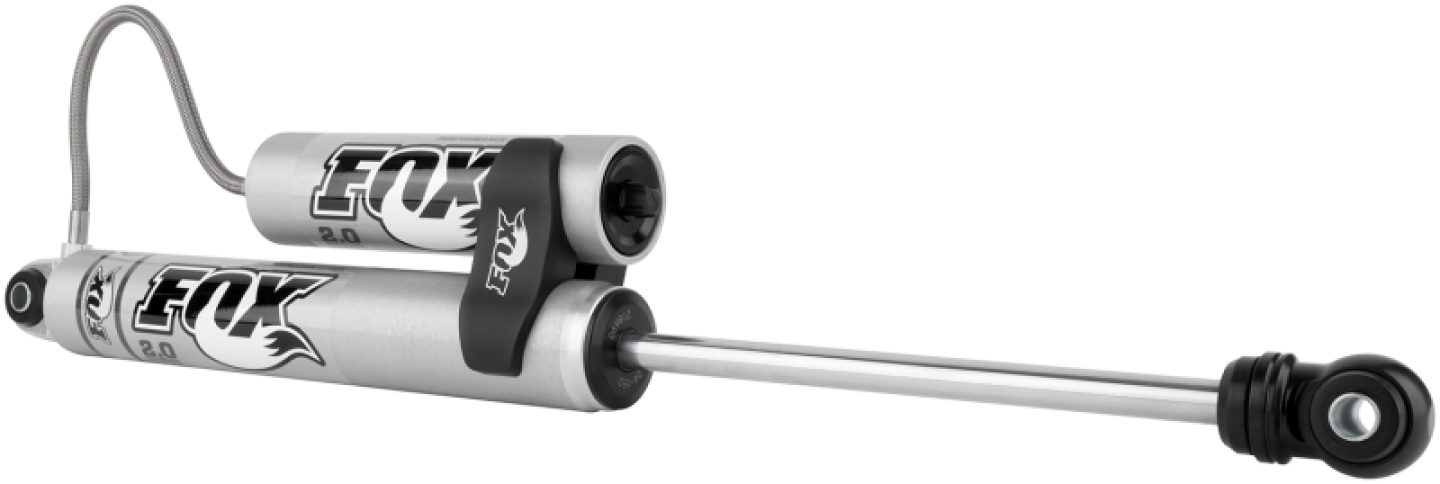

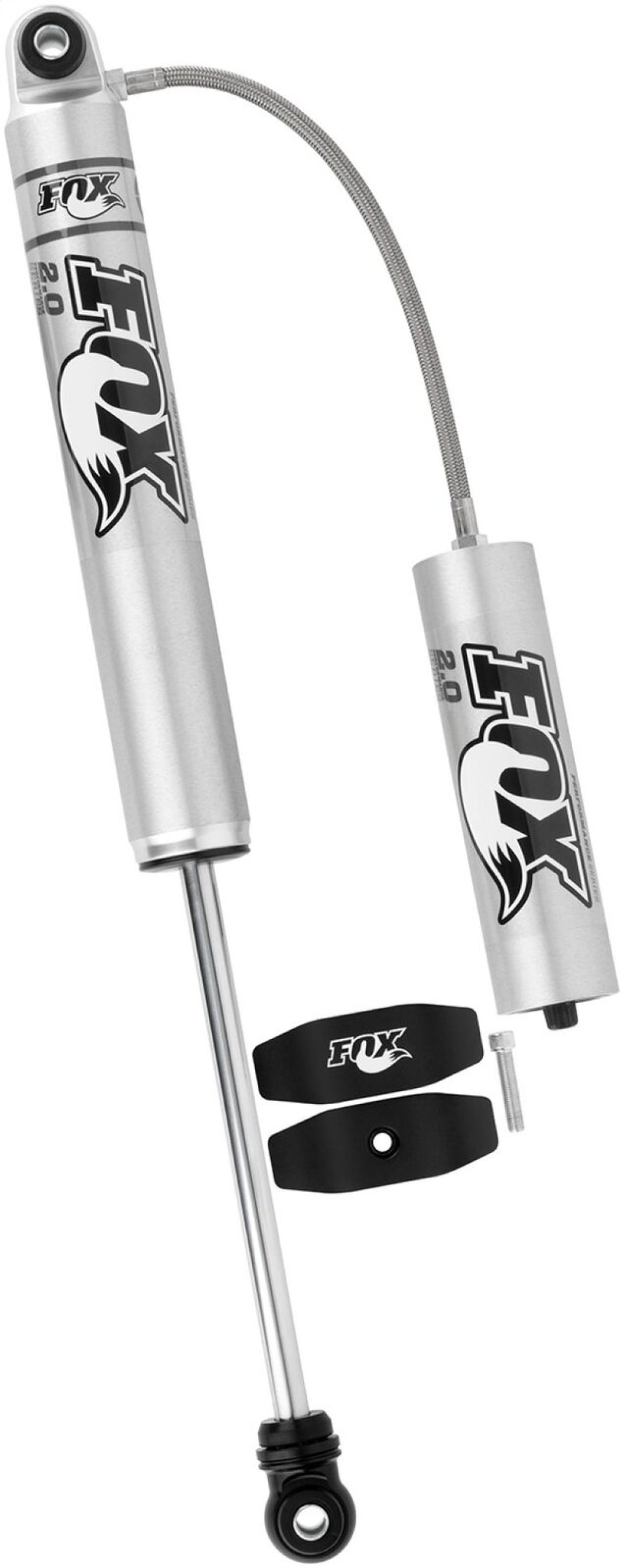

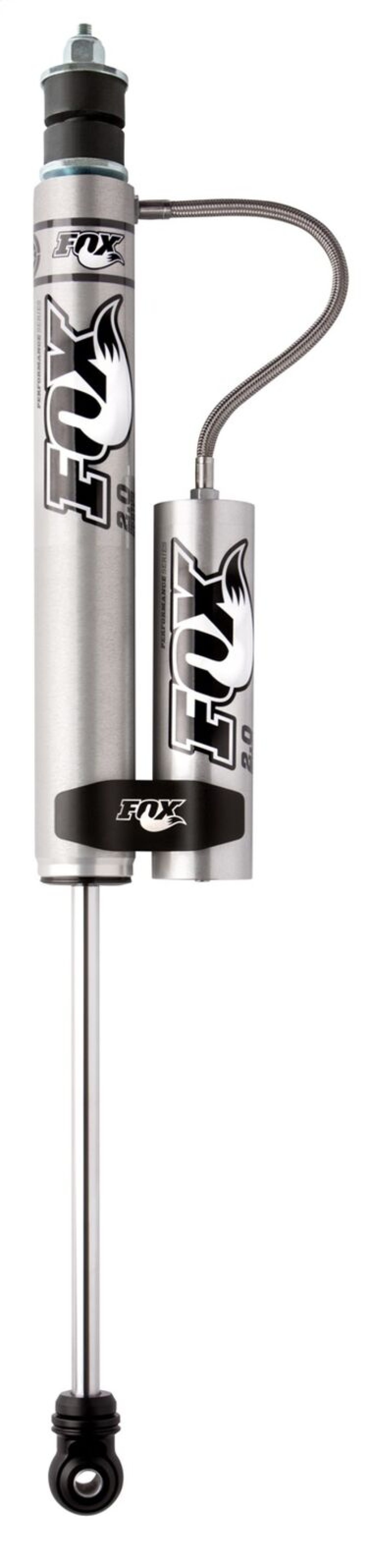

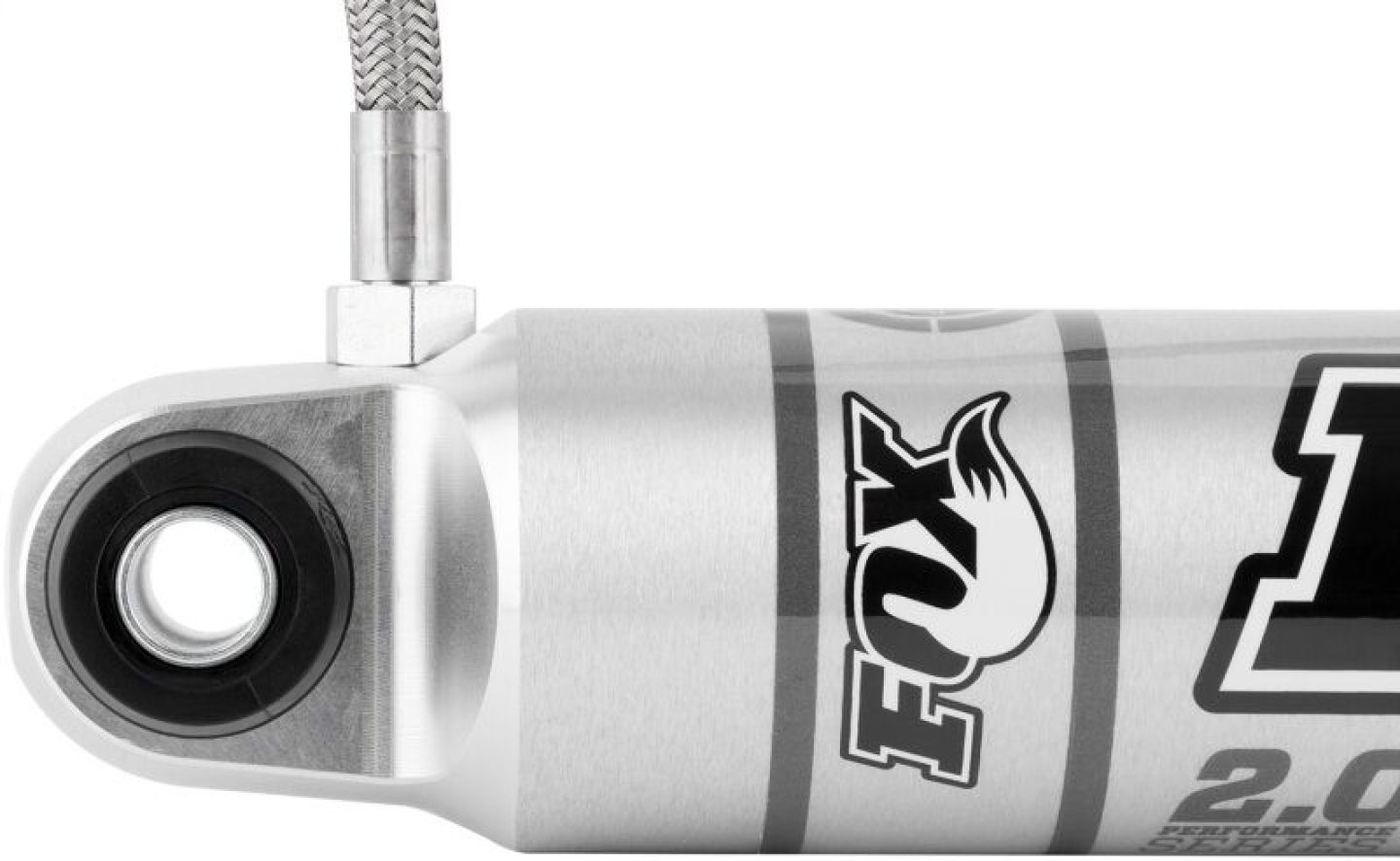

2.0 Shock
FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Additional Information
Fully rebuildable and serviceable.
Application Summary
UNIVERSAL FITMENT
Part Type
Suspension Shock Absorber
Product Overview
Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle's application. Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil. Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Features and Benefits
- Redundant Sealing System/Long Lasting Performance
- Includes Aluminum Reservoir Clamp
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
- IFP Separates Oil From High-Pressure Nitrogen Gas
- 100% Serviceable And Tunable For Longer Lifespan
- Teflon-Lined Heat-Treated Spherical Bearings
Product Details
| Body Diameter (in): | 2 |
| Body Material: | Aluminum |
| Bottom Mount (P/N): | 213-27-002-B |
| Bottom Mount: | ES3 |
| Collapsed Length: | 15.850 in. |
| Color: | Aluminum |
| Compressed Length (in): | 15.90 |
| Description: | PERFORMANCE SERIES 2.0 X 10.0 SMOOTH BODY RESERVOIR SHOCK |
| Extended Length (in): | 26.02 |
| Extended Length: | 25.950 in. |
| FOX CATALOG: | TRUCK |
| Label Name: | Standard Travel, Eyelet Ends, PS, 2.0, R/R, 10.1" |
| Part Number: | fox985-24-052 |
| Reservoir Type: | Remote |
| Series: | Performance |
| Shock Stroke: | 10.100 in. |
| Size: | 2 in. |
| Title: | PERFORMANCE SERIES 2.0 X 10.0 SMOOTH BODY RESERVOIR SHOCK |
| Top Mount (P/N): | 213-27-002-B |
| Top Mount: | ES3 |
| Travel (in): | 10.12 |
| Type: | Smooth Body |
