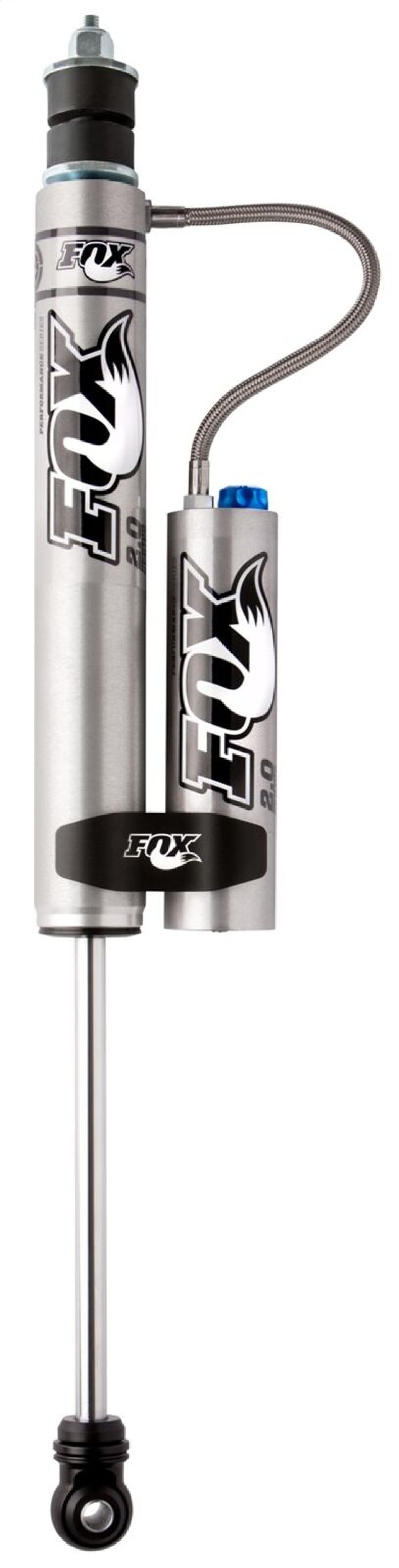

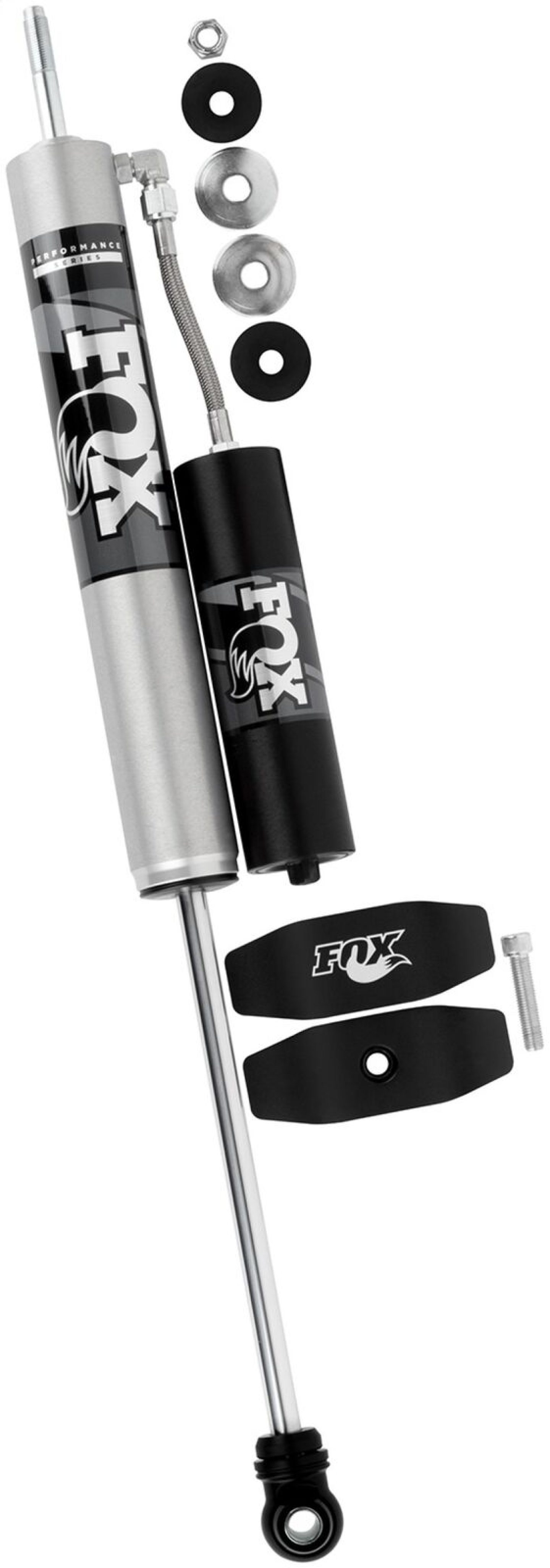

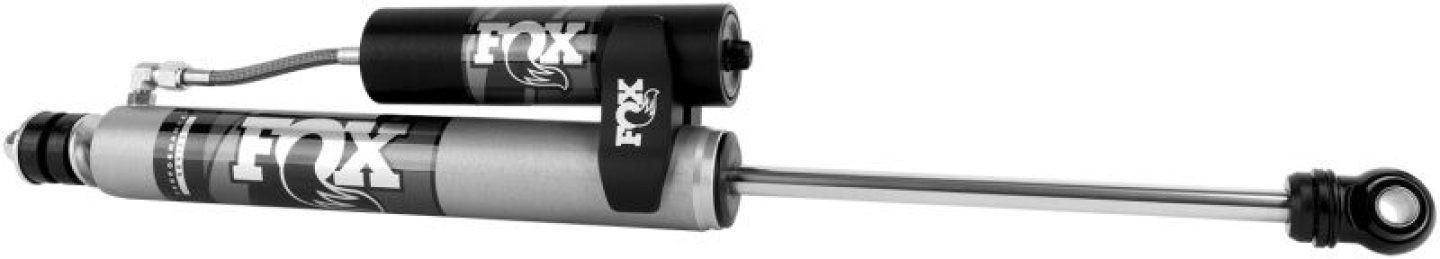

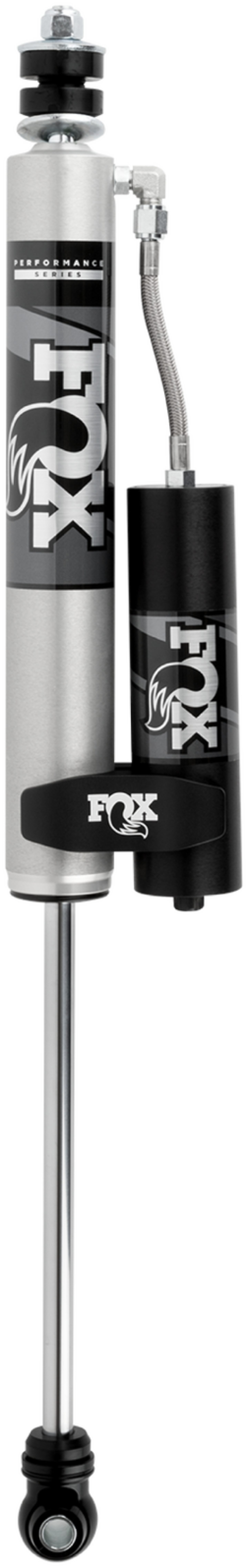

Fox 05-19 Ford F250/F350 2.0 Performance Series 11in Smooth Body IFP Front Shock /5.5-7in lift

FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Additional Information

Application specific valving to maximize performance.

Part Type

Suspension Shock Absorber

Product Overview

Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle's application.

Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil.

Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Aluminum Body Dissipates Heat Faster Than Steel
• Black Anodized CNC Machined Aluminum Components
• External Reservoir System Dissipates Heat Fast
• Includes Aluminum Reservoir Clamp
• Performance Tuned For Vehicle Specific Application

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Technical Drawing
3.	Technical Bulletin

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Shock, 2.0 Performance Series Smooth Body Reservoior, Ford, Each

Fox Racing Shox 2.0 Performance Series reservoir smooth body shocks deliver race-dominating performance in hassle-free, bolt-on packages. Their heat-reducing design includes metal-impacted aluminum shock bodies that dissipate heat faster than conventional steel. The external reservoirs allow for increased oil and nitrogen capacity, while delivering a striking race look. And the shock's race-developed, high-flow damping piston is matched with application-specific valving to provide a predicable ride quality capable of handling the roughest road conditions. Performance Series shocks are available for front and/or rear applications from 1984 and up.

Additional product features:
• One-piece 2.0 in. impact-extruded, CNC-machined 6061-T6 clear anodized aluminum bodies
• Body plating is hard-anodized for a durable finish
• Smooth bore 6061-T6 aluminum and hard-anodized reservoirs
• Black anodized, CNC-machined 6061-T6 billet aluminum components
• Hard-chrome plated heat-treated alloy steel shafts
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber bushings allow for increased suspension articulation
• Direct replacement for stock and aftermarket lifts kits
