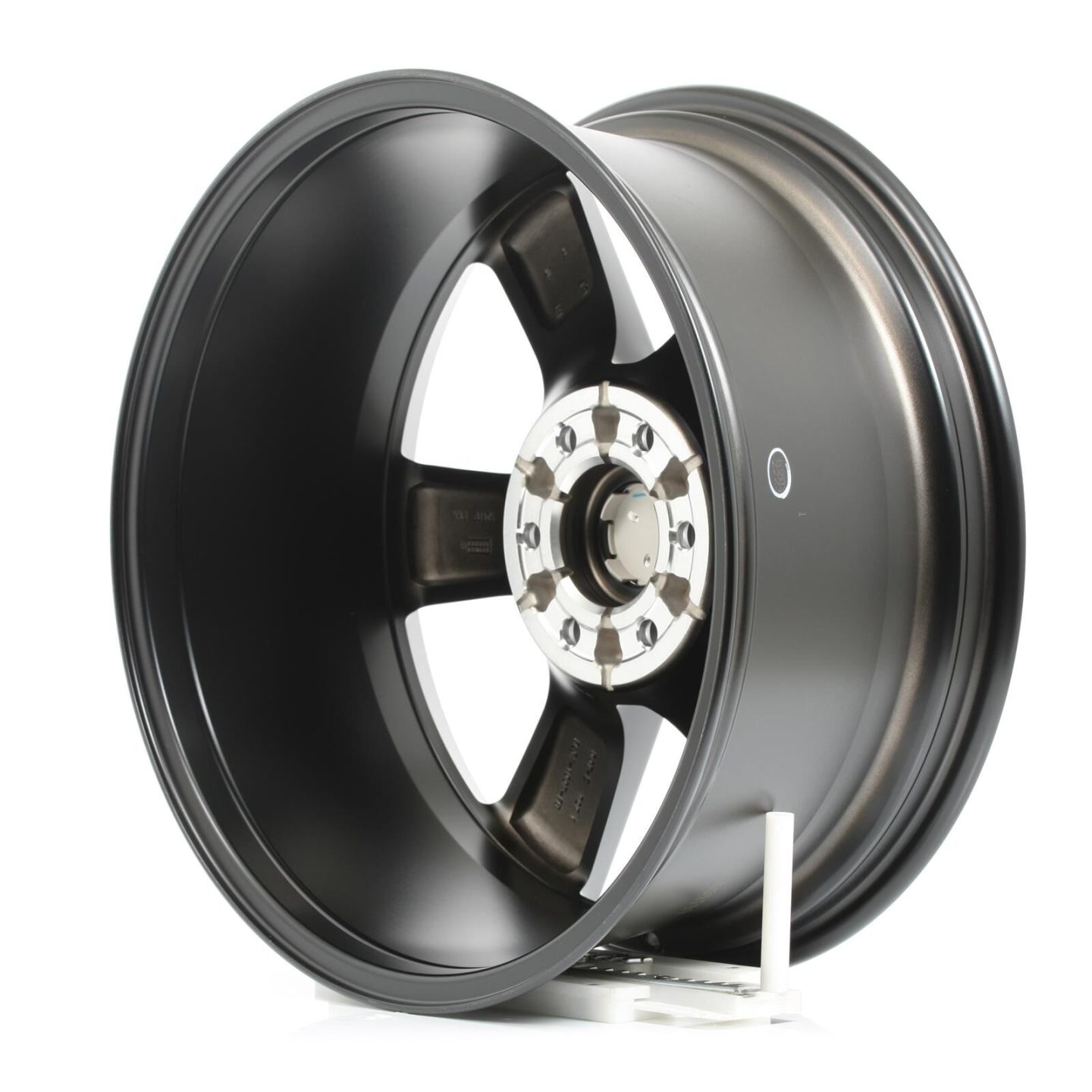

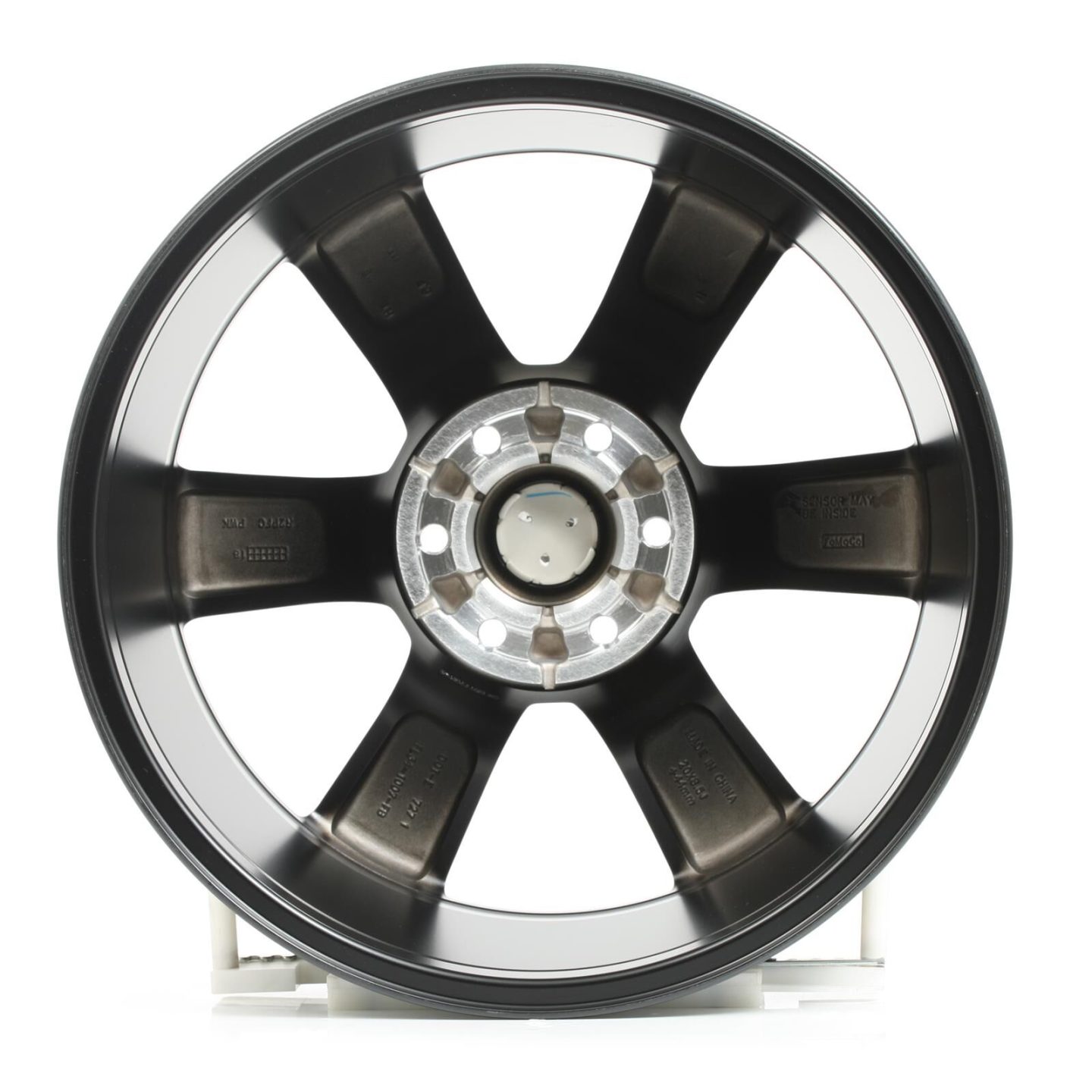

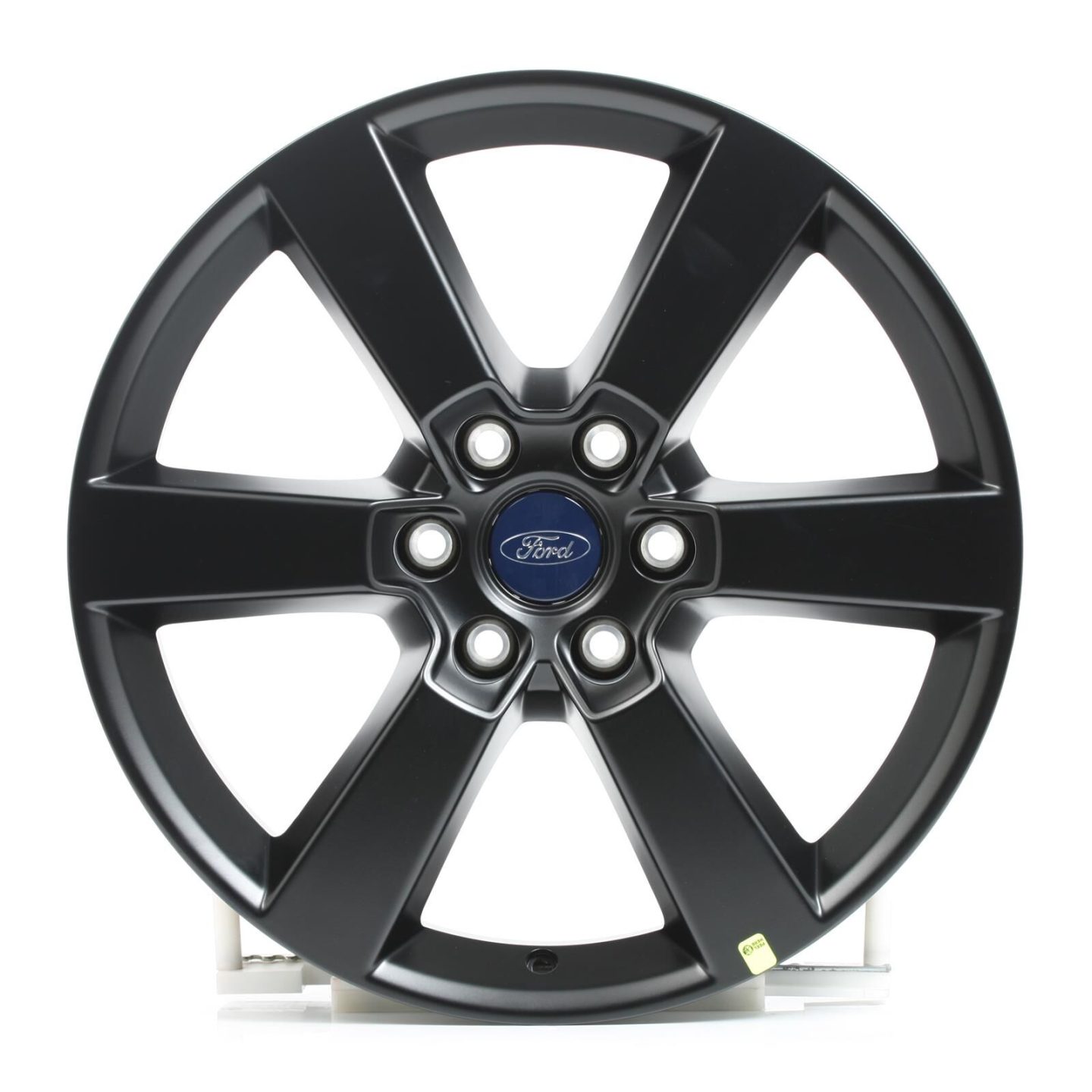

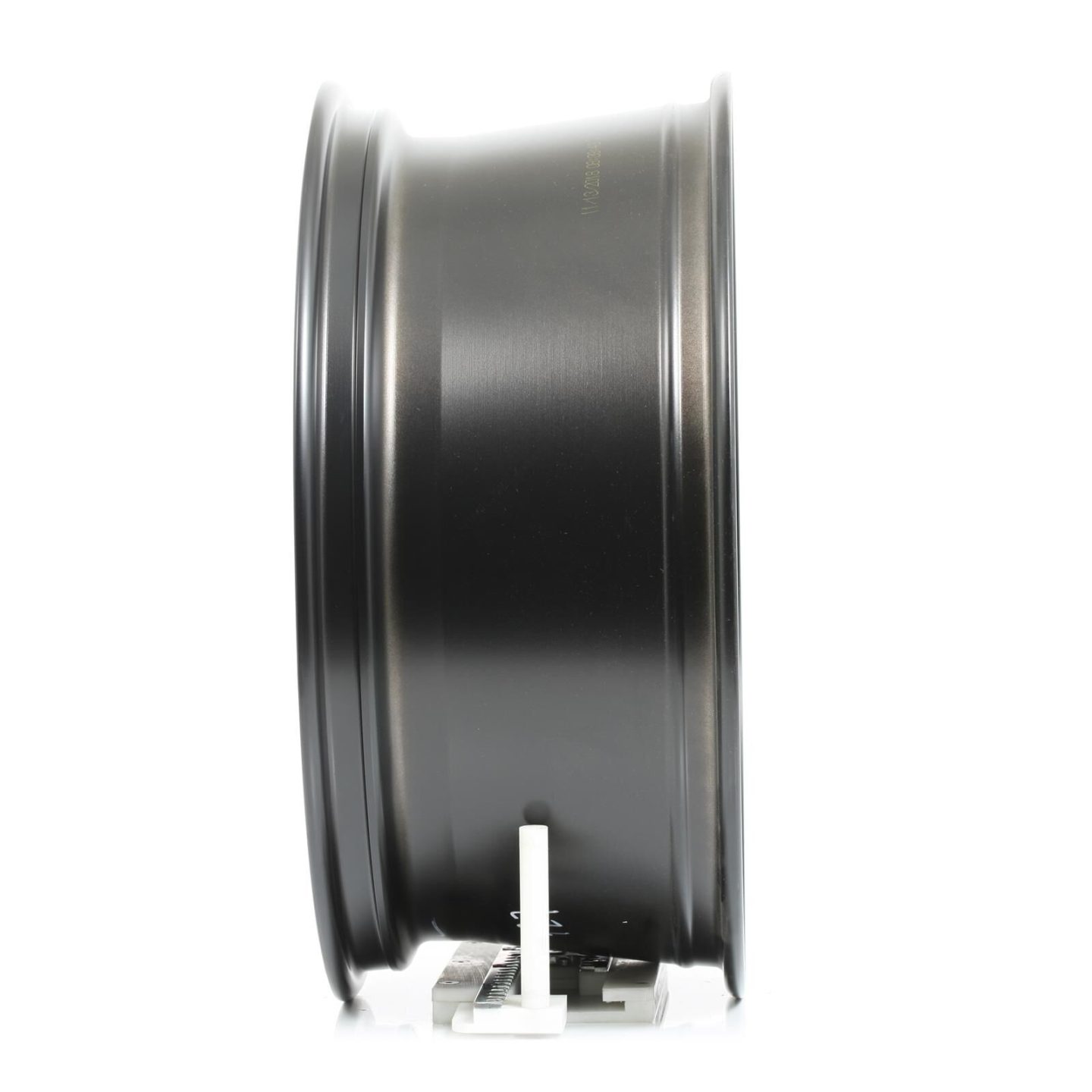

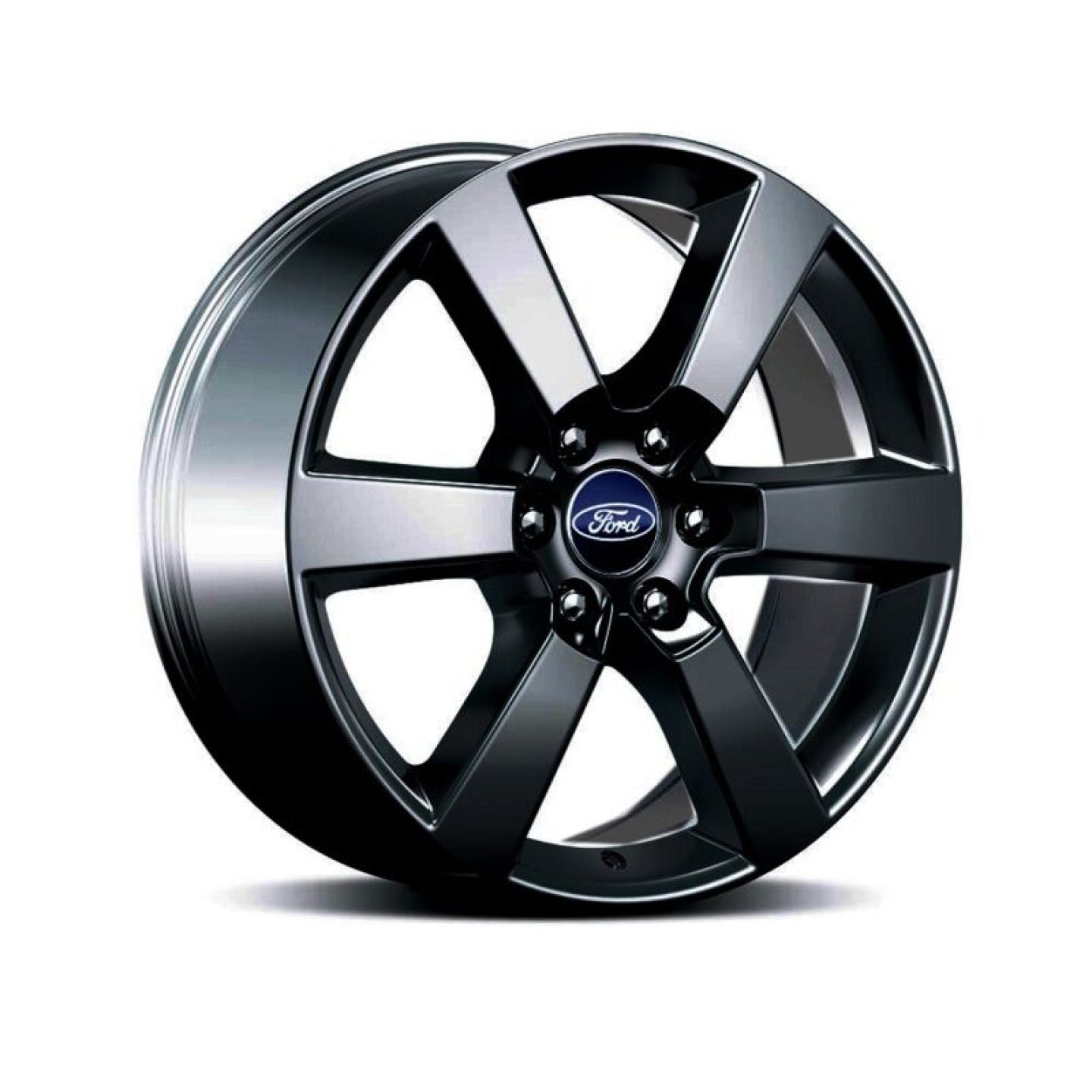

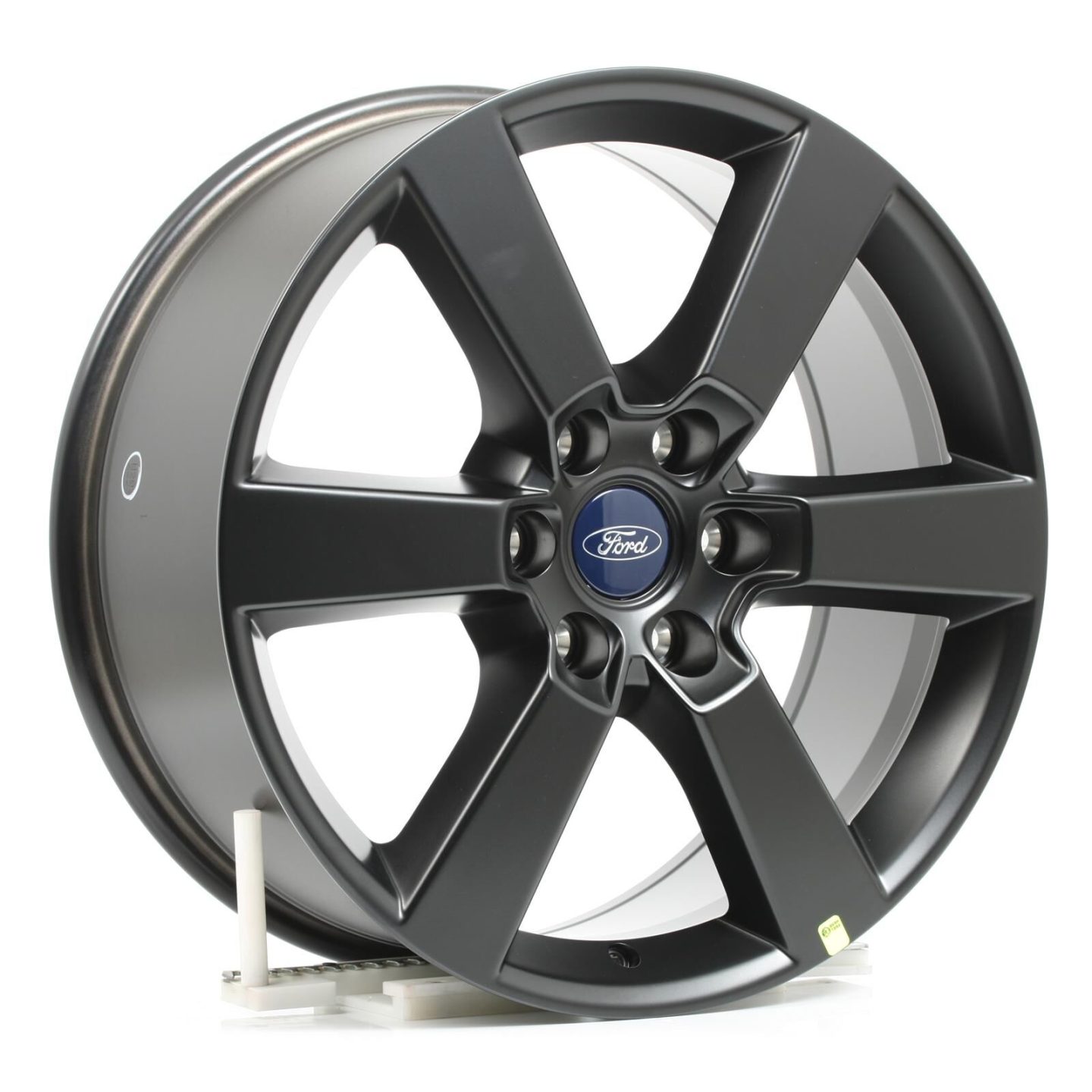

Wheel - 20 x 8.5 in - 160 mm Backspace - 6 x 135 mm Bolt Pattern - Aluminum - Black Paint - Ford Fullsize Truck 2015-20 - Each

Wheel -Aluminum

FRPP uses the Society of Automotive Engineers (SAE) and American Society for Testing and Materials (ASTM) Standars: SAE J175 and J328 for impact and fatigue testing and ASTM B368 for chrom testing. These standards define a series of tests that ensure the safety and finish of a wheel. THESE TESTS ARE THE MINIMUM STANDARD USED TO DEFINE THE ENDURANCE OF FRPP WHEELS. Impact Testing: This test simulates a curb impact on the side of a tire/wheel assembly. During testing, a tire/wheel assembly is mounted at a 13-degree angle to a test fixture by the hub. A weight is dropped from 9 inches onto the assembly at the tire/wheel intersection. The mass of the weight is determined by a formula, using the vehicle weight. Dynamic Cornering Fatigue Testing: This test simulates lateral loads applied to a wheel by the vehicle. During testing, a wheel is clamped to a fixture by the front face and a constant bending moment is applied through the hub. A wheel of new design will run a minimum of 1,000,000 cycles before approved. The load applied is determined by a formula, using the vehicle weight. Dynamic Radial Fatigue Testing: This test simulates axial loads applied to a wheel by the vehicle. During testing, a tire/wheel assembly is mounted to an axle by the hub. A large drum drives the assembly while a load is applied perpendicular to the tire patch. A wheel of new design will run a minimum of 5,000,000 cycles. The load applied is determined by a formula, using the vehicle weight. Chrome Quality Testing: Copper-accelerated acetic acid-salt spray, commonly known as CASS testing, is the standard method used to test the corrosive performance of copper/nickel/chromium-plated wheels. The test is performed in a sealed chamber with a highly acetic spray directed onto the wheel for a predetermined amount of time, usually 66 hours.

Additional Information

Wheel; Size 20x8.5 in.; Bolt Pattern 6x135 mm.; Offset 12.5 mm.; Back Spacing 164.5 in.; Incl. Center Cap; Matte Black;

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 160mm Backspacing
• 20 x 8.5 in. Wide
• 44mm Offset
• 6 Lug 136mm Bolt Circle
• Clear Coated To OEM Standards
• Matte Black Finish
• Use w/TPMS Sensor/Activation Tool M1180-B
• Valve Stem TPMS Compatible

Note in regards to wheels and tyres.

Unless otherwise stated, wheels and tyres are supplied individually. They are not typically listed as a full set since most vehicles run different widths and offsets front to rear. Please carefully check your PCD, width and offset (ET) when choosing wheels or wheel and tyre packages. If you need more information or clarification, contact StreetFX customer support prior to ordering.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Wheel, F-150 Six-Spoke, Aluminum, Matte Black, 20 in. x 8.5 in., 6 x 135mm Bolt Circle, 6.299 in. Backspace

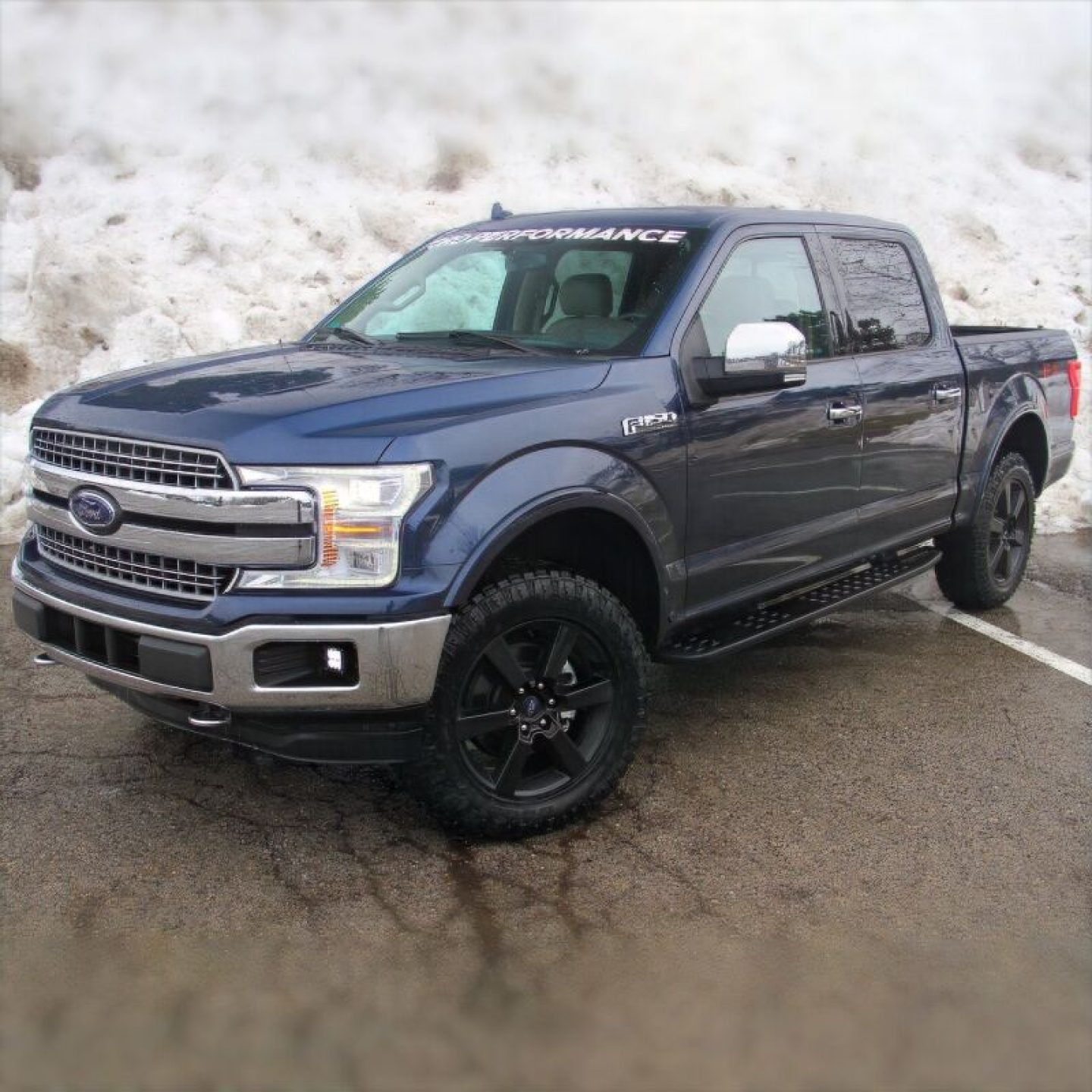

Dress your rig in a stunning set of Ford Performance Parts F-150 Six-Spoke matte black wheels. These one-piece aluminum rims feature a durable matte black finish, clear coating to OEM standards, and a blue Ford Oval center cap—a sleek, professional look that's great whether you're out on the town or at your worksite. The wheels are also valve stem TPMS-compatible. Performance begins on the four corners of your truck!
