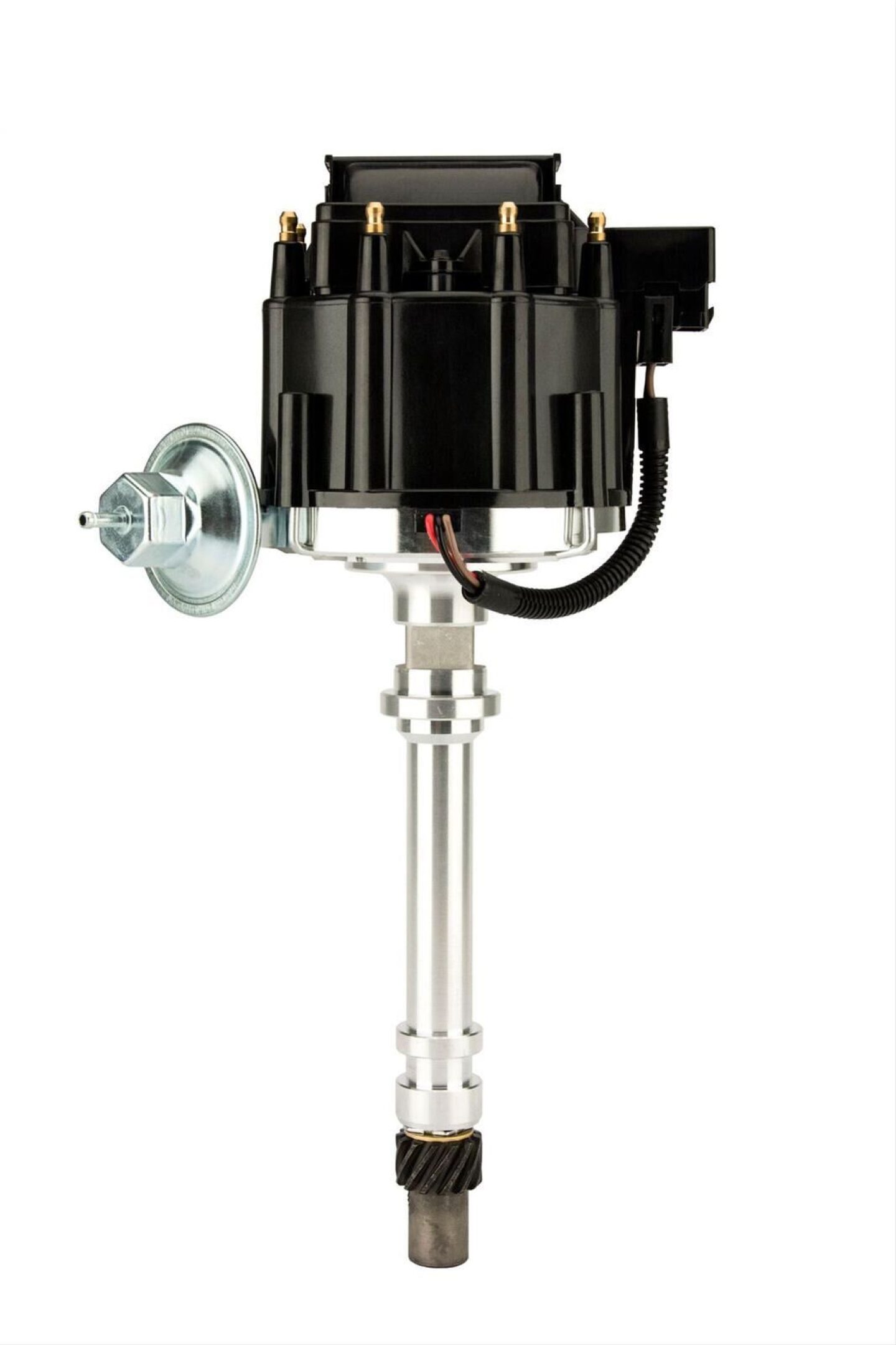

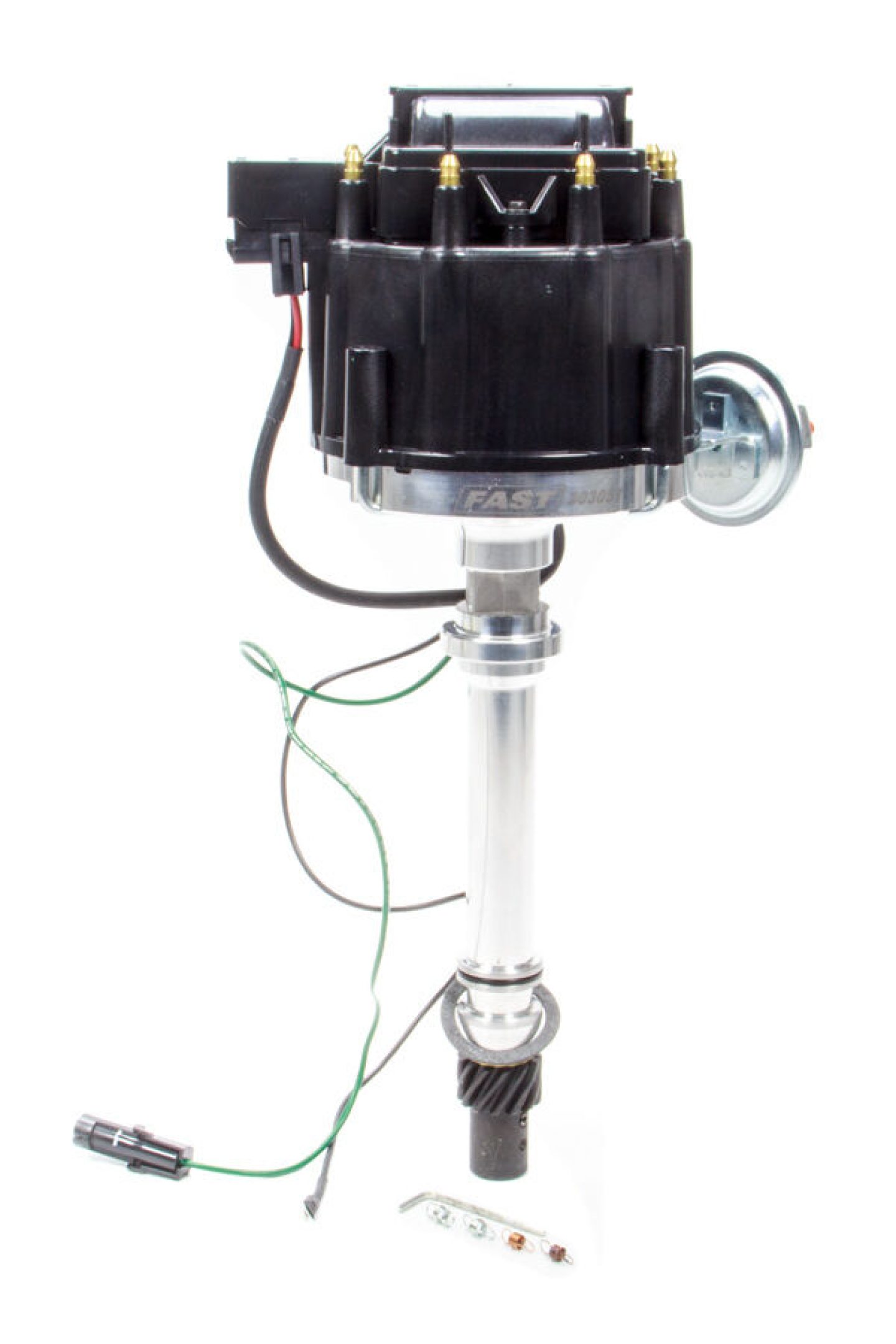

Distributor - Magnetic Trigger - Vacuum and Mechanical Advance - HEI Style Terminal - Small Cap - Black - Small Block Chevy - Each

XDi Street SBC/BBC

The FAST XDi Street HEI Distributor is packed with high-performance features, making it the perfect choice for any Small or Big Block Chevy engine. Featuring a powerful 6-amp ignition module that drives a custom-wound performance coil up to 50,000+ volts, it provides the hot spark needed for maximum horsepower. These distributors also come equipped with a heat-treated steel gear that is compatible with popular camshaft materials. While perfect as a drop-in, ready-to-run distributor, additional lightweight advance springs and an adjustable vacuum advance are included for those who like to custom tune for extra power and throttle response.

Additional Information

The new XDi Street HEI distributor includes industry-first gear technology, an upgraded module and coil that ensure clean firing up to 8500+ RPM. Features a 6 amp ignition module and a 50,000 volt coil.

Part Type

Distributor

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Distributor, XDi Street HEI, Plasma Nitrided Gear, 50,000 Volt Coil, 6 Amp, Vacuum/Mechanical, Black Cap, Each

FAST XDi Street HEI distributors include the industry-first gear technology with an upgraded module and coil that ensure clean ignition firing up to 8,500+ rpm. Ideal for SB and BB Chevy engines, each of the XDi distributors feature a plasma nitrided gear compatible with all popular camshaft materials, including cast iron, austempered iron, 5160 steel, and even 8620 steel. The special plasma nitride process used on the gears not only increases the gear's surface hardness, but also the "slickness" of the gear teeth reducing friction and increasing cam/distributor gear life, as well as making them superior to common melonized gears. XDi Street HEI distributors also feature powerful 6-amp ignition modules that drive custom-wound performance coils up to 50,000 V, providing the hot spark needed for maximum horsepower.

While ready to run out of the box, for those that enjoy tuning the mechanical and vacuum advance mechanisms for better throttle response and fuel economy, FAST XDi Street HEI distributors include springs, advanced limit plate, and instructions needed to adjust the distributor for your particular engine/vehicle combination.
