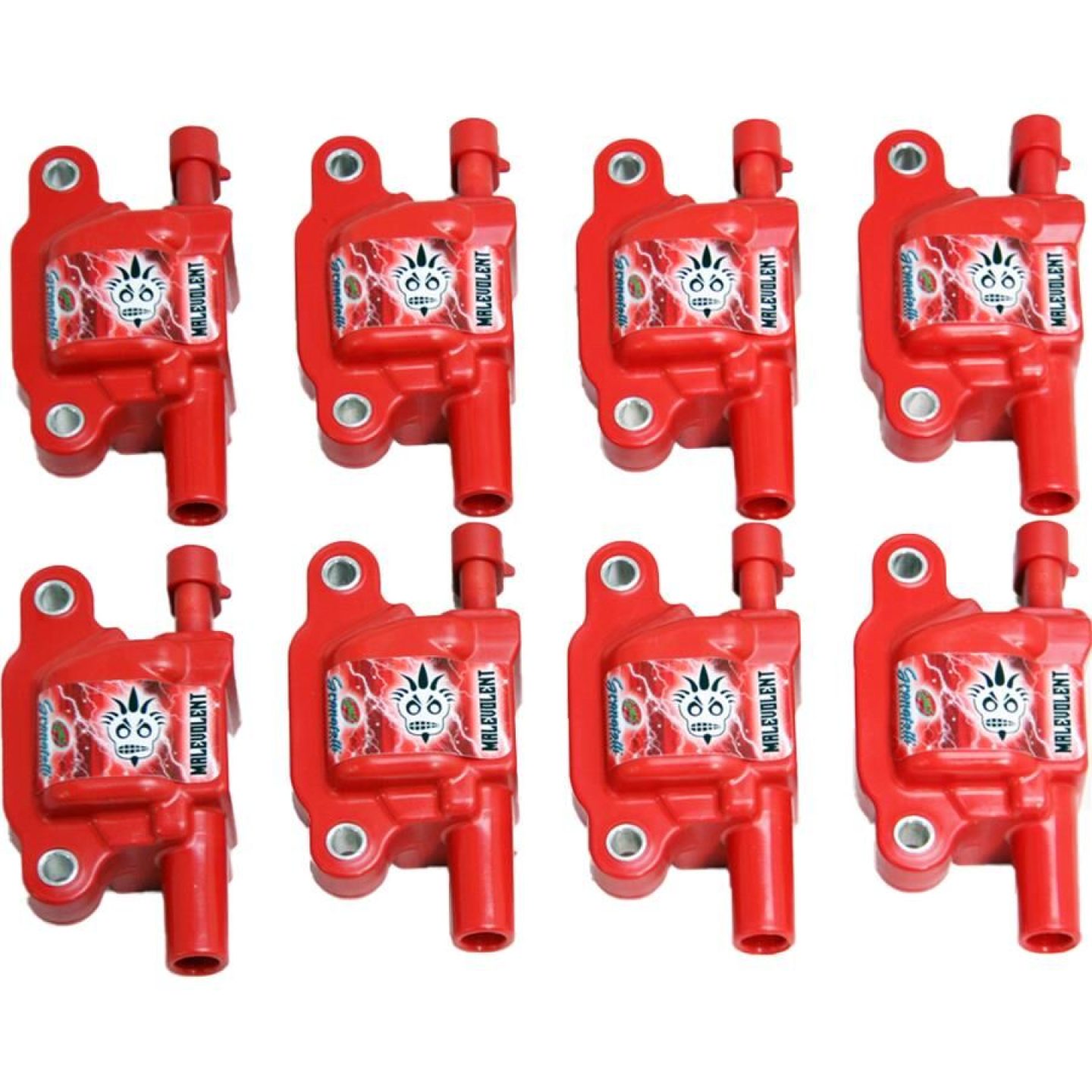

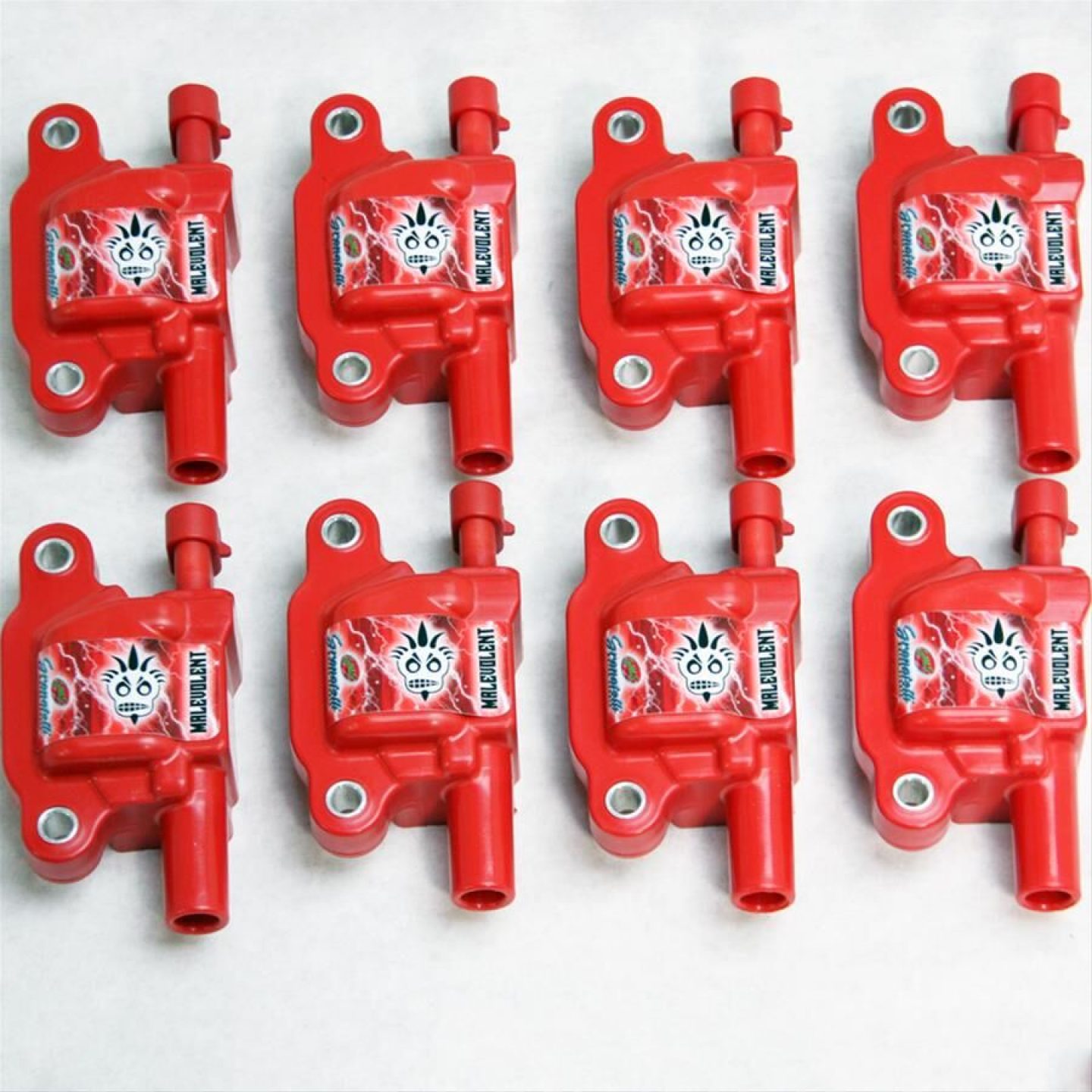

Granatelli 05-17 GM LS LS1/LS2/LS3/LS4/LS5/LS6/LS7/LS9/LSA Malevolent Coil Packs - Red (Set of 8)

SKU: GMS28-0513-CPRM

Ignition Coils

GMS Malevolent Coil Packs...

Granatelli 05-17 GM LS LS1/LS2/LS3/LS4/LS5/LS6/LS7/LS9/LSA Malevolent Coil Packs - Red (Set of 8)

SKU: GMS28-0513-CPRM

Ignition Coils

GMS Malevolent Coil Packs...

A$1,180.04
LOW STOCK! Est Ship 3-5 days. In stock at 2 locations (8 available)

Added to cart

We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Ignition Coil

Additional Information

GM LS Coil - Cars 85KV MALEVOLENT Series - LS1, LS2, LS3, LS4, LS5, LS6, LS7, LS9, LSA, L92, L99, L76 - Set of 8 - Red Body.

Product Overview

GM LS Coil - Cars 85KV MALEVOLENT Series - LS1, LS2, LS3, LS4, LS5, LS6, LS7, LS9, LSA, L92, L99, L76 - Set of 8 - Red Body.


Data: v2 - Desc: v4.2 - Upd: 2026-11-08 02:18:47

Data: v4.2 - Upd: 2026-11-08 06:29:00

Features

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Specifications

Product Details

Body Color:Red Body
Description:Granatelli 05-17 GM LS LS1/LS2/LS3/LS4/LS5/LS6/LS7/LS9/LSA Malevolent Coil Packs - Red (Set of 8)
Part Number:gms28-0513-CPRM
Title:Granatelli GM LS Coil

Reference Information

Reference Data (Provide these details to our support team)
Brand Name/s Granatelli Motor Sports
StreetFX SKU gms28-0513-CPRM
SFX Item ID 4493218
Accounting SKU gms-28-0513-CPRM
Manufacturer SKU 28-0513-CPRM
Manufacturer UPC 802735035162
Alternative References 28-0513-CPRM, GRN-28-0513-CPRM

Ignition Coil, Malevolent, Coil Pack, 85,000 V, Red, Chevy, LS, Set of 8

Granatelli Motor Sports Malevolent coil packs deliver nearly twice the voltage as the competition. Rated at up to 85,000 V, these nasty little units not only increase power to your plugs, but improve fuel economy, throttle response, and idle characteristics.

Malevolent coil packs are bred of a one-piece design that offers you a direct OEM replacement with simple plug-and-play installation—and they won't void your factory warranty! Increase your engine efficiency with improved combustion, powered-up though the intense-performing Granatelli Motor Sports Malevolent coil packs. Order the individual pack or set recommended for your vehicle and engine application.

Product Attributes
BrandGranatelli Motor Sports
Manufacturer's Part Number28-0513-CPRM
Part TypeIgnition Coils
Product LineGranatelli Motor Sports Malevolent Coil Packs
UPC802735035162
Coil StyleCoil pack
Primary Resistance0.300 ohms
Coil Internal ConstructionEpoxy
Coil Wire AttachmentFemale/Socket
Coil ColorRed
Maximum Voltage85,000 V
Turns Ratio70:1
Secondary Resistance4.90K ohms
Mounting Bracket IncludedNo
Coil Wire IncludedNo
Ballast Resistor IncludedNo
Coil ShapeSquare
QuantitySold as a set of 8.
CARB EO Number(s)D-741-4
