Haltech CO2 Boost Control Dual Solenoid & Pressure Sensor Kit

Additional Information

CO2 Boost Control Dual Solenoid & Pressure Sensor Kit, Thread: 1/8 NPT, Includes: Two 3 port 33Hz boost control solenoid kits, 150 PSI TI wastegate pressure sensor with -4 AN adaptor and T fitting.

Part Type

Turbocharger Electronic Boost Controller

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Product Specifications Sheet

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

CO2 Boost Control Dual Solenoid & Pressure Sensor Kit

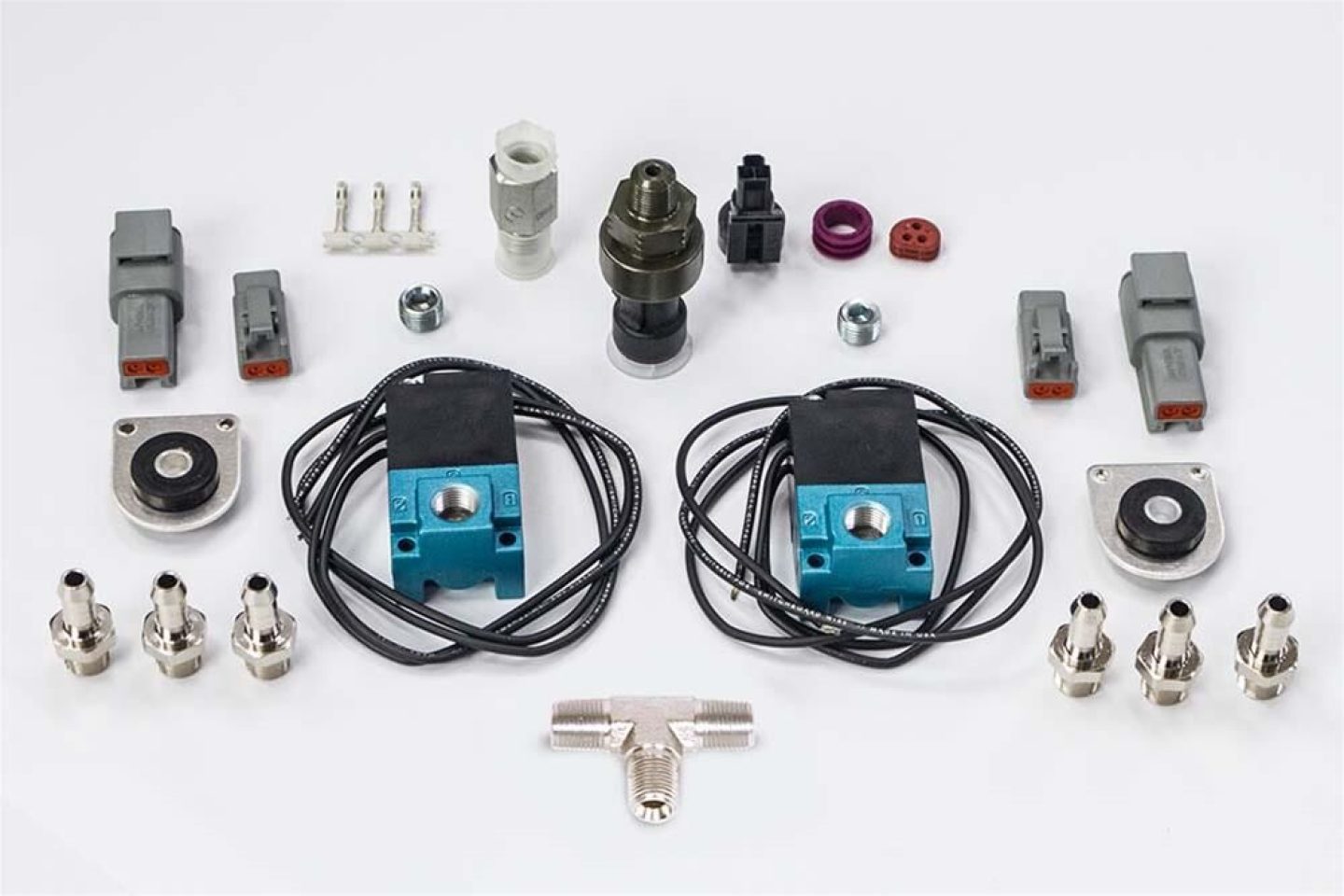

HalTech CO2 boost control dual solenoid/pressure sensor kits will change the way your turbocharged vehicle reacts, spools, and runs—for the better. Each kit contains two 3-port 33Hz boost control solenoid kits and a 150 psi "TI" wastegate pressure sensor with -4 AN adaptor and "T" fitting, along with rubber isolated solenoid mounts, pressure sensor plug and pins, and Deutsch DTM 2 connectors.

Please note:
• Recommended control frequency is 33Hz
• Requires Elite 1500/2500 ECU with 2.09.0 or newer firmware
• Regulate CO2 supply pressure to 1.5 to 2 times of wastegate target pressure
• Wastegate pressure sensor range must exceed target manifold pressure range
