TUNDRA COILOVERS

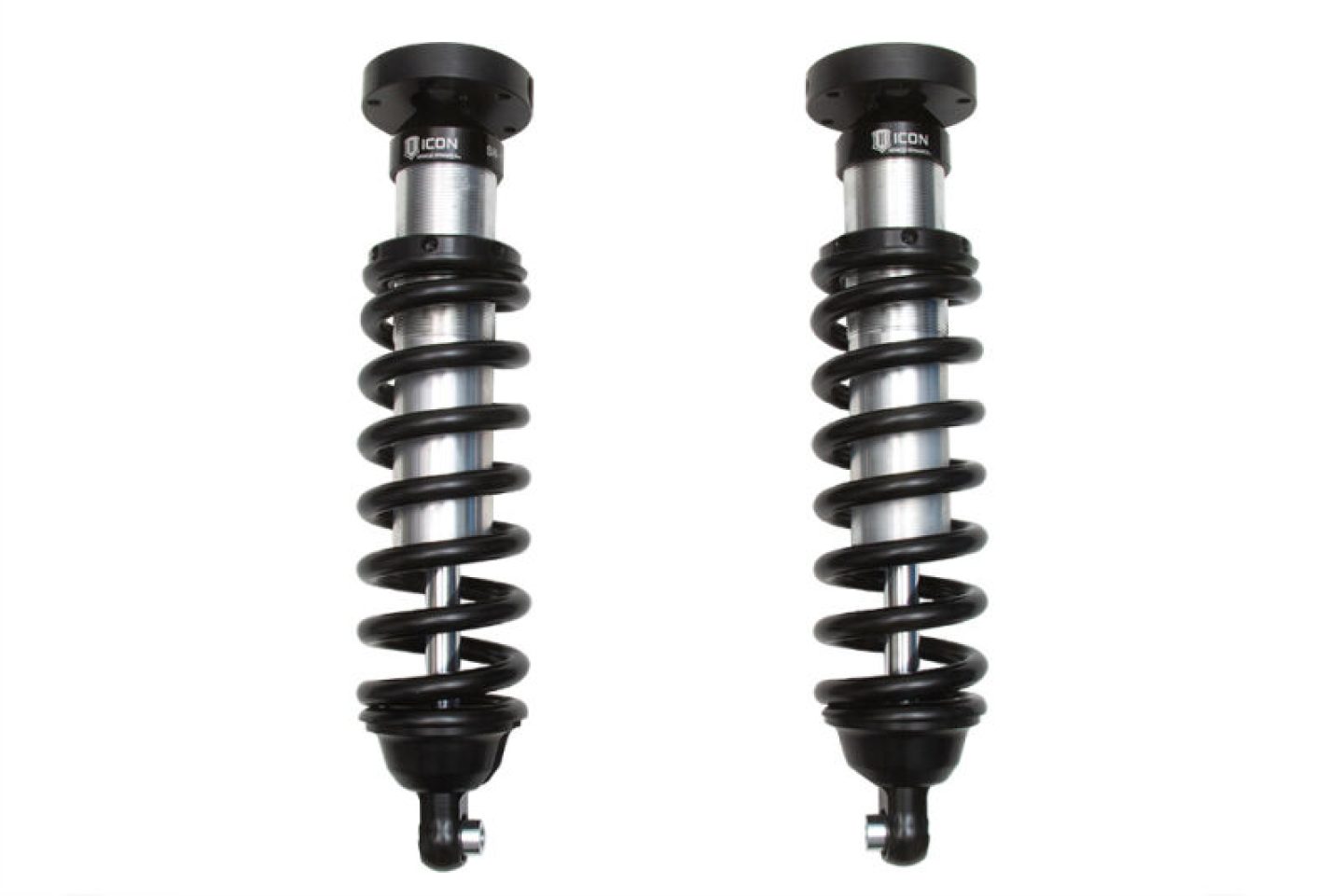

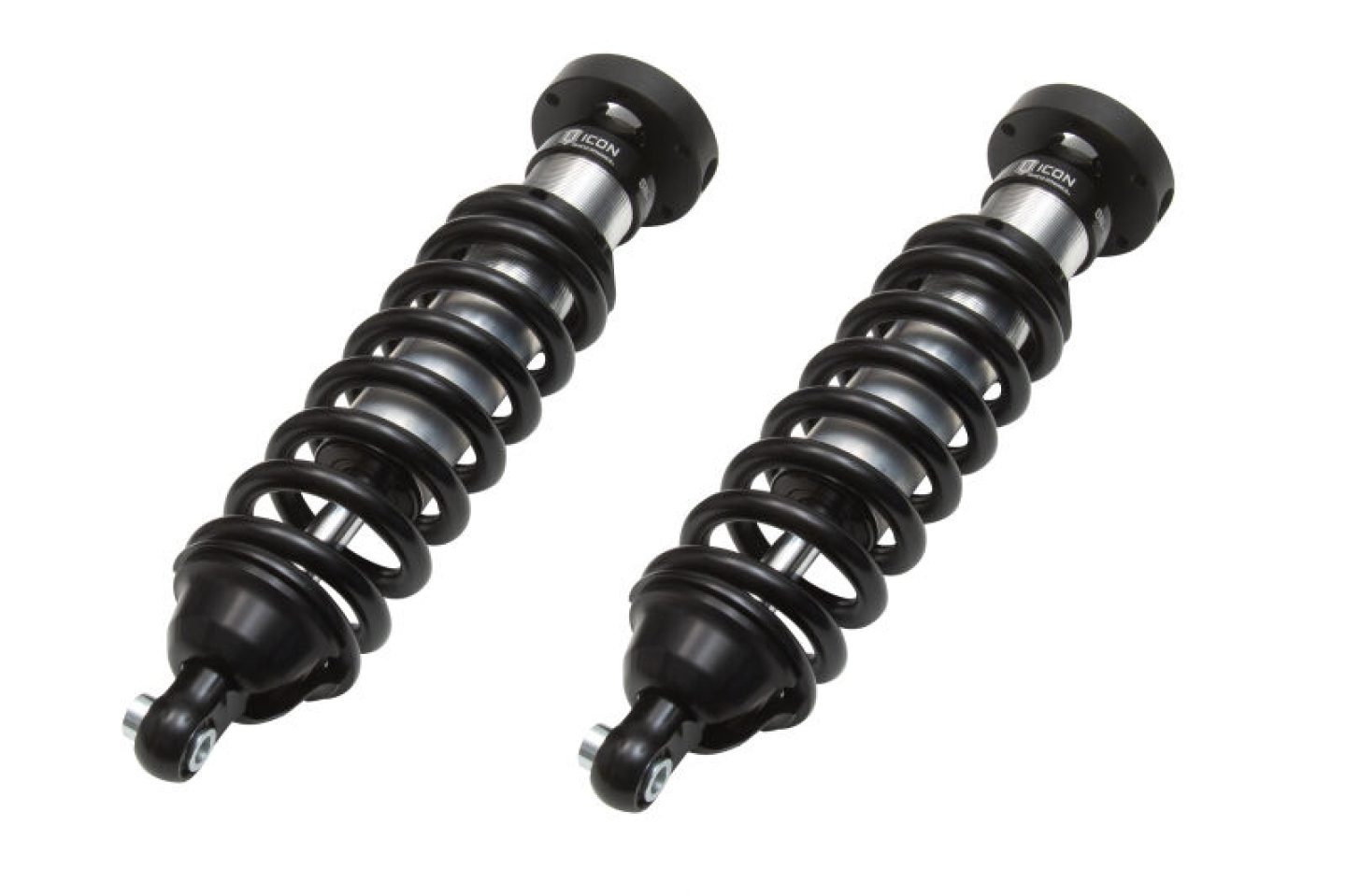

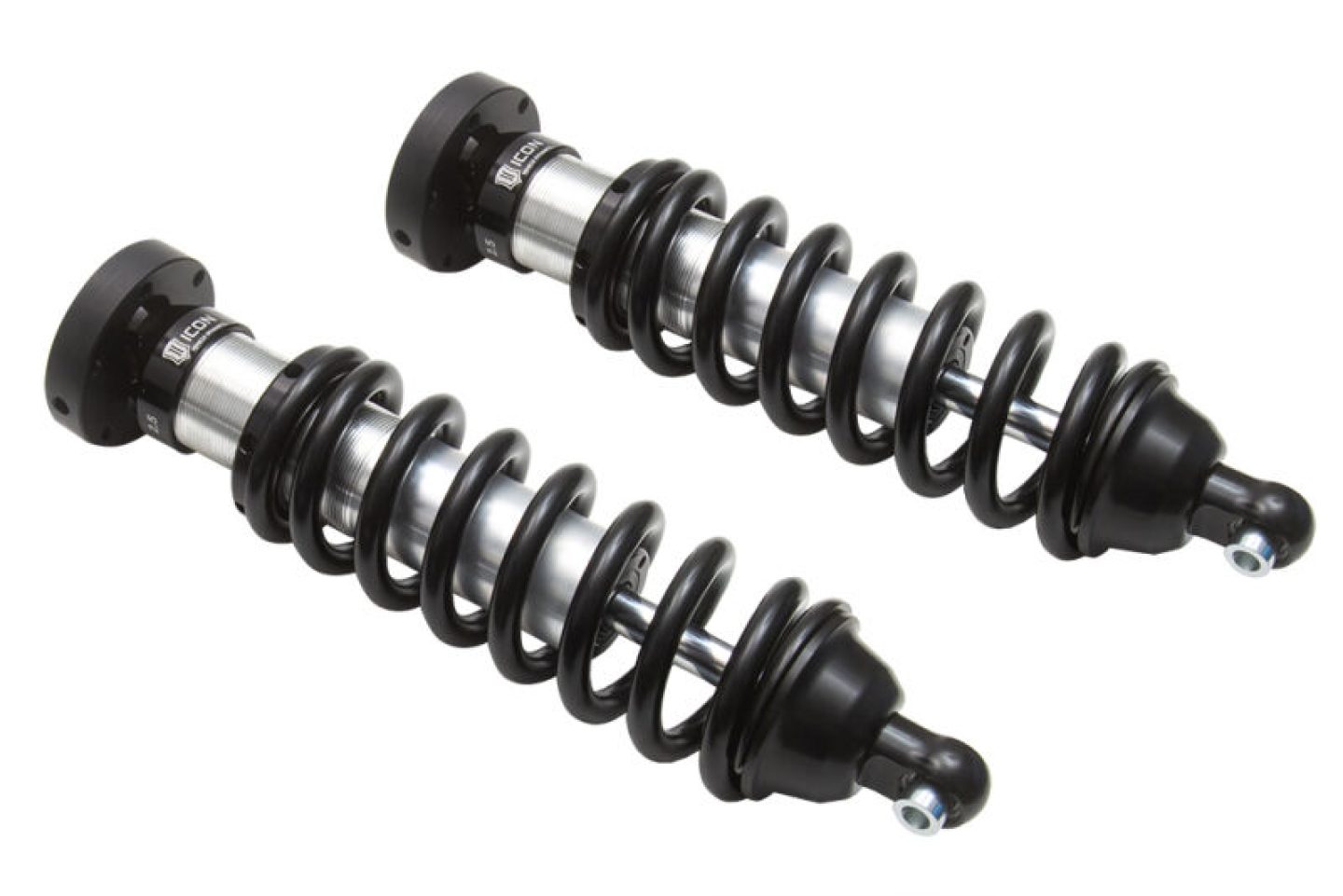

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.

Additional Information

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.

Part Type

Coilover Set

Product Overview

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53033	ICON 00-06 Toyota Tundra 0-2.5in Stage 3 Suspension System (1x ico51001, 1x ico52100, 1x ico57715P, 1x ico58620)
	icoK53032	ICON 00-06 Toyota Tundra 0-2.5in Stage 2 Suspension System (1x ico51100, 1x ico58620, 2x ico56504)
	icoK53031	ICON 00-06 Toyota Tundra 0-2.5in Stage 1 Suspension System (1x ico58620, 2x ico56504)

• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• ICON engineered coil springs
• Vehicle specific shock length and pairing with stock front upper control arms yield increased wheel travel
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

00-06 TUNDRA 2.5 VS IR COILOVER KIT

Icon Vehicle Dynamics 2.5 IR coilover kits are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These Vehicle-Specific (VS) adjustable coilovers feature 2.5 in. aluminum bodies finished with a corrosion-resistant CAD plating, gas-charged internal reservoirs (IR), high-quality coil springs that won't sag or break, and premium bearings that provide extended longevity and minimal deflection. Icon coilover shocks are fully serviceable, so they can be rebuilt and/or revalved to offer an immeasurable service life, and their bolt-in design fits the OE shock location, making installation easy.
