RAM HD TRACK BAR

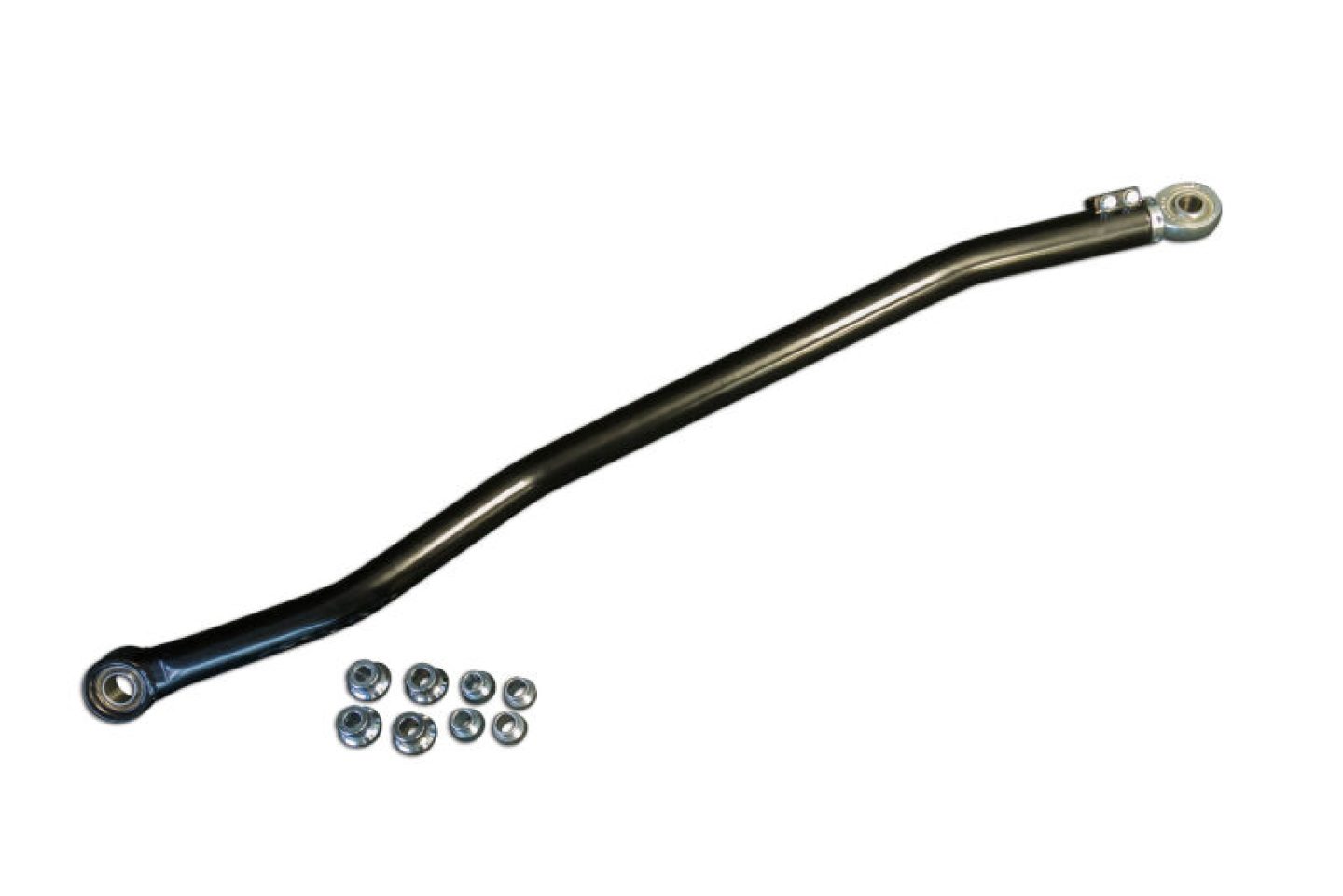

The ICON Vehicle Dynamics 2003 - Current Dodge Ram 2500 / 3500 Front Adjustable Pan Rod Bar (Track Bar) helps eliminate the notorious Death Wobble these Dodges have when you begin to adjust the trucks ride height. This bar will work on Stock trucks, trucks lifted 1-3, and 4-6 inches of lift when using a pan rod bar drop down bracket. The Upgraded ICON Dodge 2500 / 3500 adjustable pan rod bar is great for centering the front axle allowing it to track perfectly under the truck vs. offset to the side. This bar is constructed of 1/4 Inch Wall 1 1/2 Inch DOM Tubing and is CNC Bent for a precise OE style fit. The weak OEM rubber bushing is eliminated and our 1 Inch captured uniball bearing on the driver side minimizes overall deflection while allowing just enough movement so steering wheel feedback is not present. We use a PTFE lined RMX12T rod end on the passenger side which also reduces deflection and threads into our left/right adjuster that allows easy on truck adjustability for the perfect front end alignment.

Additional Information

This ICON adjustable track bar will allow the proper alignment of your lifted truck’s steering geometry, delivering increased strength, control, and proper axle positioning while reducing stress on related steering components.

Part Type

Suspension Track Bar

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

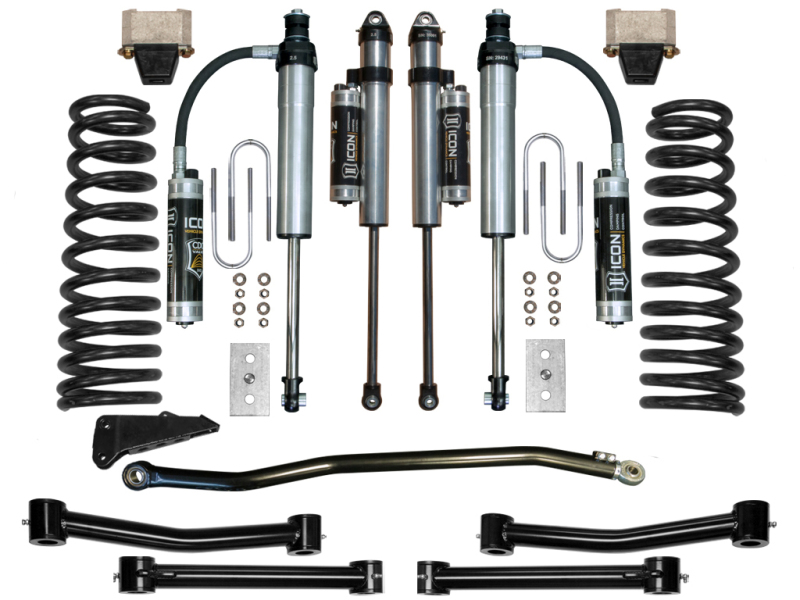

	icoK214553T	ICON 09-12 Ram 2500/3500 4.5in Stage 4 Suspension System (1x ico214010, 1x ico214027, 1x ico214030, 1x ico214040, 1x ico214101, 1x ico37023, 1x ico211205, 1x ico217701P, 1x ico217810P)
	icoK214504T	ICON 03-08 Ram 2500/3500 4.5in Stage 5 Suspension System (1x ico214010, 1x ico214027, 1x ico214030, 1x ico214040, 1x ico37023, 1x ico211205, 1x ico217701CP, 1x ico217810CP)

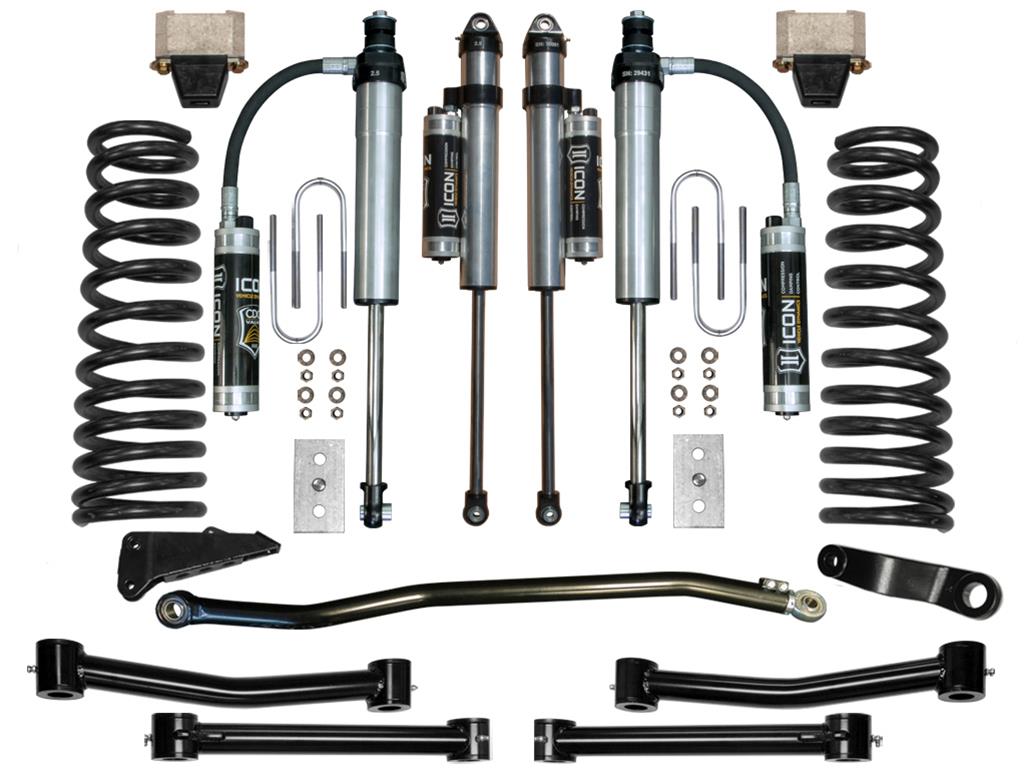

	icoK214554T	ICON 09-12 Ram 2500/3500 4.5in Stage 5 Suspension System (1x ico214010, 1x ico214027, 1x ico214030, 1x ico214040, 1x ico214101, 1x ico37023, 1x ico211205, 1x ico217701CP, 1x ico217810CP)
	icoK212503T	ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 3 Suspension System (1x ico214027, 1x ico214030, 2x ico216521R, 2x ico216522R, 1x ico212500)

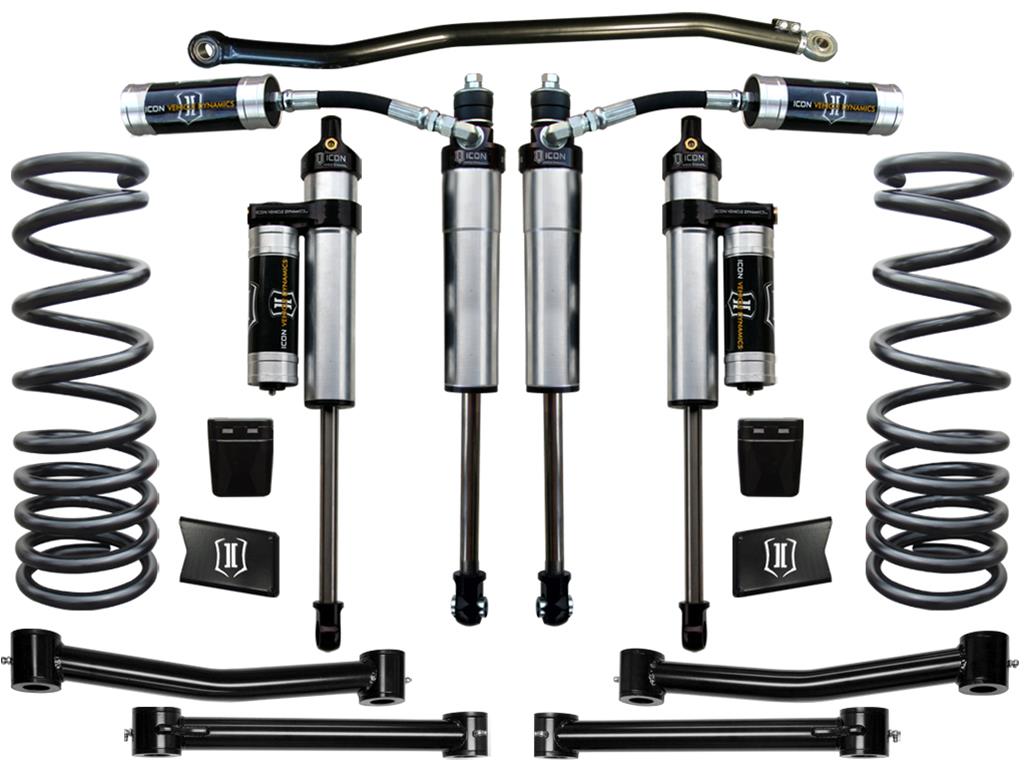

	icoK212504T	ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 4 Suspension System (1x ico214027, 1x ico214030, 1x ico217701P, 1x ico217800P, 1x ico212500)

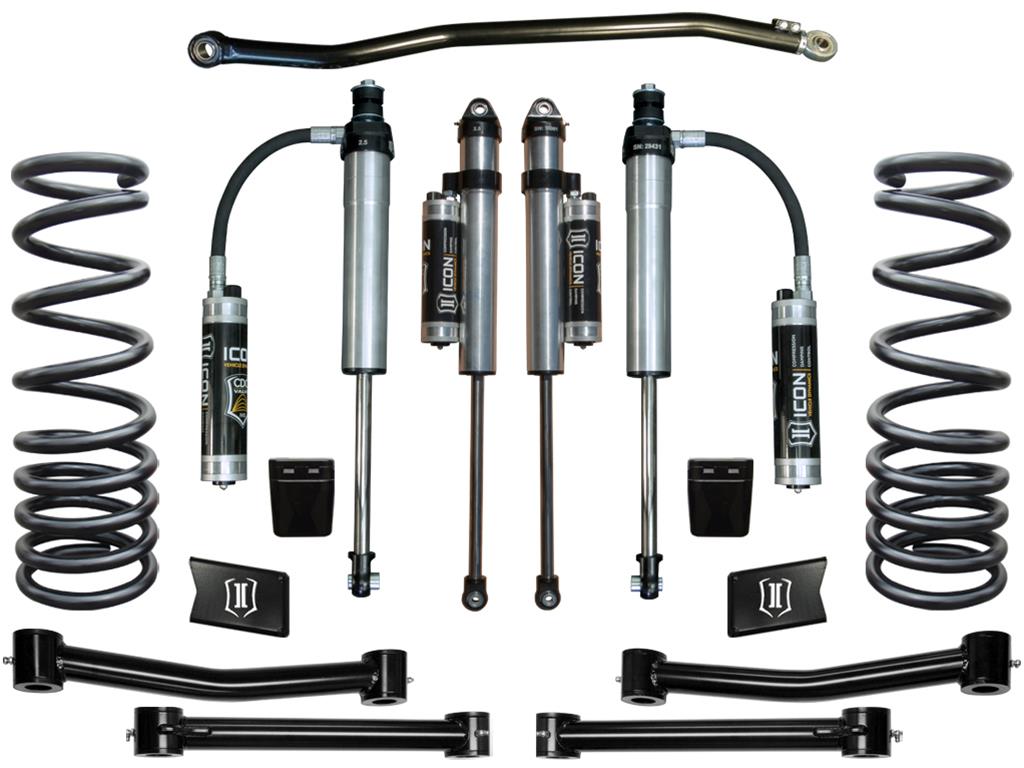

	icoK212505T	ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 5 Suspension System (1x ico214027, 1x ico214030, 1x ico217701CP, 1x ico217800CP, 1x ico212500)
	icoK212502	ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 2 Suspension System (1x ico214030, 2x ico216521R, 2x ico216522R, 1x ico212500)

• Allows for full suspension articulation without binding
• Constructed with CNC machined and bent 1 1/2" x .250 wall 1026 seamless DOM tubing
• Easy install in to OEM mounts w/ application specific hardware
• Minimal to no Deflection
• On vehicle adjustable for precise track alignment
• Utilizes a 1" uniball on the driver side and PTFE lined rod end on the passenger side

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Special Note for Dodge Ram (Classic/DT/DS)

Since Dodge/Ram manufacturered concurrent Ram 1500, 2500 & 3500 models on both new and old body designs, please ensure you select the parts to suit the correct submodel. The year alone may not always be a reliable way to verify your submodel in the case of some Rams, so we encourage you to double check if you have the Classic, or the new shape when making orders for parts that are not the identical between both styles.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

03-12 RAM HD ADJ TRACK BAR KIT
