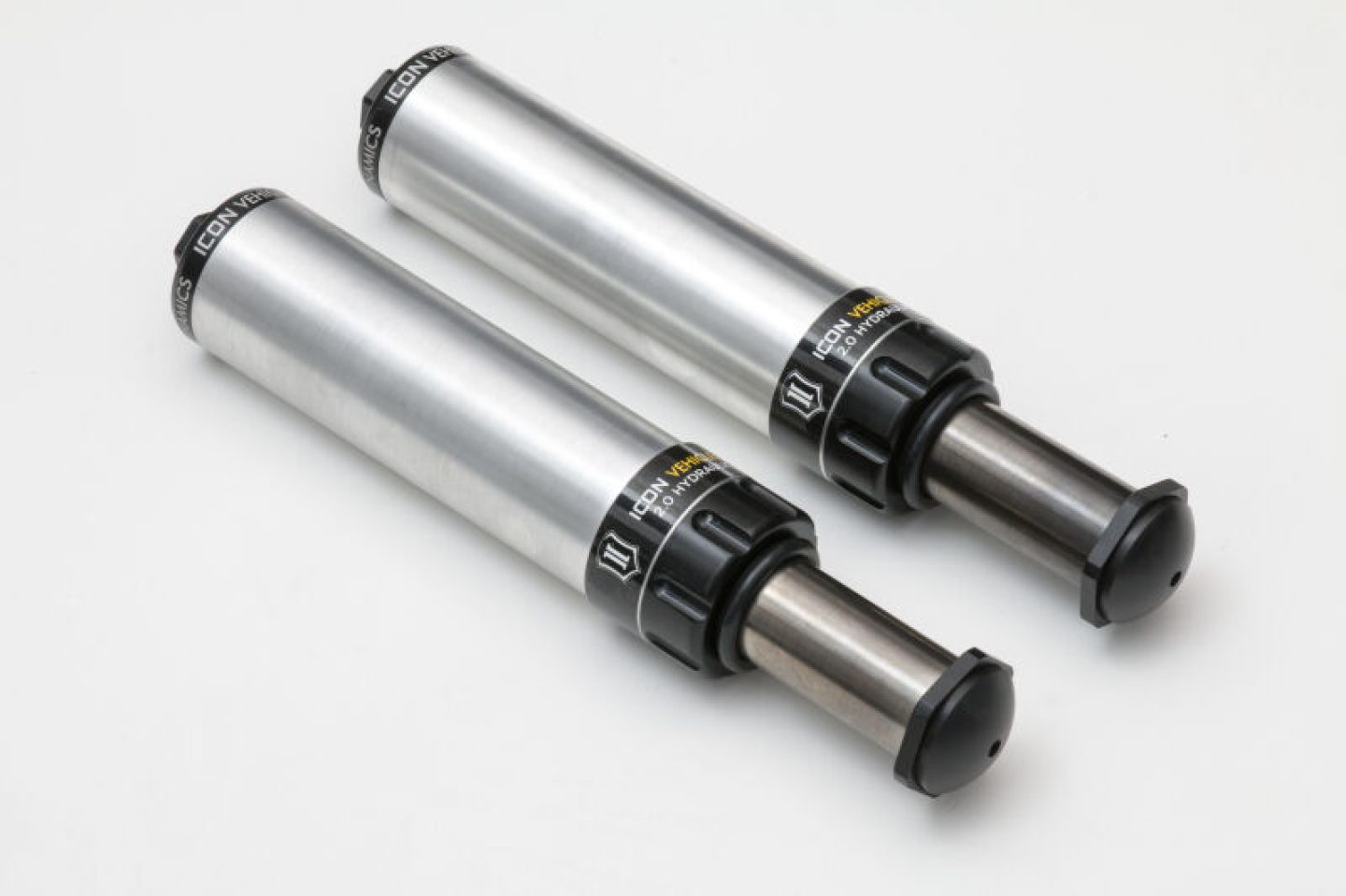

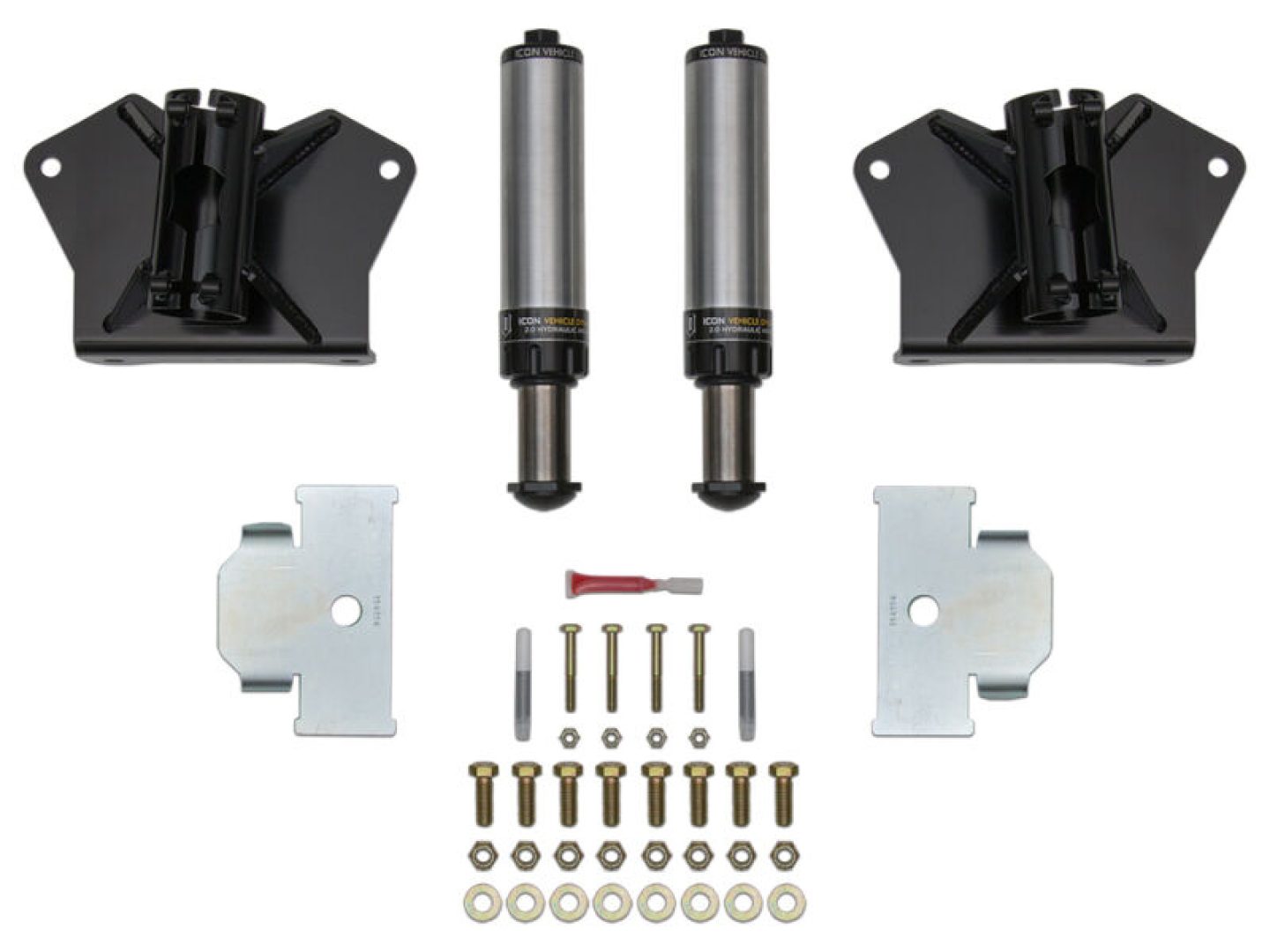

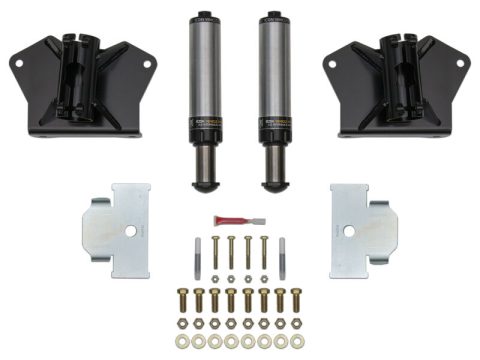

ICON 2007+ Toyota Tundra Rear Hydraulic Bump Stop Kit

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.

Additional Information

2007-2021 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP SYSTEM

Part Type

Suspension Bump Stop Kit

Product Overview

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53167	ICON 2007+ Toyota Tundra 1.63-3in Stage 3 3.0 Suspension System (2x ico158509, 1x ico52050, 1x ico56108, 1x ico58560DJ, 1x ico58755, 1x ico59923P)
	icoK53166	ICON 2007+ Toyota Tundra 1.63-3in Stage 2 3.0 Suspension System (2x ico158509, 1x ico52050, 1x ico56108, 1x ico58560DJ, 1x ico58755, 1x ico57823CP)
	icoK53157	ICON 2007+ Toyota Tundra RXT Stage 3 System (2x ico158509, 1x ico52050, 1x ico56108, 1x ico59923P)
	icoK53155	ICON 2007+ Toyota Tundra RXT Stage 1 System (2x ico158509, 1x ico52050, 1x ico56108, 1x ico57823P)
	icoK53156	ICON 2007+ Toyota Tundra RXT Stage 2 System (2x ico158509, 1x ico52050, 1x ico56108, 1x ico57823CP)

• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance

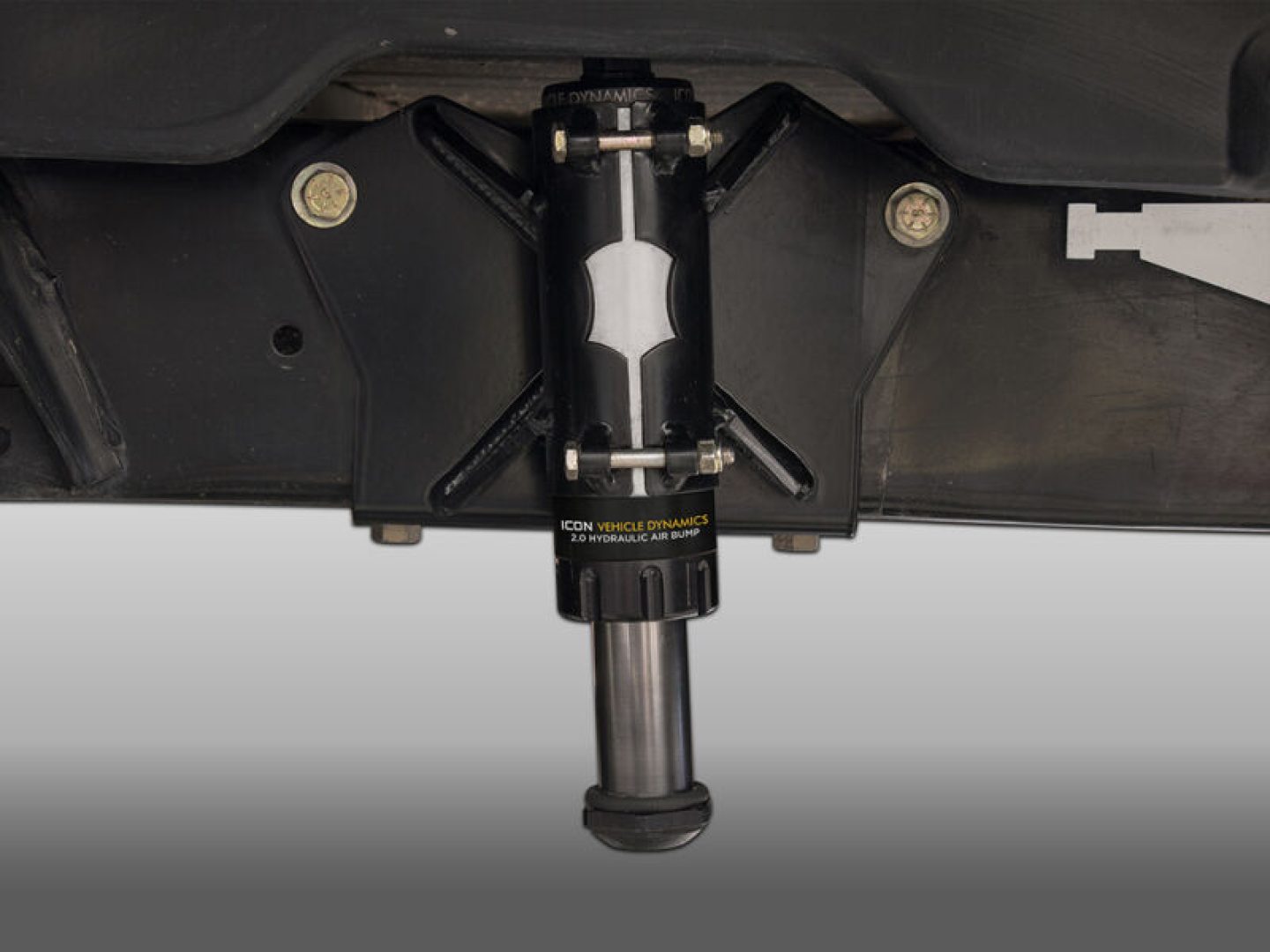

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Double sealed high pressure Schrader valve
• Fully reversible to factory configuration with no bed cutting required
• Fully serviceable
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Operating range of 50 – 250 PSI
• Position sensitive technology exponentially increases bottom-out resistance
• Replaceable noise reducing striker pad
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

07-UP TUNDRA REAR HYD BUMP STOP KIT
