Description

TUBULAR UCA KIT

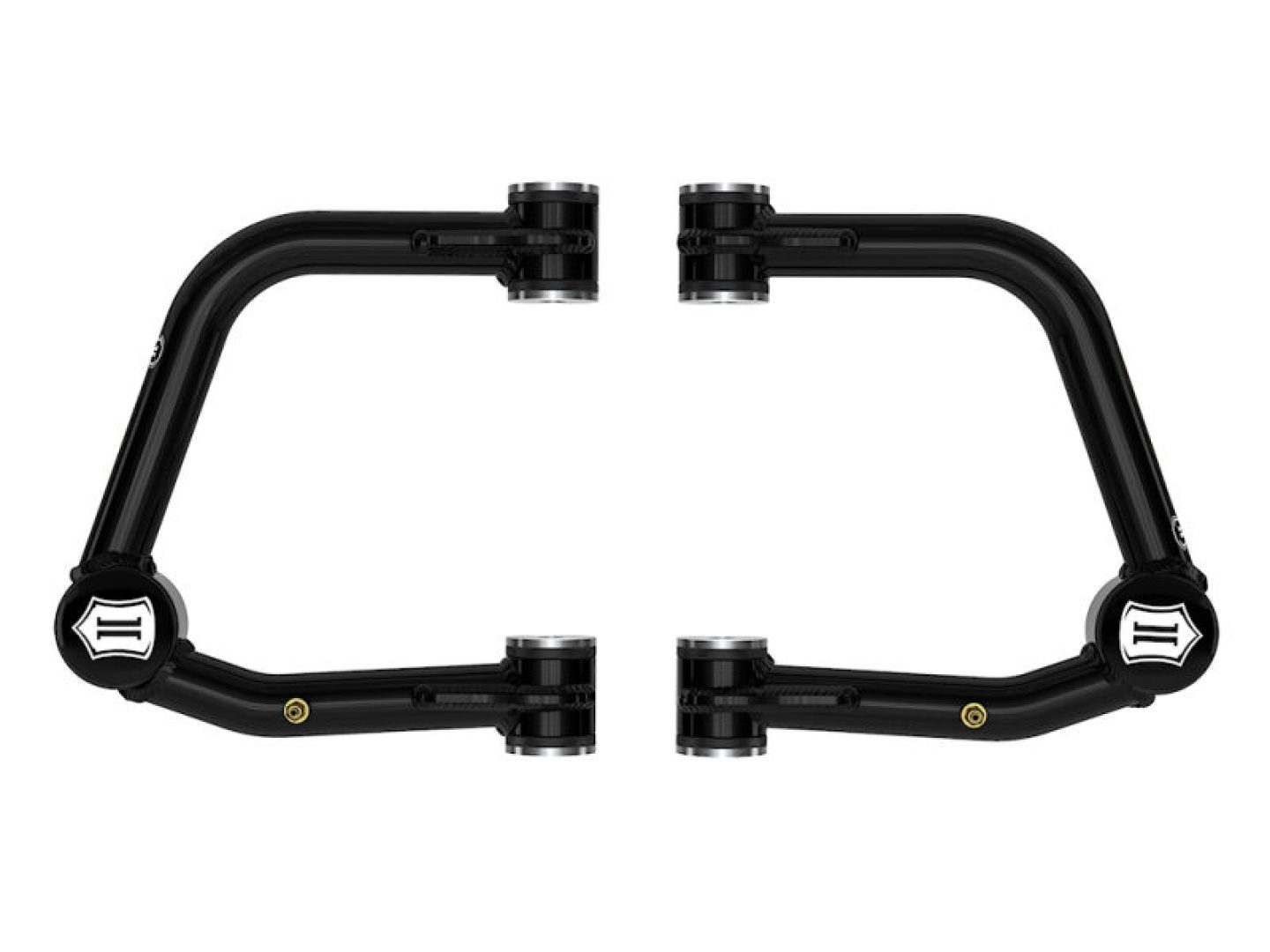

These tubular steel upper control arms free up your 2022-2024 Toyota Tundra's or 2023-2024 Toyota Sequoia's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90Ã‚Â° of free articulation to maximize suspension travel without bind. It's also larger and fully rebuildable. The Delta Joint PRO's grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia.

Additional Information

ICON tubular UCAs feature 1026 DOM tube construction, urethane bushings, and ICON's rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.

Application Summary

ICON 22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT

Part Type

Suspension Control Arm Kit

Product Overview

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

Features and Benefits

Built in added caster for better handling on lifted vehicles
Delta Joint PRO allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
Serviceable dual stage pivot bushings
CNC machined housings for bushings and Delta Joint PRO
1026 DOM tube construction with black powder coat finish
Includes billet dust caps for Delta Joint PRO

Product Details

AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	191013 - NIPPLE GREASING ADAPTER KIT
Adjustable Control Arm:	No
Adjustable:	No
Attachments Included:	No
Ball Joint Included:	Yes
Ball Joint Mounting Type:	Press In
Ball Joint Stud Type:	Threaded
Bushing Color:	Black
Bushing Material:	Polyurethane
Bushings Included:	Yes
Color:	Black
Construction:	Tubular
Control Arm Color:	Black
Control Arm Construction:	Tubular
Control Arm Material:	DOM Steel
Description:	ICON 2022+ Toyota Tundra Tubular Upper Control Arm Delta Joint Pro Kit
End 1 Type:	Bushing
End 2 Type:	BALL JOINT
Finish:	Powdercoat
Grade Type:	Performance
Grease Fitting Included:	yes
Material:	DOM Steel
Mounting Bracket Included:	No
Mounting Hardware Included:	Yes
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58461DJ
Pre-Assembled:	Yes
Pre-Greased:	No
Quantity:	Pair
Recommended Aftermarket Tires:	35" x 12.50"
Recommended Aftermarket Wheels:	17x8.5" with 5.75â€ Backspace / 25mm Offset
Reinforced:	Yes
Service Parts:	614530 - 58452DJ / 58461DJ REPLACEMENT BUSHING AND SLEEVE KIT
Set:	Yes
Suspension Grade Type:	Performance
Suspension Type:	Spring
Title:	ICON 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia, Tubular Upper Control Arms, w/Delta Joint PRO

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53194T	ICON 2022+ Toyota Tundra 2-3.5 Stage 4 Suspension System Tubular (1x ico55154, 2x ico56516, 1x ico58461DJ, 1x ico58670)
	icoK53196T	ICON 2022+ Toyota Tundra 1.25-3.5in Stage 6 Suspension System Tubular (1x ico55154, 1x ico58461DJ, 1x ico58770, 2x ico56516R)
	icoK53197T	ICON 2022+ Toyota Tundra 2-3.5in Stage 7 Tubular Suspension System (1x ico55154, 1x ico58461DJ, 1x ico58770, 1x ico57840P)
	icoK53198T	ICON 2022+ Toyota Tundra 2-3.5in Stage 8 Tubular Suspension System (1x ico55154, 1x ico54002, 1x ico58461DJ, 1x ico58770, 1x ico57840P)
	icoK53199T	ICON 2022+ Toyota Tundra 2-3.5in Stage 9 Tubular Suspension System (1x ico55154, 1x ico58461DJ, 1x ico58770C, 1x ico57840CP)
	icoK53192T	ICON 2022+ Toyota Tundra 2-3in Stage 2 Tubular Suspension System (2x ico58671, 1x ico55154, 2x ico56516, 1x ico58461DJ)
	icoK53212T	ICON 2022+ Toyota Tundra 2-3.25in Stage 2 3.0 Suspension System (TUBULAR) (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico58775C, 1x ico57845CP)
	icoK53195T	ICON 2022+ Toyota Tundra 2-3.5in Stage 5 3.0 Suspension System (TUBULAR) (1x ico55154, 1x ico58461DJ, 1x ico58670, 2x ico56516R)
	icoK53211T	ICON 2022+ Toyota Tundra 2-3.25in Stage 1 3.0 Tubular Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico57840CP, 1x ico58775C)
	icoK53200T	ICON 2022+ Toyota Tundra 2-3.5in Stage 10 Tubular Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico58770C, 1x ico57840CP)
	icoK53236T	ICON 23 Toyota Sequoia 3-4.5in Stage 6 Suspension System Tubular (1x ico55154, 1x ico58461DJ, 1x ico58770, 2x ico56516R, 1x ico51212)
	icoK53234T	ICON 2023 Toyota Sequoia 3-4.5in Stage 4 Suspension System Tubular (1x ico55154, 2x ico56516, 1x ico58461DJ, 1x ico58670, 1x ico51212)
	icoK53201	ICON 22-23 Toyota Tundra 2-3.5in Stage 11 Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico58770C, 1x ico57840CP, 1x ico51210)
	icoK53202T	ICON 22-23 Toyota Tundra 2-3.5in Stage 12 Suspension System (1x ico55154, 1x ico58461DJ, 1x ico53508, 1x ico58770E, 1x ico57840EP)

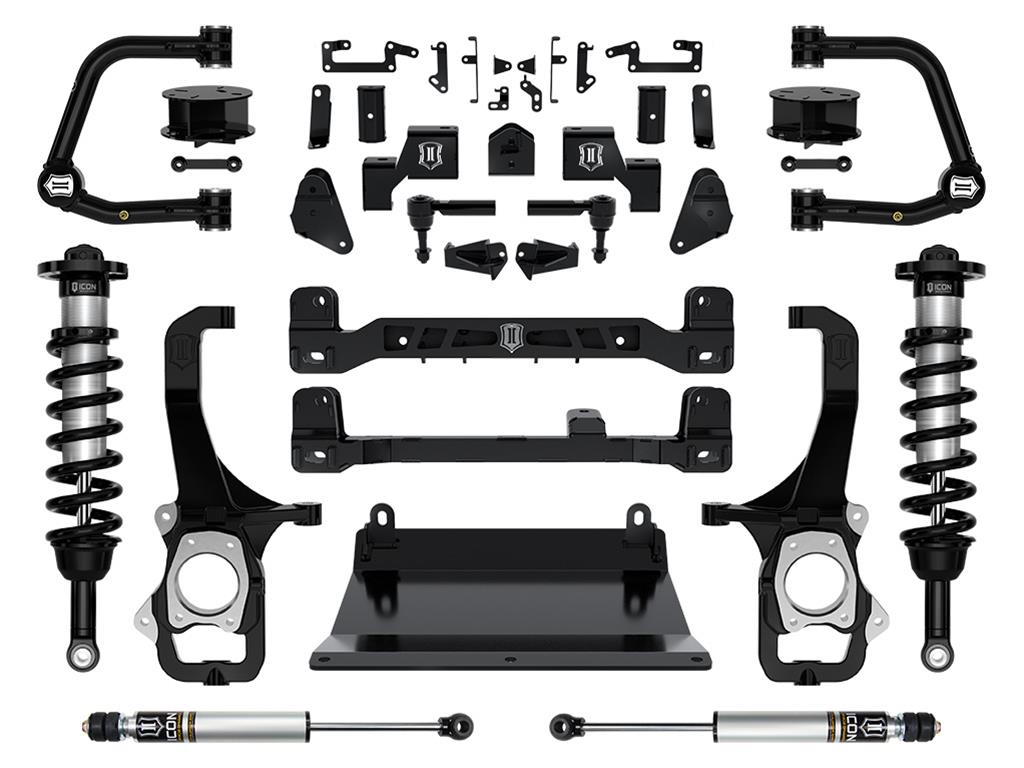

	icoK53272T	(1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51016, 1x ico51017, 1x ico51010, 1x ico58672, 2x ico56517, 1x ico51014)

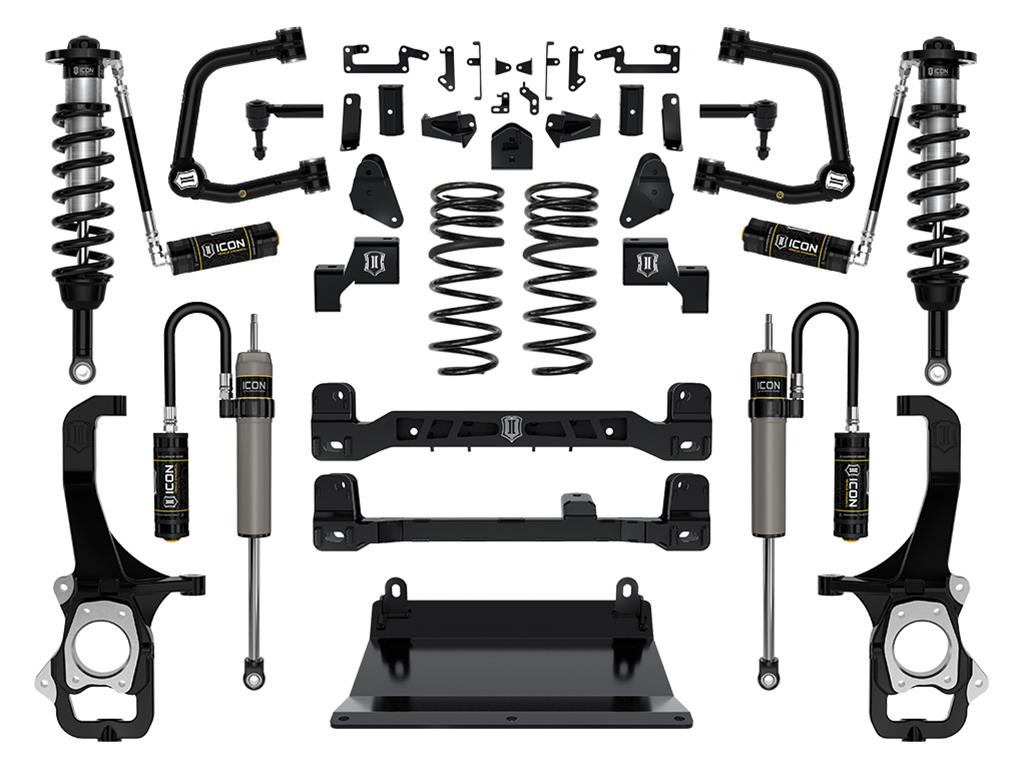

	icoK53274T	(1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico58771, 1x ico57841P, 1x ico51013, 1x ico51014)
	icoK53275T	(1x ico54002, 1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico58771, 1x ico57841P, 1x ico51013, 1x ico51014)

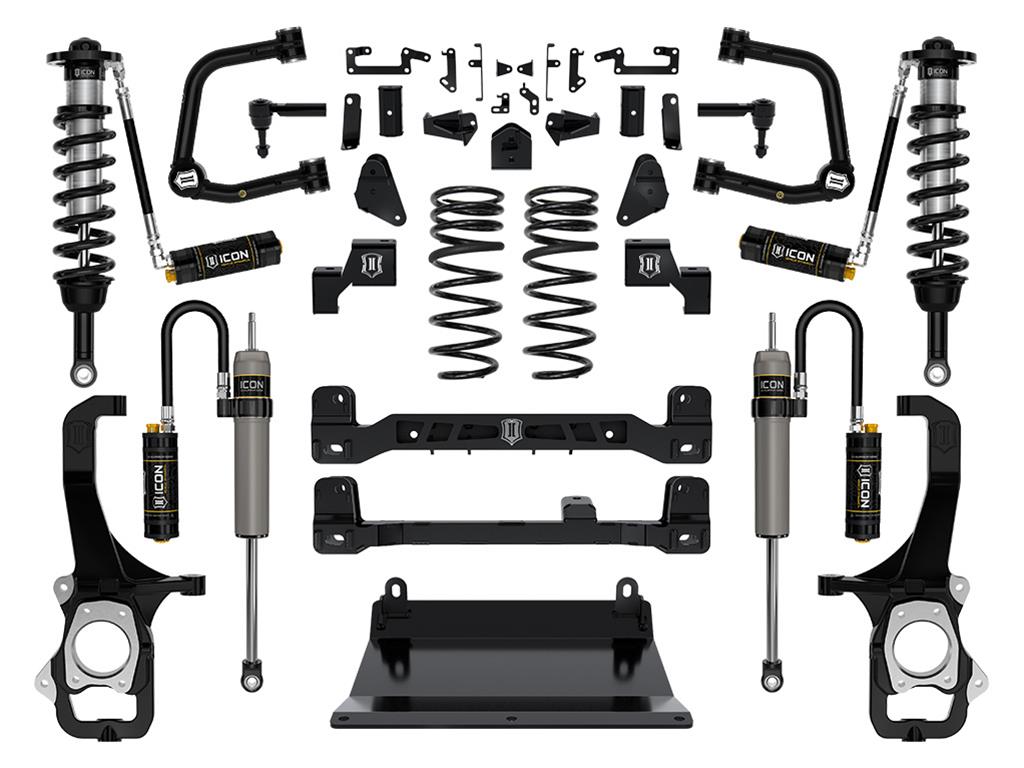

	icoK53276T	(1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)

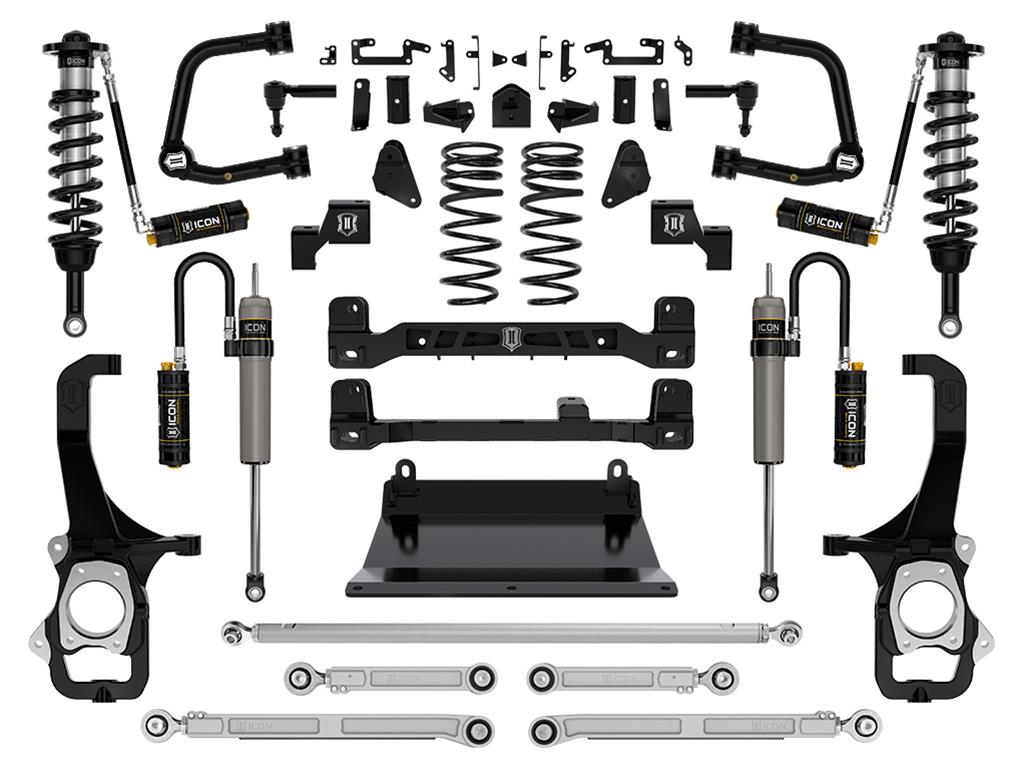

	icoK53277T	(1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)

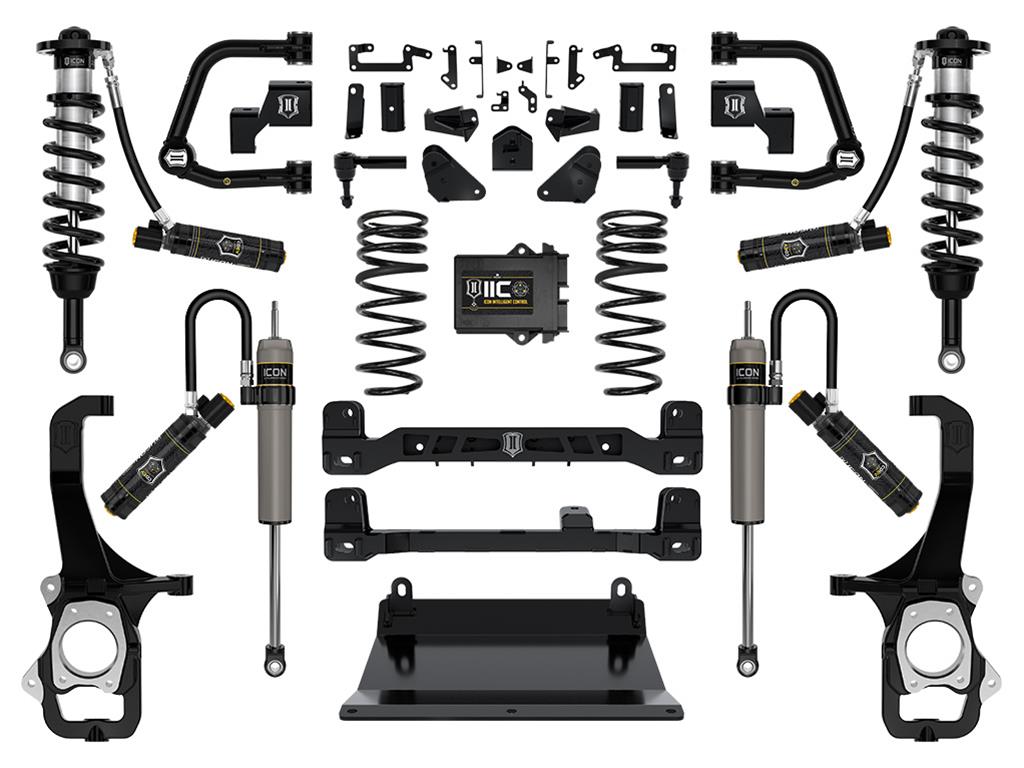

	icoK53278T	(1x ico58461DJ, 1x ico53508, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841EP, 1x ico58771E, 1x ico51013, 1x ico51014)

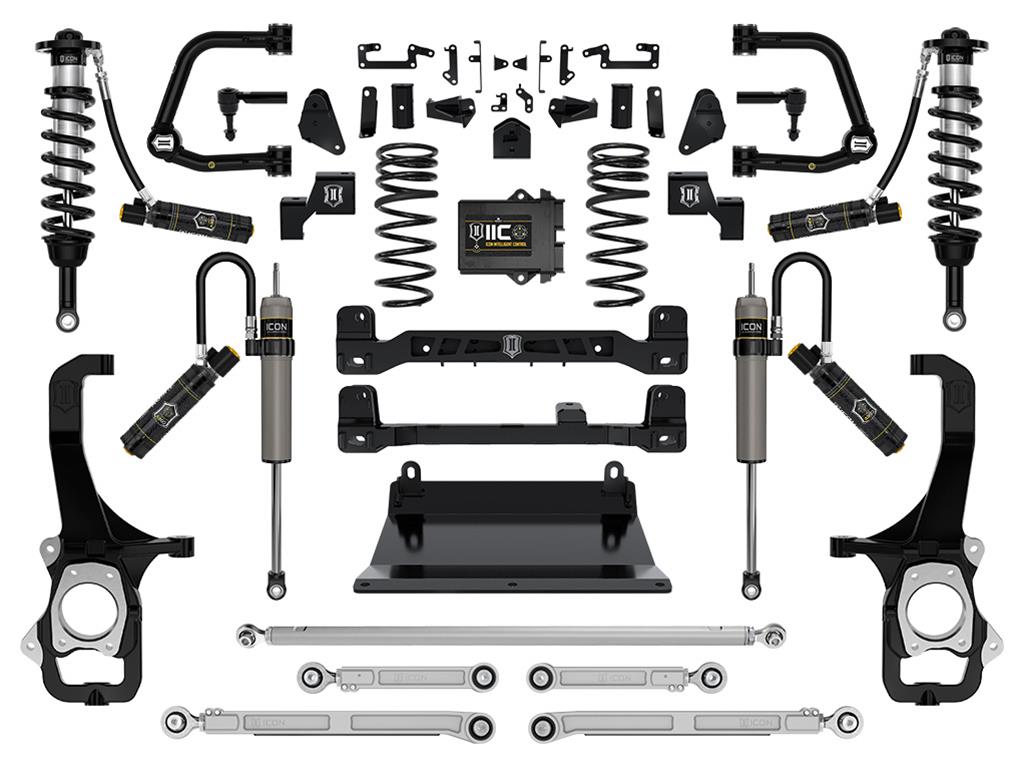

	icoK53279T	(1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico53508, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841EP, 1x ico58771E, 1x ico51013, 1x ico51014)
	icoK53214T	ICON 22-23 Toyota Tundra 2-3.5in Stage 4 3.0 Suspension System - Tubular (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico53508, 1x ico57840EP, 1x ico58775E)
	icoK53213T	ICON 22-23 Toyota Tundra 2-3.25in Stage 3 3.0 Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico58775C, 1x ico57845CP, 1x ico51210)
	icoK53213TS	ICON 22-23 Toyota Tundra 2-3.25in Stage 3 3.0 Suspension System (TRD) (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico58775C, 1x ico57845CP, 1x ico51211)
	icoK53215T	ICON 22-23 Toyota Tundra 2-3.25in Stage 5 3.0 Suspension System - Tubular (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP)
	icoK53216T	ICON 22-23 Toyota Tundra 2-3.25in Stage 6 3.0 Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51210)
	icoK53216TS	ICON 22-23 Toyota Tundra 2-3.25in Stage 6 3.0 Suspension System - Tubular (TRD) (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51211)

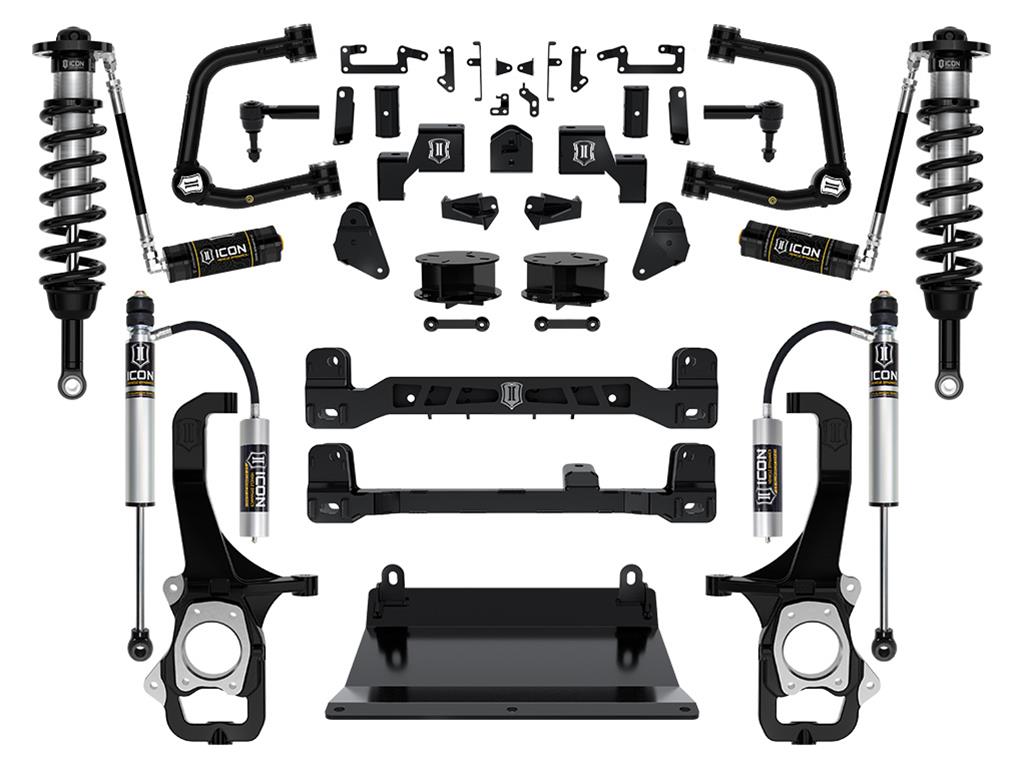

	icoK53273T	ICON 22-23 Toyota Tundra 6in Stage 3 Suspension System Tubular UCA (1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51016, 1x ico51017, 1x ico51010, 1x ico58771, 2x ico56517R, 1x ico51014)
	icoK53240T	ICON 23-24 Toyota Sequoia 3-4.5in Lift Stage 10 Suspension System Tubular (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico58770C, 1x ico57840CP, 1x ico51212)
	icoK53199TD	ICON 22-25 Toyota Tundra 2-3.5in Stage 9 Suspension System Tubular CDXS (1x ico55154, 1x ico58461DJ, 1x ico57840XP, 1x ico58770X)

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Data: v2 - Desc: v4.1 - Upd: 2026-01-18 11:38:10

Features

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Reference Data (Provide these details to our support team)
Brand Name/s	Icon, Icon Alloys, Icon Suspension (randys), Icon Vehicle Dynamics
StreetFX SKU	ico58461DJ
SFX Item ID	4141479
Accounting SKU	ico-58461DJ
Manufacturer SKU	58461DJ
Manufacturer UPC	00840103414638
Alternative References	58461DJ, IVD-58461DJ, IVD58461DJ

Specifications

Control Arm Kit, 22-UP TUNDRA TUBULAR UCA DJ KIT

Product Attributes
Brand	ICON Vehicle Dynamics
Manufacturer's Part Number	58461DJ
Part Type	Control Arms
UPC	00840103414638

compatibility

ICON 2022+ Toyota Tundra Tubular Upper Control Arm Delta Joint Pro Kit
Year Range	Make	Model	Submodels	Region
2023-2024	Toyota	Sequoia	Platinum, TRD Pro, Capstone, Limited, SR5	US
2022-2024	Toyota	Tundra	Limited, TRD Pro, Platinum, 1794 Edition, SR5, SR, Capstone	US

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
