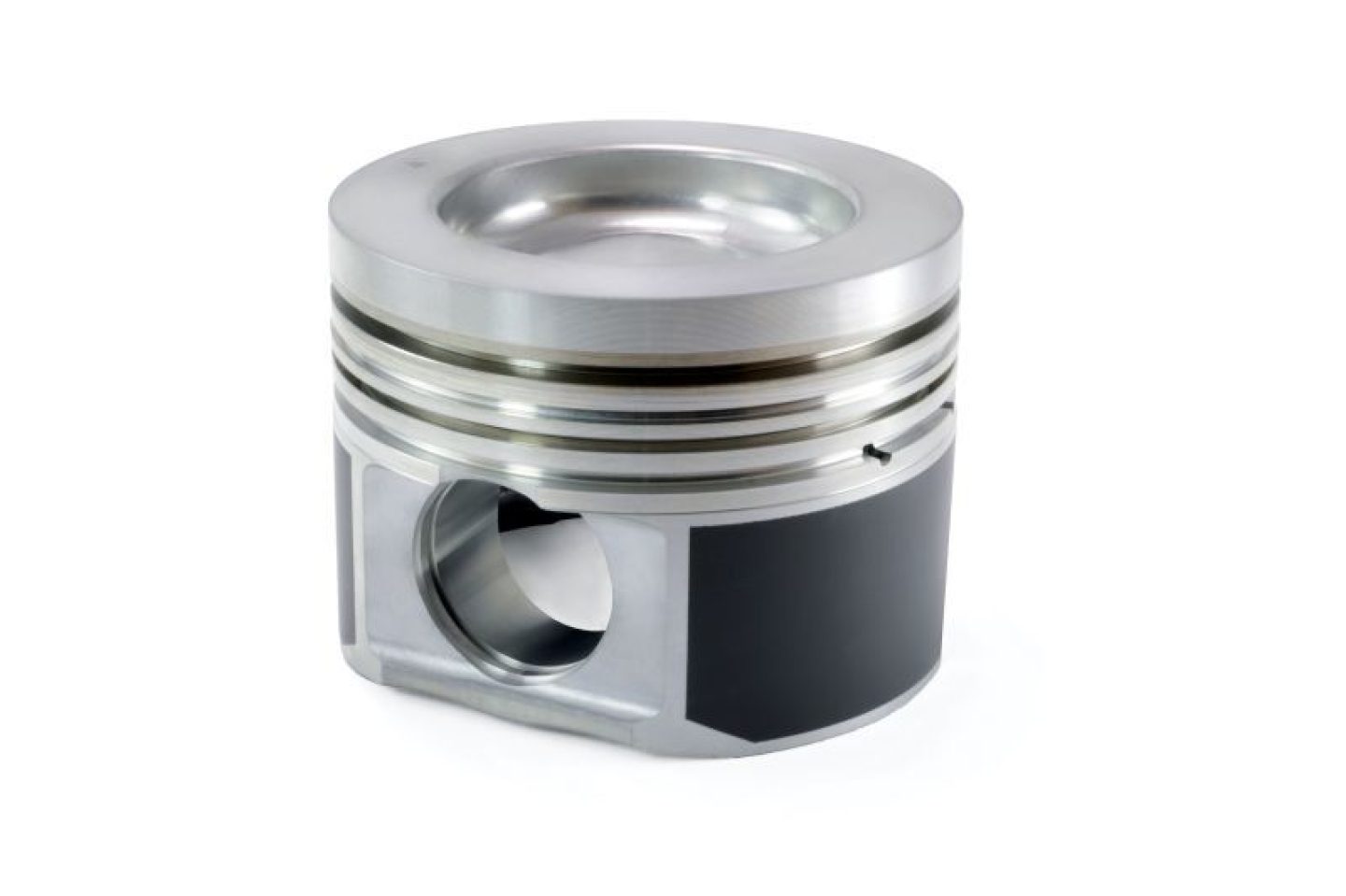

Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -40.7cc 17.0 CR Set of 8
Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -40.7cc 17.0 CR Set of 8
A$3,799.11
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -40.7cc 17.0 CR Set of 8
Additional Information
411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,896g,17.0CR, M142, TBC coated
Application Summary
GM 6.6L Duramax 411 cu in.
Product Overview
Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -40.7cc 17.0 CR Set of 8
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 05:17:50
Features
Note for Pistons, Rings, Rotors, Rods and engine internals
Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.
(keyword: piston)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Clip Style: | Snap Ring |
| Clips Included: | Yes |
| Coatings: | Grafal Plus TBC |
| Crown Vol: | -40.7cc |
| Description: | Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -40.7cc 17.0 CR Set of 8 |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930036095T |
| Pin Diameter: | 1.358 |
| Pin Length: | 3.051 |
| Pin Mass: | 410g |
| Pin Material: | Steel |
| Pin Style: | Dish, w/ NO valve reliefs |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 896g |
| Piston Material: | Cast, M142 |
| Piston Ring Thickness: | K3.0mm, 2.0mm, 3.0mm |
| Piston Style: | Floating |
| Rings Included: | Yes |
| Title: | MAHLE Motorsports - 411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,896g,17.0CR, M142 |
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Mahle, Mahle Motorsport, Mahle OE, Mahle Original, MAHLE ORIGINAL/CLEVITE, MAHLE PISTONS |
| StreetFX SKU | mhl930036095T |
| SFX Item ID | 4177771 |
| Accounting SKU | mhl-930036095T |
| Manufacturer SKU | 930036095T |
| Manufacturer UPC | 930036095T |
| Alternative References | 930036095T |
