Oil Catch Can Kit

There's nothing worse than getting your 2018+ Jeep Wrangler JL halfway up a rock face, looking back to see your friends' reactions, and seeing nothing but blue smoke. The 3.6L Pentastar is notorious for excessive amounts of blow-by entering the intake. This blow-by carries oil, fuel, and water vapor left over from combustion and too much of it causes smoking on inclines and while driving. This blow-by can also coat sensors and other intake components, reducing the performance of your engine and potentially causing knock.
----

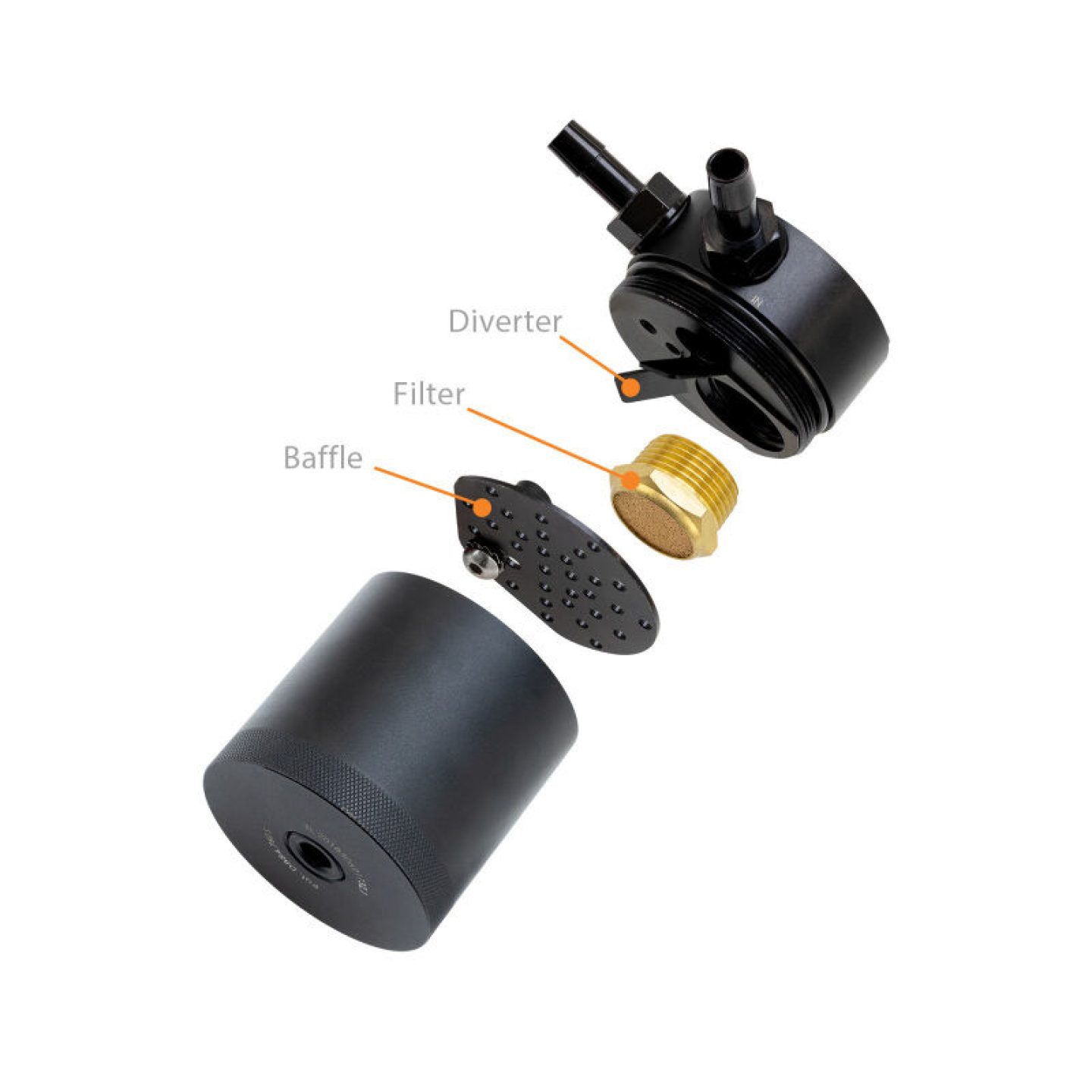

Our direct-fit 2018+ Jeep Wrangler JL 3.6L Baffled Oil Catch Can Kit protects your engine by keeping blow-by out of the intake. This allows your engine to burn only the high-quality gas that you put in the tank. Our catch can employs a series of air turbulators, a baffle, and 50-micron bronze filter to clean the blow-by of vapors before it returns to your intake.
----

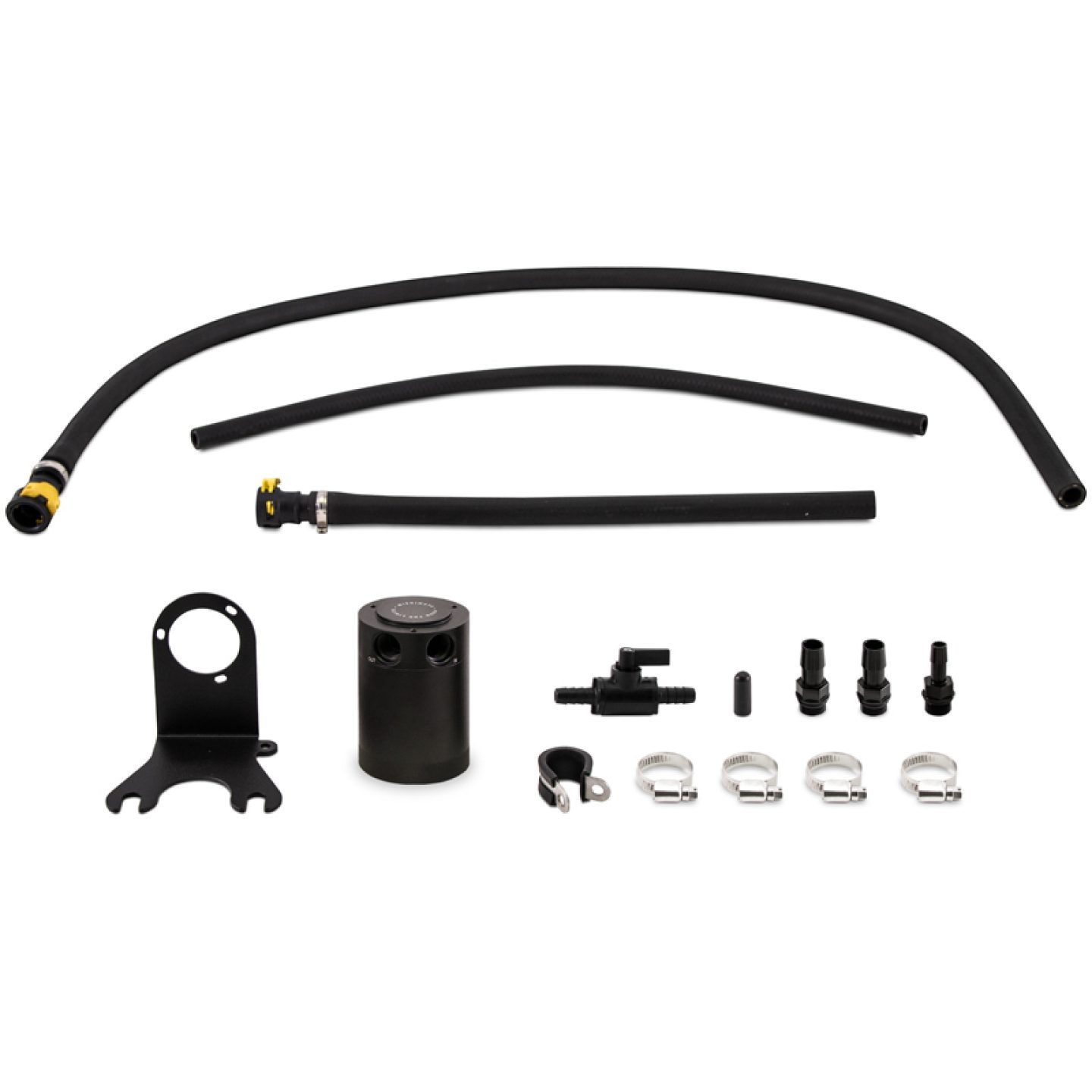

This catch can kit is a direct fit for your Wrangler, with no cutting or other modifications required. Installation of this catch can takes less than an hour thanks to the pre-cut hoses and installed stock quick-disconnects. A custom engineered 2.5mm steel bracket mounts our catch can to the fender rail, isolating it from engine vibration and movement for a lifetime of service. Also included with this catch can is a drain kit. Simply remove the plug from the bottom of the catch can and connect the drain kit to empty the catch can from behind the front wheel, without having to open the hood. This convenient feature lets you drain the can and get out on the road or trail in minutes. The included rubber cap prevents dirt and debris from entering the valve, so you never have to worry about clogged valve slowing you down.
----
Like all Mishimoto product, this 2018+ Jeep Wrangler JL 3.6L Baffled Oil Catch Can Kit is protected by our Mishimoto Lifetime Warranty.

Additional Information

Engine oil catch can kit designed to capture oil vapors and prevent buildup in the intake system. Helps maintain efficiency, reduce carbon deposits, and improve performance with durable components and easy installation.

Part Type

Engine Oil Catch Can Kit

Product Overview

There's nothing worse than getting your 2018+ Jeep Wrangler JL halfway up a rock face, looking back to see your friendsft reactions, and seeing nothing but blue smoke. The 3.6L Pentastar is notorious for excessive amounts of blow-by entering the intake. This blow-by carries oil, fuel, and water vapor left over from combustion and too much of it causes smoking on inclines and while driving. This blow-by can also coat sensors and other intake components, reducing the performance of your engine and potentially causing knock. But Mishimoto has the solution. Our 2018+ Jeep Wrangler JL 3.6L direct-fit baffled oil catch can kit protects your engine by keeping blow-by out of the intake. This allows your engine to burn only the high-quality gas that you put in the tank. Our catch can employs a series of air turbulators, a baffle, and 50-micron bronze filter to clean the blow-by of vapors before it returns to your intake. This catch can kit is a direct fit for your Wrangler, with no cutting or other modifications required. Installation of this catch can takes less than an hour thanks to the pre-cut hoses and installed stock quick-disconnects. A custom engineered 2.5mm steel bracket mounts our catch can to the fender rail, isolating it from engine vibration and movement for a lifetime of service. Also included with this catch can is a drain kit. Simply remove the plug from the bottom of the catch can and connect the drain kit to empty the catch can from behind the front wheel, without having to open the hood. This convenient feature lets you drain the can and get out on the road or trail in minutes. The included rubber cap prevents dirt and debris from entering the valve, so you never have to worry about clogged valve slowing you down. Like all Mishimoto product, this 2018+ Jeep Wrangler JL 3.6L baffled oil catch can kit is protected by our Mishimoto Lifetime Warranty. So, whether you?re climbing a treacherous rock face, exploring the wilderness, or just driving to work, y

• Durable 2.5mm thick steel bracket mounts the catch can out of the way of other engine components and isolates it from engine vibration for a lifetime of service
• Included drain kit empties catch can through the fender well in minutes for easy, mess-free maintenance without opening the hood
• Installs in under 1 hour

Important Note Regarding Oils, Additives, Aerosols & Liquids

This listing may contain a product with transport restrictions. Items containing oils, additives, aerosols, adhesive or other liquid/chemical-based products may be subject to shipping restrictions depending on their current warehouse location, carrier requirements, and applicable transport regulations.

Some liquid and aerosol products are restricted for air freight or certain road freight routes and may require alternative transport methods or dispatch from a specific warehouse. While the majority of these items ship without issue, these factors can occasionally affect available shipping options or delivery timeframes.

If you are working to a tight deadline, require urgent delivery, or are unsure whether a product can be shipped to your location, we recommend contacting the StreetFX team prior to placing your order so we can confirm availability and the most suitable freight option.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Oil Catch Can, Jeep Wrangler JL 3.6L Baffled Oil Catch Can, 2018+

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.

These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
