Mishimoto 2019+ Ram 6.7L Cummins Intercooler Kit BK Cooler P Pipes
Mishimoto 2019+ Ram 6.7L Cummins Intercooler Kit BK Cooler P Pipes
A$4,478.47
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Mishimoto 2019+ Ram 6.7L Cummins Intercooler Kit BK Cooler P Pipes

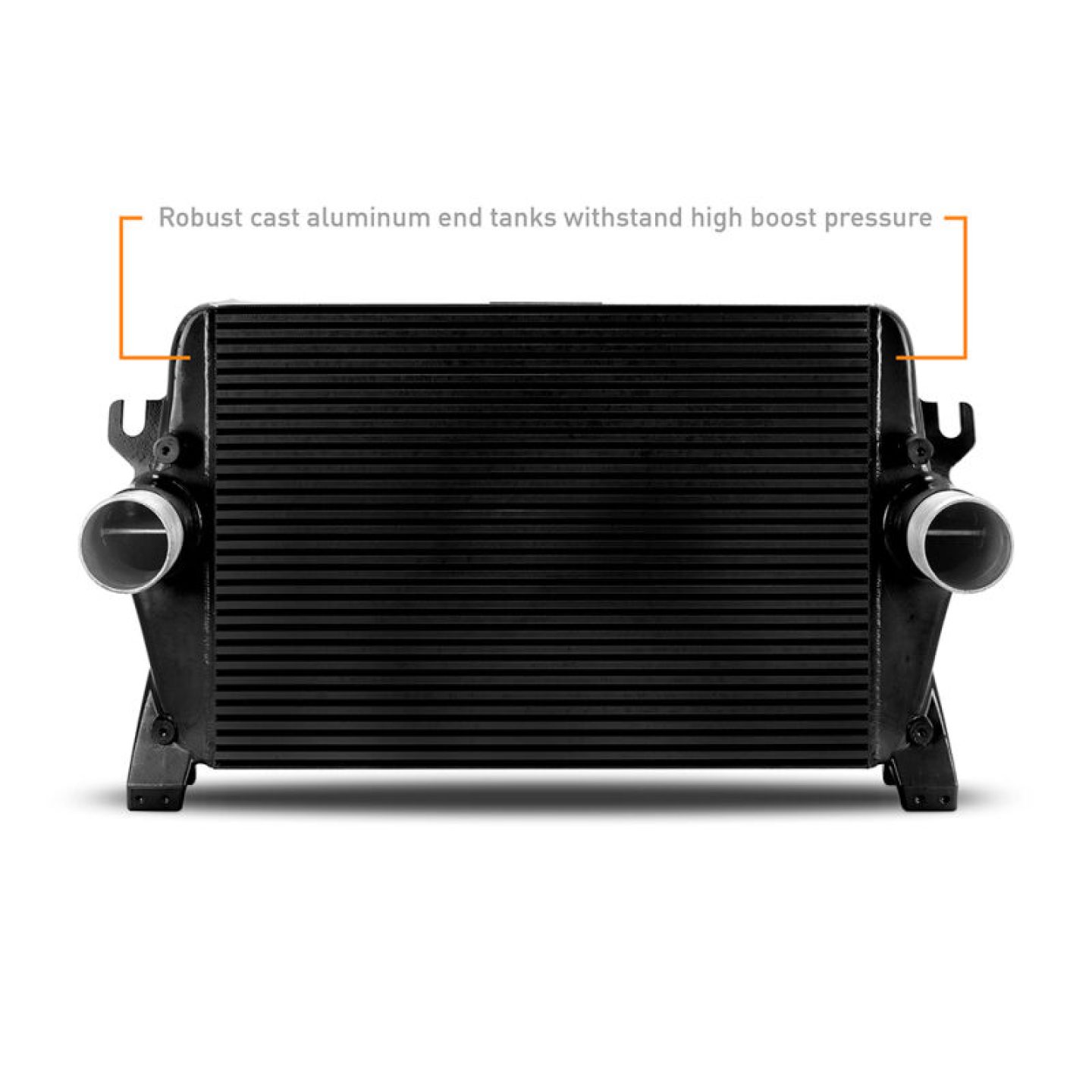

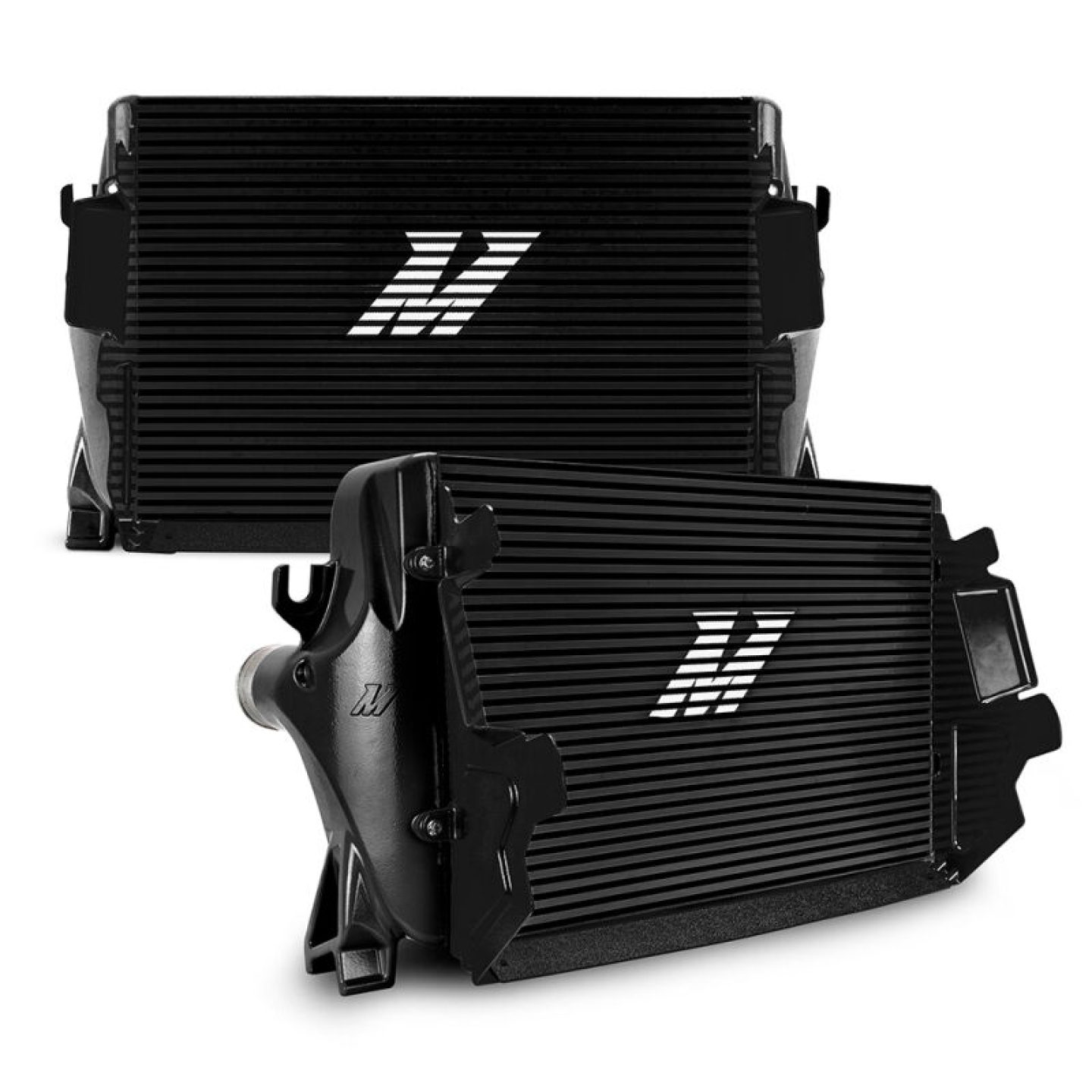

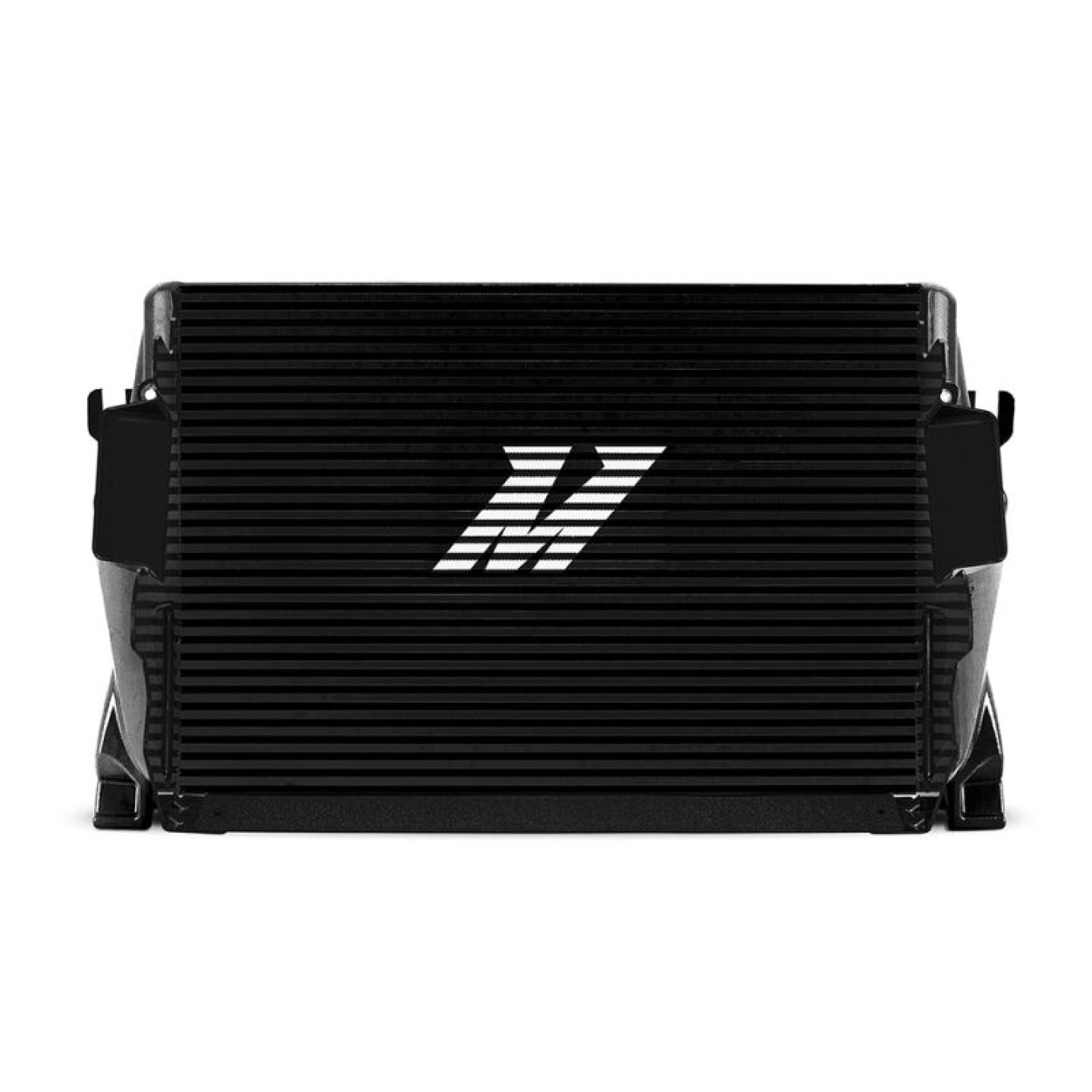

Mishimoto's performance intercooler is the perfect upgrade for your 2019-2024 Dodge Ram 6.7L Cummins. Engineered for exceptional cooling capacity and reliability, this intercooler features robust cast aluminum end tanks and a dense bar-and-plate core. With increased core volume, it supports substantial boost pressures, making it ideal for both stock and modified trucks. The included silicone boots, featuring DuraCore(TM) technology, provide superior resistance to heat, pressure, fuel, and oil, ensuring long-lasting performance. Available in sleek silver or stealth black, this intercooler is a must-have for Cummins owners seeking to elevate their truck's performance. Backed by Mishimoto's Lifetime Warranty, you can trust in the quality and durability of this premium upgrade.
Additional Information
Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.
Features
- 44.7% less restrictive than stock

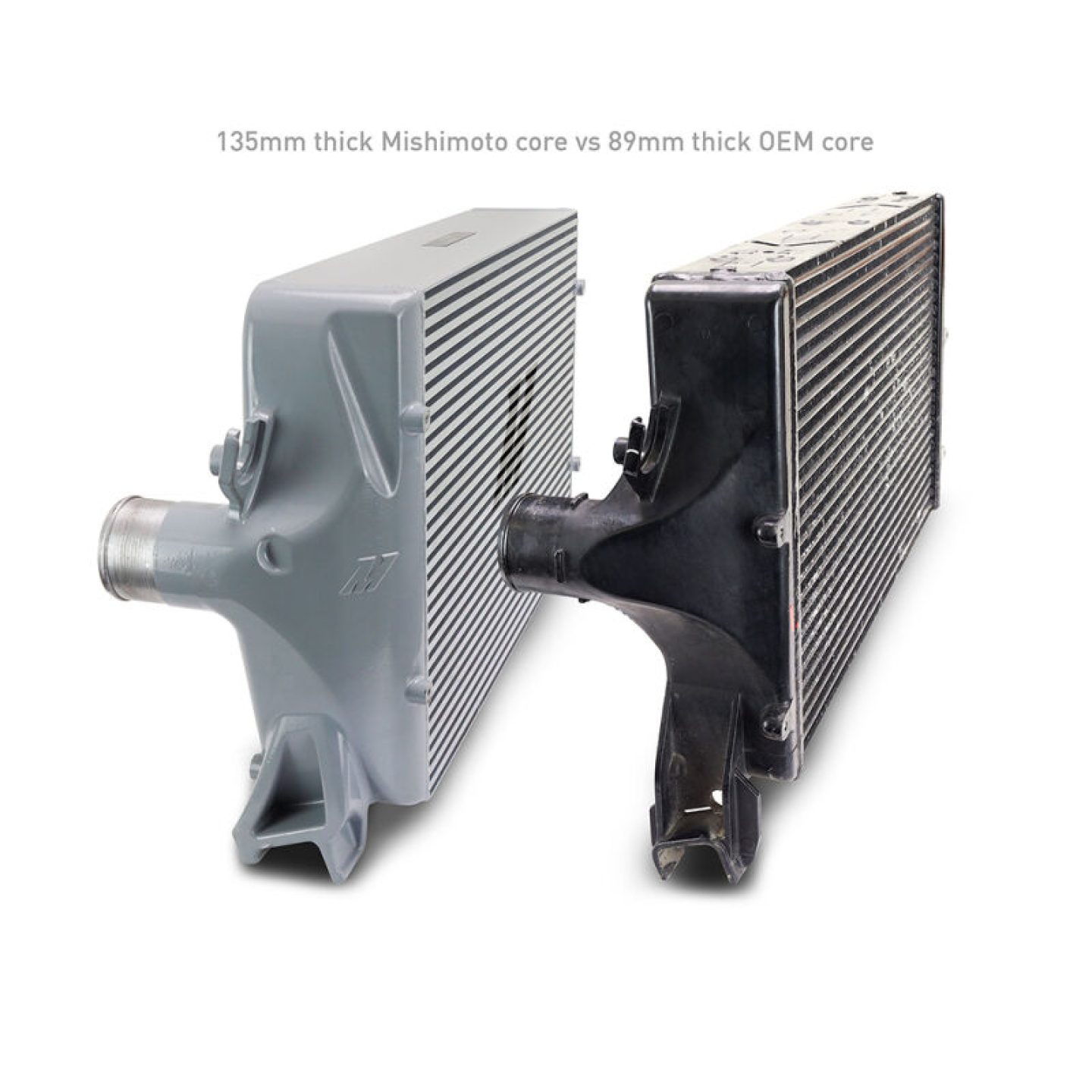

- 63% larger core than stock
- Demonstrated to reduce outlet temperatures by 20F compared to stock
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Cold Side Pipe Inside Diameter: | 3.03 |
| Core Color: | Black |
| Core Construction: | Bar-and-Plate |
| Core Height: | 17.03 |
| Core Length: | 25 |
| Core Material: | Aluminum |
| Core Thickness: | 5.31 |
| Coupler Color: | Black |
| Coupler Material: | Silicone |
| Description: | Mishimoto 2019+ Ram 6.7L Cummins Intercooler Kit BK Cooler P Pipes |
| End Tank Construction: | Cast |
| End Tank Material: | Aluminum |
| Grade Type: | Performance |
| Hose Clamps Included: | Yes |
| Hot Side Pipe Inside Diameter: | 3.03 |
| Inlet Diameter: | 3.03 |
| Install Difficulty: | 3 |
| Intercooler Type: | Air-to-Air |
| Maximum Boost Pressure: | 100 |
| Maximum Horsepower: | 734 |
| OptionLabel: | Black Intercooler Silver Pipes |
| Outlet Diameter: | 3.03 |
| Part Number: | misMMINT-RAM-19KBKP |
| Pipe Color: | Silver |
| Pipe Finish: | Powder Coated |
| Pipe Material: | Aluminum |
| Feature 1: | Demonstrated to reduce outlet temperatures by 20°F compared to stock |
| Feature 2: | 63% larger core than stock |
| Feature 3: | 44.7% less restrictive than stock |
| Feature 4: | Increased charged air density to 237% |
| Feature 5: | Robust bar-and-plate construction supports higher boost pressure and less prone to damage from road debris or repeated heat cycles |

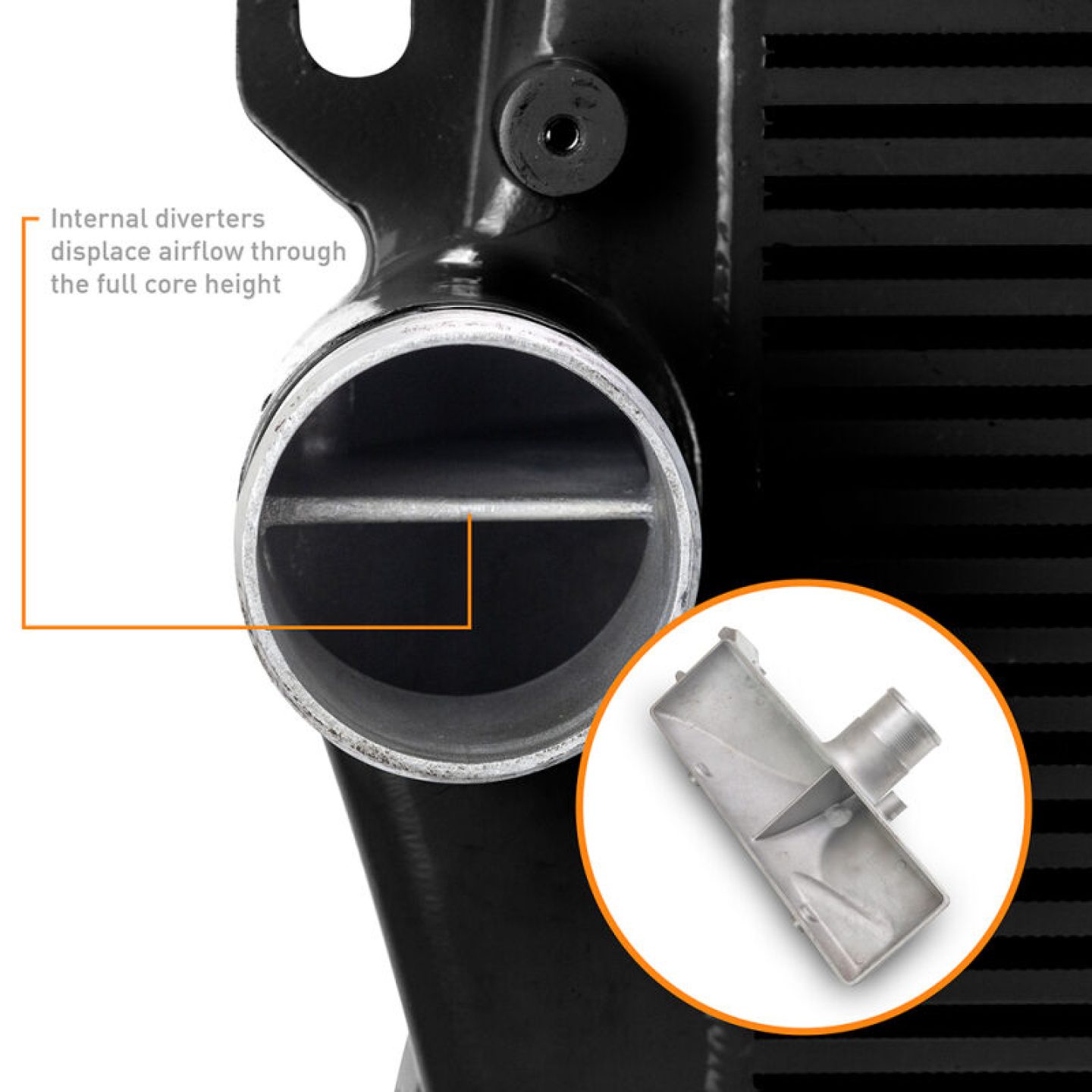

| Feature 6: | Internal air diverter plates inside each end tank to guide charged air evenly across the core and reduce pressure loss |

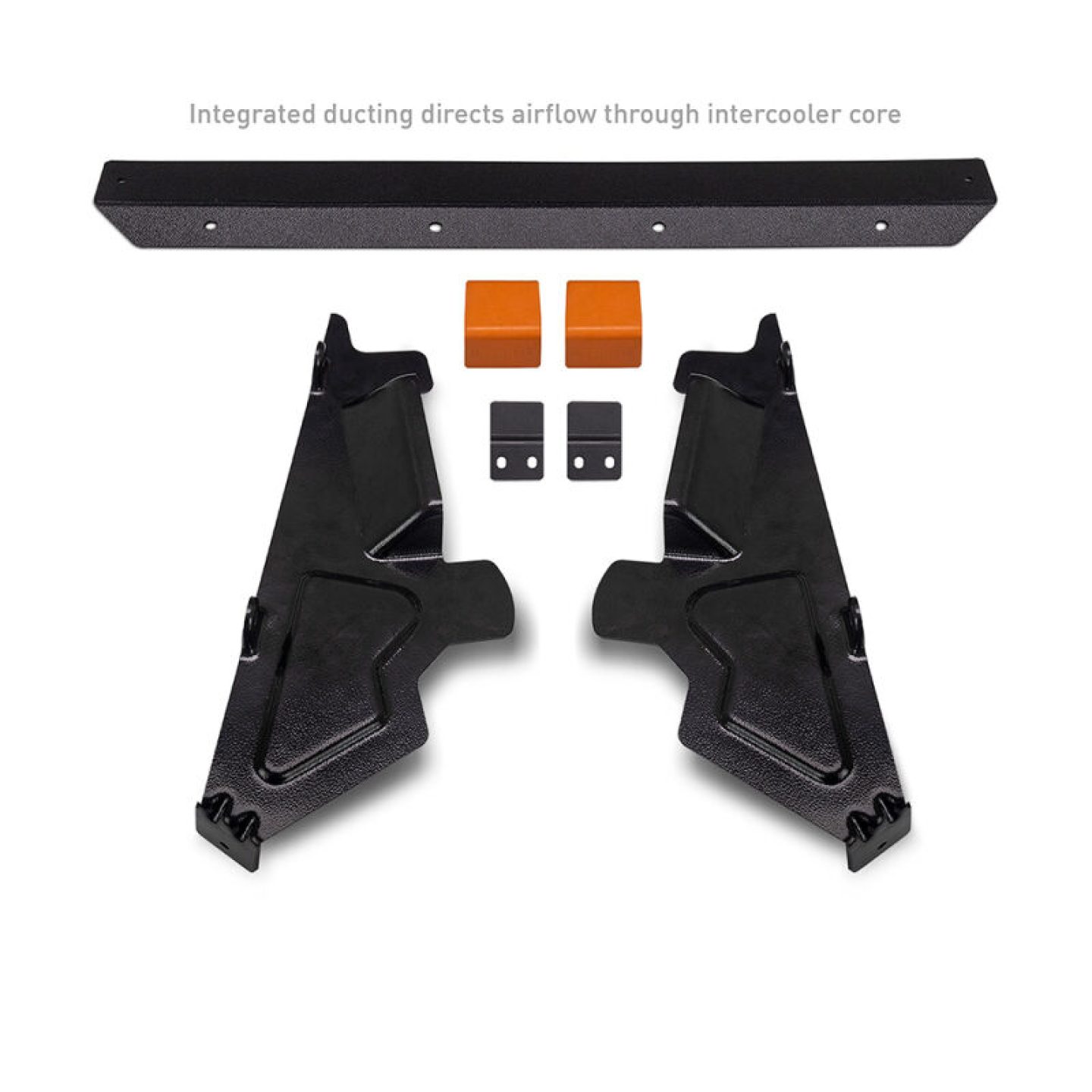

| Feature 7: | Specially designed deflectors seal gaps between core and bumper to maintain optimal airflow |

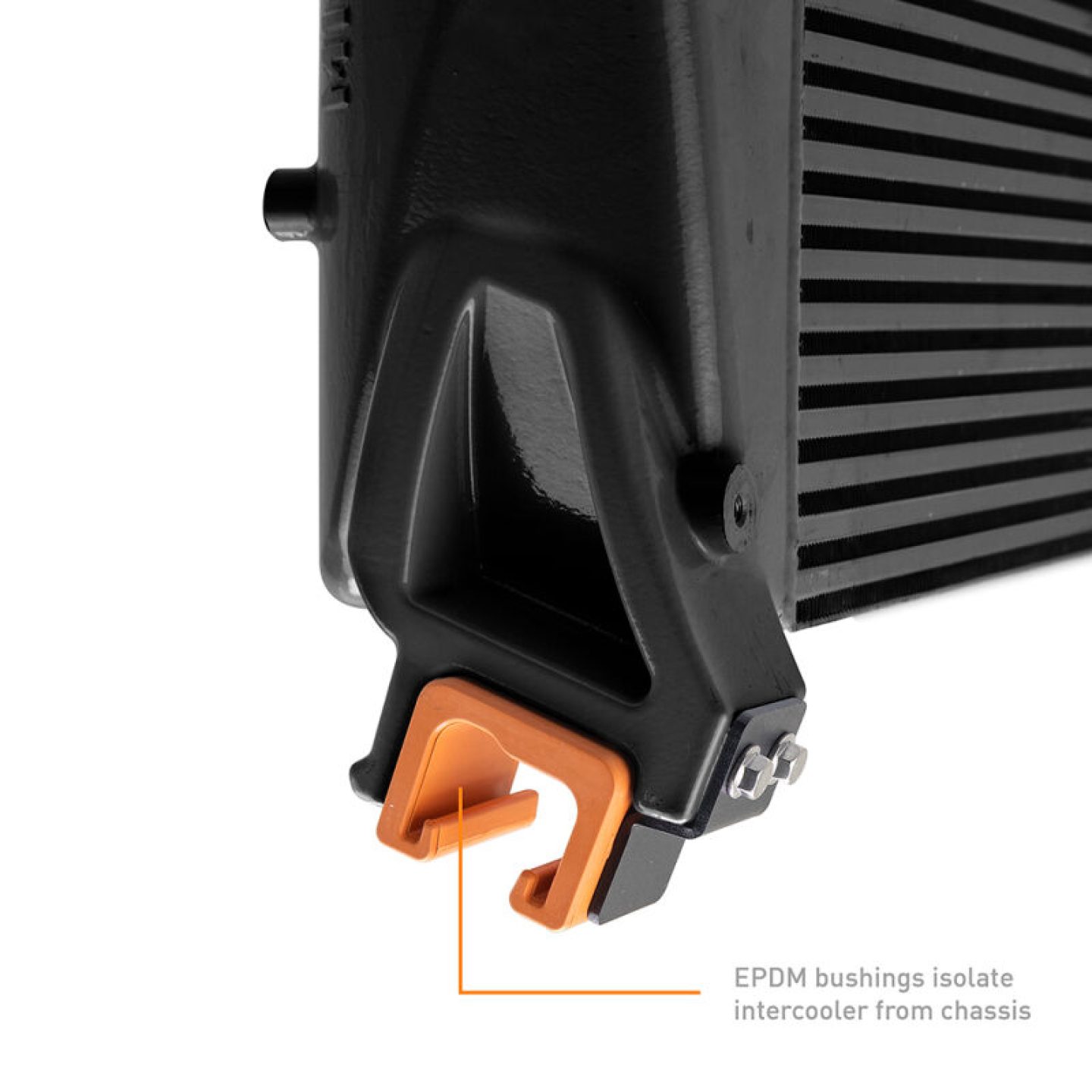

| Feature 8: | Heavy-duty rubber isolators ensure secure fitment |
| Feature 9: | Demonstrated to reduce outlet temperatures by 20°F compared to stock |
| Feature 10: | Utilizes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps |

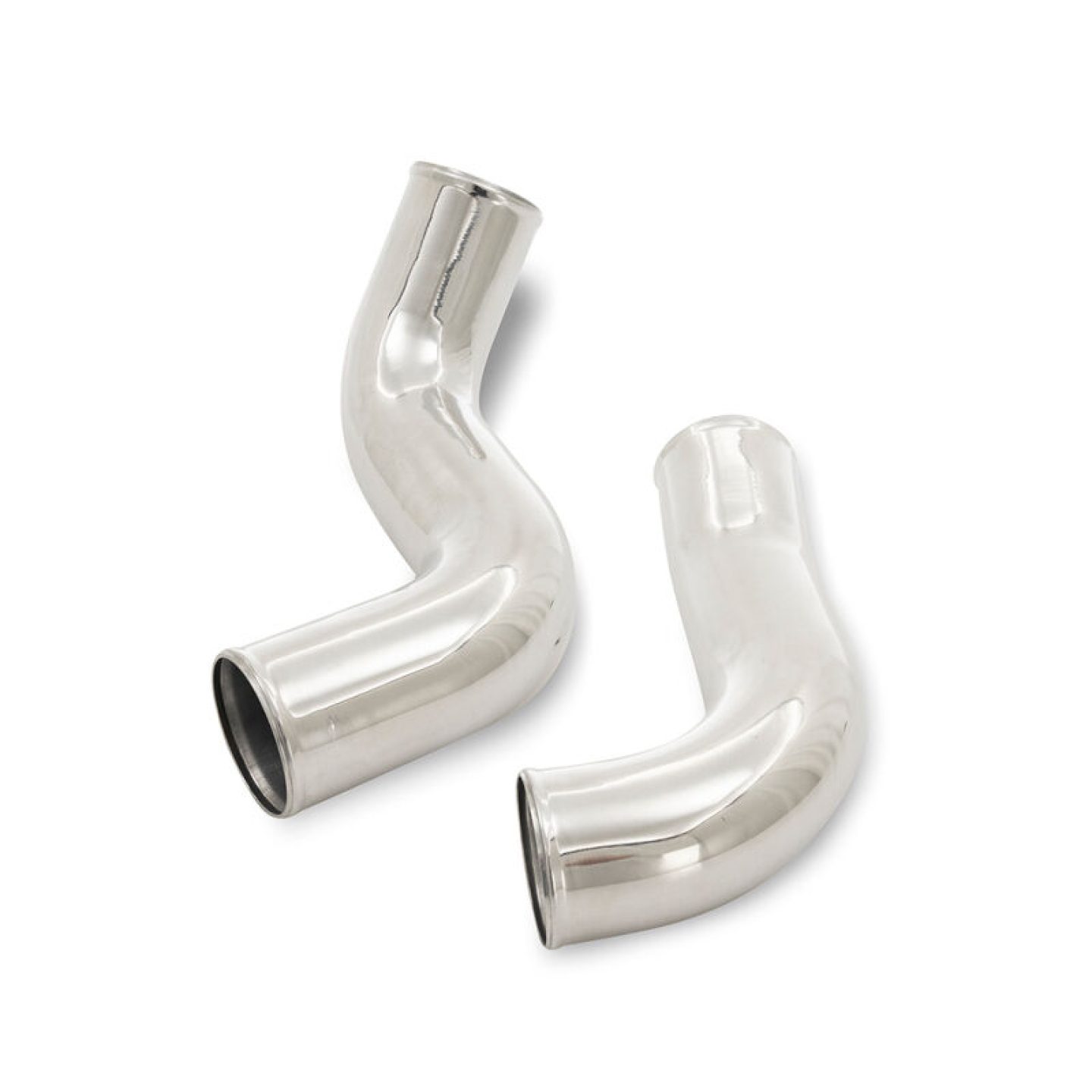

| Feature 11: | Includes hot-side and cold-side powder-coated aluminum intercooler pipes |
| Feature 12: | Internal fins designed for maximum heat transfer with minimal pressure drop |
| Feature 13: | Sleek Silver or Stealth Black intercooler options available |
| Feature 14: | Patent Pending |
| Feature 15: | Mishimoto Lifetime Warranty |
| TechSpec Applications: | 2019-2024 Dodge Ram 2500 I6 6.7L--2019-2024 Dodge Ram 3500 I6 6.7L |
| TechSpec Chassis Codes: | DT |
| TechSpec Core Height (in): | 17.03 |
| TechSpec Core Length (in): | 25 |
| TechSpec Core Thickness (in): | 5.31 |
| TechSpec Core Type: | Bar-And-Plate |
| TechSpec Engine Codes: | 6.7L Cummins |

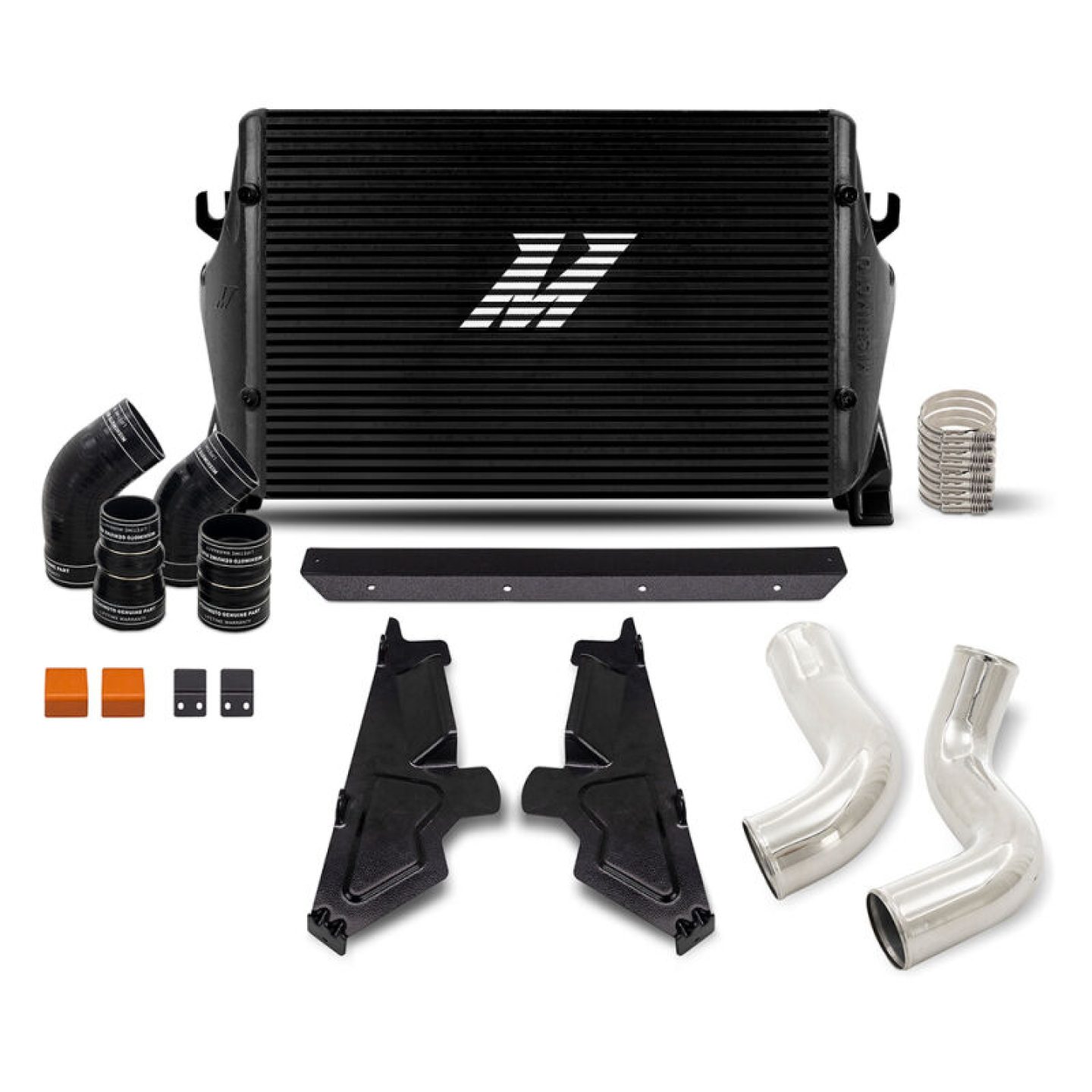

| TechSpec Includes: | (1)Performance Intercooler--(3)Intercooler Ducts--(2)Rubber Isolators--(2)Mounting Brackets--(1)Hot-Side Intercooler Pipe--(1)Cold-Side Intercooler Pipe--(4)Couplers--(8)Clamps--(1)Hardware Kit--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 3.03 |
| TechSpec Maximum Recommended Boost Pressure (PSI): | 100 |
| TechSpec Maximum Recommended Horsepower: | 734 |
| TechSpec Outlet (in): | 3.03 |
| TechSpec Overall Height (in): | 18.66 |
| TechSpec Overall Length (in): | 33 |
| TechSpec Overall Width (in): | 9.57 |
| TechSpec Pipe Diameter: | 3.5 |
| TechSpec Weight (lbs): | 62 |
| Universal Or Specific Fit: | Specific |
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Mishimoto |
| StreetFX SKU | misMMINT-RAM-19KBKP |
| SFX Item ID | 4052298 |
| Accounting SKU | mis-MMINT-RAM-19KBKP |
| Manufacturer SKU | MMINT-RAM-19KBKP |
| Manufacturer UPC | 840197723142 |
| Alternative References | MIMMMINT-RAM-19KBKP, MIO-S2672, MMINT-RAM-19KBKP |
Intercooler, Aluminum, Black Intercooler, Silver Aluminum Tubing, 3.5 in., Silicone Couplers, Dodge, Truck, 6.7L, Diesel, Kit
Mishimoto intercooler and pipe kits let your engine breathe in the coolest, densest air possible to help improve performance and overall efficiency of heat dissipation, along with being strong enough to handle just about anything.
Mishimoto performance intercoolers offer increased core volume and fin surface area, which results in increased flow, reduced outlet temperatures, and the ability to generate gains in horsepower and torque. Intercoolers are available in black or silver. Pipes are available polished or with a black powdercoat.
As with all their products, the Mishimoto intercooler and pipe kits are backed by their signature Mishimoto Lifetime Warranty.
| Product Attributes | |
|---|---|
| Brand | Mishimoto |
| Manufacturer's Part Number | MMINT-RAM-19KBKP |
| Part Type | Intercoolers |
| Product Line | Mishimoto Intercooler and Pipe Kits |
| UPC | 840197723142 |
| Intercooler Core Type | Air-to-air |
| Intercooler Material | Aluminum |
| Intercooler Color | Black |
| Intercooler Width Range (in.) | 33.00-33.99 in. |
| Intercooler Height Range (in.) | 18.00-18.99 in. |
| Intercooler Width (in.) | 33.00 in. |
| Intercooler Height (in.) | 18.66 in. |
| Intercooler Depth (in.) | 5.31 in. |
| Intercooler Inlet | Slip fit |
| Intercooler Inlet Size | 3.000 in. |
| Intercooler Outlet | Slip fit |
| Intercooler Outlet Size | 3.000 in. |
| Horsepower Rating | 734 |
| Intercooler Mounting Brackets Included | Yes |
| Intercooler Pipe Included | Yes |
| Intercooler Pipe Material | Aluminum |
| Intercooler Pipe Color | Polished |
| Aftercooler Included | No |
| Aftercooler Remote Water Reservoir Included | No |
| Remote Mount Electric Water Pump Included | No |
| Quantity | Sold as a kit. |
| Notes | Intercooler kit is rated for 100psi. |
