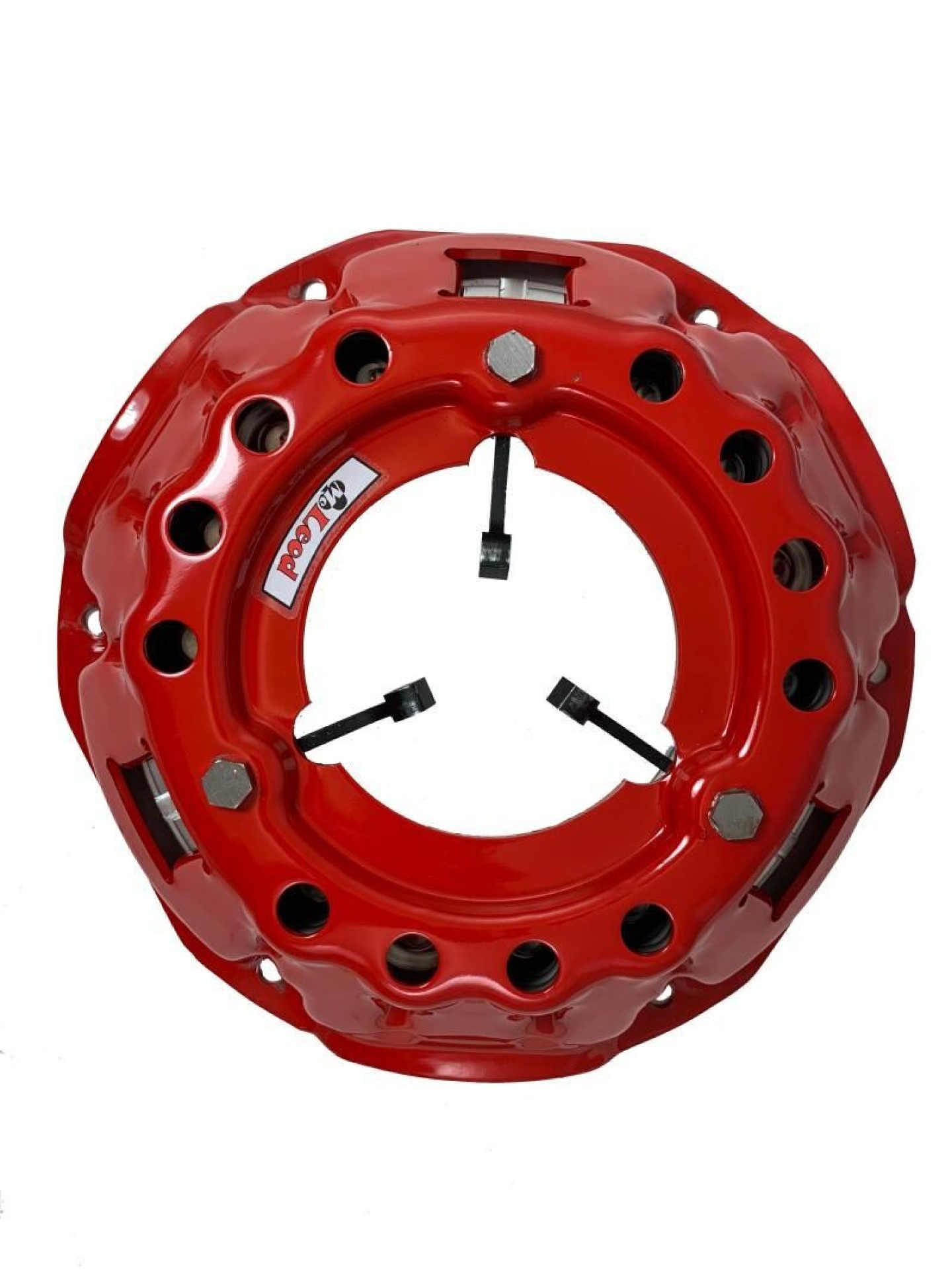

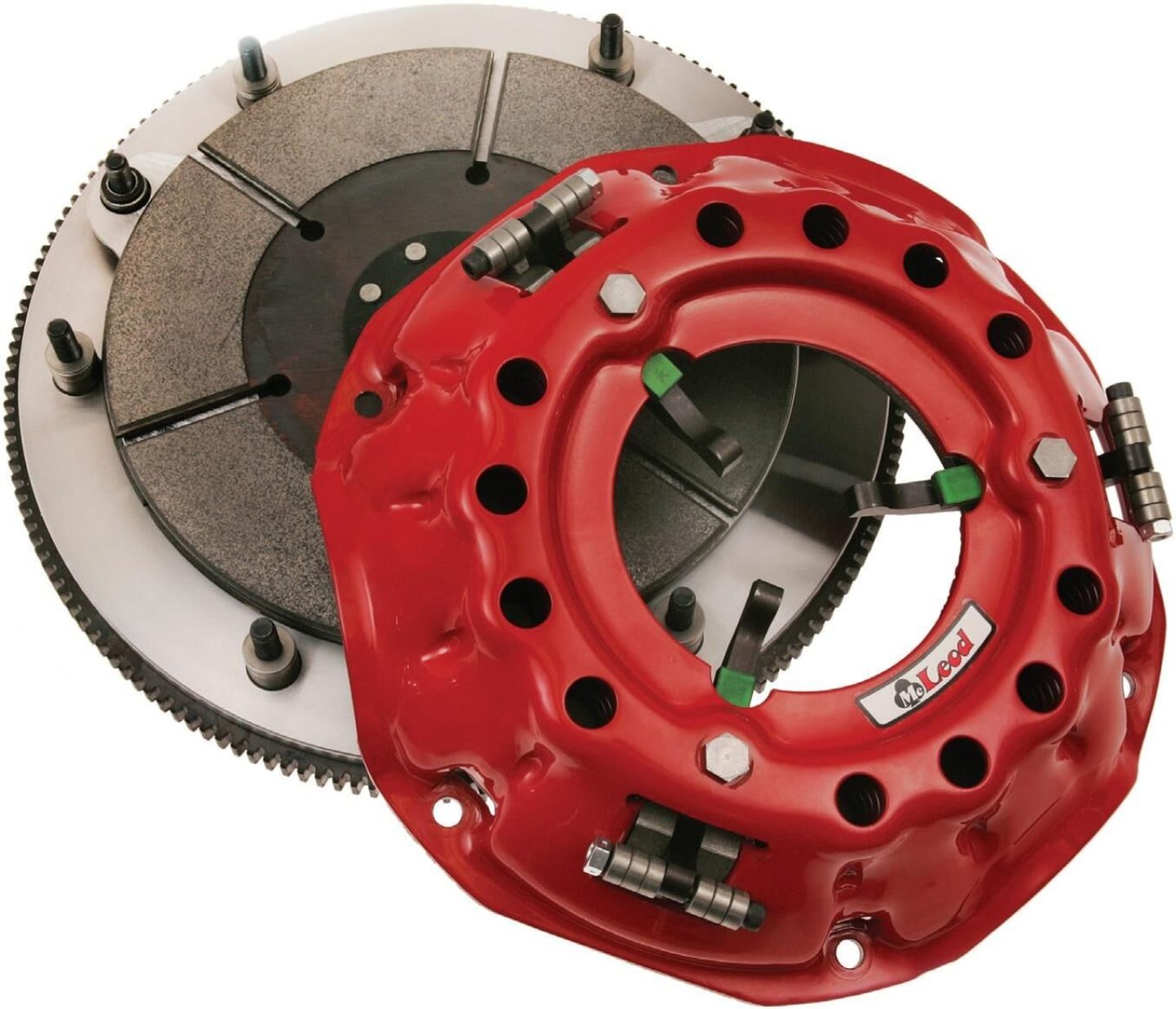

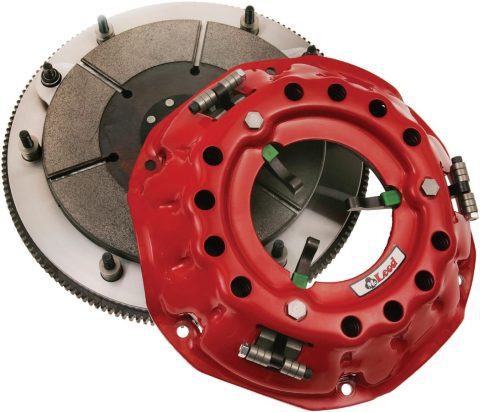

The 4400 Series clutch system from McLeod is ideal for Truck Pulling and high horsepower sand drag applications. Recommended for non-shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly, unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
4400 Series Truck Pull: 1955-85 SBC:1970-1990 BBC:1991-1999 BBC 1 Piece Seal:1-1/8 x 10 Spline:0 Balance:168T:Each
Universal
Transmission Clutch and Flywheel Kit
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Mcleod Racing, MCLEOD |
| StreetFX SKU | mlr4402-04 |
| SFX Item ID | 4098920 |
| Accounting SKU | mlr-4402-04 |
| Manufacturer SKU | 4402-04 |
| Manufacturer UPC | N/A |
| Alternative References | 4402-04, MCL-4402-04 |
Clutch Kits, 4400 Series, Truck Pull/Sand Drag, Full Face, 2-Disc, 1.125 in. x 10 Spline, 168-Tooth Flywheel, Internal Balance, Chevy, V8, Kit
McLeod 4400 Series truck pull clutch kits are ideal for truck puller and high-horsepower sand drag applications. These discs are specifically designed for non-shifting motorsports and not intended for street use. To dominate the competition, you need performance engineered driveline components like the McLeod 4400 Series clutch system designed for your specific application. Product features include: * Borg & Beck pressure plates with counterweights * High-rpm lock-up capacity * Steel flywheel and sintered iron discs
| Product Attributes | |
|---|---|
| Brand | McLeod Racing |
| Manufacturer's Part Number | 4402-04 |
| Part Type | Clutch Kits |
| Product Line | McLeod 4400 Series Truck Pull Clutch Kits |
| UPC | 00887753893314 |
| Clutch Usage | Performance |
| Clutch Disc Quantity | 2 |
| Flywheel Included | Yes |
| Input Spline Quantity | 10 |
| Input Shaft Diameter | 1.125 in. |
| Disc Diameter (in.) | 10.500 in. |
| Disc Diameter (mm) | 267mm |
| Disc Material | Sintered iron |
| Disc Style | Full face |
| Hub Style | Solid |
| Pressure Plate Style | Borg & Beck Long |
| Throwout Bearing Included | No |
| Alignment Tool Included | Yes |
| Pilot Bushing Included | No |
| Flywheel Material | Billet steel |
| Ring Gear Tooth Quantity | 168-tooth |
| Engine Balance | Internal |
| Counterweight Assist | Yes |
| Mounting Hardware Included | No |
| Quantity | Sold as a kit. |
No specific fitment data available for this part. For clarification, please contact us.
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Model | 3B |
| Submodel | 3200 |
| Beginning Year | 1959 |
| Ending Year | 1959 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.6L/283 |
| Make | CHEVROLET |
| Model | 3C |
| Submodel | 3400 |
| Beginning Year | 1959 |
| Ending Year | 1959 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.6L/283 |
| Make | CHEVROLET |
| Model | 3D |
| Submodel | 3500 |
| Beginning Year | 1959 |
| Ending Year | 1959 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.6L/283 |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
