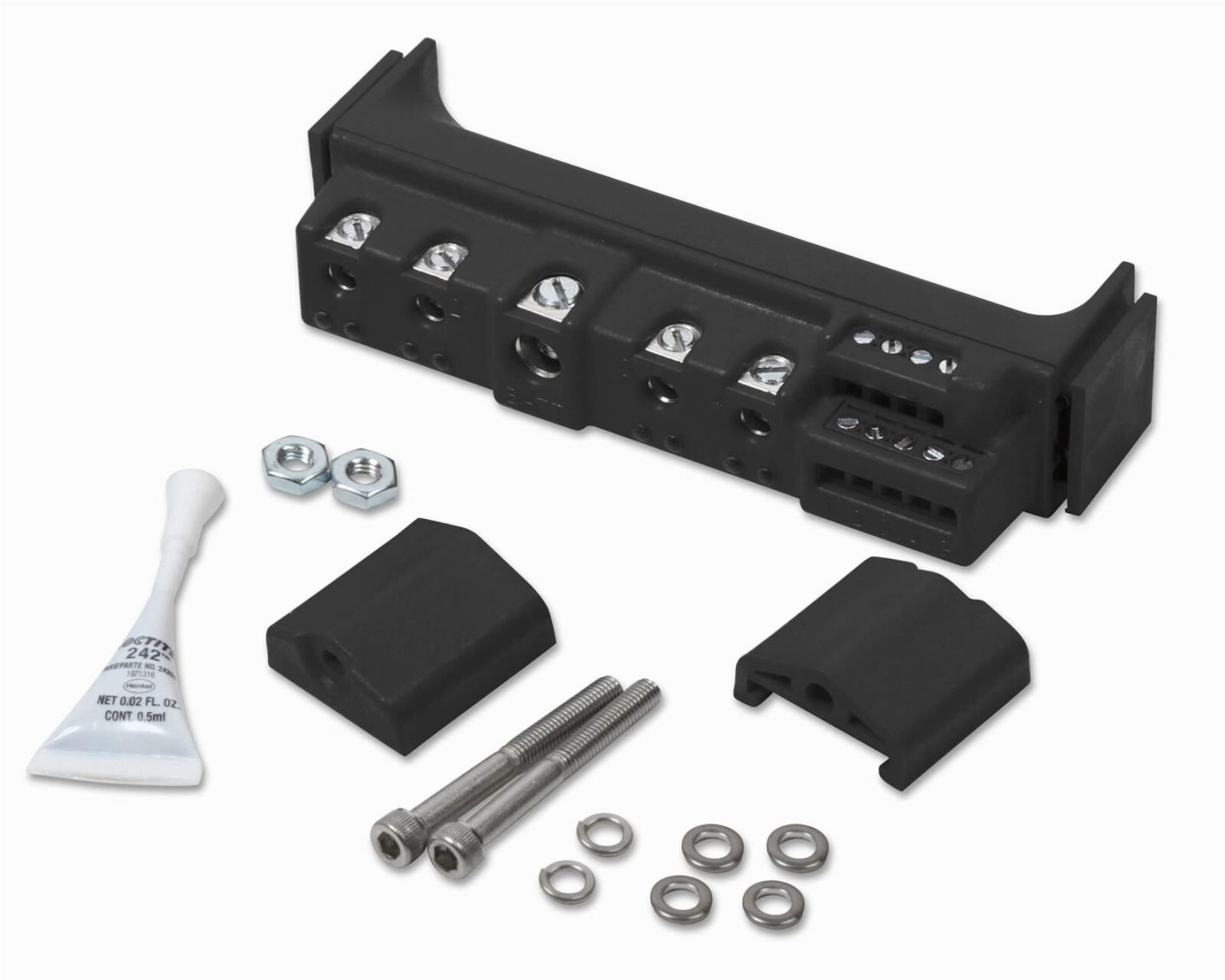

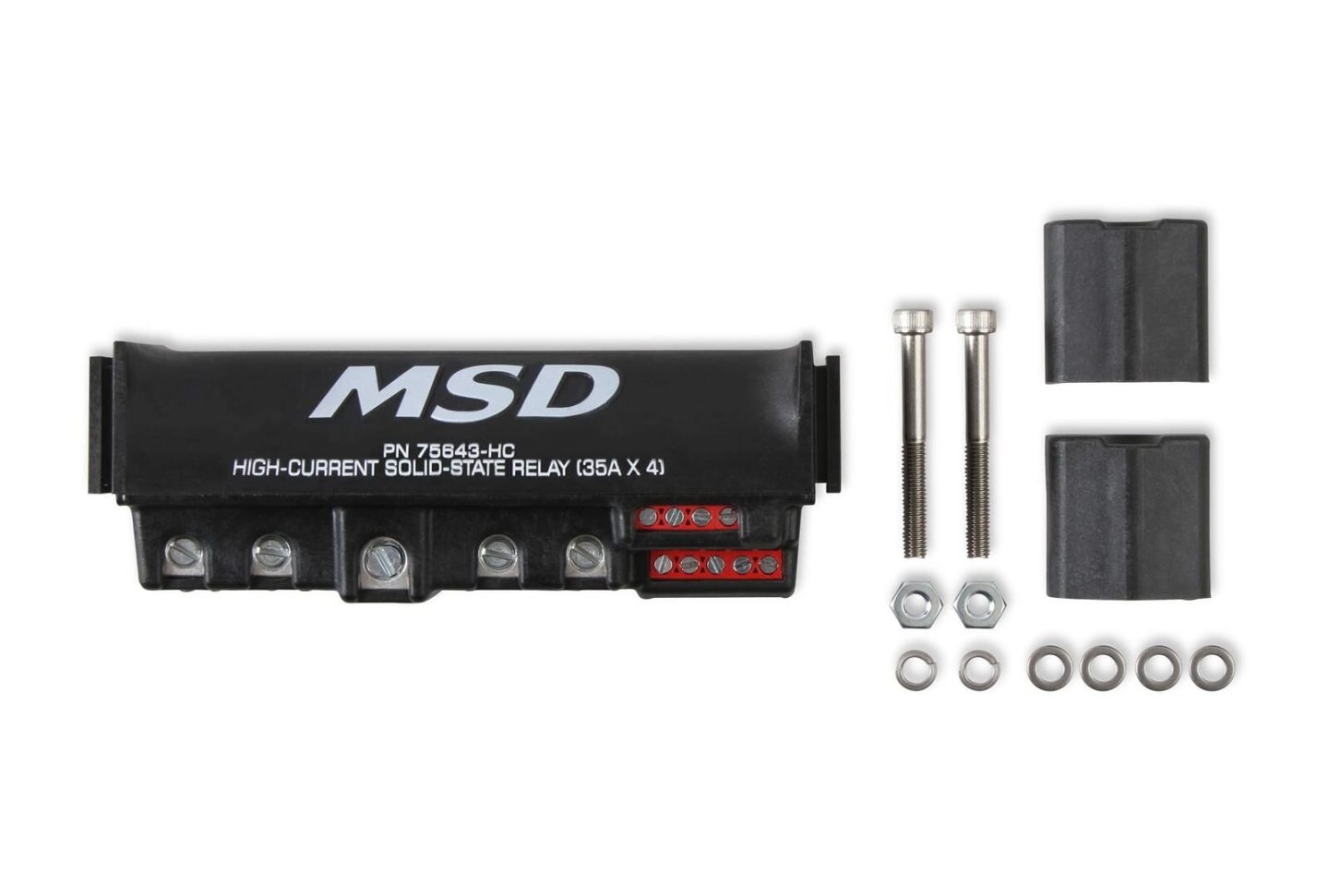

Relay Switch - High-Current - 35 amps / Channel - 4 Channels - Hardware Included - Kit

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Relays, High-Current, Solid State, 4 Channel, 35 amps, Black Each

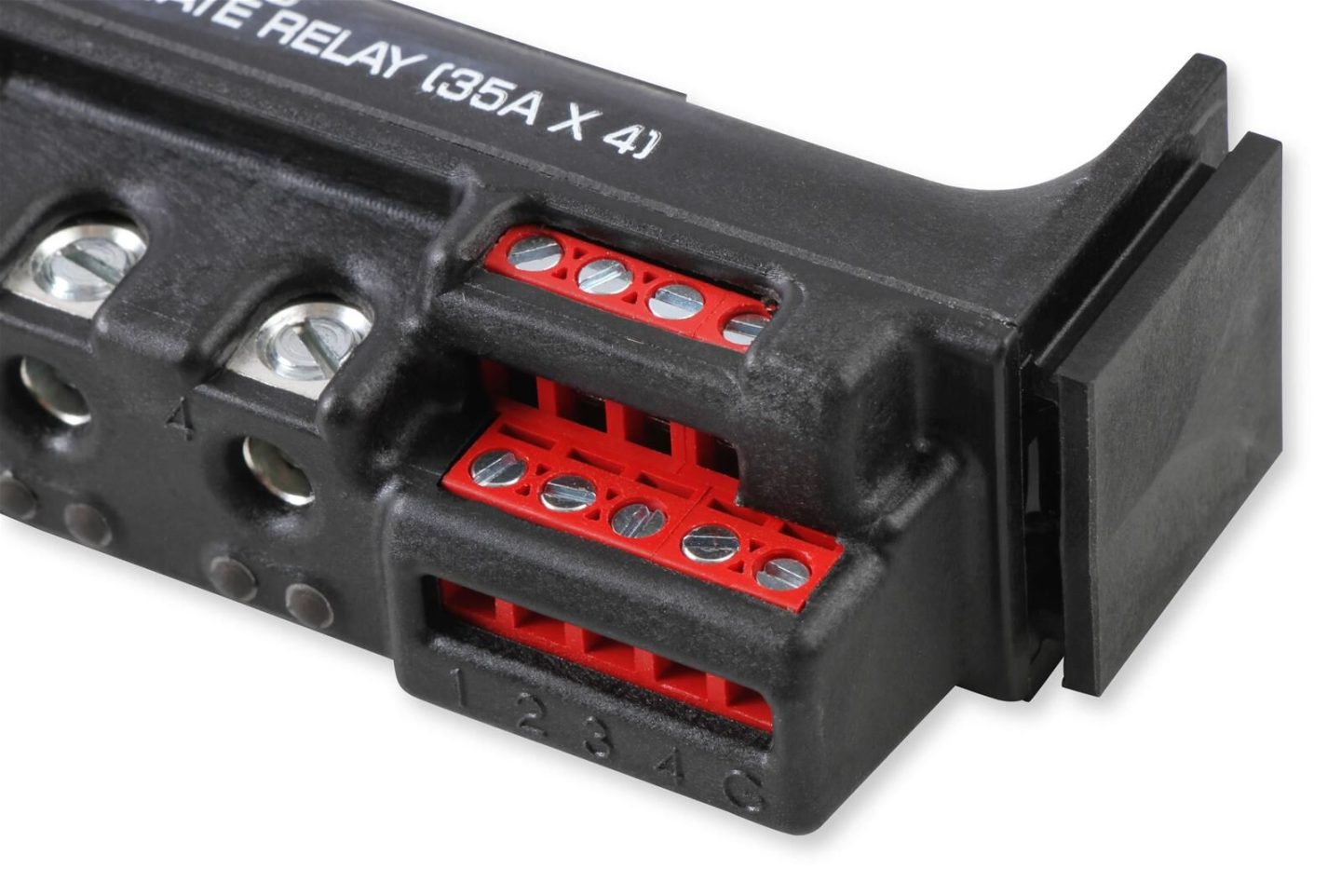

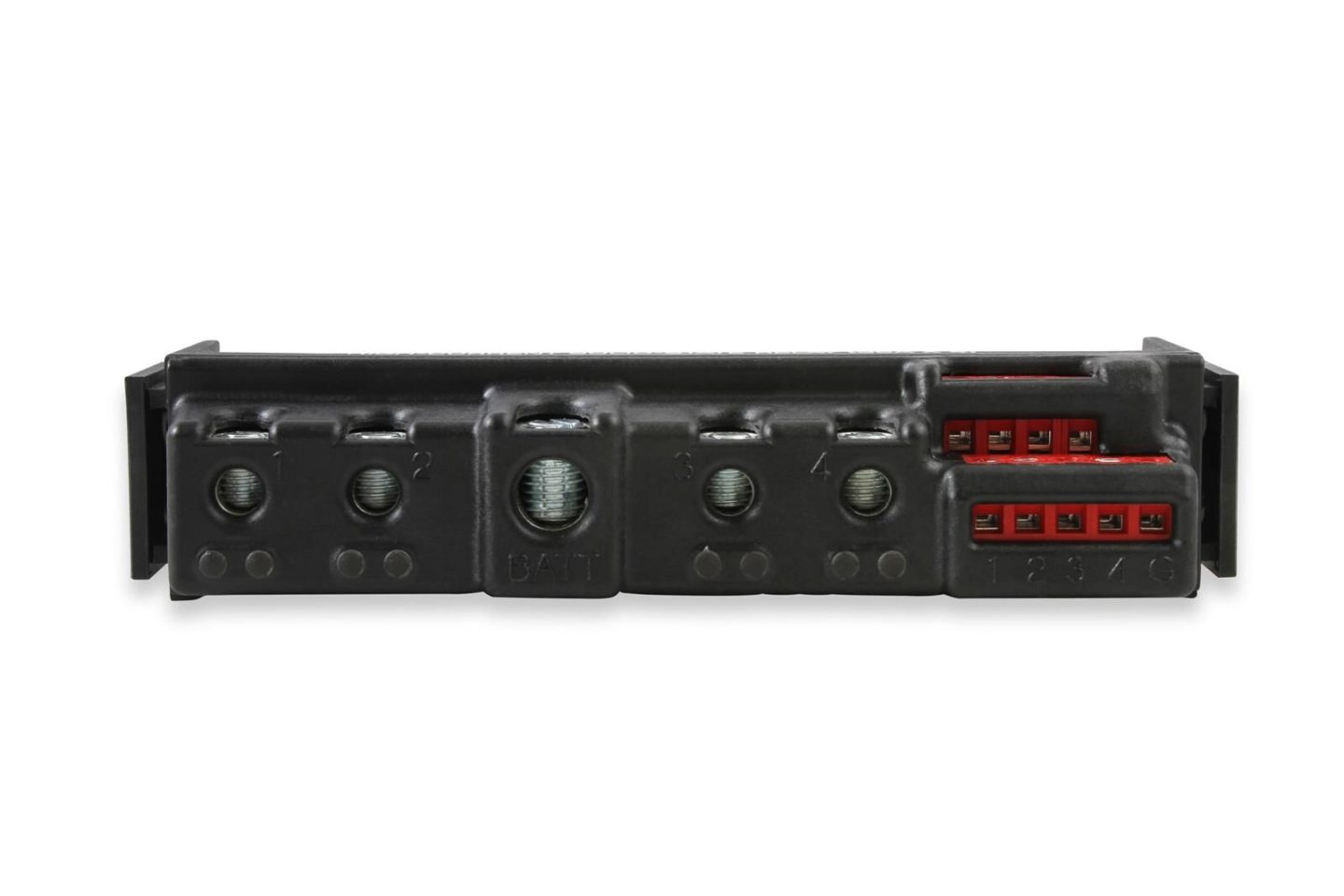

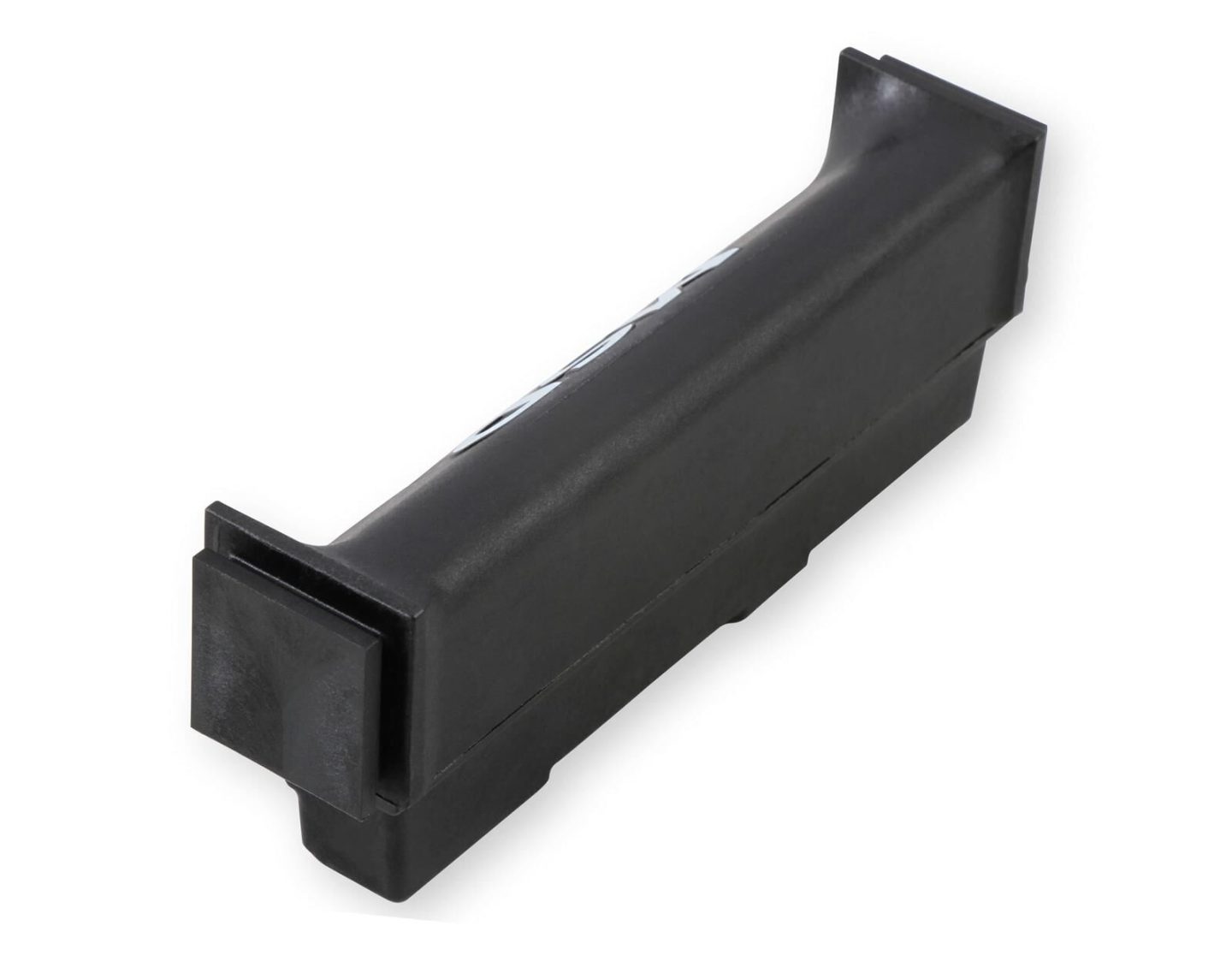

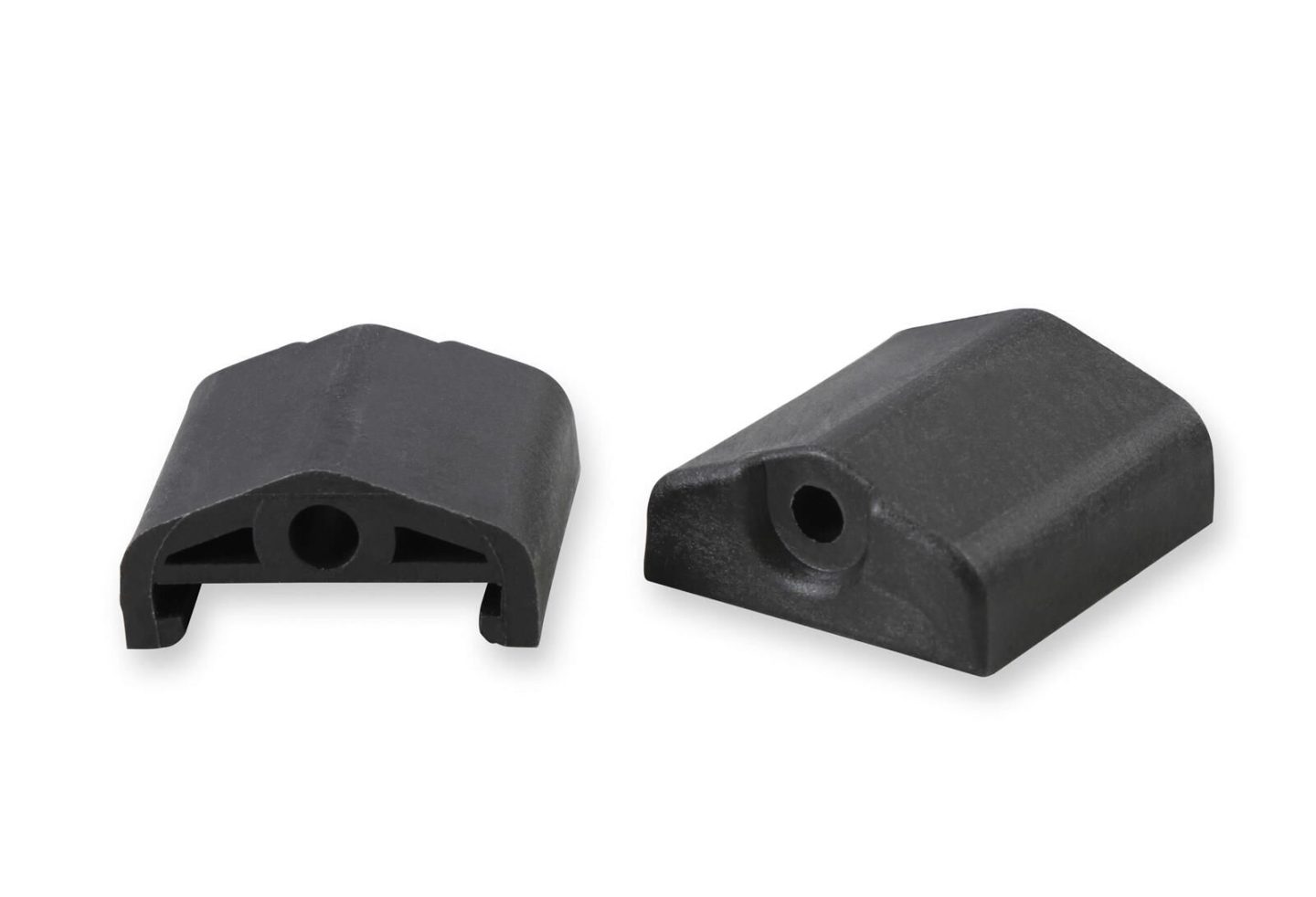

MSD high-current solid state relay blocks take the place of four standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 amps of continuous current, providing up to 140 amps of power, and also has the capability of pulse width modulation. The blocks can easily be mounted using the supplied hardware and mounting tabs that can be rotated 90 degrees to accommodate various mounting locations. Clean up your wiring with MSD high-current solid state relay blocks.

Features include:
• Operates from 7 V to 20 V supply
• Four independent channels, 35 amps each continuous or 100 amps for 8 seconds
• Combined total continuous current rating of 140 amps
• Channels can be run in parallel for devices requiring more than 35 amp single-channel rating
• Over-temperature, short circuit, and overload protection
• Diagnostic LEDs and status indicators
• Multiple mounting options
• Single wire activation by switching power or ground
• Available in red or black
• PWM signal can be used--maximum frequency of 150 Hz and a duty cycle range from 50 to 90 percent
