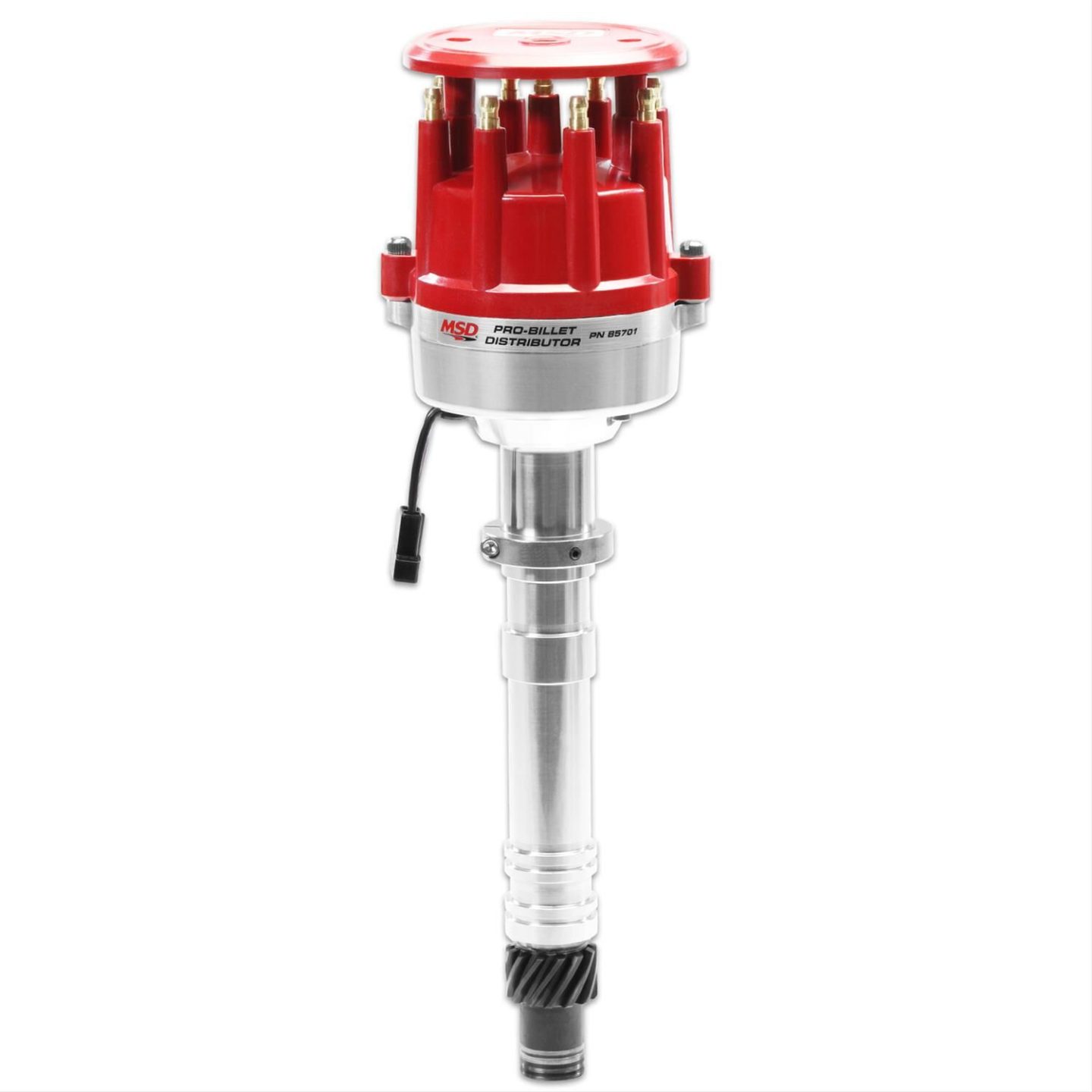

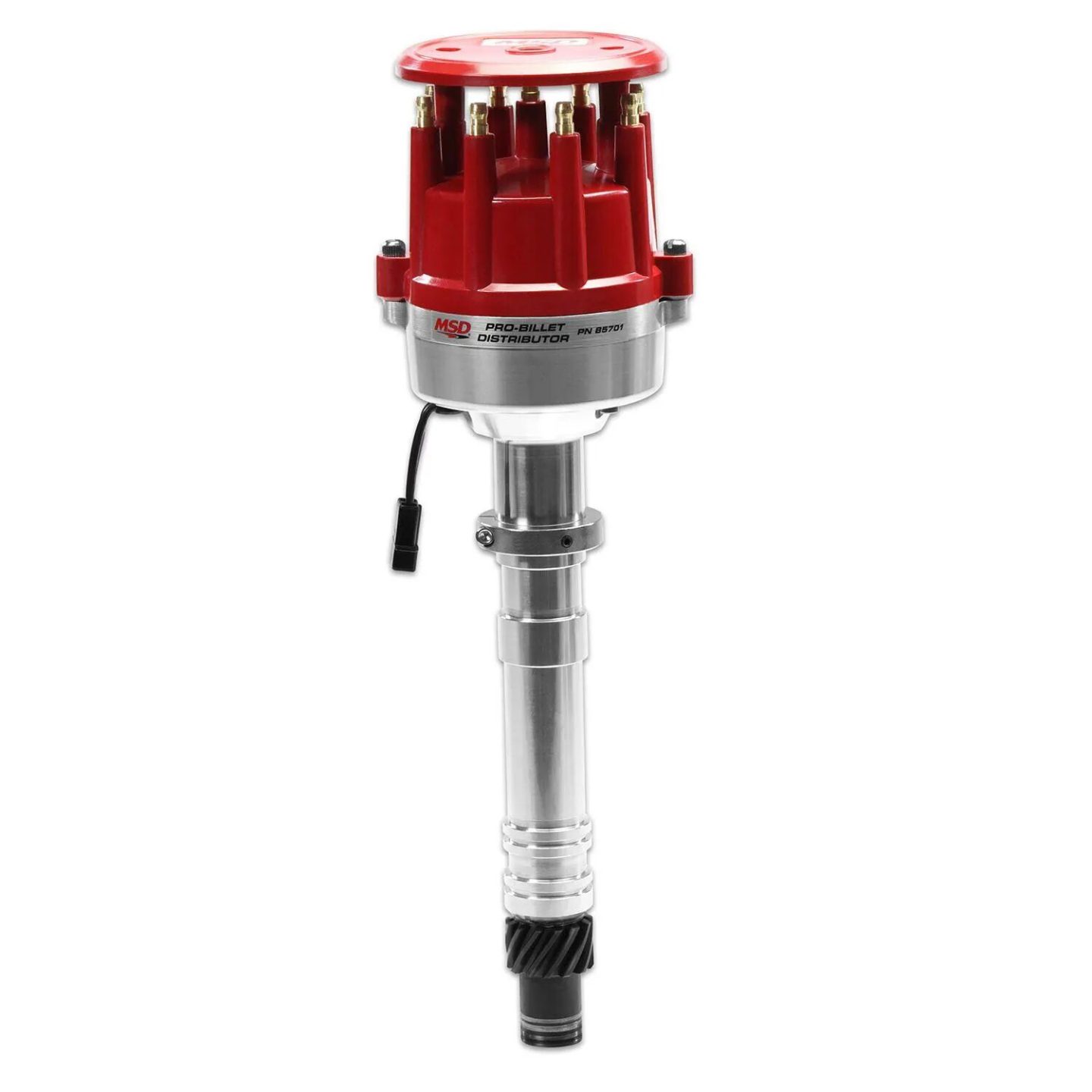

Distributor - Pro-Billet - Magnetic Pickup - Mechanical Advance - HEI Style Terminal - Red - MSD 6 / 7 / 8 / 10 Series Ignition - Small Block Chevy - Each

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Distributor, Pro-Billet, Small Base, Slip Collar, Magnetic Trigger, Mechanical Advance, Chevy, Small Block, Each

MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that's machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range.

For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.
