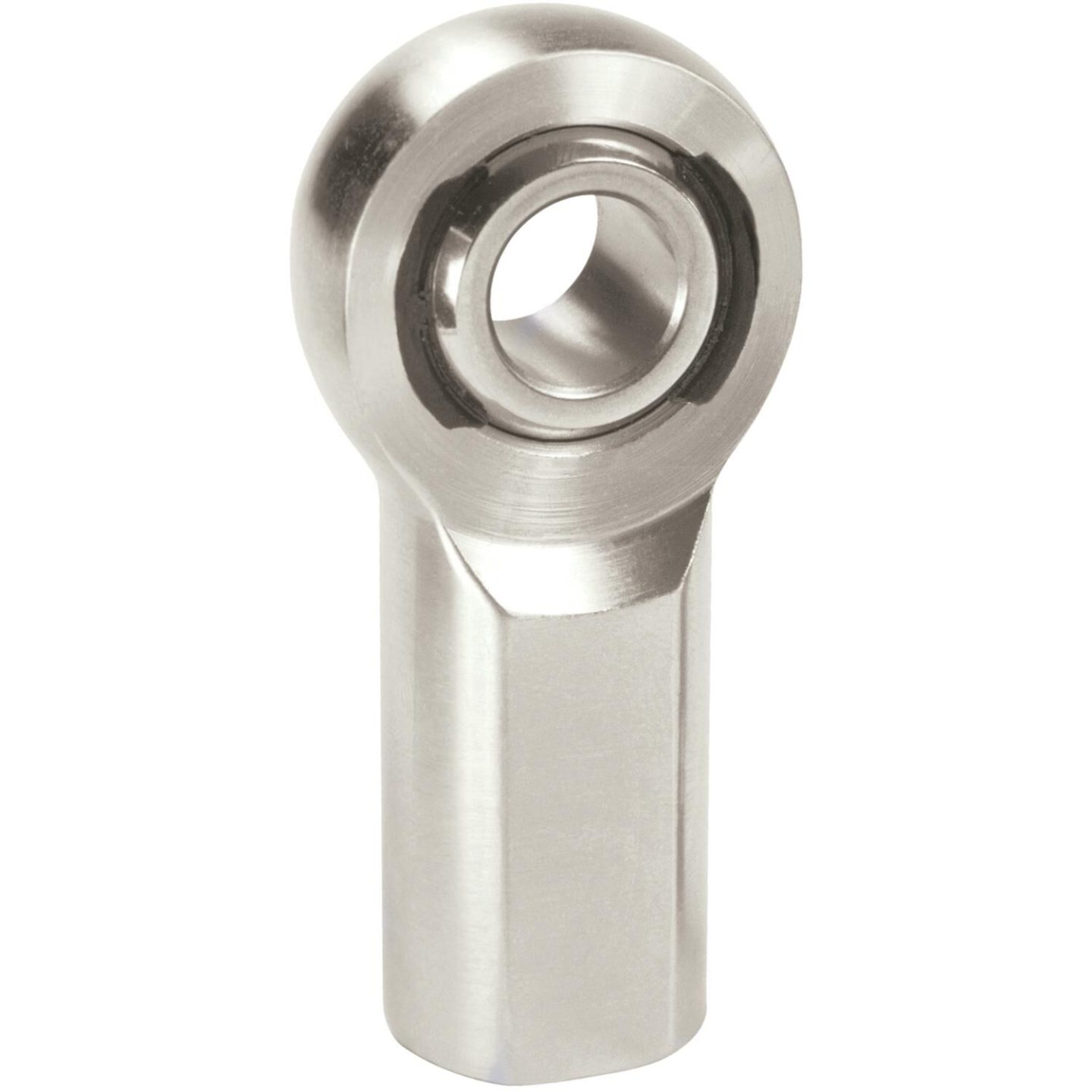

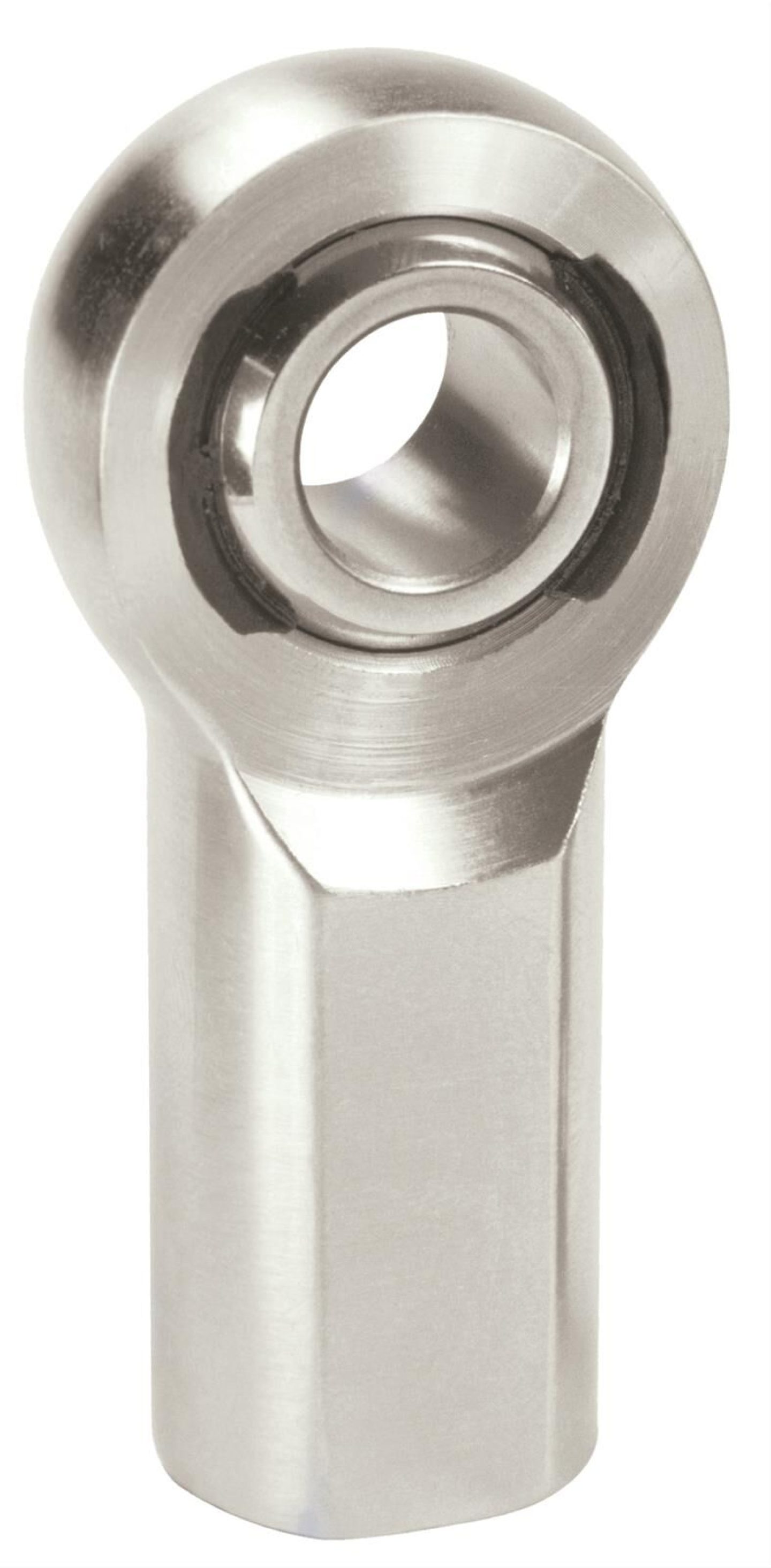

X Series Rod End

Additional Information

X Series loader slot rod end. Female mounting with a 1" bore and 1-12 UNS right hand threads.

Part Type

Suspension Rod End Bearing

Product Overview

For the ultimate in performance rod ends, look no further than QA1's XF Chromoly Steel Series female rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XF Series rod ends are completely self-sealing and self-lubricating because of their PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.

• Guaranteed strength, durability and quality champions demand
• Precise tolerances
• Rod ends for every motorsport need

Note for Pistons, Rings, Rotors, Rods and engine internals

Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Rod End, X Series, 1 in.-12, Female Threads, 2-piece, Chromoly, 1.000 in. Bore, Each

QA1 X Series rod ends are an excellent choice for 4-link and ladder bar applications. They feature metal-to-metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength. The heat-treated ball is chrome plated, and the heat-treated chromoly steel body is coated for corrosion resistance. Add in a self-sealing liner and a self-lubricating liner that won't pound out, and you can see why the QA1 X Series is the choice for many racers.
