Ridetech 65-79 Ford F150 2WD TruTurn Front Suspension Package

Additional Information

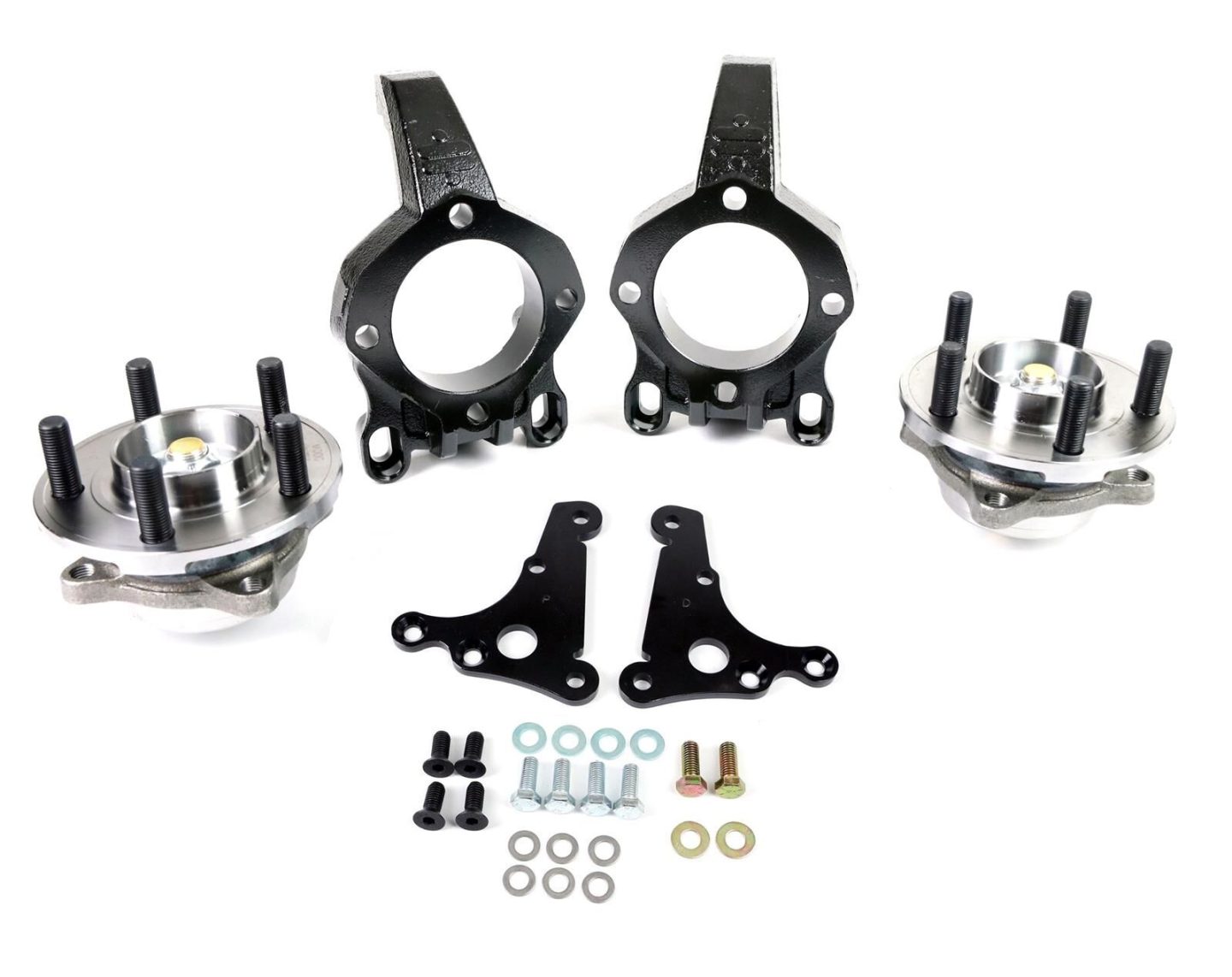

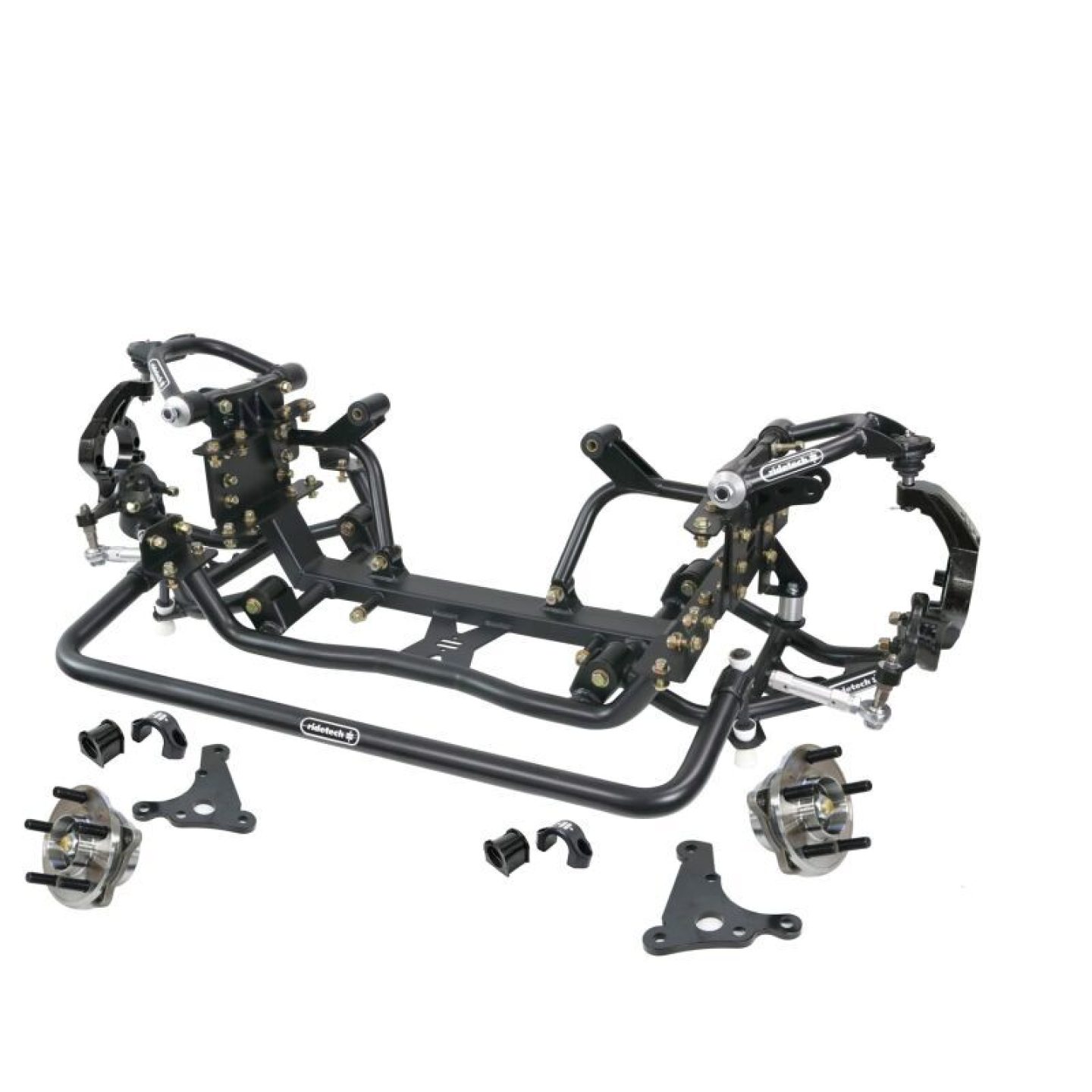

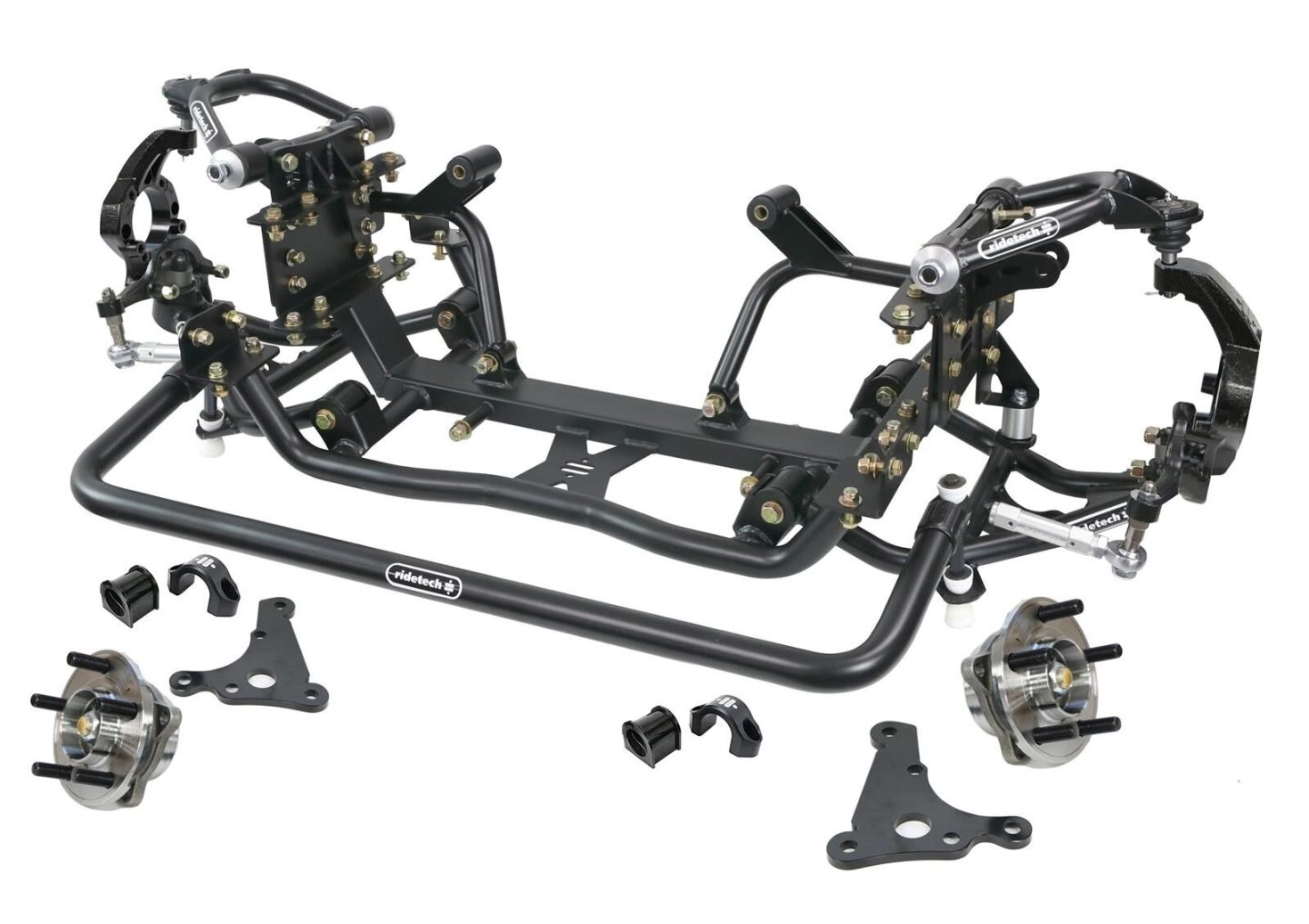

Front suspension system with hub spindles for 1965-1979 F-100, 2WD. Includes, cross member, frame brackets, upper and lower arms, spindles with S550 hubs, caliper brackets, tie rods and sway bar. For use with Shockwaves or Coil-Overs.

Application Summary

1965-1979 F-100

Part Type

Suspension Lowering Kit

Product Overview

Front suspension system with hub spindles for 1965-1979 F-100, 2WD. Includes, cross member, frame brackets, upper and lower arms, spindles with S550 hubs, caliper brackets, tie rods and sway bar. For use with Shockwaves or Coil-Overs.

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

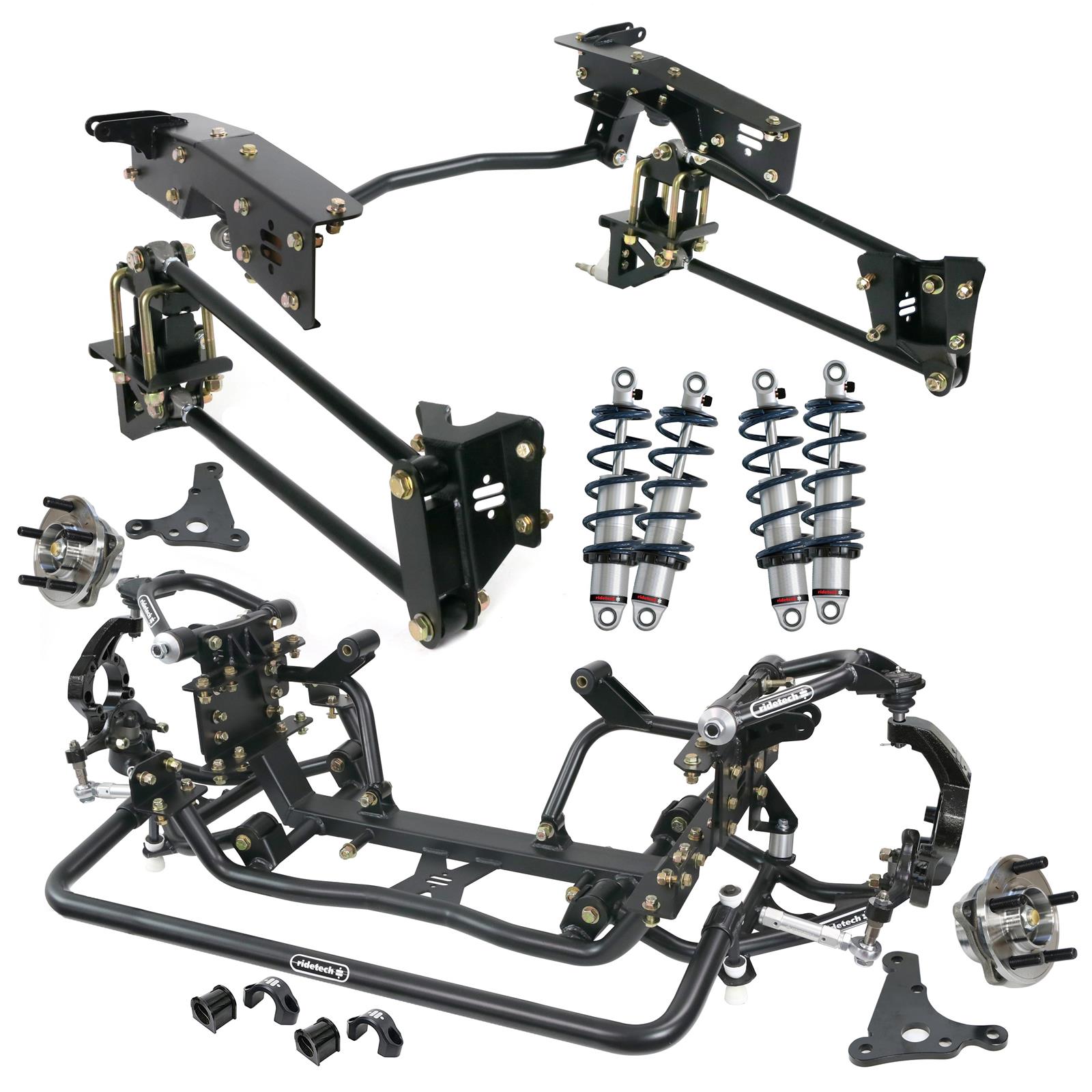

	rid12330203	Ridetech 73-79 Ford F-100 2WD HQ Coilover System w/ Hub Spindles (1x rid85000000, 1x rid12313510, 1x rid12316510, 1x rid12312798, 1x rid12337199)
	rid12320203	Ridetech 65-72 Ford F-100 2WD Complete Coilover Suspension System w/ Hub Spindle (1x rid85000000, 1x rid12313510, 1x rid12327199, 1x rid12316510, 1x rid12312798)

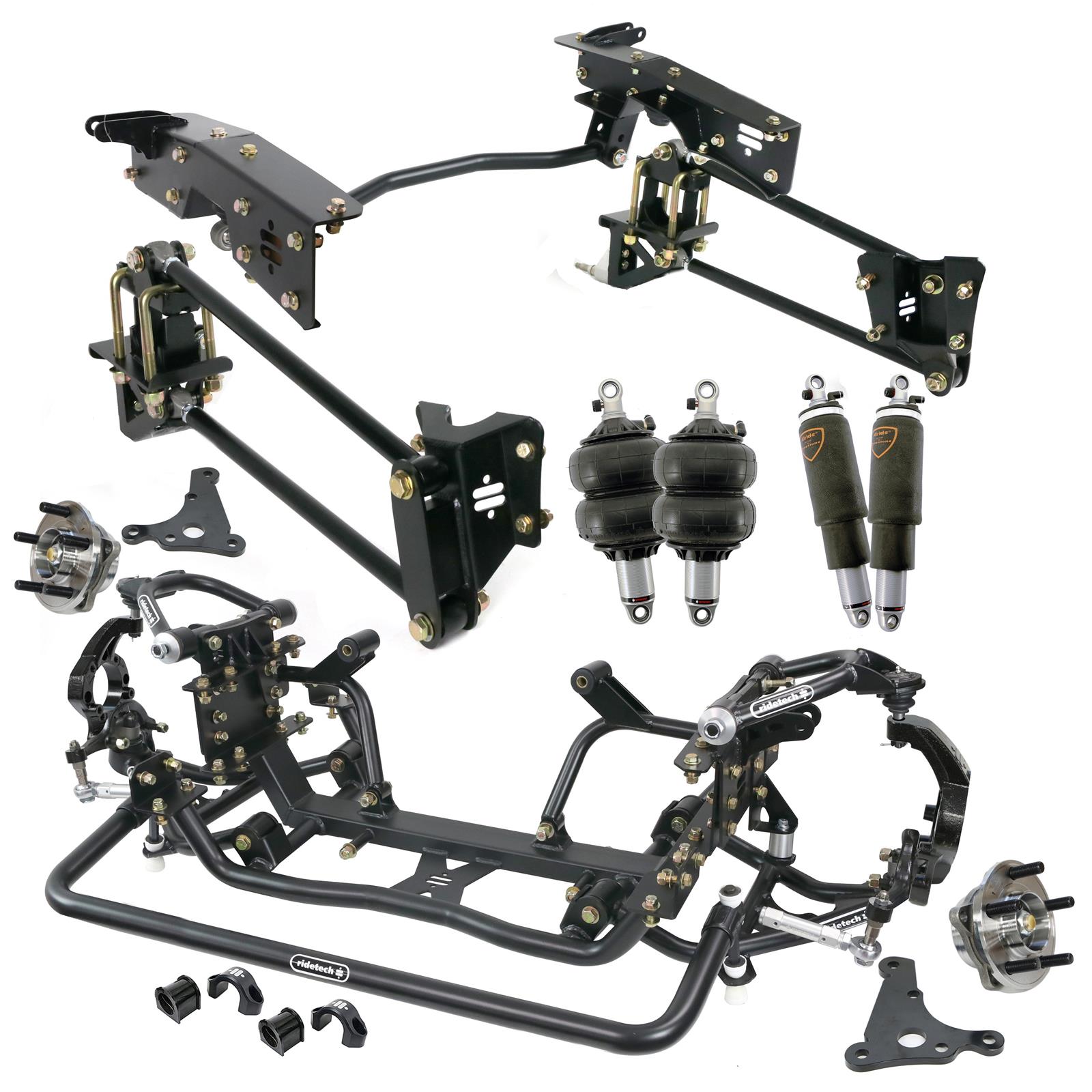

	rid12320296	RideTech 1965-72 Ford Air Suspension Systems for 1965-1972 F-100 - 12320296 System, Lowered, Hub Spindles, HQ Series ShockWave, Rear 4-Link, Ford, Kit
	rid12330296	RideTech 1973-79 Ford Air Suspension Systems for 1973-1979 F-100, 1975-1979 F-150 - 12330296 System, Lowered, Hub Spindles, HQ Series ShockWave, Rear 4-Link, Ford, Kit

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Suspension Package, IFS, Control Arms, Hub Spindles, Tie Rods, Ford, Kit

Ridetech 1965-79 F-100/F-150 IFS suspension systems are bolt-in and super stout. Significantly more rigid and stronger than the original front suspension, kits are available with Ridetech tall pin or hub spindles, and each kit is designed so you can install it yourself with hand tools and a little elbow grease.

Features, notes, and specs:
• Replaces bulky, heavy, poor handling twin I-beam suspension with a substantial H-style design
• Bolt-in cradle is super strong and strengthens the front of the truck while providing structural mounts for front control arms
• Superb suspension geometry

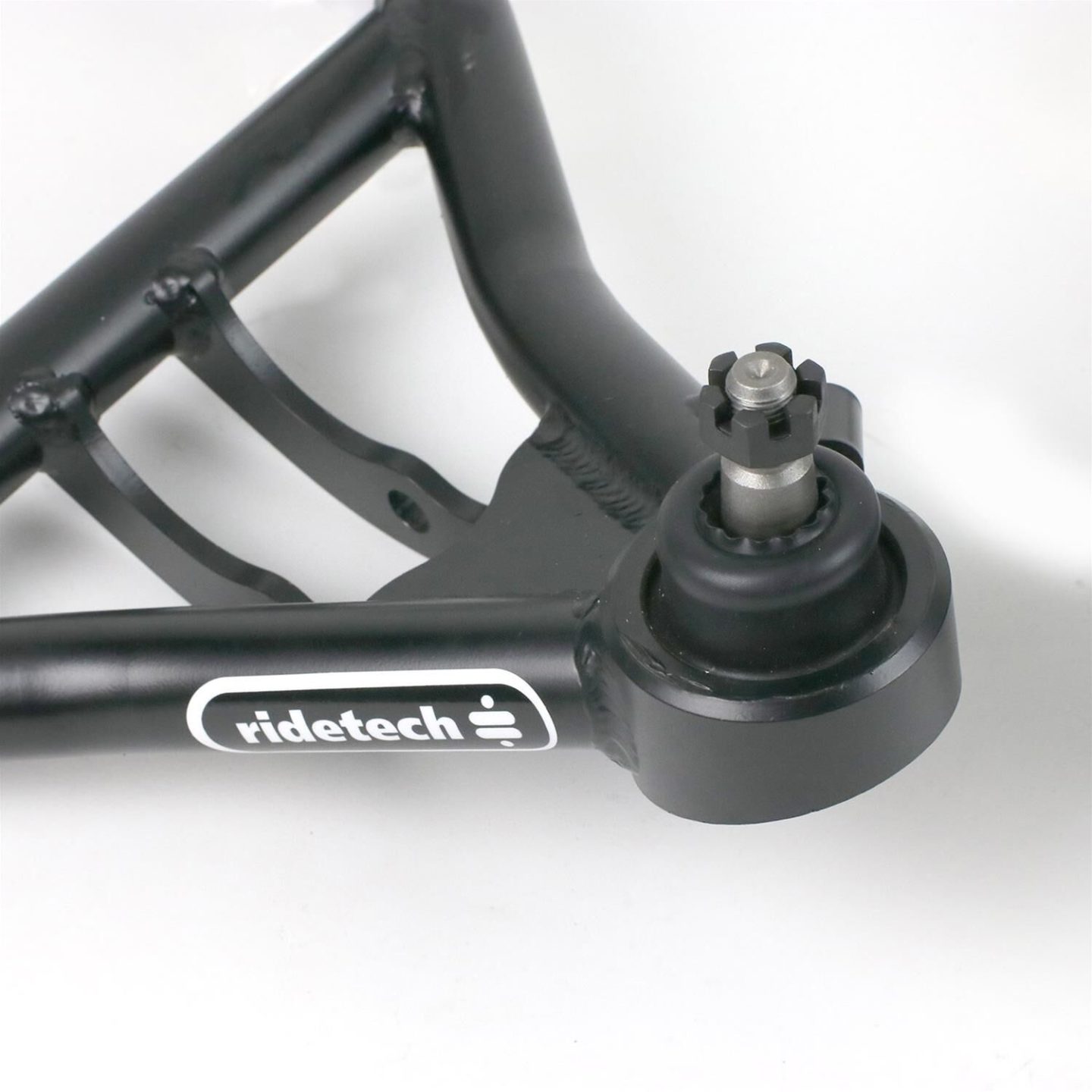

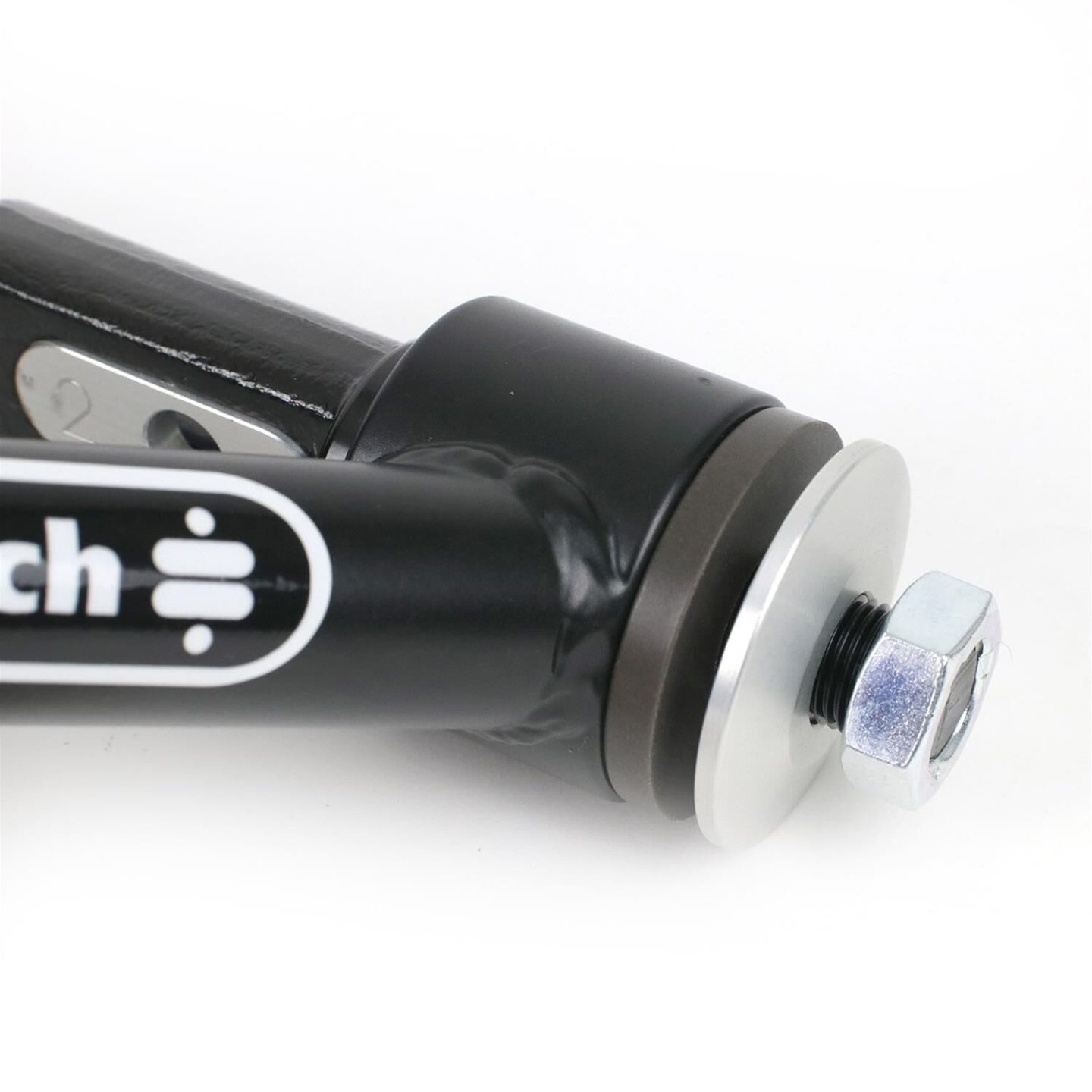

• Control arms are assembled with ball joints and Delrin® bushings for smooth, squeak-free, long-lasting performance

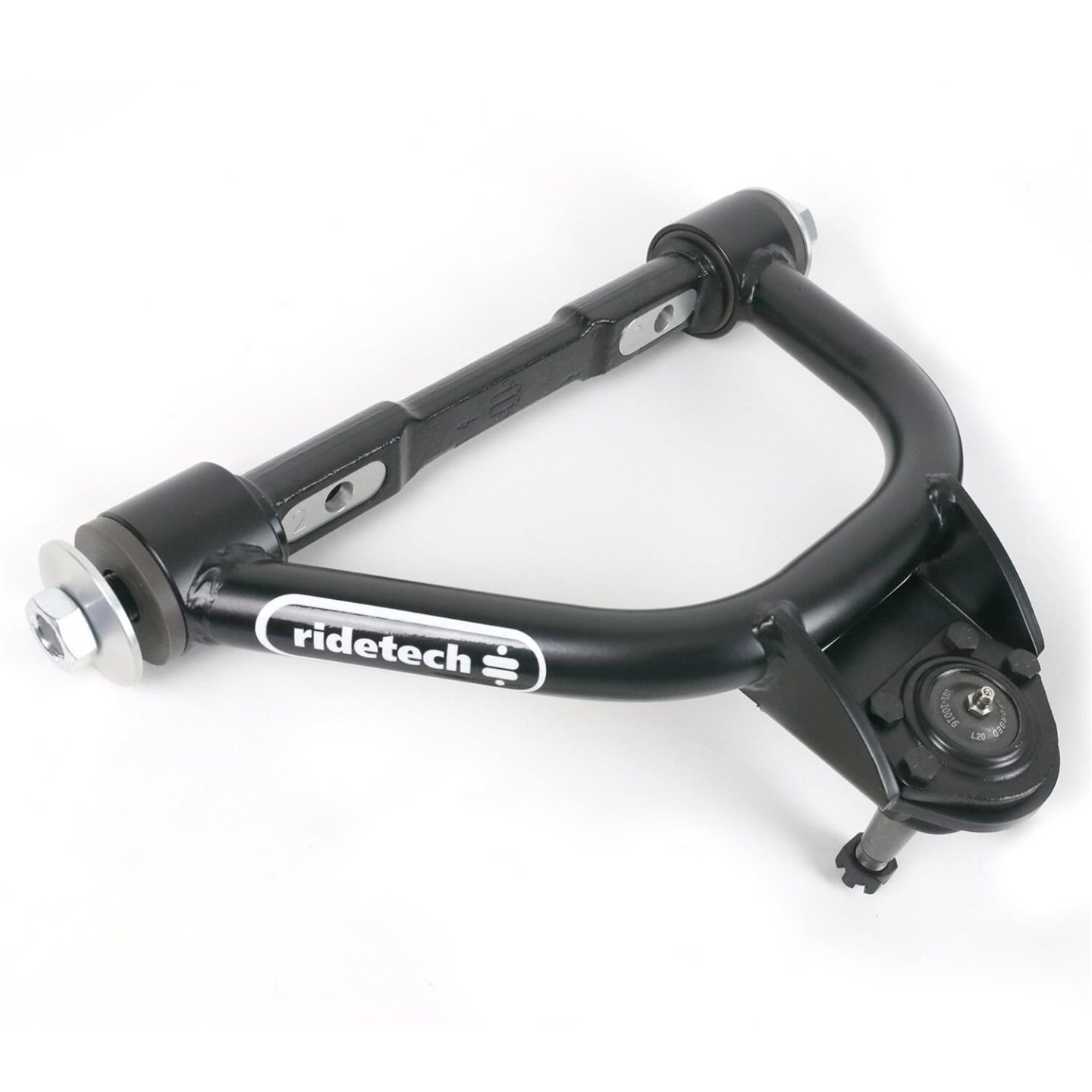

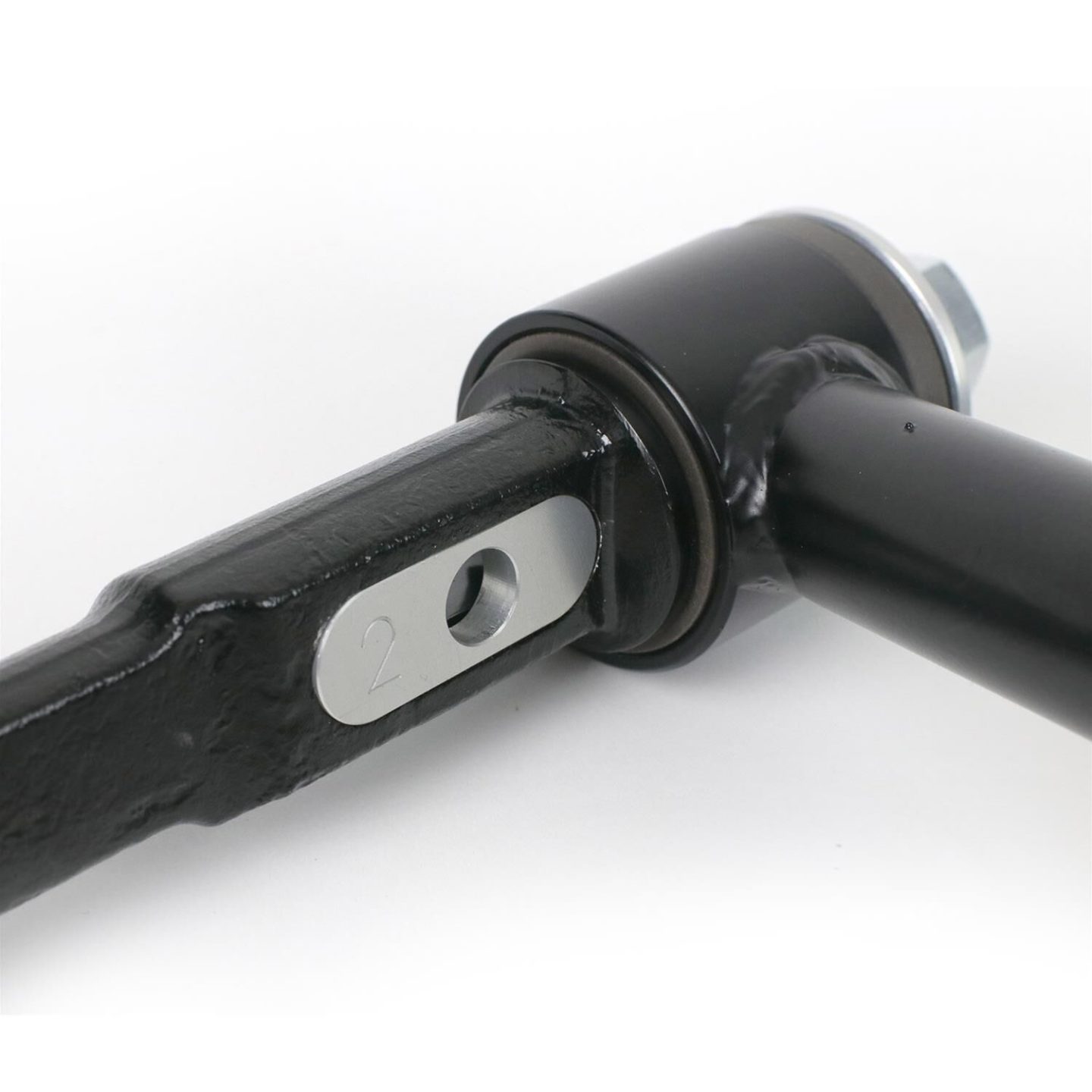

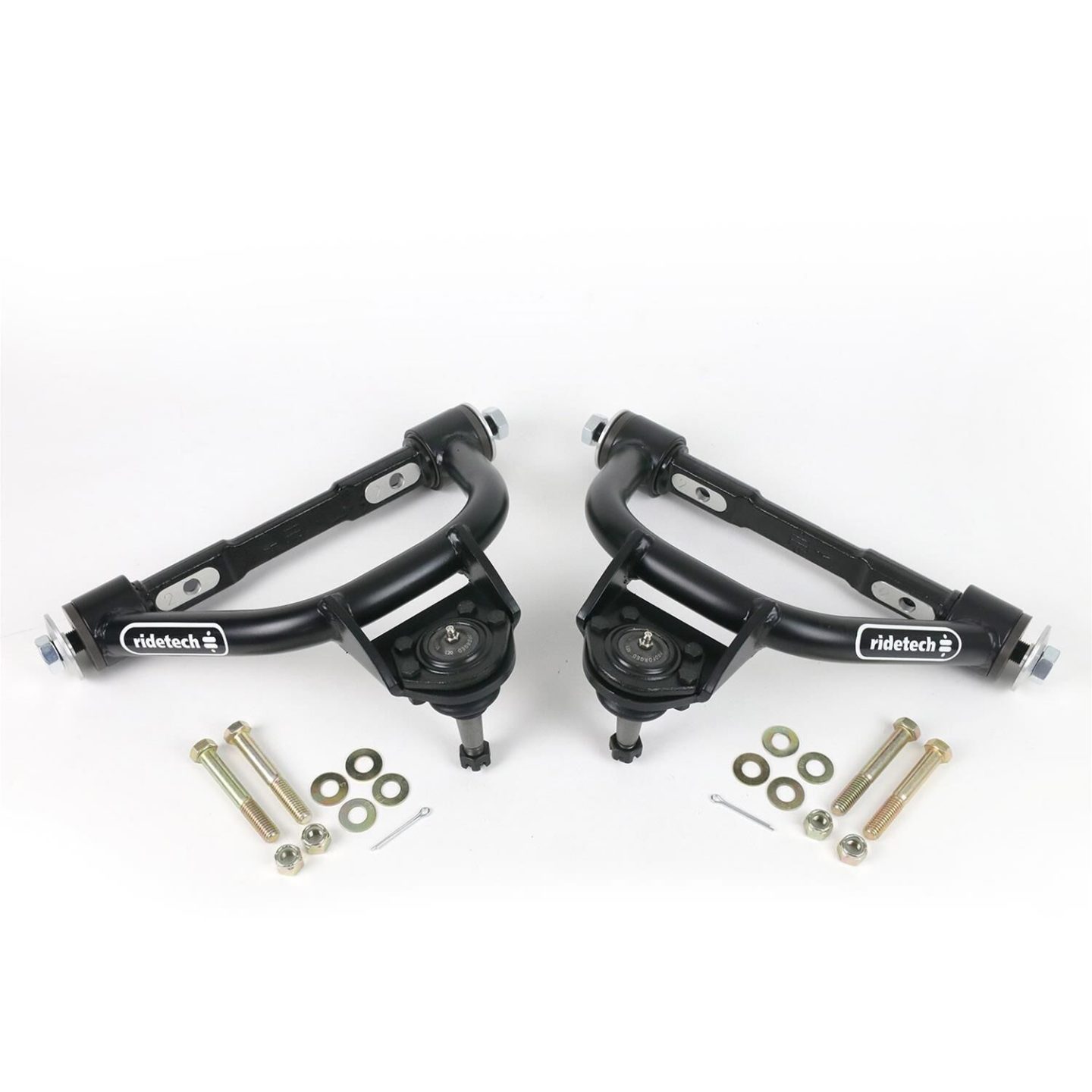

• Upper control arm cross shaft allows for easy alignment and use of caster slugs

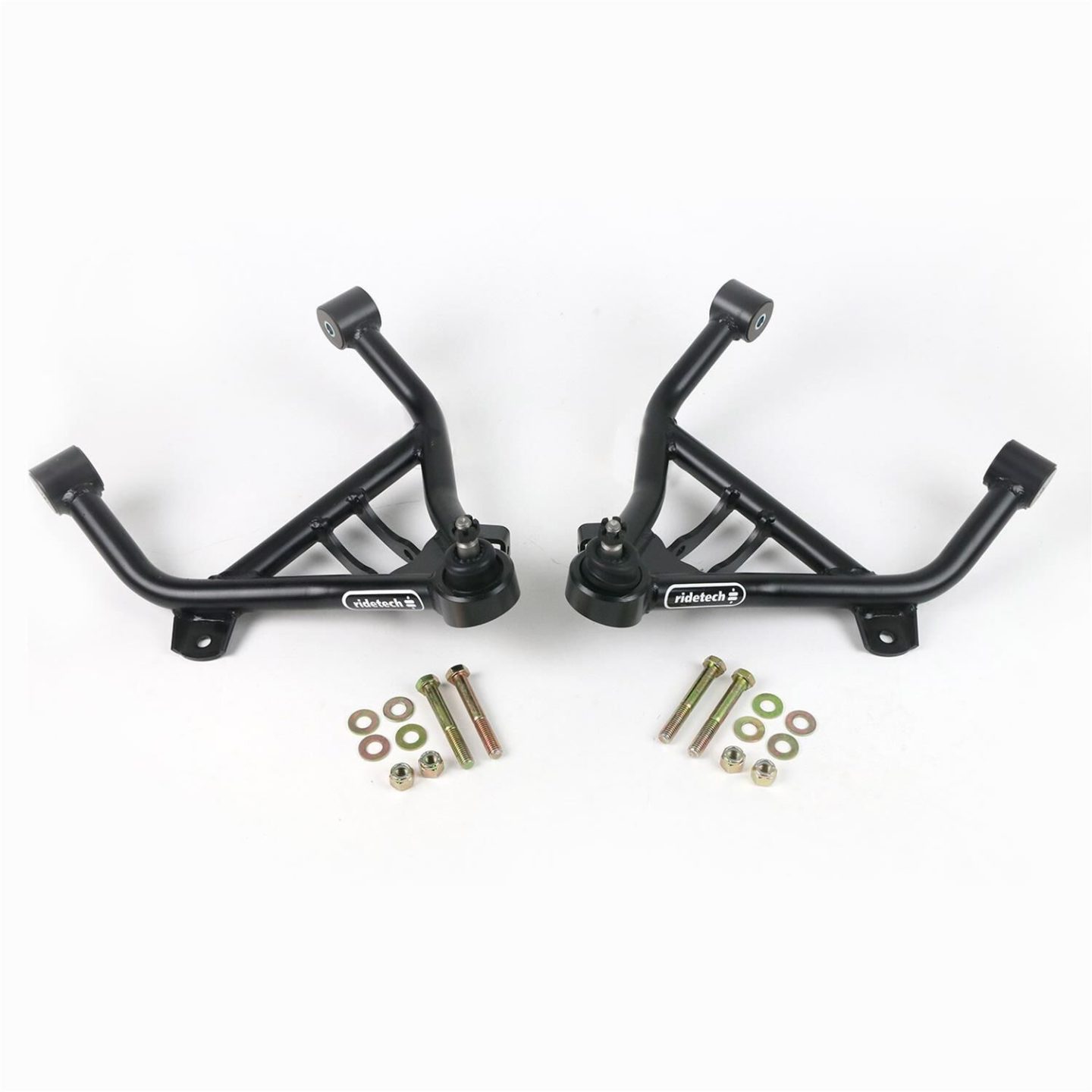

• Adjustable steering stop on lower control arm
• Increased camber gain with tall spindle, 5 to 8 degrees of caster for improved high-speed stability
• Motor mount "loops" connect cradle to frame rails to reinforce frame
• Front sway bar measures 1.5 in. x .250 in. wall and provides confident cornering and smooth ride
• Adjustable bump stops
• Rack and pinion steering conversion with 15.5 in. center-to-center bushing mounts for 79 to 93 Mustang-style steering rack
• Billet adjustable tie rods
• Bump steer has been virtually eliminated
• High-quality satin black powdercoat finish
• Entire system saves approximately 130 lbs. from front of the truck
