Air Compressor - RidePro E5 - Suspension - High Flow - 5 gal - 12V - Digital 4 Corner Gauge - Platform Mounted - Kit

Ridetech RidePro E5 Air Ride Control System 5 Gal Dual Compressor High Flow Big Red 3/8in Valves

Additional Information

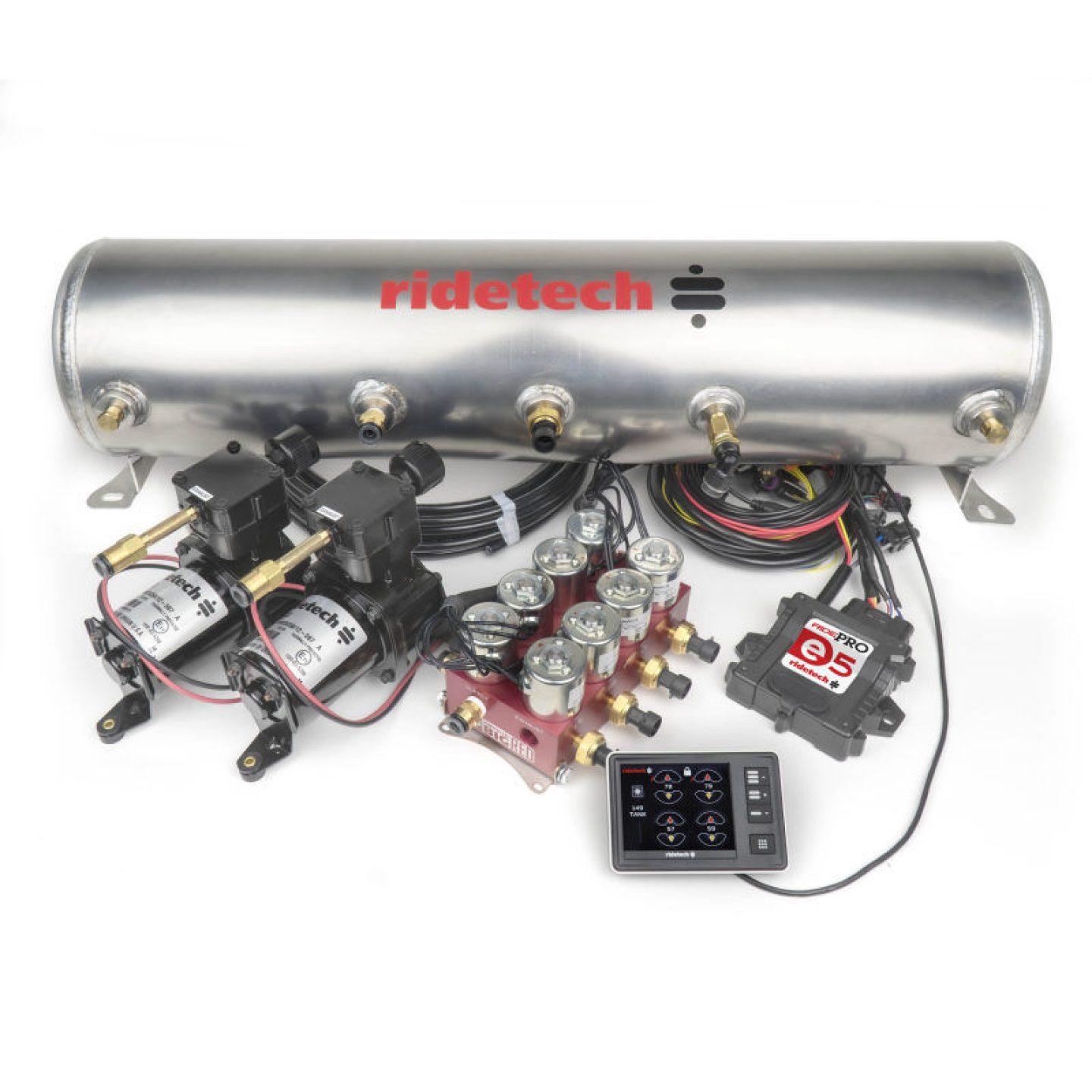

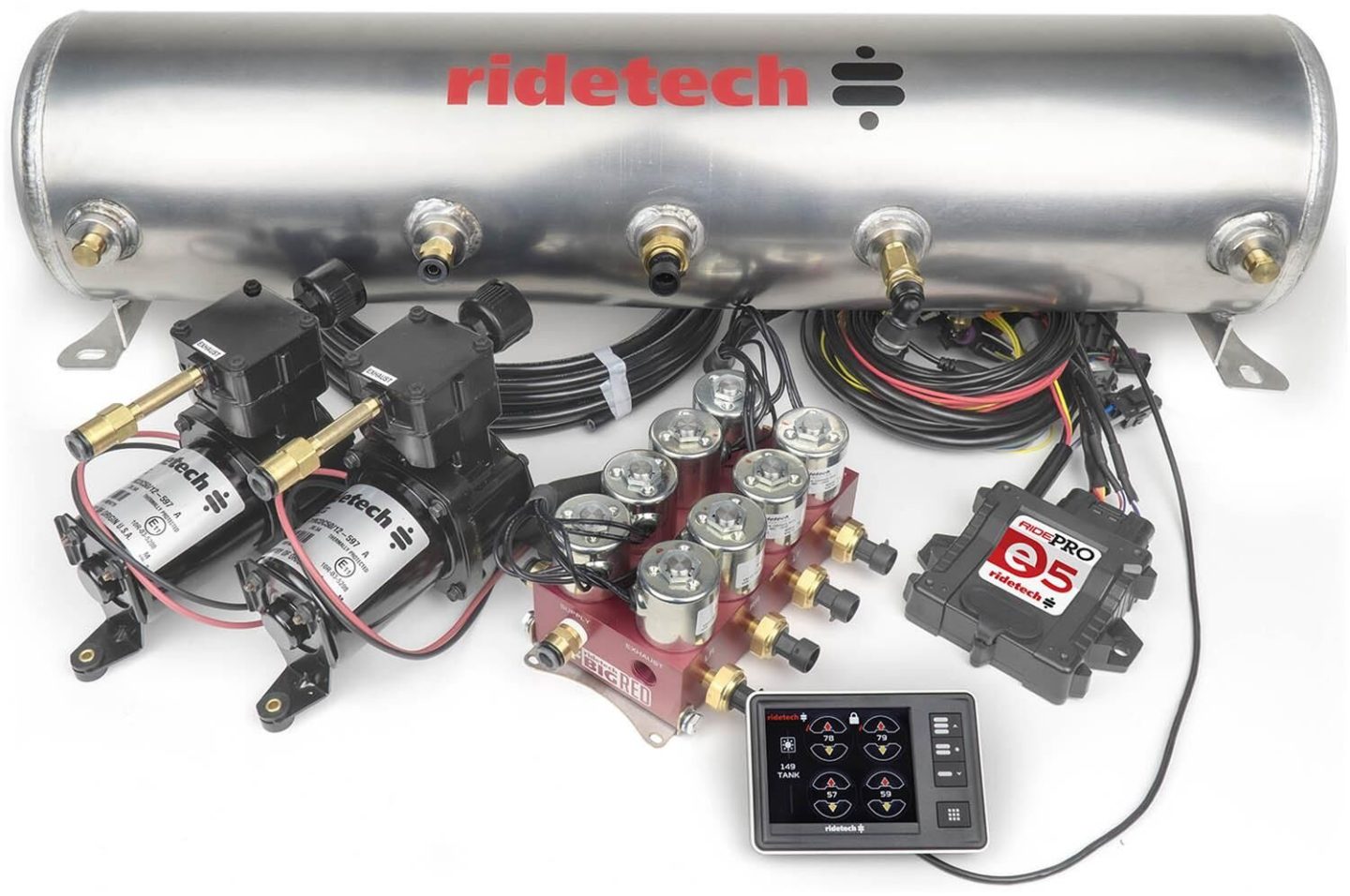

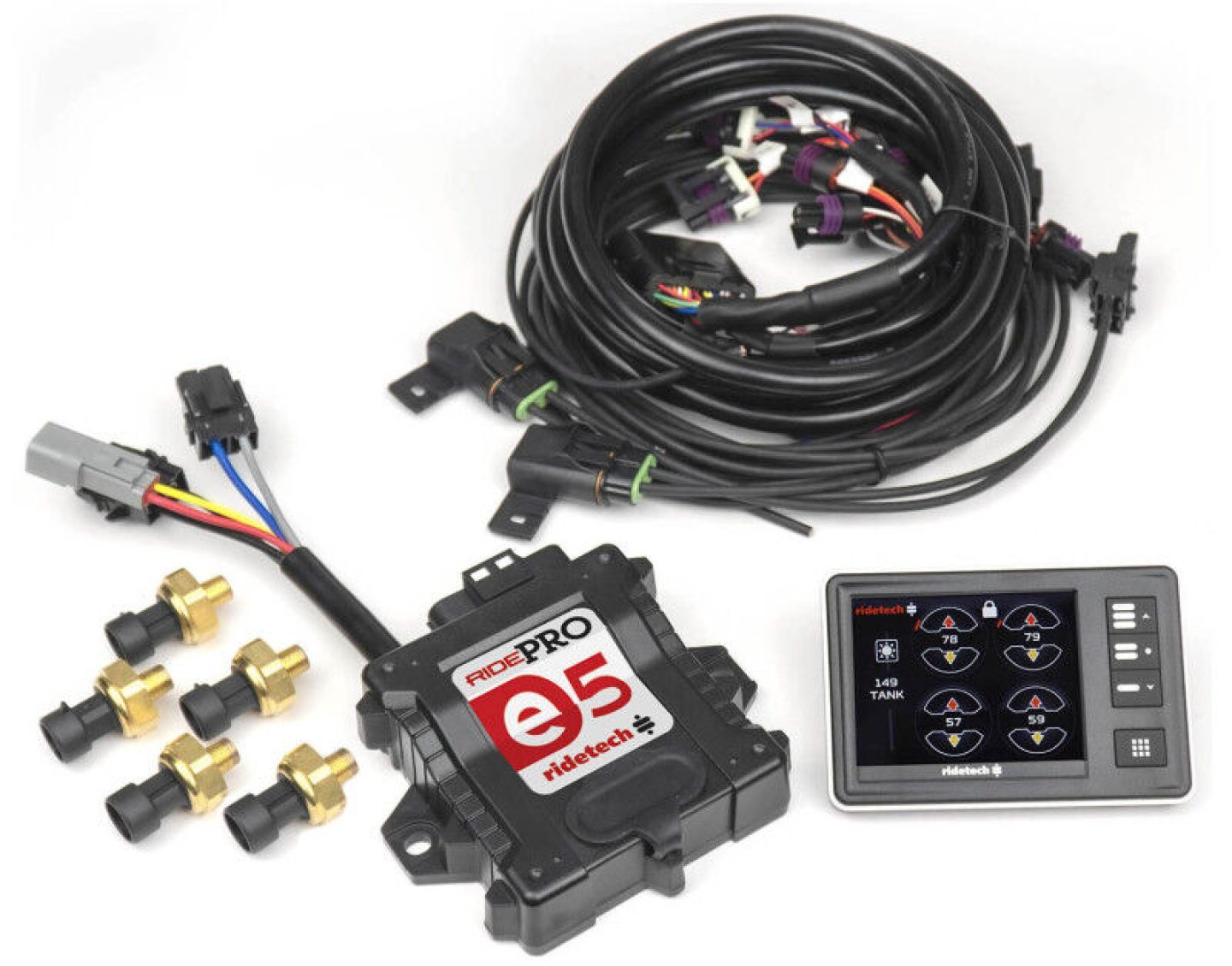

BigRed RidePro E5 air suspension control system with 5 gallon tank. Includes 2 air compressors, 5 gallon tank, BigRed electric valve, touch screen display, ECU, pressure sensors, wiring harness, 1/4" airline and fittings.

Application Summary

UNIVERSAL

Part Type

Air Suspension Compressor Kit

Product Overview

BigRed RidePro E5 air suspension control system with 5 gallon tank. Includes 2 air compressors, 5 gallon tank, BigRed electric valve, touch screen display, ECU, pressure sensors, wiring harness, 1/4" airline and fittings.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Suspension Control System, RidePro E5, 5-Gallon Tank, Dual Compressor, 3/8 in. Big Red High-Flow Valve, Digital 4-Corner Readout, 12 V, Kit

RideTech RidePro E5 Air Ride Control BigRed dual compressor systems adjust vehicle height at the push of a button while maintaining balanced air springs. With sophisticated pressure and height algorithms, RidePro E5 control systems tune air ride suspension for proper handling and world-class ride quality, so that each time your turn the ignition key, RidePro E5 self-adjusts to ride height and compensates for changes in load. They are ideal for trucks and other heavy applications to quickly raise and lower your vehicle and adjusting vehicle height is as simple as choosing one of three presets. You can also control the system wirelessly by simply connecting a compatible smartphone via Bluetooth and using the RidePro E5 app.

RideTech RidePro E5 BigRed systems feature and include:

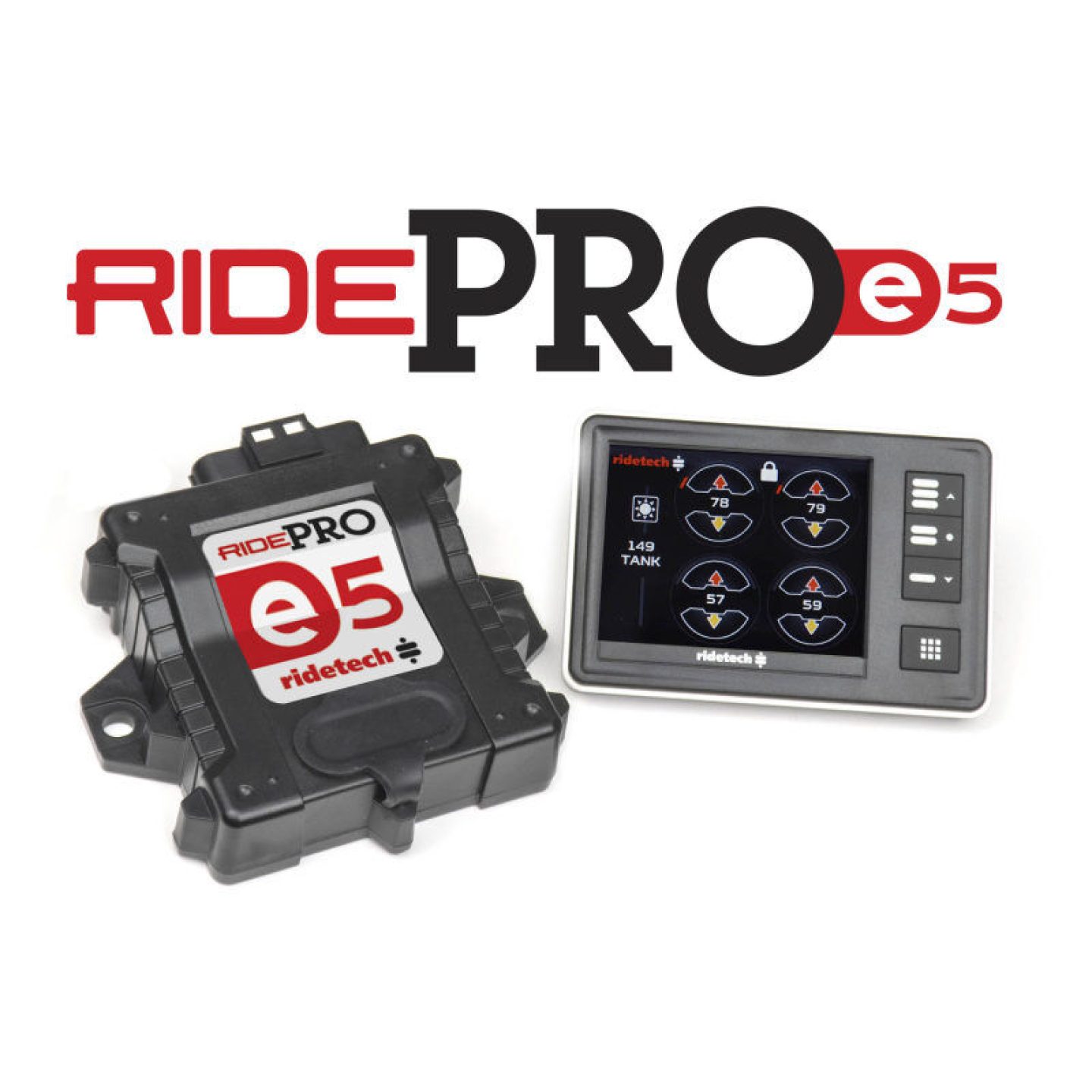

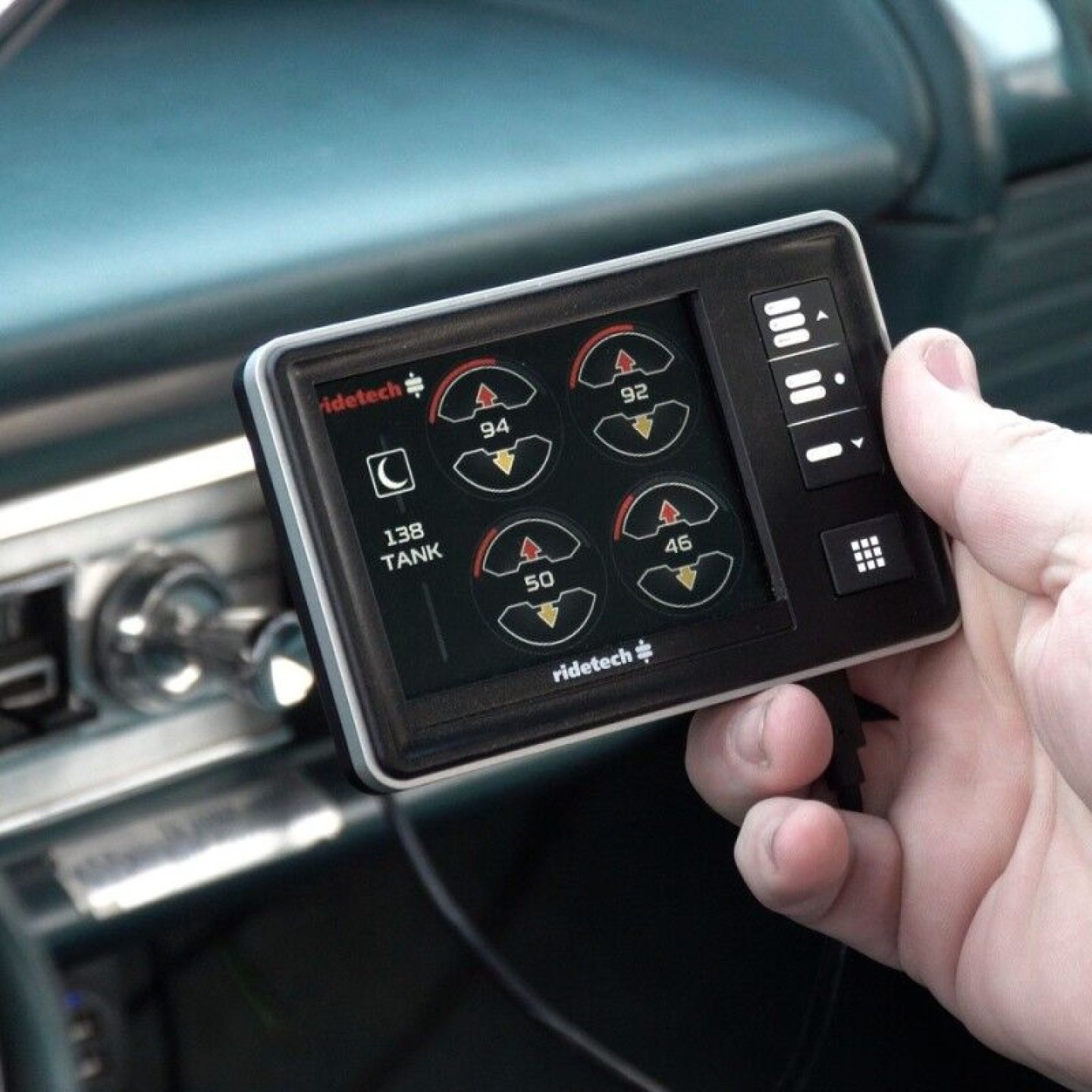

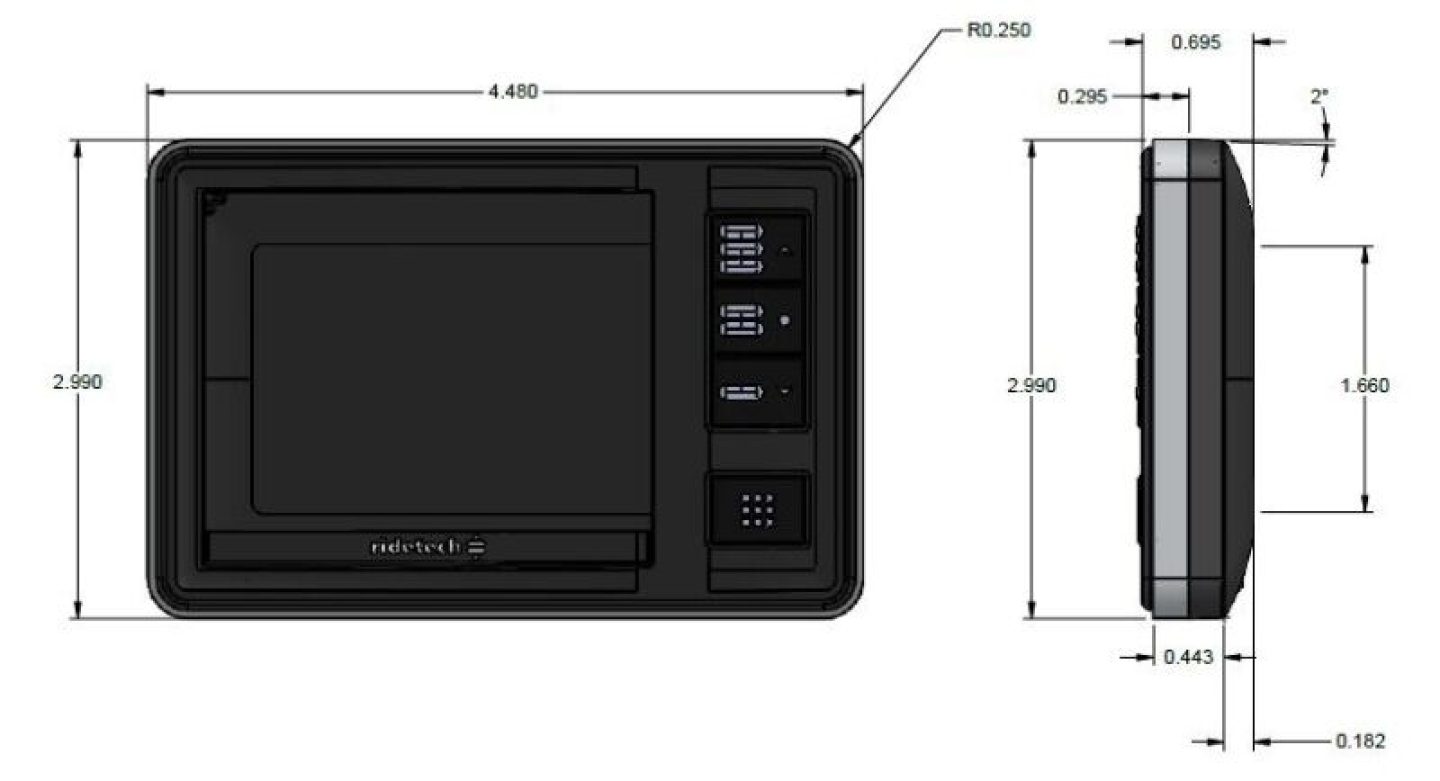

• Full color TFT LCD. 3.5 in. display with multi-touch capacitive touchscreen
• 4-button silicone keypad with backlit symbols for quick vehicle height changes
• "Ride Height On Start" automatic lift and level feature
• Display and setup via control panel, smartphone app or laptop
• Weatherproof ECM and heavy-duty connectors
• Automatic weight compensation (with optional height sensors)
• Bluetooth connectivity to most smartphones for wireless control
• Aluminum 5-gallon tank

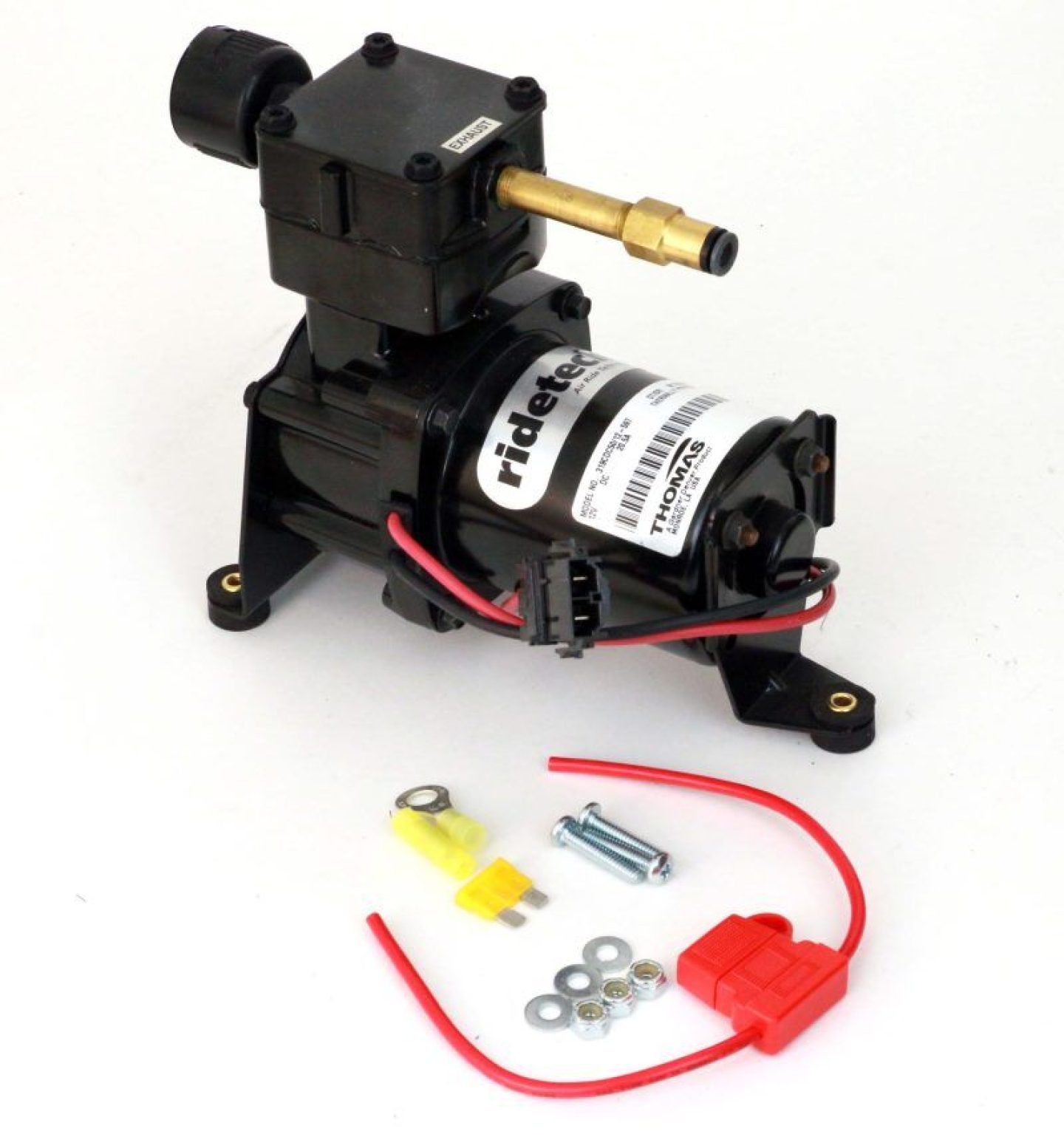

• 2 Thomas compressors

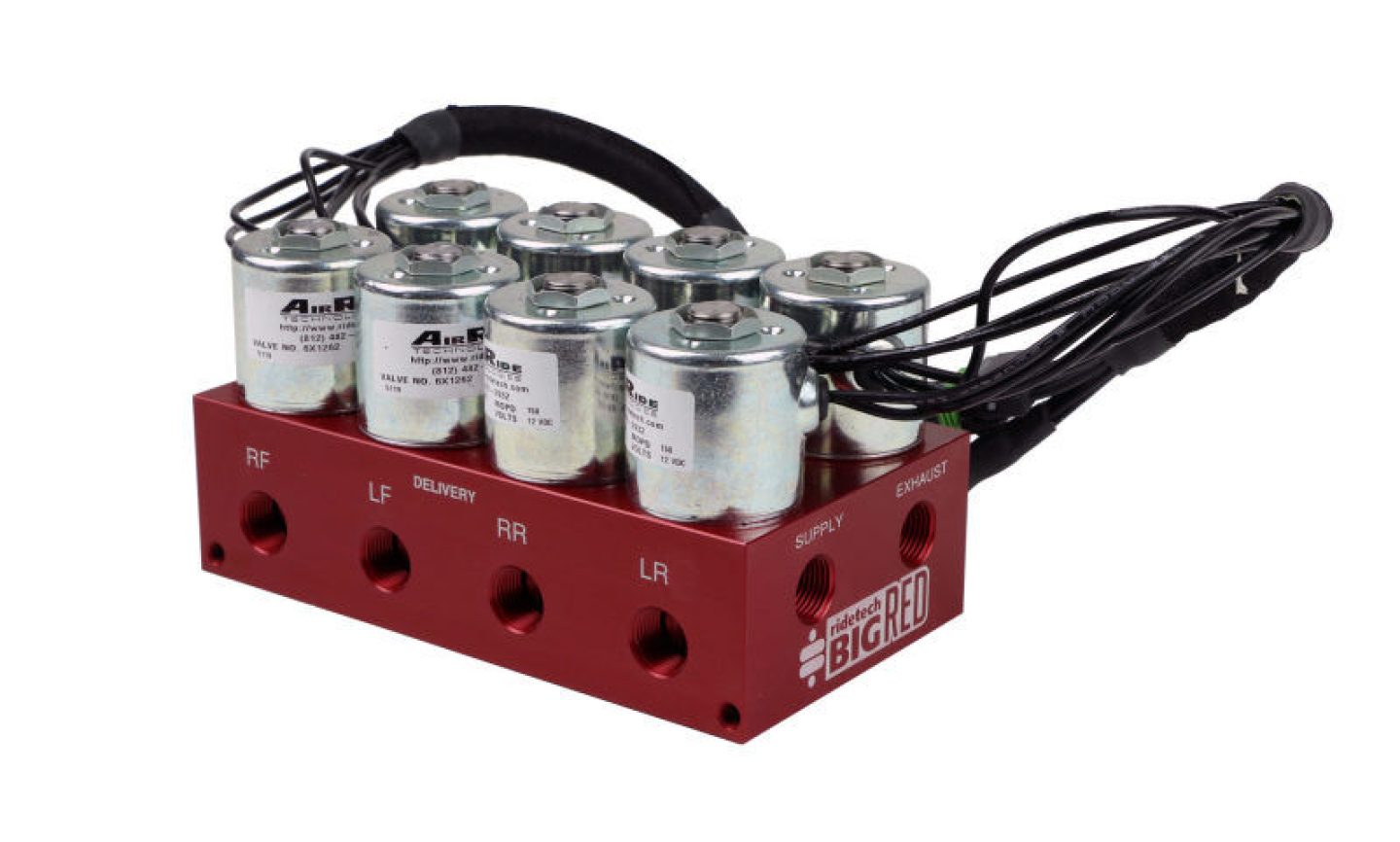

• Big Red high-flow air valve solenoid block
• RidePro E5 pressure based digital leveling system
• 3/8 in. air lines and fittings and wiring
