SuspLinkArmJt

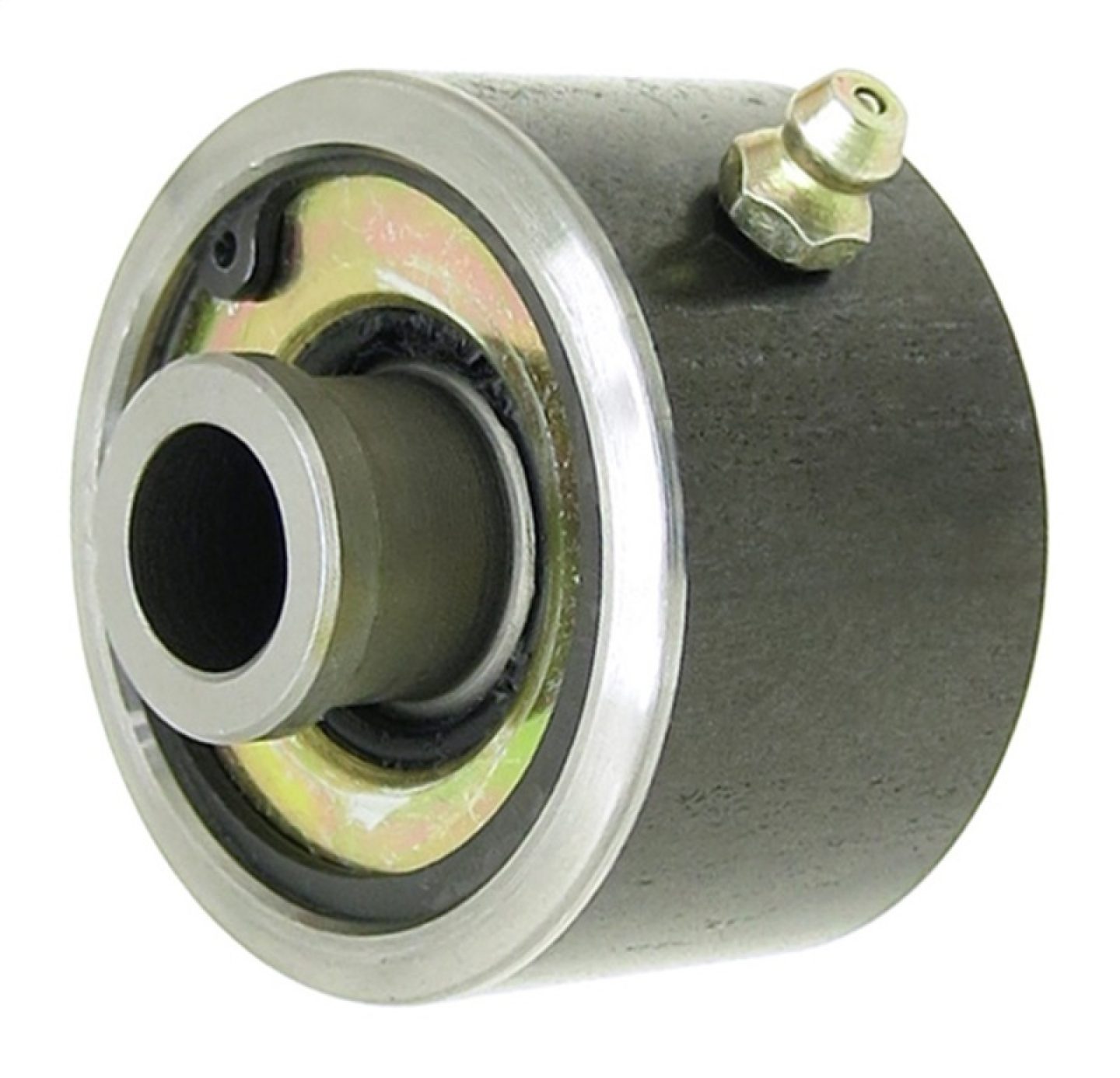

RockJocks narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. narrow body and features a 1.800 in. mounting width and a .630 in. thru bolt hole.

Additional Information

Johnny Joint® Rod End; 2 in.; Narrow; Weld On; 1.800 in. x 0.630 in. Ball; Externally Greased;

• Narrow Johnny Joint® Rod End

Note for Pistons, Rings, Rotors, Rods and engine internals

Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Narrow Johnny Joint®; 2 in.; Weld-On; 1.800 in. X 0.630 in. Ball; Externally Greased; Each
