SuspLinkArmJt

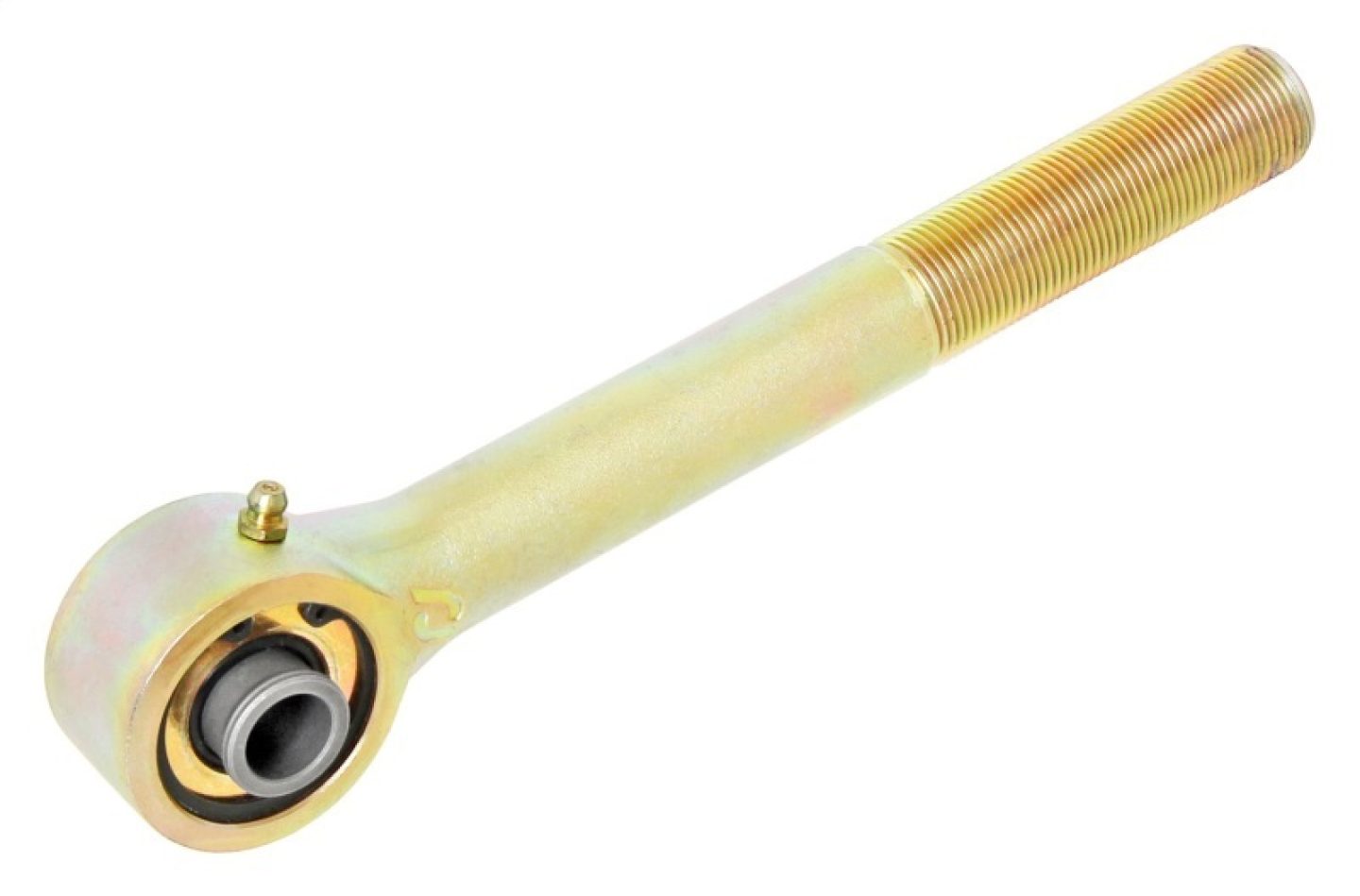

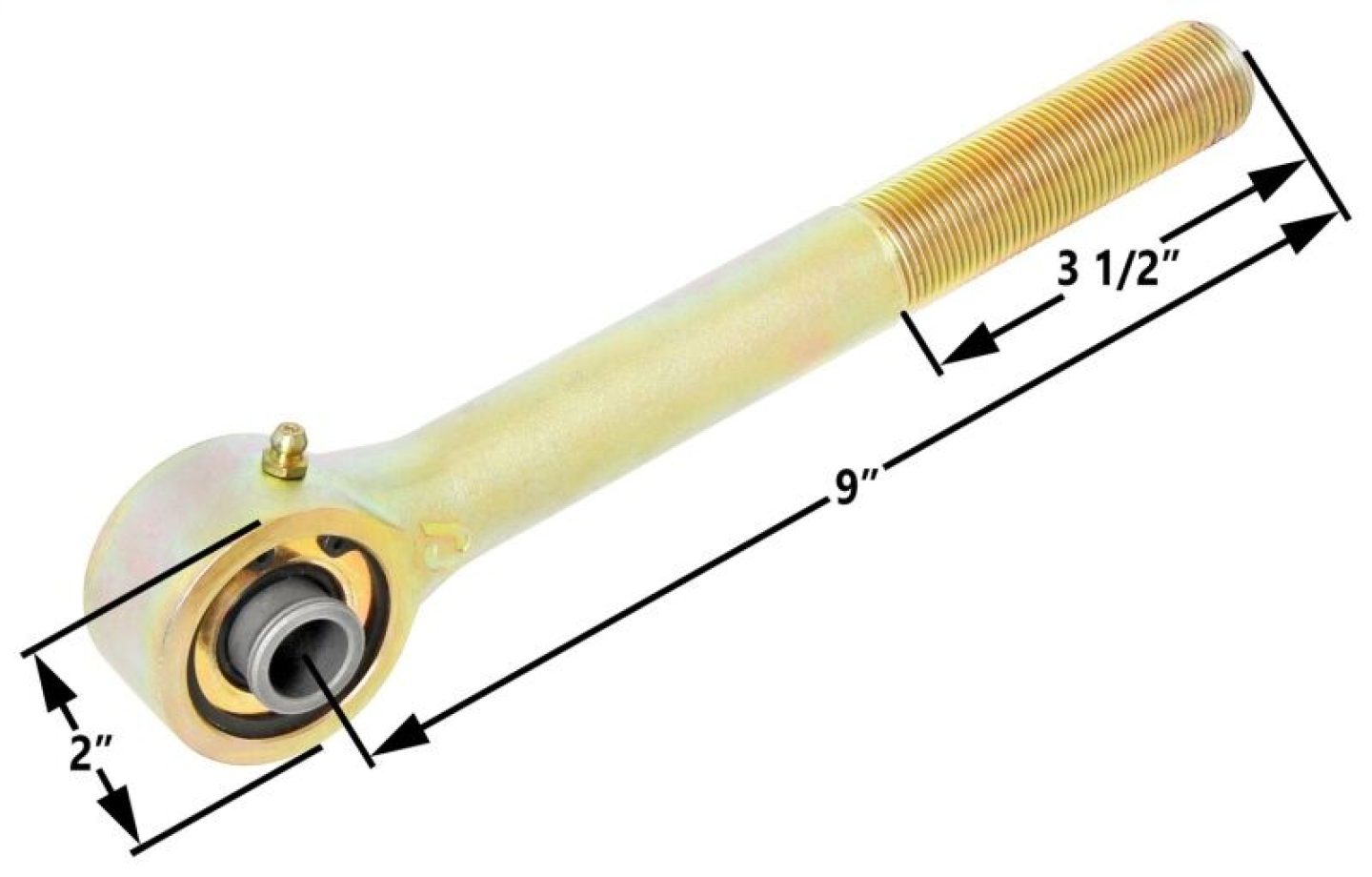

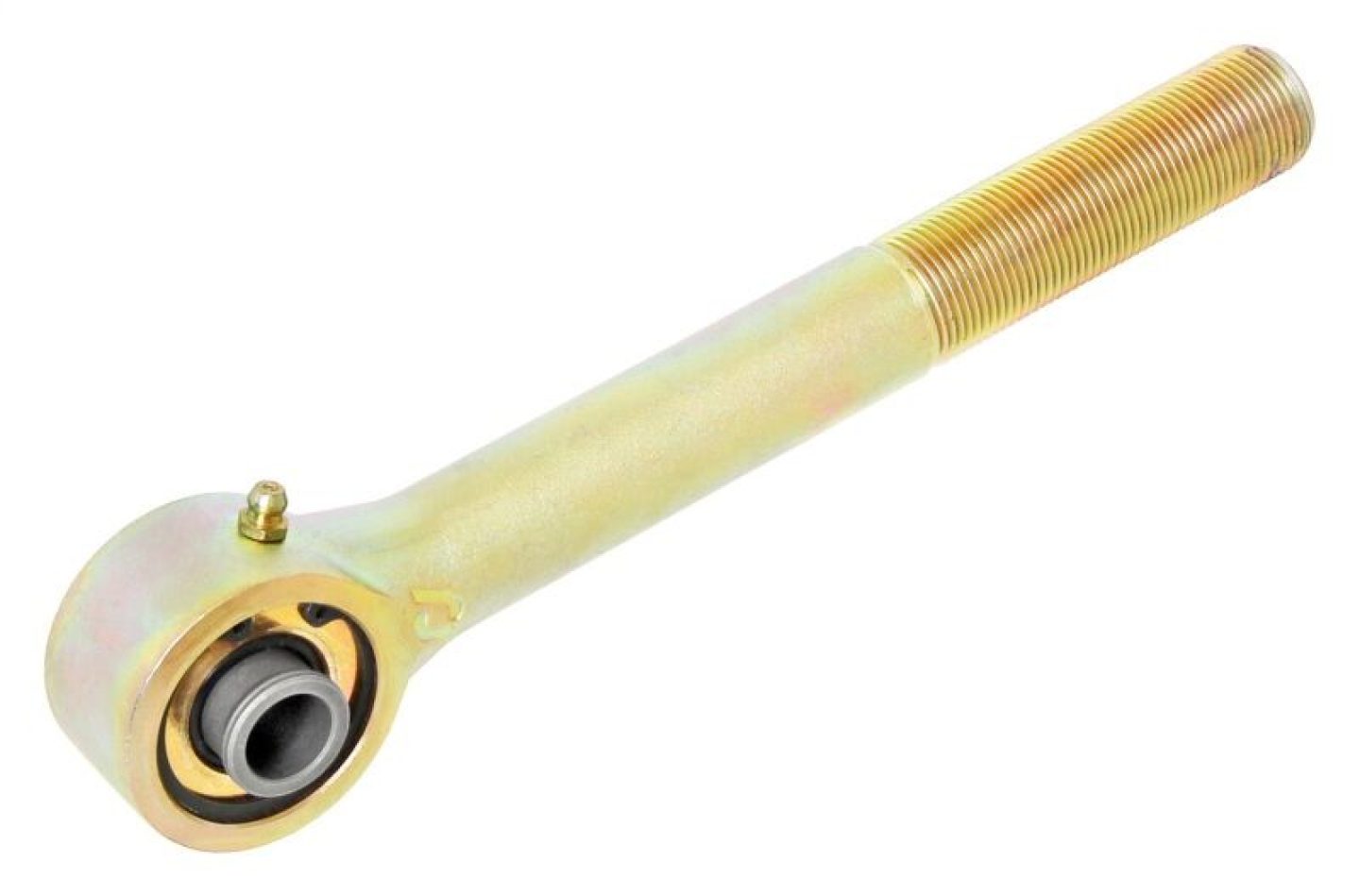

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, narrow body and features a 9 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 in.-14 RH threads and a 1.800 in. wide x .630 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.

Additional Information

Johnny Joint® Rod End; 2 in.; Narrow Forged; Long Shank; 1 in.-14 RH Threads; 1.800 in. x .630 in. Ball;

Note for Australian & European Markets

This product is designed and tested for the US Domestic Market to comply with relevant US standards. Consequently, it may have features that are not compatible or compliant with regulations outside the US. As such, this item is offered for off-road use. If this item includes a tow-ball, it is important that you ensure compatibility with your trailer.

Note regarding tow-ball sizing: Please verify your trailer coupling size. Unless otherwise stated, if a ball is included with this product, it may be supplied with an imperial sized ball. It is important that you ensure compatibility with your trailer. U.S. market hitches typically are supplied in 2", 1-7/8" or 2-5/16.

IMPORTANT! DO NOT ATTEMPT TO COUPLE A TRAILER WITH AN INCORRECTLY SIZED TOW-BALL. Before installation, please check sizing as you may need to source an alternative ball for your application. Returns are not available for special order items.

Note for Pistons, Rings, Rotors, Rods and engine internals

Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Johnny Joint Rod End, 2 in., Narrow Forged, Long Shank, 1 in.-14 RH Threads, 1.800 in. x .630 in. Ball
