SuspLinkArmJt

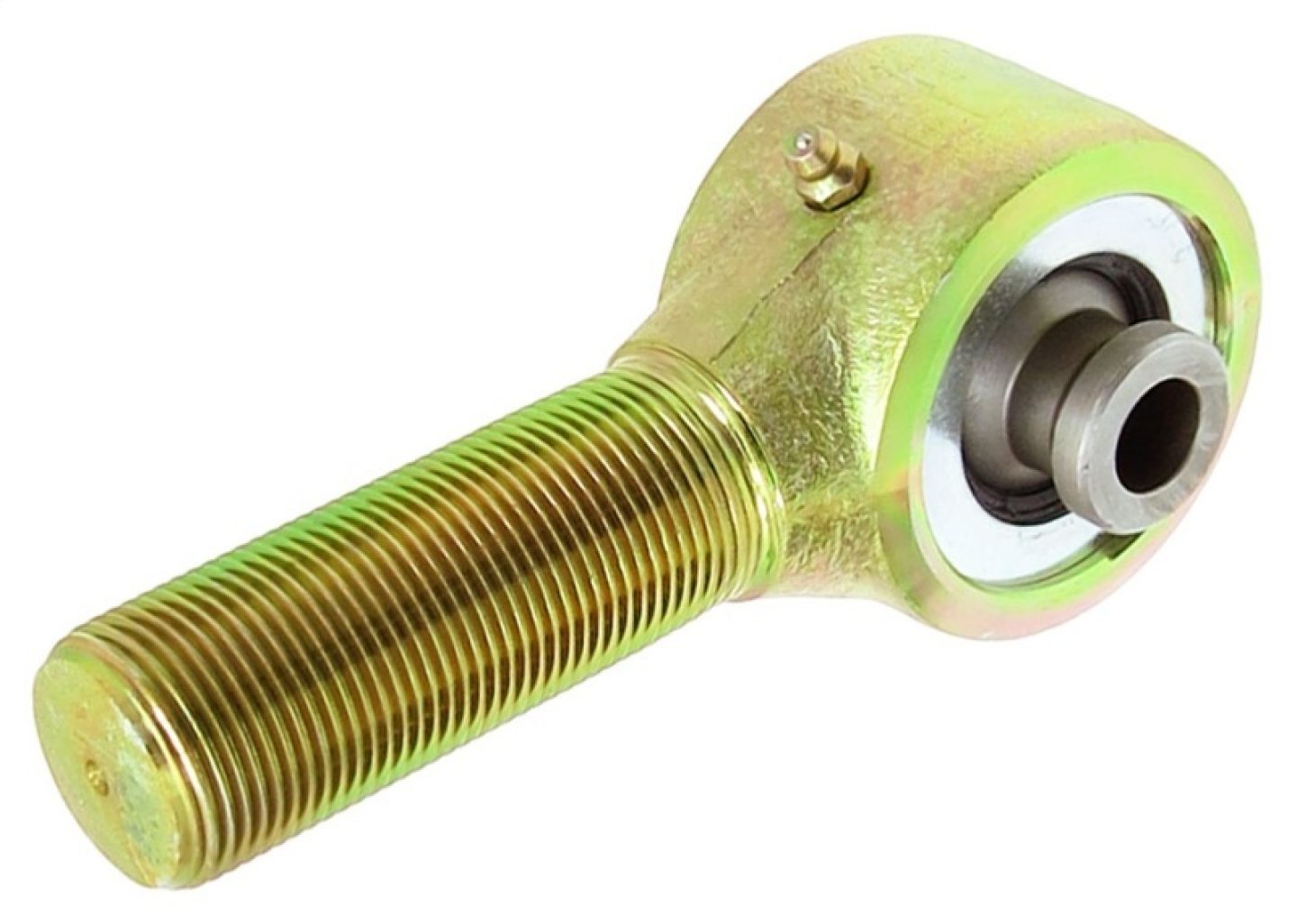

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the axle side of the 2021 and up Broncos rear control arms and feature a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 70mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.

Additional Information

Johnny Joint® Rod End; 2.5 in.; Narrow Forged; 1.25 in.-12 LH Threads; 70mm x 16mm Ball;

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 1 1/4 in.-12 LH Threads, 70mm x 16mm Ball, 21+ Bronco Rear Axle
