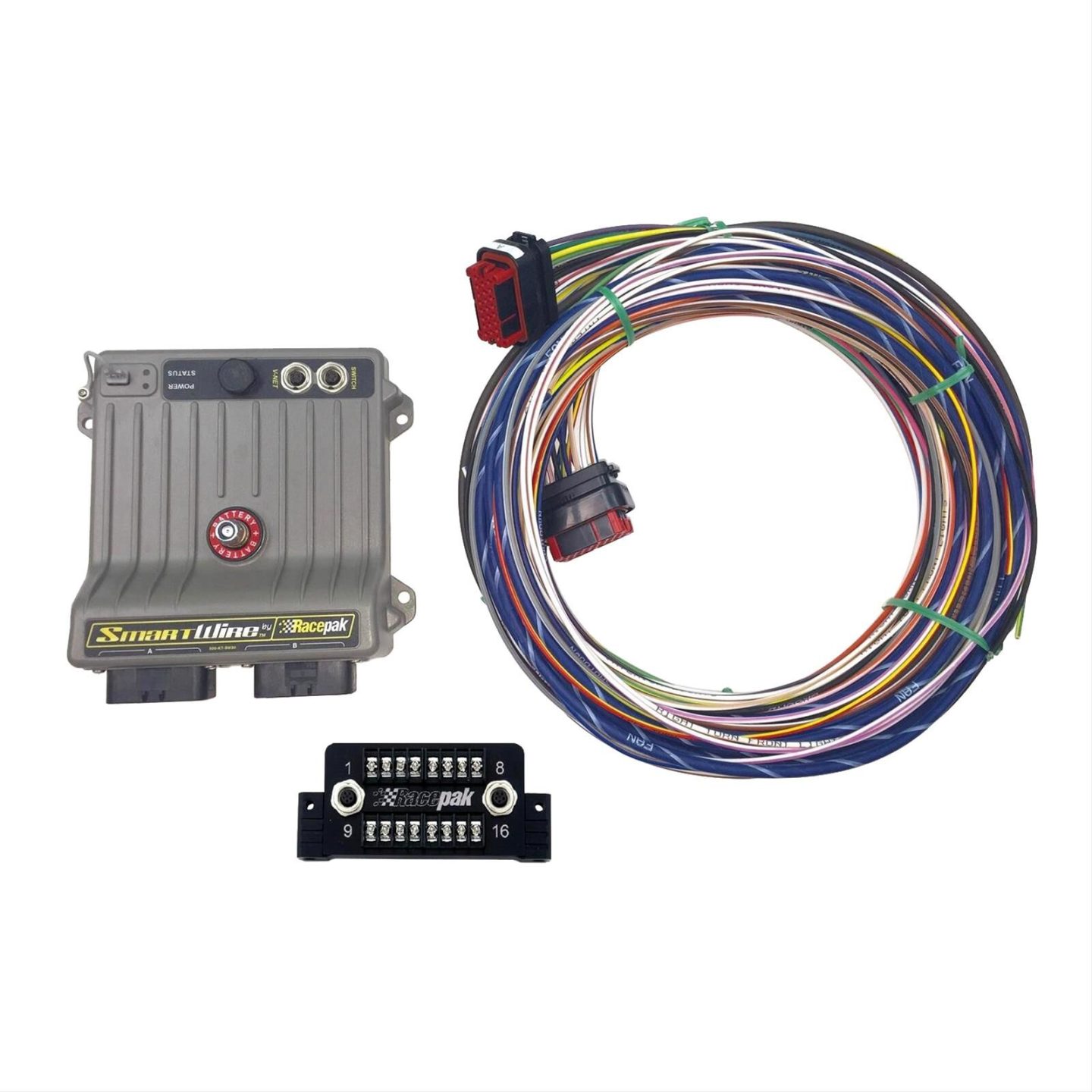

Power Control Module - Smartwire - 16 Channel Switch - Programming Cable - Connectors - Wiring Sockets - Datalink II Software - Kit

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Data Acquisition, Street SmartWire, Programming Cable, Connectors, Wiring Sockets, DatalinkII Software, Kit

Racepak SmartWire kits are fully programmable power distribution modules, capable of controlling 30 outputs (on/off switching) and 12 inputs (switch-activated) on any type of 12–16 VAC systems. Fuses, relays, and solenoids are eliminated, instead controlled through solid-state switching inside the housing. Current outputs and switching inputs—along with a nearly unlimited variety of on-off switching functions—are user-programmable through the Racepak DataLink II software.

Racepak SmartWire kits can operate in three different modes:
• Stand Alone: Power from the battery is connected to the power stud of the SmartWire. Outputs to each device in the vehicle are connected to one of two 15-pin connectors; output currents and related requirements are programmed via connection of the SmartWire to the user's PC. Switching off and on of the devices is handled through inputs on the 15-pin connectors or optional SwitchPanel or SwitchModule.
• In conjunction with Racepak V-Net sensors: Want to automatically turn on a radiator fan, but only when the water temperature is above 190 degrees? Add a Racepak V-Net water temperature sensor to the vehicle, connect it to the V-Net port of the SmartWire, and program it through use of a PC connected to the SmartWire.
• In conjunction with a Racepak V-Net data logger: This allows the SmartWire to be connected to the single V-Net T cable, which transmits all sensor data to the data logger. They "borrow" the sensor data to trigger devices based on desired programmed settings. In addition, all states and conditions of each channel can now be monitored and recorded in the DataLink II software, alongside all the other sensor data.
