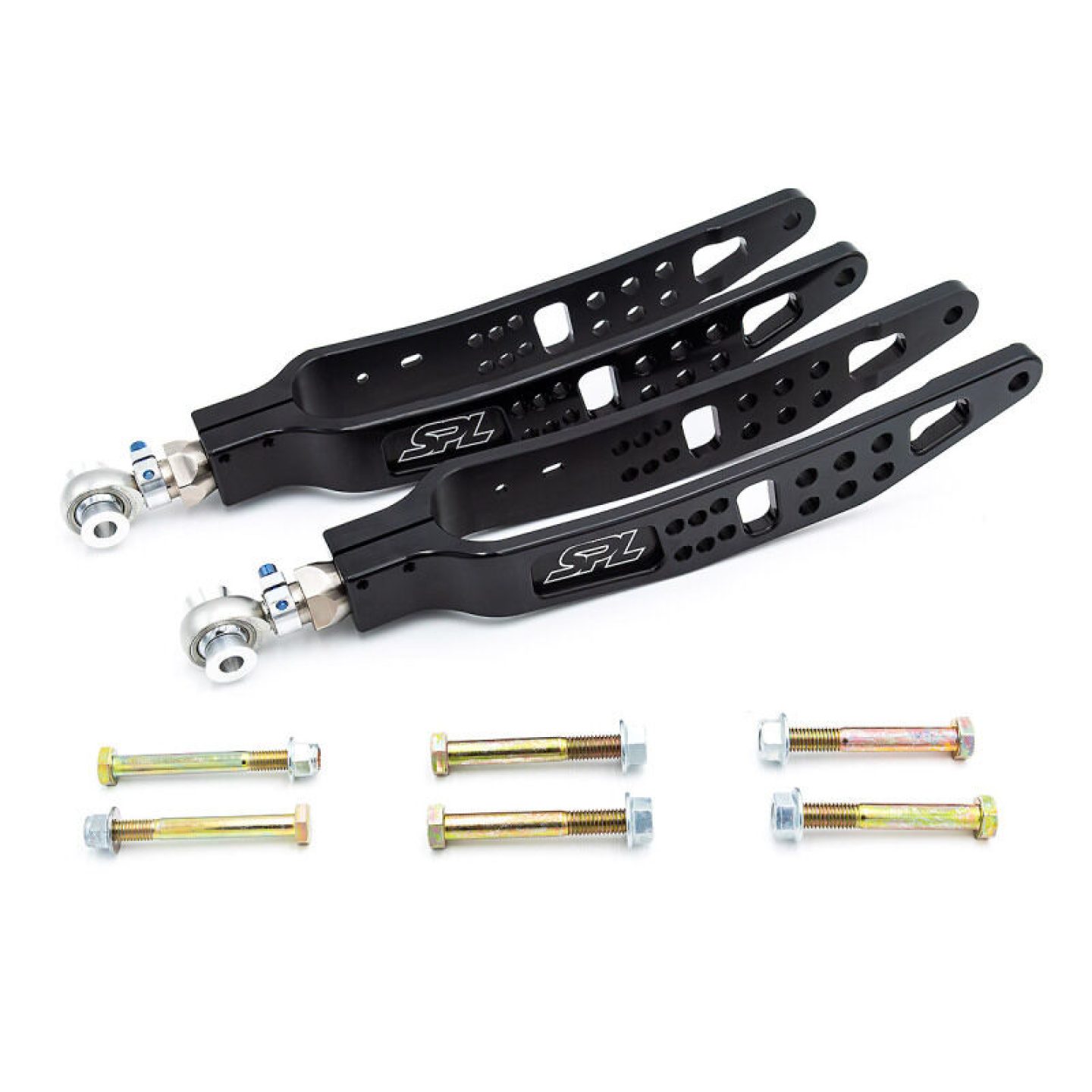

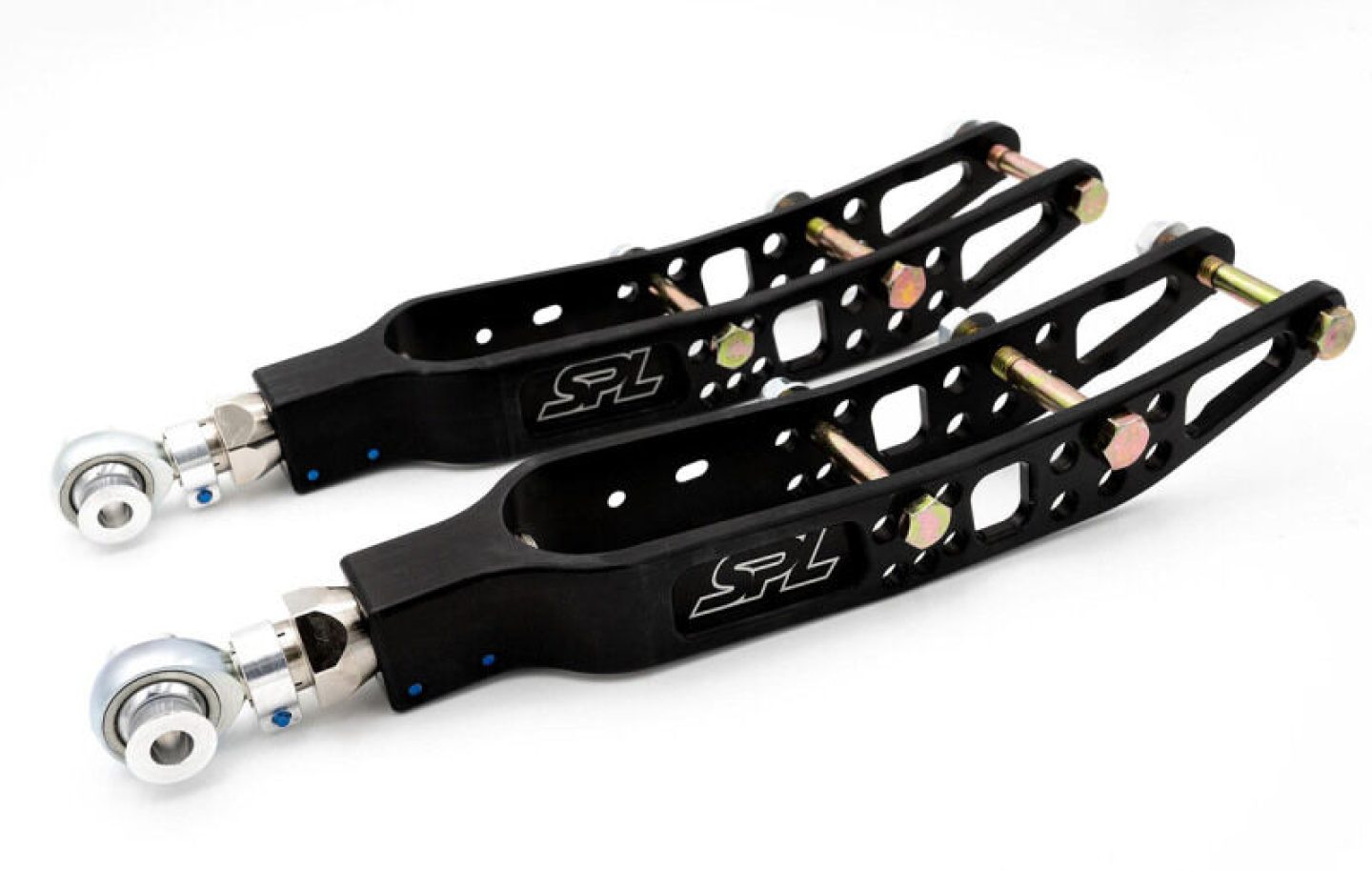

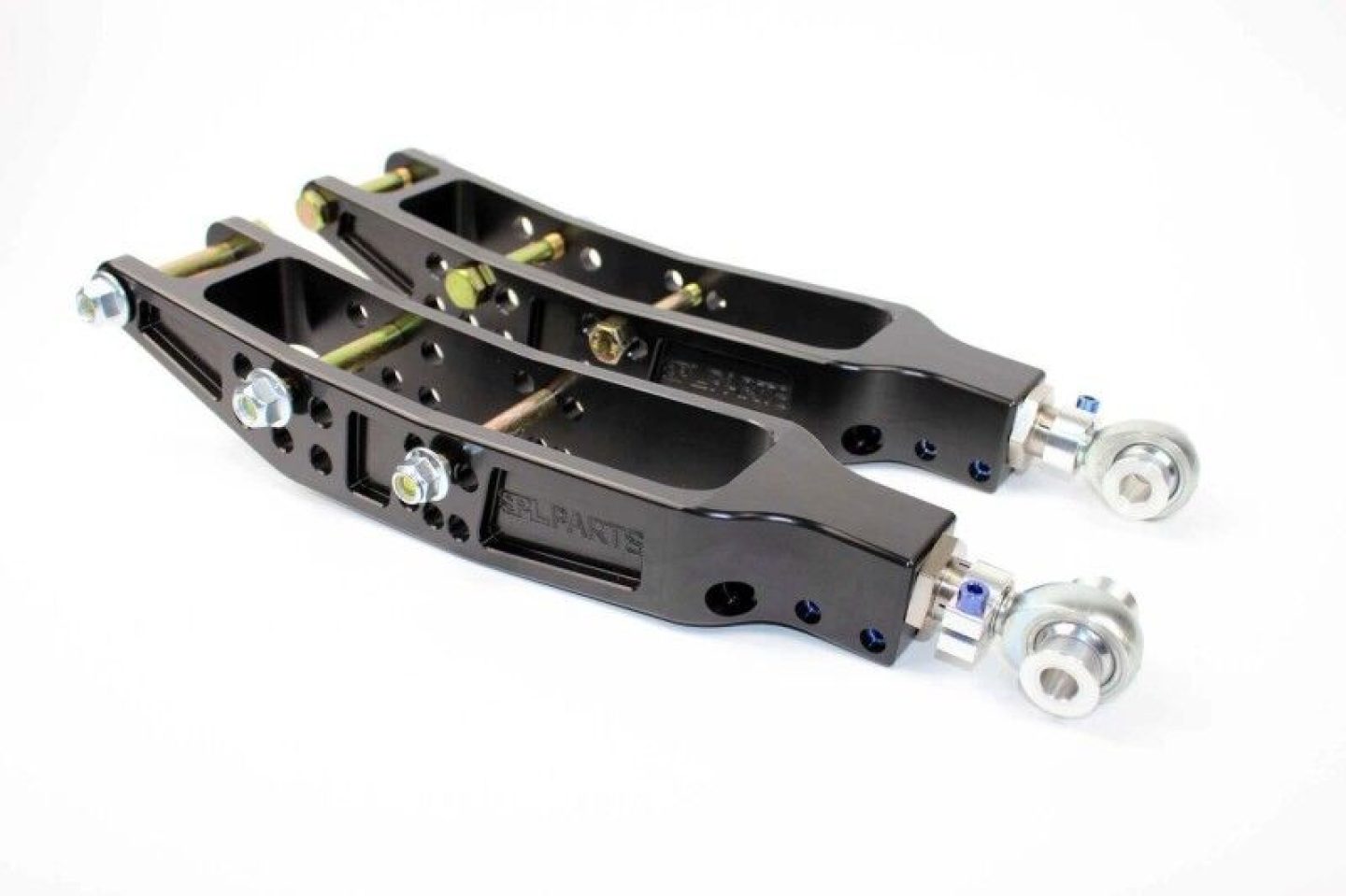

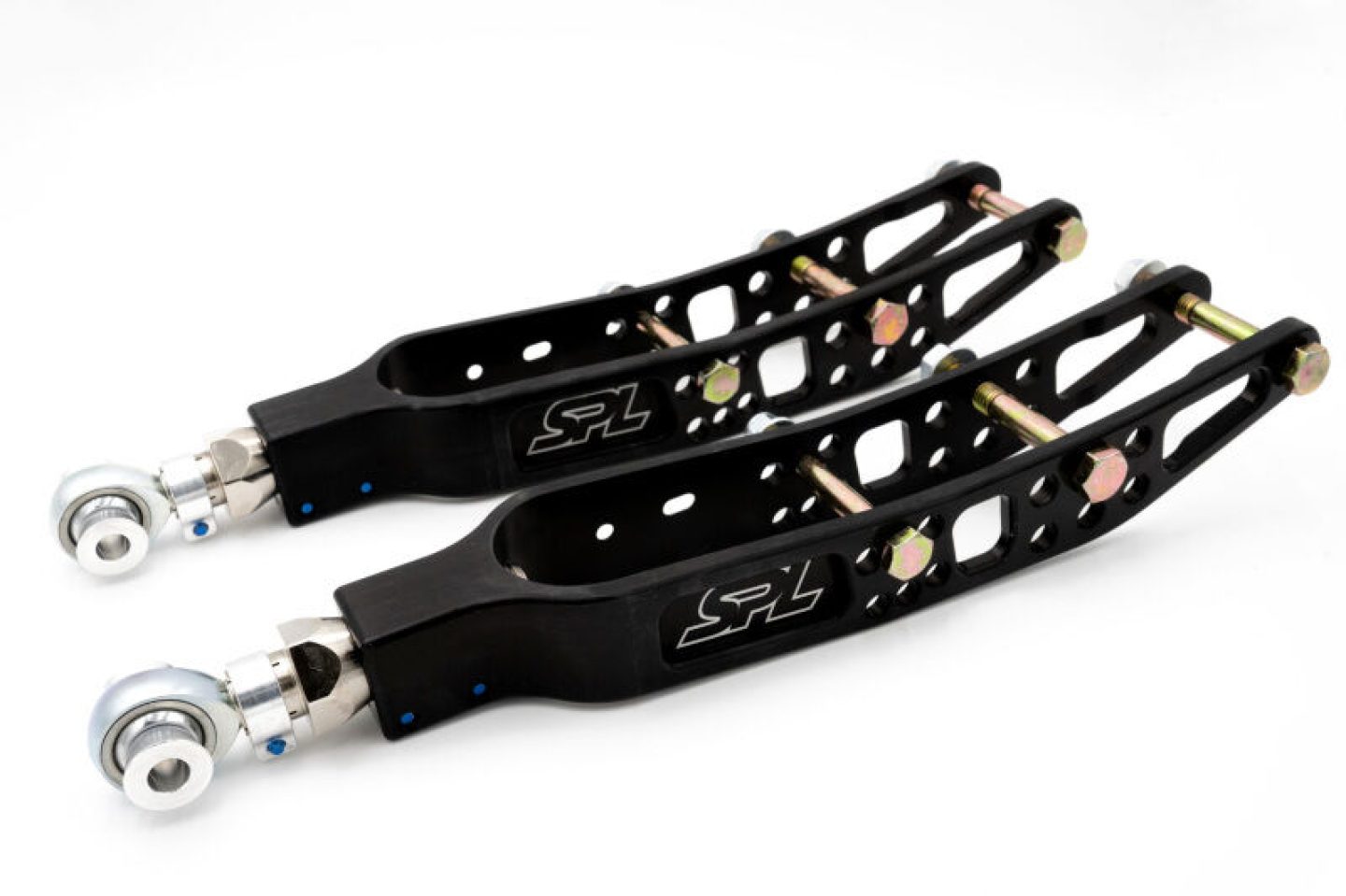

SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Lower Camber Arms

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.

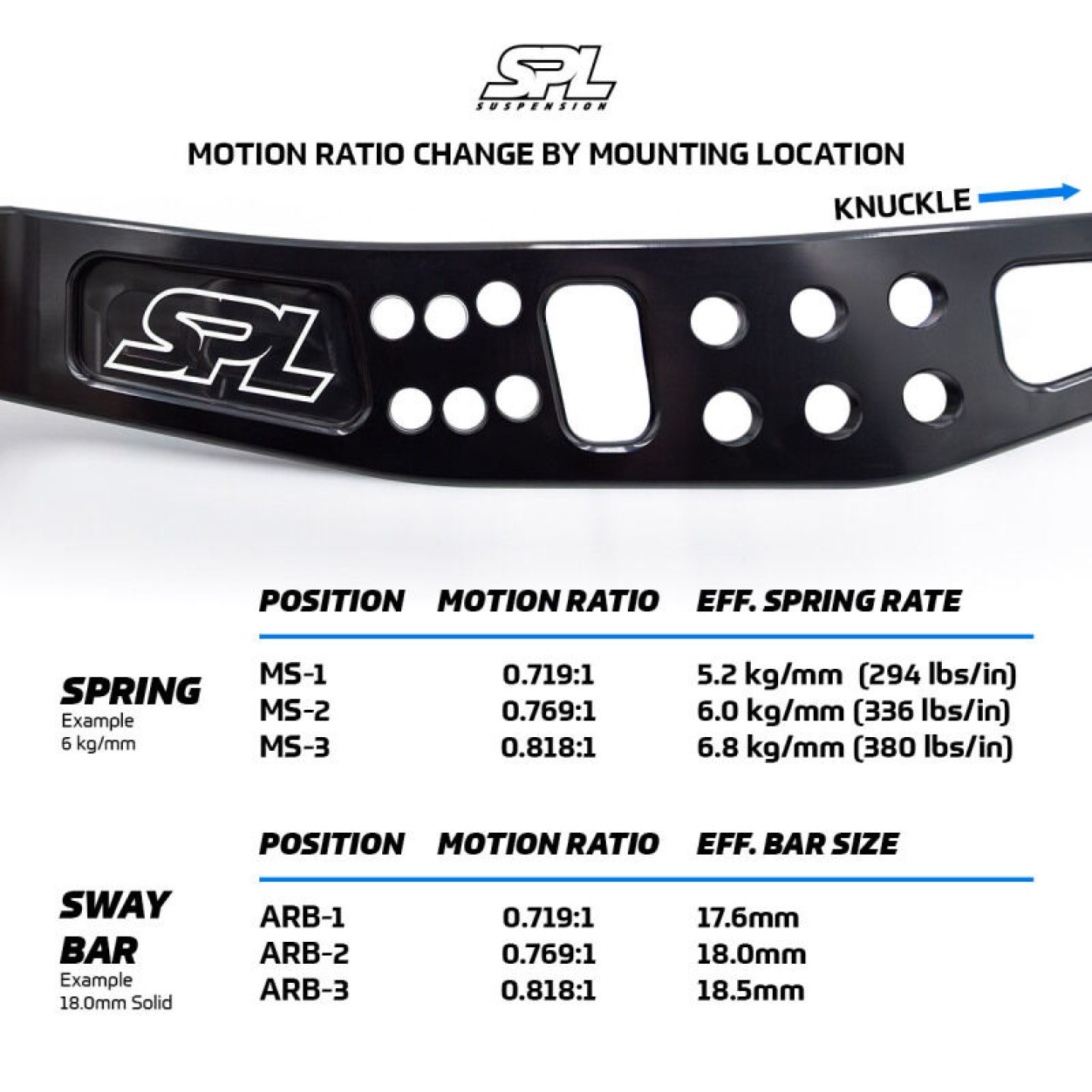

Adjustable Motion Ratios

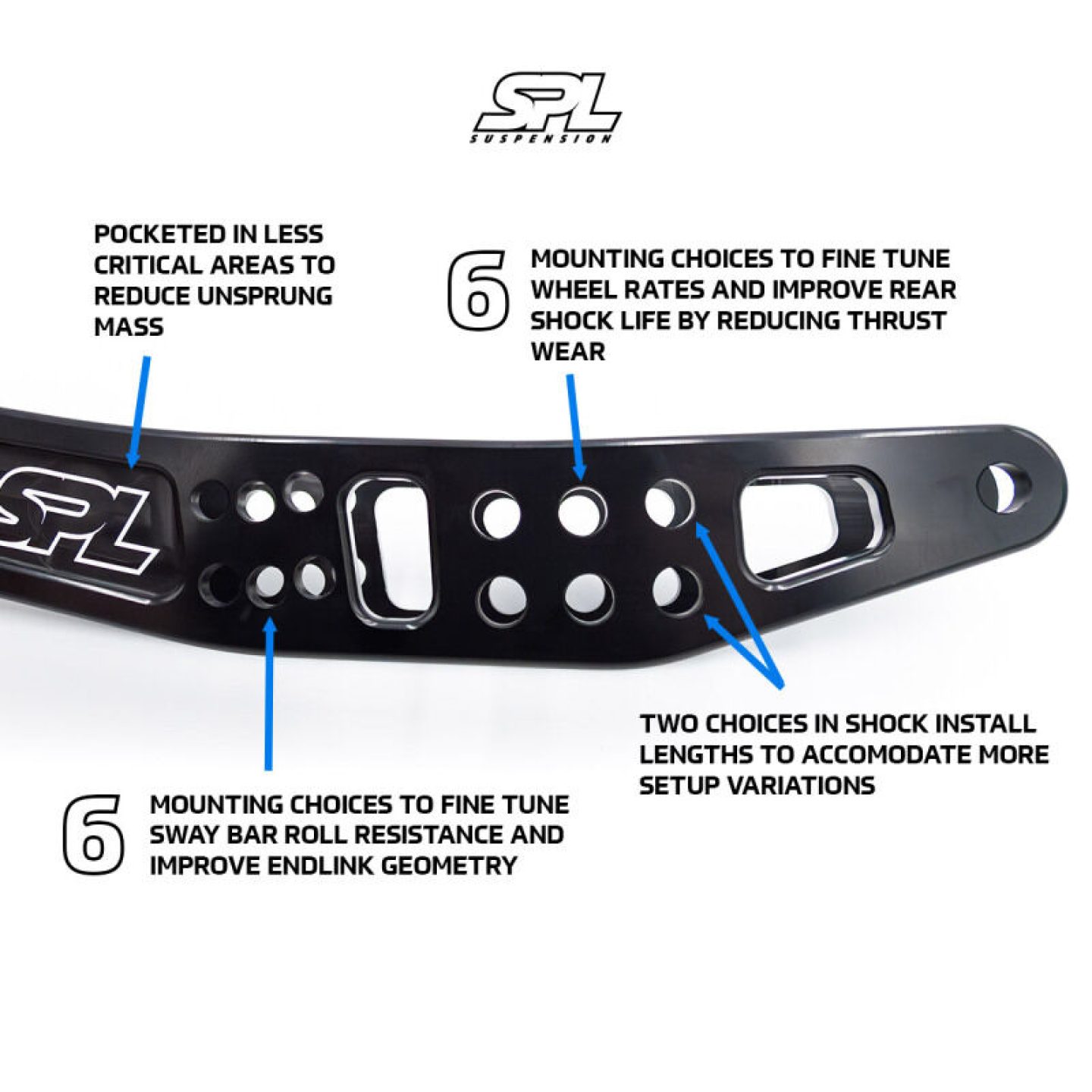

The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).

Unrivaled Adjustability Range

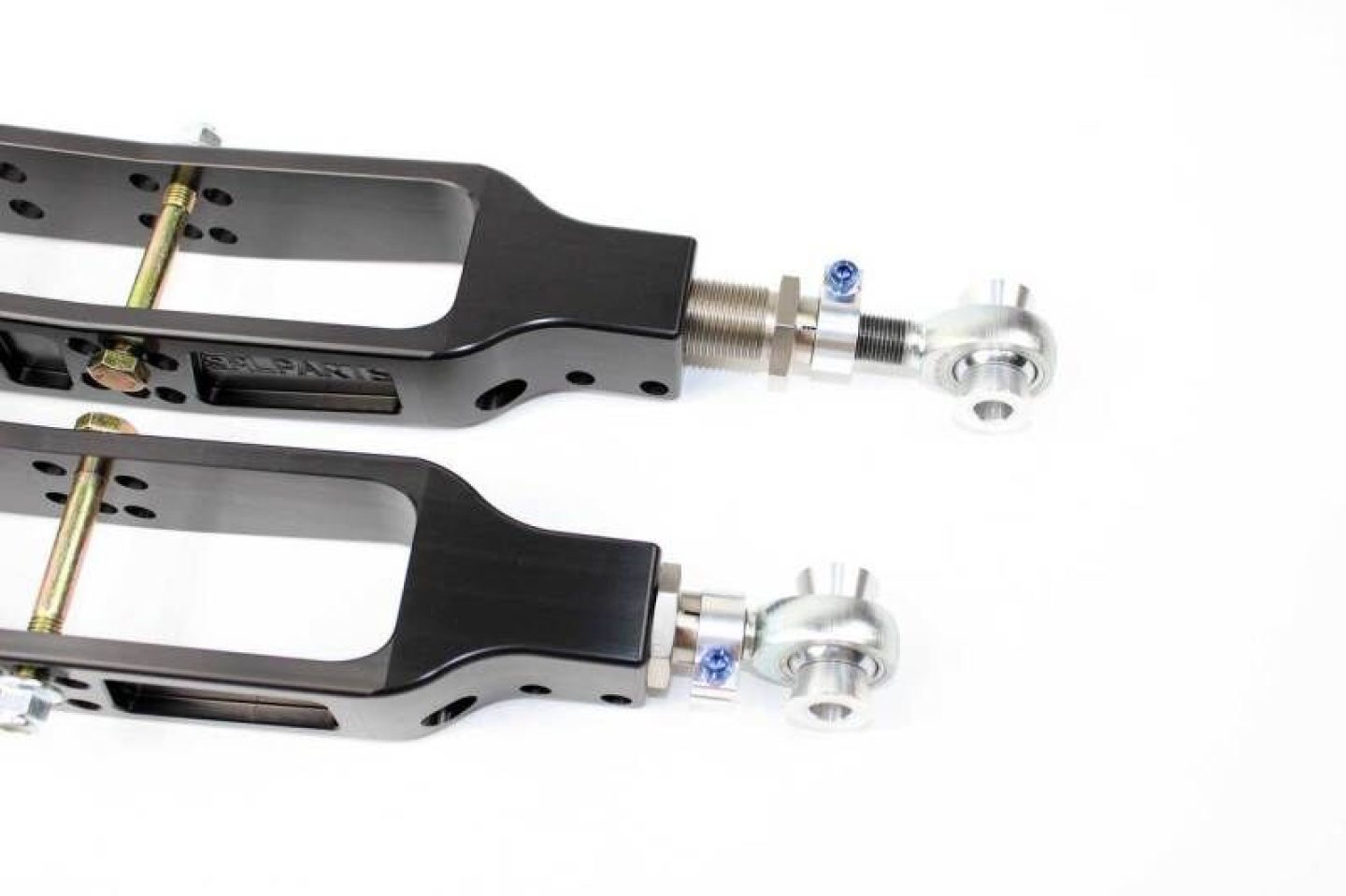

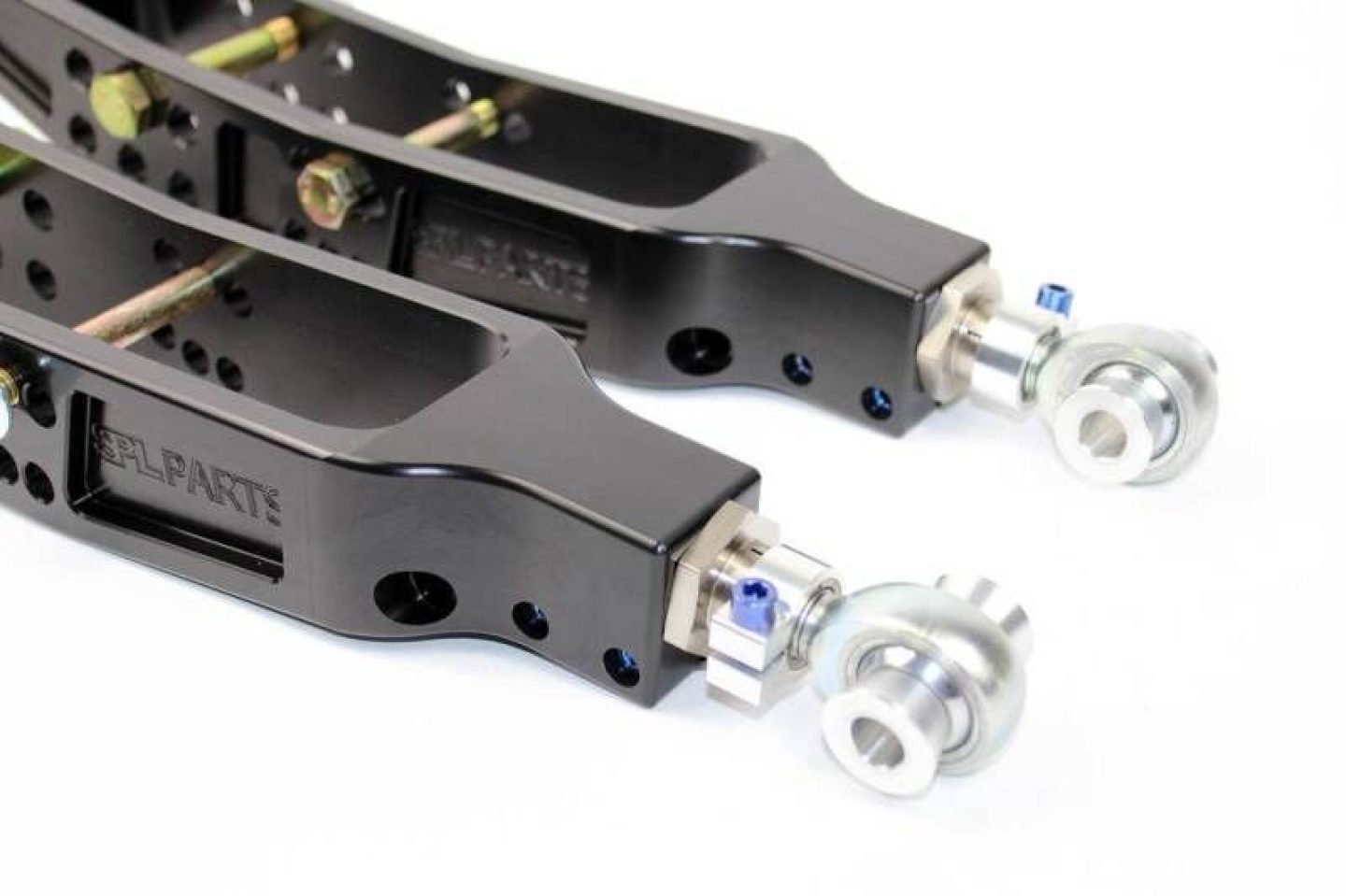

The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.

Benefits
Large Range of Camber and Motion Ratio Adjustability
Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
Eliminates Camber Loss to Bushing Deflection
Improves Suspension Response and Driving Feel
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings

Materials
6061-T6 Aluminum Arms (Anodized Black)
6061-T6 Aluminum Spacers and 360º Clamps
4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

Additional Information

SPL FR-S / BRZ / GT86 Rear Adjustable Camber Arms

Part Type

Suspension Control Arm Link

Product Overview

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.

Adjustable Motion Ratios
The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).

Unrivaled Adjustability Range
The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.

Benefits
Large Range of Camber and Motion Ratio Adjustability
Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
Eliminates Camber Loss to Bushing Deflection
Improves Suspension Response and Driving Feel
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings

Materials
6061-T6 Aluminum Arms (Anodized Black)
6061-T6 Aluminum Spacers and 360º Clamps
4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

• Proudly made, engineered, and assembled in the USA.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Reference Information

Camber Arms, Rear Lower, Billet Aluminum, Black, Subaru, Toyota, Pair

SPL Suspension camber arms increase stability and response by eliminating bushing deflection and offer a wide range of camber adjustment. They're designed for use in high performance street and race vehicles. Without factory camber adjustment, many lowered cars require an adjustable control arm to achieve your desired alignment settings to maximize tire wear and handling. Three-position mounting holes for sway bar end links and shock mounting allow you to alter geometry to prevent end link binding, quickly adjust motion ratios, and resulting spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement.

Using FEA (Finite Element Analysis), SPC's CNC-milled 6061-T6 billet aluminum camber arms are designed to exceed factory strength and durability. The exclusive Hybrid Adjuster is comprised of electroless nickel plated 4130 chromoly. SPL blue anodized titanium hardware and 6061-T6 aluminum clamps help reduce weight and prohibit corrosion while offering quick and easy adjustment. Order the pair recommended for your vehicle.
