Winch - SP 35 - 3500 lb Capacity - Roller Fairlead - 10 ft Remote - 7/32 in x 40 ft Steel Rope - 12V - Kit

Superwinch 3500 LBS 12V DC 7/32in x 40ft Steel Rope Roller Fairlead SP 35 Winch

The Superwinch SP 35, the ultimate winch for your off-road adventures. With a robust 3,500 lbs. rated line pull and a powerful 1.6 HP permanent magnetic motor providing dynamic braking, conquer any obstacle with ease. Its 3-stage planetary gearing with a 198:1 ratio ensures smooth and reliable operation, while the ergonomic twistlock clutch allows for effortless engagement. Equipped with a patented drum light for enhanced visibility, a full load automatic brake, and a heavy-duty 1/4" clevis winch hook, safety and reliability are guaranteed. Plus, enjoy the convenience of dash-mounted control switches and a 10' handheld remote with a handlebar rocker switch for easy operation from a distance. The wire rope measures 7/32" x 40', offering ample reach for your toughest pulls, and includes a 4-way stainless steel roller fairlead. With an IP68-rated waterproof and dustproof design and a durable metallic graphite powder coat finish, the SP 35 is built to withstand the toughest conditions. Backed by a Limited Lifetime mechanical warranty and a limited 3 year electrical warranty, the Superwinch SP 35 is your trusted winch for every adventure.

Additional Information

SP 35 Winch; 3500 lbs.; 12 VDC; 7/32 in. x 40 ft. Steel Rope; Sealed Solenoid w/Circuit Breaker; Handheld Remote; Dash Mounted Switch; 198:1 Gear Ratio; Roller Fairlead;

Part Type

Winch

• 1.6 HP permanent magnet motor (provides dynamic braking)
• 1.6 HP Permanent Magnet Motor [Provides Dynamic Braking]
• 10 ft. handheld remote control with handlebar rocker switch
• 3-Stage planetary gearing with 198:1 ratio
• 3500 lbs rated line pull
• 3500 lbs. Rated Line Pull
• 4-way stainless steel roller fairlead (wire rope)
• 4-Way Stainless Steel Roller Fairlead [Wire Rope]
• Aluminum Hawse Fairlead [Synthetic Rope]
• Dash-mounted control switches
• Drum measures 1.96 in. x 3.74 in.
• Durable metallic graphite powder coat finish
• Ergonomic twistlock clutch
• Full load holding automatic brake
• Heavy duty 1/4 in. clevis winch hook
• IP68-rated waterproof and dustproof

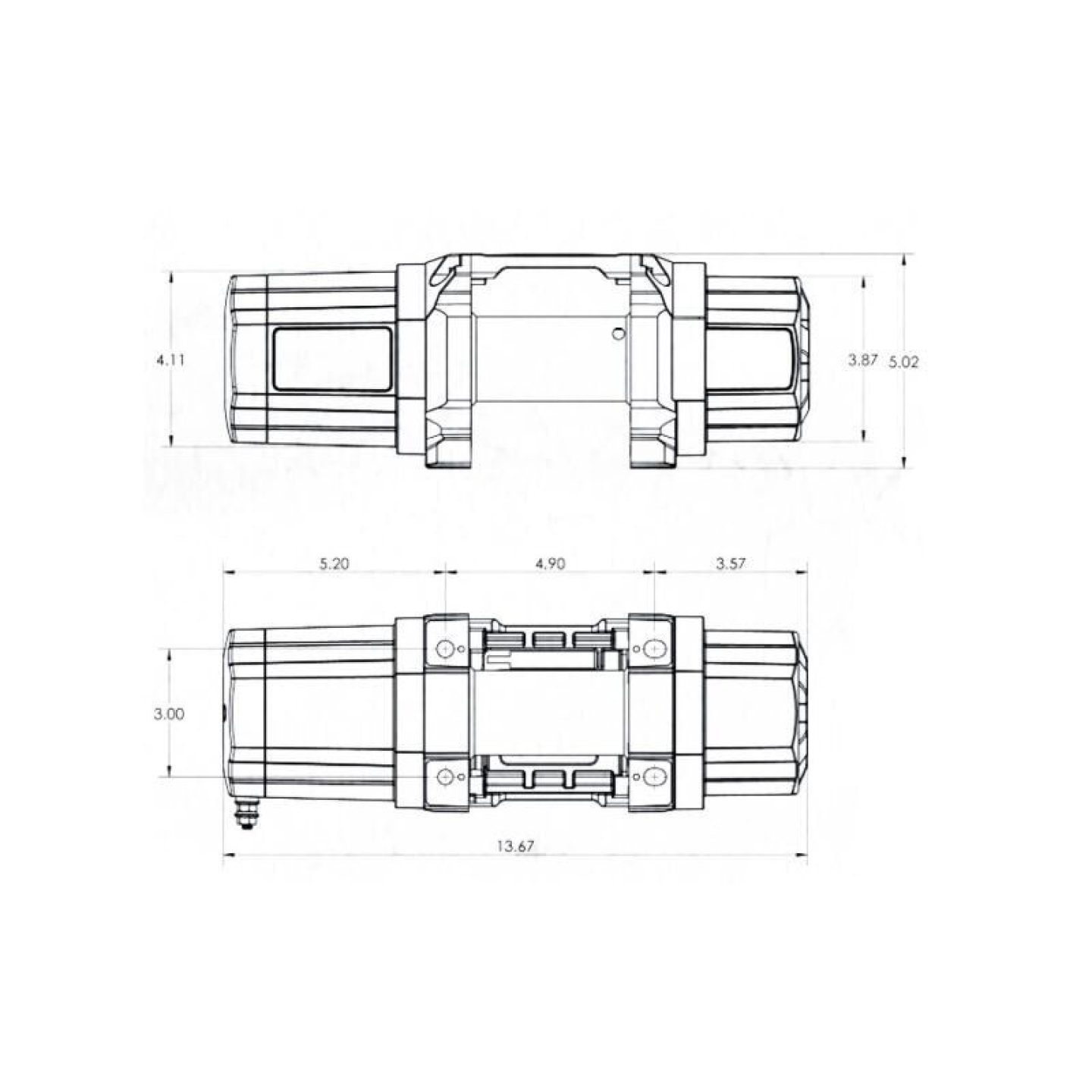

• Mounting bolt pattern 4.88" x 3.0"

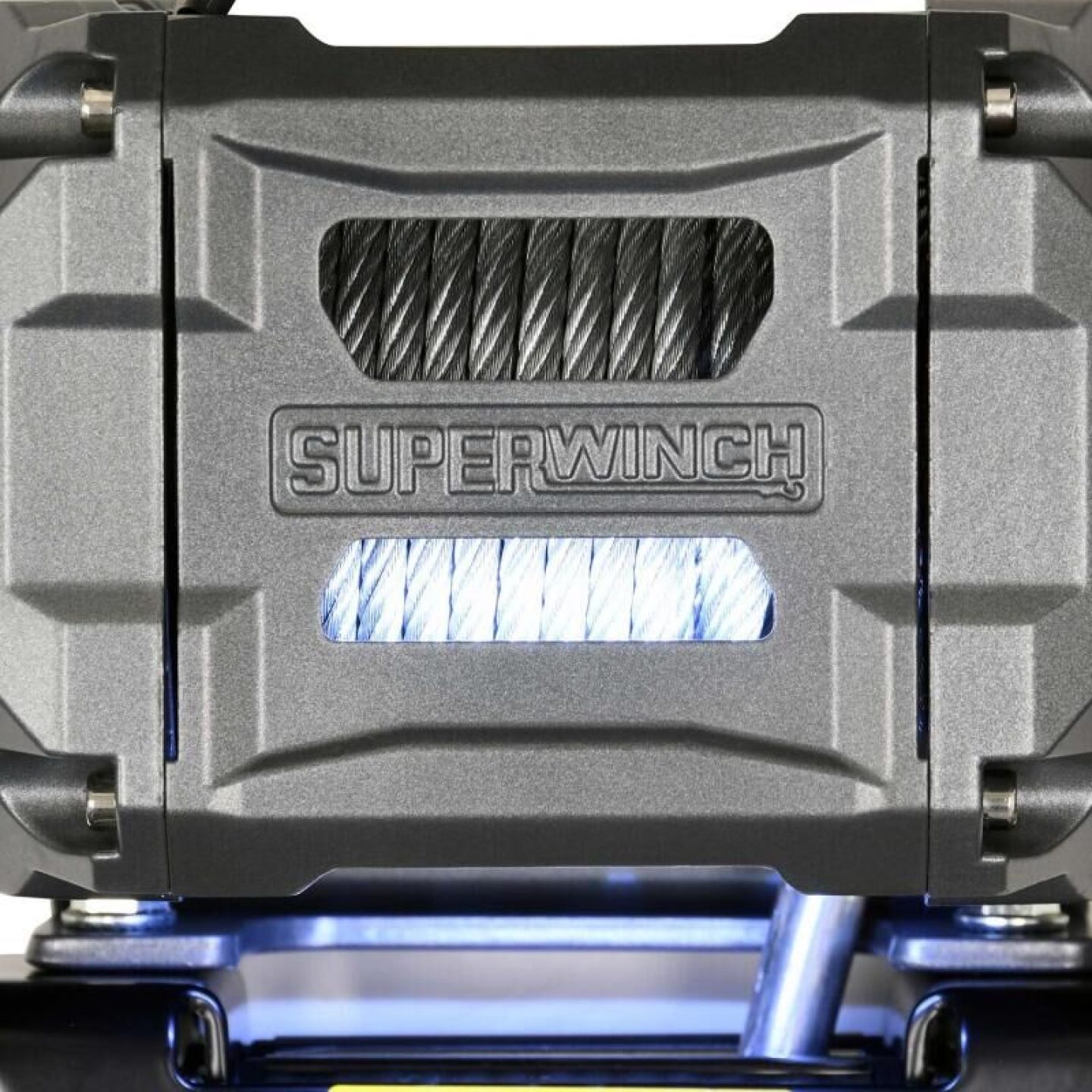

• Patented drum light
• Synthetic Rope Measures 7/32 in. X 40 ft.

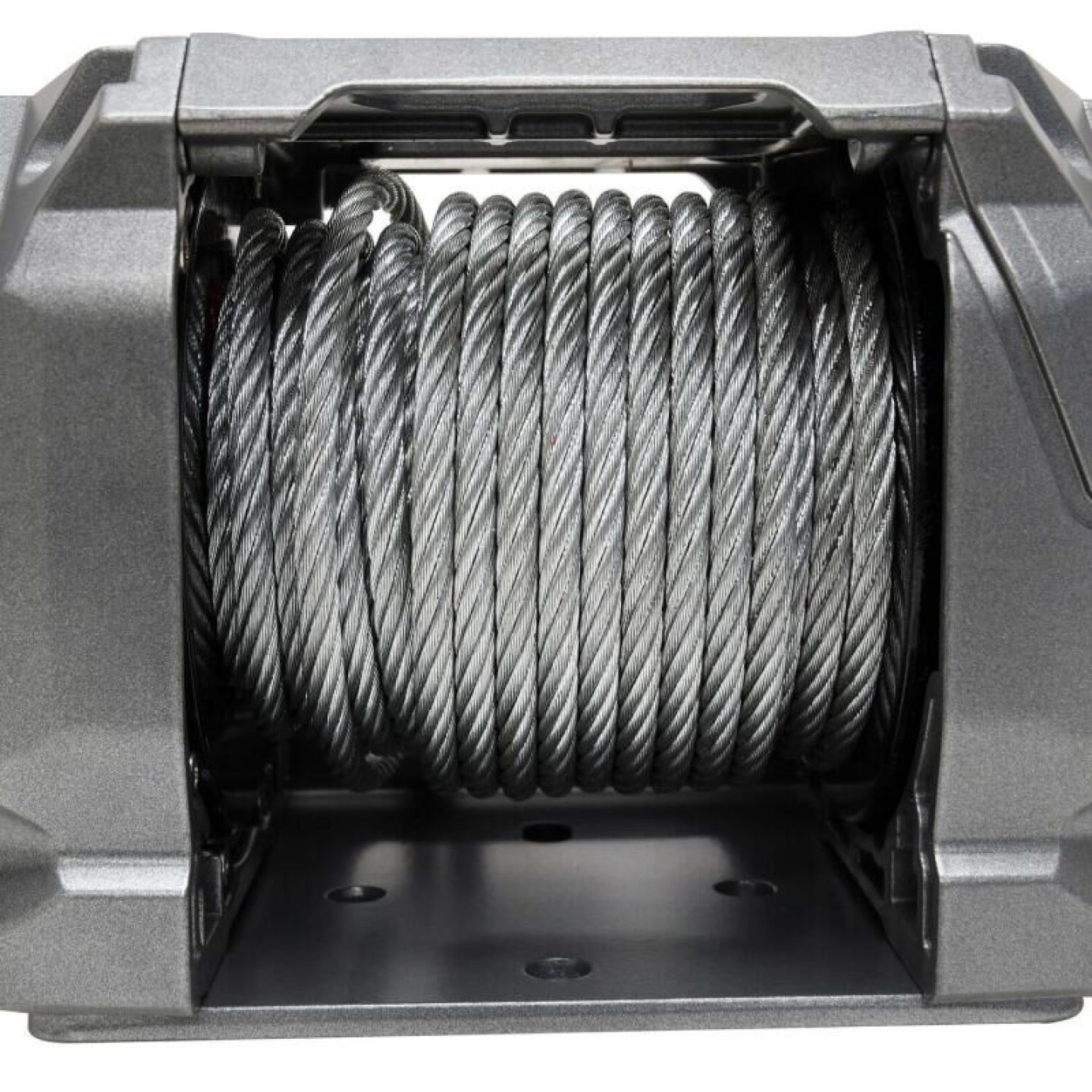

• Wire rope measures 7/32 in. x 40 ft.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Winch, SP 35 Series, Electric, 12 V, Roller Fairlead, 3,500 lbs.Pull Rating, 40 ft. Cable, Kit

Superwinch SP 35 Series winches are the ultimate powersports winches for your off-road adventures. With a robust 3,500 lbs. rated line pull and a powerful 1.6 hp permanent magnetic motor providing dynamic braking, you will conquer any obstacle with ease. They feature 3-stage planetary gearing with a 198:1 ratio, ensuring smooth and reliable operation, while their ergonomic twist lock clutch allows for effortless engagement. Each SP 35 Series winch is equipped with a patented drum light for enhanced visibility, a full load automatic brake, and a heavy-duty 1/4 in. clevis winch hook, guaranteeing safety and reliability. Plus, you can enjoy the convenience of dash-mounted control switches and a 10 ft. handheld remote with a handlebar rocker switch for easy operation from a distance.

Superwinch SP 35 powersports winches are available with steel wire rope or synthetic rope (35SR) measuring 7/32 in. x 40 ft., offering ample reach for your toughest pulls, and include a 4-way stainless steel roller fairlead (wire rope) or aluminum hawse fairlead (synthetic rope). Backed by a Limited Lifetime mechanical warranty and a limited 3-year electrical warranty, Superwinch SP 35 Series winches are your trusted winch for every adventure. Select the winch best suited to your recovery needs.

Additional features:
• Full load holding automatic brake
• Drum measures 1.96 in. x 3.74 in.
• IP68-rated waterproof and dustproof
• Mounting bolt pattern 4.88 in. x 3.0 in.
• Durable metallic graphite powdercoat finish
